Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. For additional information, refer to ENGINE COOLING .
Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the heater hoses from the heater core.

Fig 1: Disconnecting Heater Hoses From Heater Core
Courtesy of FORD MOTOR CO.
Disconnect the vacuum harness connector.

Fig 2: Identifying Vacuum Harness Connector
Courtesy of FORD MOTOR CO.
Remove the lower retaining nuts.

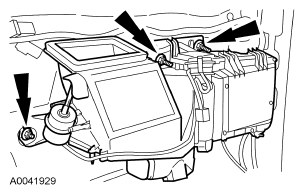

Fig 3: Locating Lower Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the upper retaining nuts and remove the plenum chamber.

Fig 4: Locating Upper Retaining Nuts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Lubricate the coolant hoses with plain water only if needed.
Fill the engine cooling system. For additional information, refer to ENGINE COOLING .
