Pinpoint Test Q: The Luggage Compartment Door Is Inoperative Using The Remote Transmitter

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The luggage compartment key cylinder will not arm/disarm the perimeter alarm. Once armed, the perimeter alarm can only be disarmed using the remote transmitter or the driver door lock cylinder switch.

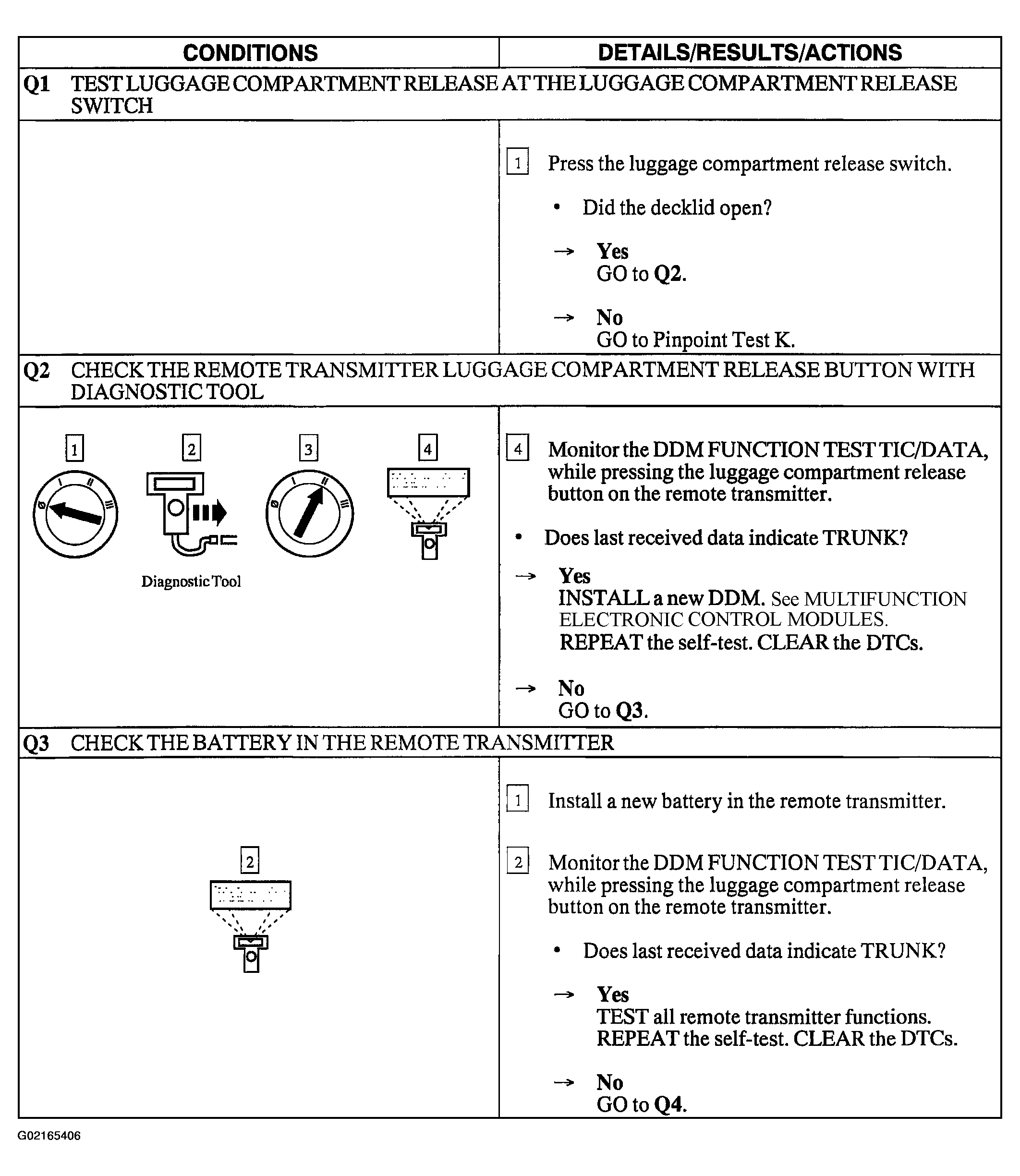

Fig 1: Pinpoint Test Q: The Luggage Compartment Door Is Inoperative Using The Remote Transmitter (Steps Q1-Q3)
G02165406Courtesy of FORD MOTOR CO.

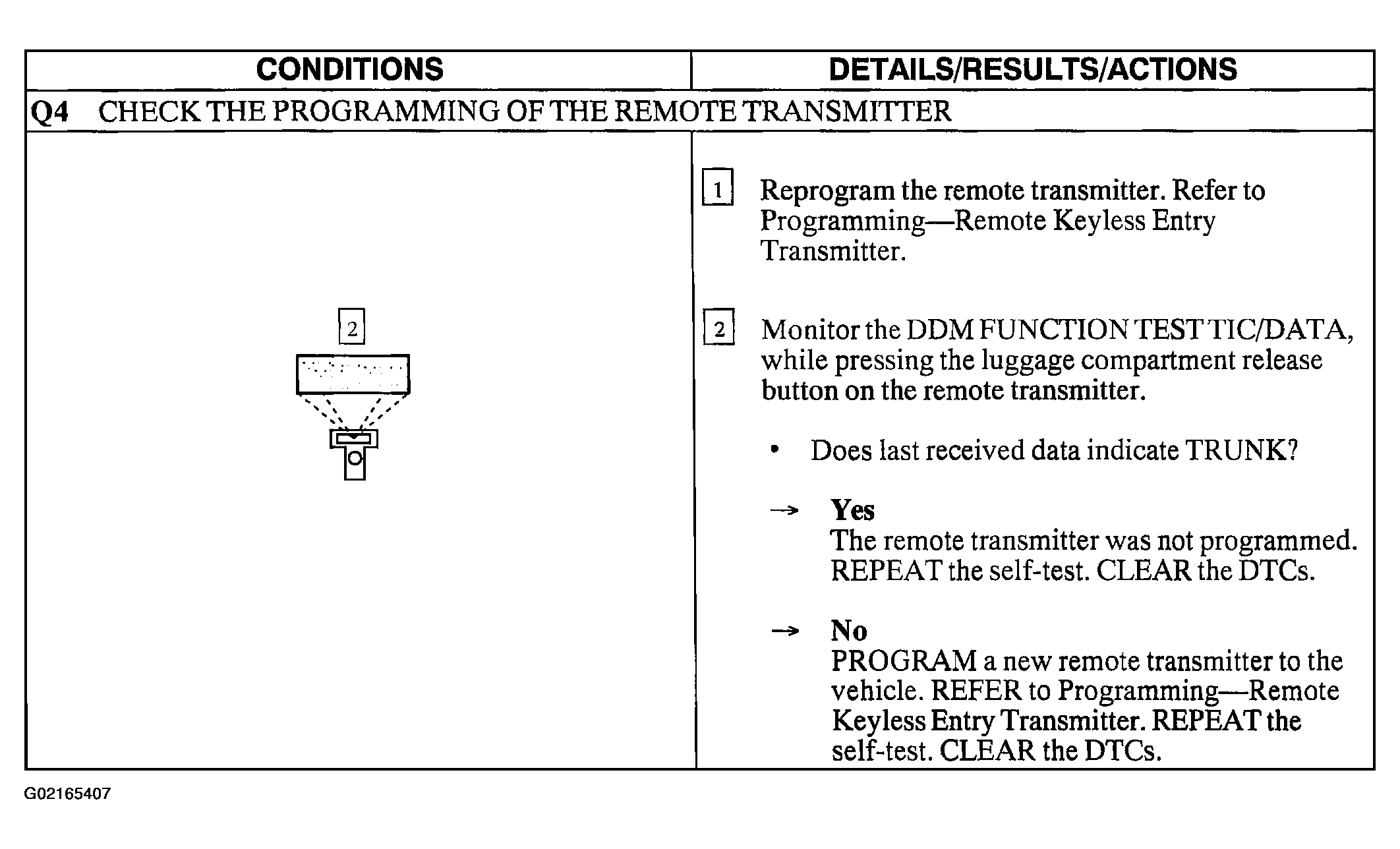

Fig 2: Pinpoint Test Q: The Luggage Compartment Door Is Inoperative Using The Remote Transmitter (Step Q4)
G02165407Courtesy of FORD MOTOR CO.
