Pinpoint Test K: The Luggage Compartment Door Is Inoperative - From Release Switch And Remote Transmitter

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The luggage compartment key cylinder will not arm/disarm the perimeter alarm. Once armed, the perimeter can only be disarmed using the remote transmitter or the driver door lock cylinder switch.

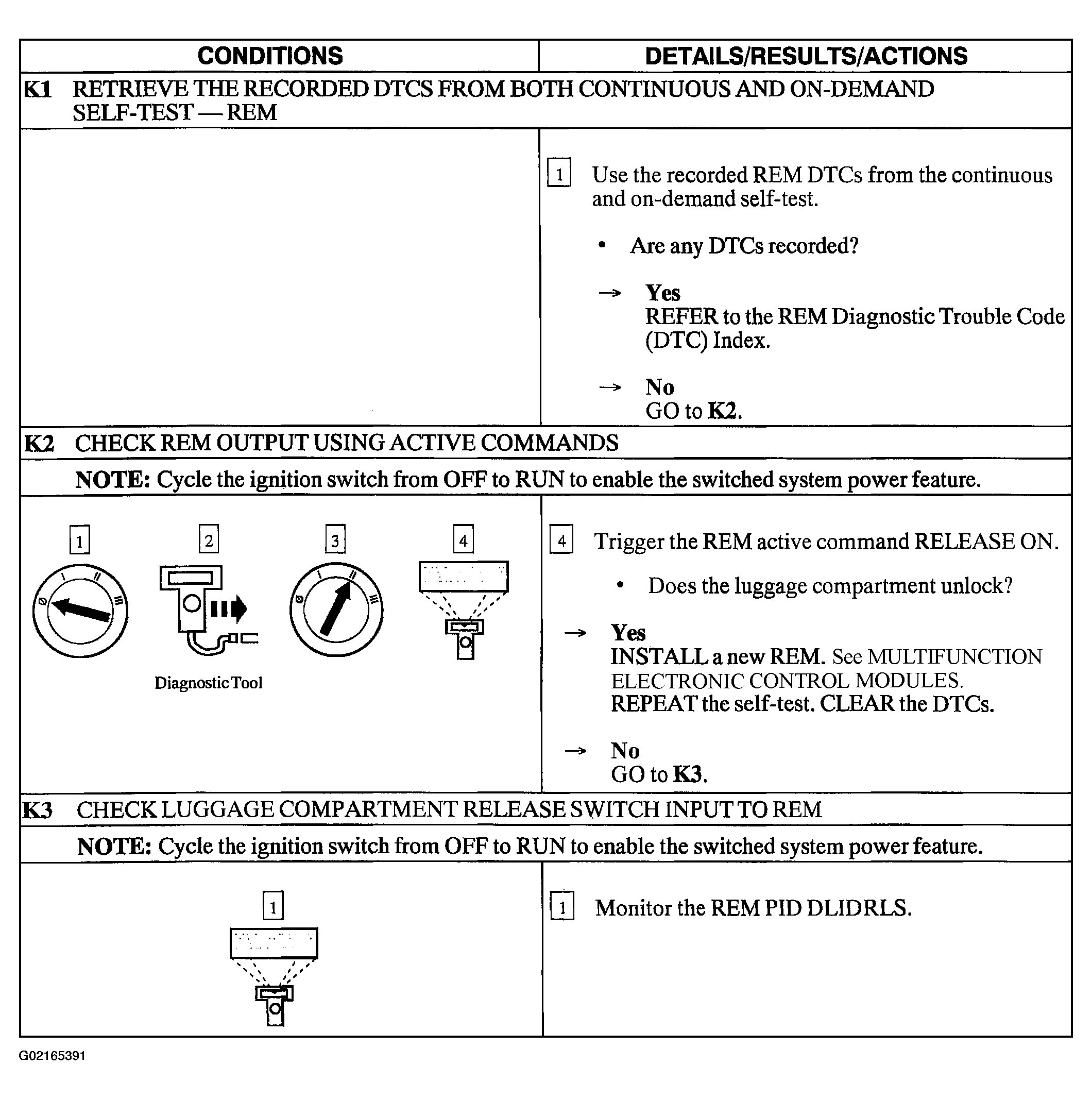

Fig 1: Pinpoint Test K: The Luggage Compartment Door Is Inoperative - From Release Switch And Remote Transmitter (Steps K1-K3)

Courtesy of FORD MOTOR CO.

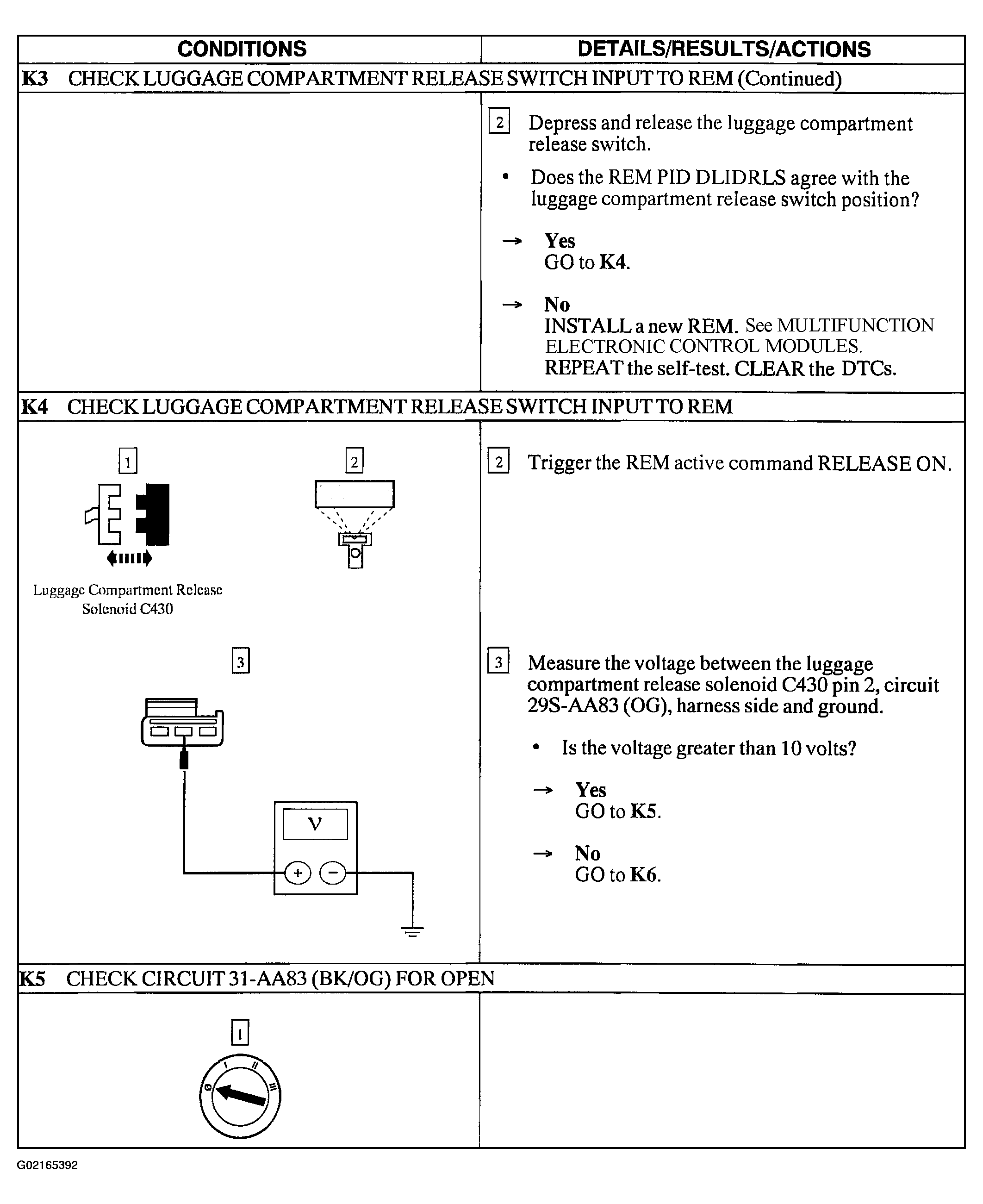

Fig 2: Pinpoint Test K: The Luggage Compartment Door Is Inoperative - From Release Switch And Remote Transmitter (Steps K3 Cont. -K5)

Courtesy of FORD MOTOR CO.

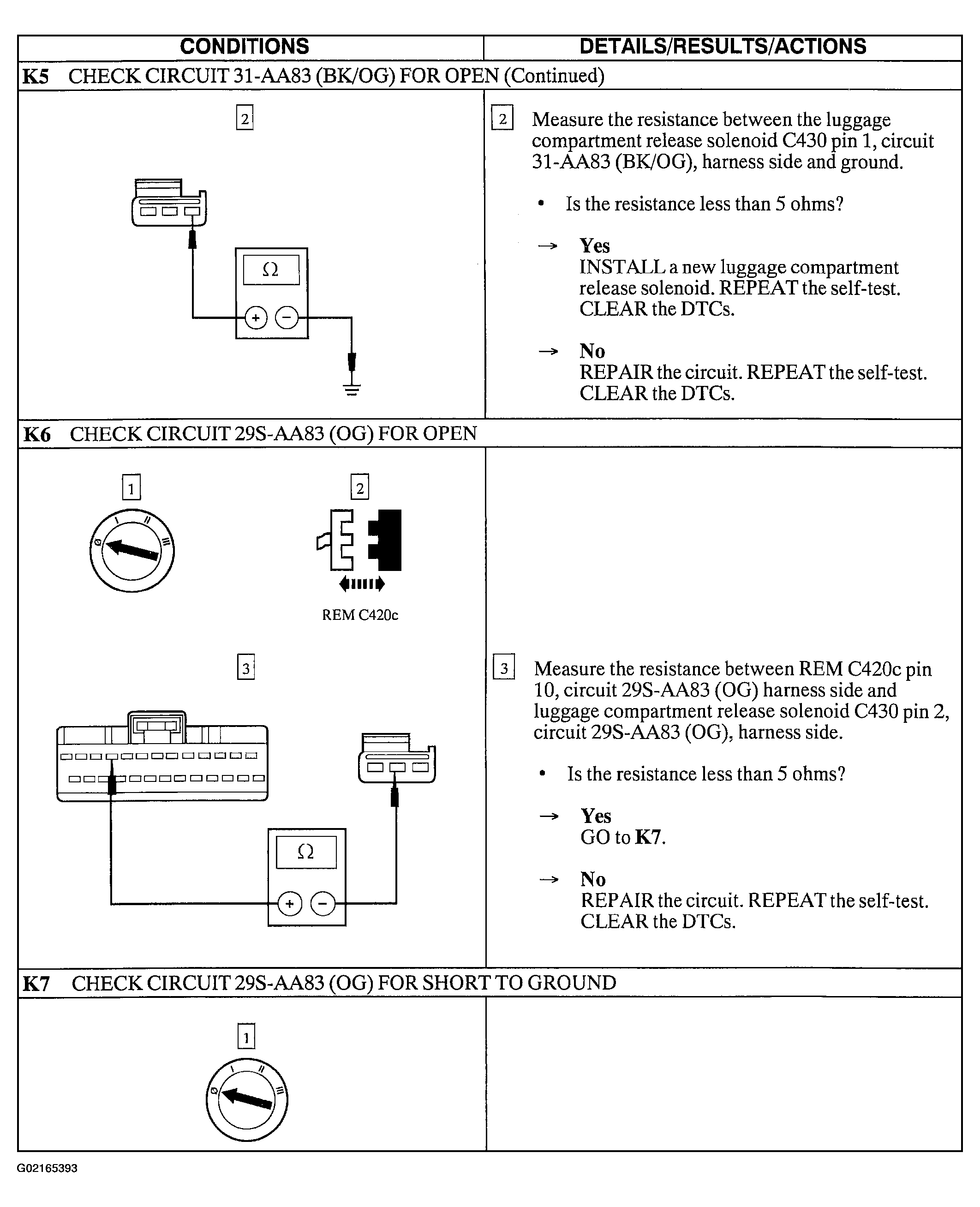

Fig 3: Pinpoint Test K: The Luggage Compartment Door Is Inoperative - From Release Switch And Remote Transmitter (Steps K5 Cont. -K7)

Courtesy of FORD MOTOR CO.

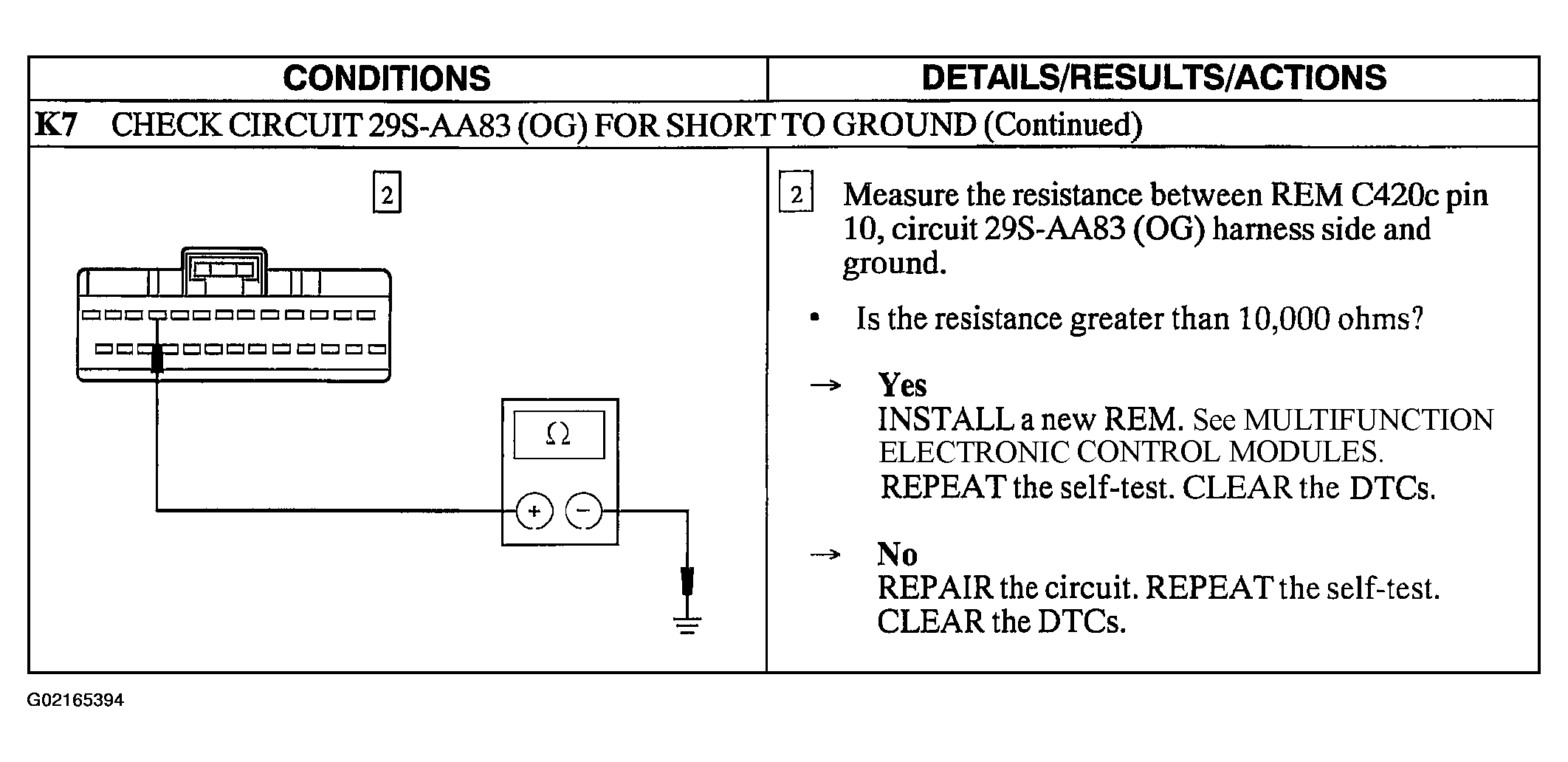

Fig 4: Pinpoint Test K: The Luggage Compartment Door Is Inoperative - From Release Switch And Remote Transmitter (Step K7 Cont.)

Courtesy of FORD MOTOR CO.
