Pinpoint Test J: The Luggage Compartment Door Is Inoperative - From Release Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

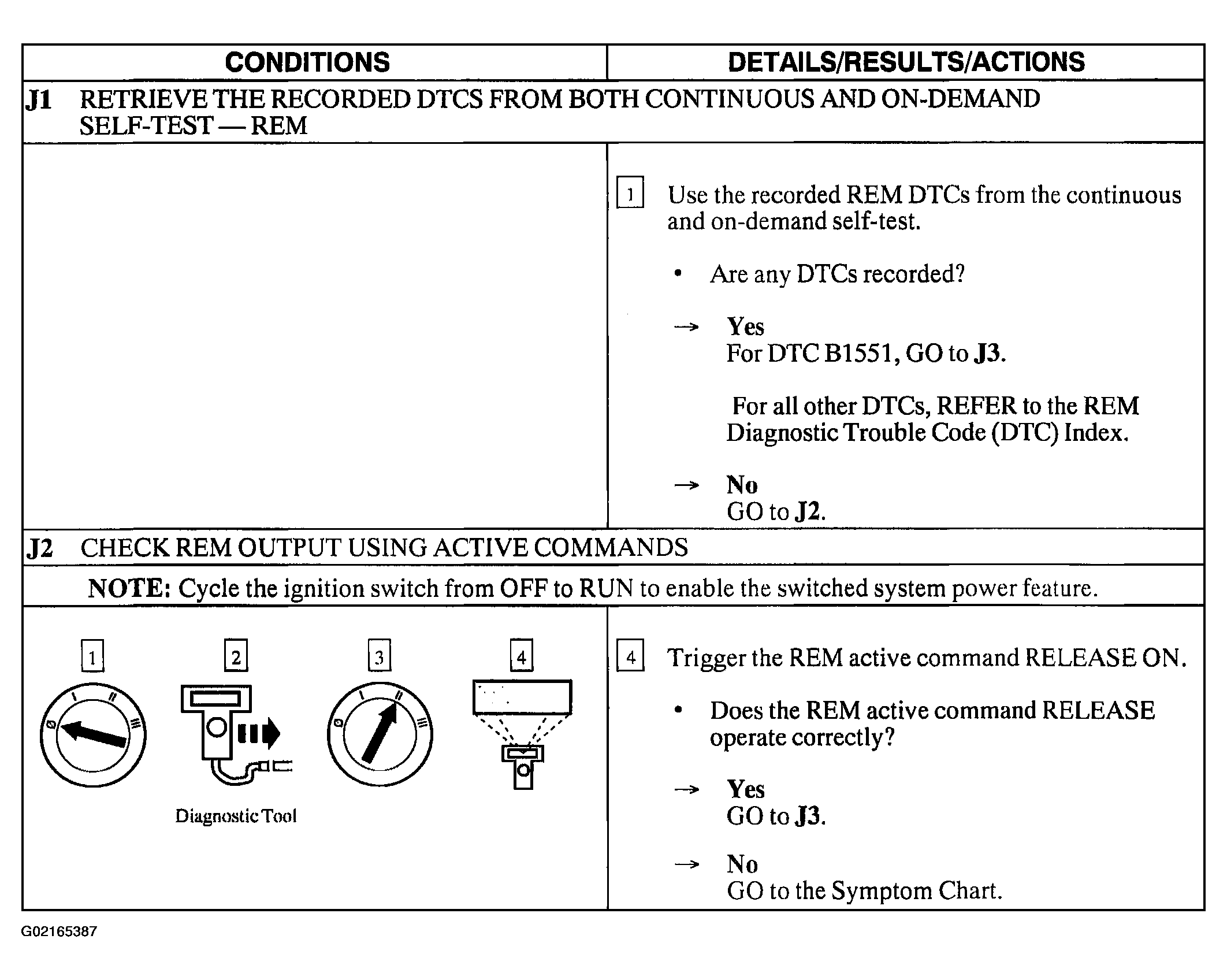

Fig 1: Pinpoint Test J: The Luggage Compartment Door Is Inoperative - From Release Switch (Steps J1-J2)

Courtesy of FORD MOTOR CO.

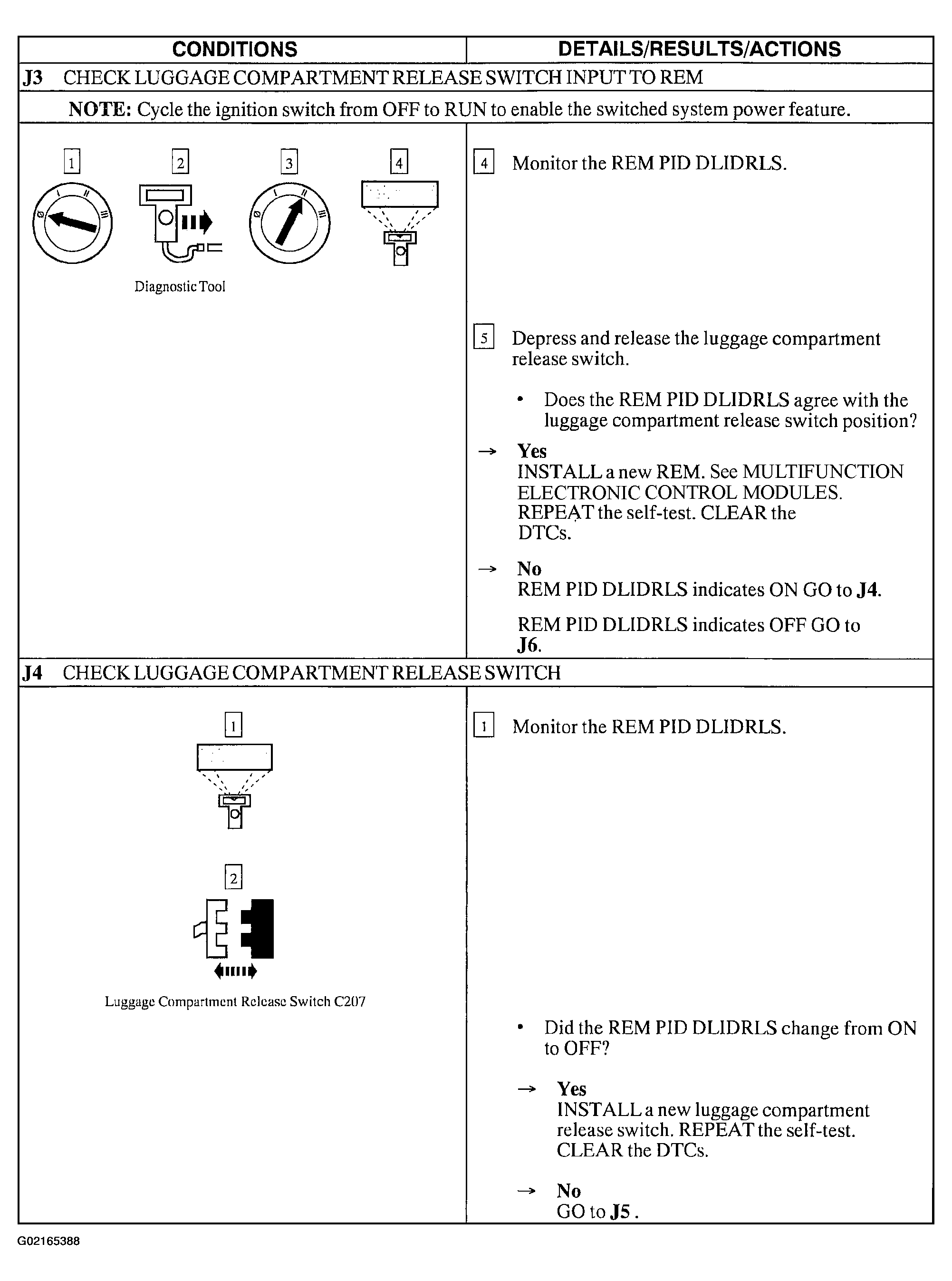

Fig 2: Pinpoint Test J: The Luggage Compartment Door Is Inoperative - From Release Switch (Steps J3-J4)

Courtesy of FORD MOTOR CO.

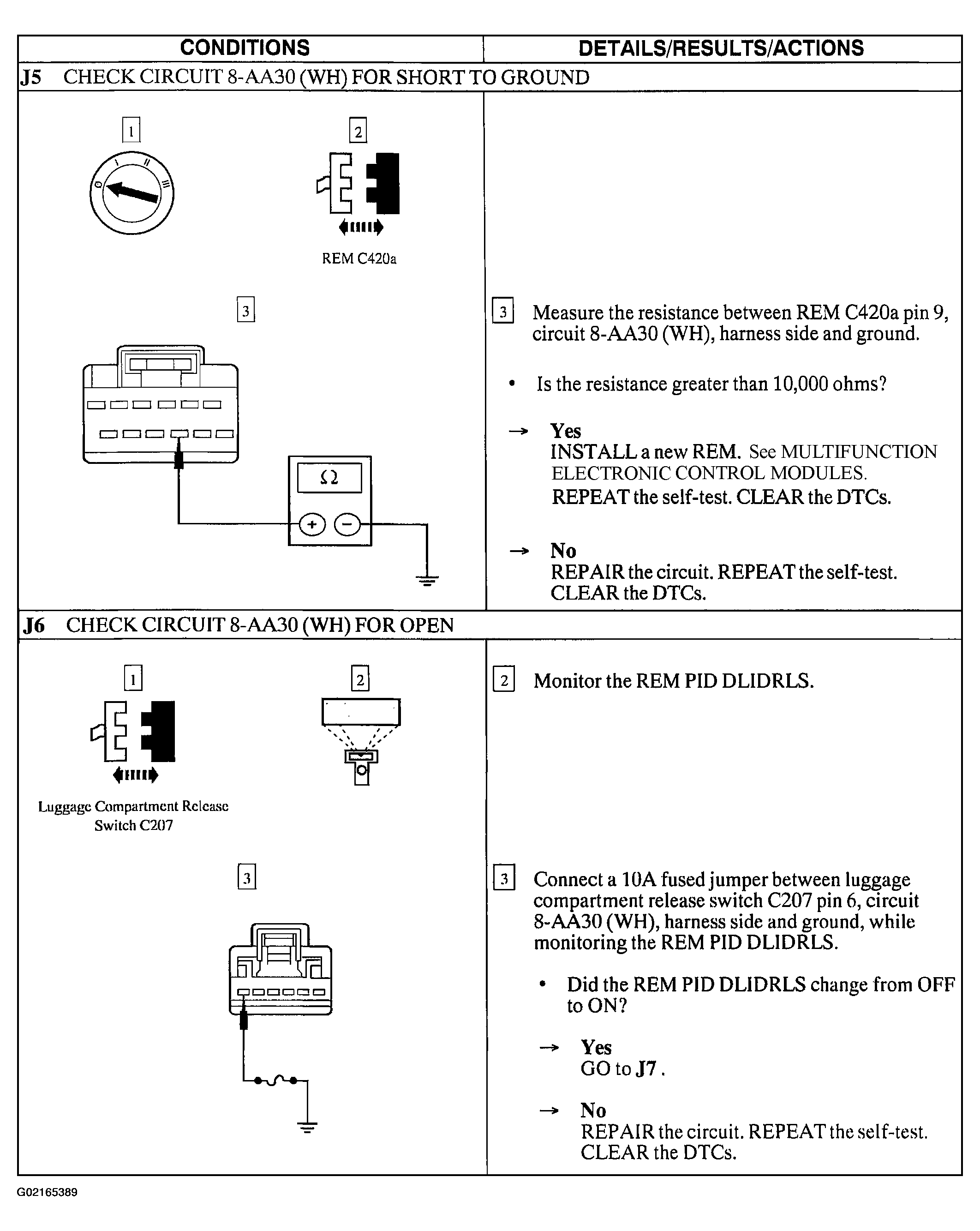

Fig 3: Pinpoint Test J: The Luggage Compartment Door Is Inoperative - From Release Switch (Steps J5-J6)

Courtesy of FORD MOTOR CO.

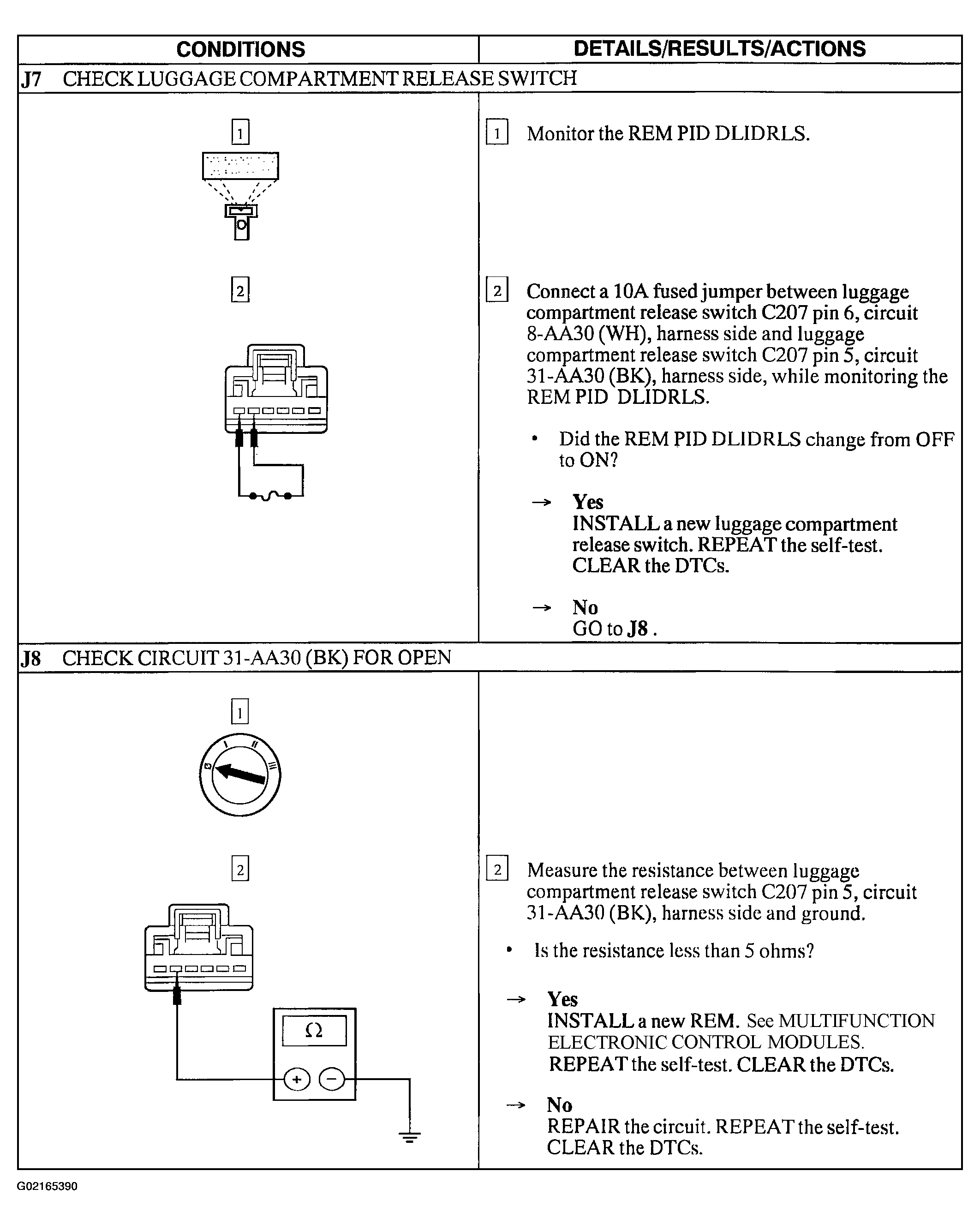

Fig 4: Pinpoint Test J: The Luggage Compartment Door Is Inoperative - From Release Switch (Steps J7-J8)

Courtesy of FORD MOTOR CO.
