Pinpoint Test I: A Single Door Lock Is Inoperative - Left Rear Door

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

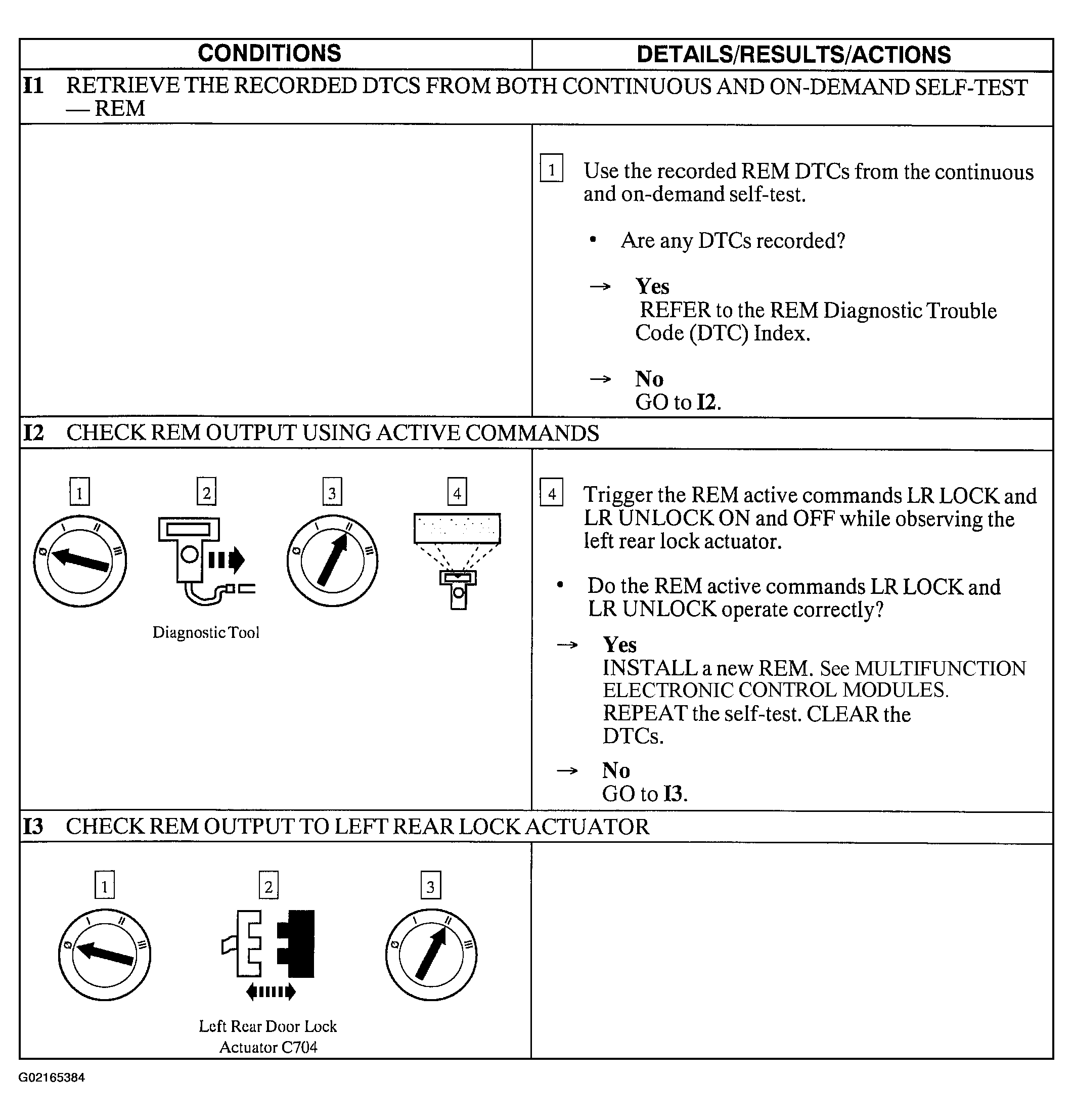

Fig 1: Pinpoint Test I: A Single Door Lock Is Inoperative - Left Rear Door (Steps I1-I3)

Courtesy of FORD MOTOR CO.

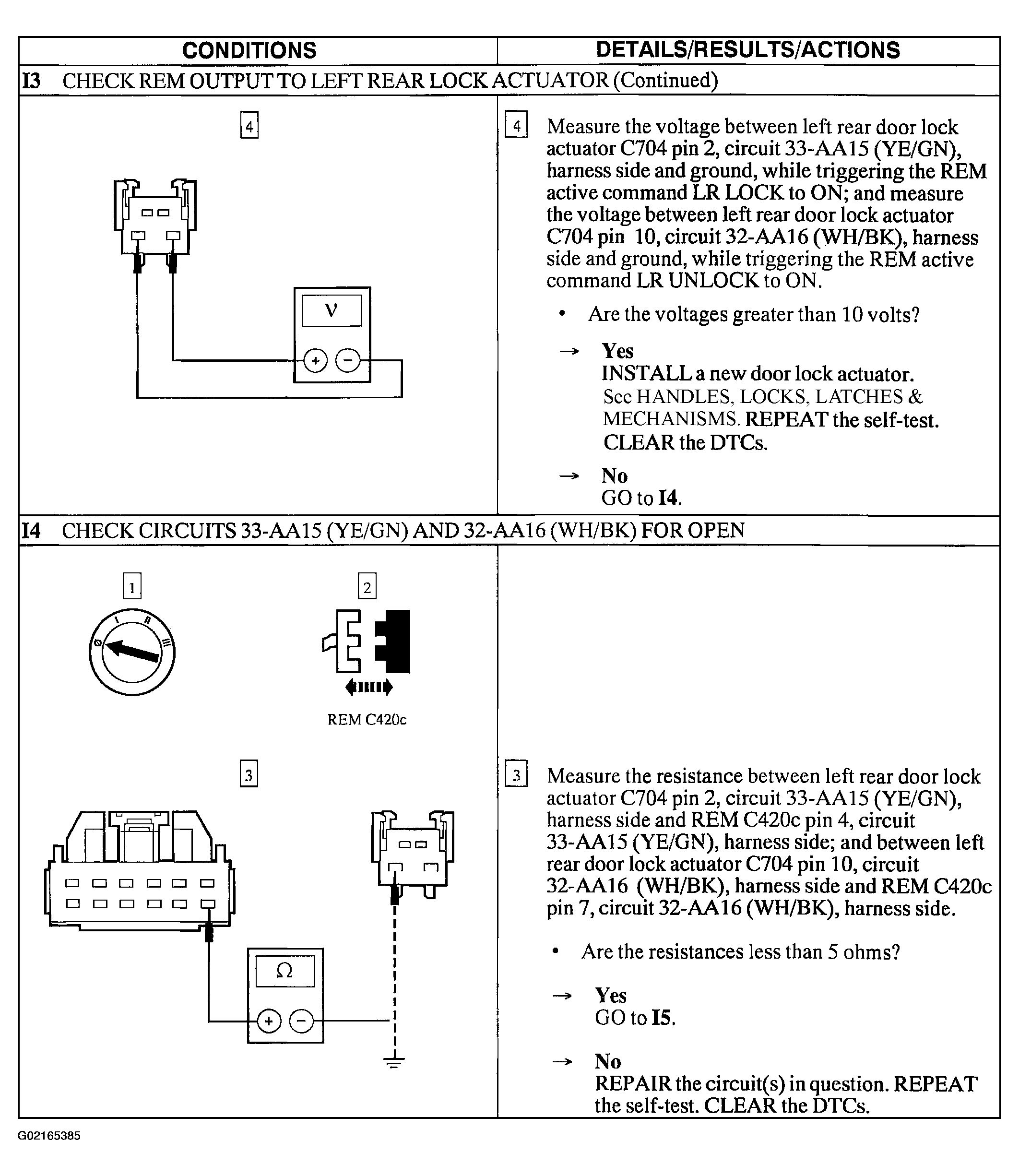

Fig 2: Pinpoint Test I: A Single Door Lock Is Inoperative - Left Rear Door (Steps I3 Cont. -I4)

Courtesy of FORD MOTOR CO.

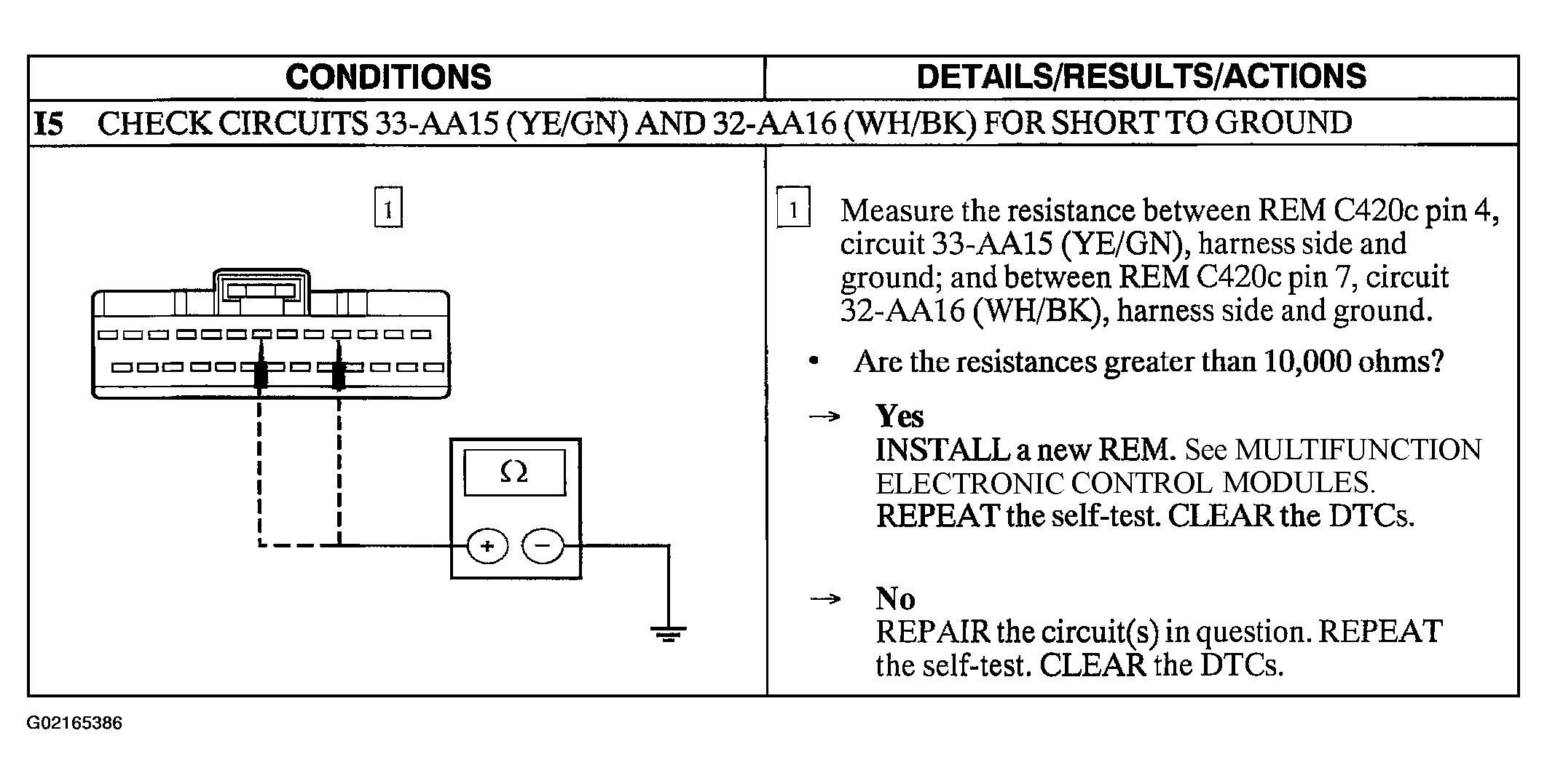

Fig 3: Pinpoint Test I: A Single Door Lock Is Inoperative - Left Rear Door (Step I5)

Courtesy of FORD MOTOR CO.
