Pinpoint Test F: A Single Door Lock Is Inoperative - Driver Door

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

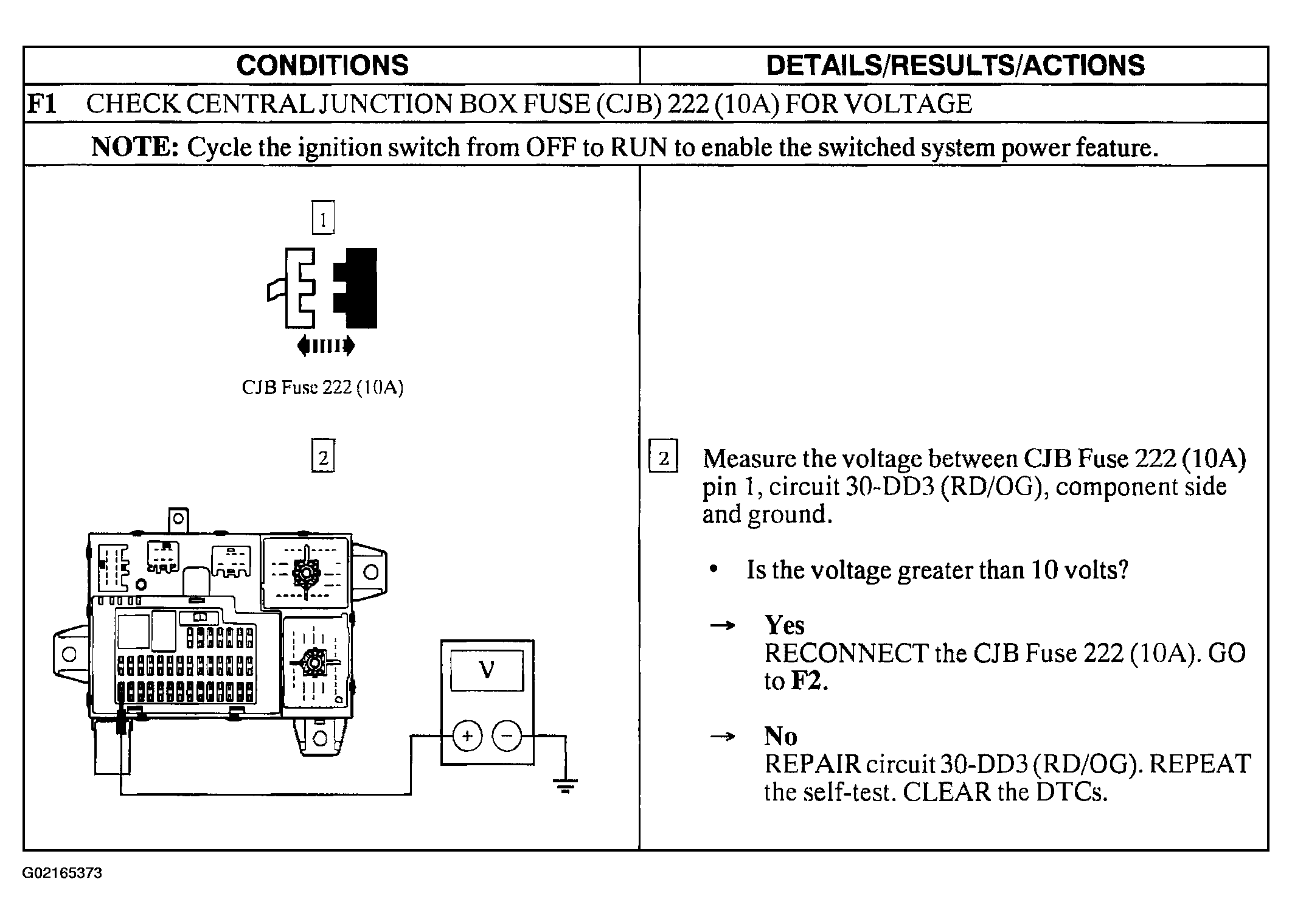

Fig 1: Pinpoint Test F: A Single Door Lock Is Inoperative - Driver Door (Step F1)

Courtesy of FORD MOTOR CO.

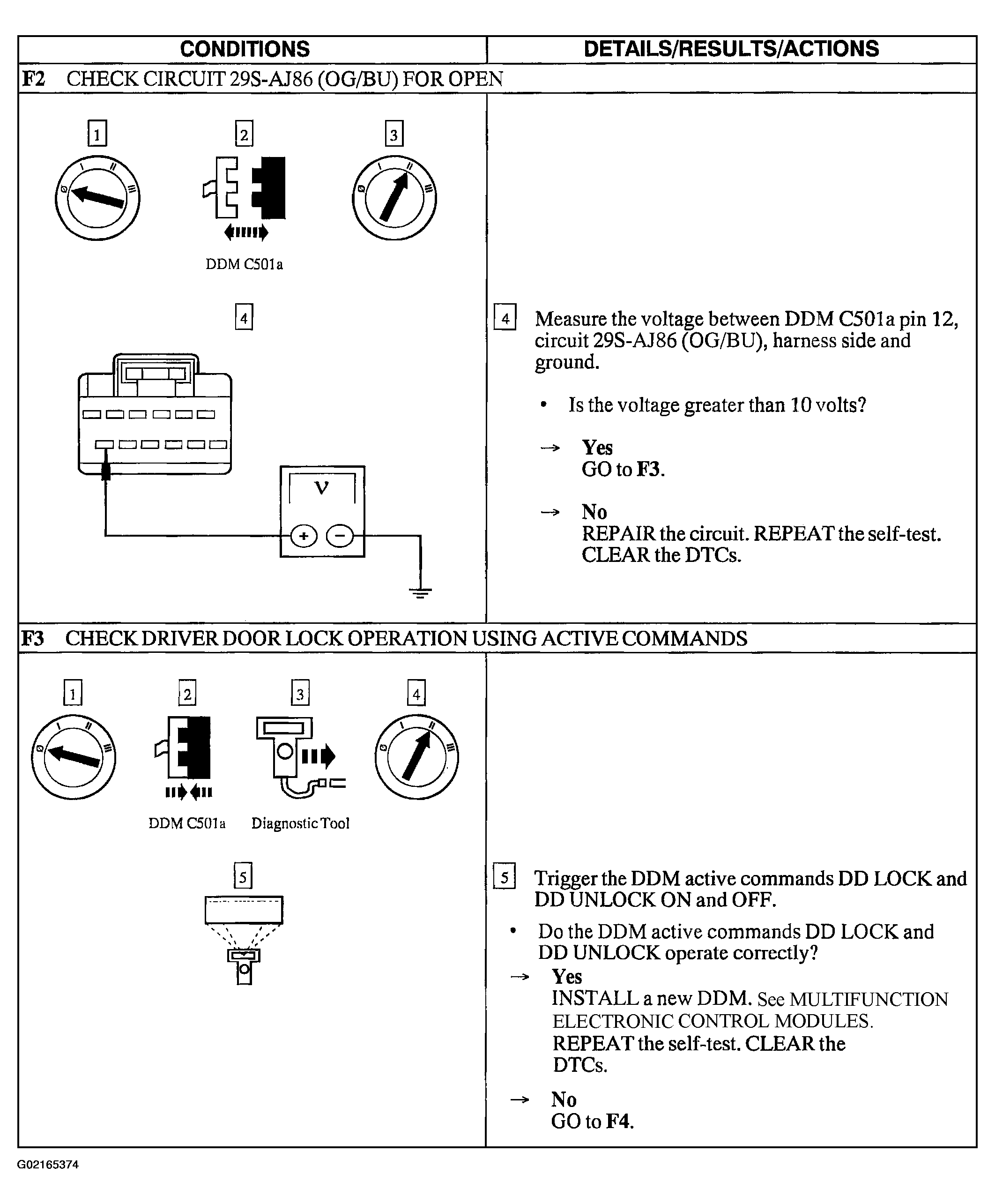

Fig 2: Pinpoint Test F: A Single Door Lock Is Inoperative - Driver Door (Steps F2-F3)

Courtesy of FORD MOTOR CO.

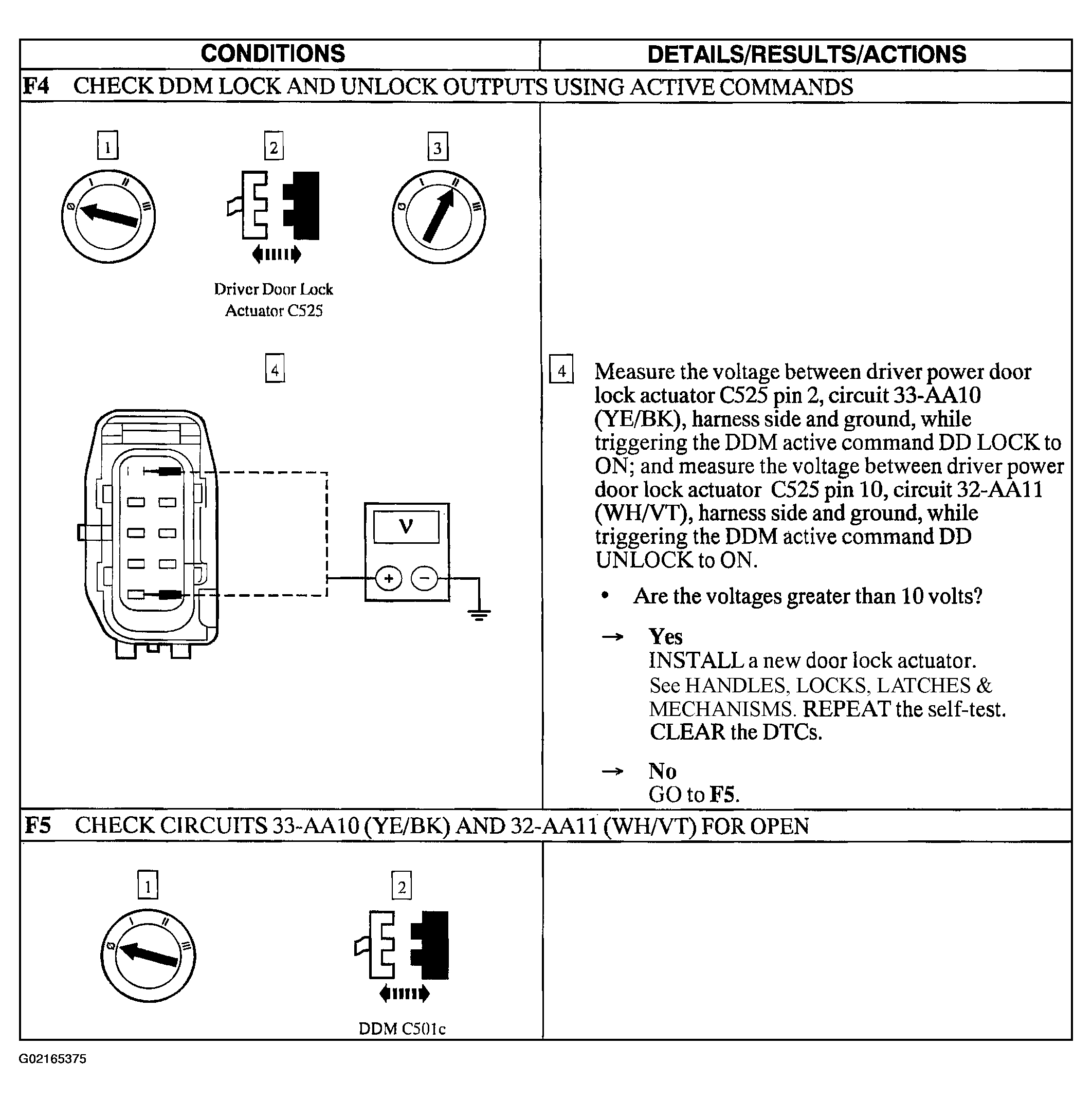

Fig 3: Pinpoint Test F: A Single Door Lock Is Inoperative - Driver Door (Steps F4-F5)

Courtesy of FORD MOTOR CO.

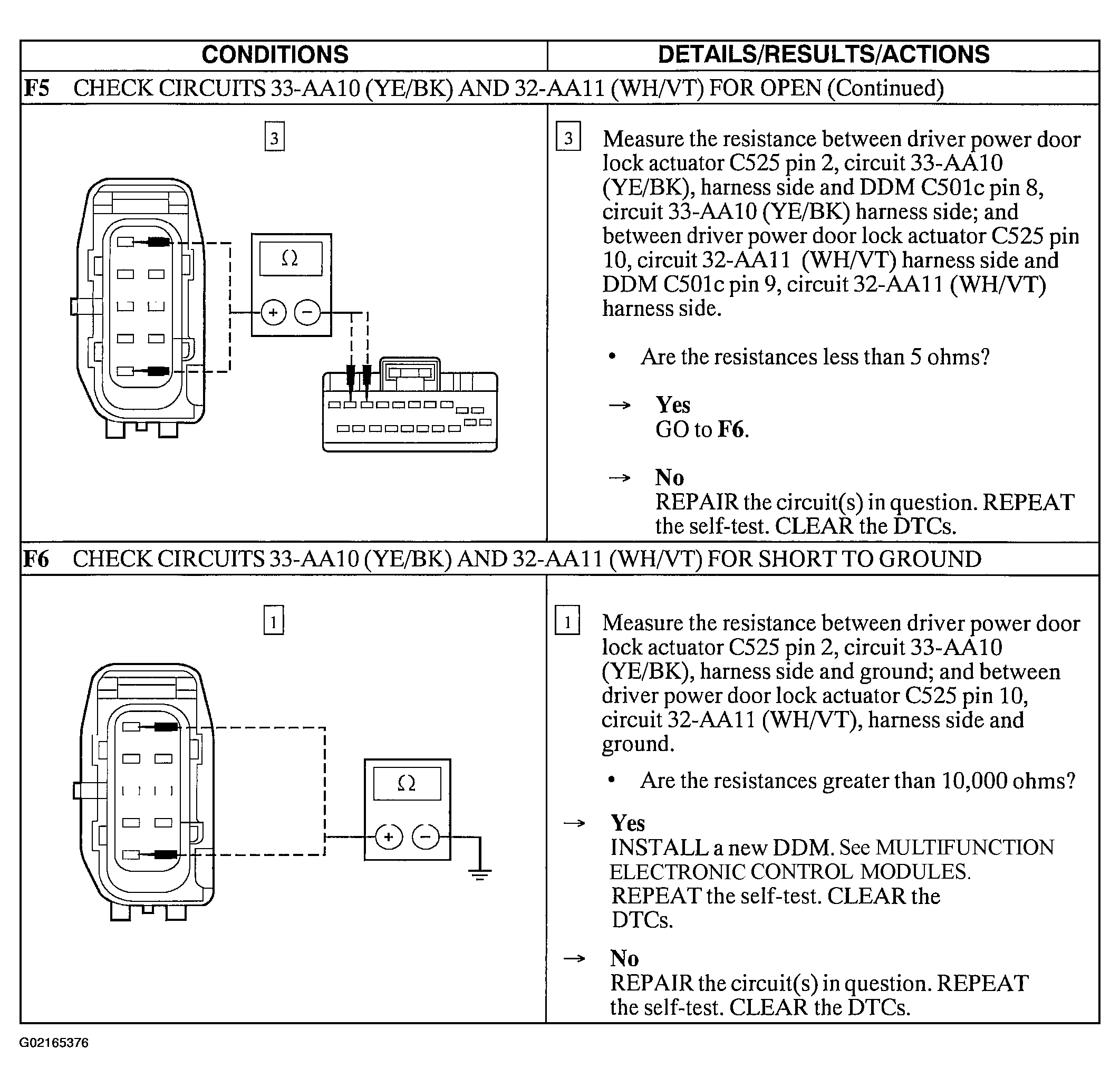

Fig 4: Pinpoint Test F: A Single Door Lock Is Inoperative - Driver Door (Steps F5 Cont. -F6)

Courtesy of FORD MOTOR CO.
