Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

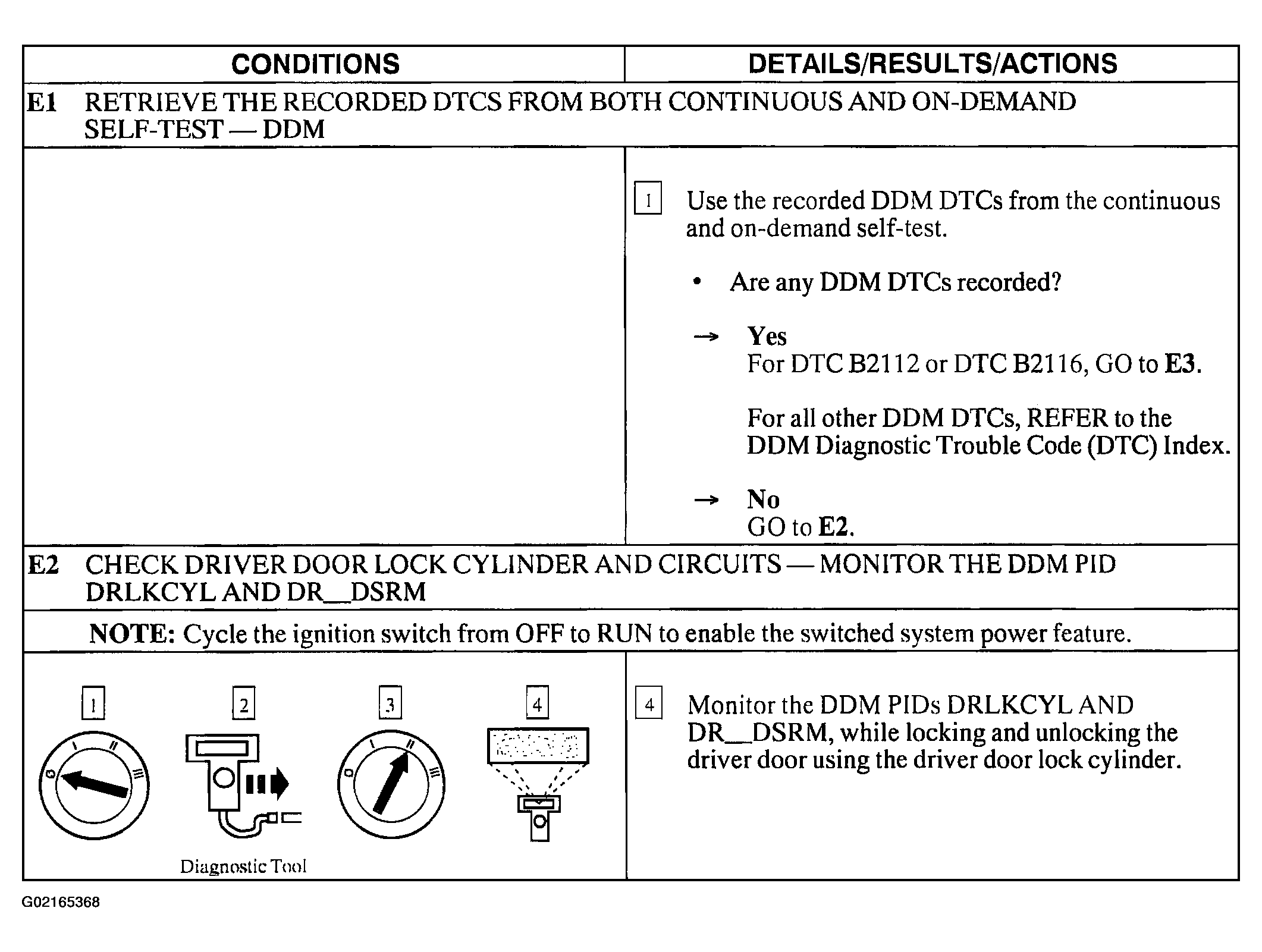

Fig 1: Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder (Steps E1-E2)

Courtesy of FORD MOTOR CO.

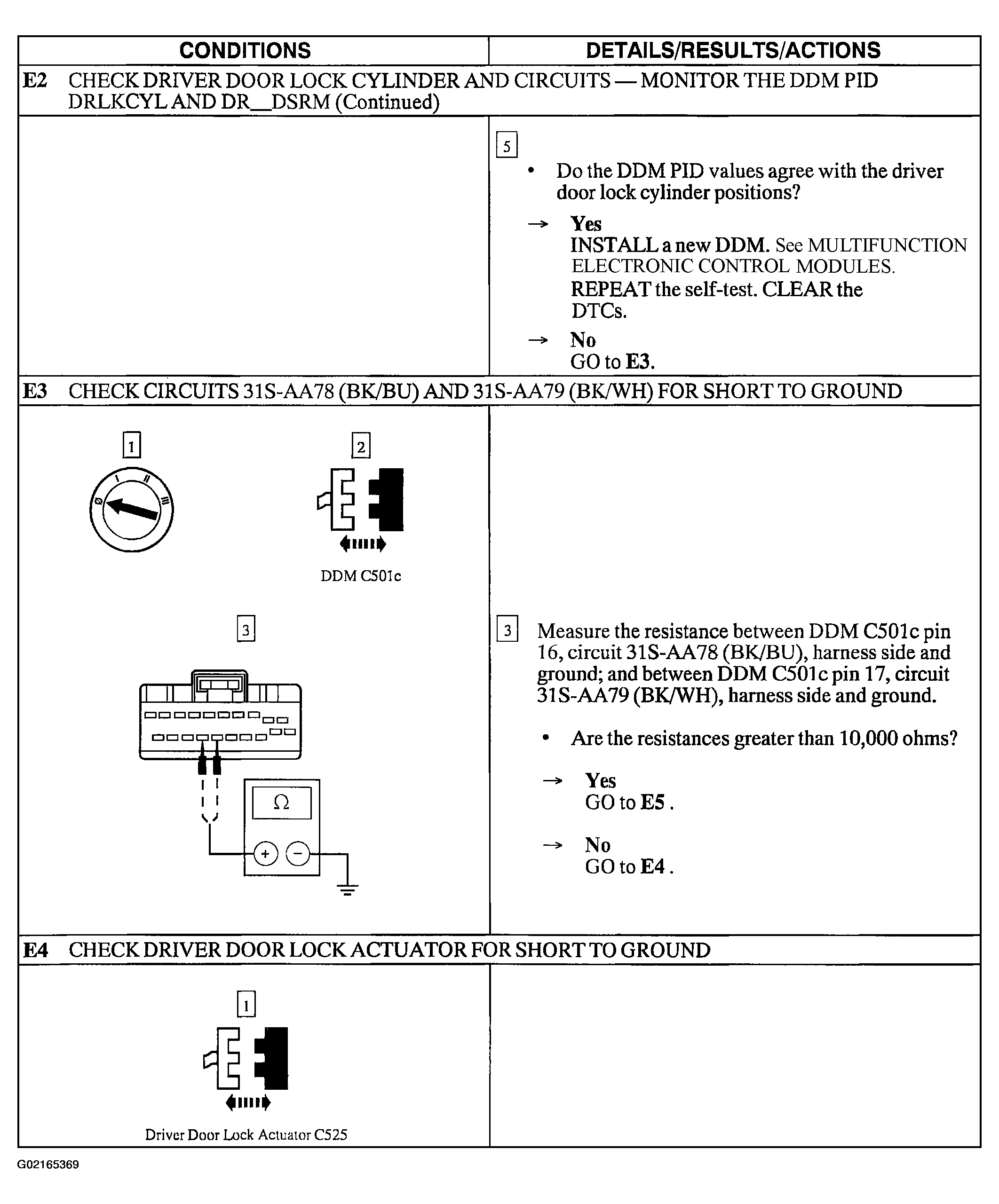

Fig 2: Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder (Steps E2 Cont. -E4)

Courtesy of FORD MOTOR CO.

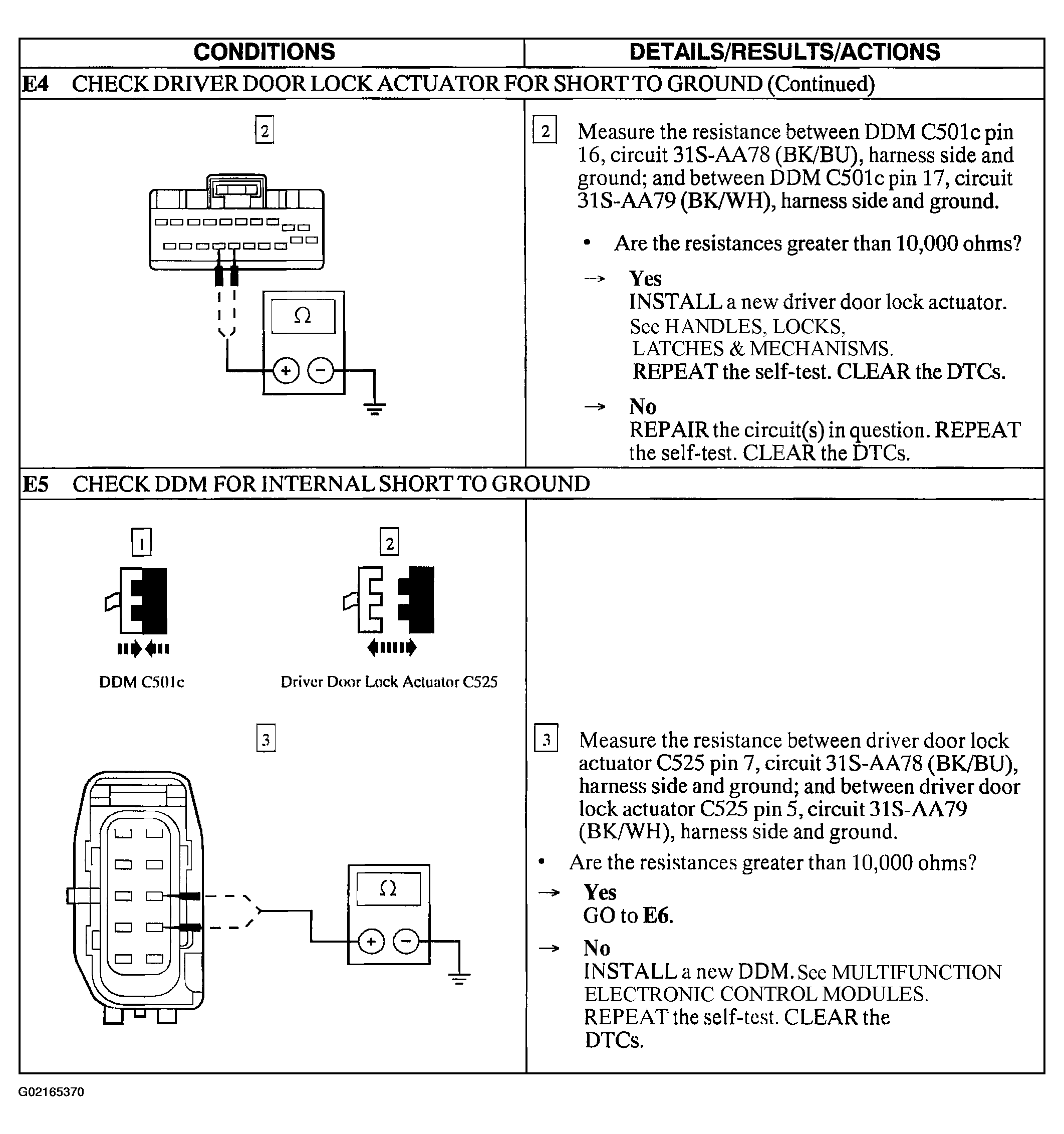

Fig 3: Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder (Steps E4 Cont. -E5)

Courtesy of FORD MOTOR CO.

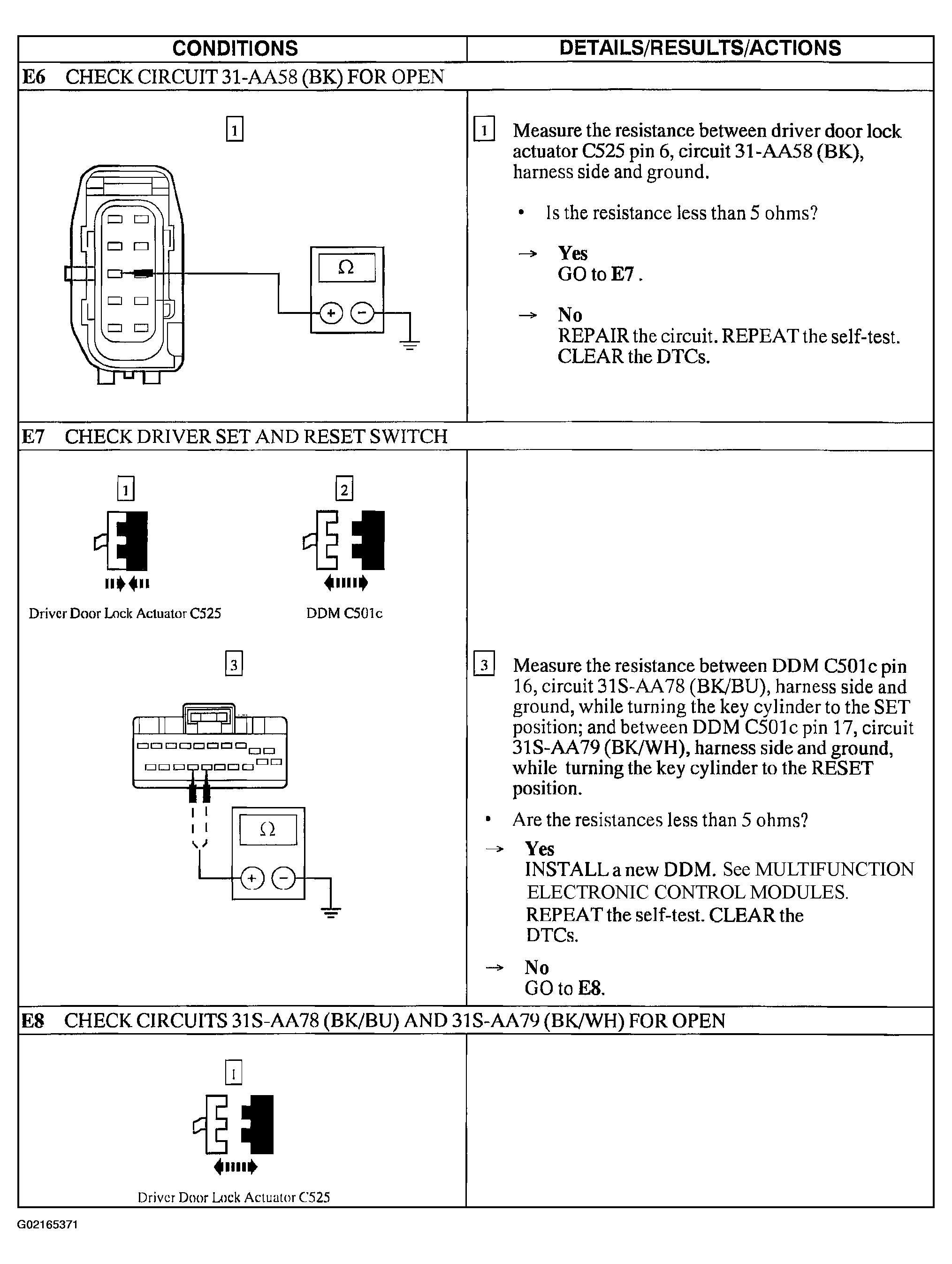

Fig 4: Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder (Steps E6-E8)

Courtesy of FORD MOTOR CO.

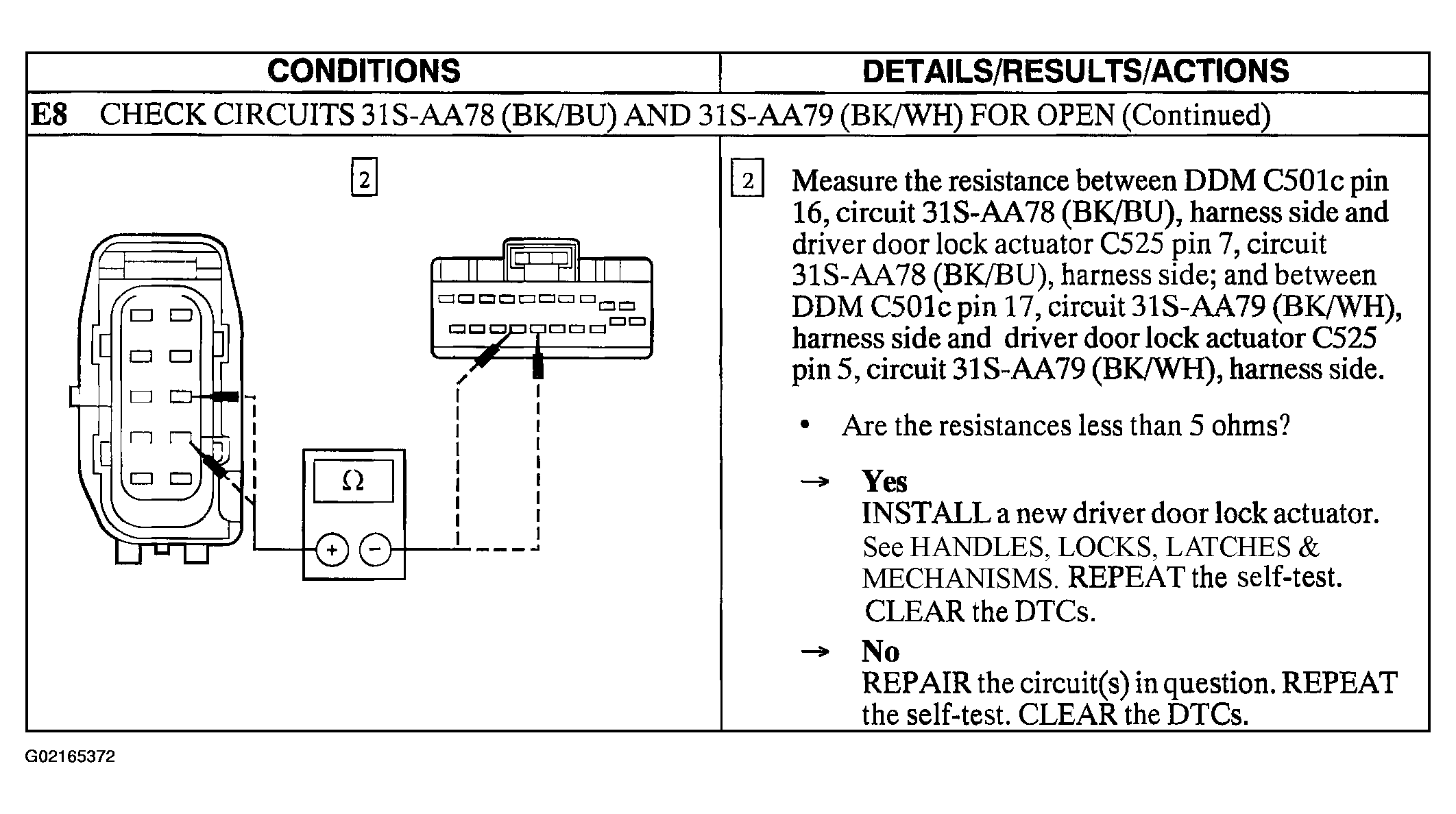

Fig 5: Pinpoint Test E: All Door Locks Are Inoperative - From Driver Door Lock Cylinder (Step E8 Cont.)

Courtesy of FORD MOTOR CO.
