Pinpoint Test D: All Door Locks Are Inoperative - From Passenger Door Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

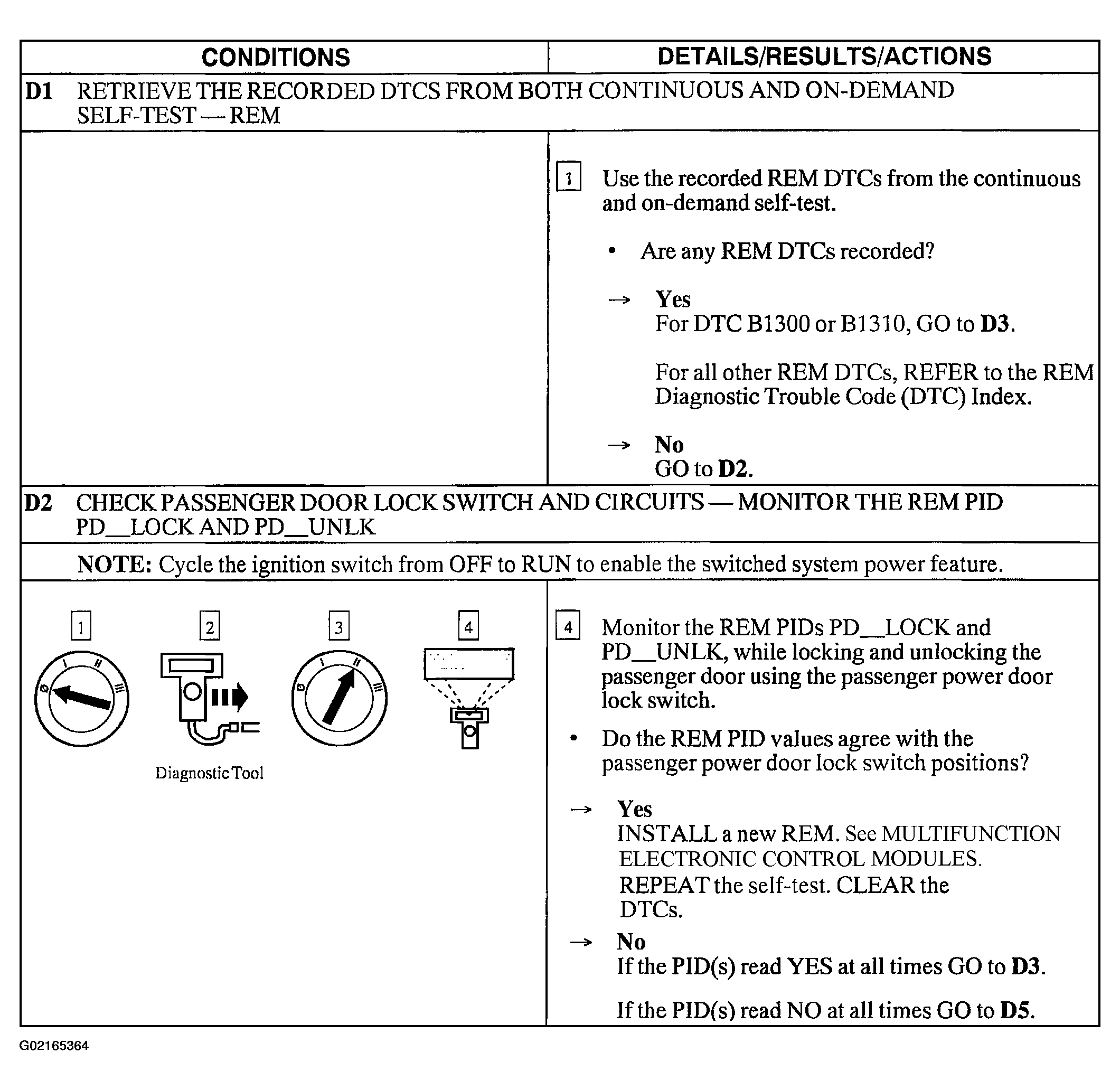

Fig 1: Pinpoint Test D: All Door Locks Are Inoperative - From Passenger Door Switch (Steps D1-D2)

Courtesy of FORD MOTOR CO.

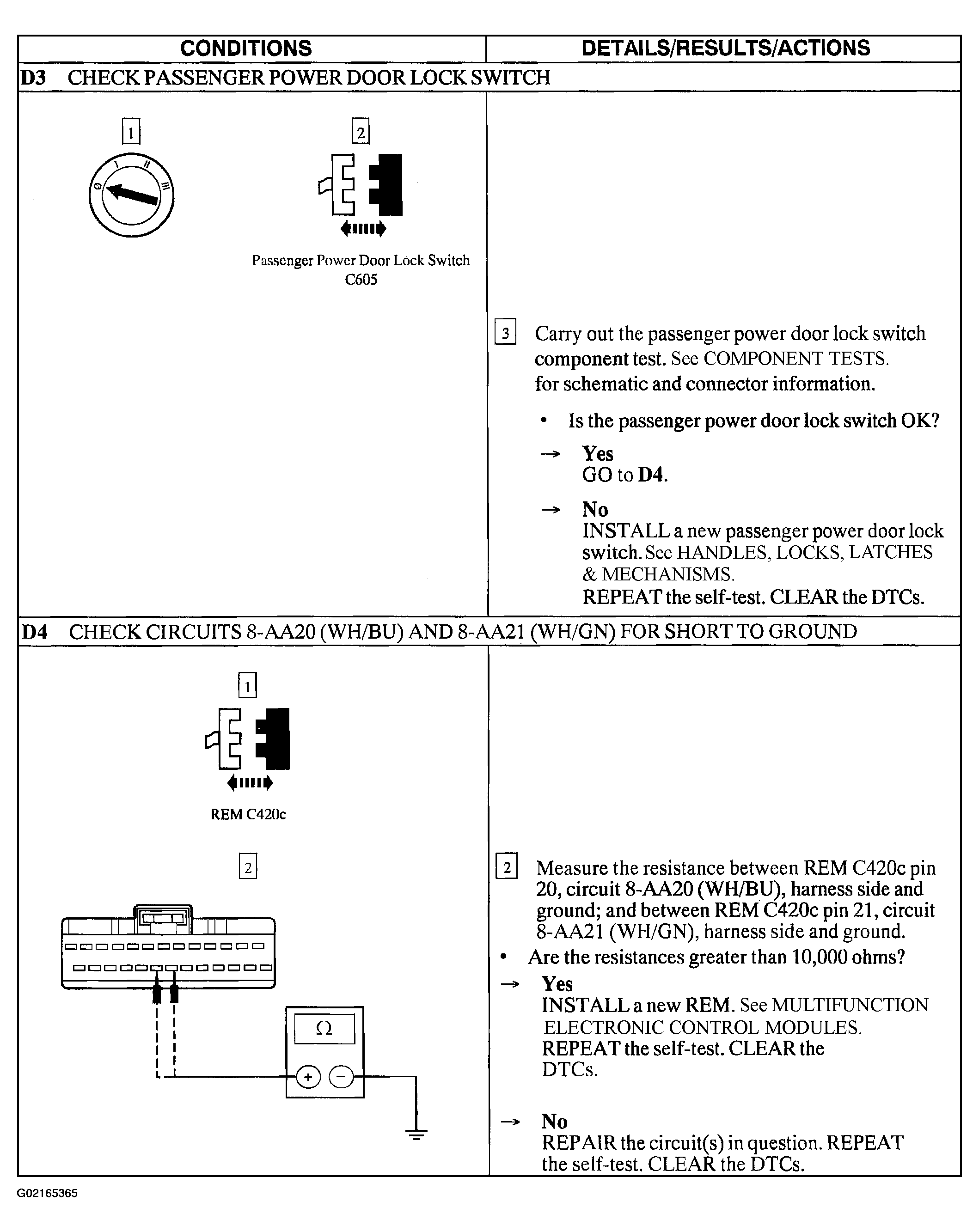

Fig 2: Pinpoint Test D: All Door Locks Are Inoperative - From Passenger Door Switch (Steps D3-D4)

Courtesy of FORD MOTOR CO.

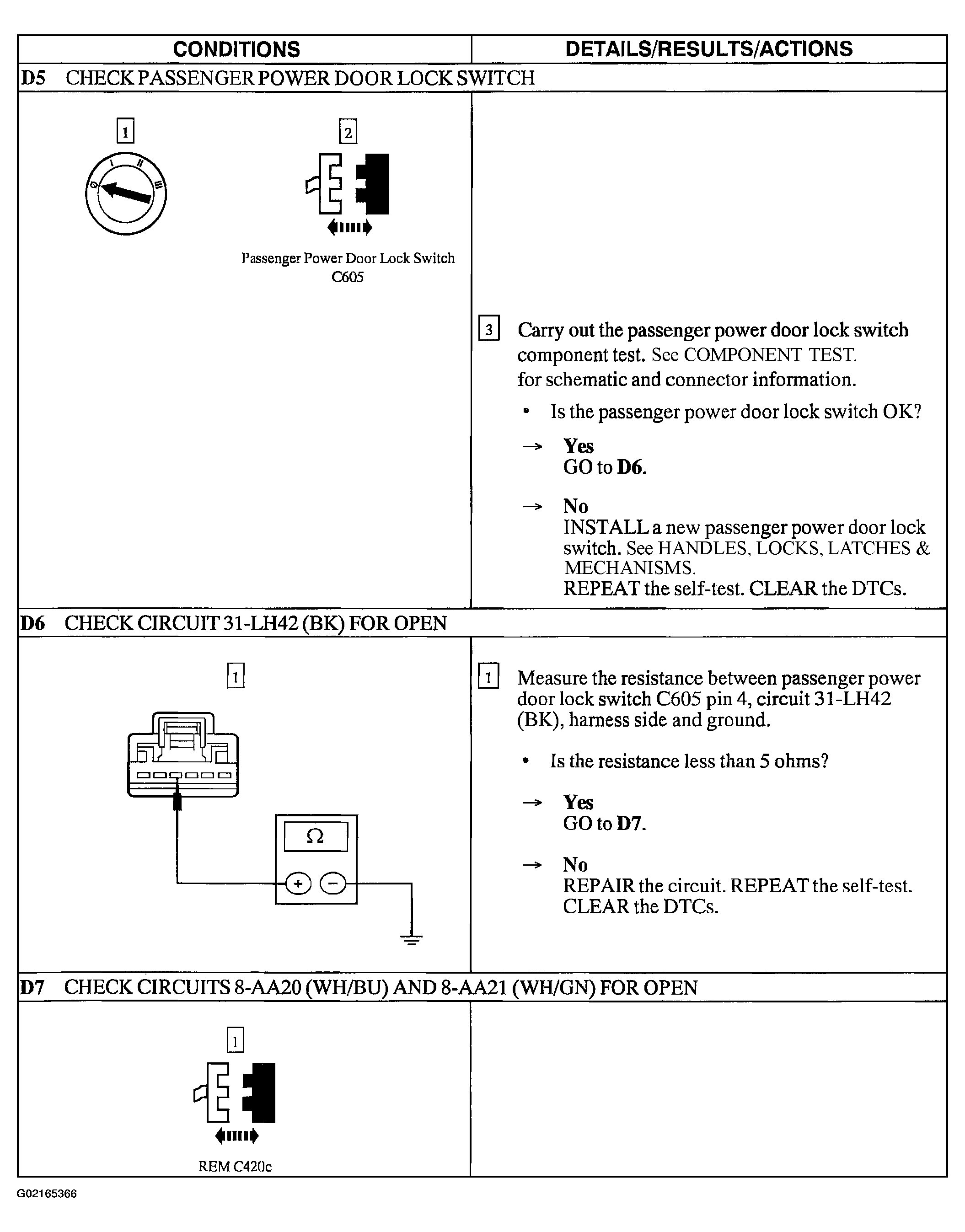

Fig 3: Pinpoint Test D: All Door Locks Are Inoperative - From Passenger Door Switch (Steps D5-D7)

Courtesy of FORD MOTOR CO.

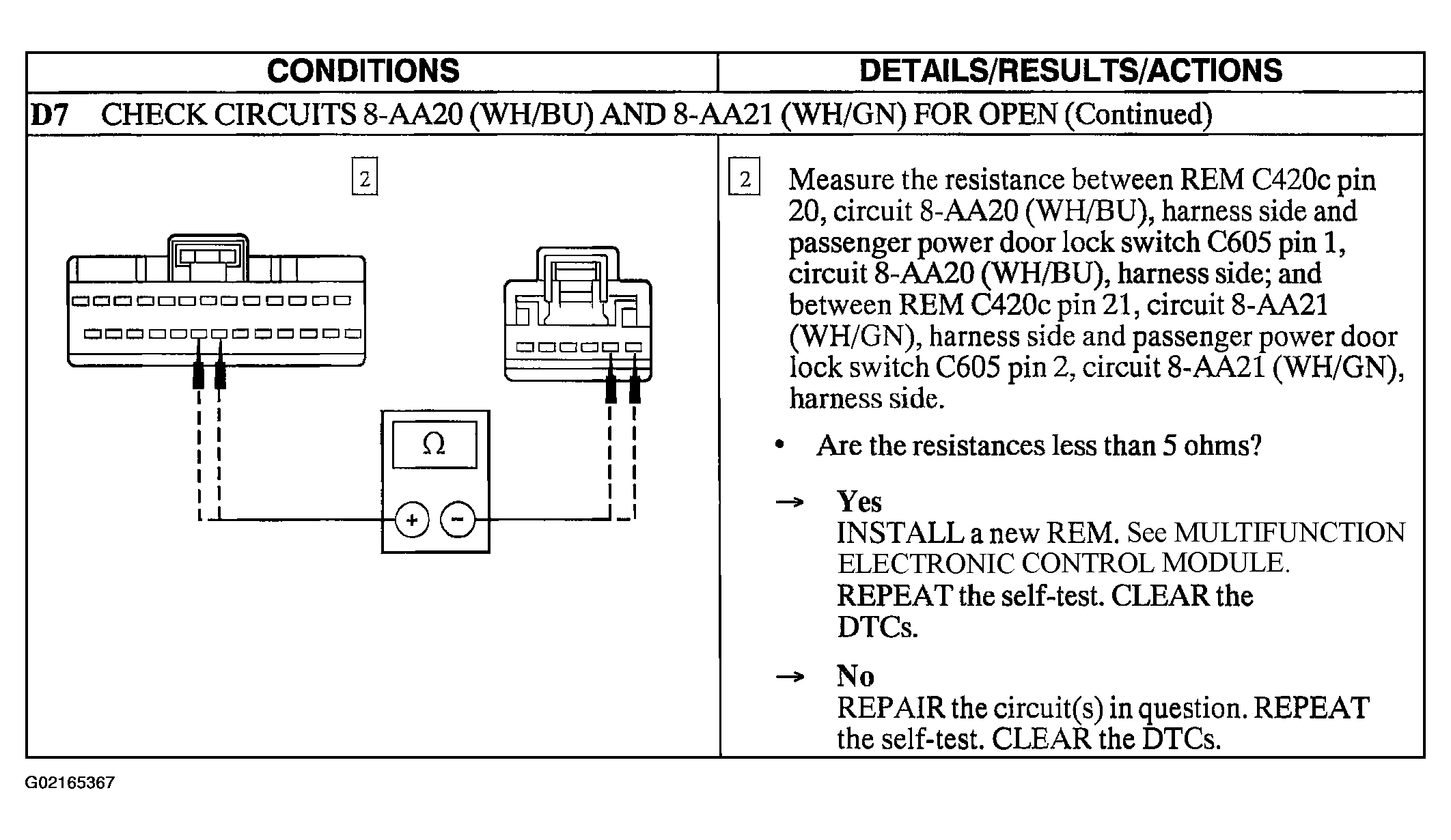

Fig 4: Pinpoint Test D: All Door Locks Are Inoperative - From Passenger Door Switch (Step D7 Cont.)

Courtesy of FORD MOTOR CO.
