Pinpoint Test C: All Door Locks Are Inoperative - From Driver Door Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

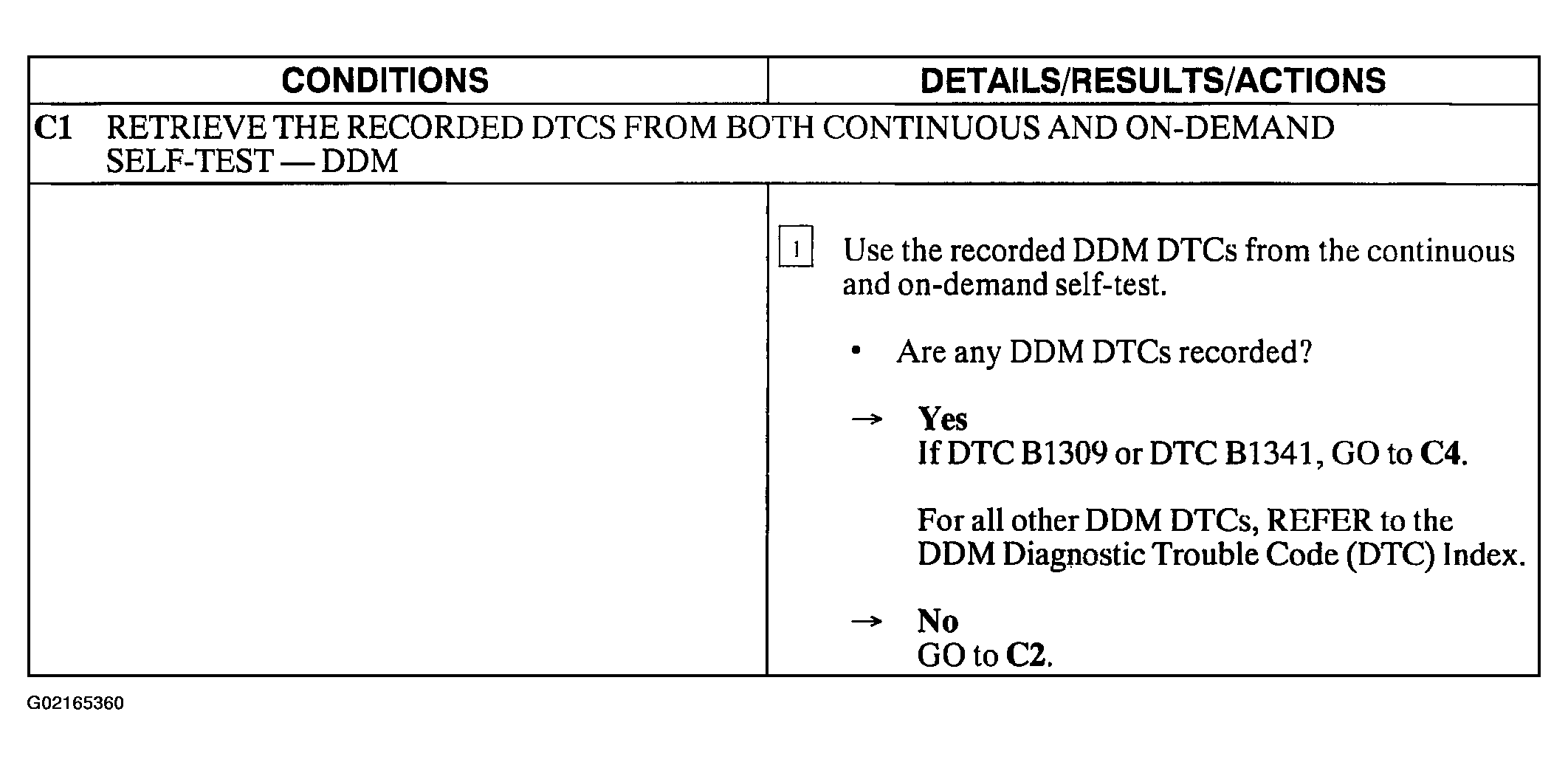

Fig 1: Pinpoint Test C: All Door Locks Are Inoperative - From Driver Door Switch (Step C1)

Courtesy of FORD MOTOR CO.

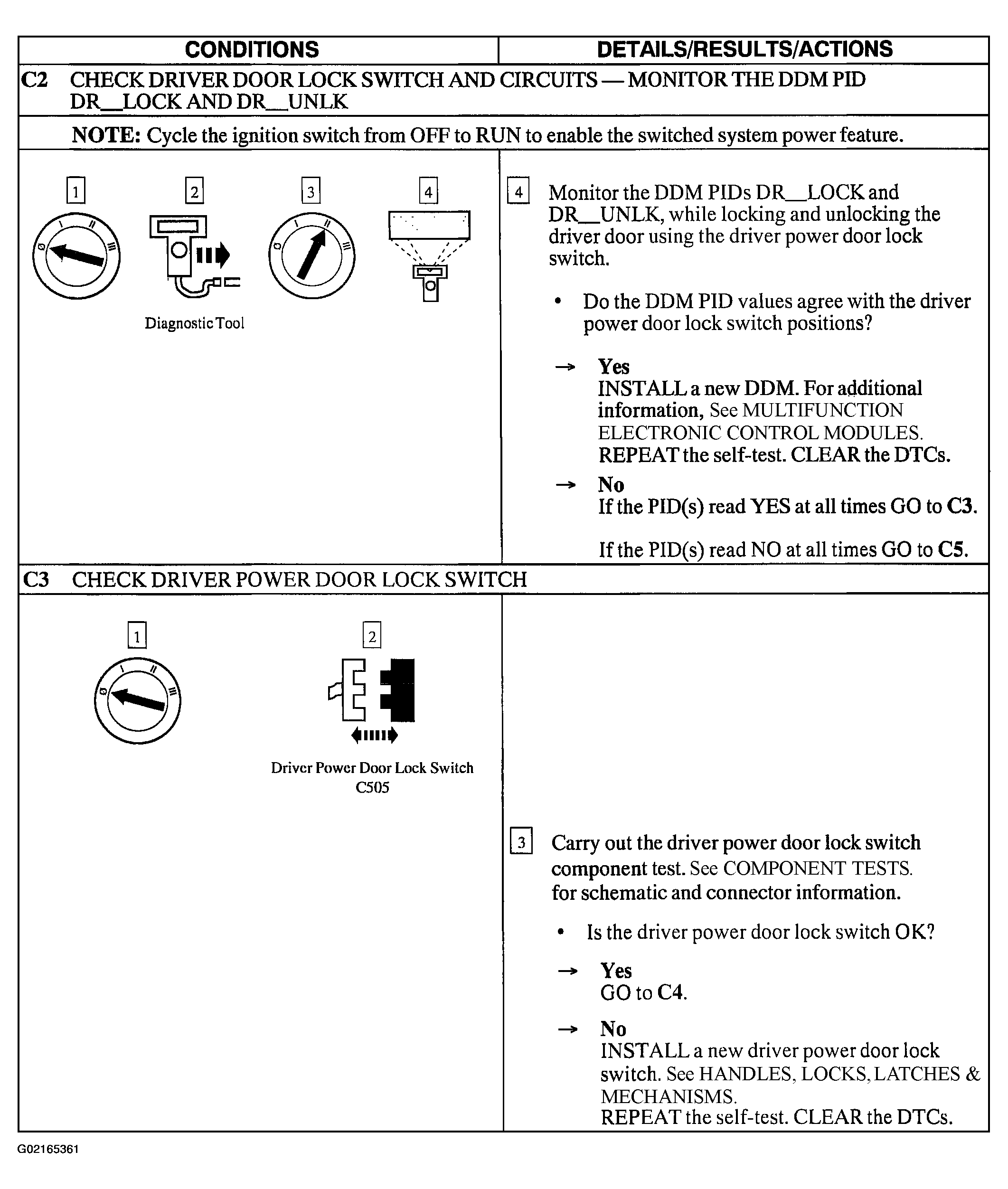

Fig 2: Pinpoint Test C: All Door Locks Are Inoperative - From Driver Door Switch (Steps C2-C3)

Courtesy of FORD MOTOR CO.

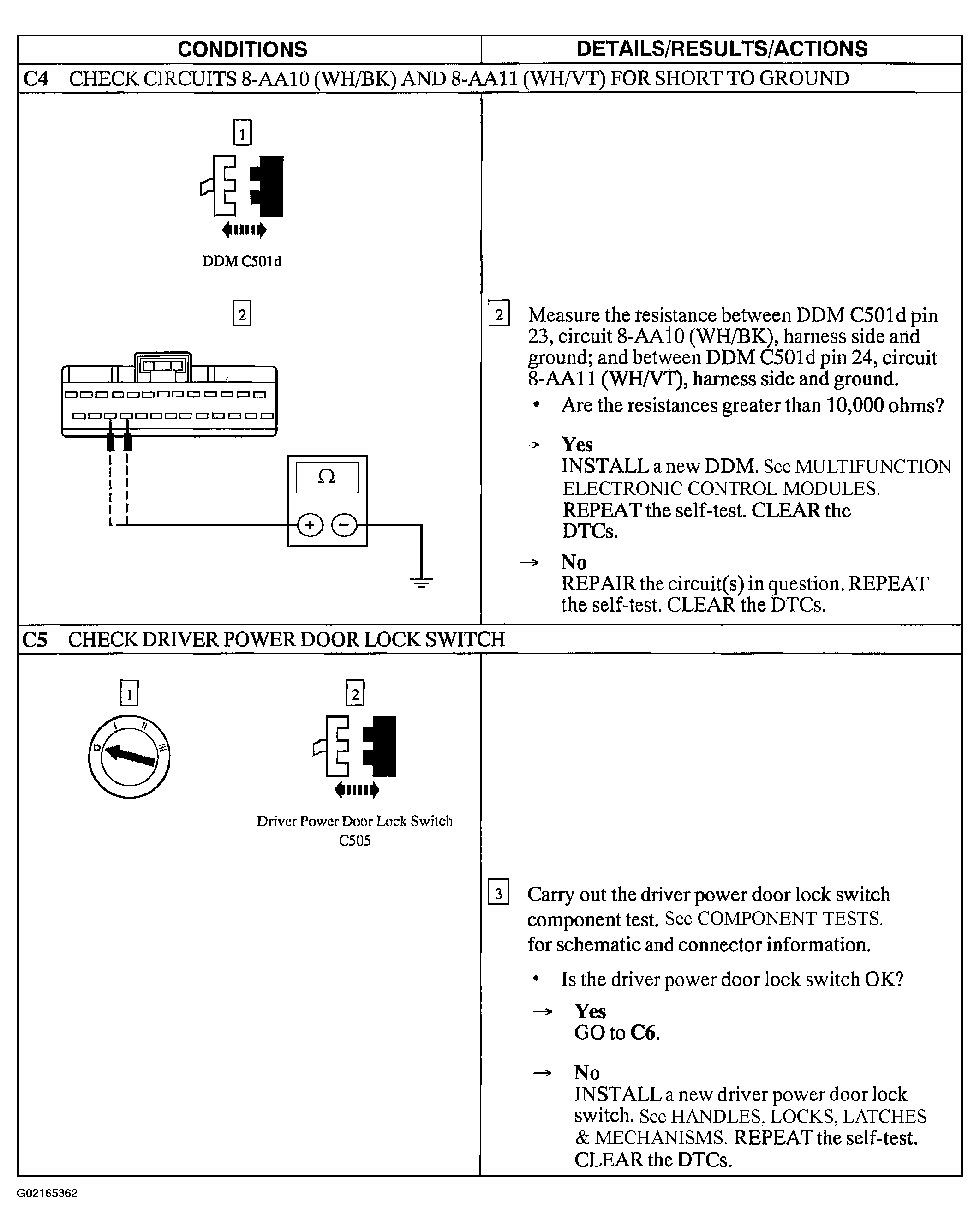

Fig 3: Pinpoint Test C: All Door Locks Are Inoperative - From Driver Door Switch (Steps C4-C5)

Courtesy of FORD MOTOR CO.

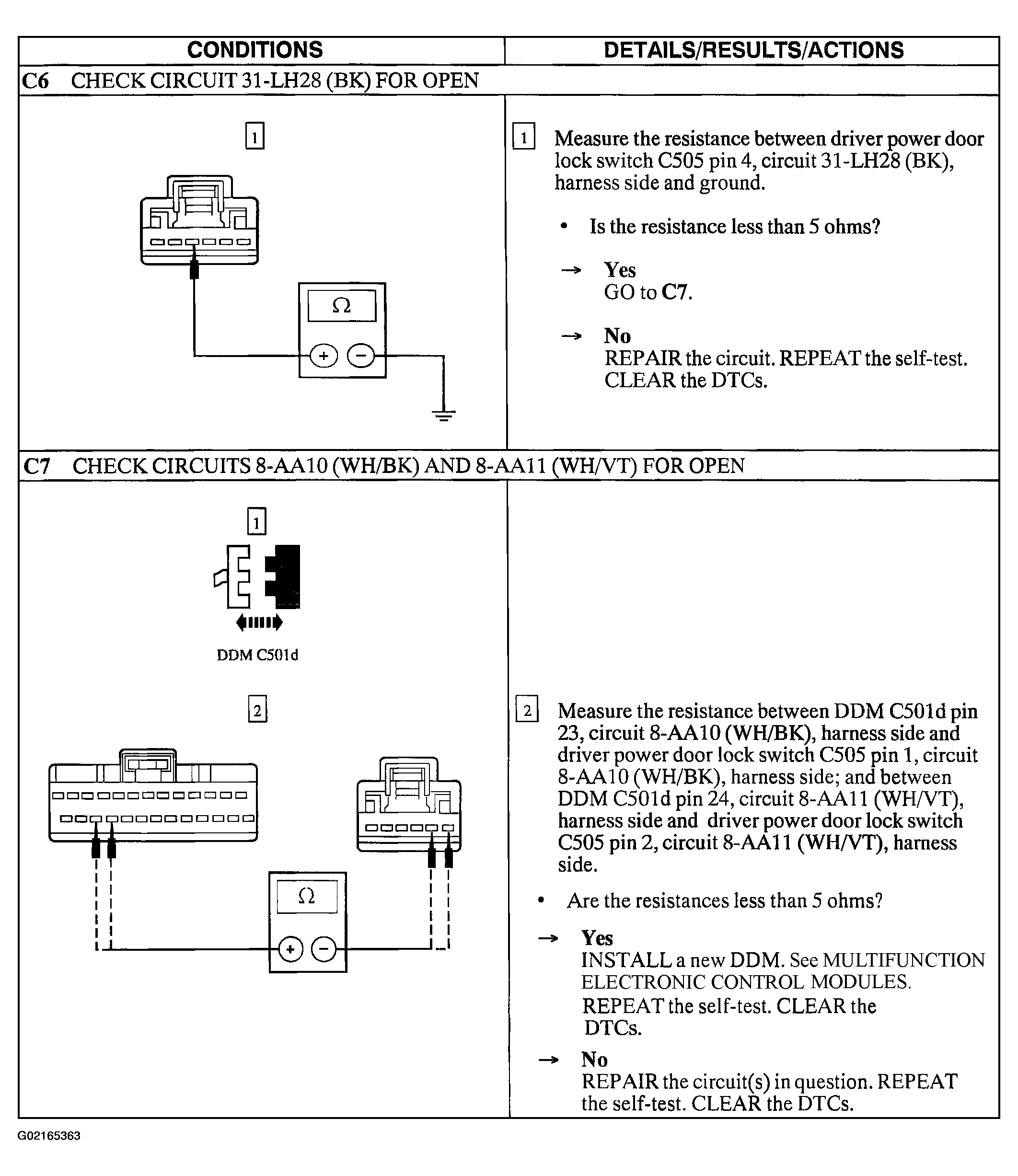

Fig 4: Pinpoint Test C: All Door Locks Are Inoperative - From Driver Door Switch (Steps C6-C7)

Courtesy of FORD MOTOR CO.
