Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
Fig 1: Identifying Valve LH Cover Components (1 Of 2)
G04646866Courtesy of FORD MOTOR CO.

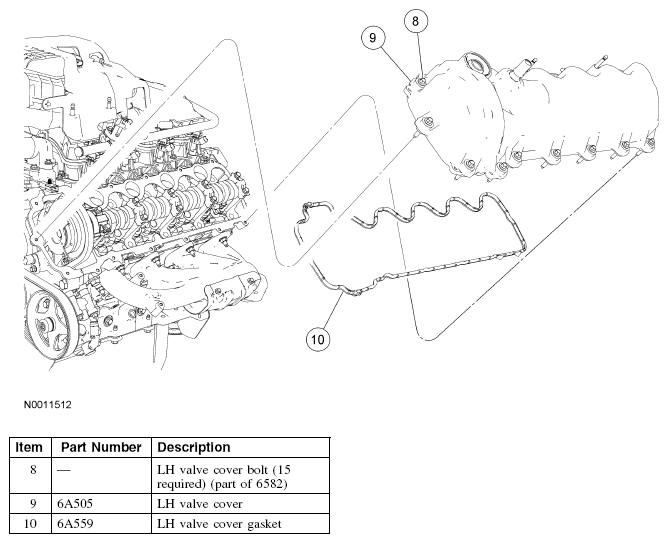

Fig 2: Identifying Valve LH Cover Components (2 Of 2)
G04646867Courtesy of FORD MOTOR CO.
