Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

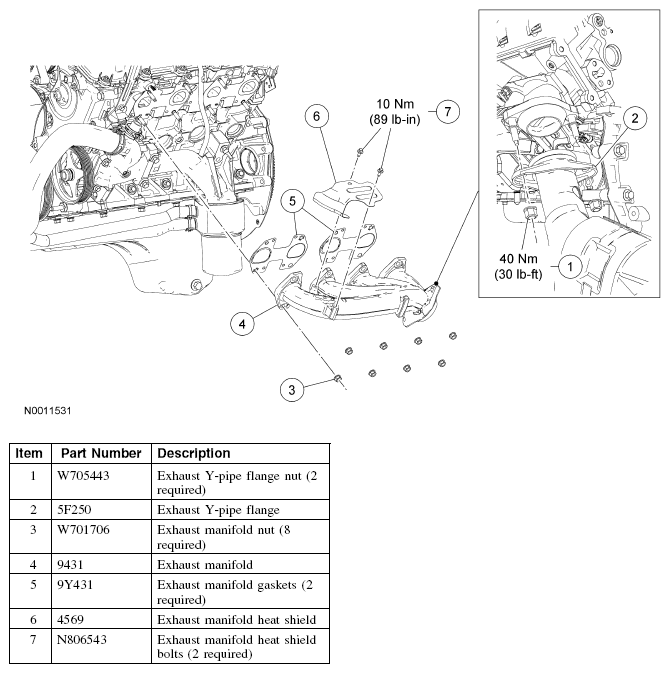

Fig 1: Identifying LH Exhaust Manifold Components

Courtesy of FORD MOTOR CO.
