Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel filler cap.
Remove the bolts and position the fuel door release latch remote control aside.

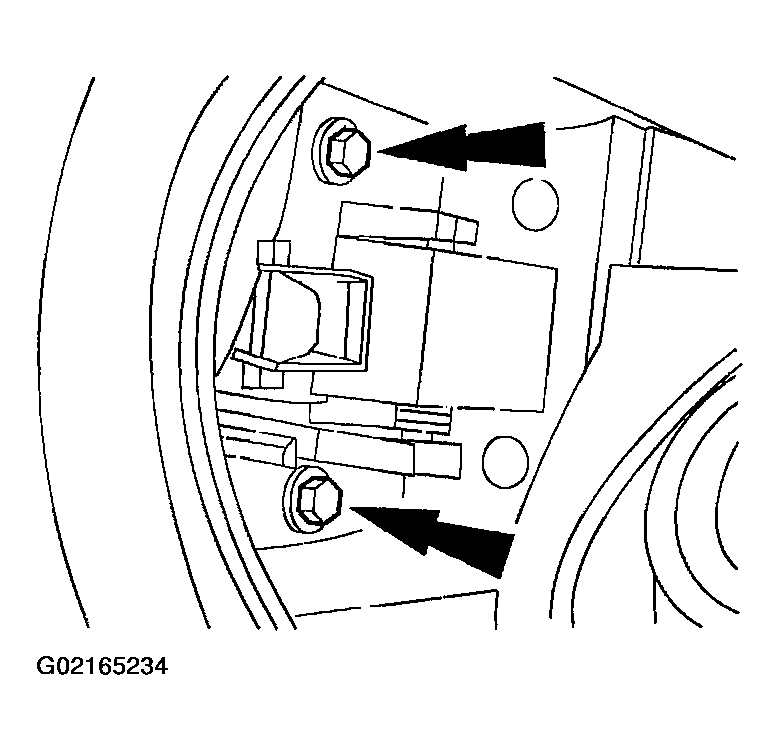

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the latch remote control.

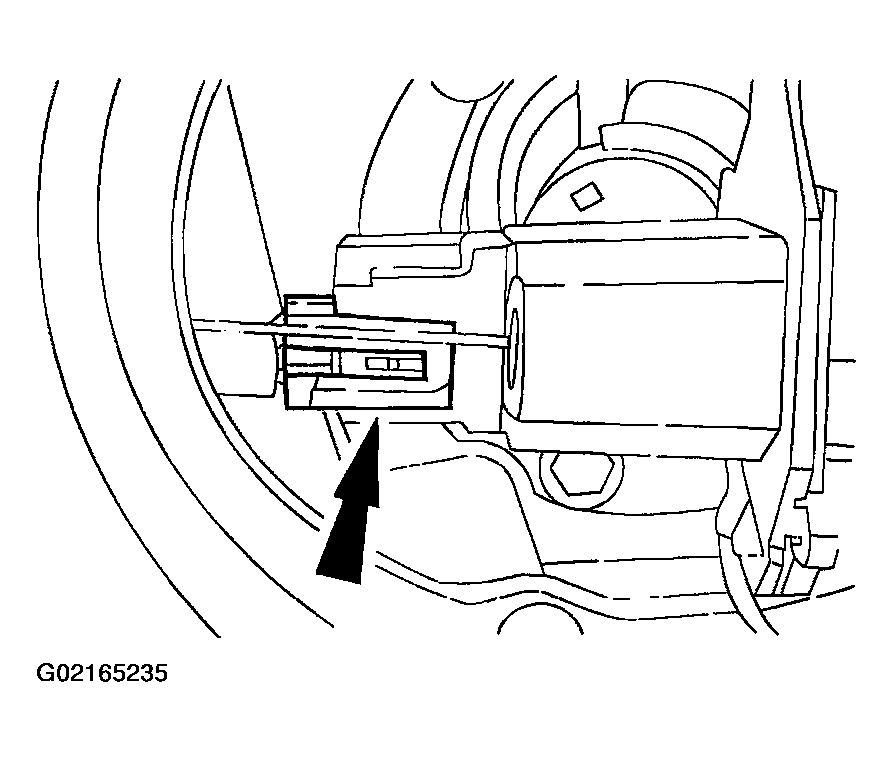

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
