Removal and Installation

Driver and Passenger Front Door

1. Disconnect the battery ground cable (14301).
2. Remove the front door trim panel. For additional information, see TRIM PANEL - FRONT DOOR .

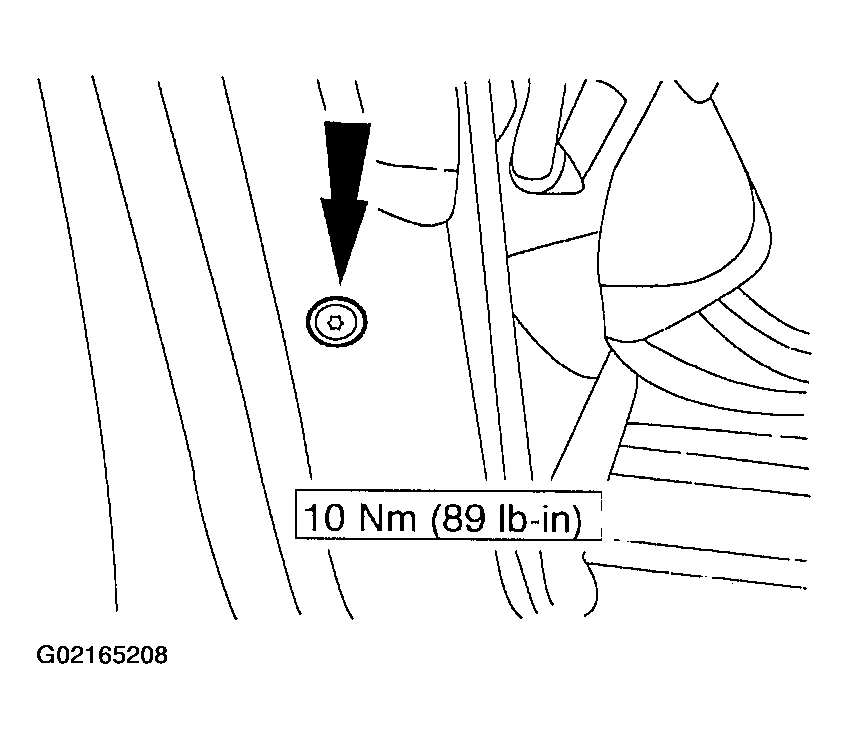

3. Remove the lower theft shield screw.
   Fig 1: Removing Lower Theft Shield Screw

   Courtesy of FORD MOTOR CO.

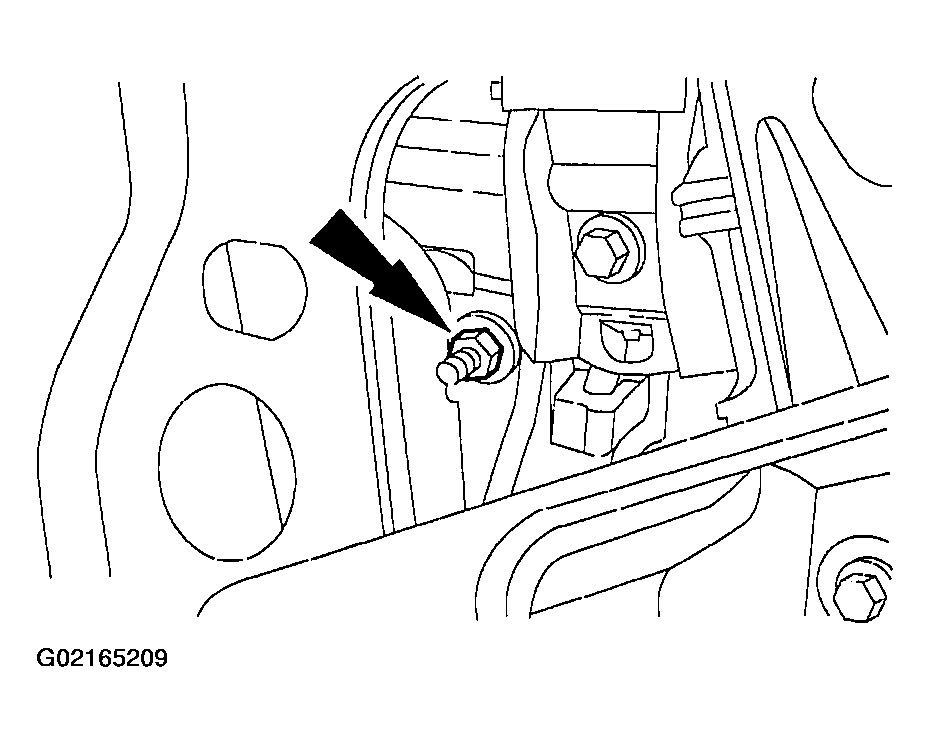

4. Remove the nut and position the theft shield aside
   Fig 2: Removing Nut

   Courtesy of FORD MOTOR CO.

   Driver Door Only

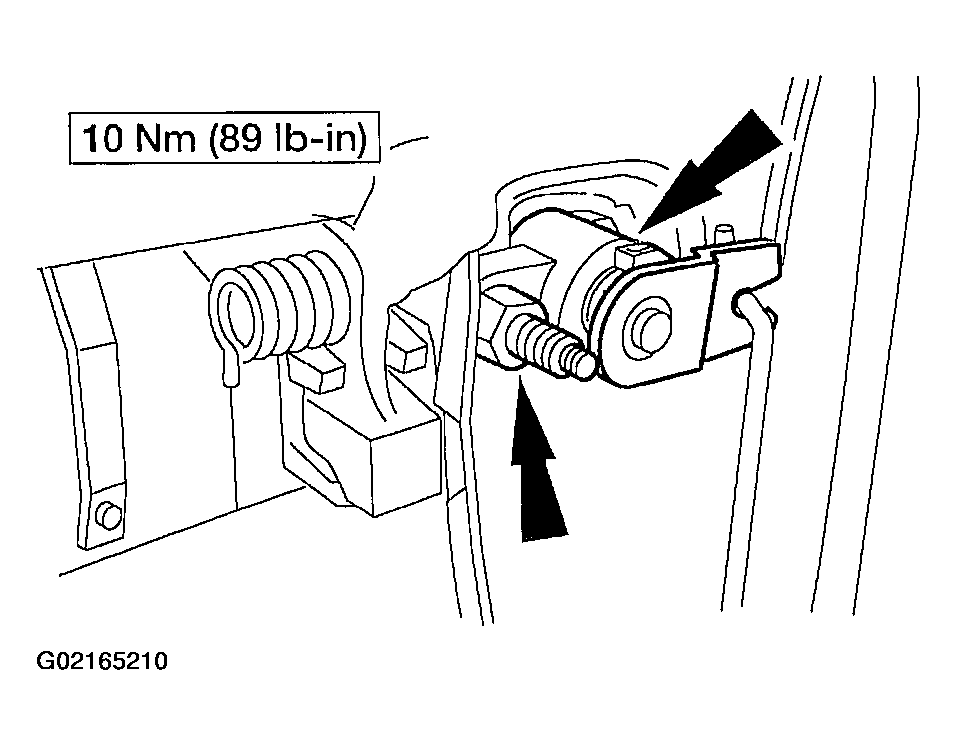

5. Remove the nut and the lock cylinder.
   Fig 3: Removing Lock Cylinder

   Courtesy of FORD MOTOR CO.

   Driver and Passenger Front Door

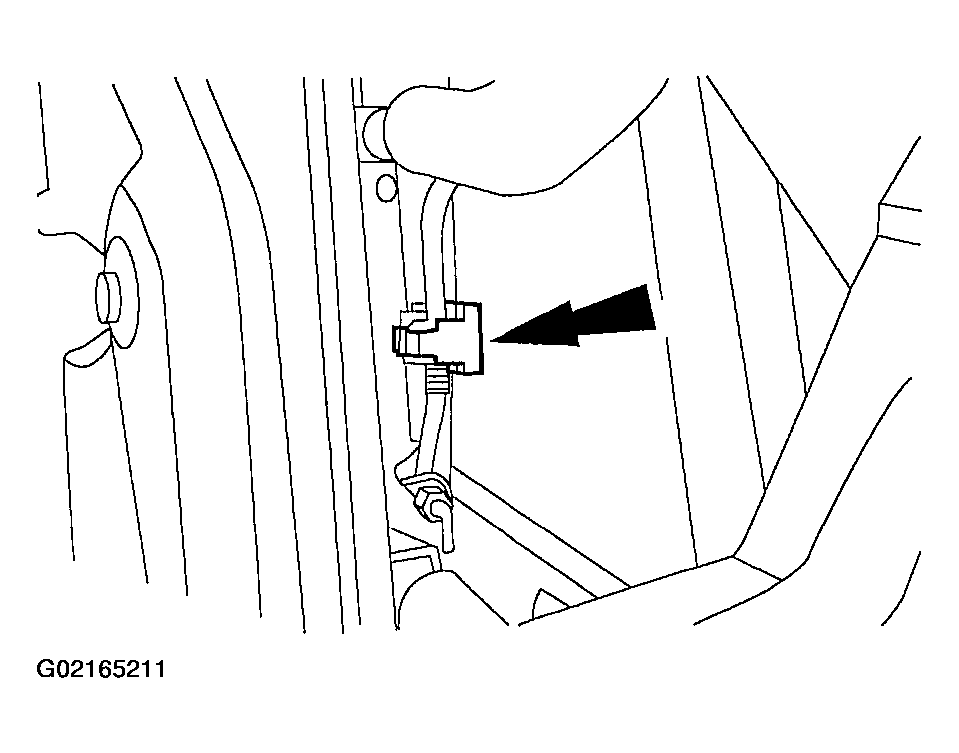

6. Release the clip and disconnect the exterior door handle actuator rod.
   • If equipped, disconnect the door lock cylinder switch electrical connector.
   Fig 4: Disconnecting Exterior Door Handle Actuator Rod

   Courtesy of FORD MOTOR CO.

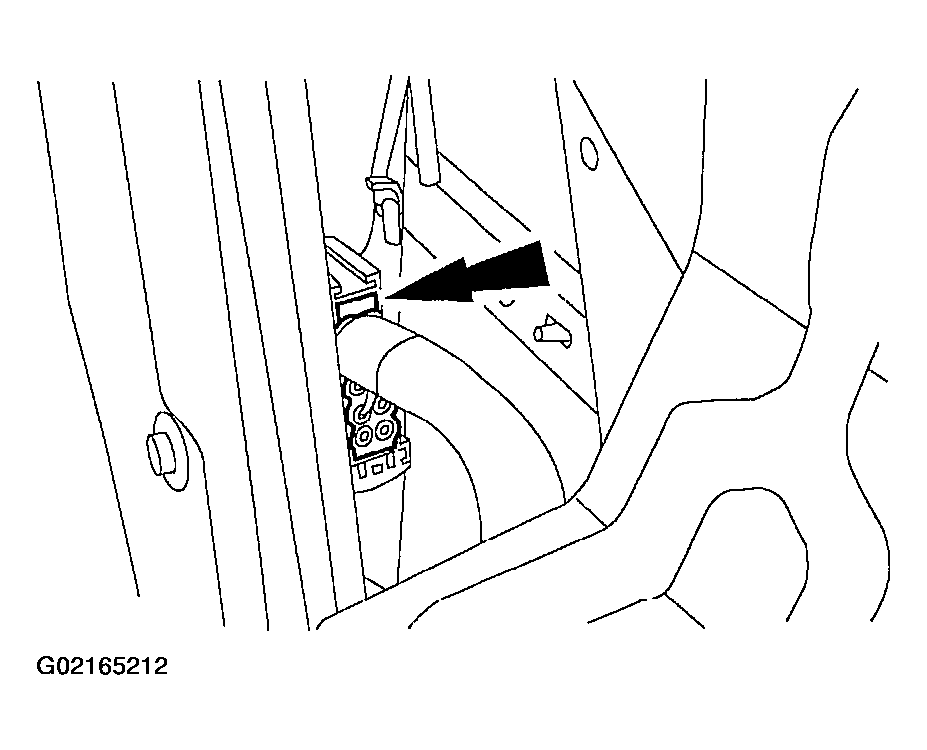

7. Disconnect the electrical connector.
   Fig 5: Disconnecting Electrical Connector

   Courtesy of FORD MOTOR CO.

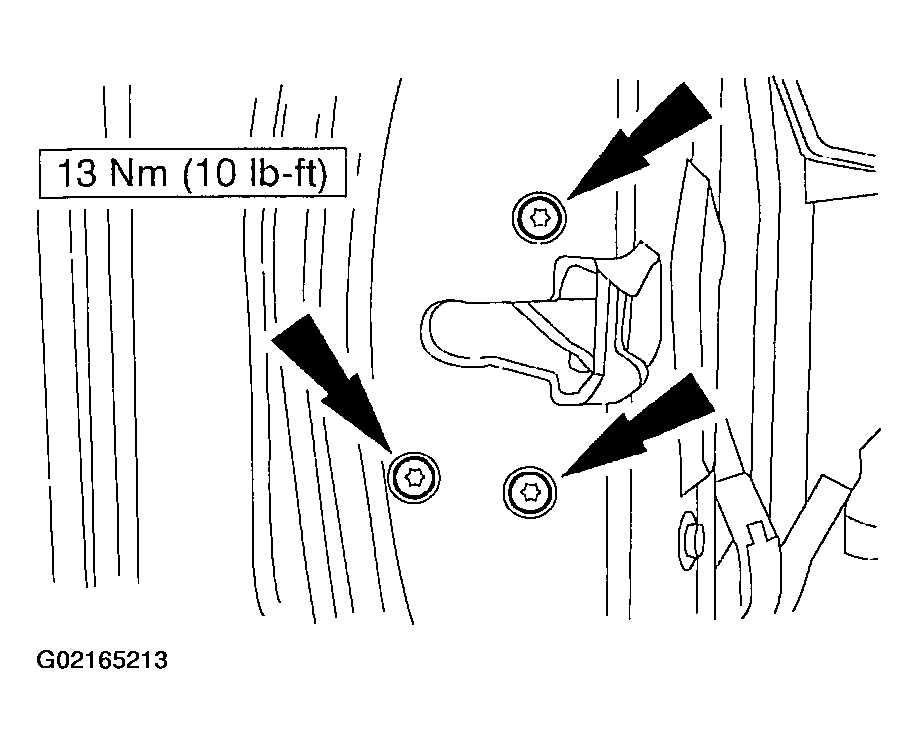

8. Remove the door latch screws.
   Fig 6: Removing Door Latch Screws

   Courtesy of FORD MOTOR CO.

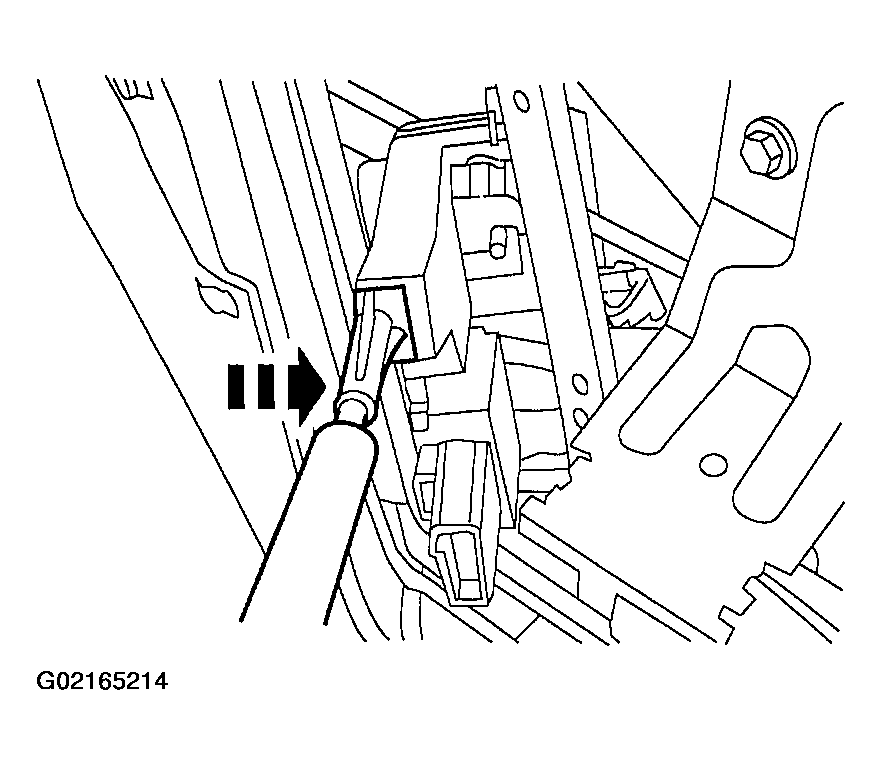

9. Remove the interior handle actuating cable.
   Fig 7: Removing Interior Handle Actuating Cable

   Courtesy of FORD MOTOR CO.

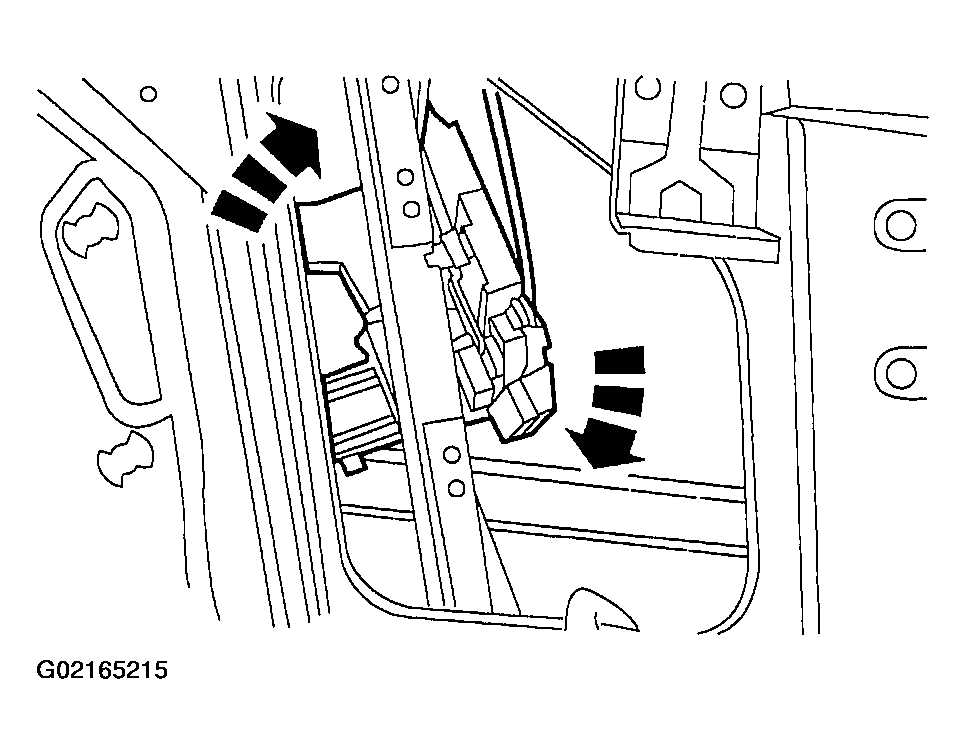

10. Remove the door latch.
    Fig 8: Removing Door Latch

    Courtesy of FORD MOTOR CO.
11. To install, reverse the removal procedure.
