Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the two pin-type retainers and the instrument panel insulator.
- Disconnect the courtesy lamp.
Fig 1: Removing Instrument Panel Insulator Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Remove the screw and the floor heat duct.

Fig 2: Removing Floor Hear Duct
Courtesy of FORD MOTOR CO.
From under the instrument panel, release the assist cable from the glove compartment door arm.

Fig 3: Releasing Glove Compartment Assist Cable
Courtesy of FORD MOTOR CO.
Open the glove compartment.
Remove the instrument panel finish panel.

Fig 4: Removing Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Pull up on the glove compartment door arms and lower the glove compartment door.
Remove the assist cable bracket screws.

Fig 5: Removing Assist Cable Bracket Screws
Courtesy of FORD MOTOR CO.

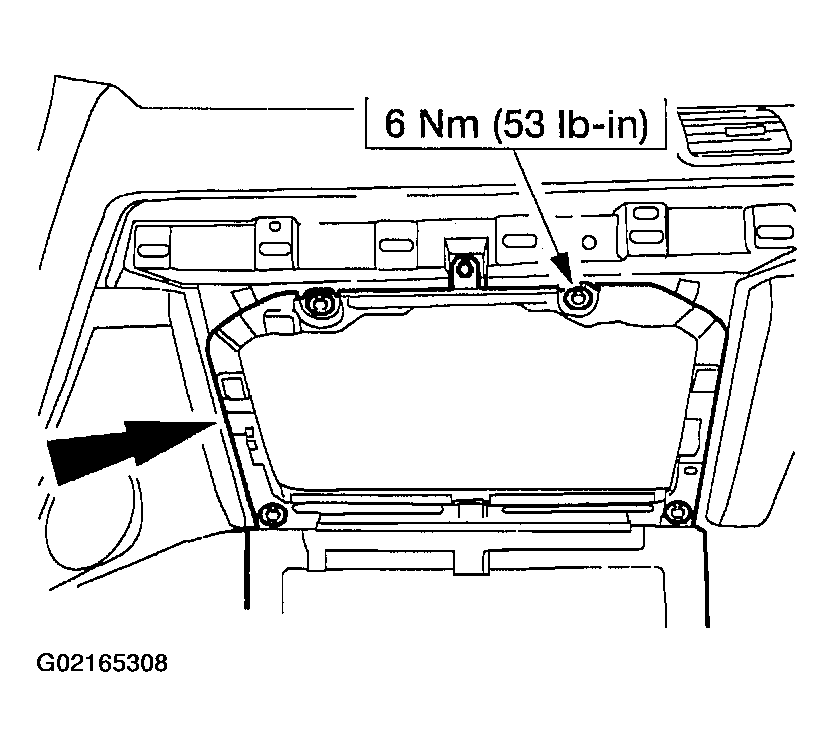

Remove the screws and the glove compartment bin.
- Disconnect the electrical connector.
Fig 6: Removing Glove Compartment Bin
Courtesy of FORD MOTOR CO.
Remove the bolts and the glove compartment door.
- Disconnect the electrical connector.
Fig 7: Removing Glove Compartment Door
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
