Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Apply the parking brake.
If equipped with a manual transmission, place the selector lever in fourth gear.
If equipped with an automatic transmission, place the selector lever in neutral.
Disconnect the battery ground cable.
Remove the ashtray finish panel.
- Disconnect the electrical connectors.
Fig 1: Removing Ashtray Finish Panel
Courtesy of FORD MOTOR CO.
If equipped with a manual transmission, remove the gearshift lever knob.
If equipped, disconnect the cellular phone electrical connectors.
Remove the console finish panel assembly by pulling upward from the front first.
- If equipped, disconnect the traction control switch electrical connector.
- If equipped, release the cellular phone wiring harness from the console finish panel assembly.
Fig 2: Removing Console Finish Panel Assembly
Courtesy of FORD MOTOR CO.
Remove the console rear finish panel assembly.
- Unclip by pulling rearward.

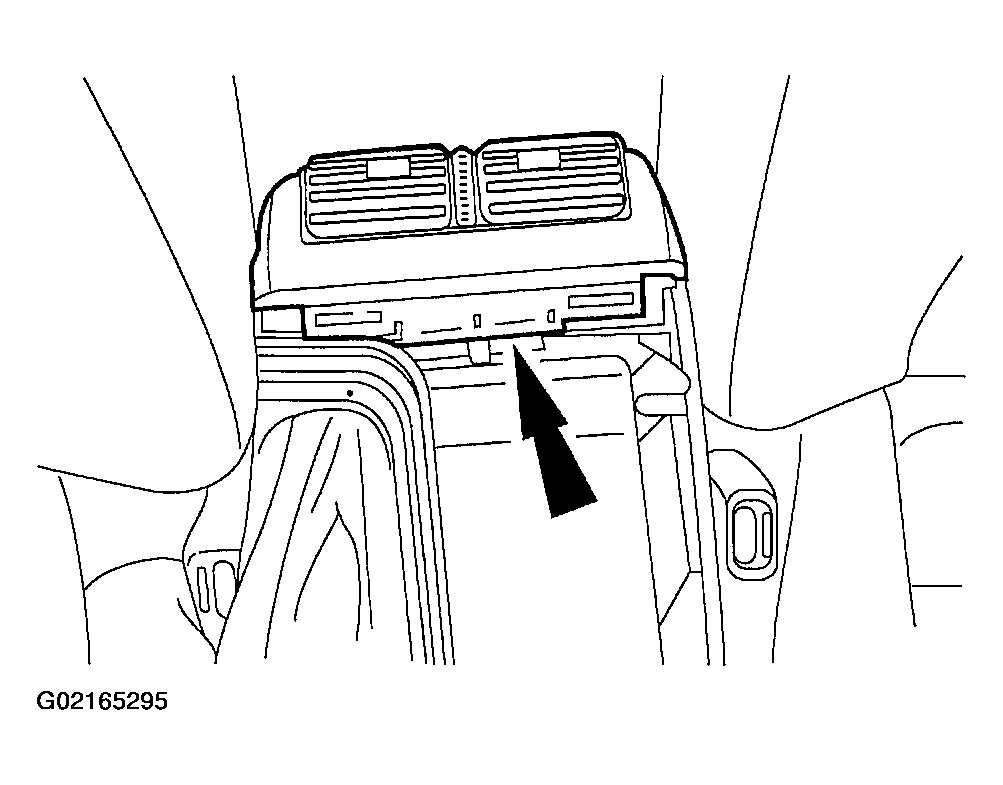

Fig 3: Removing Console Rear Finish Panel Assembly
Courtesy of FORD MOTOR CO.
Unclip the parking brake boot from the console base.

Fig 4: Unclipping Parking Brake Boot
Courtesy of FORD MOTOR CO.
Remove the console assembly front screws.

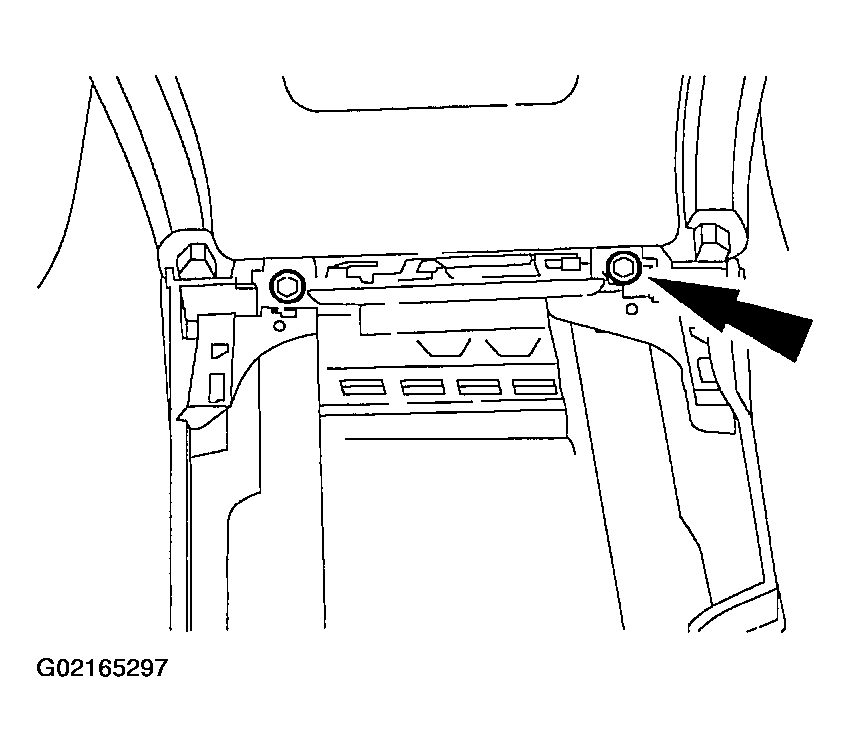

Fig 5: Removing Console Assembly Front Screws
Courtesy of FORD MOTOR CO.
Remove the console assembly rear screws.

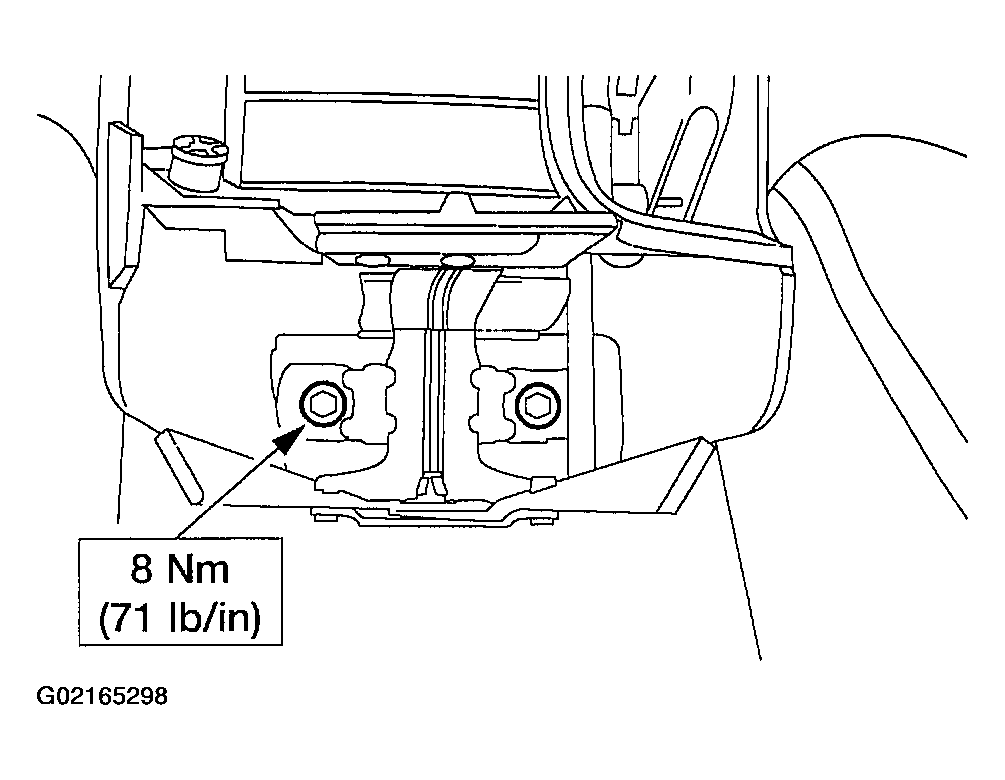

Fig 6: Removing Console Assembly Rear Screws
Courtesy of FORD MOTOR CO.
Remove the console air conditioning duct mounting screw.

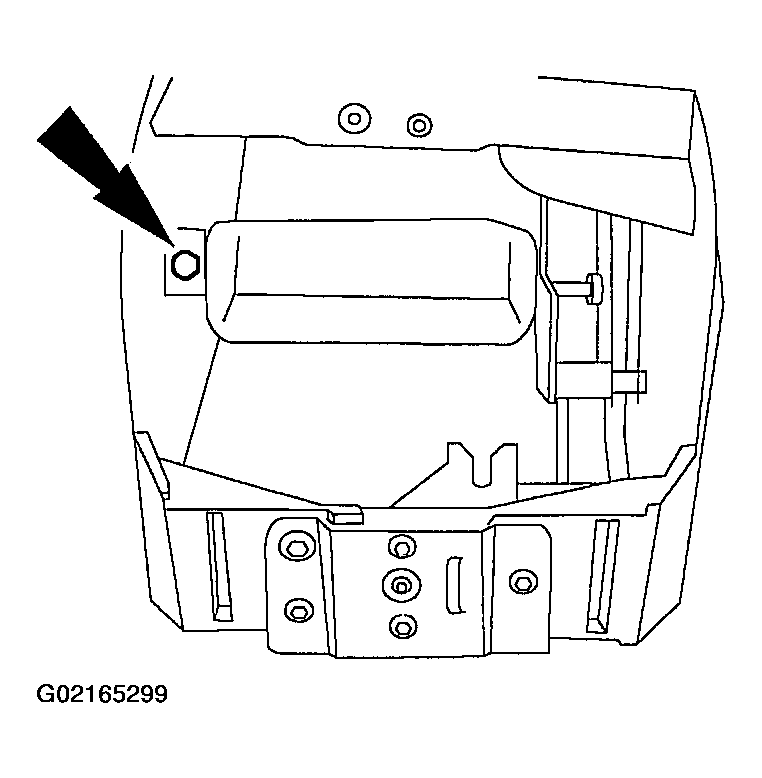

Fig 7: Removing Air Conditioning Duct Mounting Screw
Courtesy of FORD MOTOR CO.
Remove the console assembly by sliding rearward.
To install, reverse the removal procedure.
