Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door window glass. For additional information, see WINDOW GLASS - REAR DOOR .
Remove the rear door glass run and the exterior molding at the top of the glass.
Remove the quarter window glass nuts.

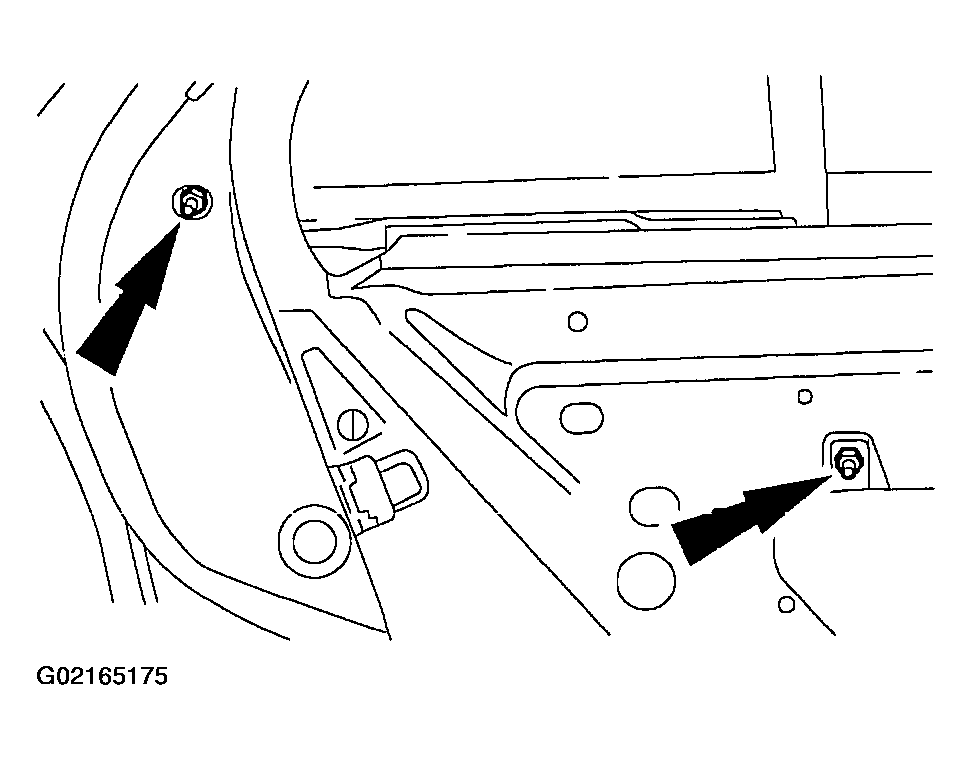

Fig 1: Removing Quarter Window Glass Nuts
Courtesy of FORD MOTOR CO.
Remove the quarter window glass.
1. Remove the screw.
2. Remove the quarter window glass.
Fig 2: Removing Quarter Window Glass
Courtesy of FORD MOTOR CO.

NOTE: If reinstalling the original quarter glass, clean off any remaining butyl prior to installation.

NOTE: Clean the area of any remaining foam or residue prior to installation of the quarter window glass.

NOTE: Apply the new butyl to the installation area.

To install, reverse the removal procedure.
