Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. For additional information; see TRIM PANEL - FRONT DOOR .
Remove the interior garnish molding.

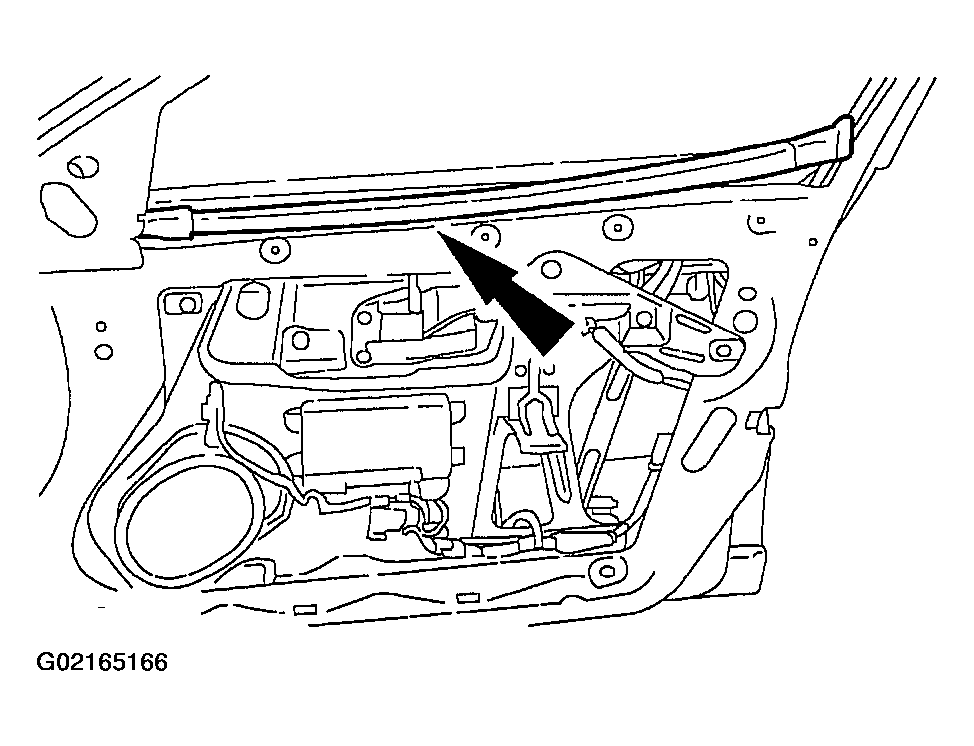

Fig 1: Removing Interior Garnish Molding
Courtesy of FORD MOTOR CO.
Remove the watershield.
Remove the interior weatherstrip.

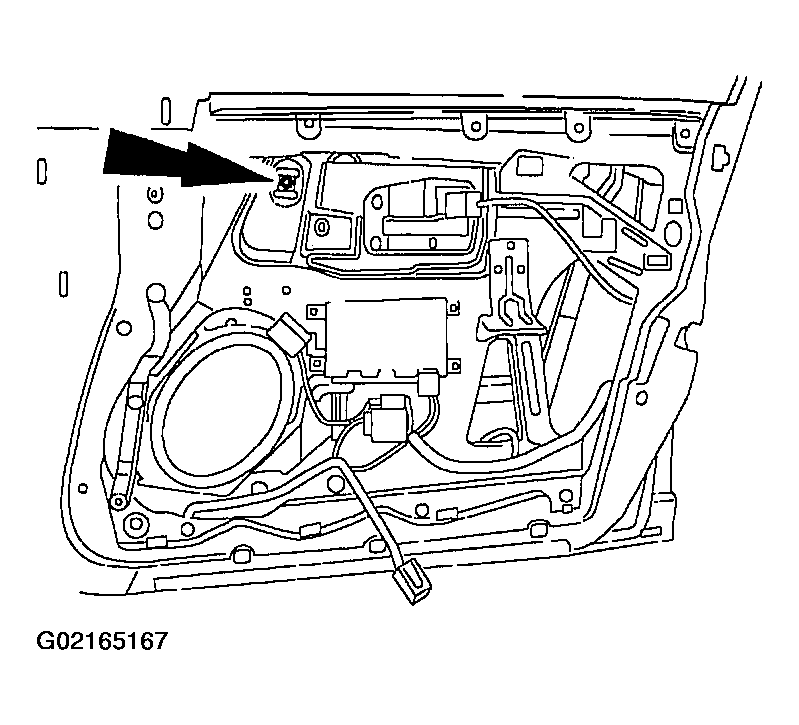

Fig 2: Removing Interior Weatherstrip
Courtesy of FORD MOTOR CO.
Position the forward front window regulator to glass bolt to the bottom of the access hole.

Fig 3: Positioning Forward Front Window Regulator-To-Glass Bolt
Courtesy of FORD MOTOR CO.

NOTE: Do not remove the bolts.

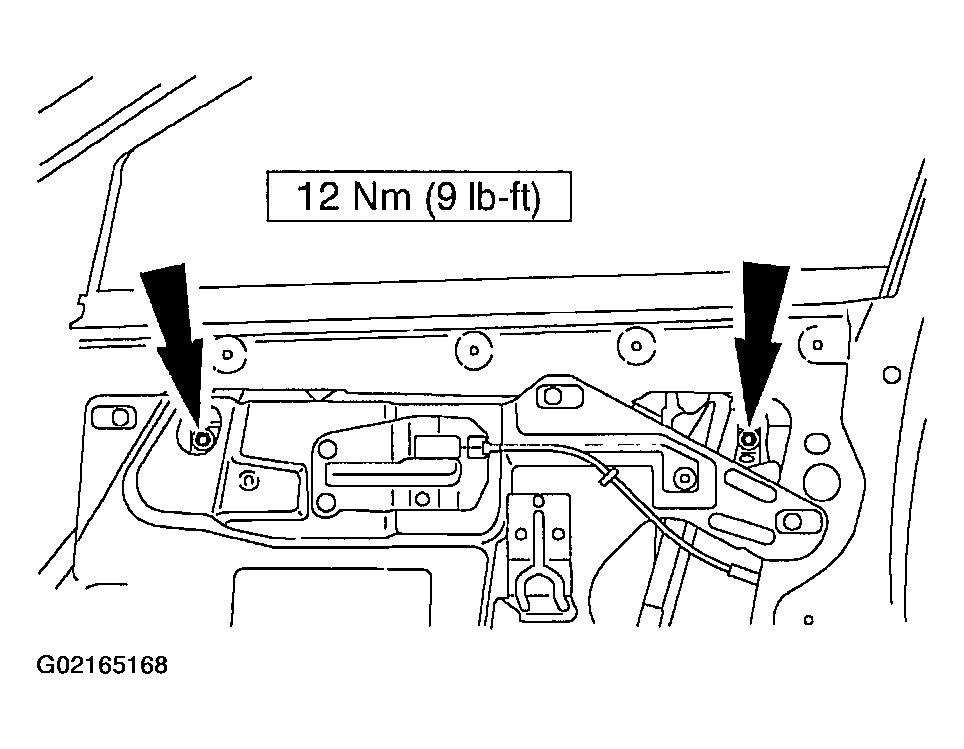

Fig 4: Loosening Front Window Regulator-To-Glass Bolts

Courtesy of FORD MOTOR CO.

Loosen the front window regulator to glass bolts.
Hold the glass in place and lower the window regulator to the bottom of the door panel.
Remove the front door window glass.

CAUTION: Make sure the front door window glass correctly seats in the glass mounting brackets as the front door window glass is raised.

NOTE: Position the front door window glass against the B-pillar.

NOTE: Support the front door window glass and raise the window regulator to the full upright position.

To install, reverse the removal procedure.
