Pinpoint Test U: The Defrost System Will Not Shut Off Automatically - Heated Wiper Park

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

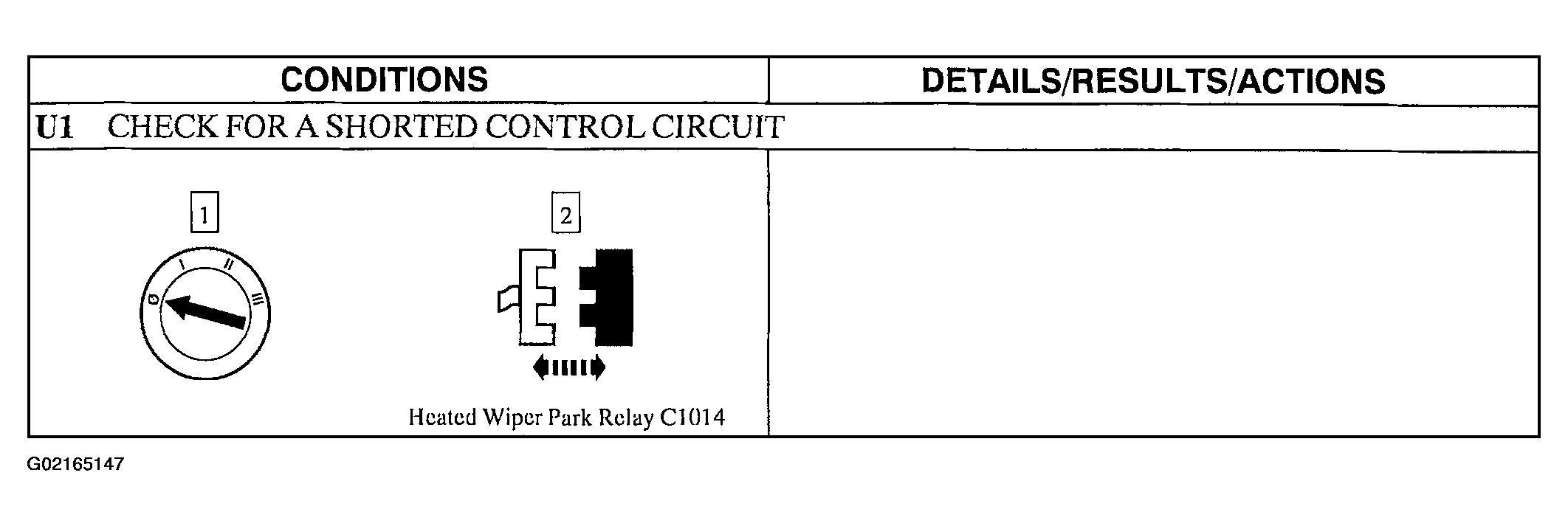

Fig 1: Pinpoint Test U: The Defrost System Will Not Shut Off Automatically - Heated Wiper Park (Step U1)

Courtesy of FORD MOTOR CO.

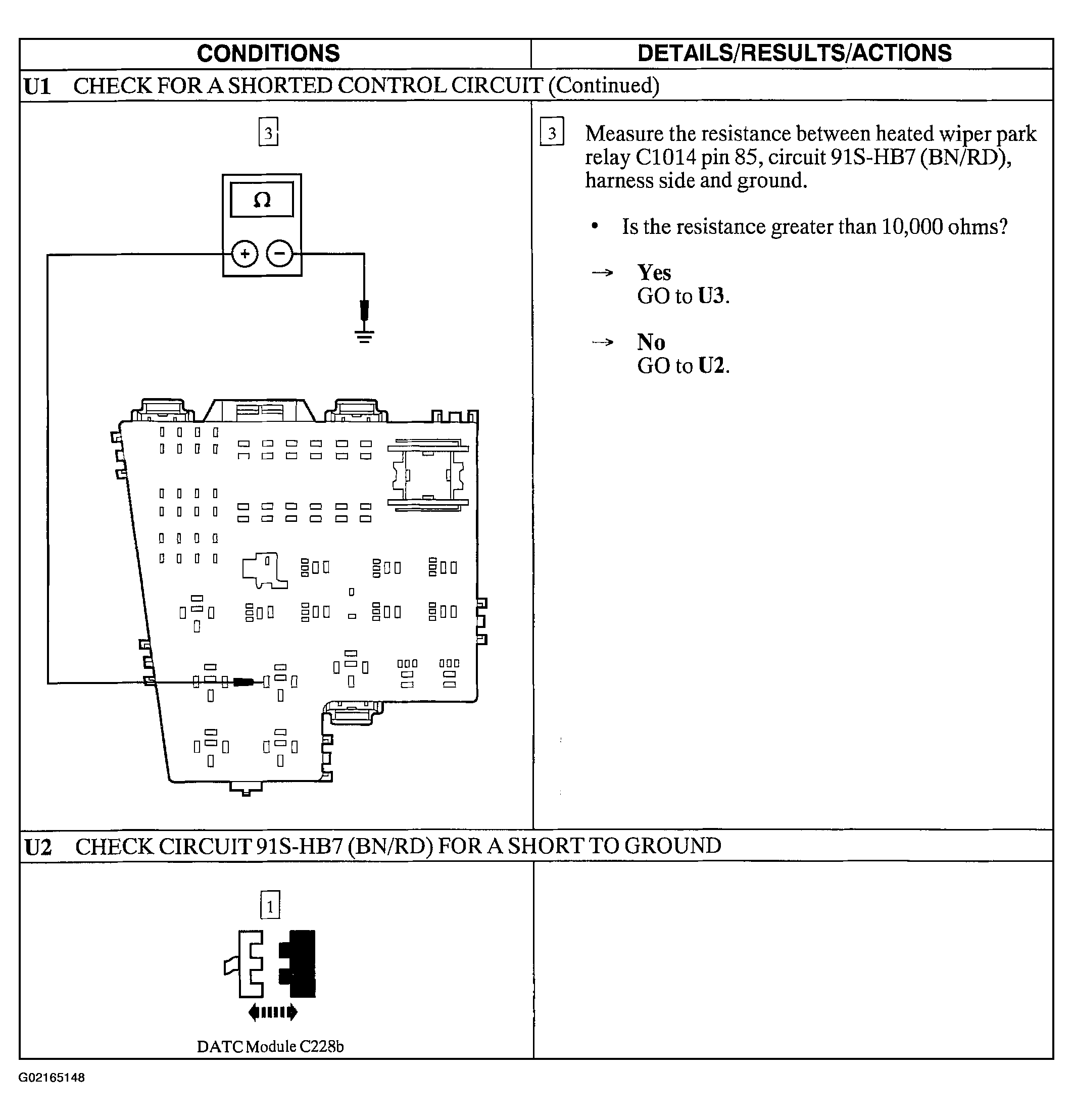

Fig 2: Pinpoint Test U: The Defrost System Will Not Shut Off Automatically - Heated Wiper Park (Steps U1 Cont. -U2)

Courtesy of FORD MOTOR CO.

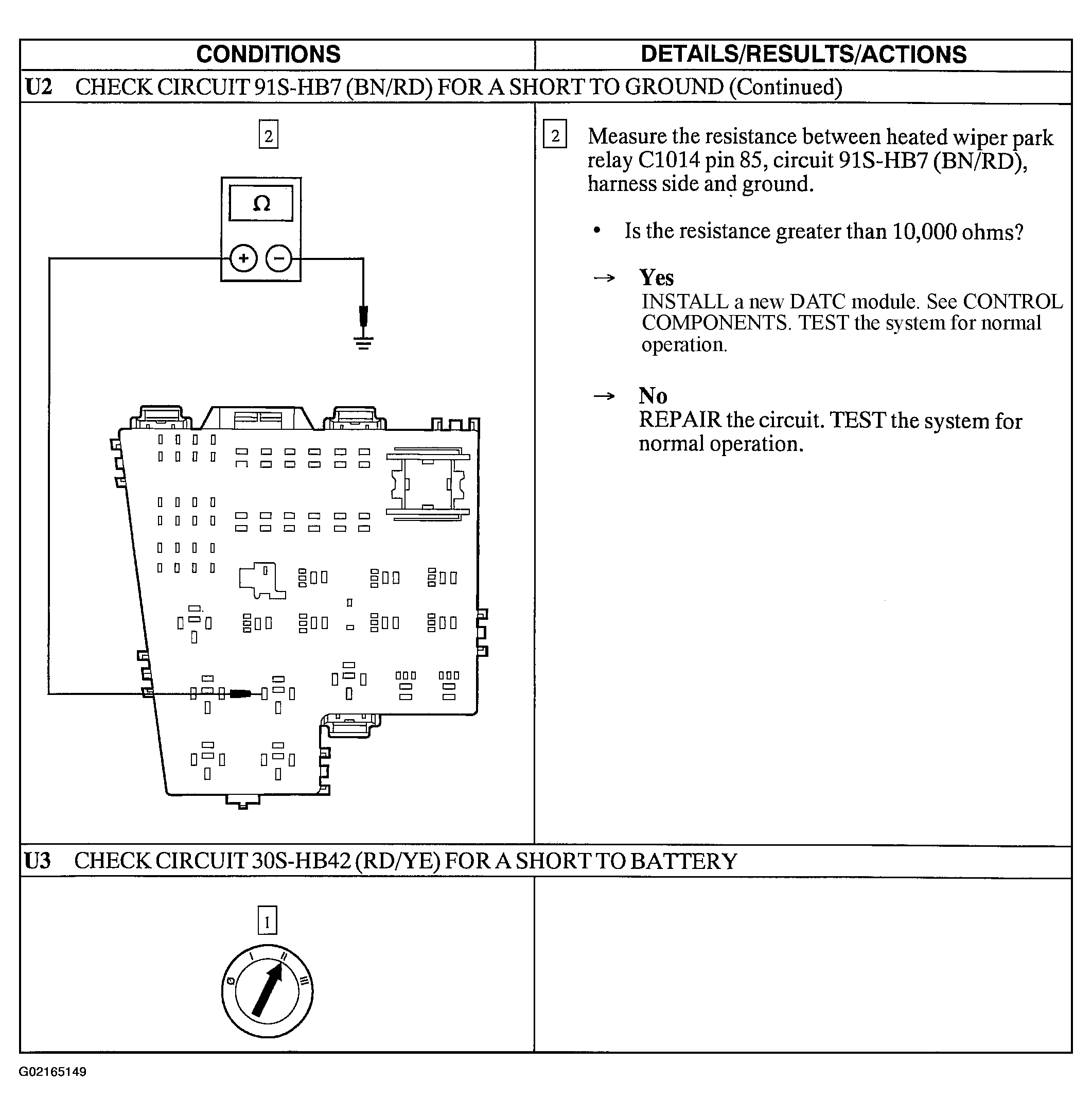

Fig 3: Pinpoint Test U: The Defrost System Will Not Shut Off Automatically - Heated Wiper Park (Steps U2 Cont. -U3)

Courtesy of FORD MOTOR CO.

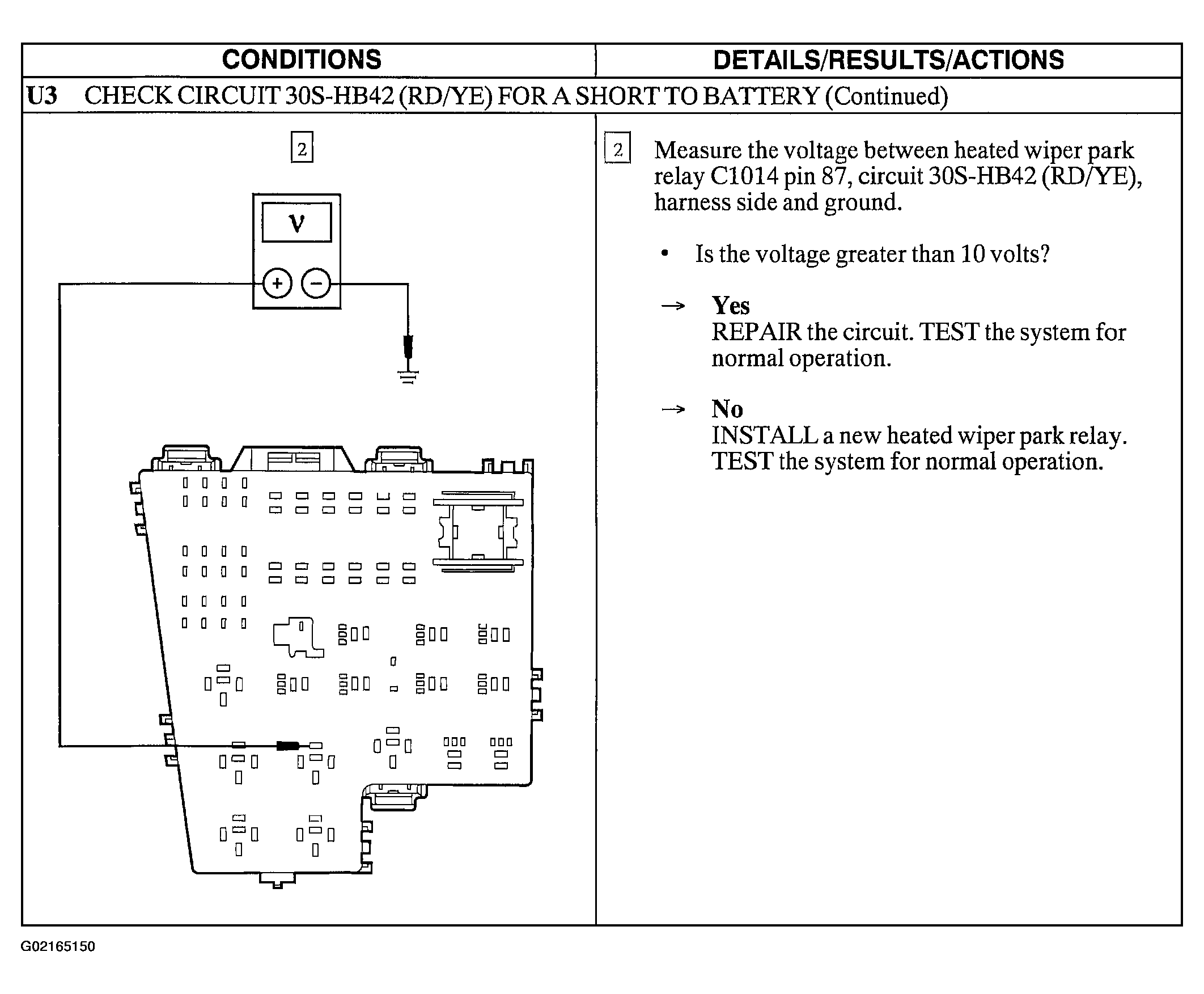

Fig 4: Pinpoint Test U: The Defrost System Will Not Shut Off Automatically - Heated Wiper Park (Step U3 Cont.)

Courtesy of FORD MOTOR CO.
