Pinpoint Test T: The Defrost System Will Not Shut Off Automatically - Rear Window Defrost

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

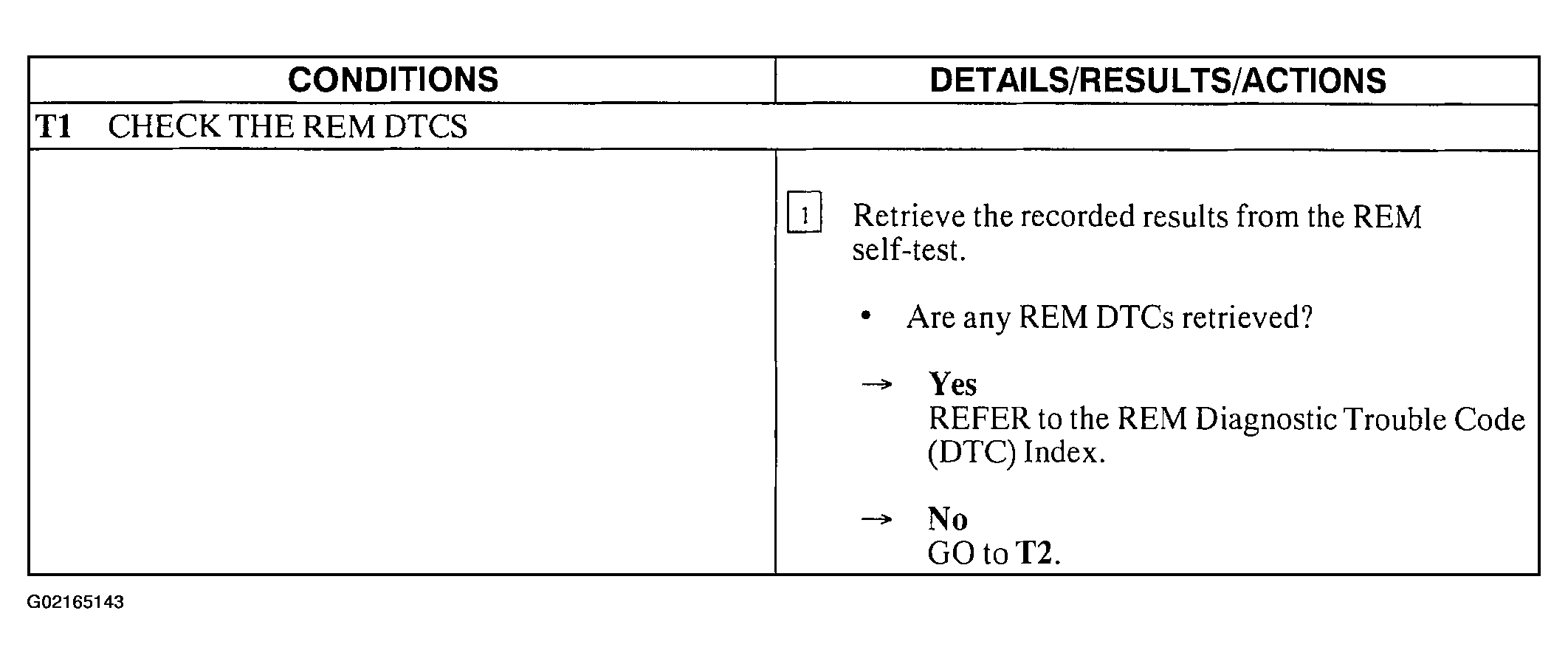

Fig 1: Pinpoint Test T: The Defrost System Will Not Shut Off Automatically - Rear Window Defrost (Step T1)

Courtesy of FORD MOTOR CO.

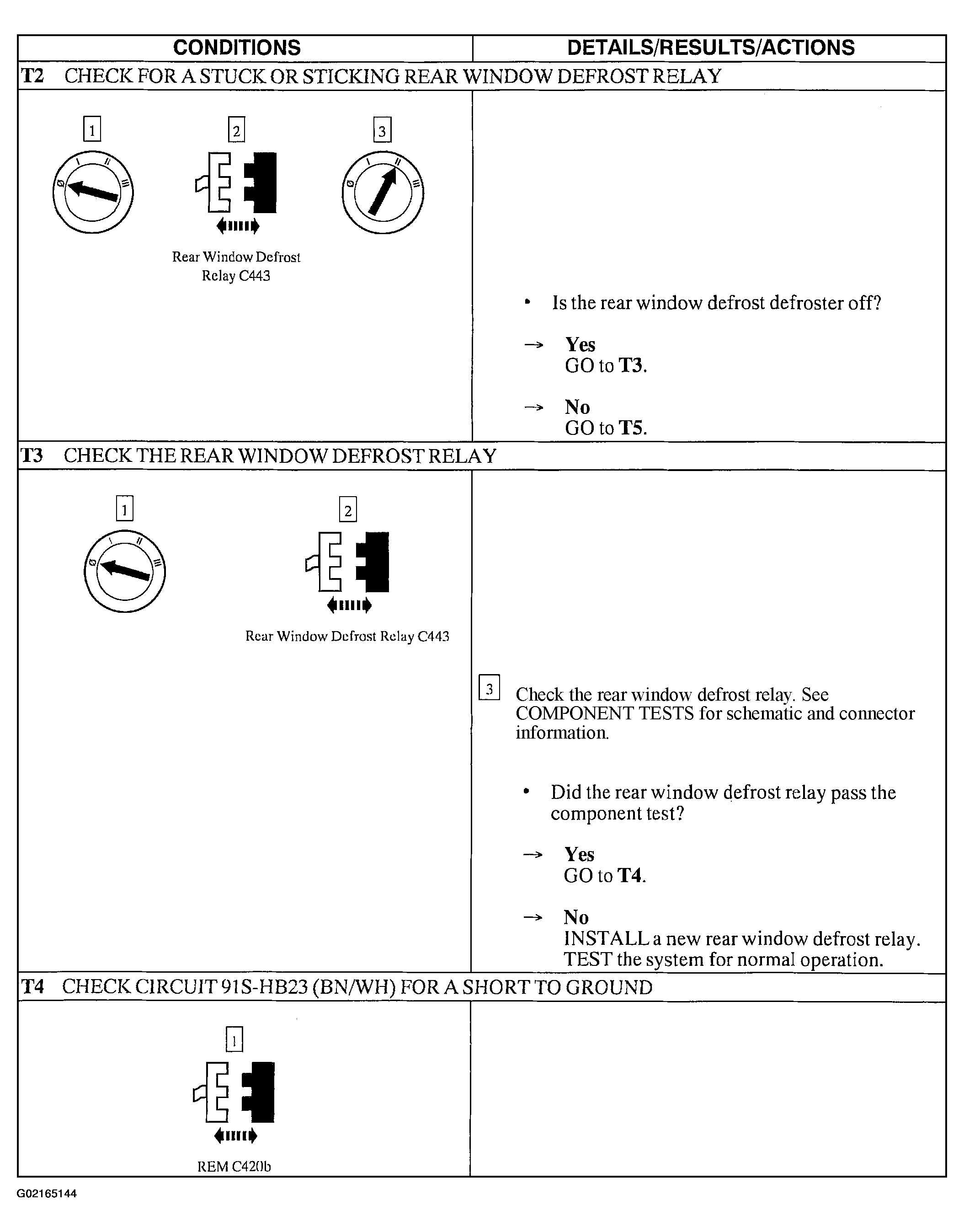

Fig 2: Pinpoint Test T: The Defrost System Will Not Shut Off Automatically - Rear Window Defrost (Steps T2-T4)

Courtesy of FORD MOTOR CO.

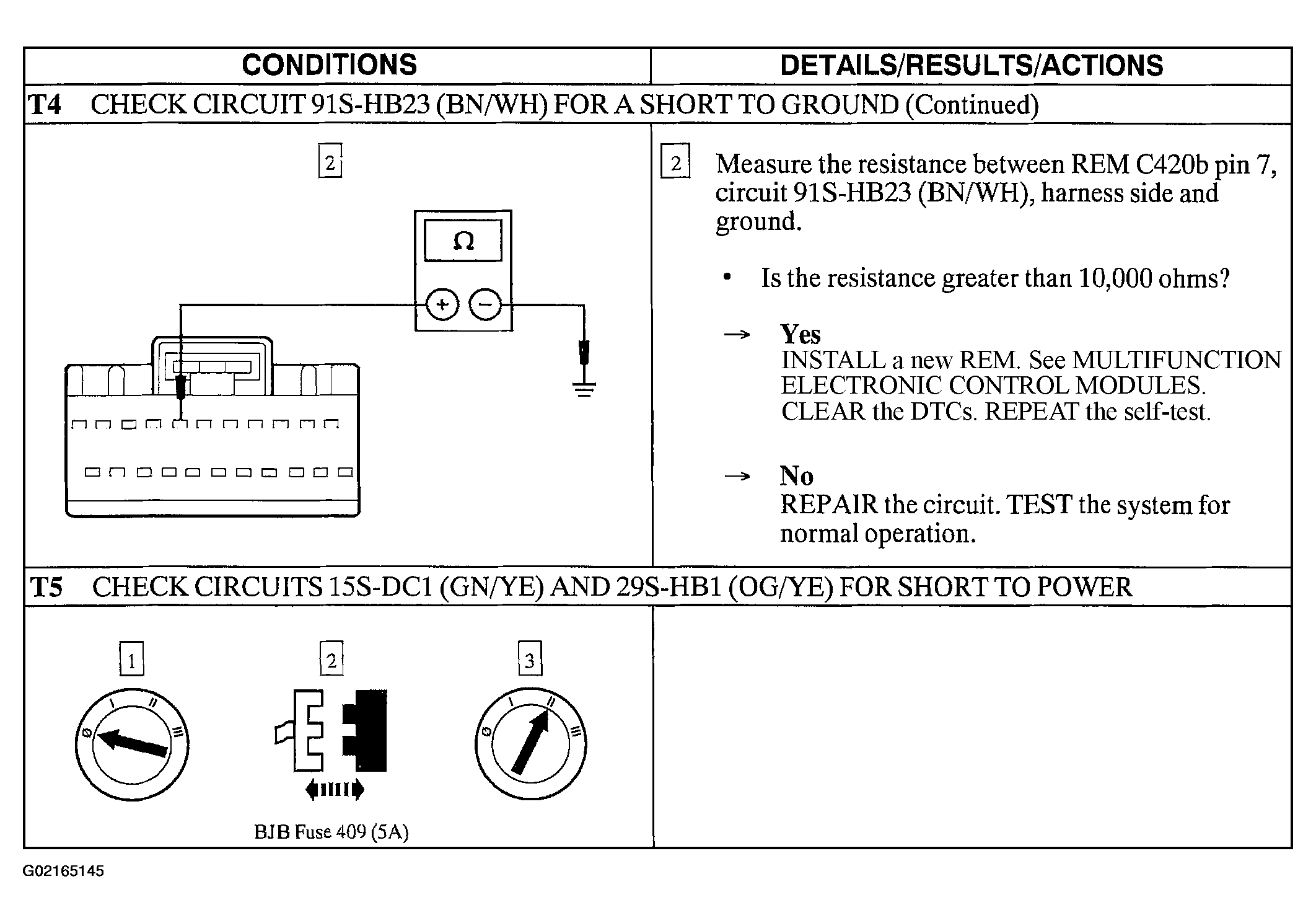

Fig 3: Pinpoint Test T: The Defrost System Will Not Shut Off Automatically - Rear Window Defrost (Steps T4 Cont. -T5)

Courtesy of FORD MOTOR CO.

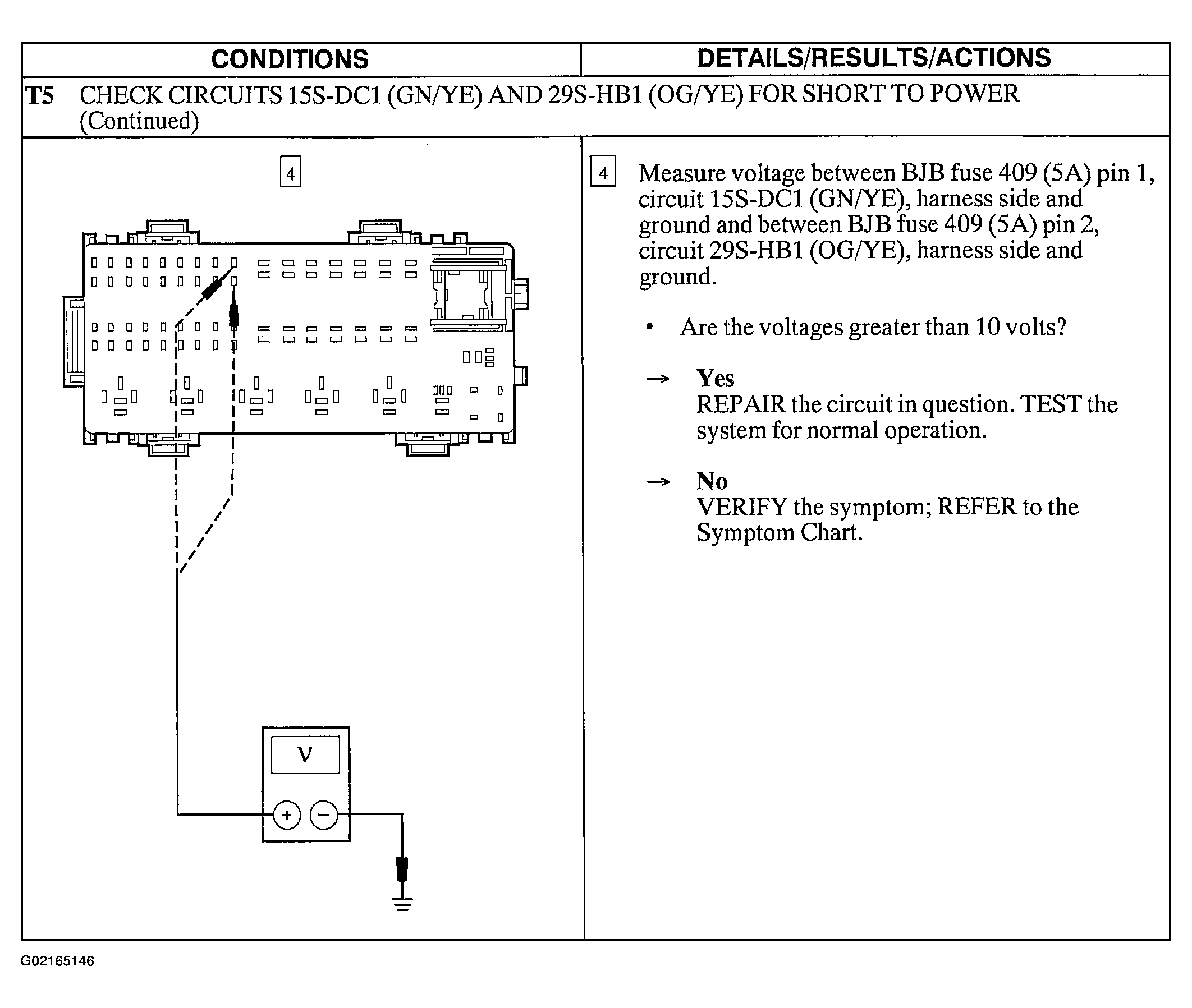

Fig 4: Pinpoint Test T: The Defrost System Will Not Shut Off Automatically - Rear Window Defrost (Steps T5 Cont.)

Courtesy of FORD MOTOR CO.
