Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

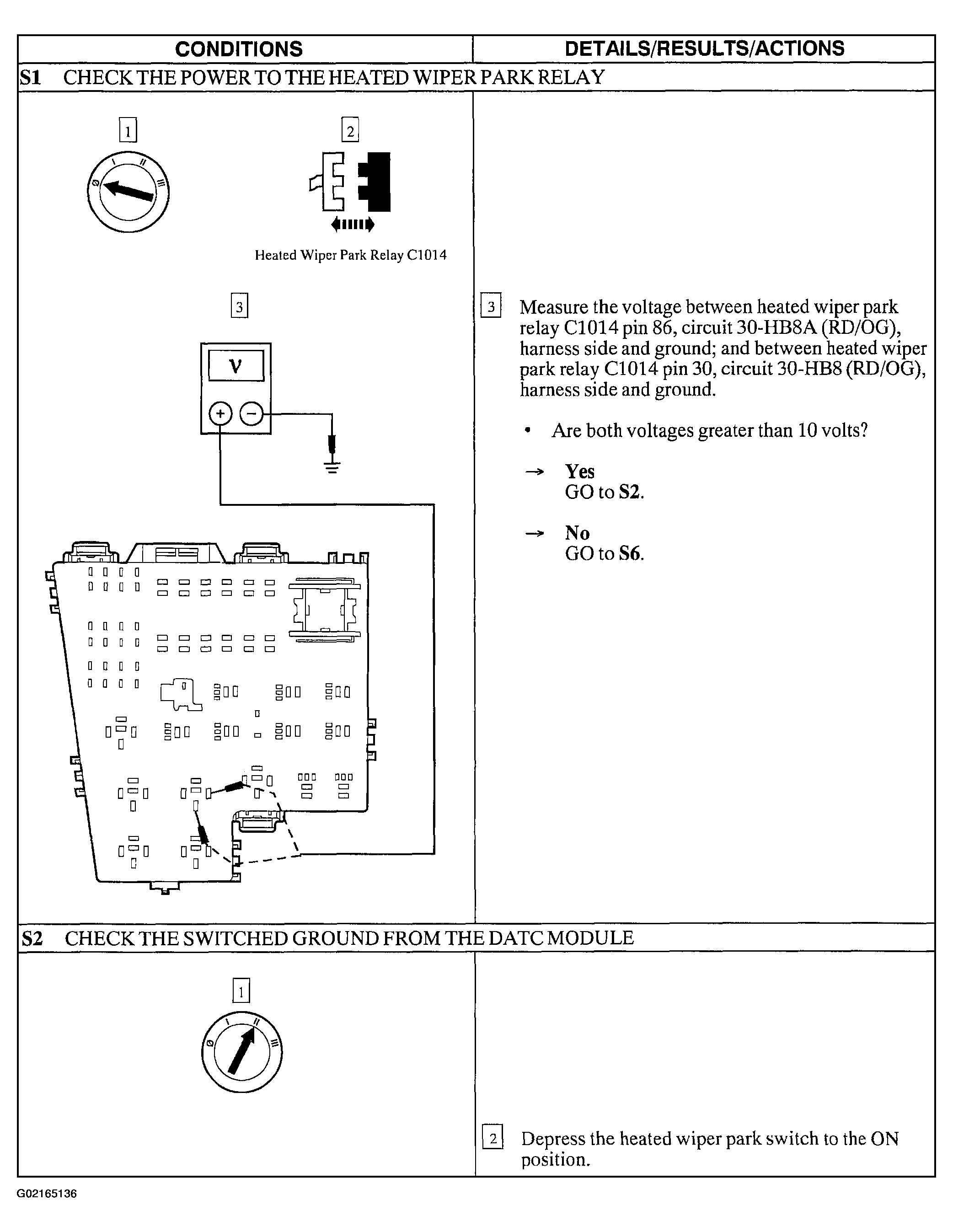

Fig 1: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S1-S2)

Courtesy of FORD MOTOR CO.

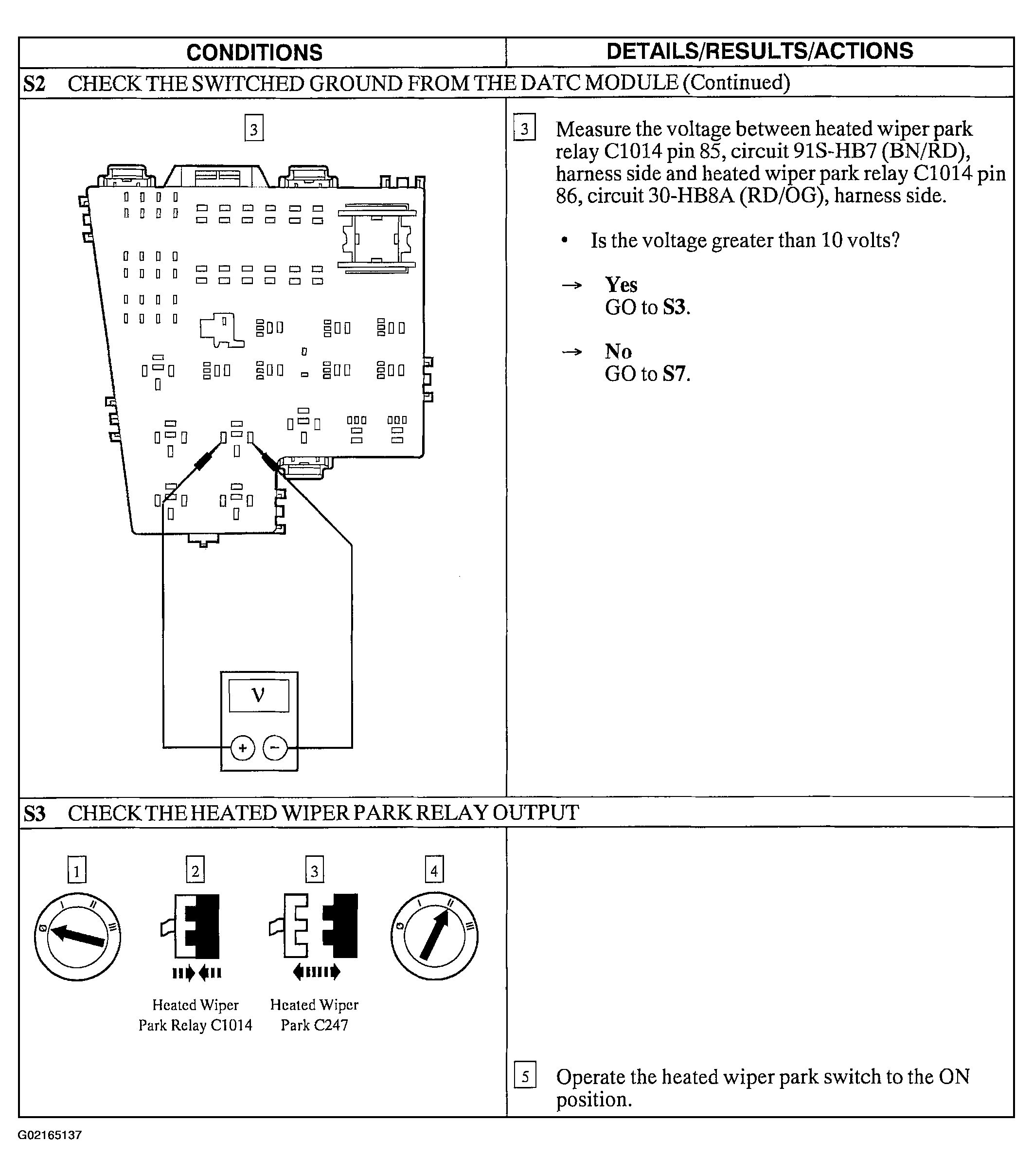

Fig 2: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S2 Cont. -S3)

Courtesy of FORD MOTOR CO.

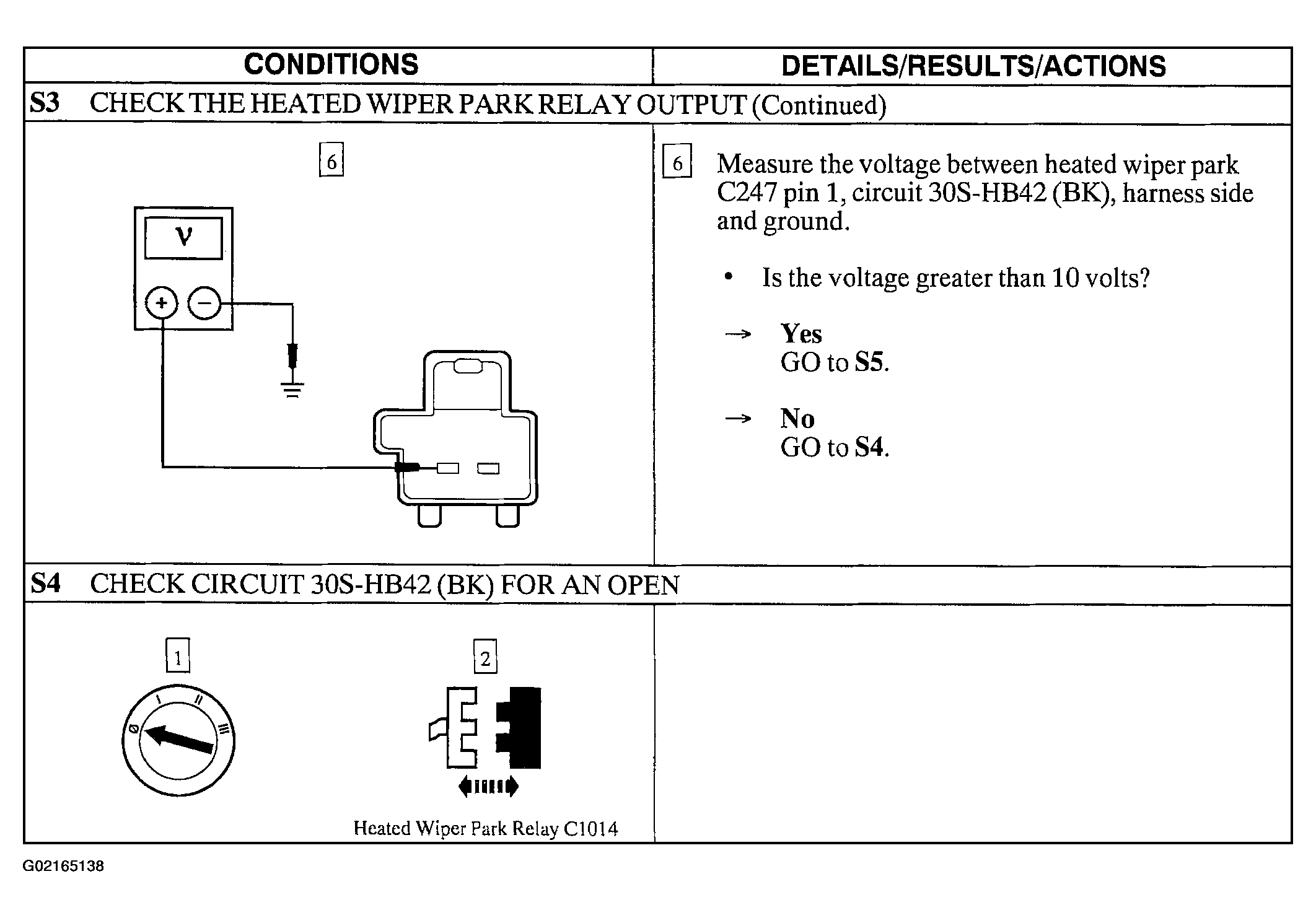

Fig 3: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S3 Cont. -S4)

Courtesy of FORD MOTOR CO.

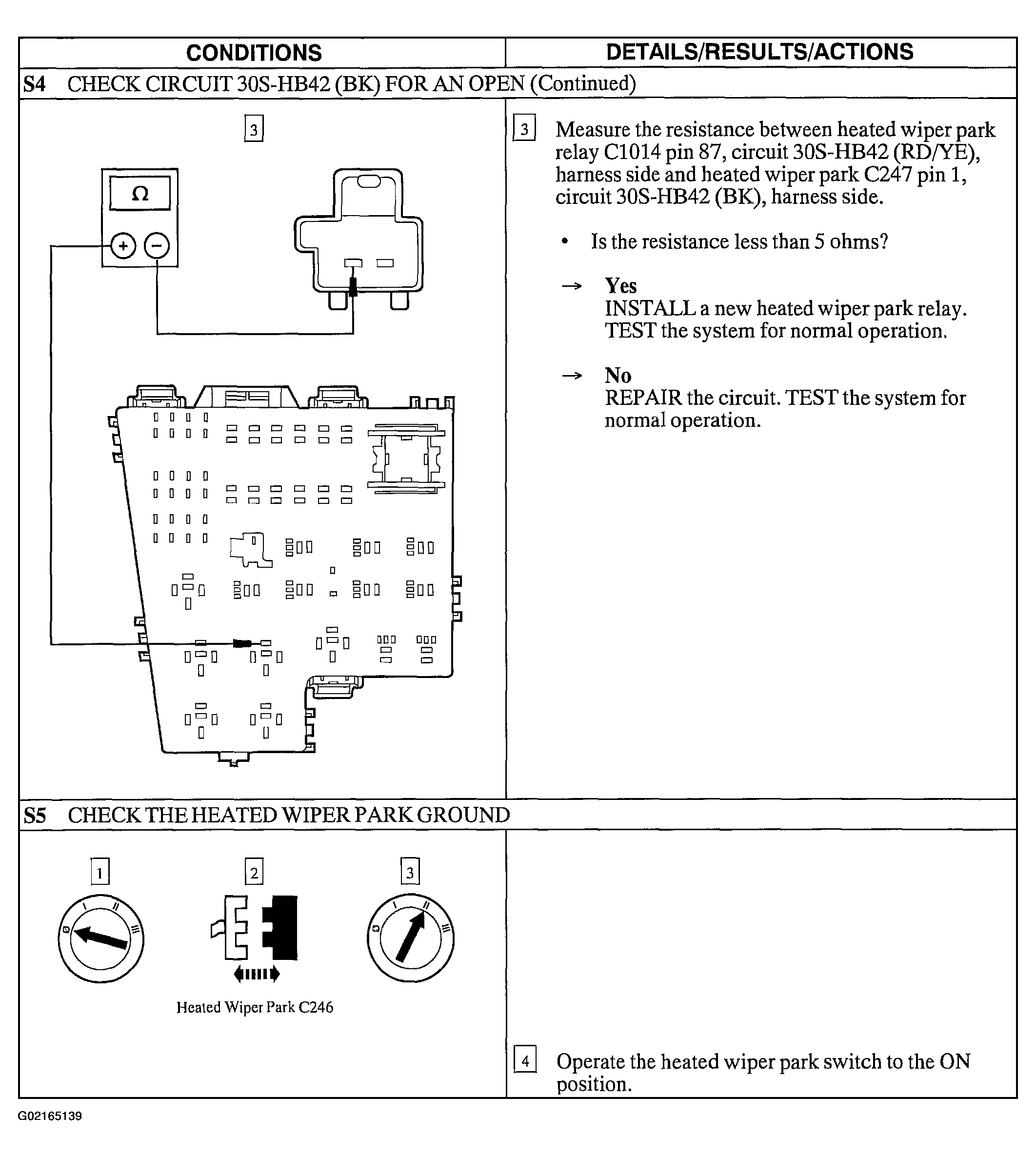

Fig 4: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S4 Cont. -S5)

Courtesy of FORD MOTOR CO.

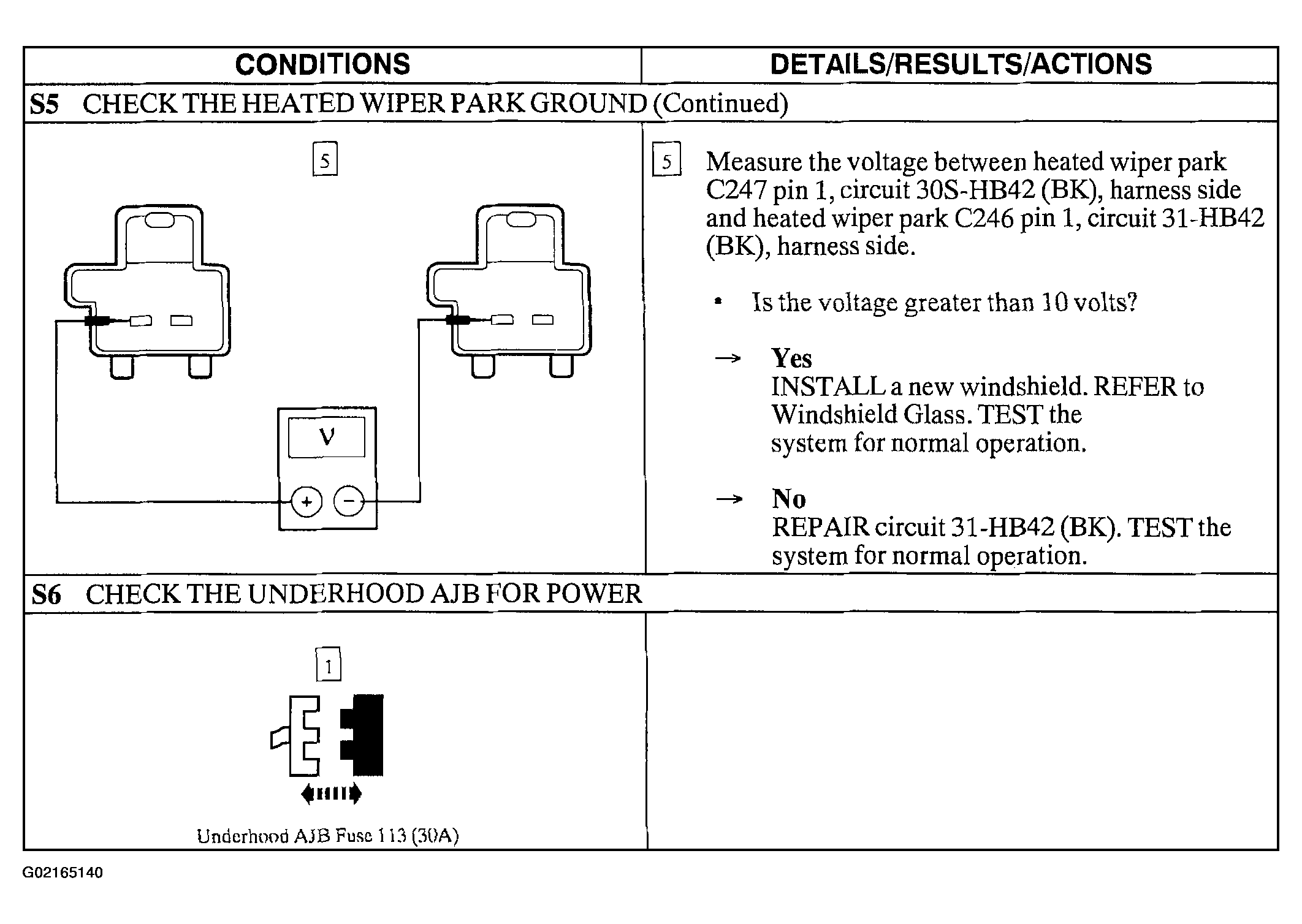

Fig 5: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S5 Cont. -S6)

Courtesy of FORD MOTOR CO.

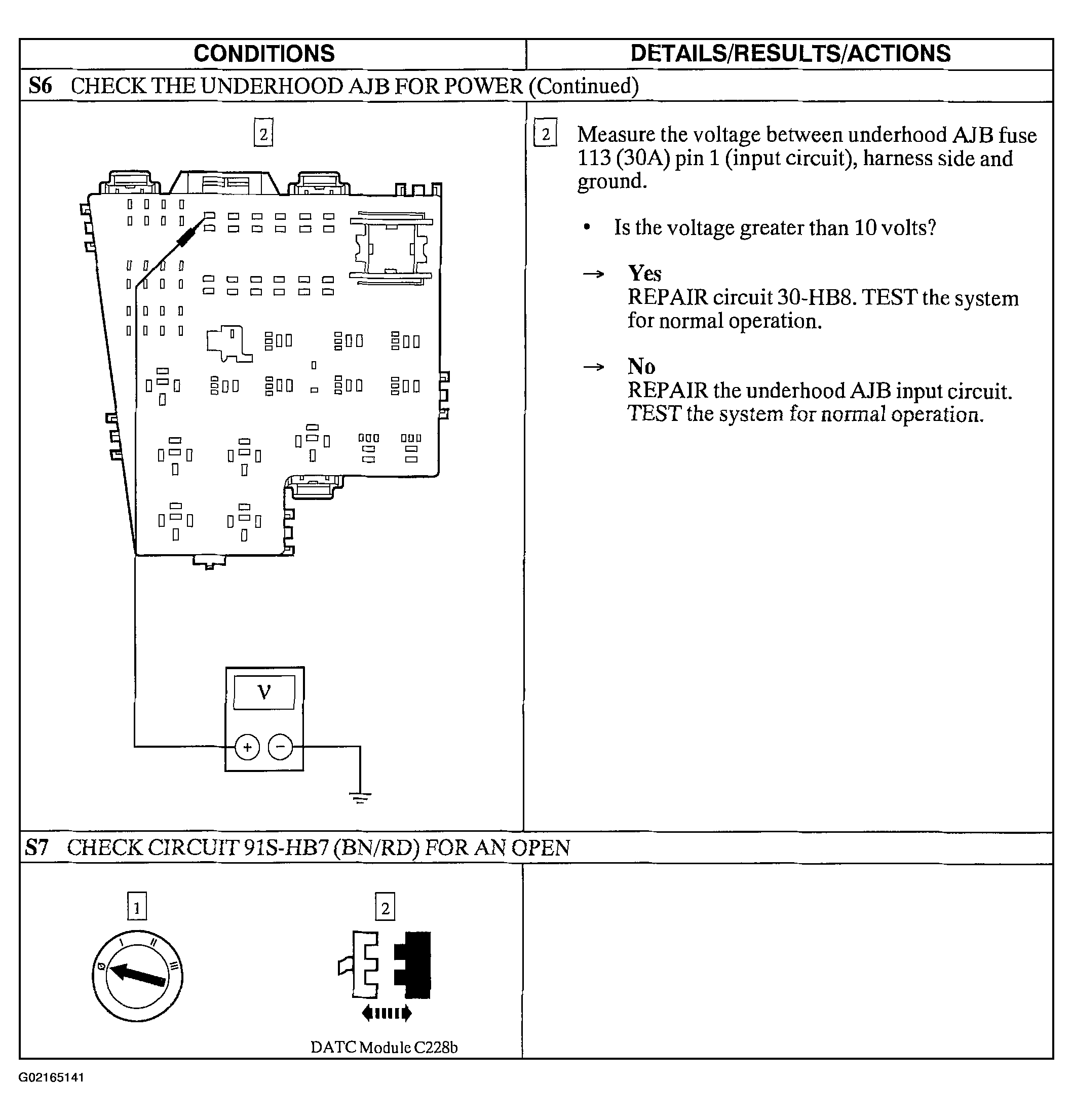

Fig 6: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Steps S6 Cont. -S7)

Courtesy of FORD MOTOR CO.

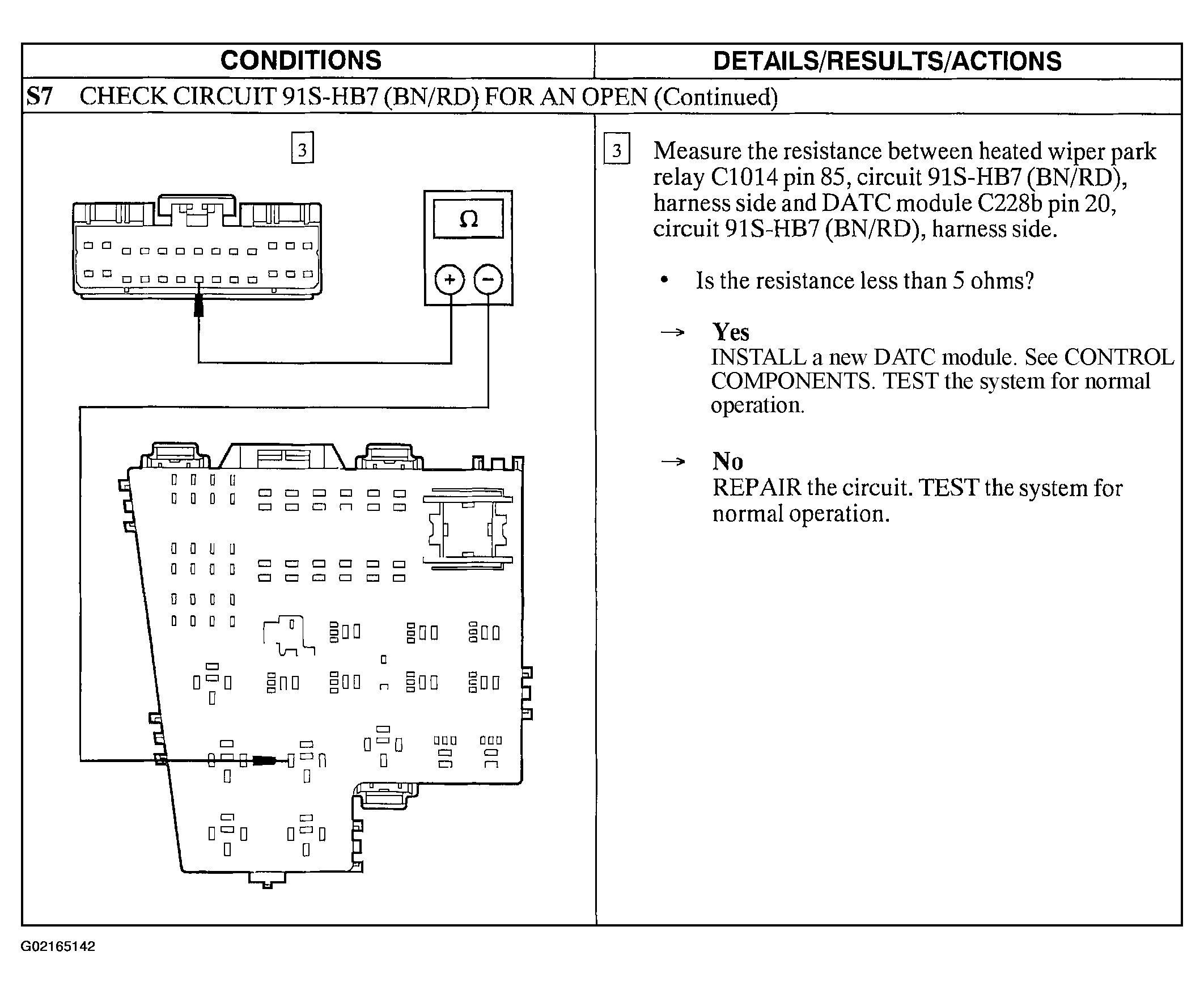

Fig 7: Pinpoint Test S: The Defrost System Is Inoperative - Heated Wiper Park (Step S7 Cont.)

Courtesy of FORD MOTOR CO.
