Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

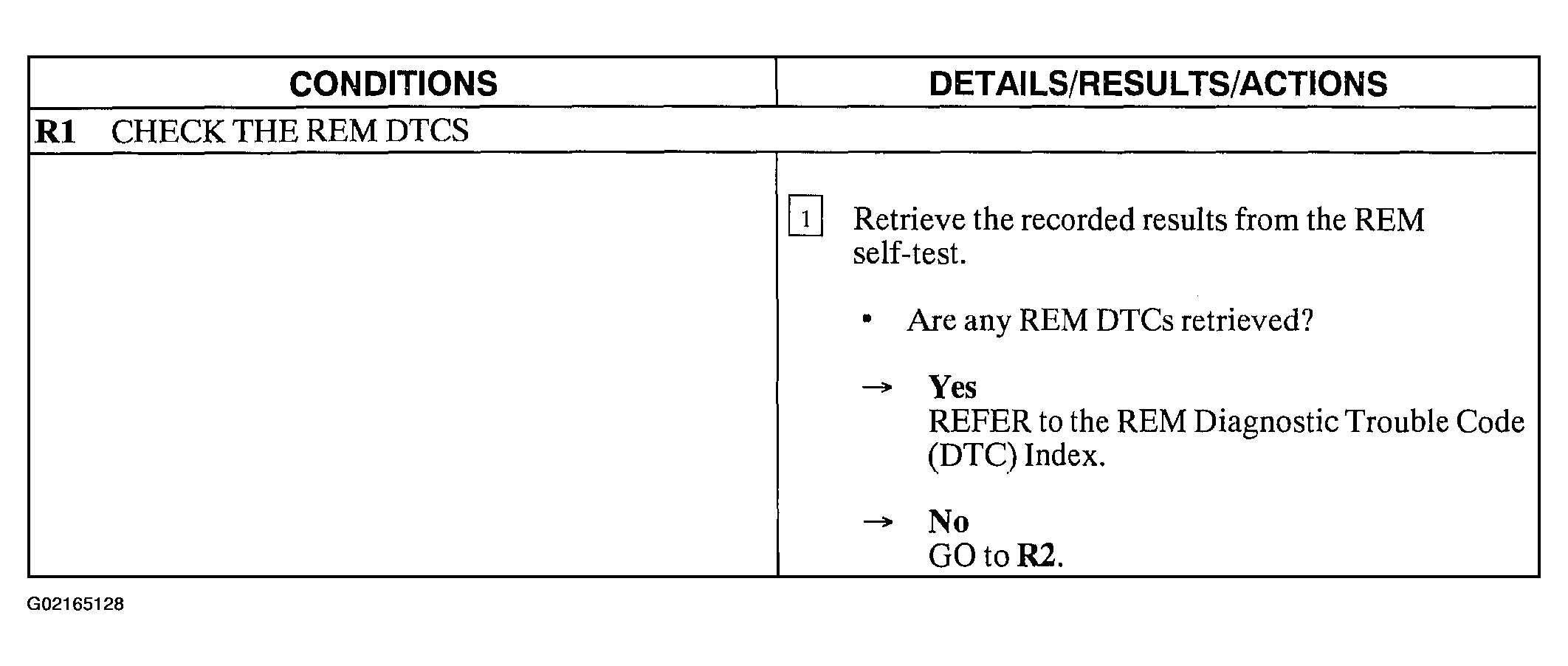

Fig 1: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Step R)

Courtesy of FORD MOTOR CO.

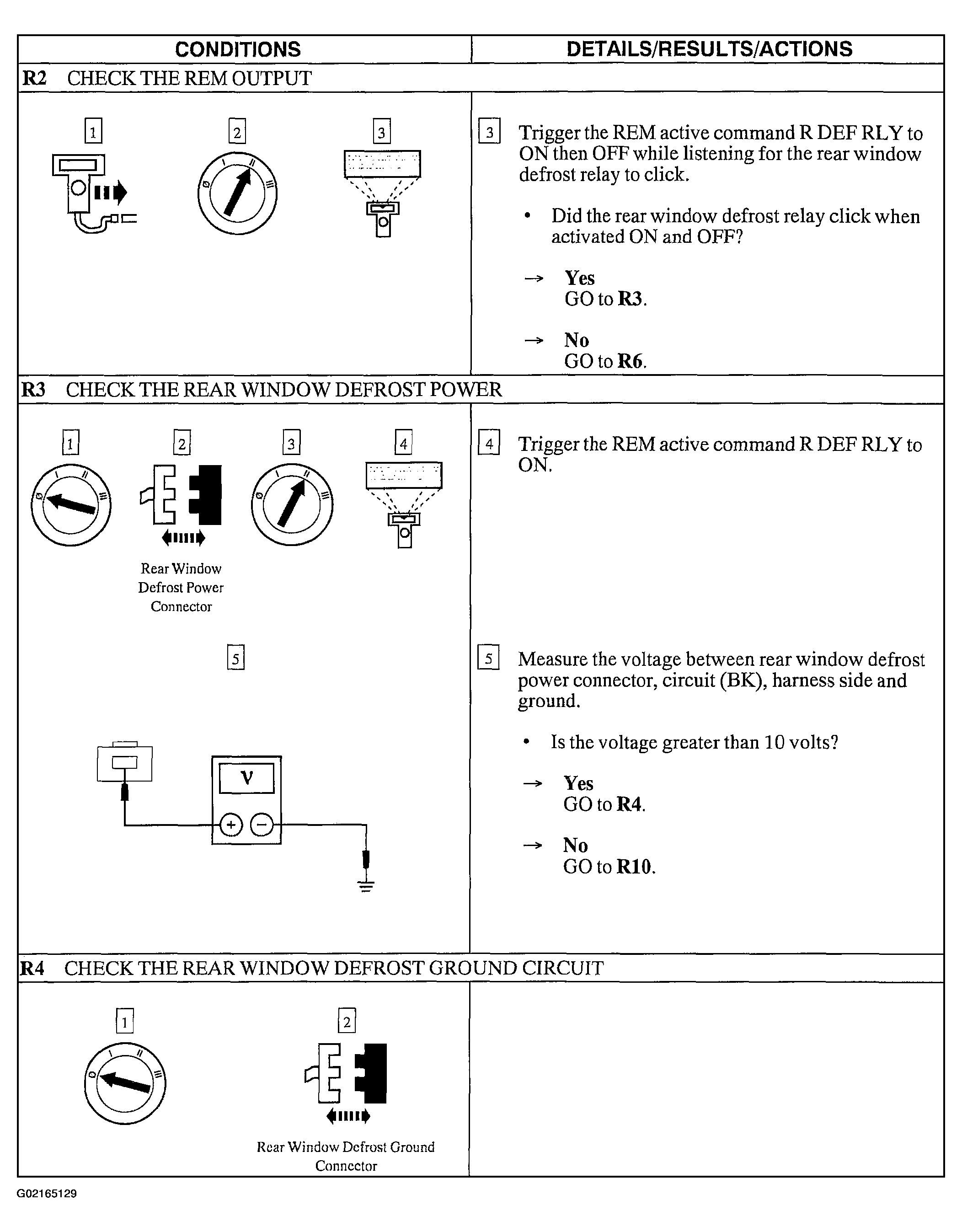

Fig 2: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R2-R4)

Courtesy of FORD MOTOR CO.

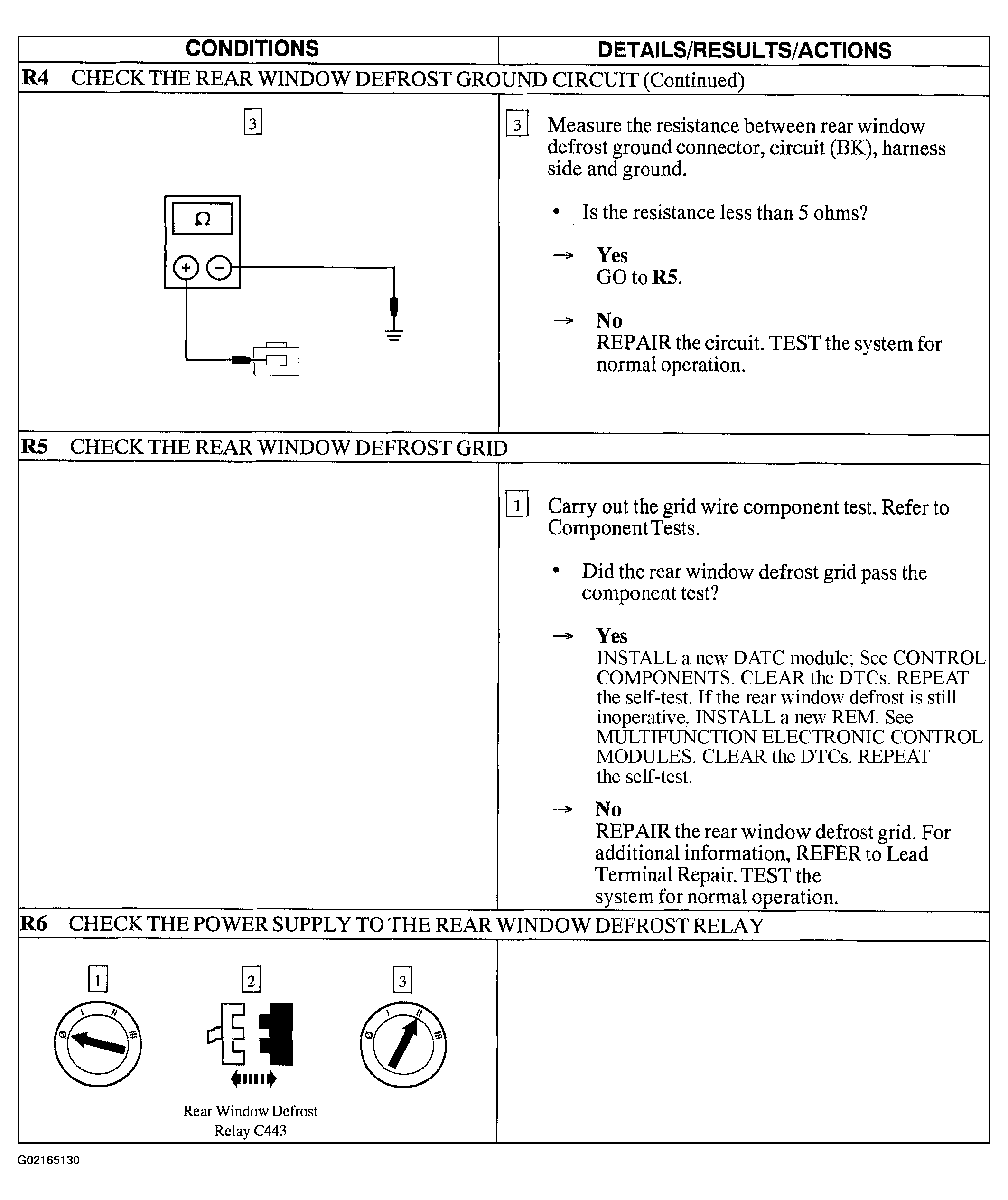

Fig 3: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R4 Cont. -R6)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R6 Cont. -R7)

Courtesy of FORD MOTOR CO.

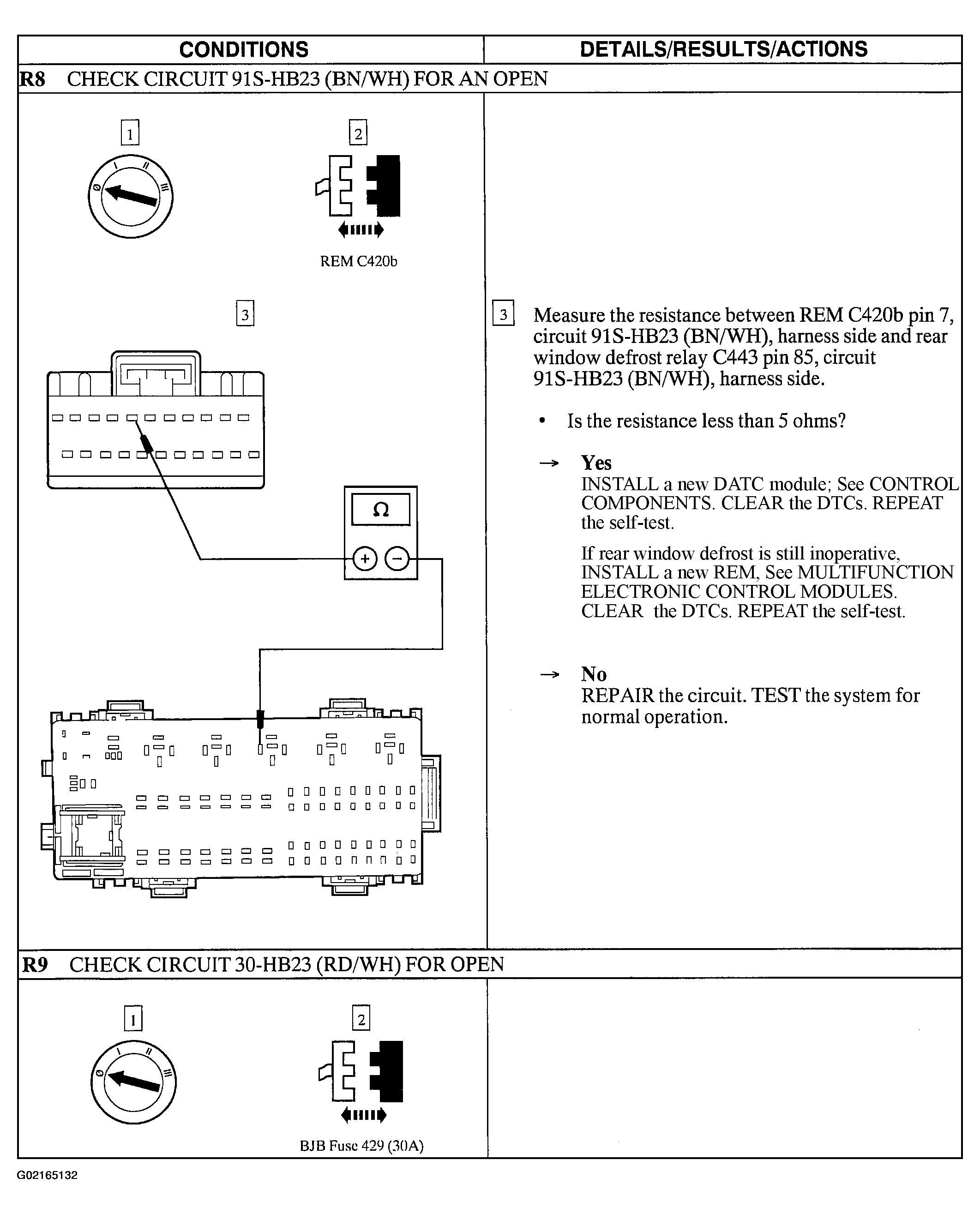

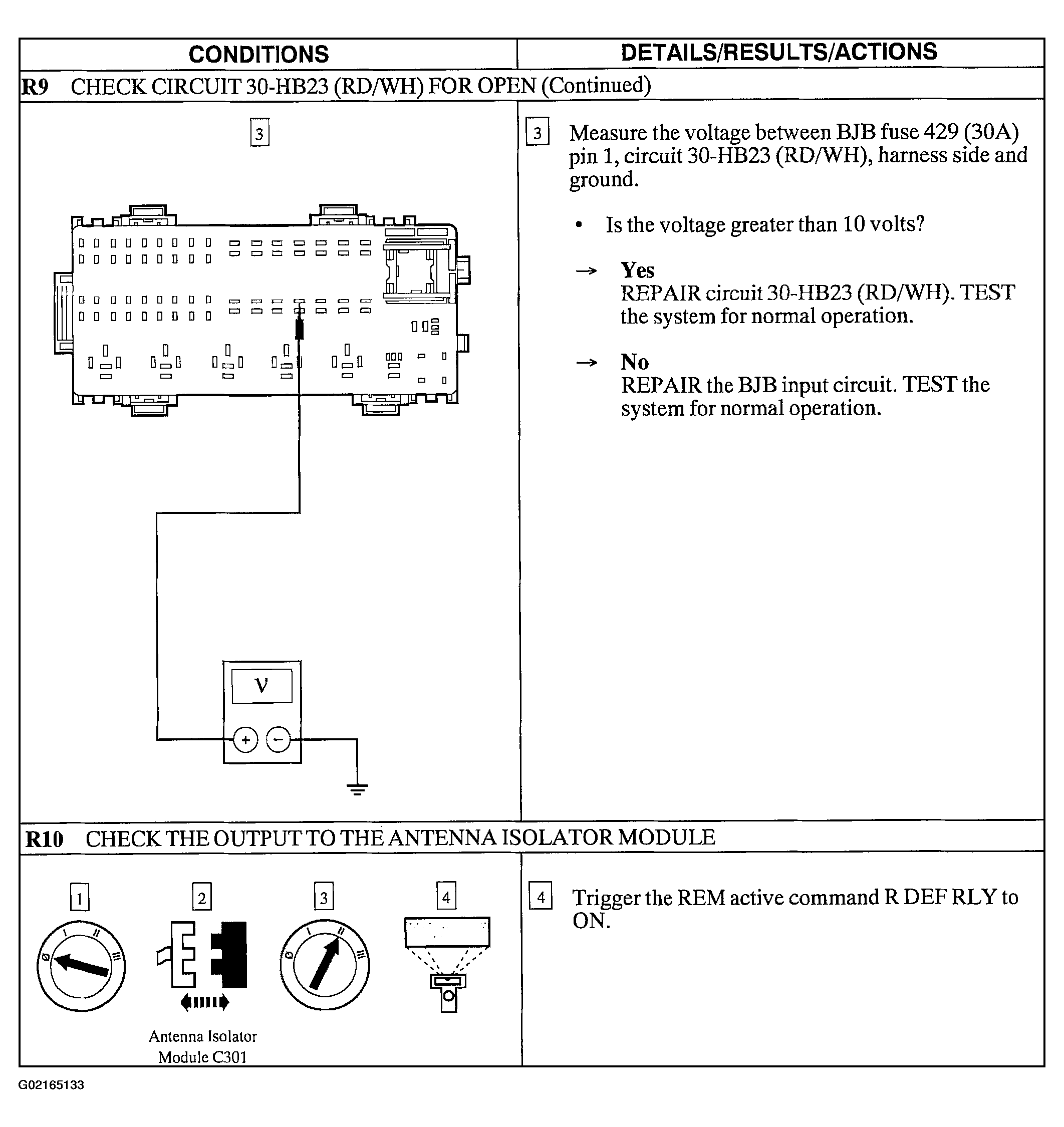

Fig 5: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R8-R9)

Courtesy of FORD MOTOR CO.

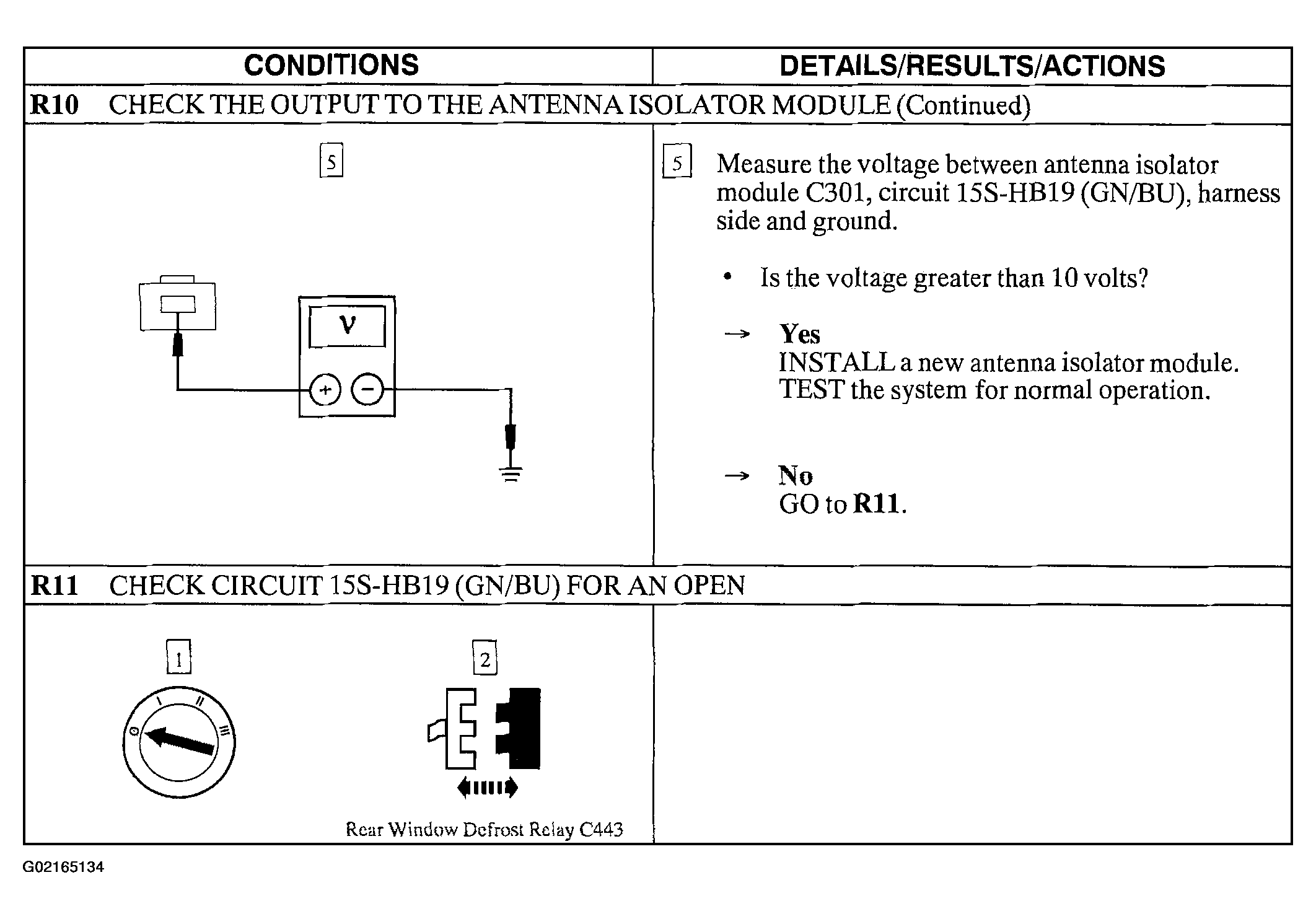

Fig 6: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R9 Cont. -R10)

Courtesy of FORD MOTOR CO.

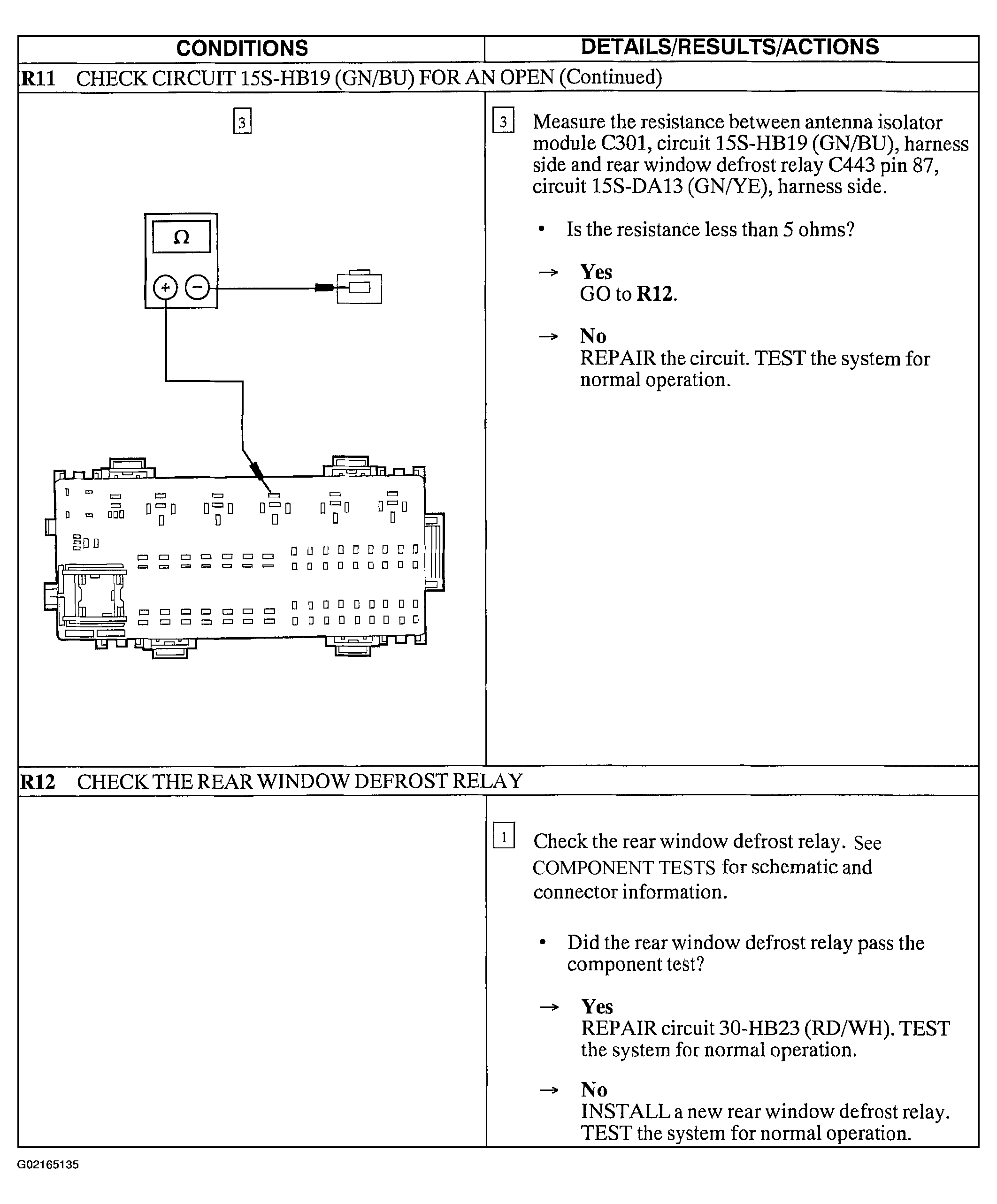

Fig 7: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R10 Cont. -R11)

Courtesy of FORD MOTOR CO.

Fig 8: Pinpoint Test R: The Defrost System Is Inoperative - Rear Window Defrost (Steps R11 Cont. -R12)

Courtesy of FORD MOTOR CO.
