Pinpoint Test Q: The One Touch Down Feature Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

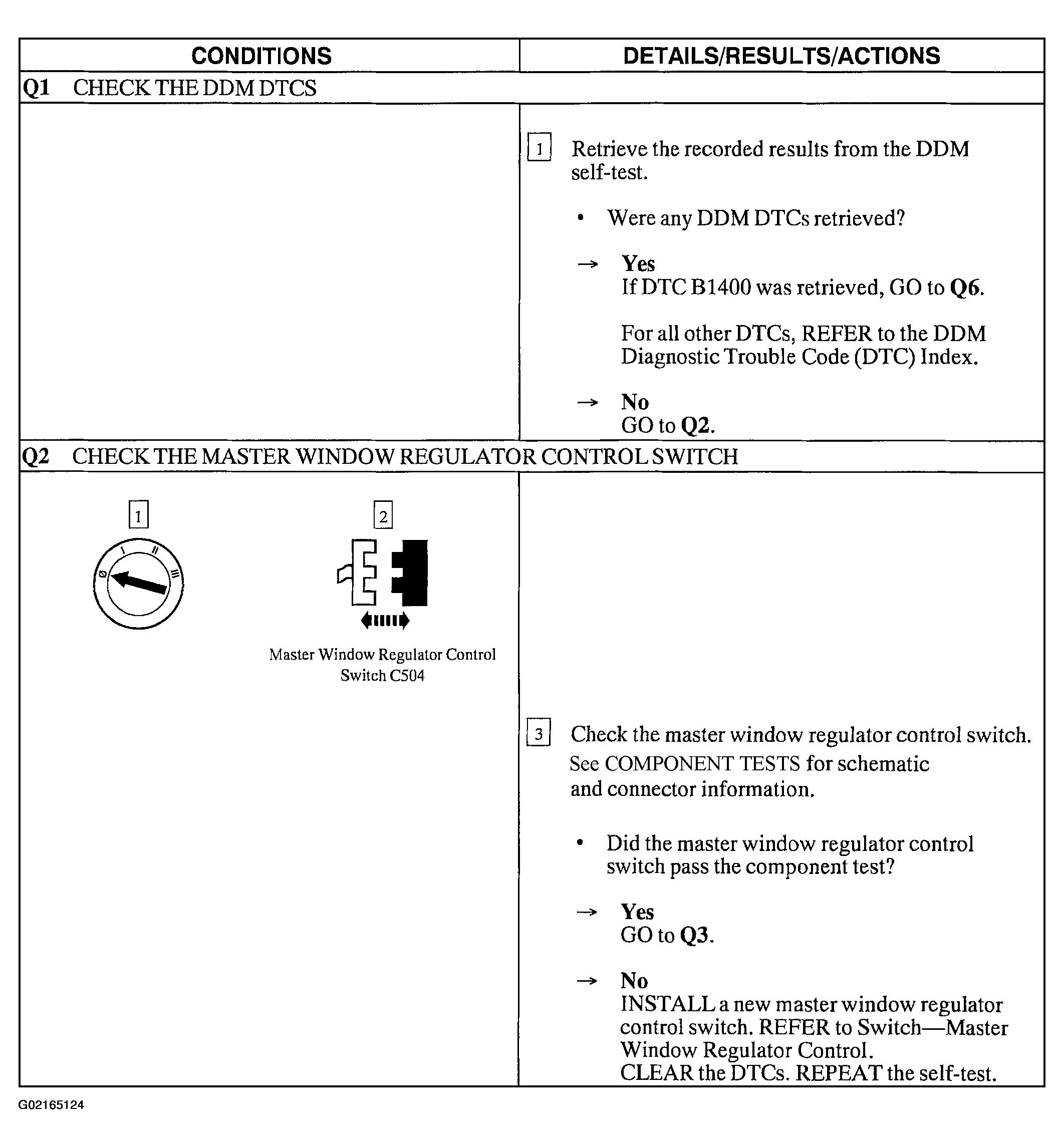

Fig 1: Pinpoint Test Q: The One Touch Down Feature Is Inoperative (Steps Q1-Q2)

Courtesy of FORD MOTOR CO.

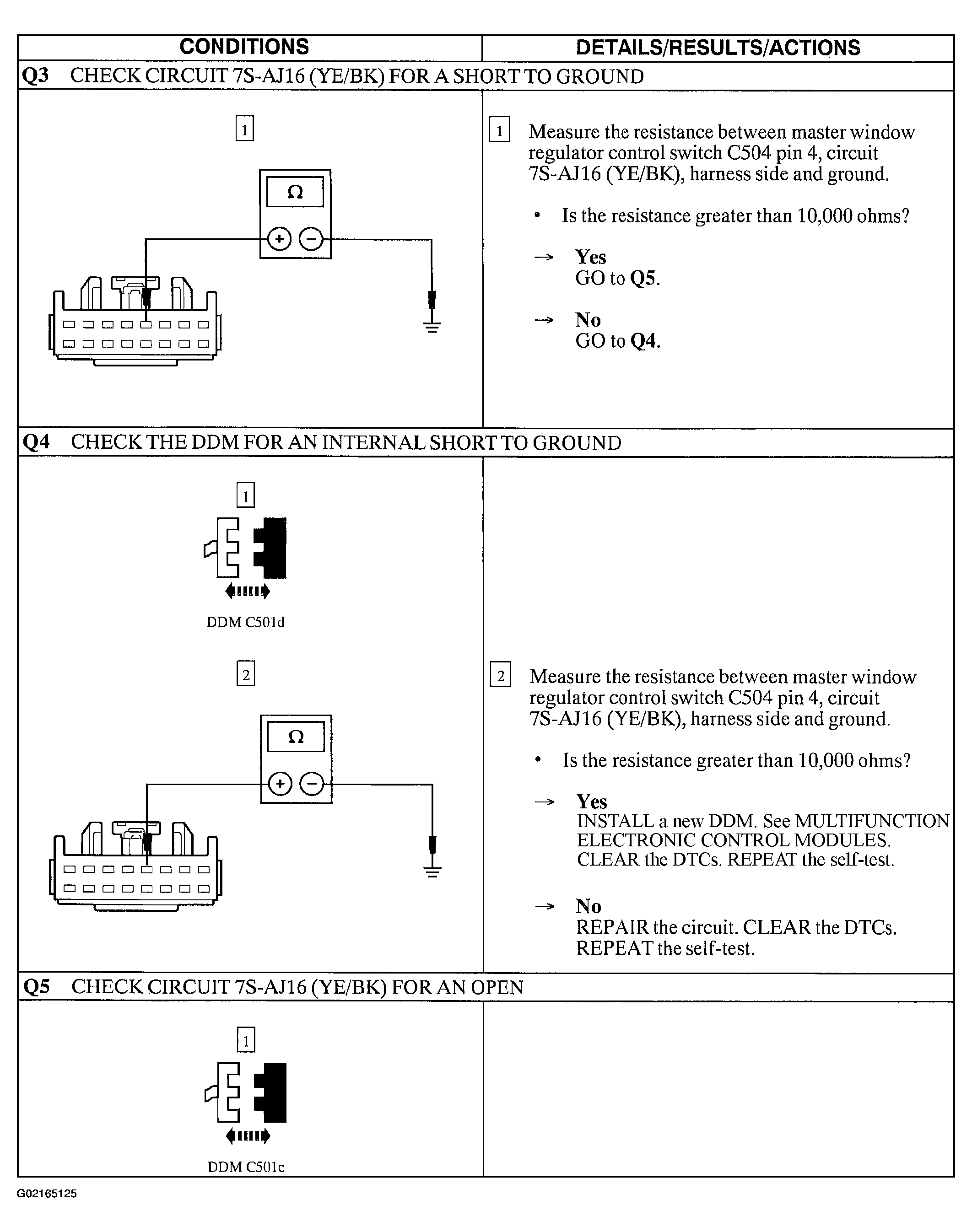

Fig 2: Pinpoint Test Q: The One Touch Down Feature Is Inoperative (Steps Q3-Q5)

Courtesy of FORD MOTOR CO.

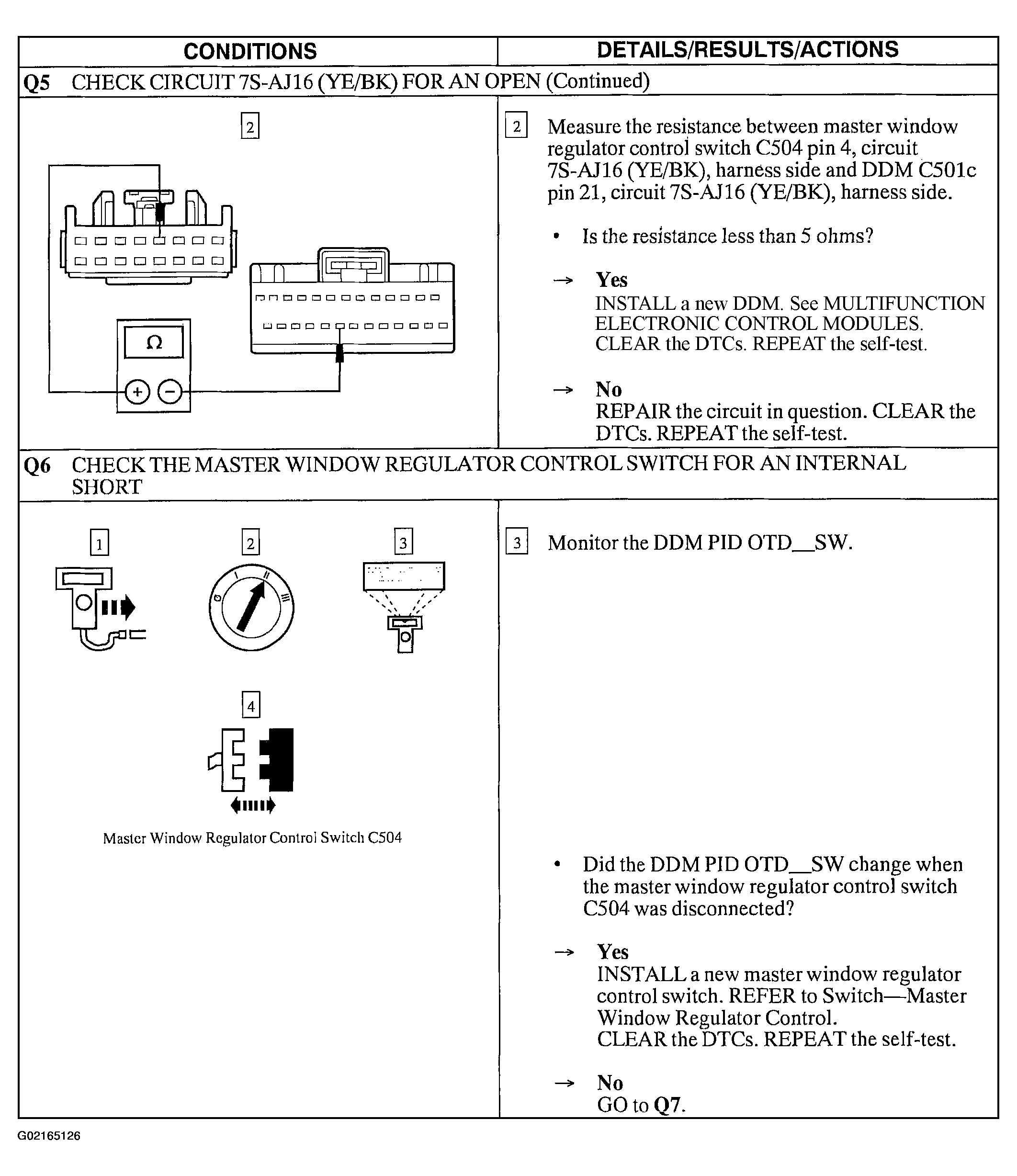

Fig 3: Pinpoint Test Q: The One Touch Down Feature Is Inoperative (Steps Q5 Cont. -Q6)

Courtesy of FORD MOTOR CO.

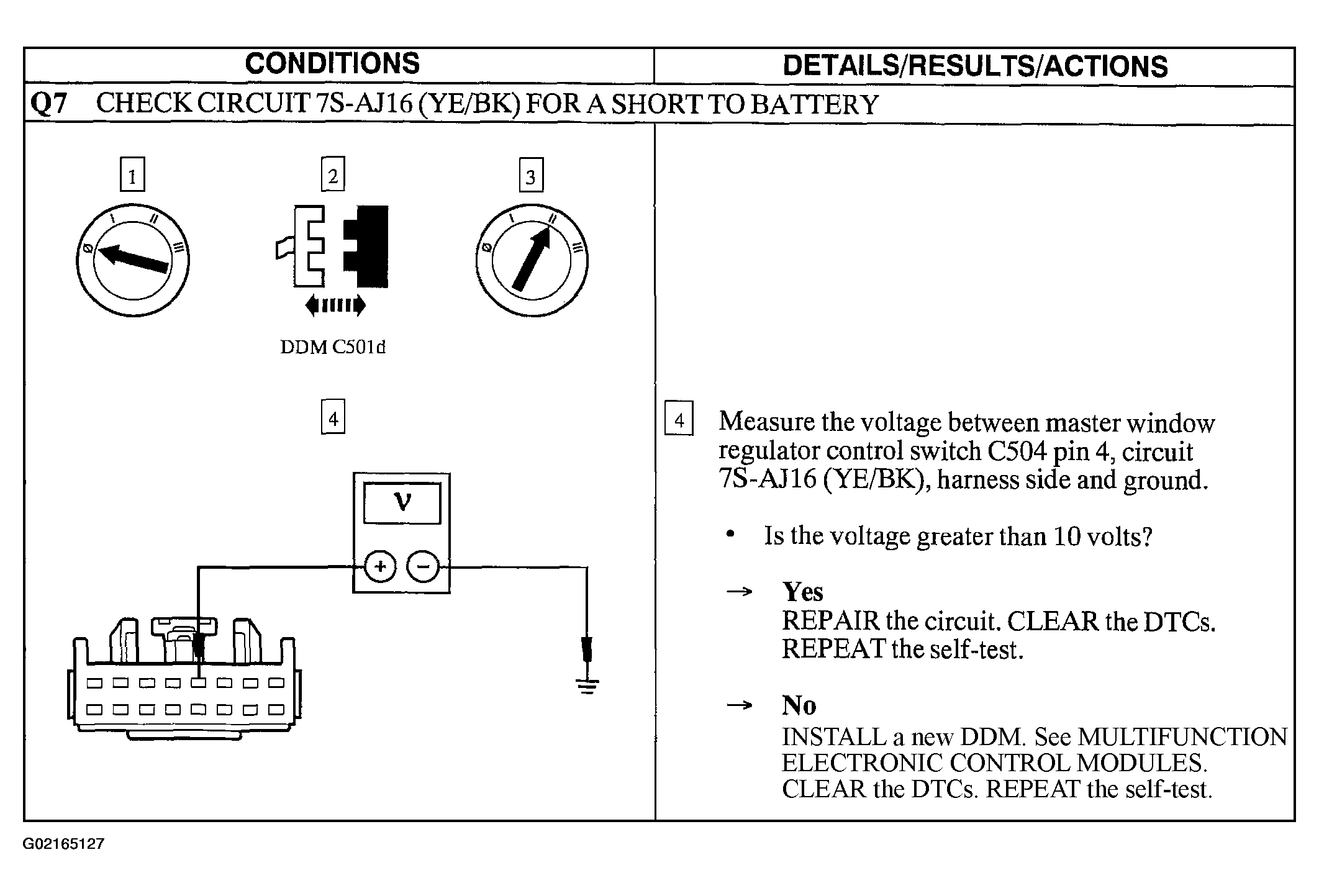

Fig 4: Pinpoint Test Q: The One Touch Down Feature Is Inoperative (Step Q7)

Courtesy of FORD MOTOR CO.
