Pinpoint Test P: All/Single Passenger Power Windows Are Inoperative - Passenger Window Lock-Out Not Operating Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

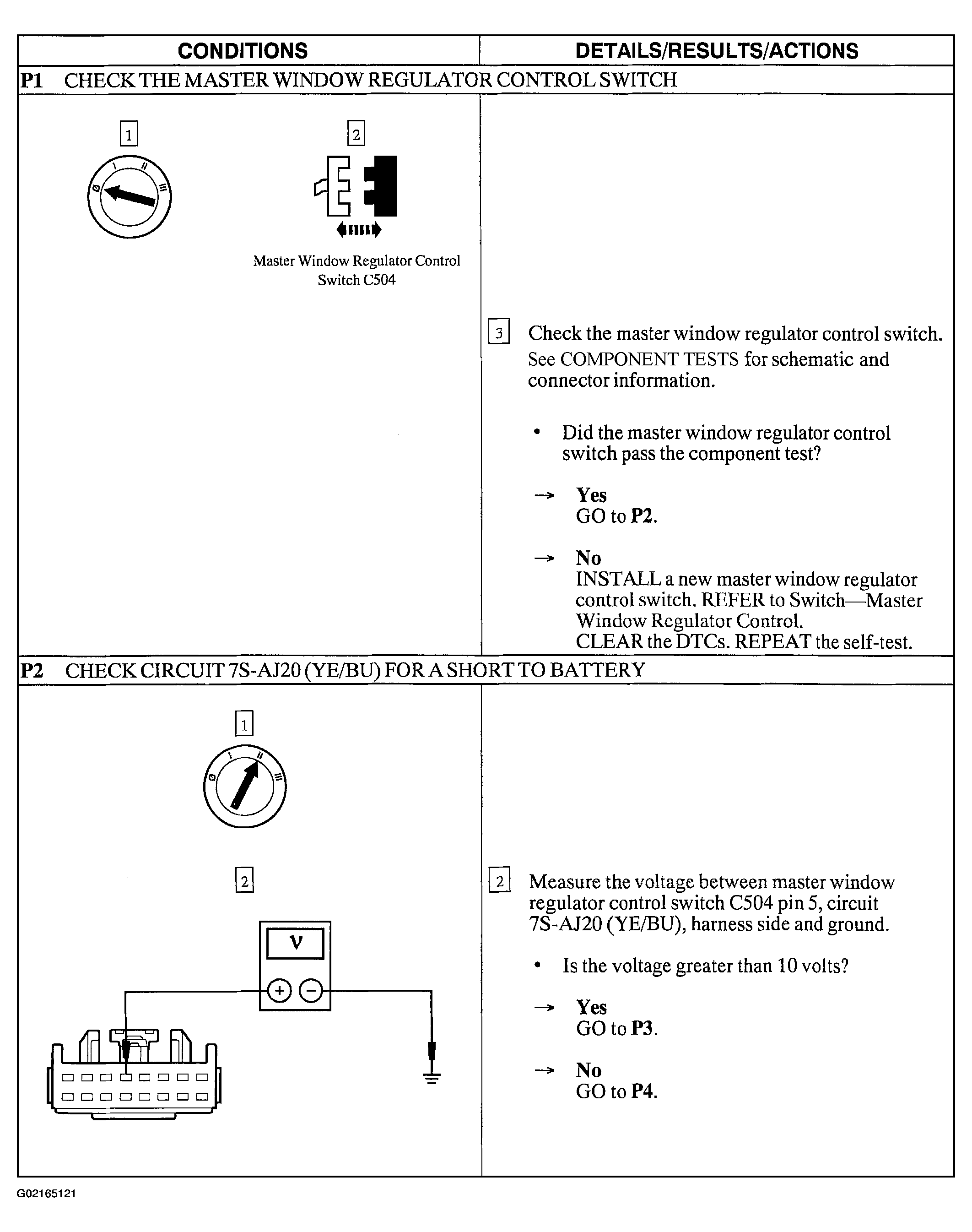

Fig 1: Pinpoint Test P: All/Single Passenger Power Windows Are Inoperative - Passenger Window Lock-Out Not Operating Correctly (Steps P1-P2)

Courtesy of FORD MOTOR CO.

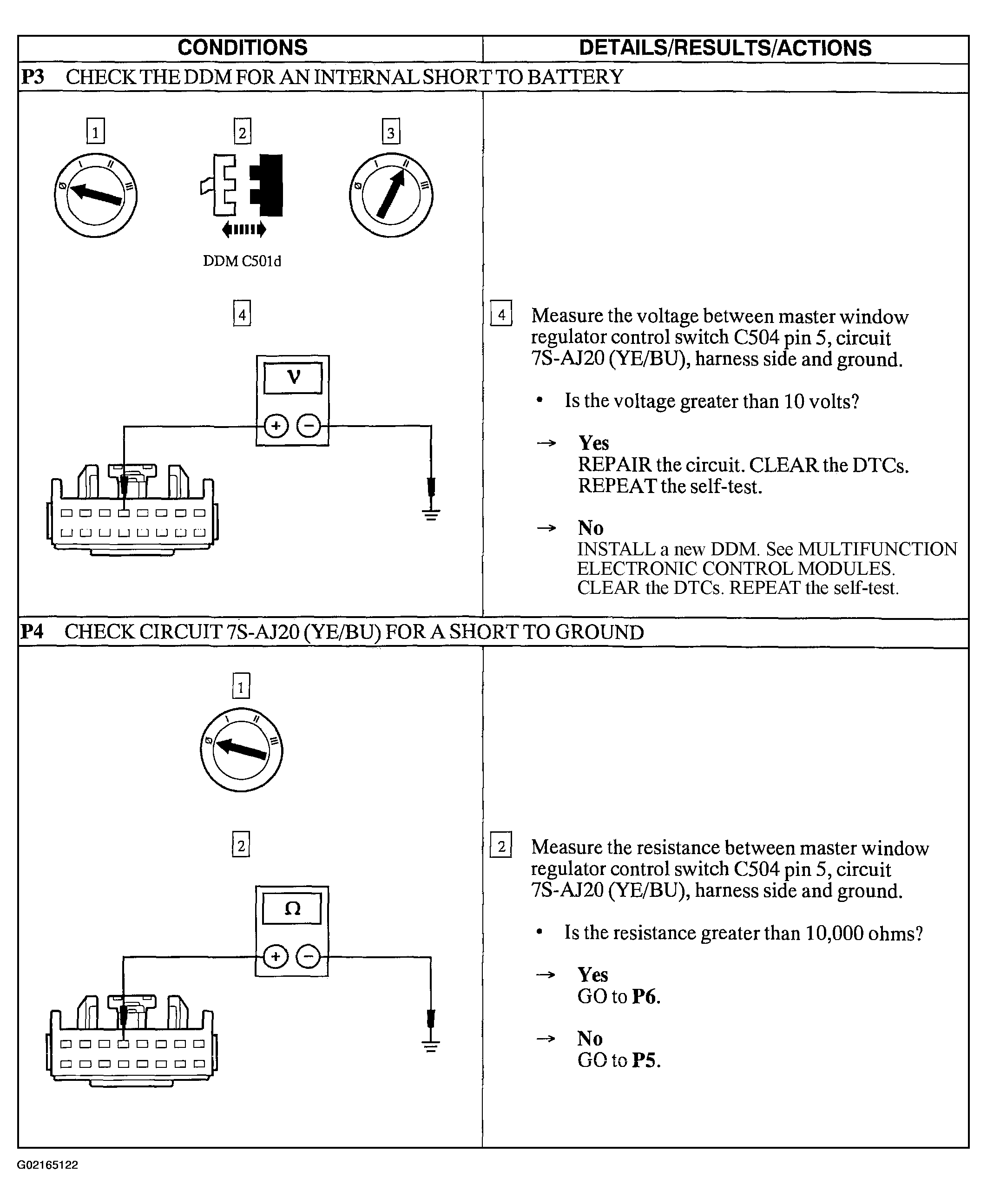

Fig 2: Pinpoint Test P: All/Single Passenger Power Windows Are Inoperative - Passenger Window Lock-Out Not Operating Correctly (Steps P3-P4)

Courtesy of FORD MOTOR CO.

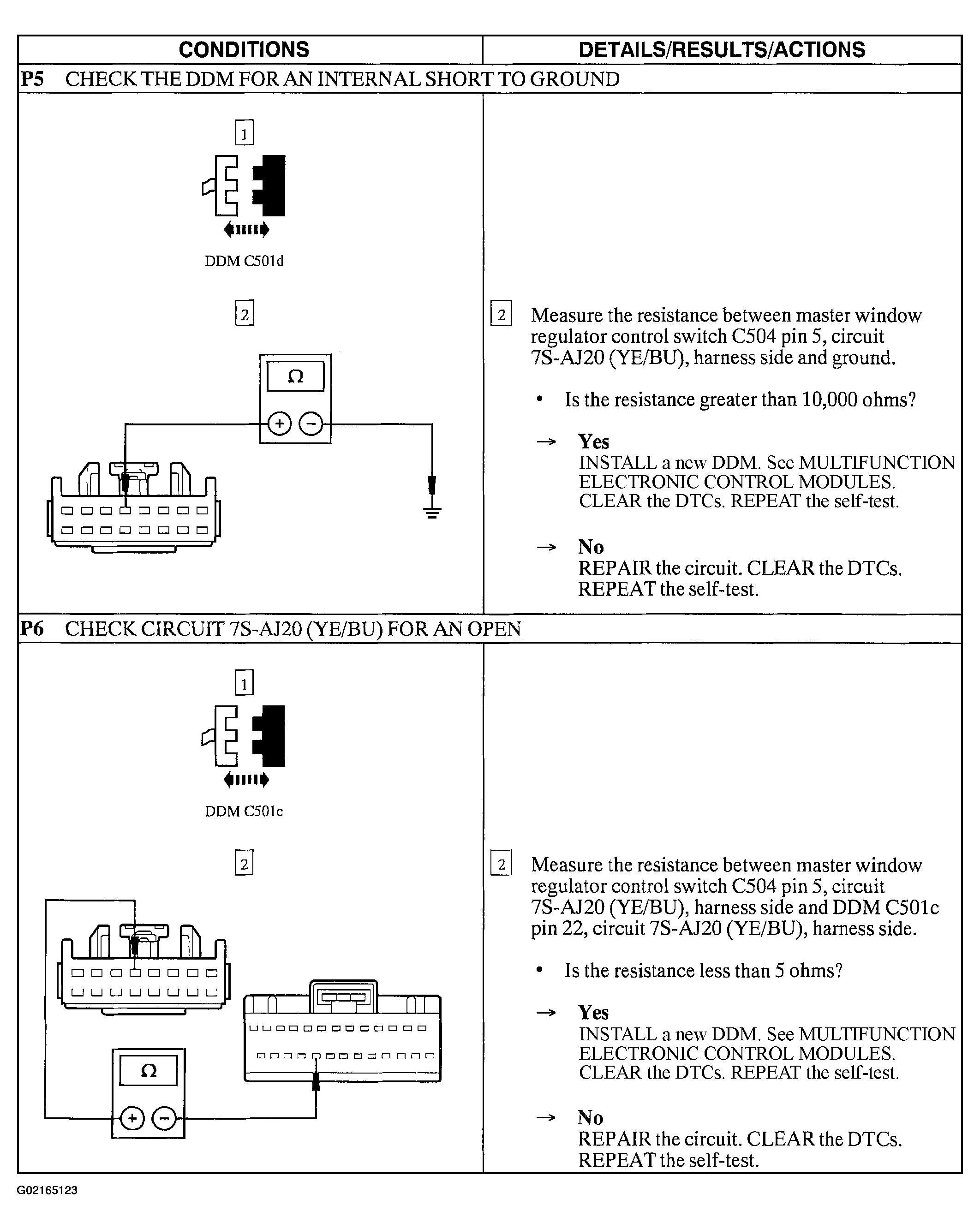

Fig 3: Pinpoint Test P: All/Single Passenger Power Windows Are Inoperative - Passenger Window Lock-Out Not Operating Correctly (Steps P5-P6)

Courtesy of FORD MOTOR CO.
