Pinpoint Test O: A Single Power Window Is Inoperative - Left Rear From The LL Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

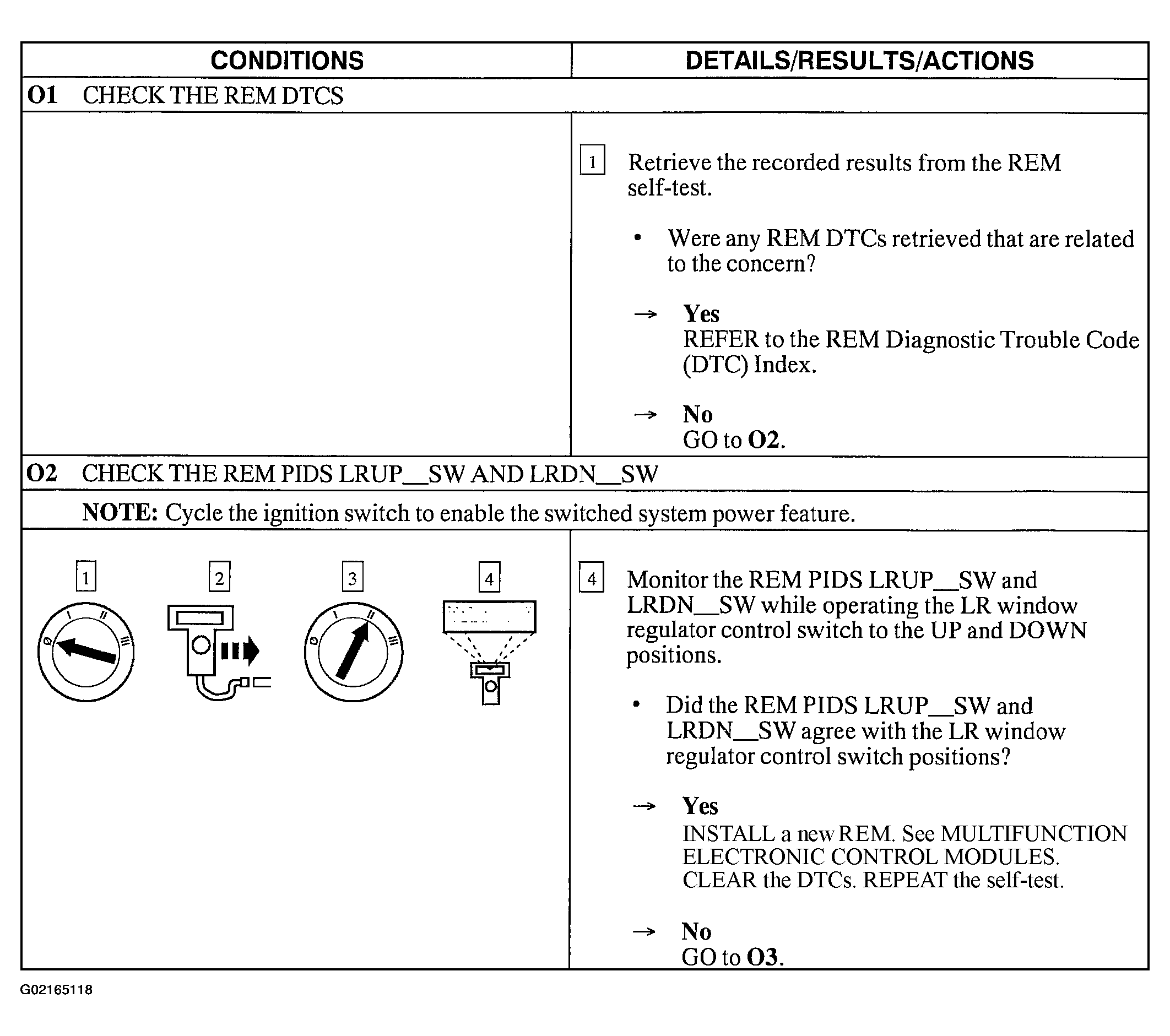

Fig 1: Pinpoint Test O: A Single Power Window Is Inoperative - Left Rear From The LL Window Regulator Control Switch Only (Steps O1-O2)
G02165118Courtesy of FORD MOTOR CO.

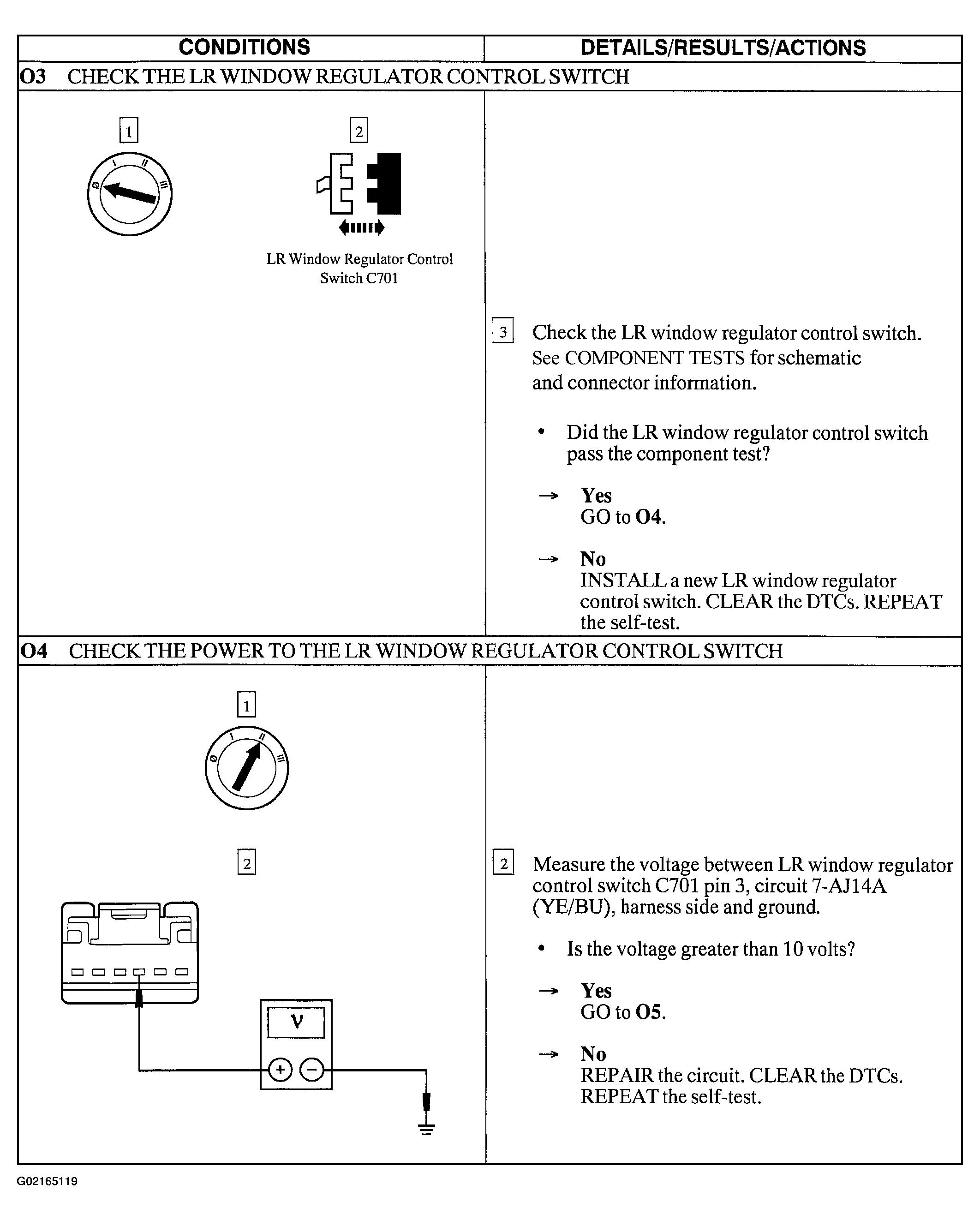

Fig 2: Pinpoint Test O: A Single Power Window Is Inoperative - Left Rear From The LL Window Regulator Control Switch Only (Steps O3-O4)
G02165119Courtesy of FORD MOTOR CO.

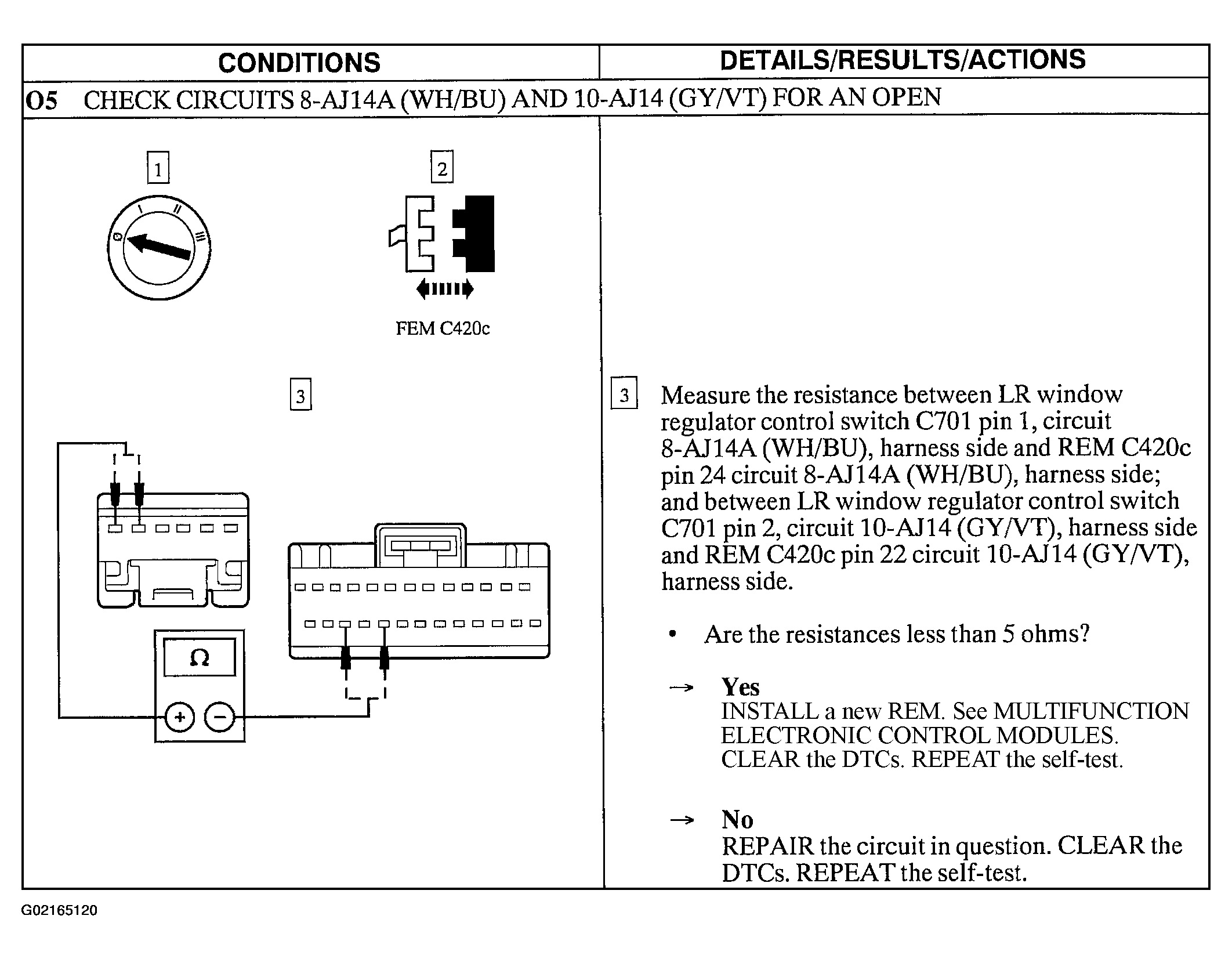

Fig 3: Pinpoint Test O: A Single Power Window Is Inoperative - Left Rear From The LL Window Regulator Control Switch Only (Step O5)
G02165120Courtesy of FORD MOTOR CO.
