Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

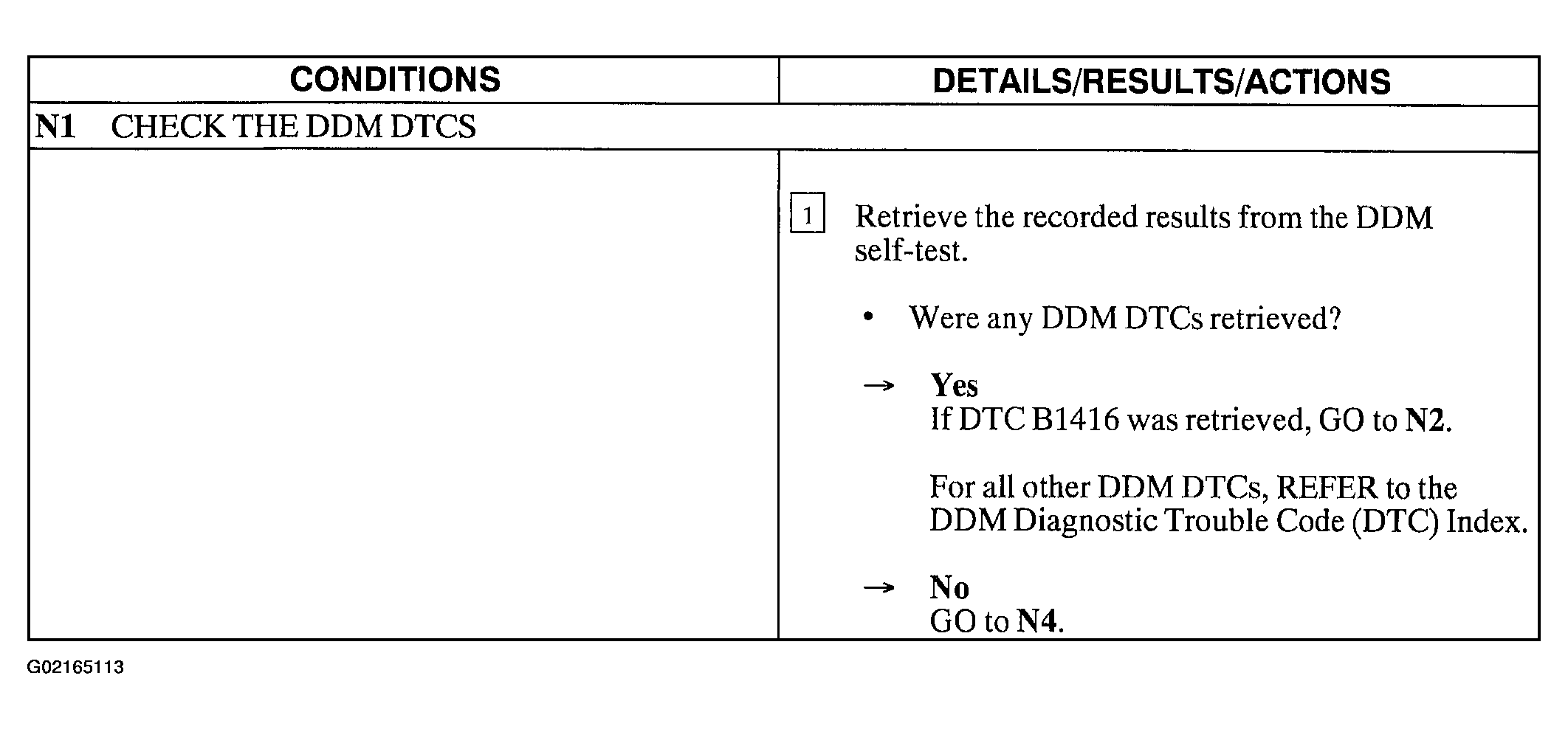

Fig 1: Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only (Step N1)
G02165113Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only (Steps N2-N3)
G02165114Courtesy of FORD MOTOR CO.

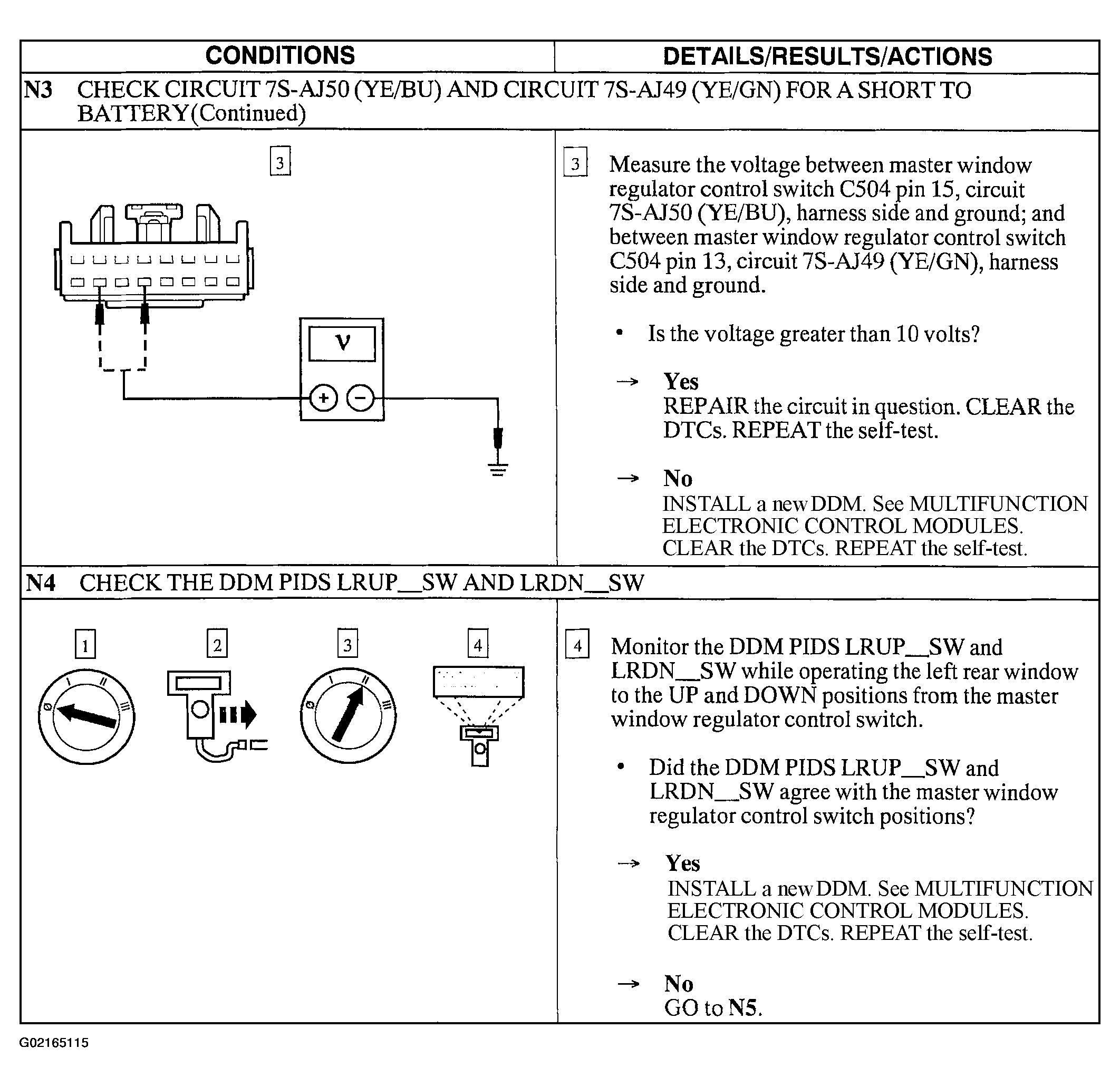

Fig 3: Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only (Steps N3 Cont. -N4)
G02165115Courtesy of FORD MOTOR CO.

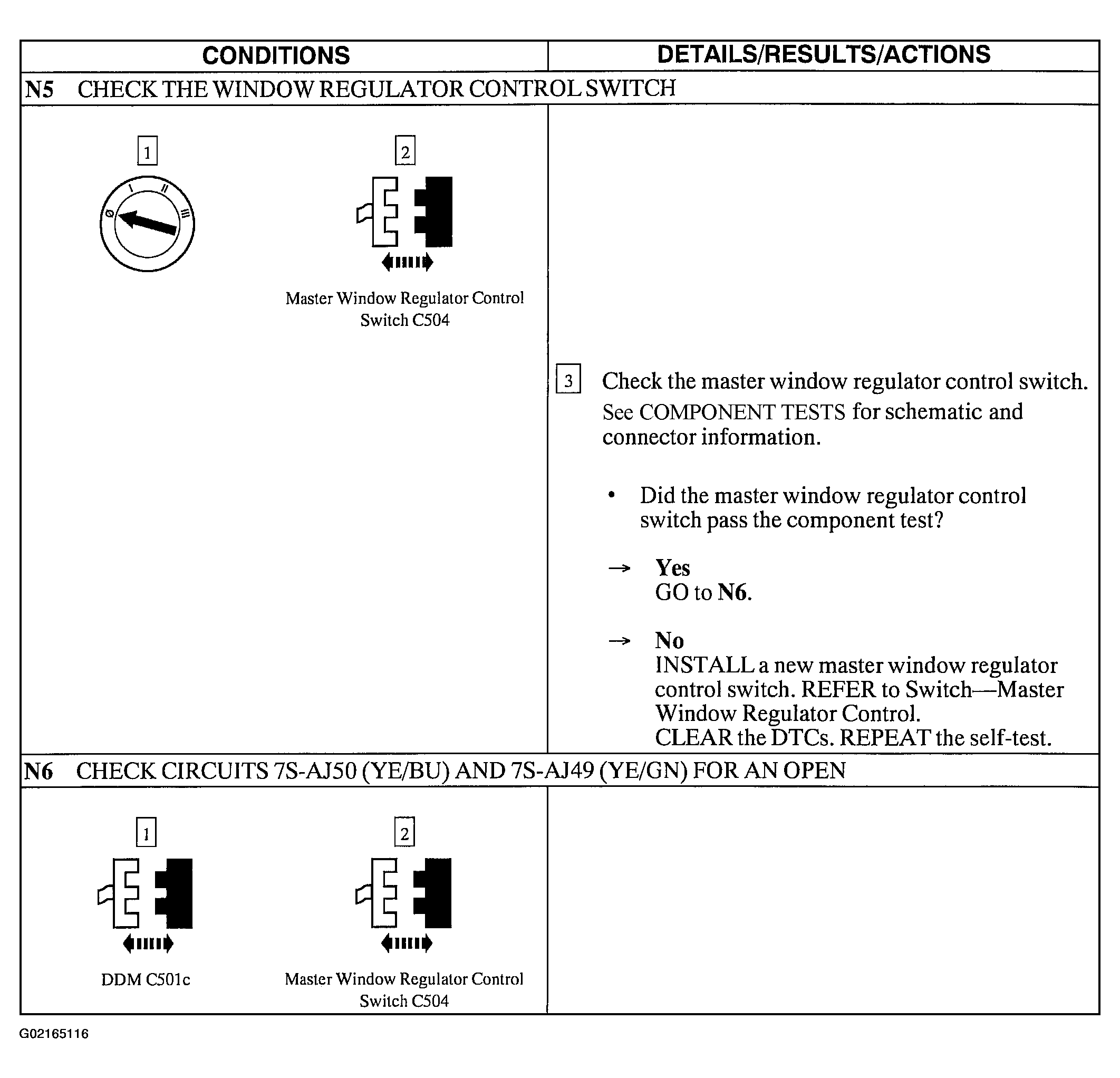

Fig 4: Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only (Steps N5-N6)
G02165116Courtesy of FORD MOTOR CO.

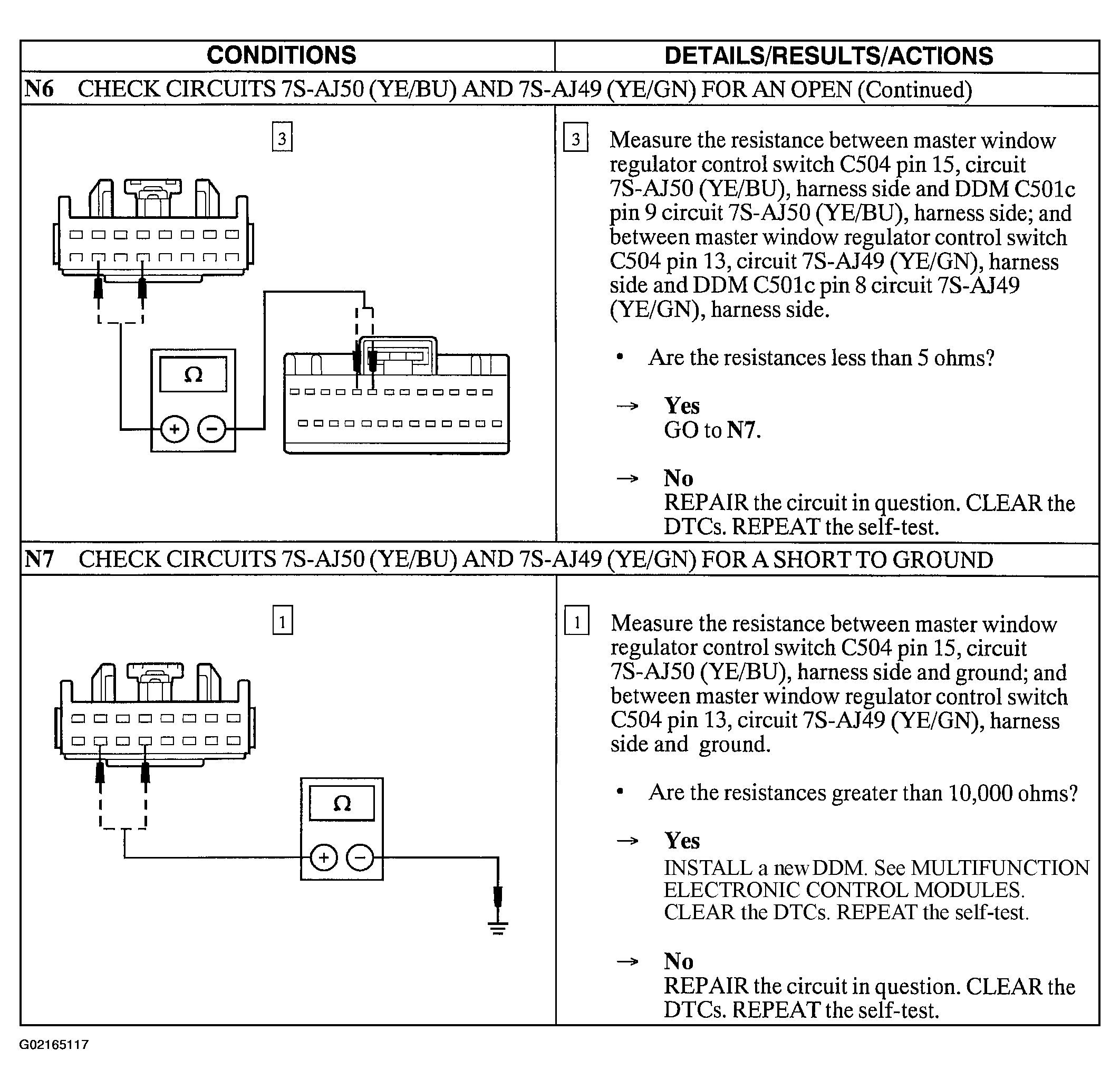

Fig 5: Pinpoint Test N: A Single Power Window Is Inoperative - Left Rear From The Master Window Regulator Control Switch Only (Steps N6 Cont. -N7)
G02165117Courtesy of FORD MOTOR CO.
