Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

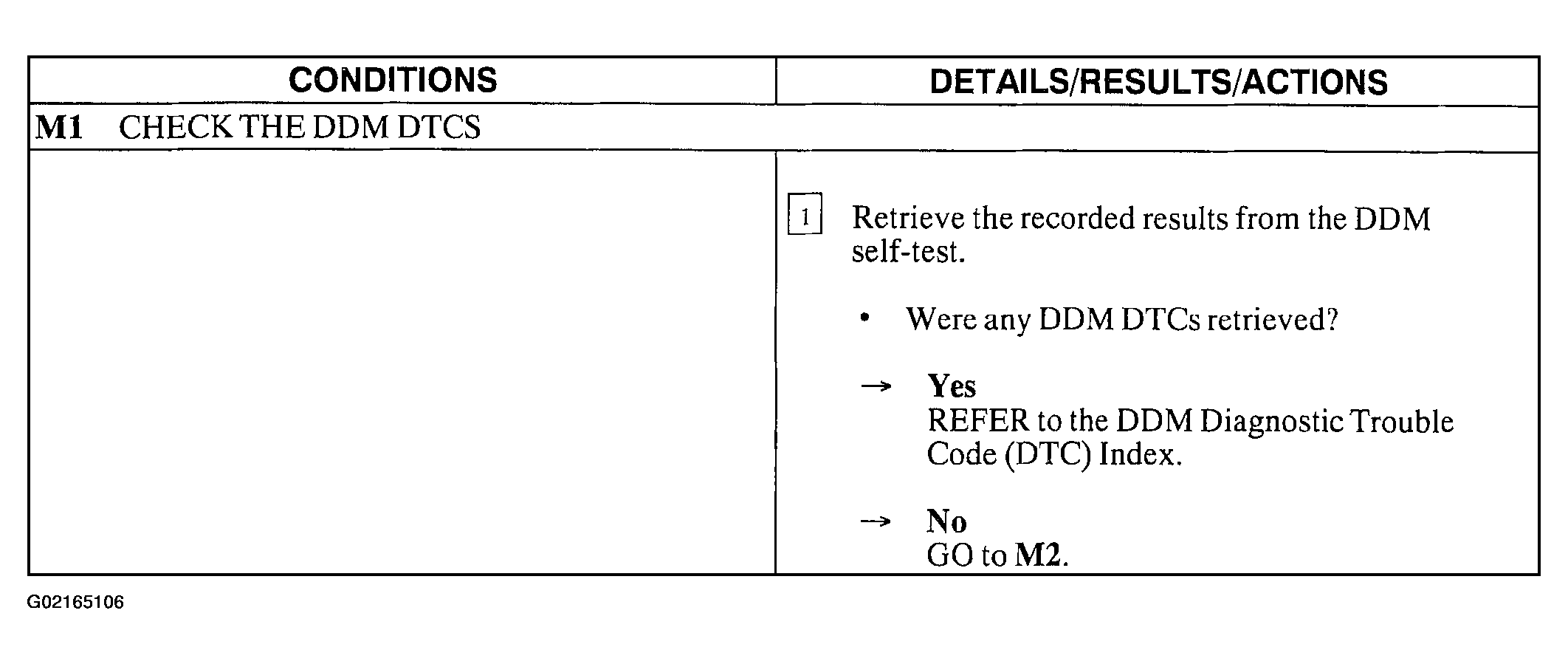

Fig 1: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Step M1)

Courtesy of FORD MOTOR CO.

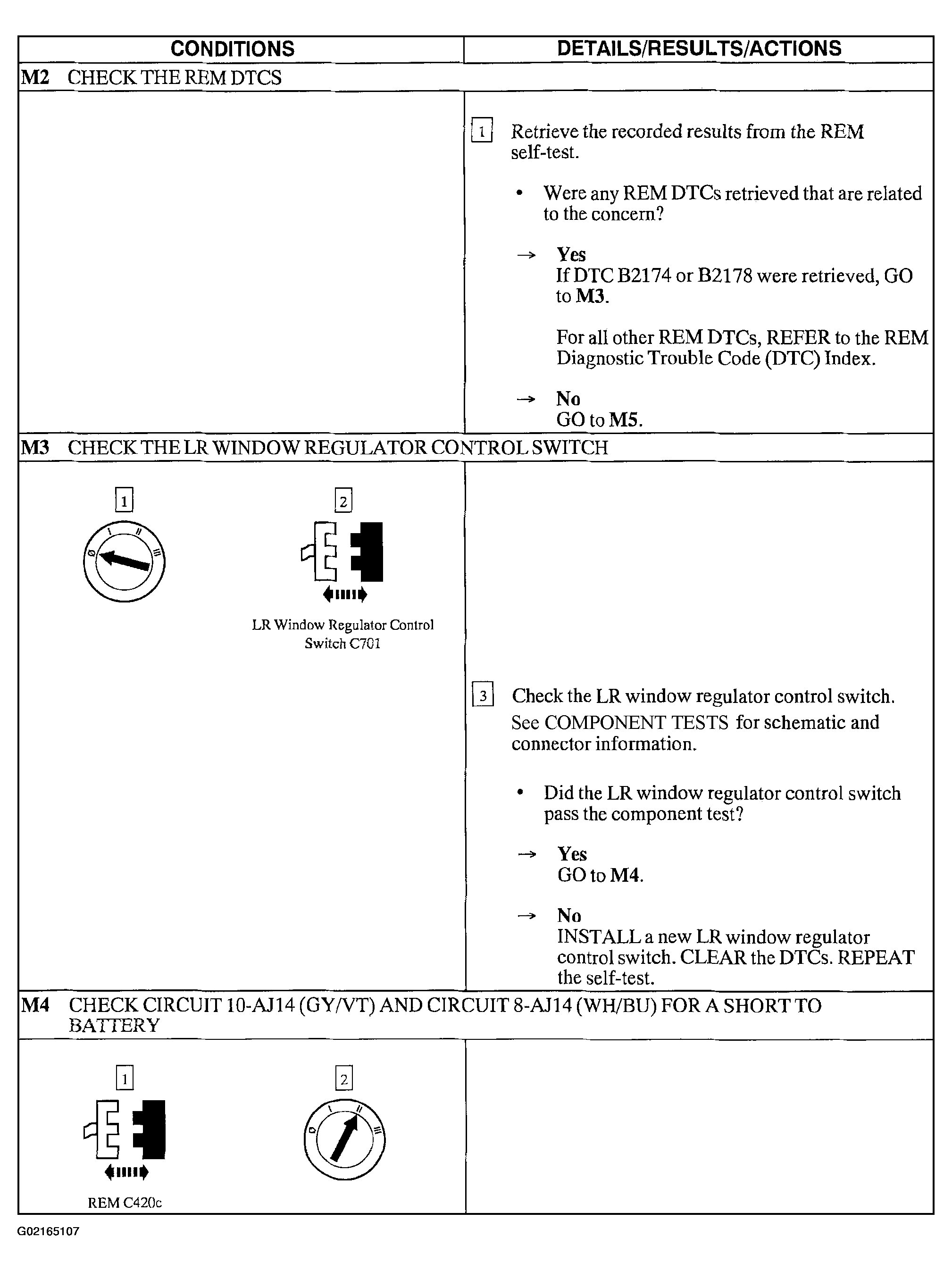

Fig 2: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Steps M2-M4)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Steps M4 Cont. -M6)

Courtesy of FORD MOTOR CO.

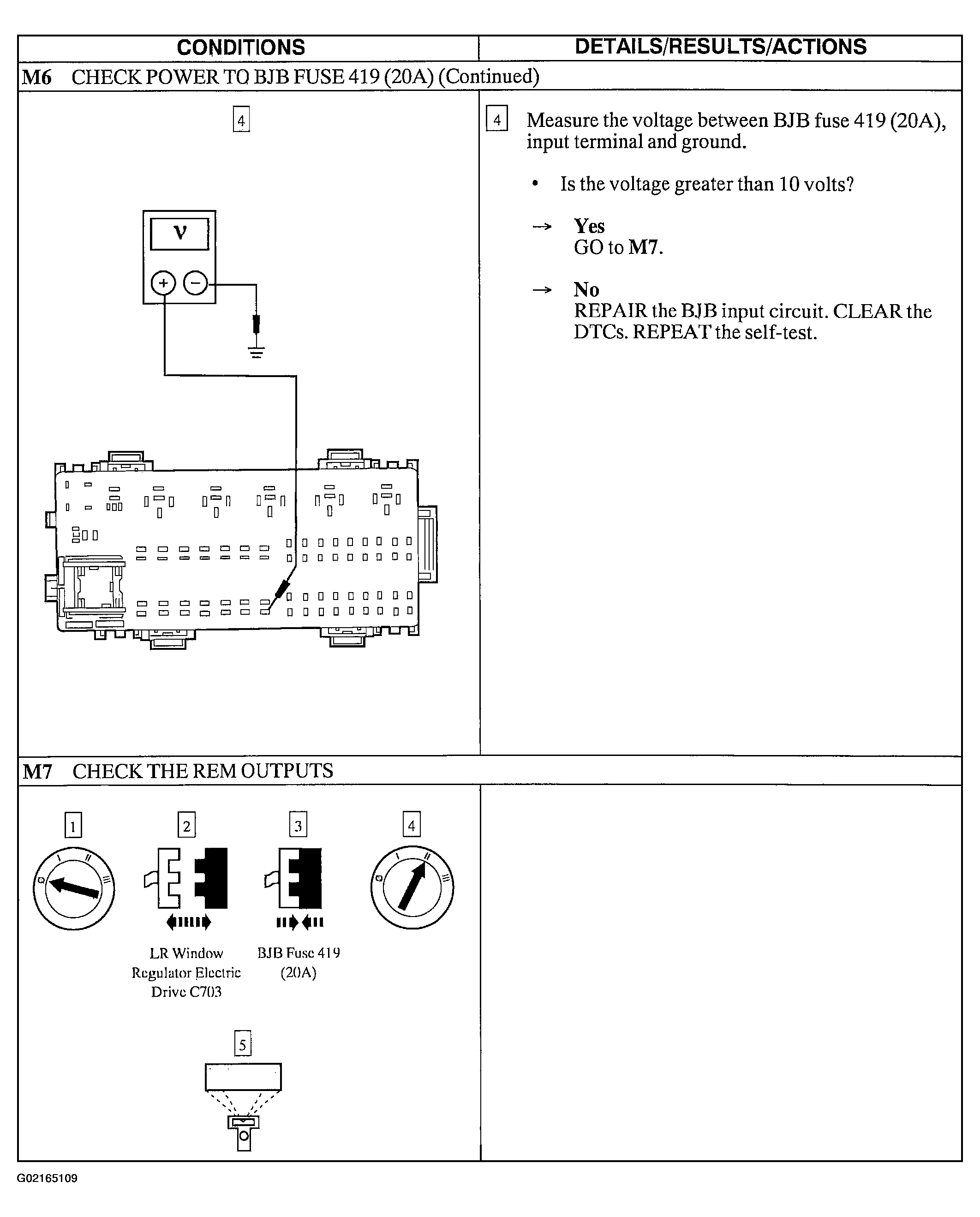

Fig 4: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Steps M6 Cont. -M7)

Courtesy of FORD MOTOR CO.

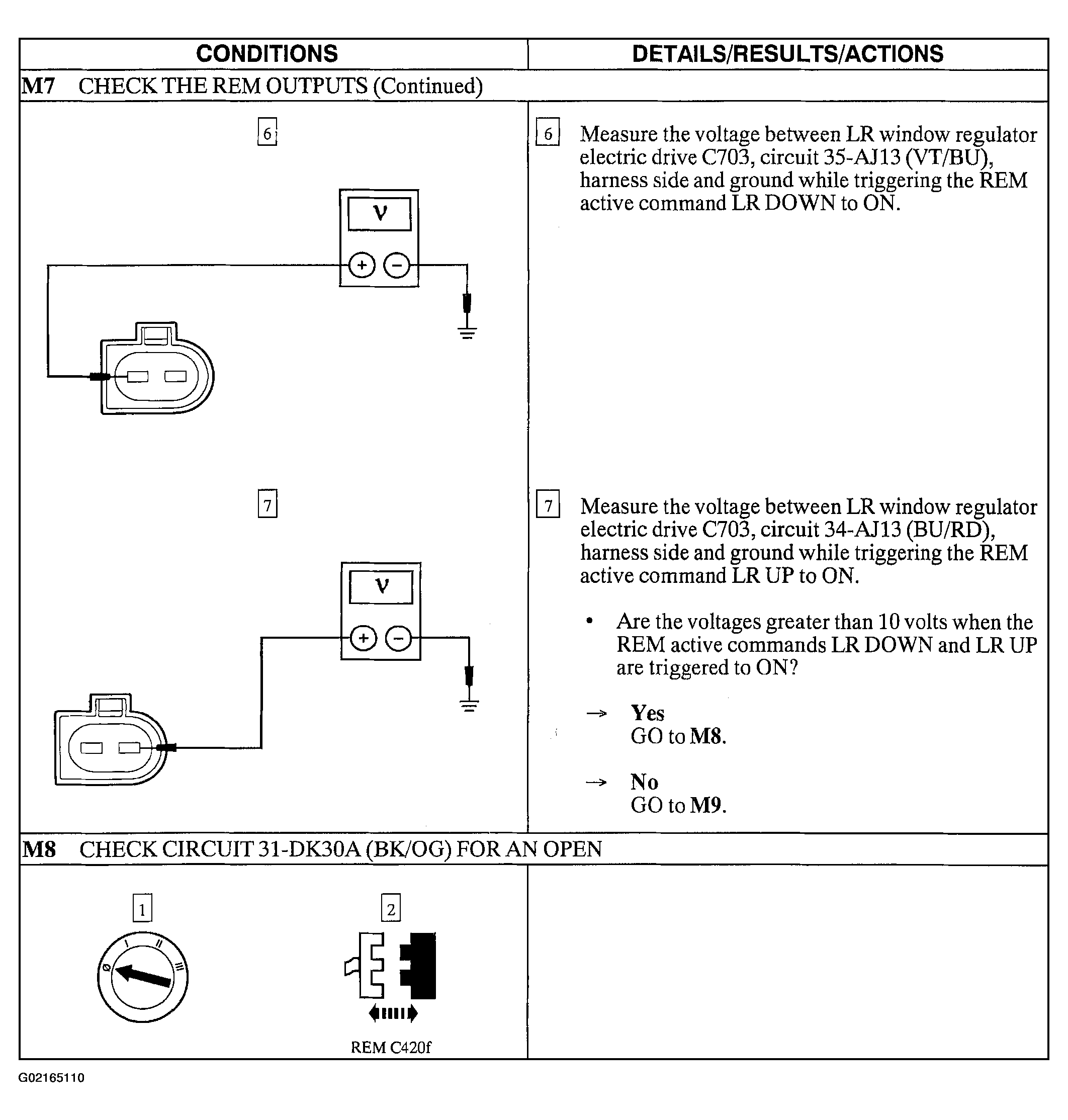

Fig 5: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Steps M7 Cont. -M8)

Courtesy of FORD MOTOR CO.

Fig 6: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Steps M8 Cont. -M10)

Courtesy of FORD MOTOR CO.

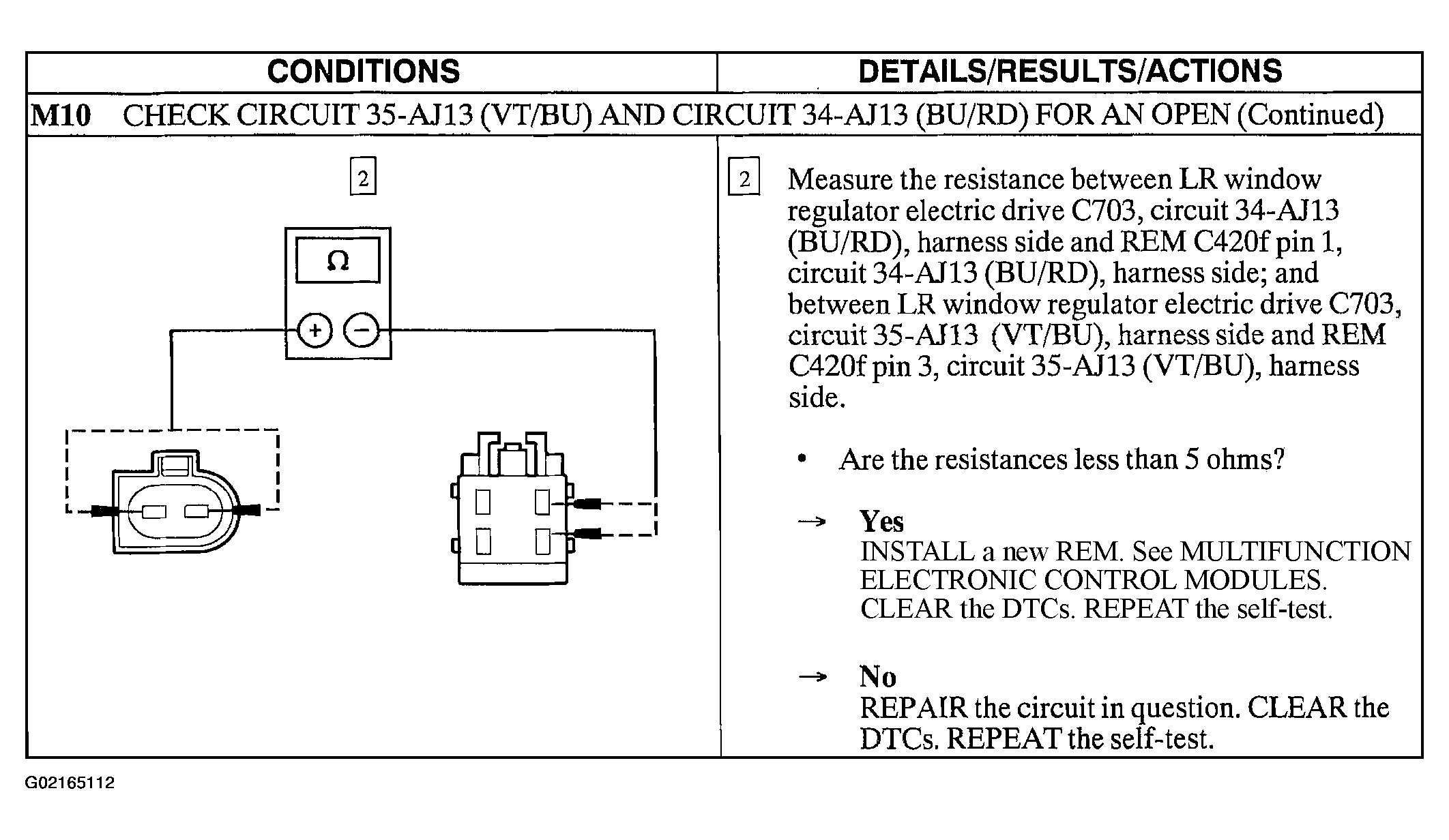

Fig 7: Pinpoint Test M: A Single Power Window Is Inoperative - Left Rear From All Window Regulator Control Switches (Step M10 Cont.)

Courtesy of FORD MOTOR CO.
