Pinpoint Test L: A Single Power Window Is Inoperative - Right Rear From RR Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

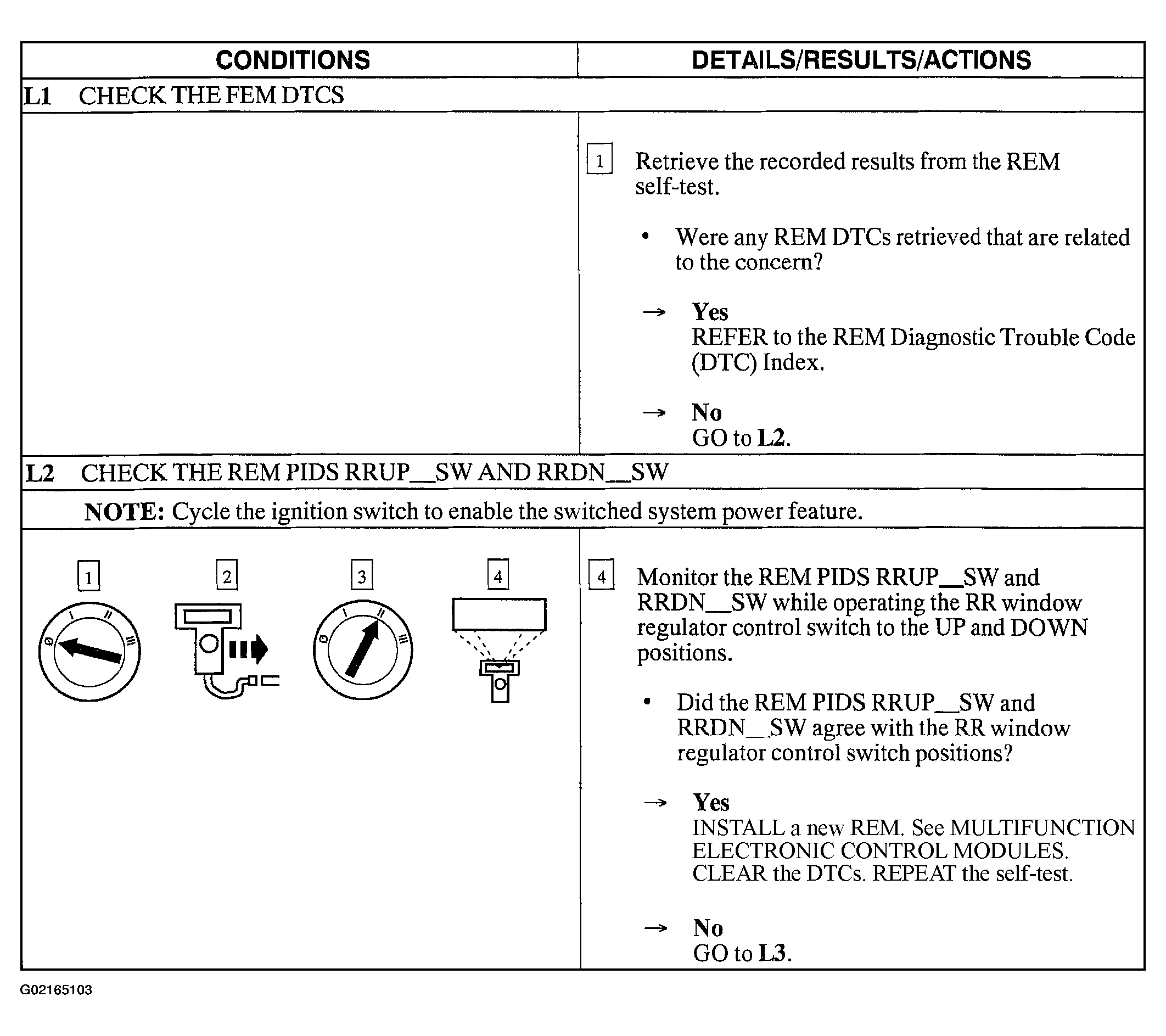

Fig 1: Pinpoint Test L: A Single Power Window Is Inoperative - Right Rear From RR Window Regulator Control Switch Only (Steps L1-L2)
G02165103Courtesy of FORD MOTOR CO.

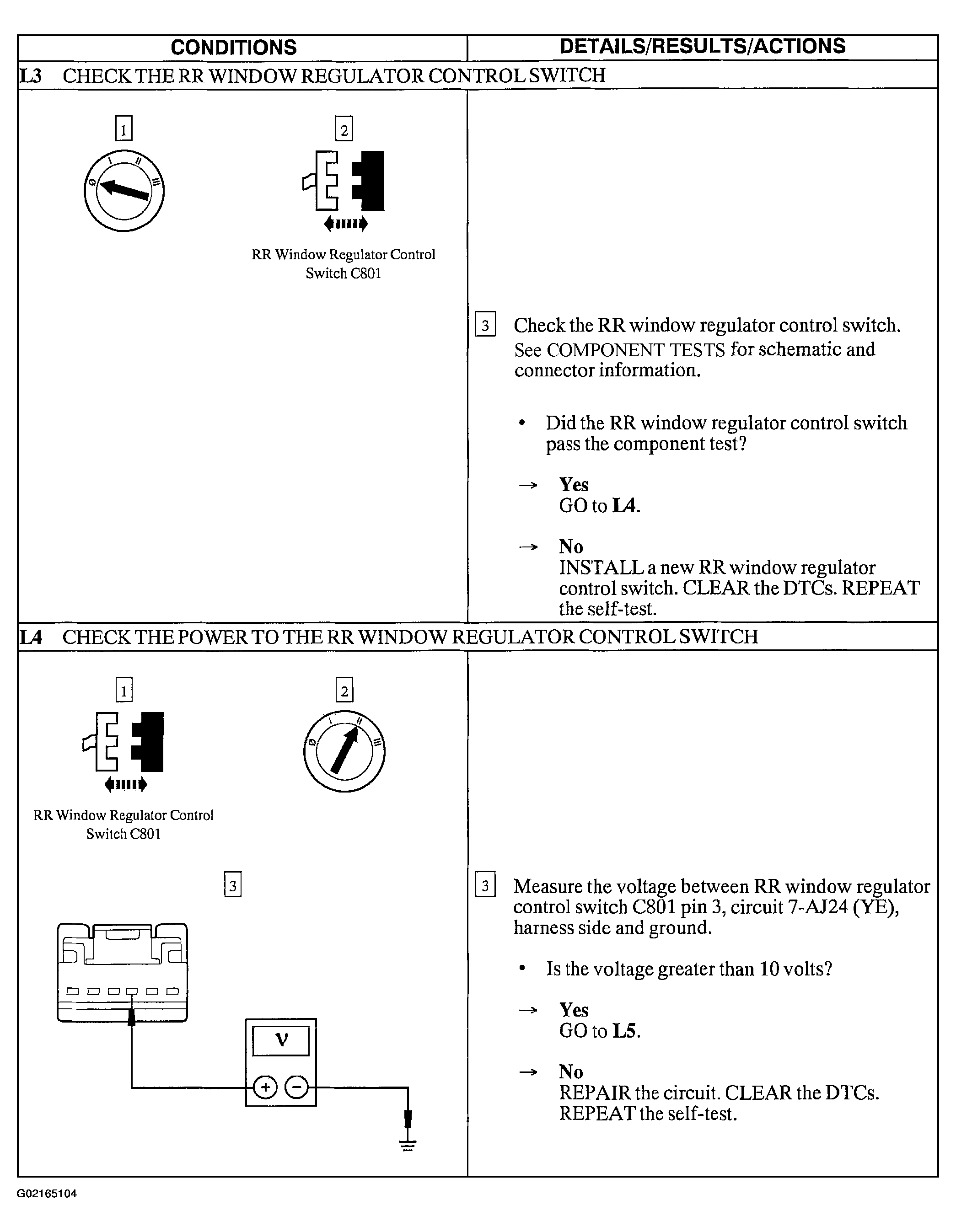

Fig 2: Pinpoint Test L: A Single Power Window Is Inoperative - Right Rear From RR Window Regulator Control Switch Only (Steps L3-L4)
G02165104Courtesy of FORD MOTOR CO.

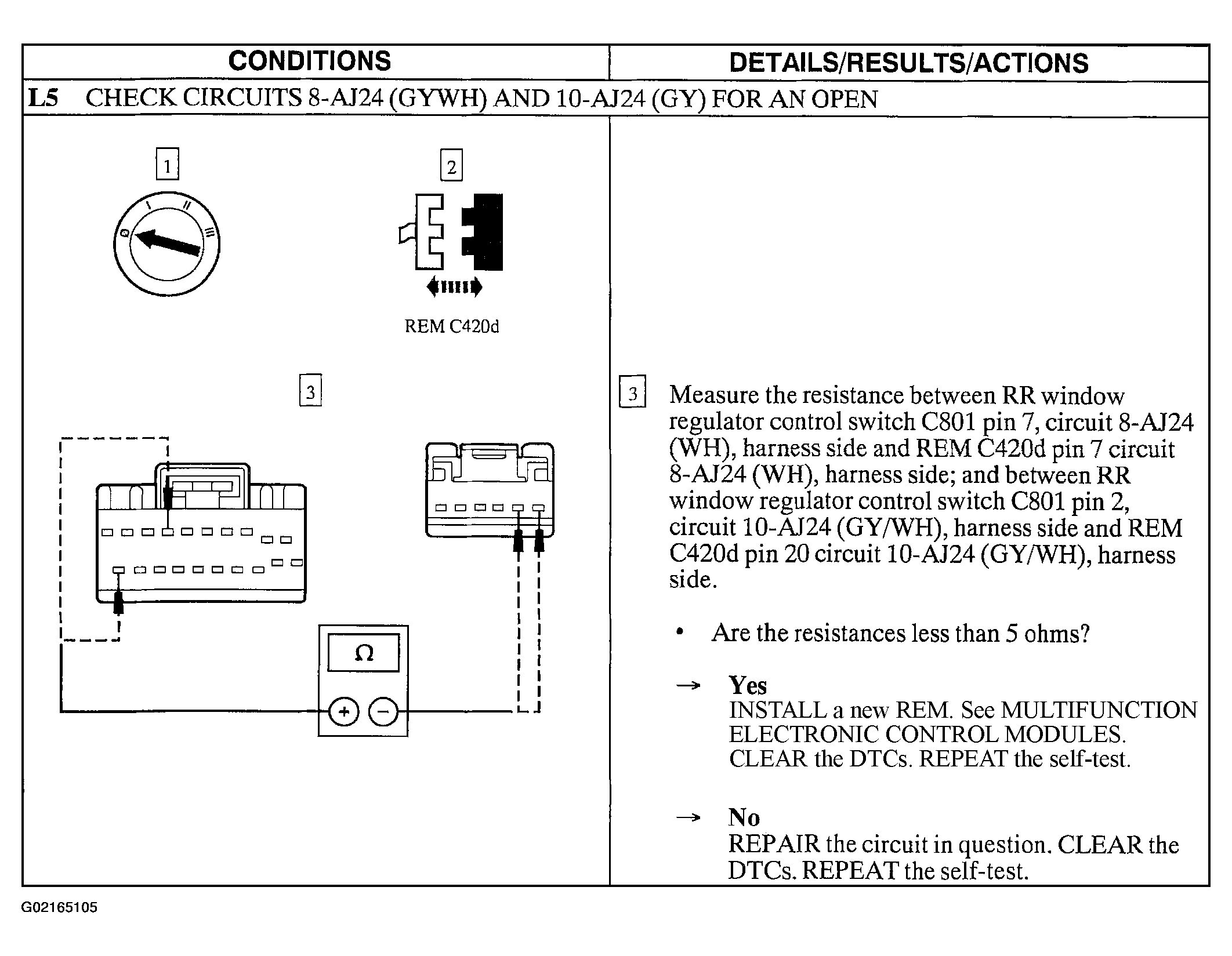

Fig 3: Pinpoint Test L: A Single Power Window Is Inoperative - Right Rear From RR Window Regulator Control Switch Only (Step L5)
G02165105Courtesy of FORD MOTOR CO.
