Pinpoint Test K: A Single Power Window Is Inoperative - Right Rear From The Master Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

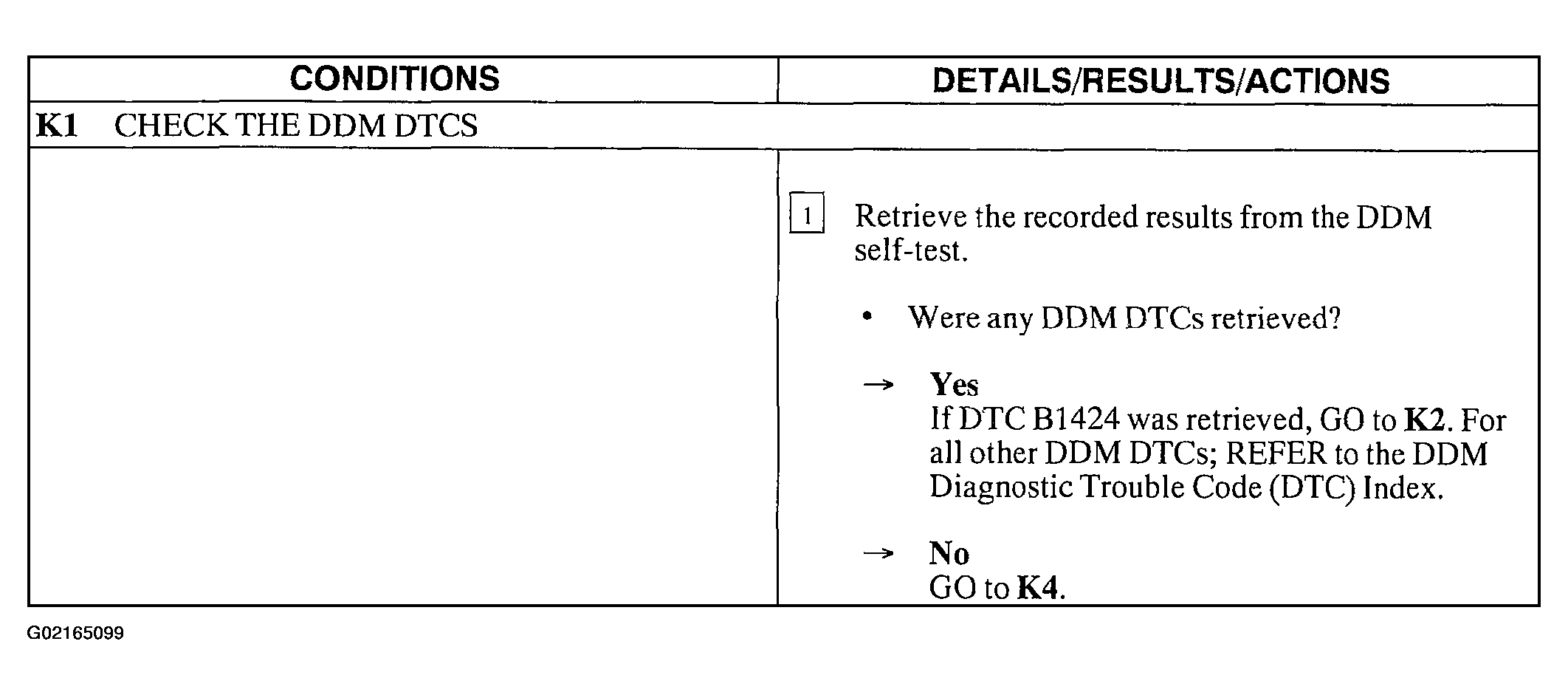

Fig 1: Pinpoint Test K: A Single Power Window Is Inoperative - Right Rear From The Master Window Regulator Control Switch Only (Step K1)
G02165099Courtesy of FORD MOTOR CO.

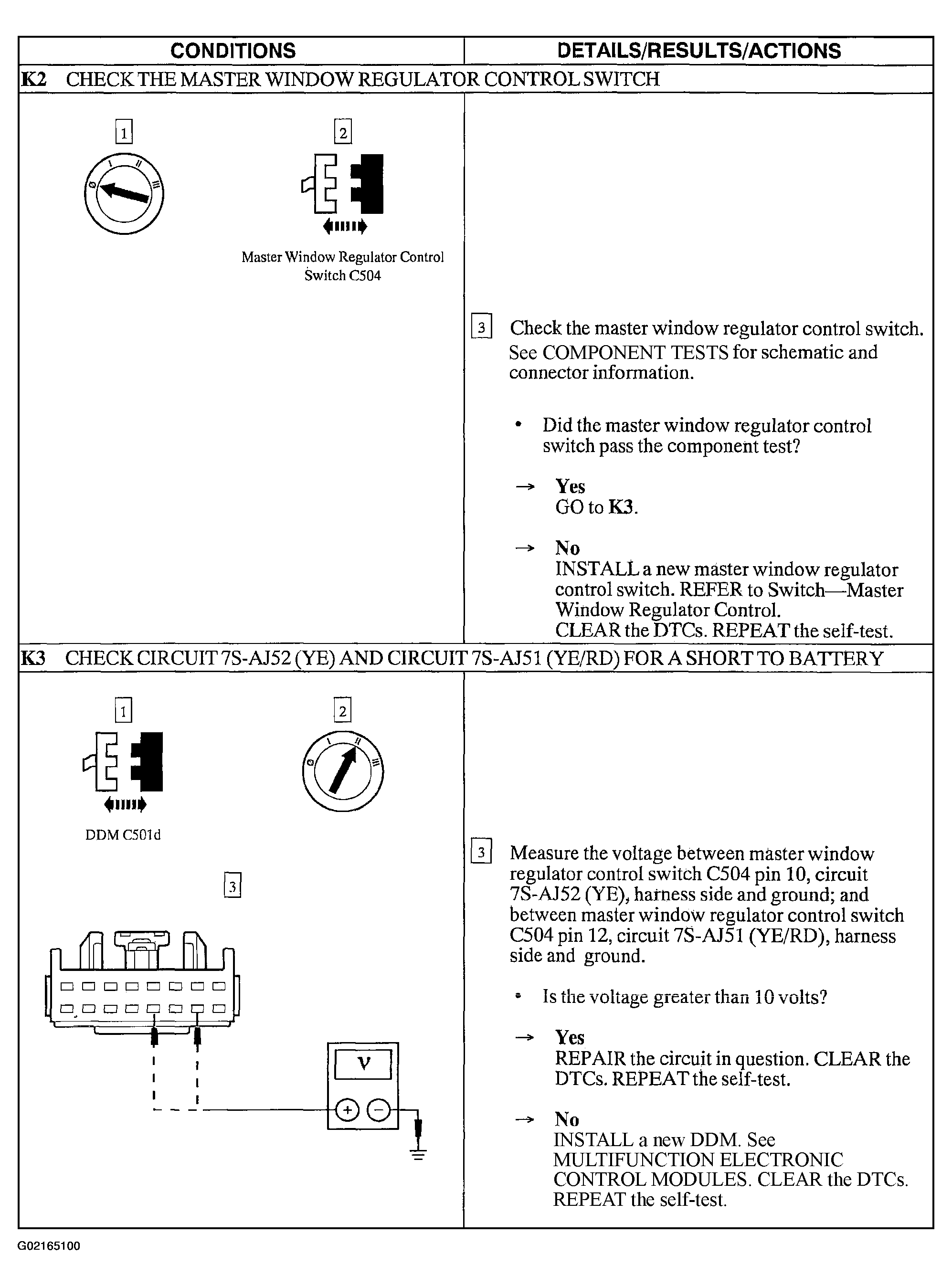

Fig 2: Pinpoint Test K: A Single Power Window Is Inoperative - Right Rear From The Master Window Regulator Control Switch Only (Steps K2-K3)
G02165100Courtesy of FORD MOTOR CO.

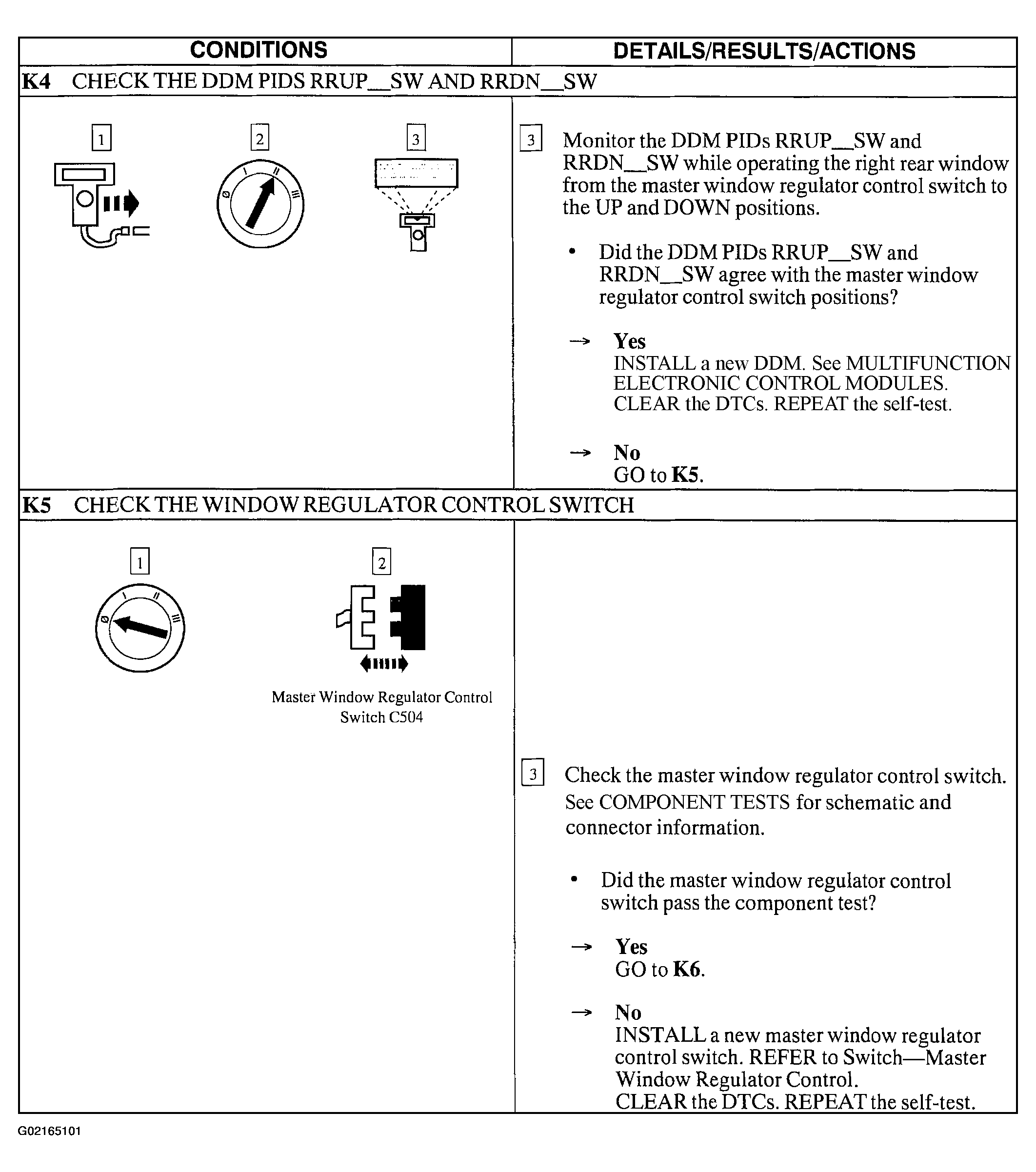

Fig 3: Pinpoint Test K: A Single Power Window Is Inoperative - Right Rear From The Master Window Regulator Control Switch Only (Steps K4-K5)
G02165101Courtesy of FORD MOTOR CO.

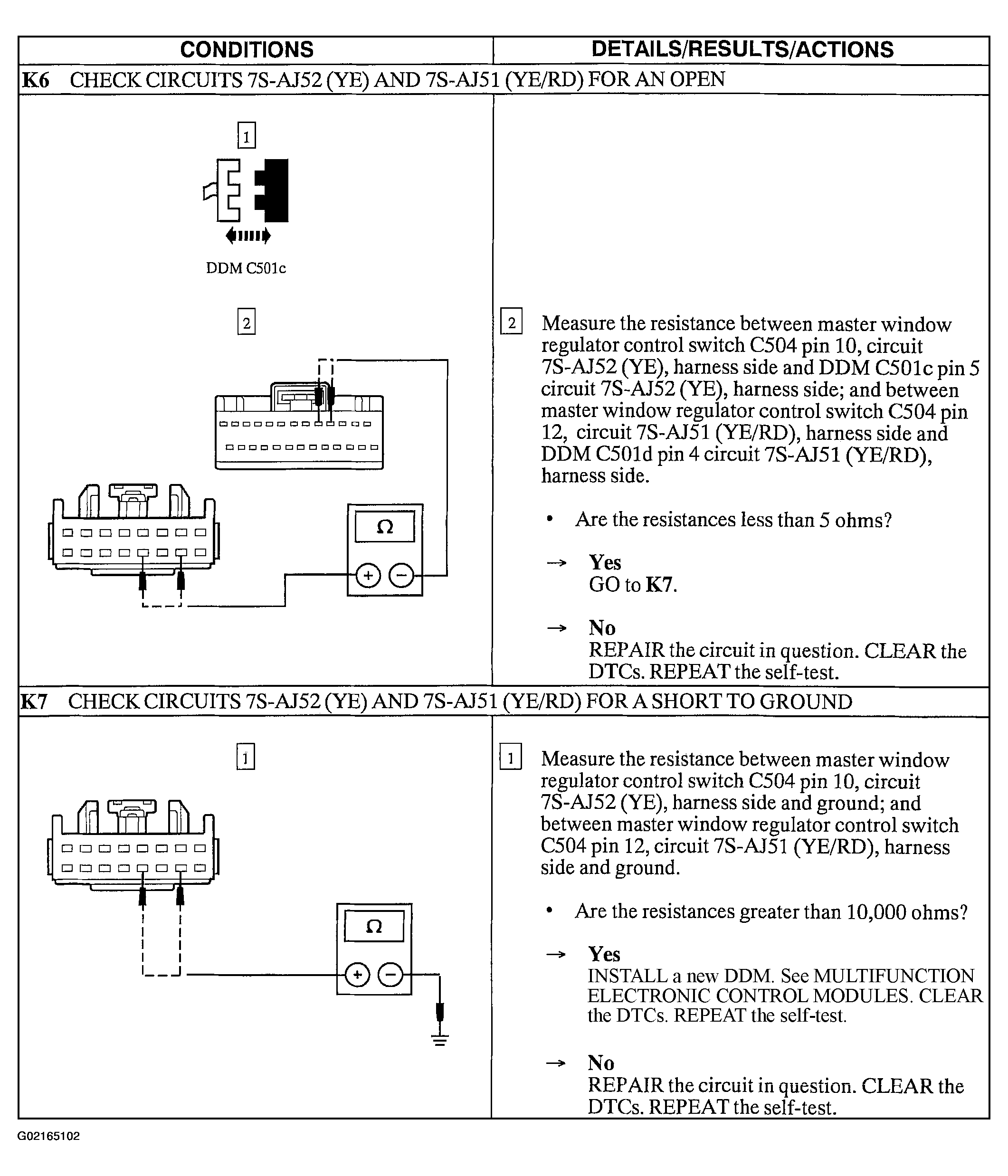

Fig 4: Pinpoint Test K: A Single Power Window Is Inoperative - Right Rear From The Master Window Regulator Control Switch Only (Steps K6-K7)
G02165102Courtesy of FORD MOTOR CO.
