Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

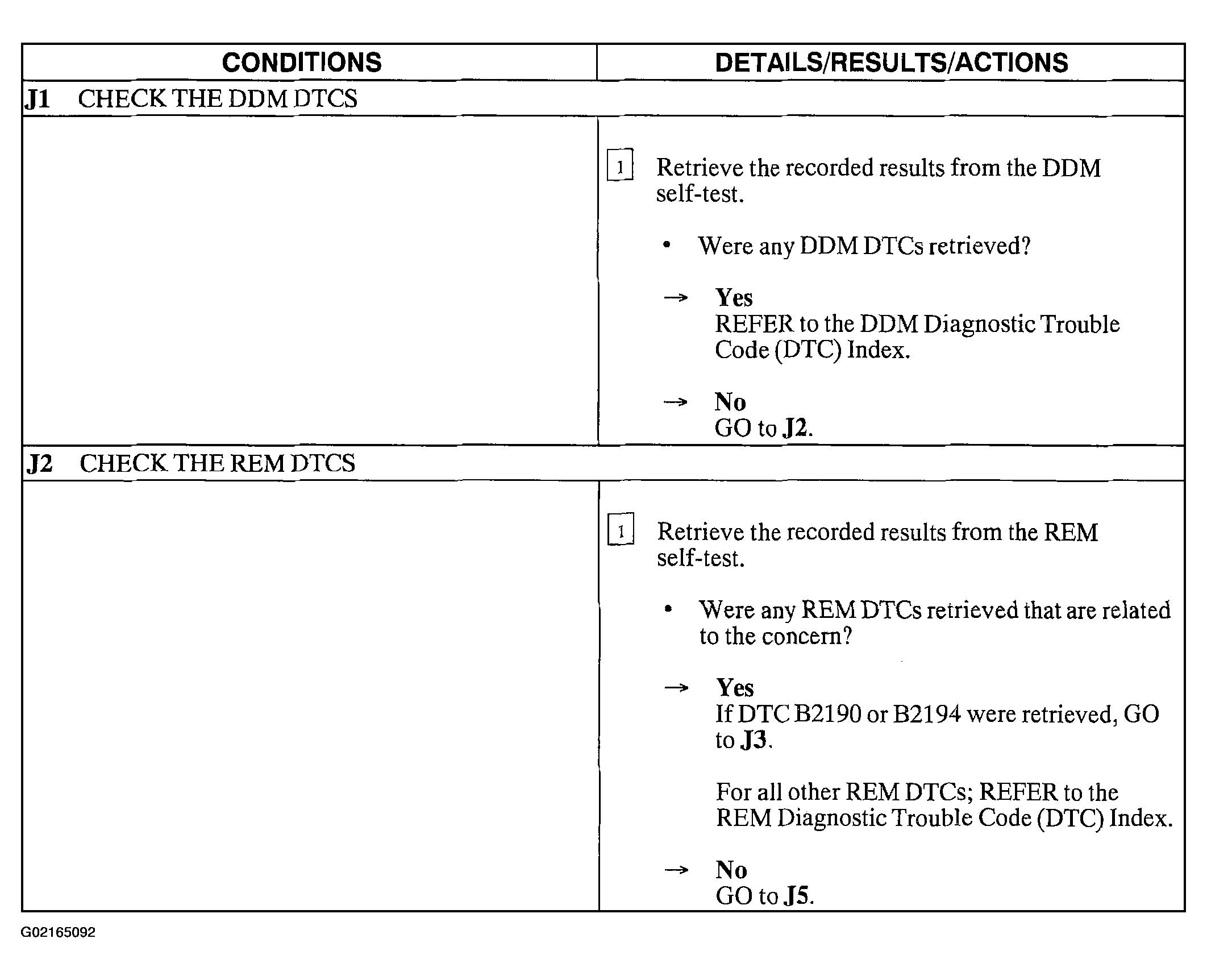

Fig 1: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J1-J2)

Courtesy of FORD MOTOR CO.

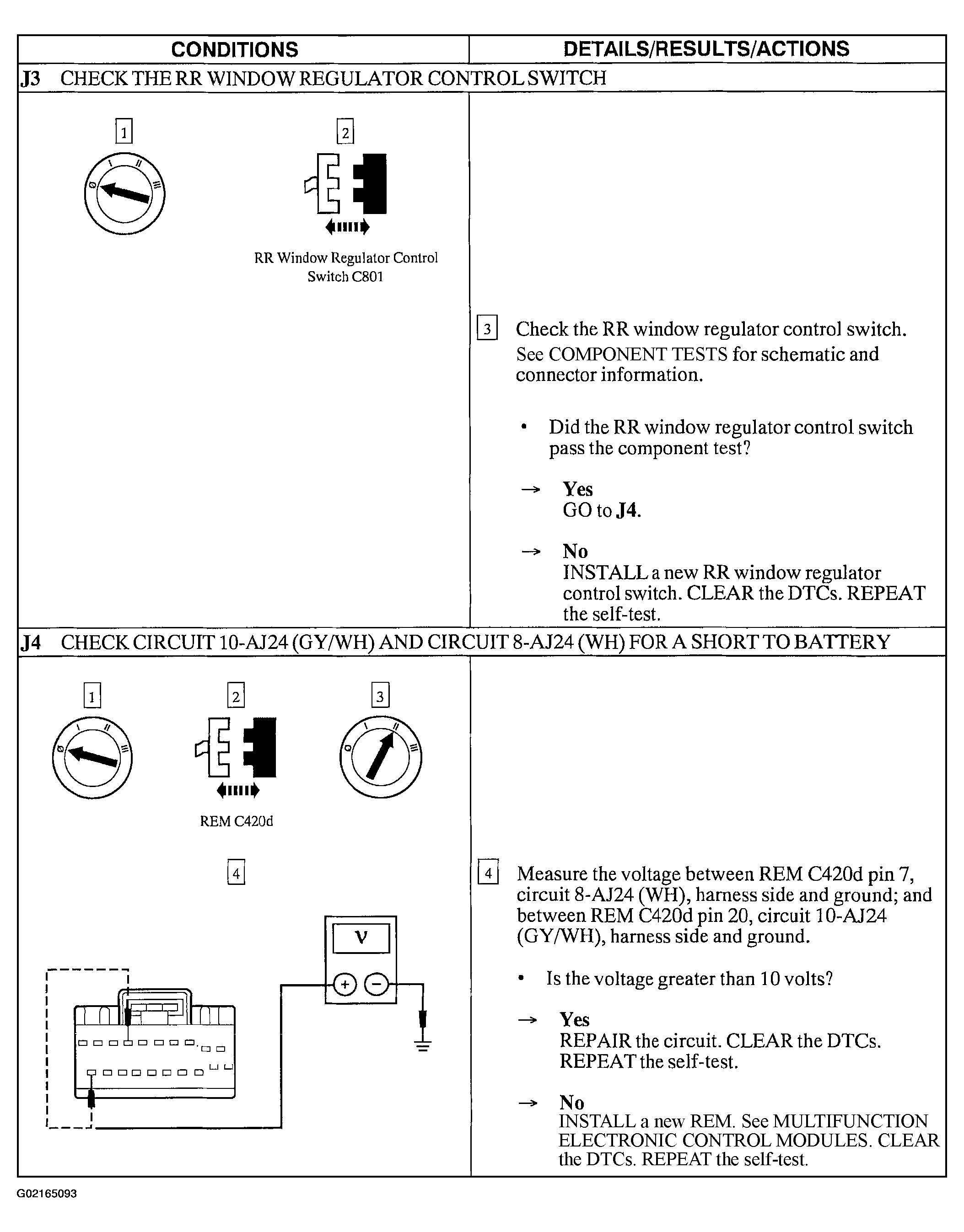

Fig 2: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J3-J4)

Courtesy of FORD MOTOR CO.

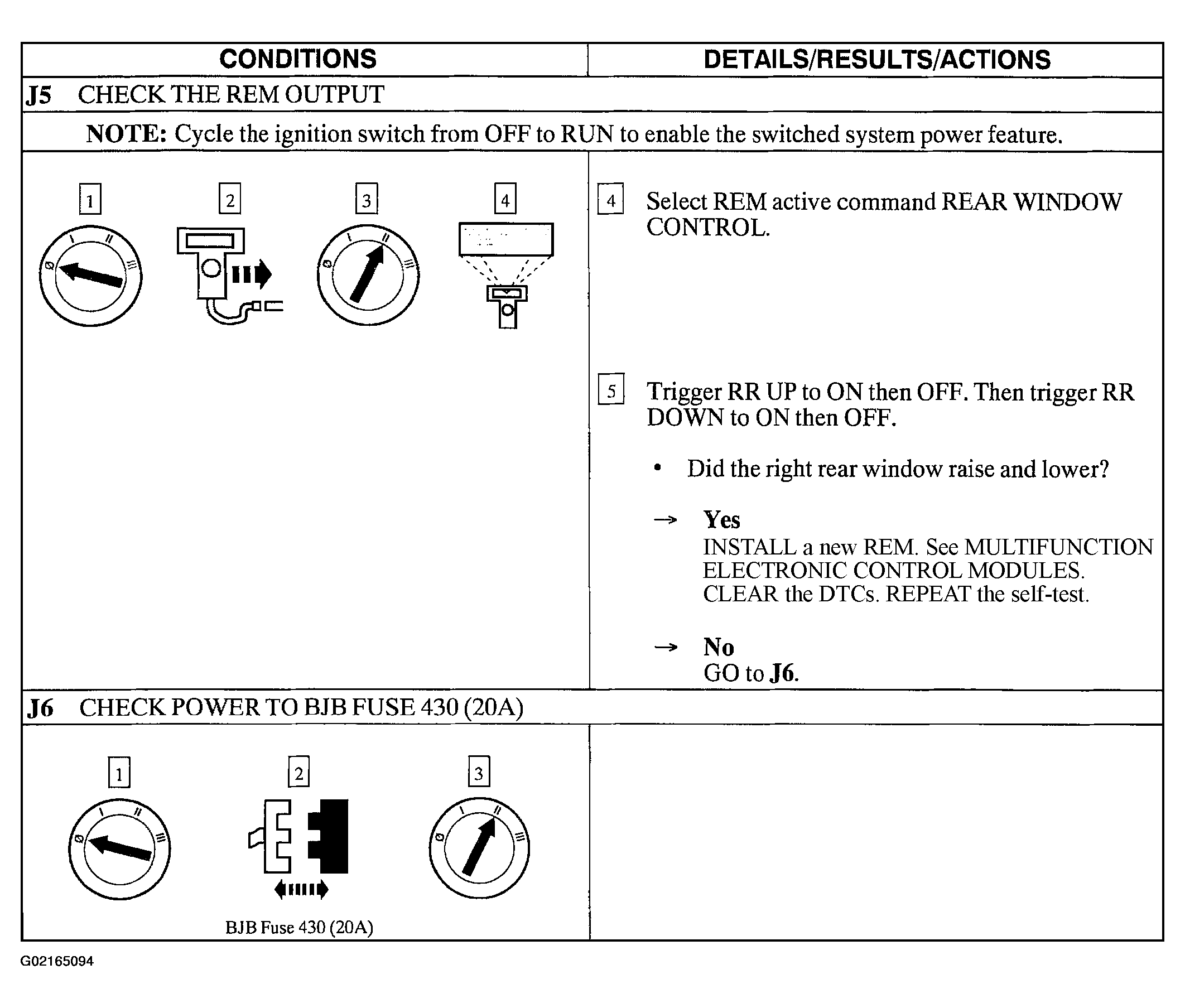

Fig 3: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J5-J6)

Courtesy of FORD MOTOR CO.

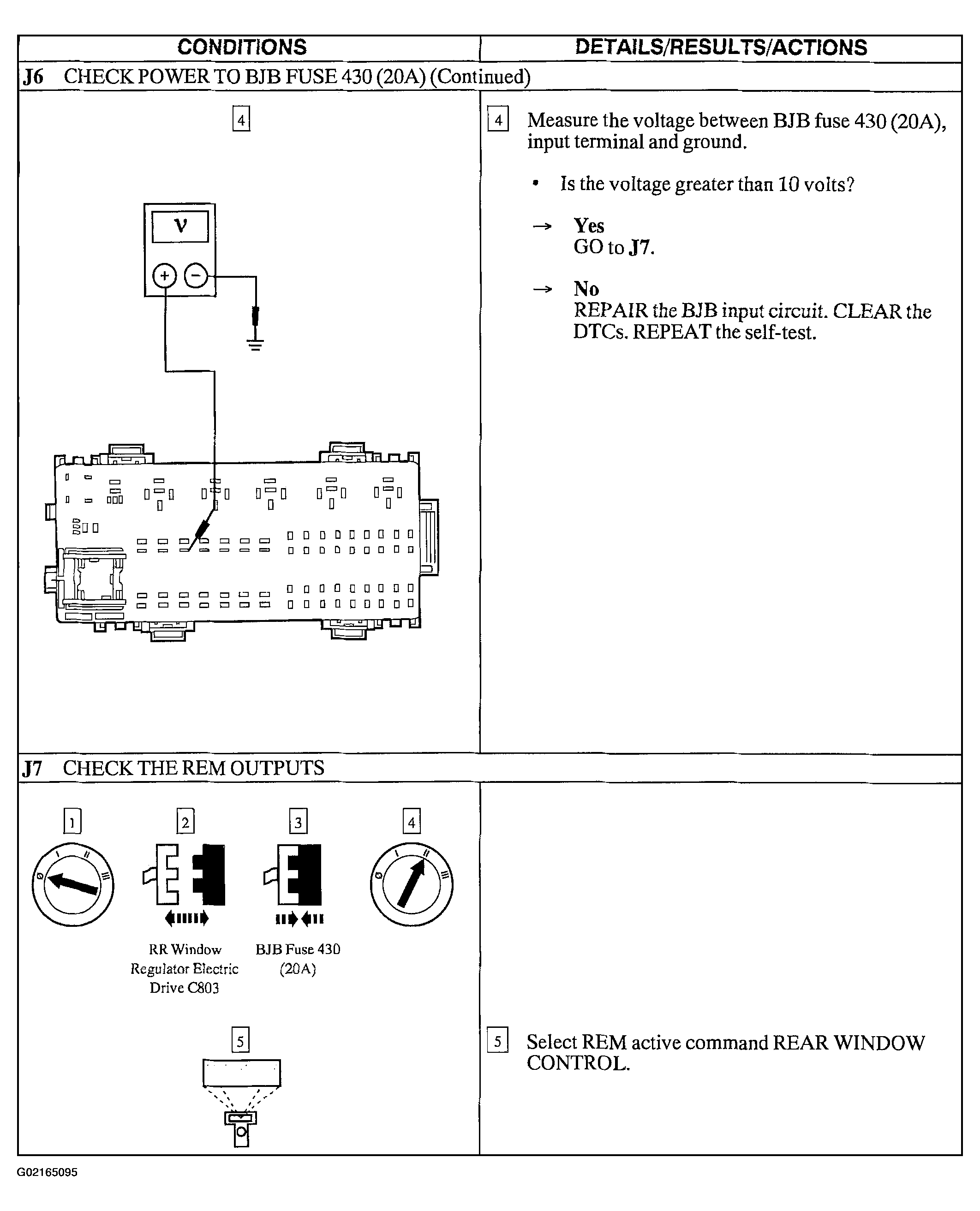

Fig 4: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J6 Cont. -J7)

Courtesy of FORD MOTOR CO.

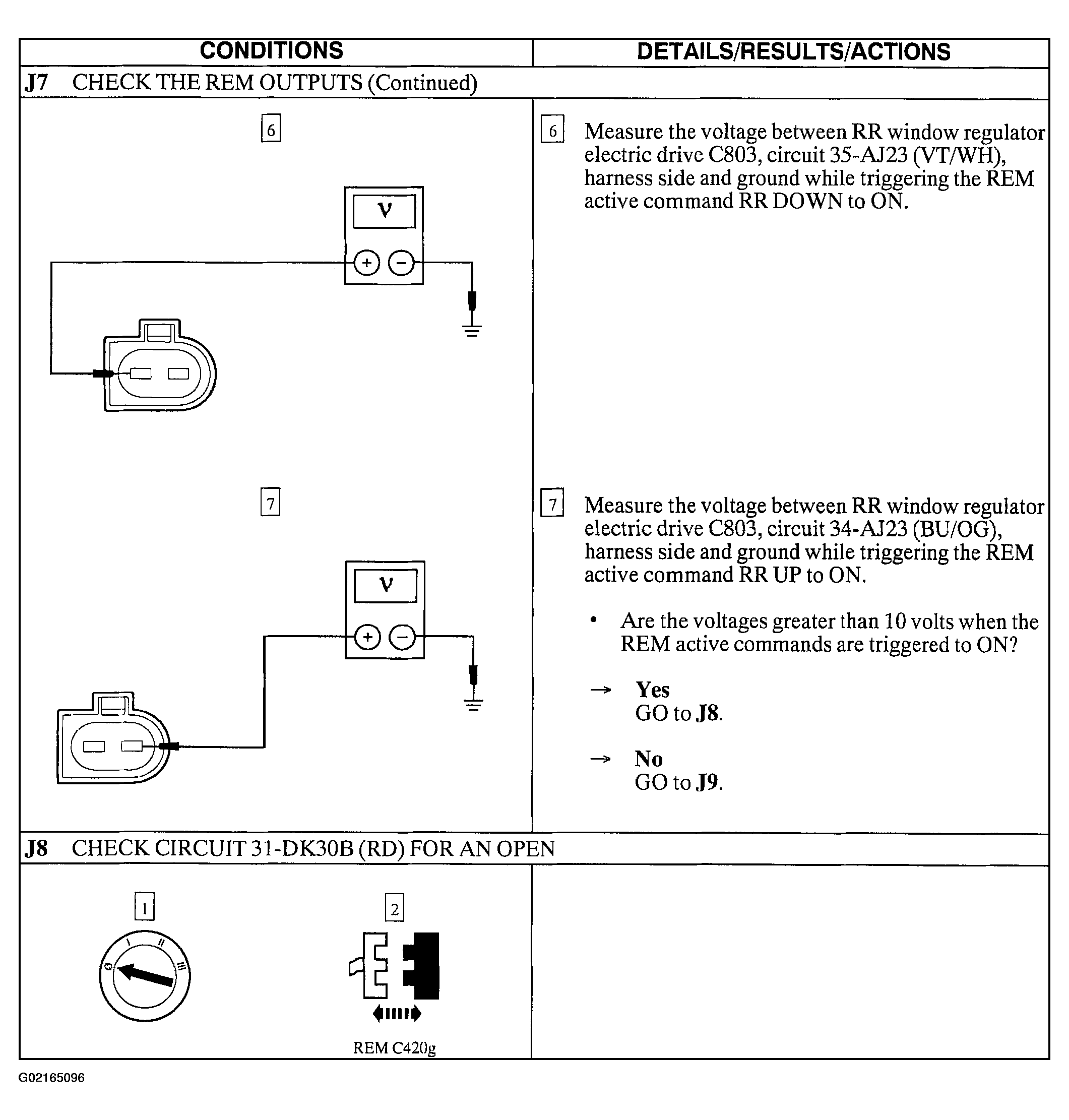

Fig 5: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J7 Cont. -J8)

Courtesy of FORD MOTOR CO.

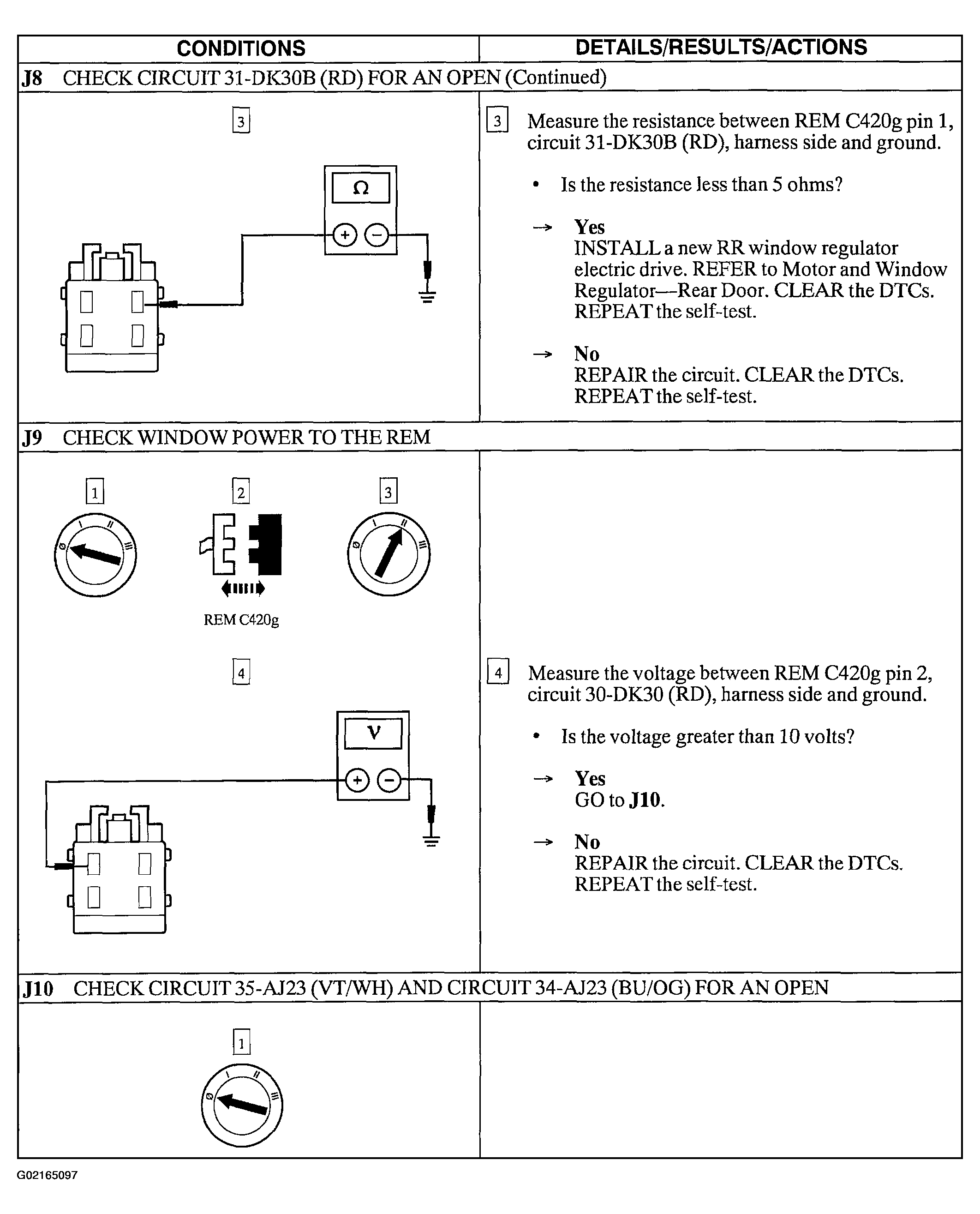

Fig 6: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Steps J8 Cont. -J10)

Courtesy of FORD MOTOR CO.

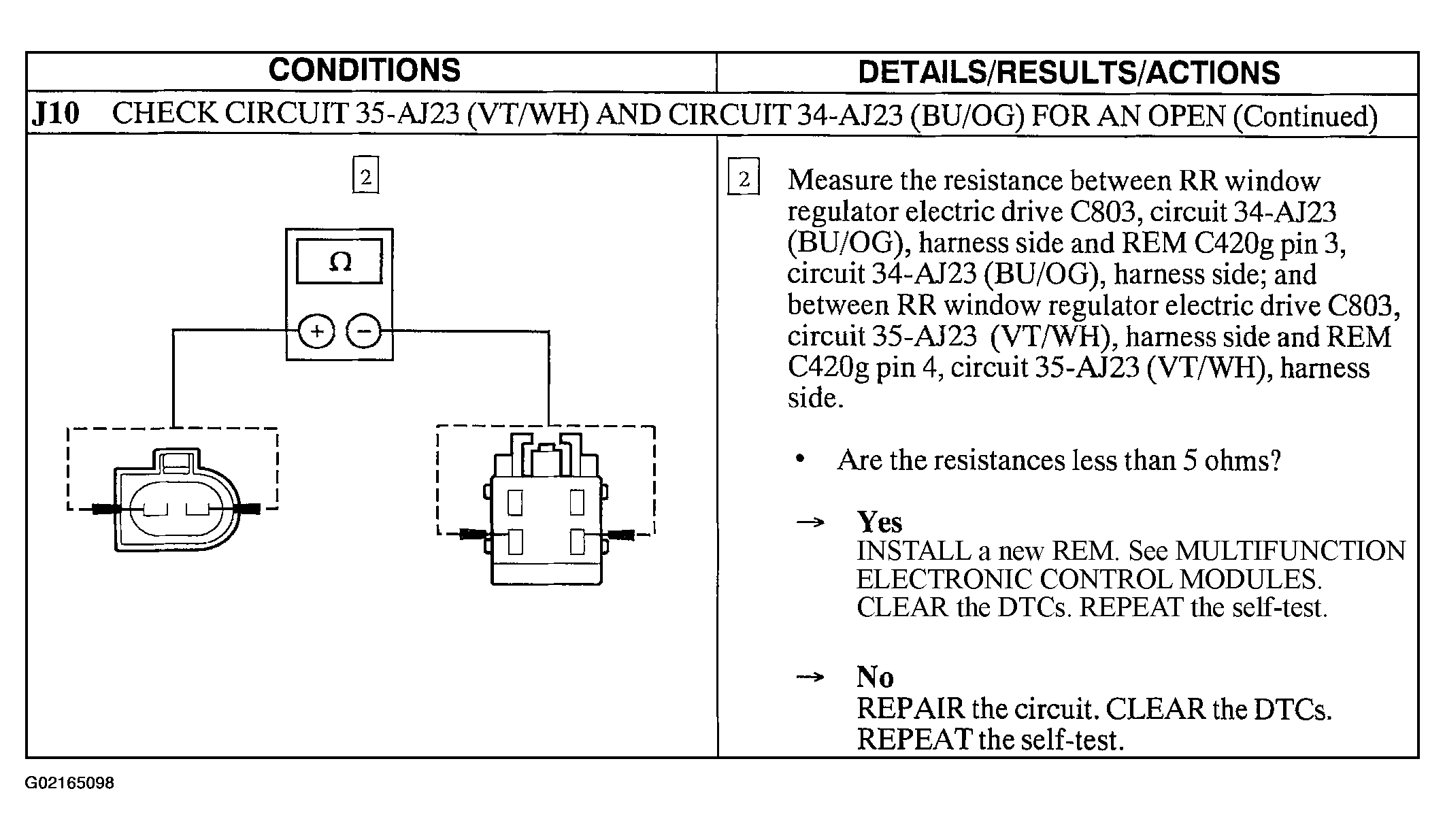

Fig 7: Pinpoint Test J: A Single Power Window Is Inoperative - Right Rear From Master And Remote Window Regulator Control Switches (Step J10 Cont.)

Courtesy of FORD MOTOR CO.
