Pinpoint Test I: A Single Power Window Is Inoperative - Passenger Front From The Passenger Front Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

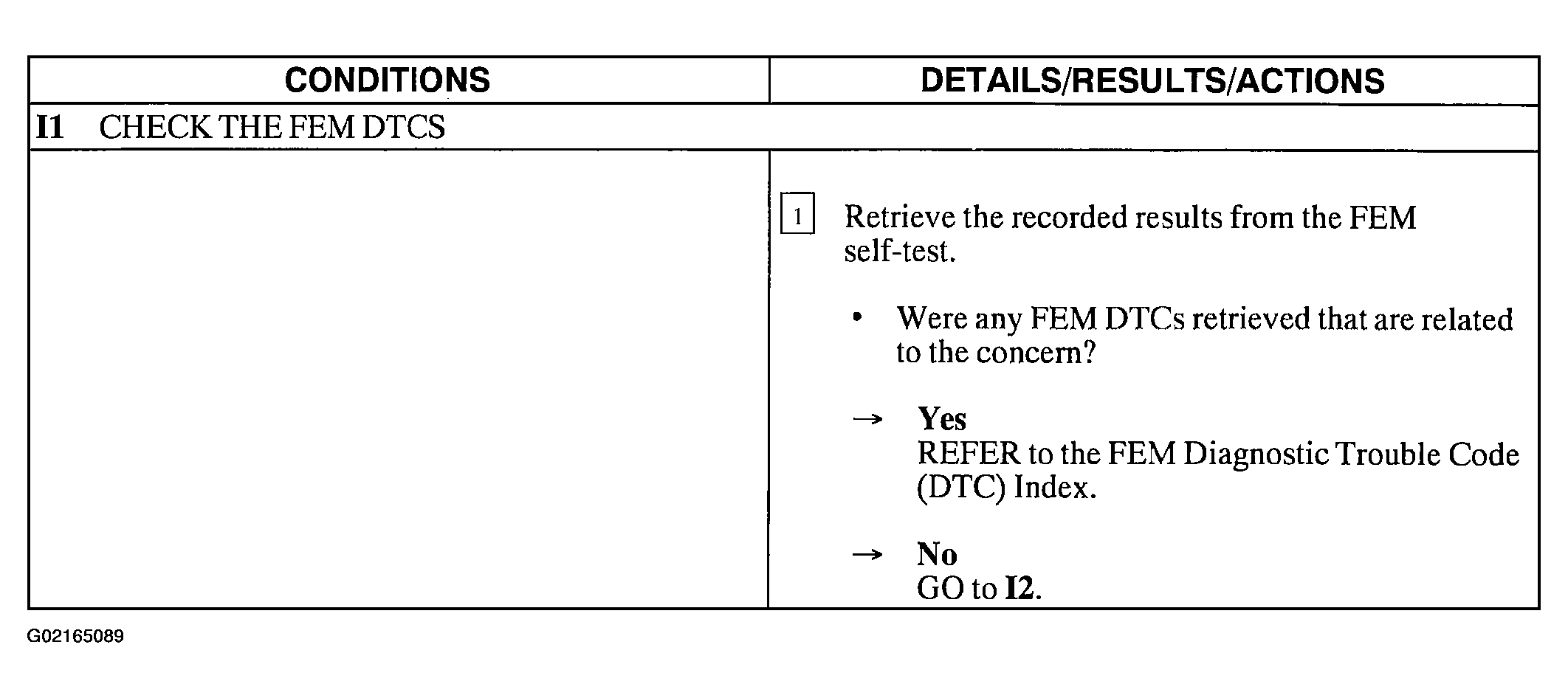

Fig 1: Pinpoint Test I: A Single Power Window Is Inoperative - Passenger Front From The Passenger Front Window Regulator Control Switch Only (Step I1)

Courtesy of FORD MOTOR CO.

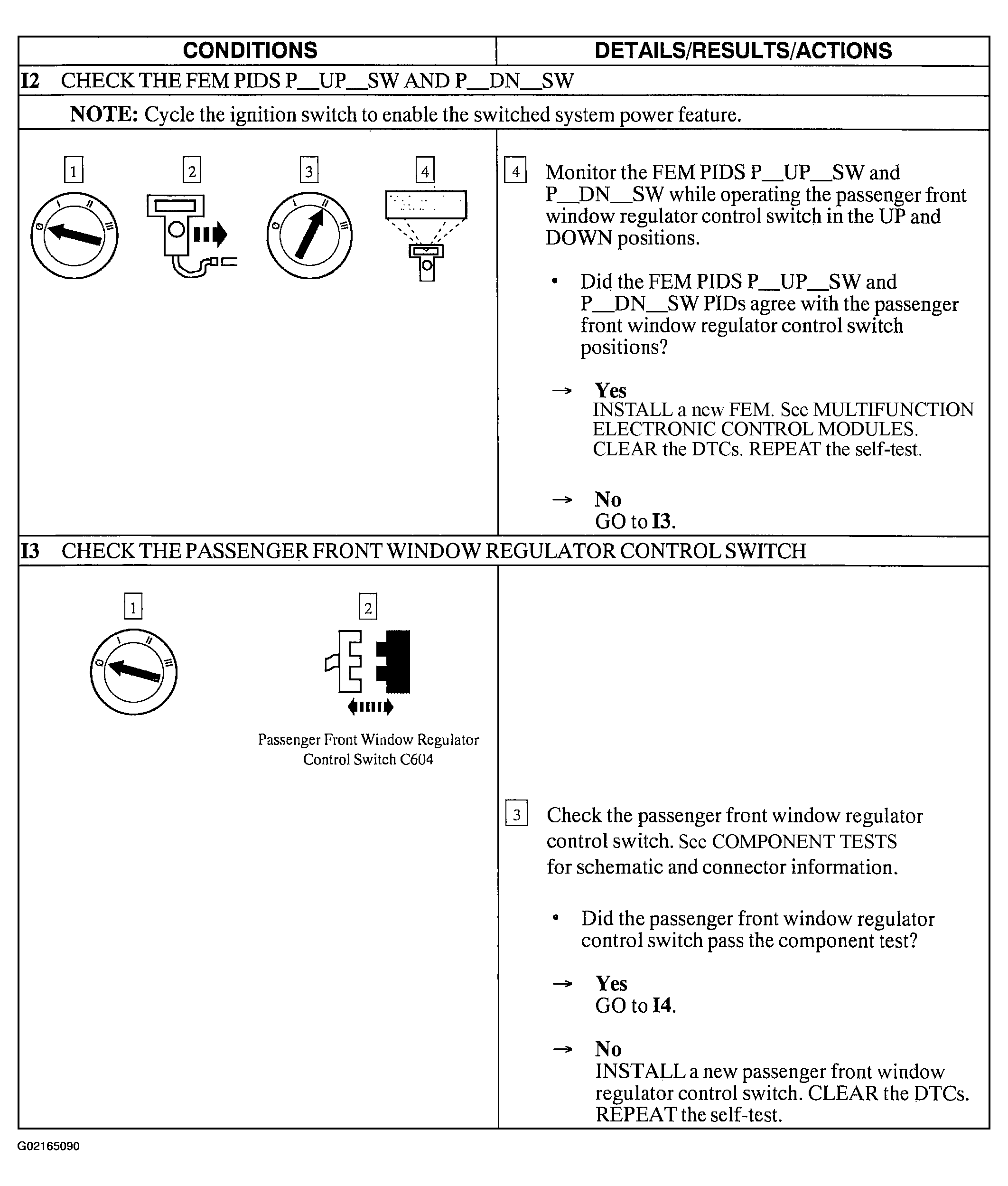

Fig 2: Pinpoint Test I: A Single Power Window Is Inoperative - Passenger Front From The Passenger Front Window Regulator Control Switch Only (Steps I2-I3)

Courtesy of FORD MOTOR CO.

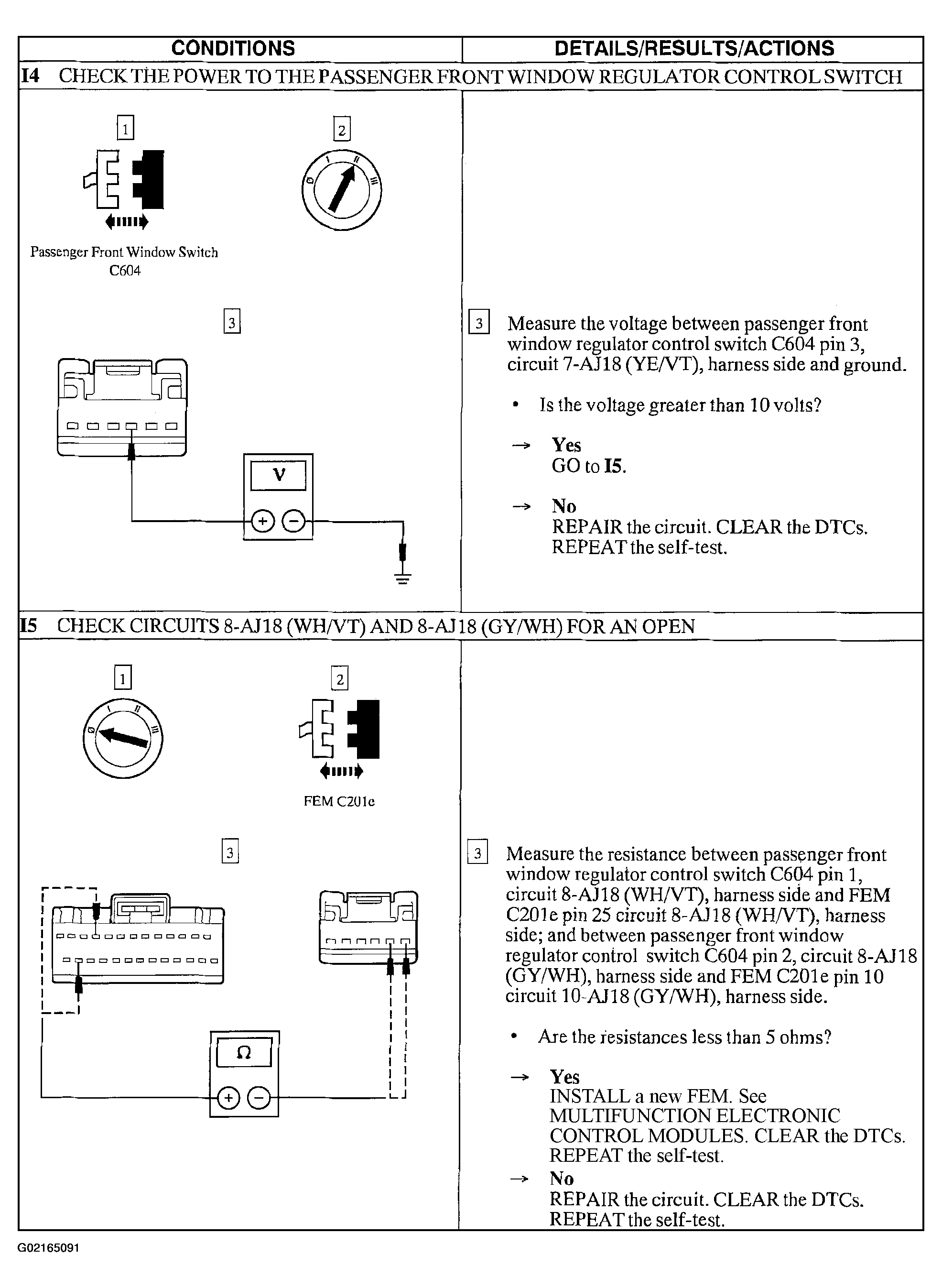

Fig 3: Pinpoint Test I: A Single Power Window Is Inoperative - Passenger Front From The Passenger Front Window Regulator Control Switch Only (Steps I4-I5)

Courtesy of FORD MOTOR CO.
