Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

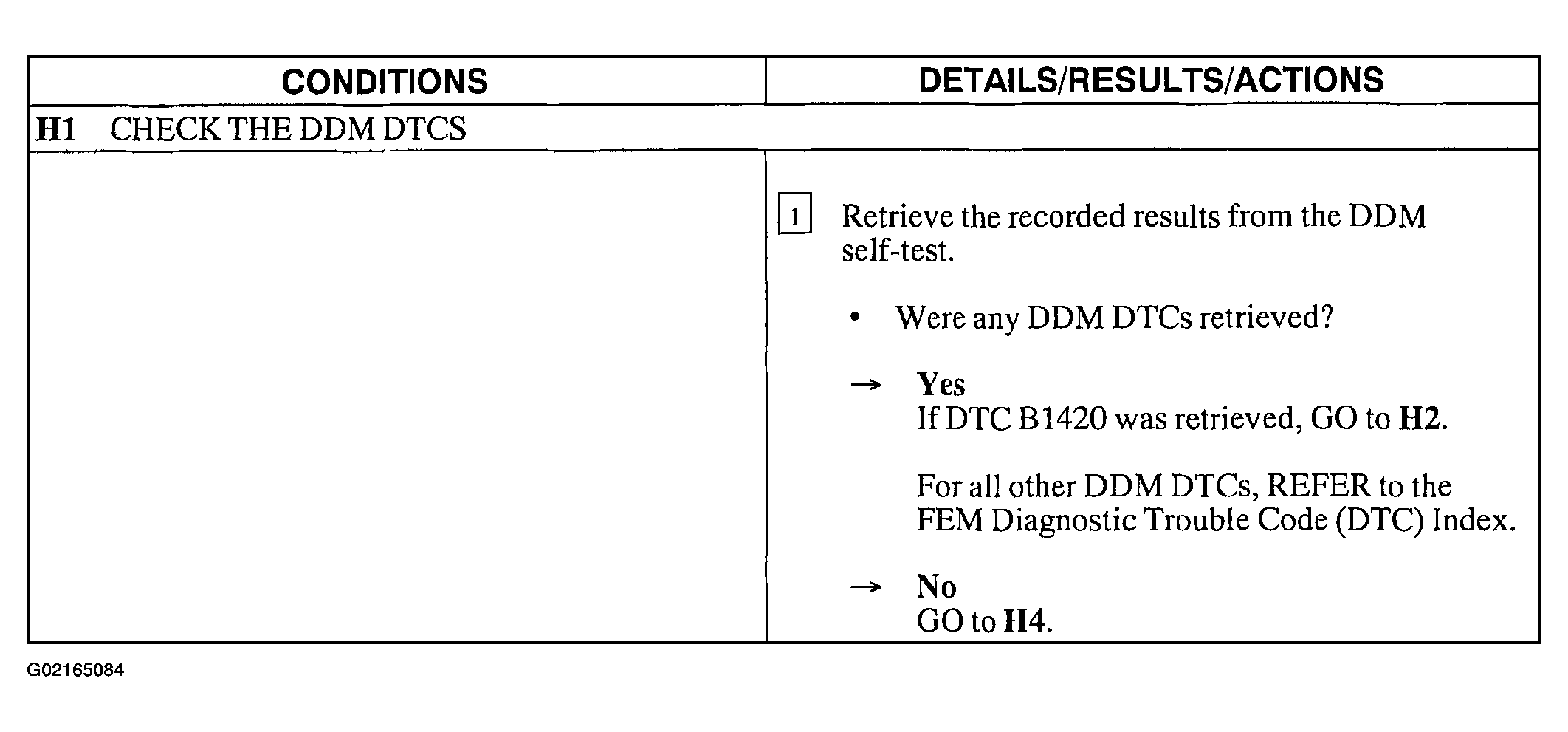

Fig 1: Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only (Step H1)
G02165084Courtesy of FORD MOTOR CO.

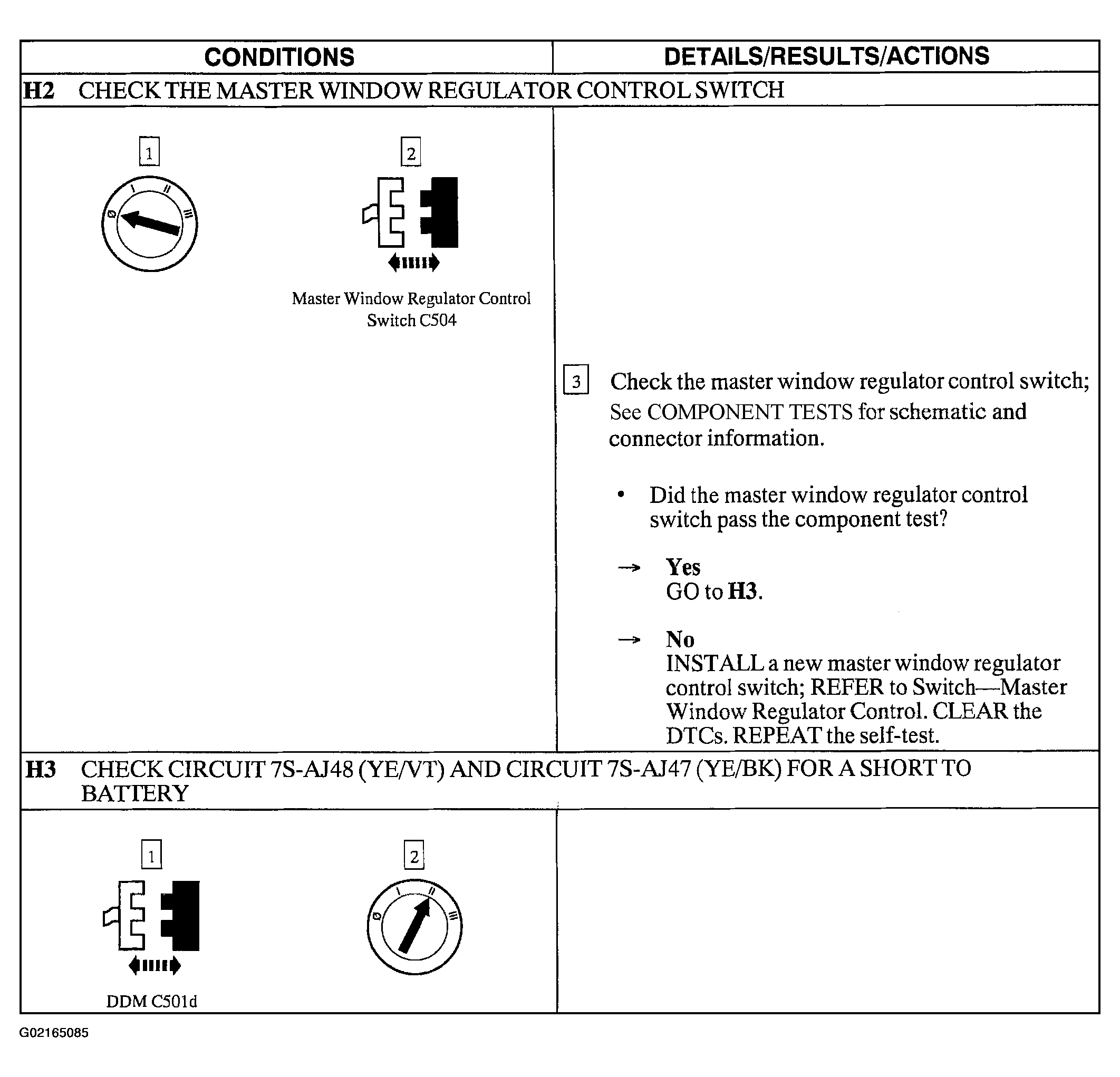

Fig 2: Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only (Steps H2-H3)
G02165085Courtesy of FORD MOTOR CO.

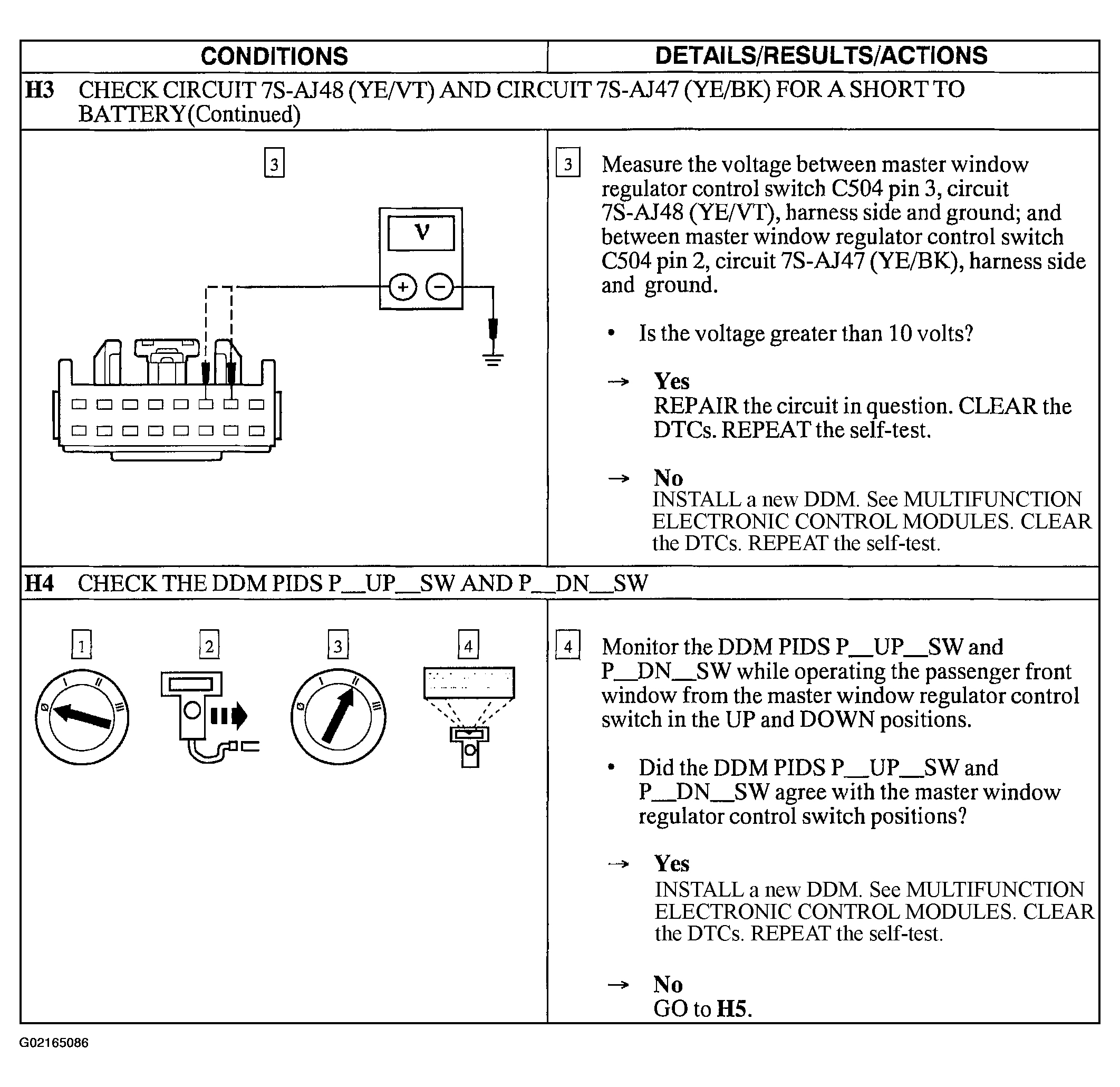

Fig 3: Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only (Steps H3 Cont. -H4)
G02165086Courtesy of FORD MOTOR CO.

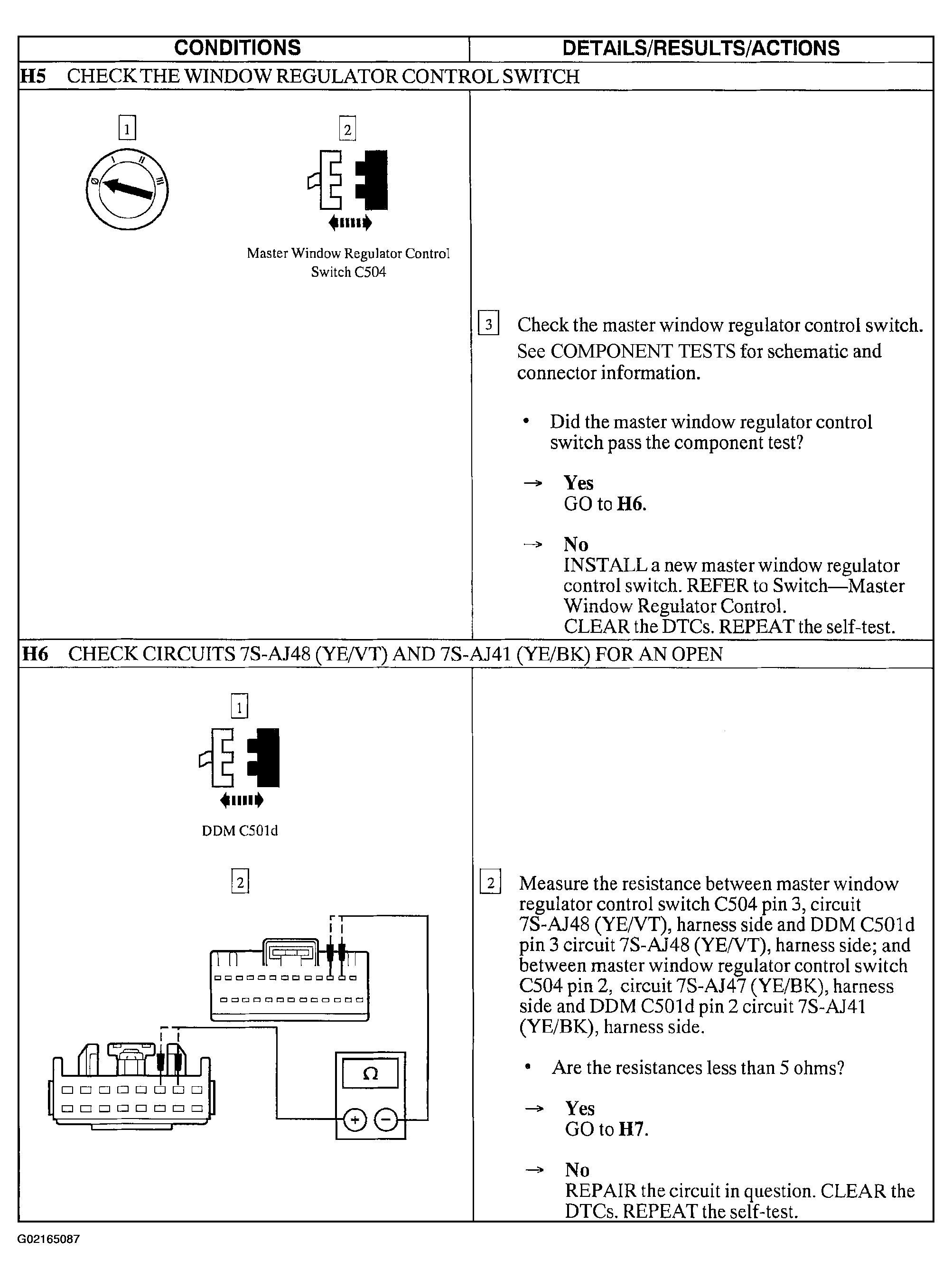

Fig 4: Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only (Steps H5-H6)
G02165087Courtesy of FORD MOTOR CO.

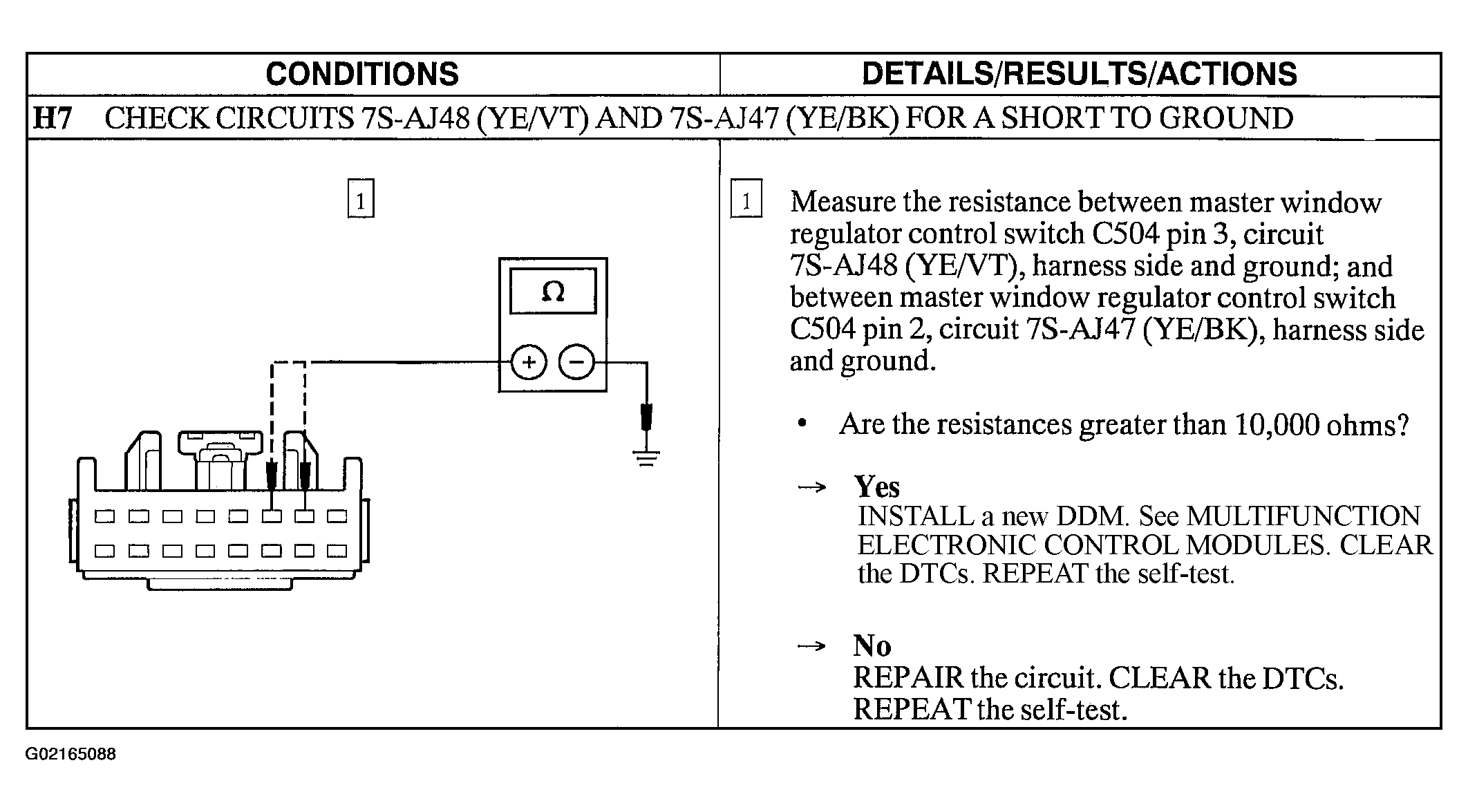

Fig 5: Pinpoint Test H: A Single Power Window Is Inoperative - Passenger Front From The Master Window Regulator Control Switch Only (Step H7)
G02165088Courtesy of FORD MOTOR CO.
