Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G1-G2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G3-G4)

Courtesy of FORD MOTOR CO.

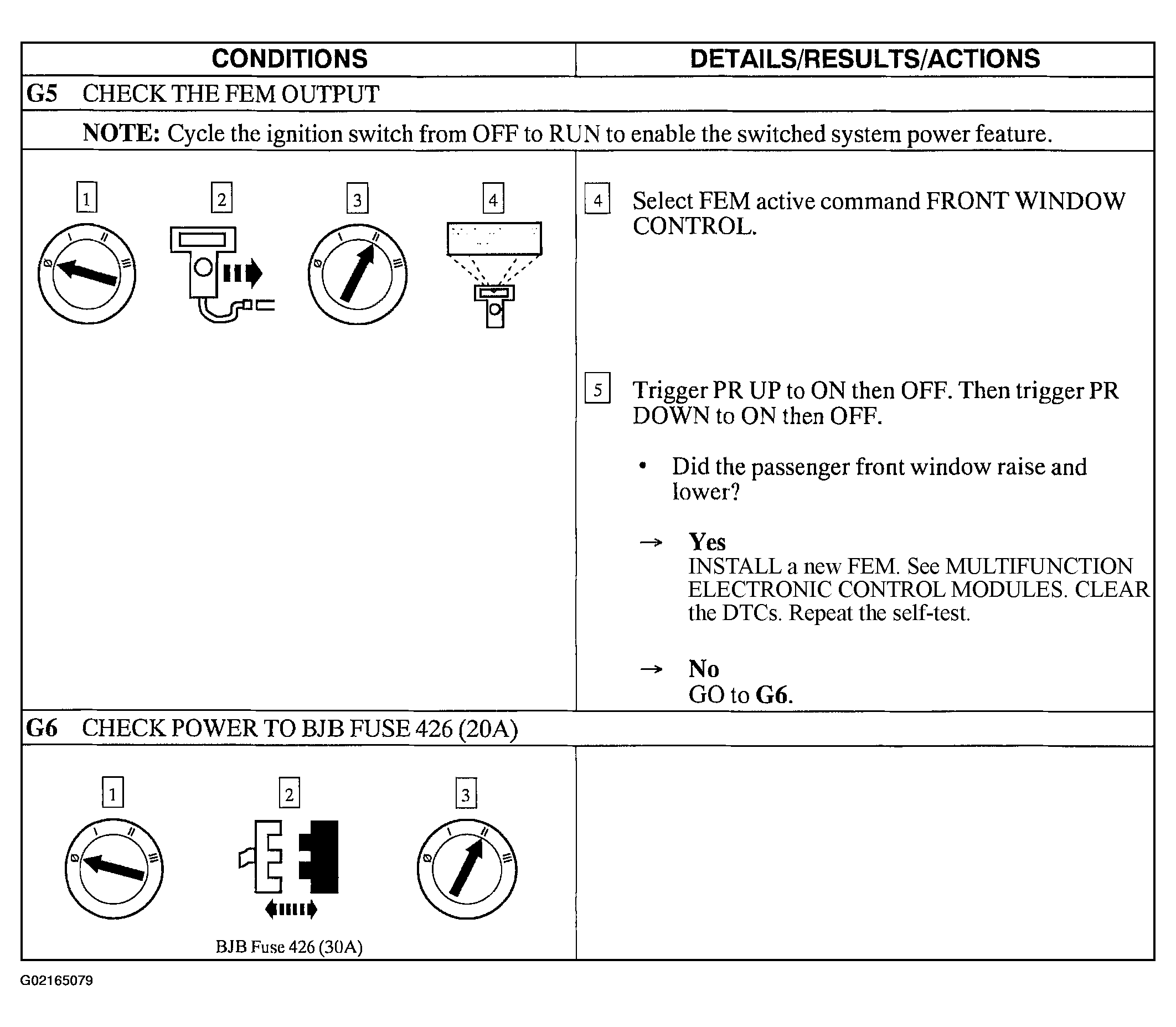

Fig 3: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G5-G6)

Courtesy of FORD MOTOR CO.

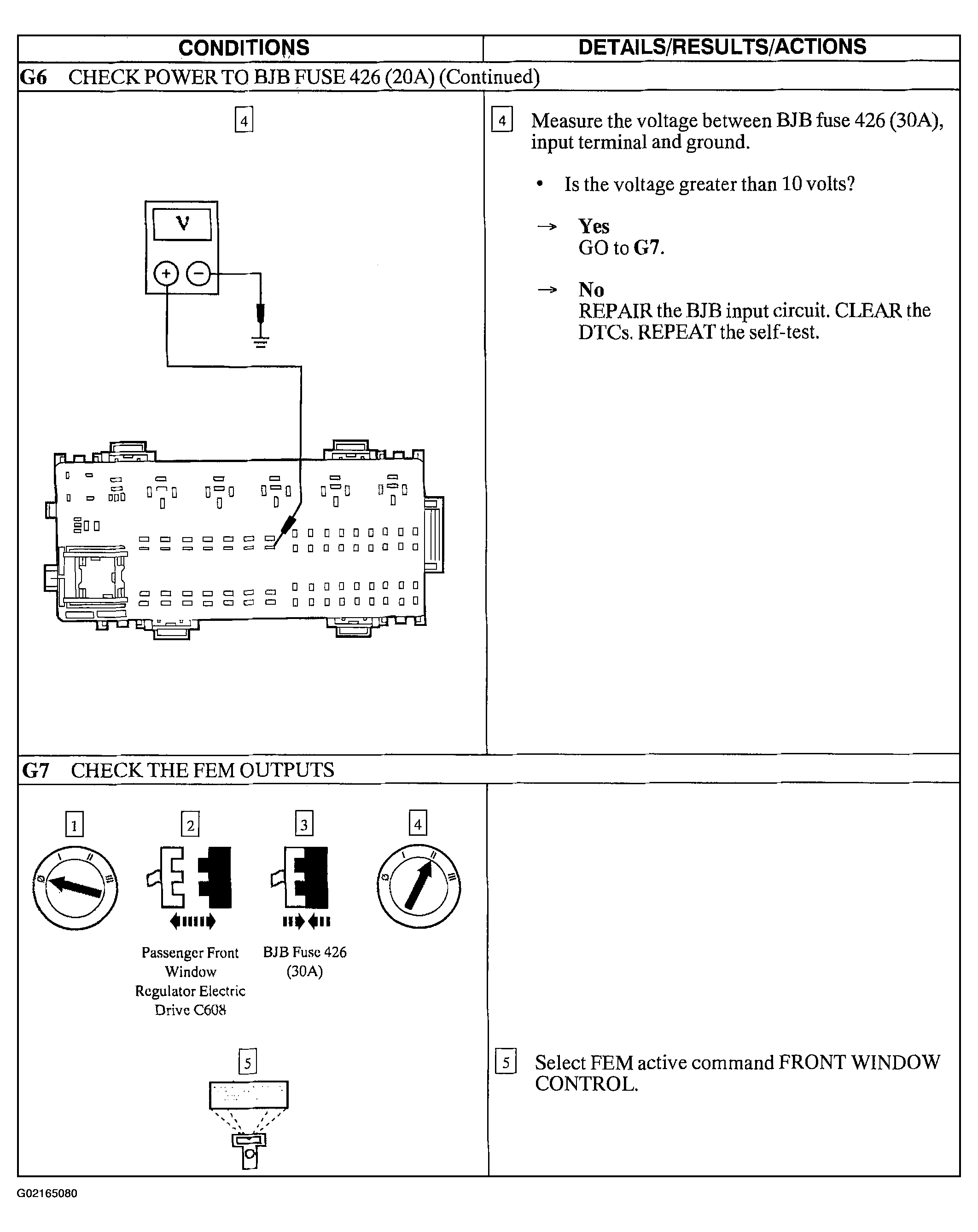

Fig 4: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G6 Cont. -G7)

Courtesy of FORD MOTOR CO.

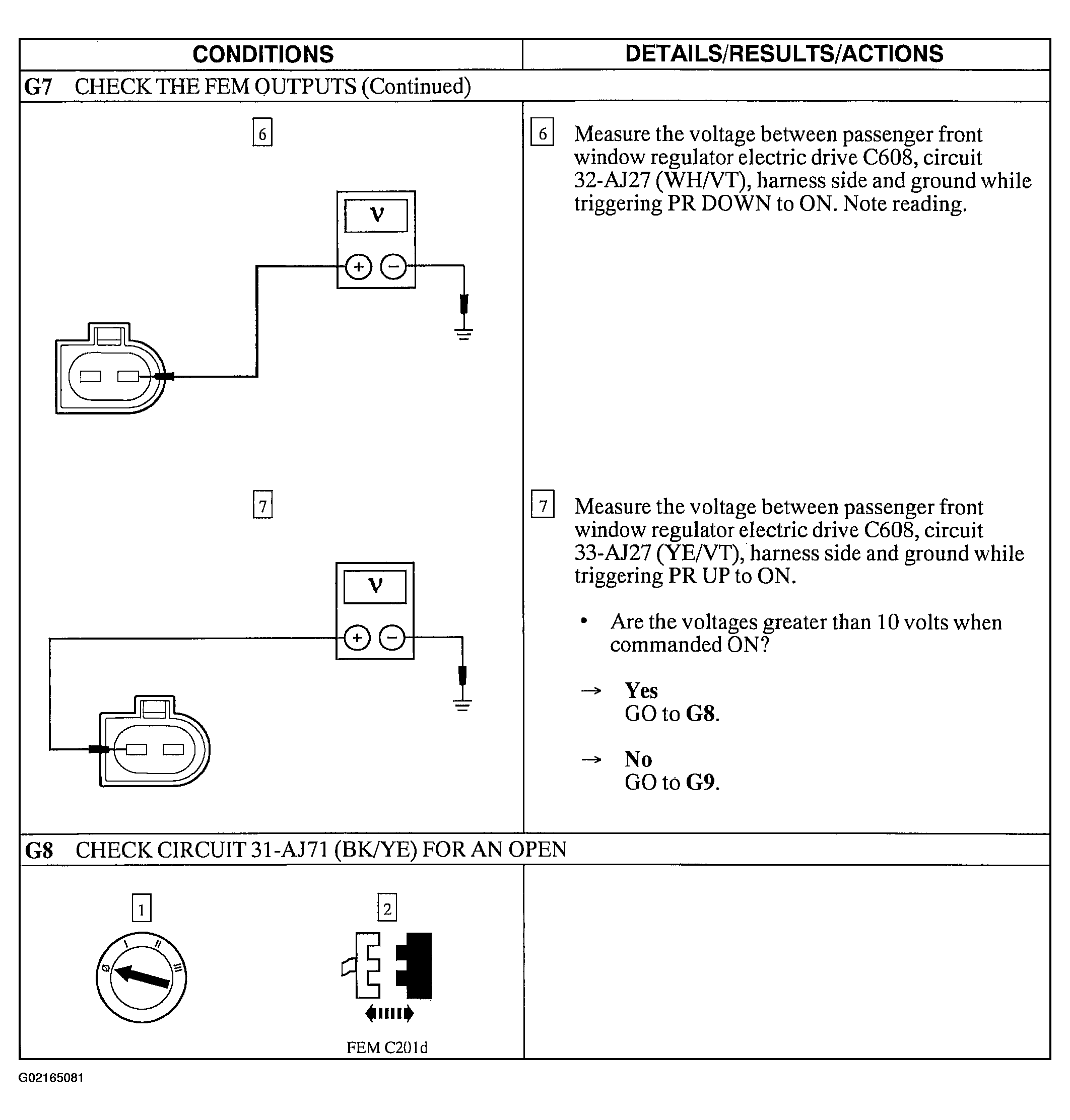

Fig 5: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G7 Cont. -G8)

Courtesy of FORD MOTOR CO.

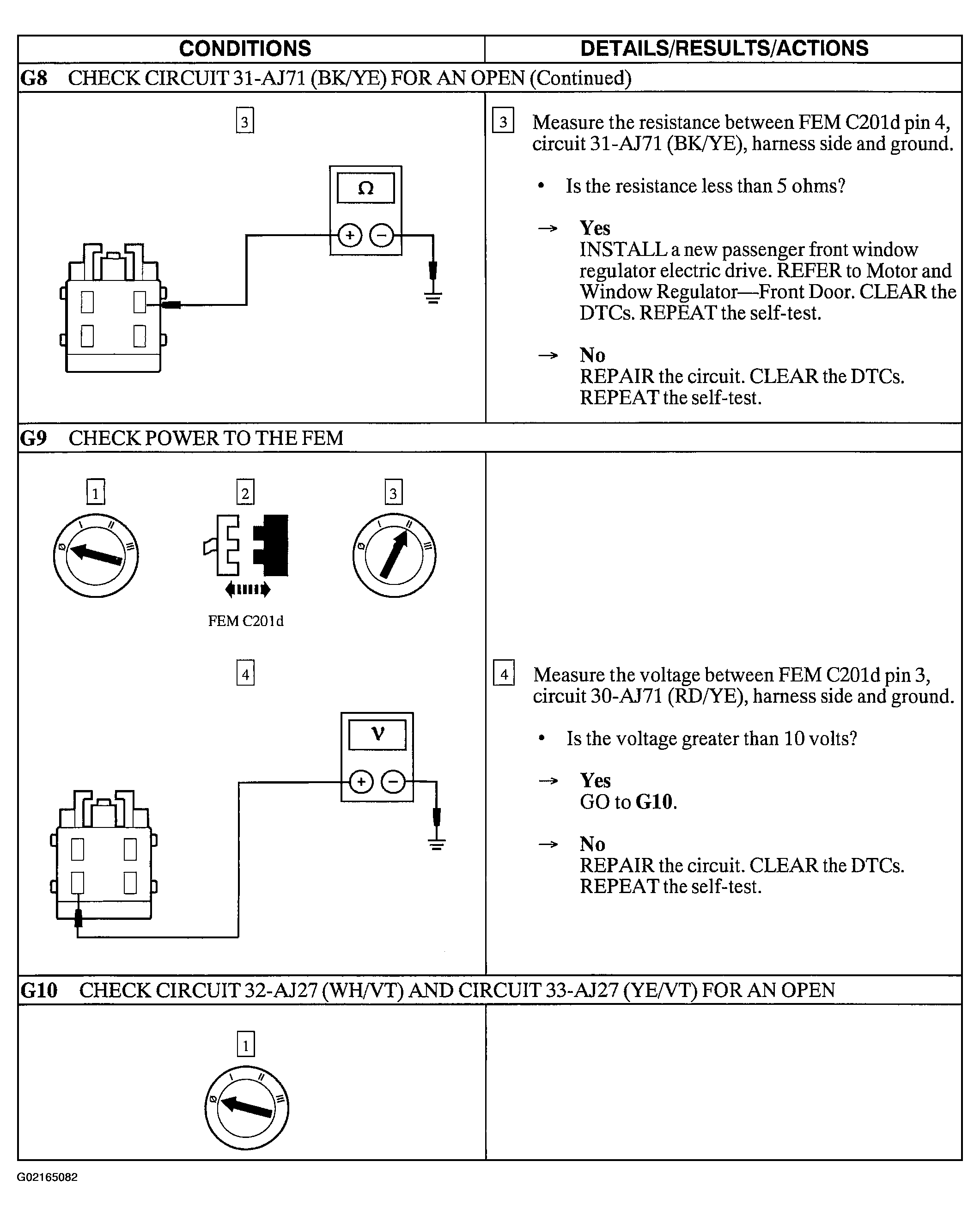

Fig 6: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Steps G8 Cont. -G10)

Courtesy of FORD MOTOR CO.

Fig 7: Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front From Master And Passenger Front Window Regulator Control Switches (Step G10 Cont.)

Courtesy of FORD MOTOR CO.
