Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

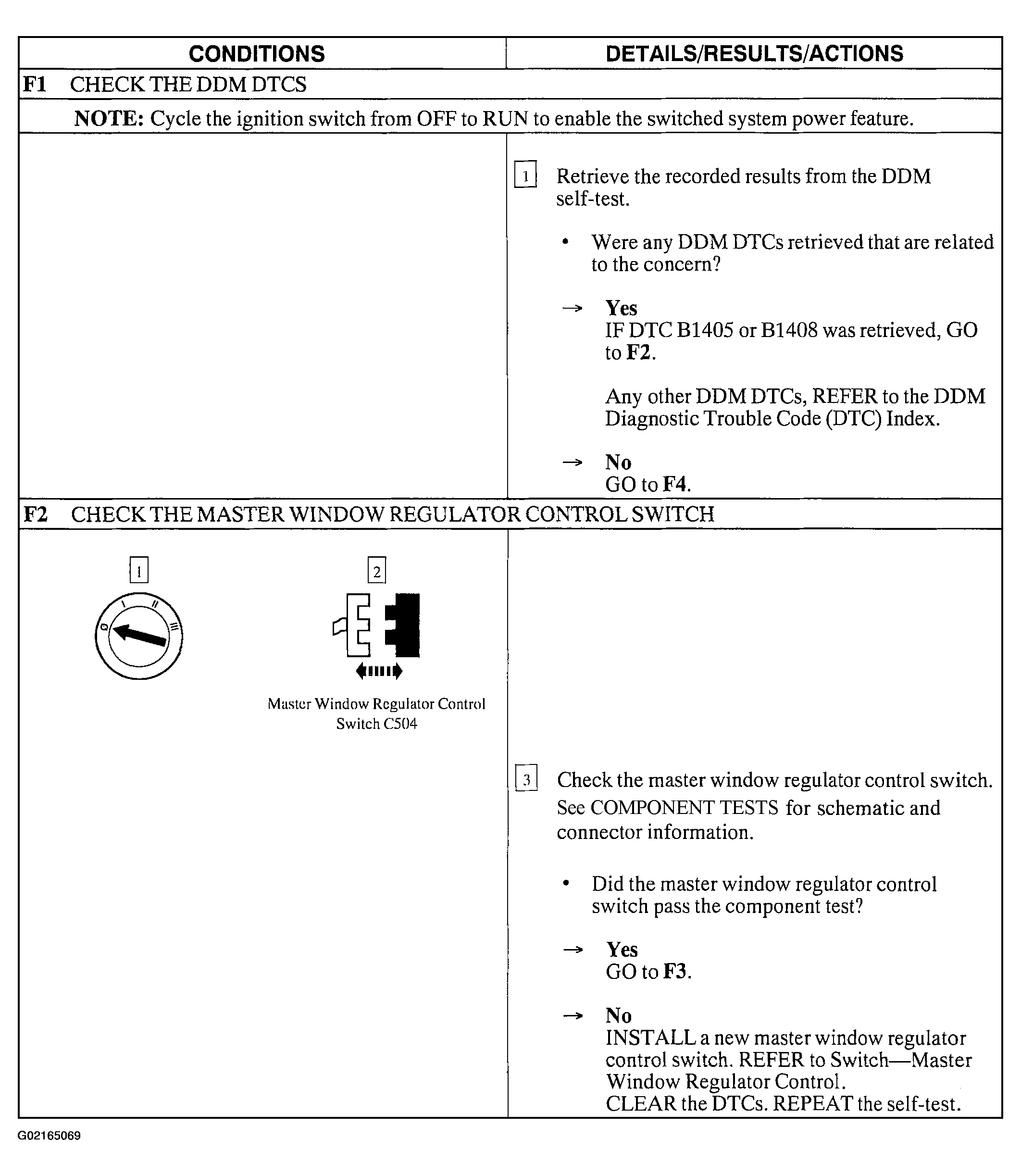

Fig 1: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F1-F2)

Courtesy of FORD MOTOR CO.

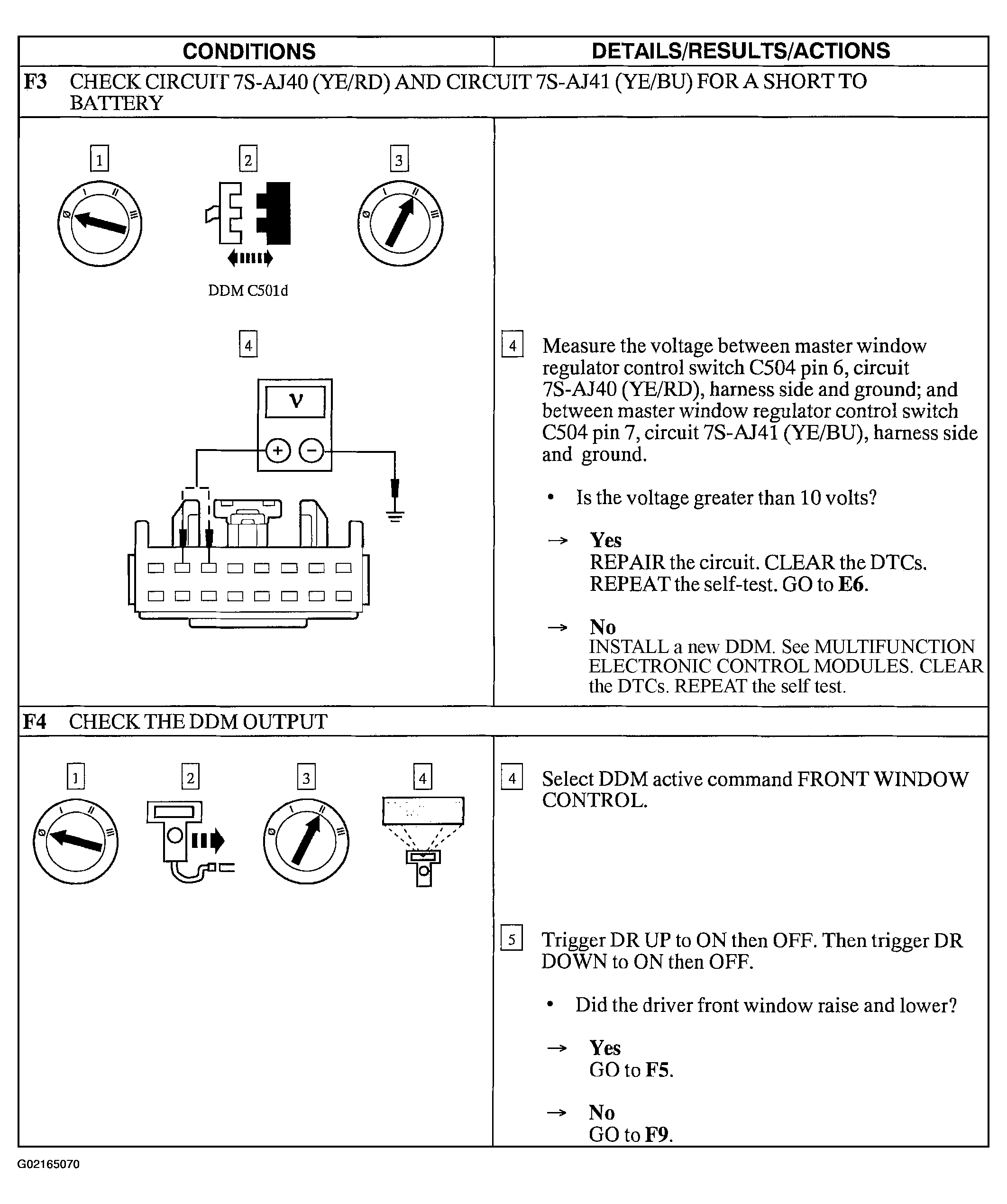

Fig 2: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F3-F4)

Courtesy of FORD MOTOR CO.

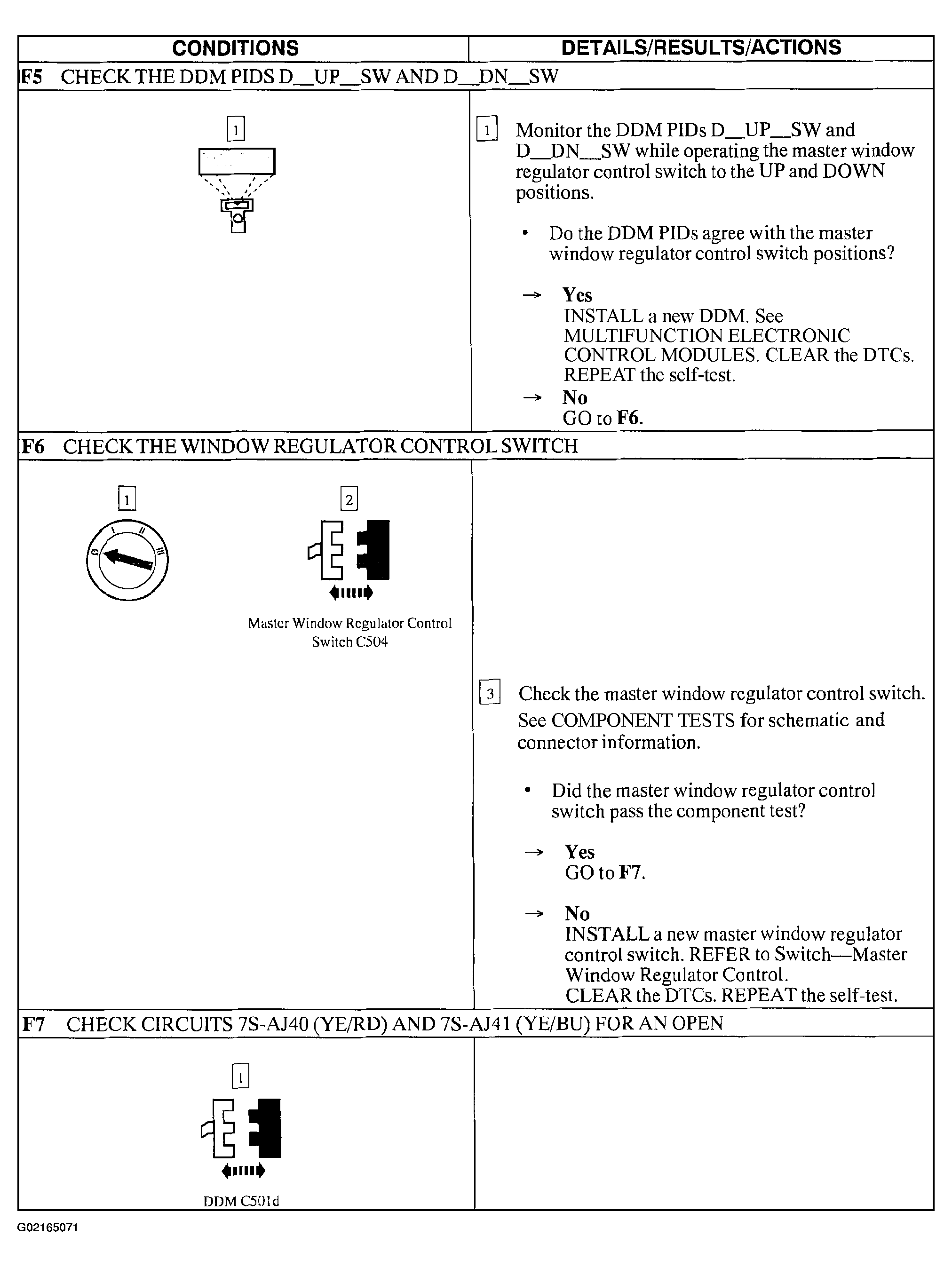

Fig 3: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F5-F7)

Courtesy of FORD MOTOR CO.

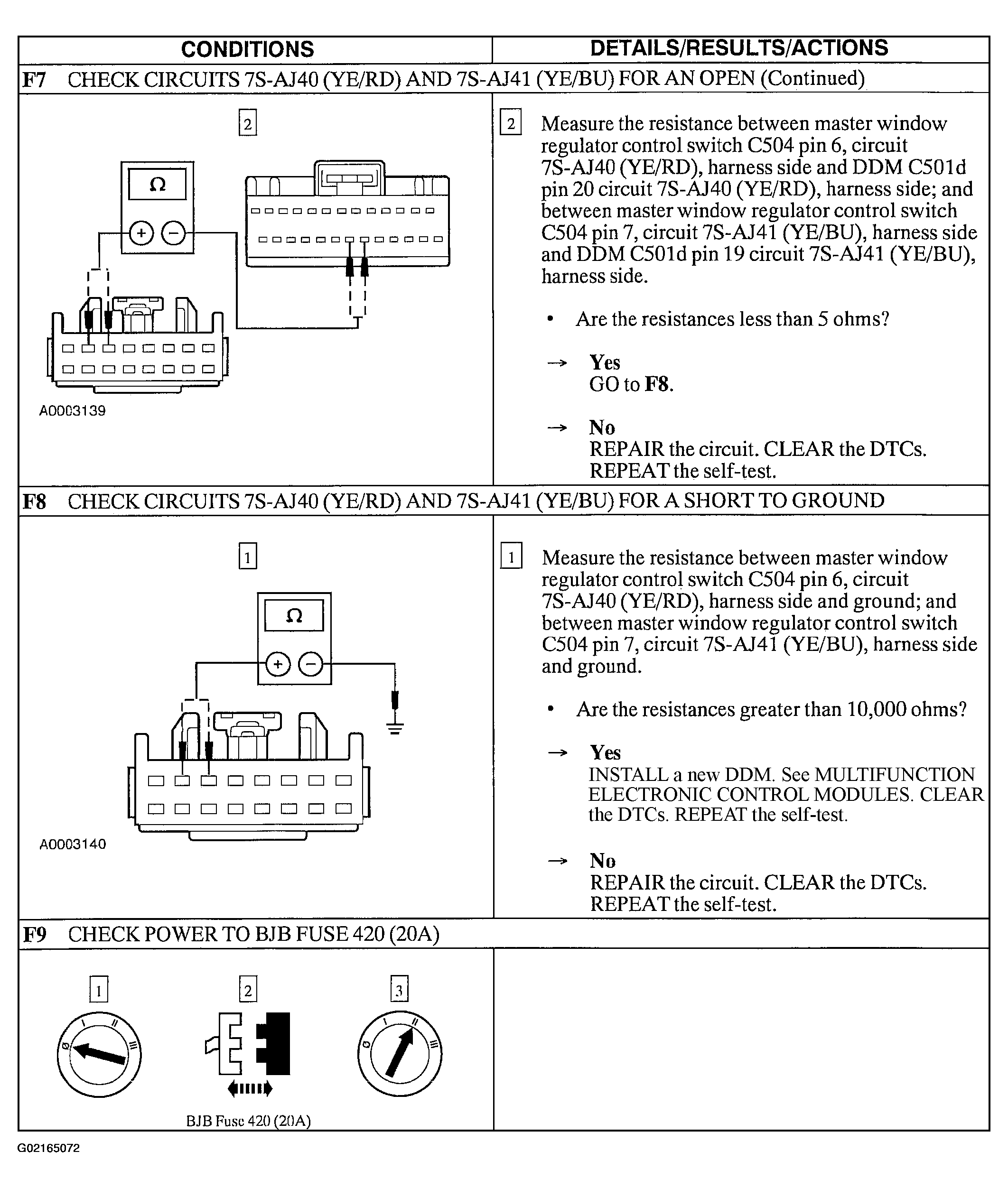

Fig 4: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F7 Cont. -F9)

Courtesy of FORD MOTOR CO.

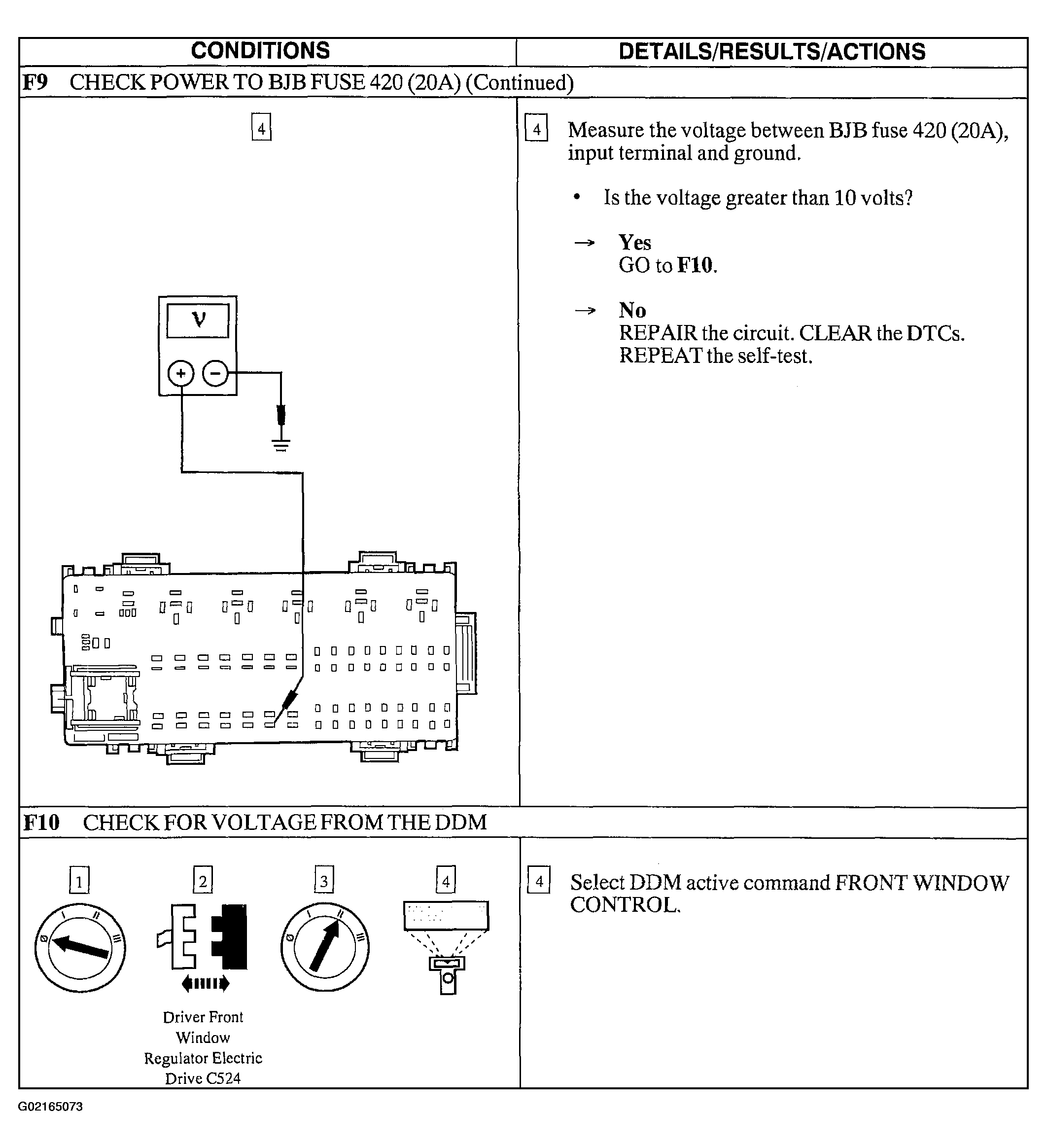

Fig 5: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F9 Cont. -F10)

Courtesy of FORD MOTOR CO.

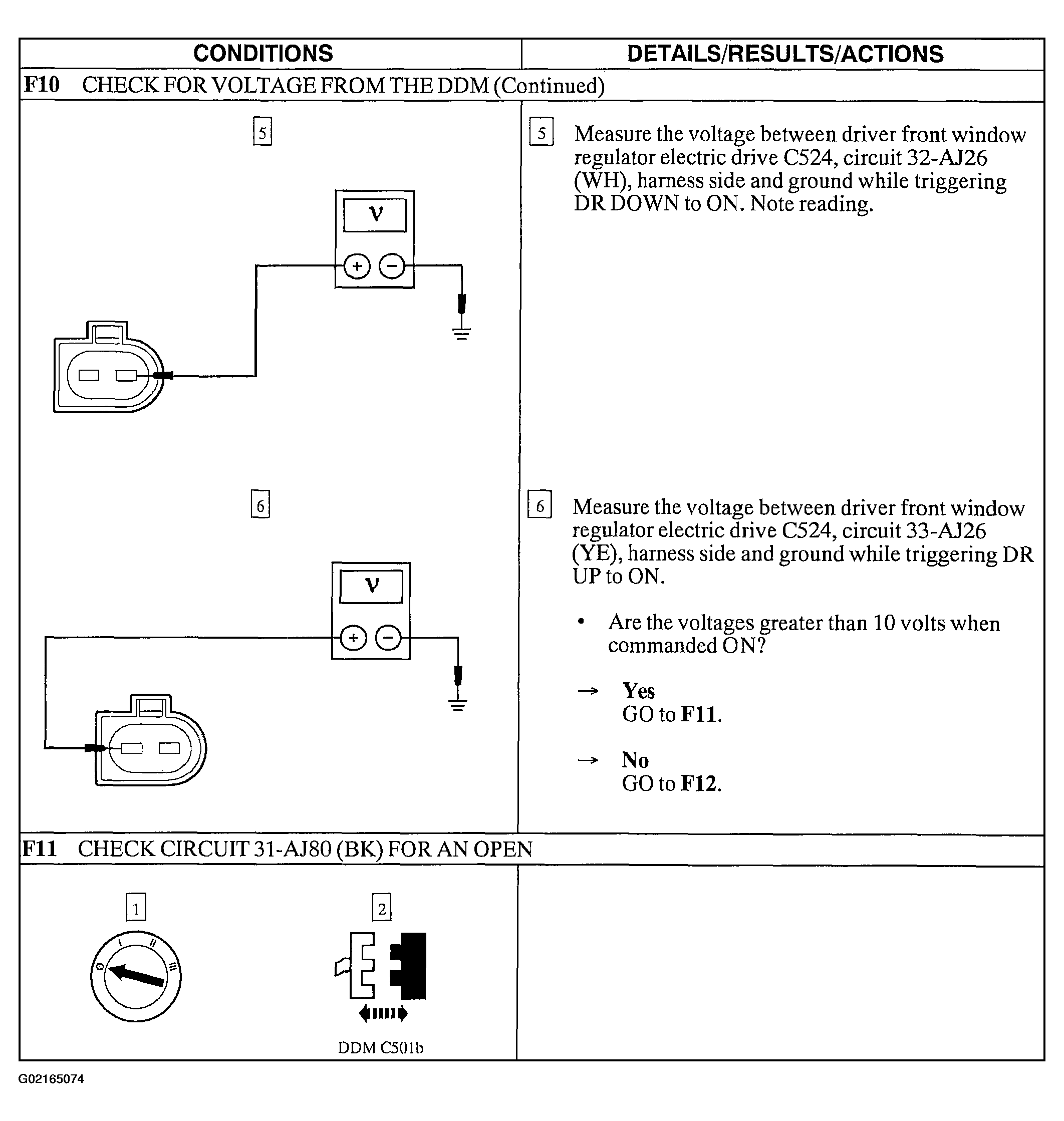

Fig 6: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F10 Cont. -F11)

Courtesy of FORD MOTOR CO.

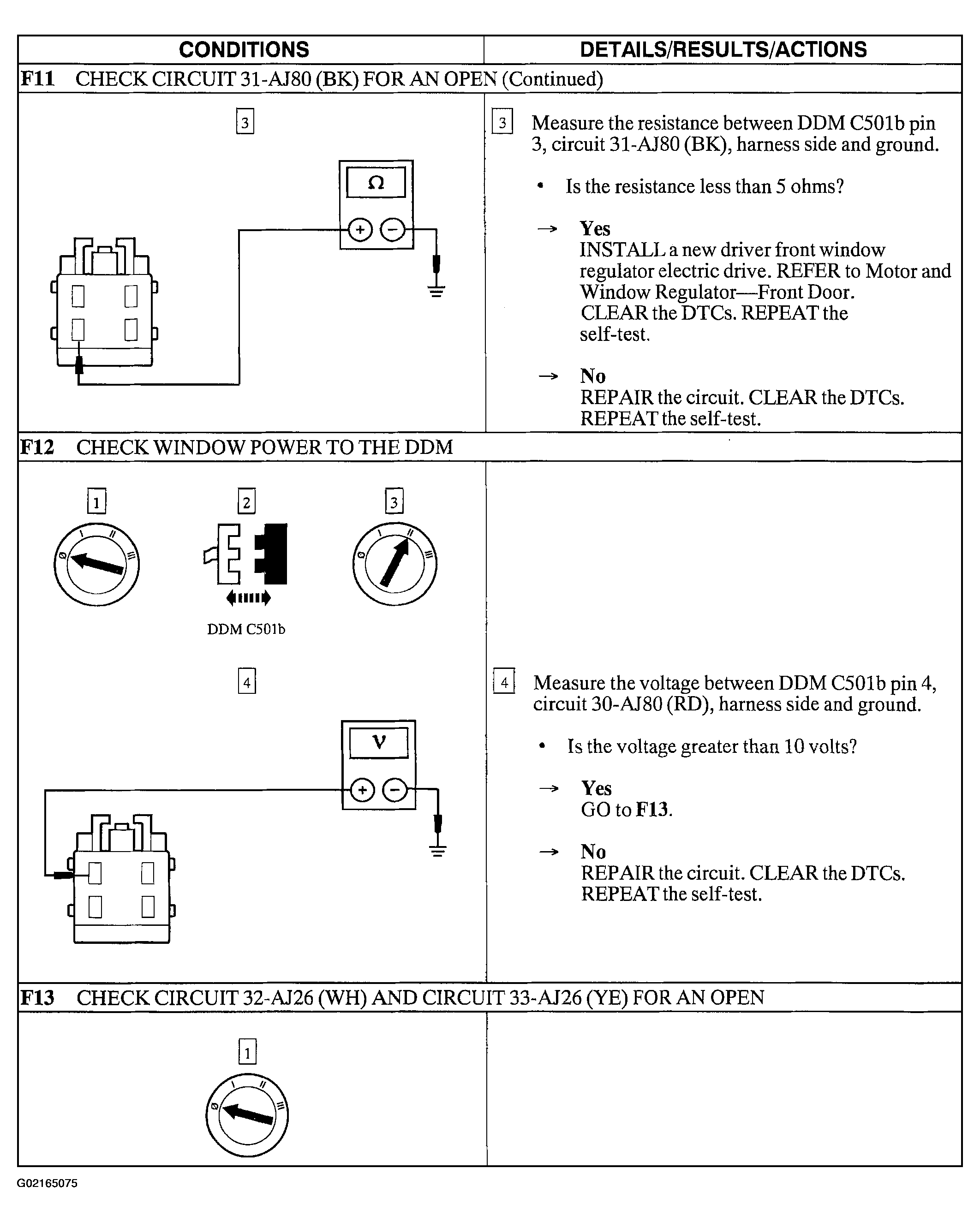

Fig 7: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Steps F11 Cont. -F13)

Courtesy of FORD MOTOR CO.

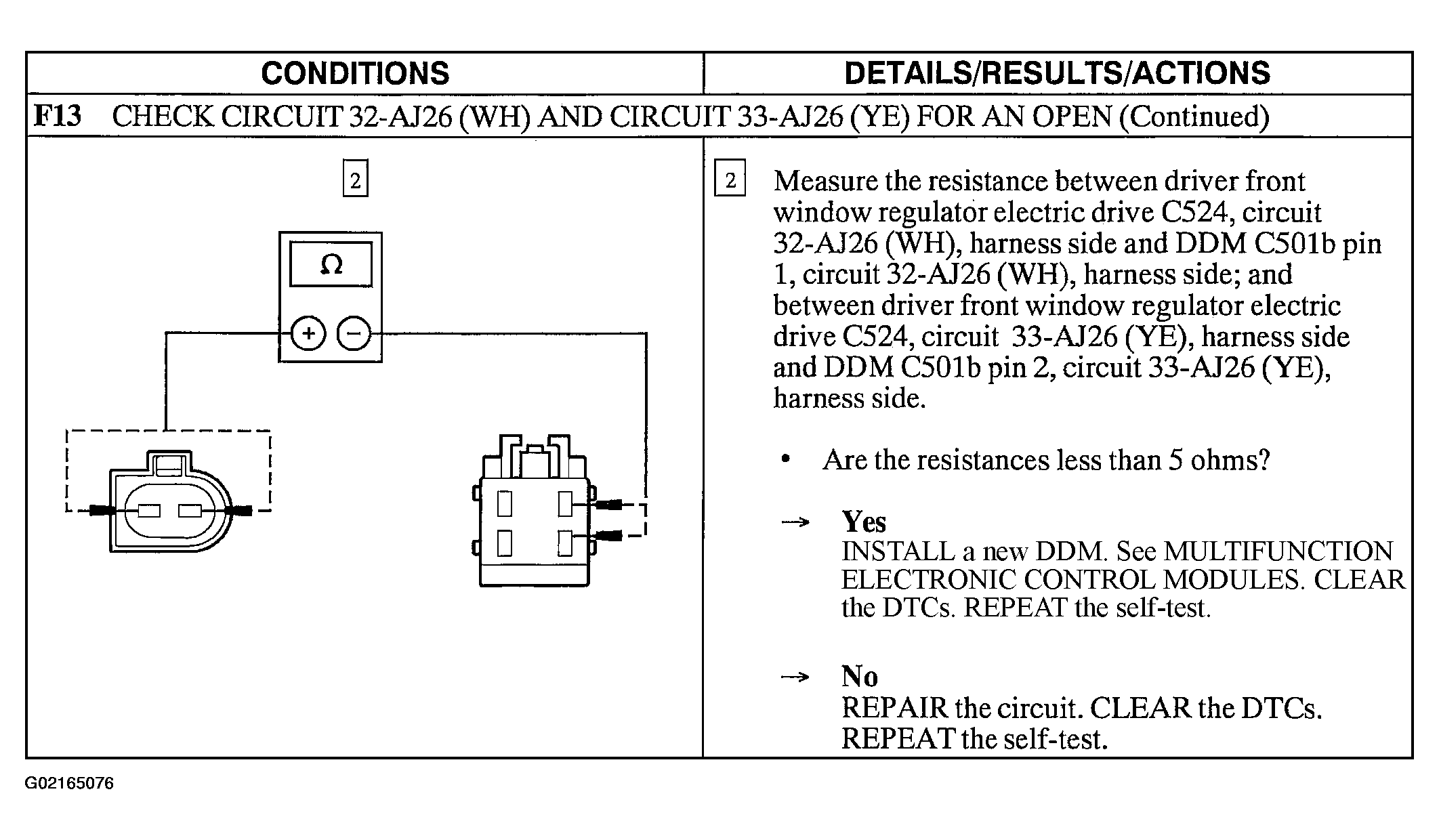

Fig 8: Pinpoint Test F: A Single Power Window Is Inoperative - Driver Window From The Master Window Regulator Control Switch (Step F13 Cont.)

Courtesy of FORD MOTOR CO.
