Pinpoint Test D: All Power Windows Are Inoperative - From The Master Window Regulator Control Switch Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

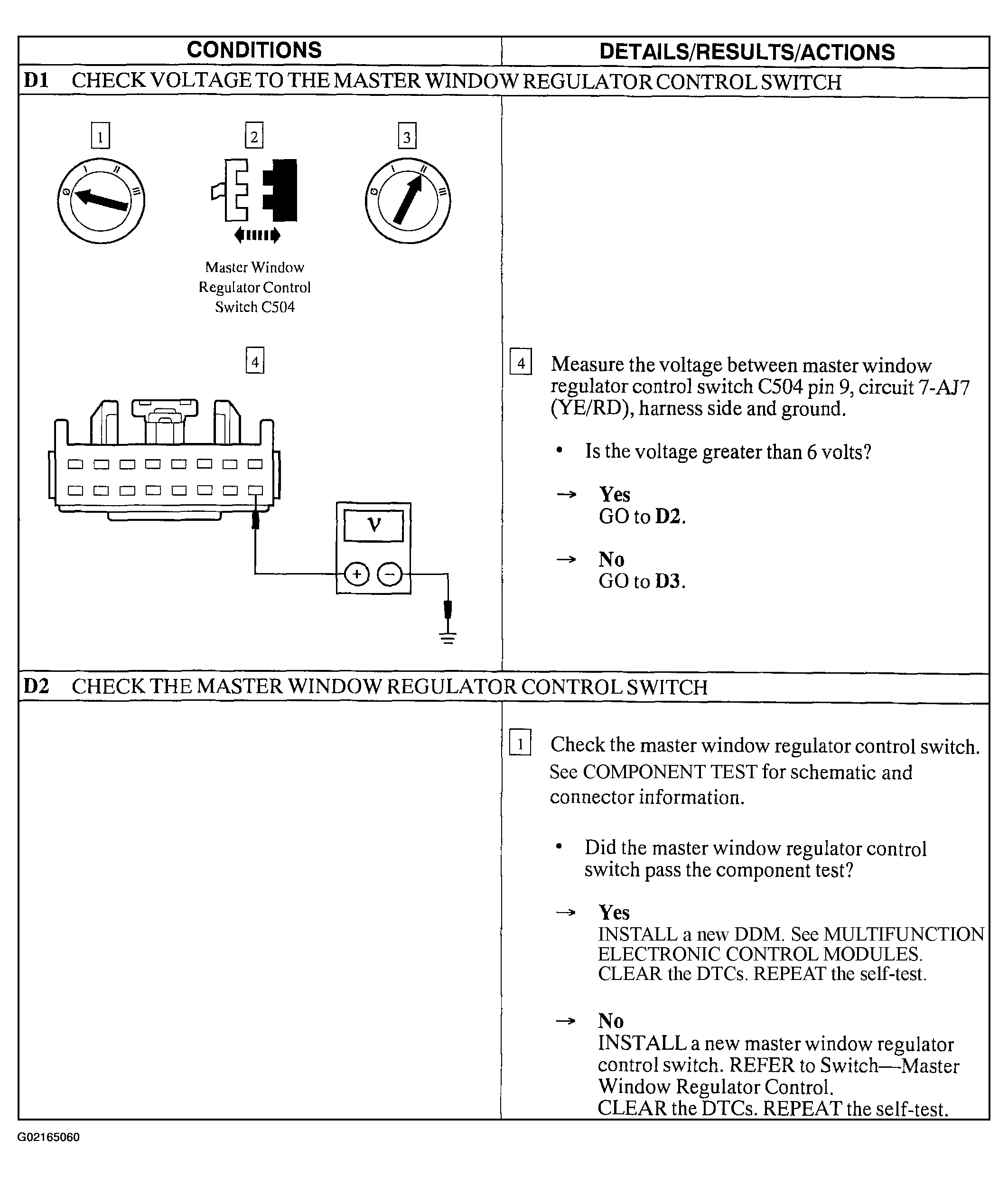

Fig 1: Pinpoint Test D: All Power Windows Are Inoperative - From The Master Window Regulator Control Switch Only (Steps D1-D2)
G02165060Courtesy of FORD MOTOR CO.

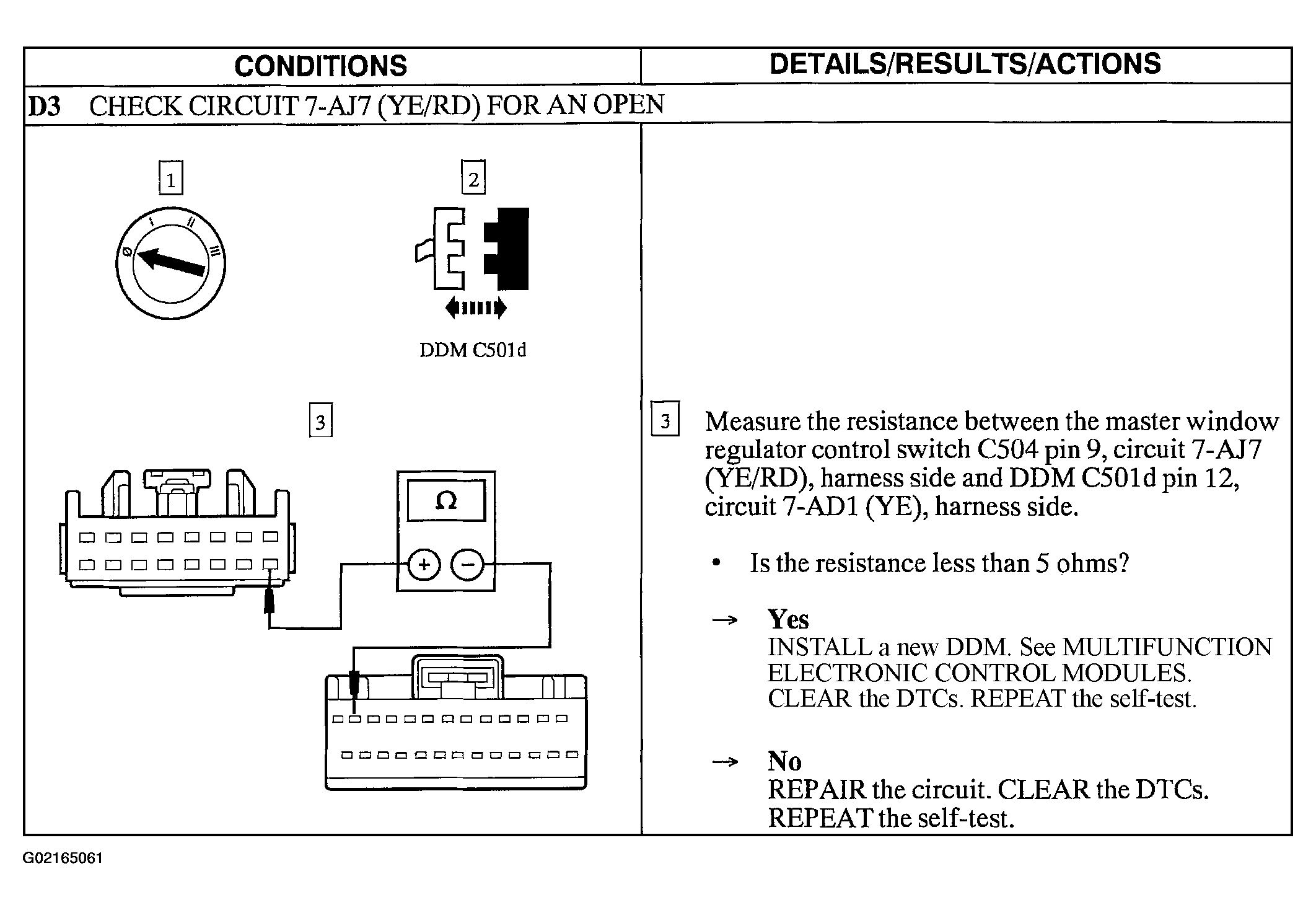

Fig 2: Pinpoint Test D: All Power Windows Are Inoperative - From The Master Window Regulator Control Switch Only (Step D3)
G02165061Courtesy of FORD MOTOR CO.
