Inspection and Verification

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The DATC module, DDM, FEM, and REM must be reconfigured upon replacement. For more information, see MODULE CONFIGURATION .

Verify the customer concern by operating the system.
Visually inspect for obvious signs of mechanical or electrical damage.

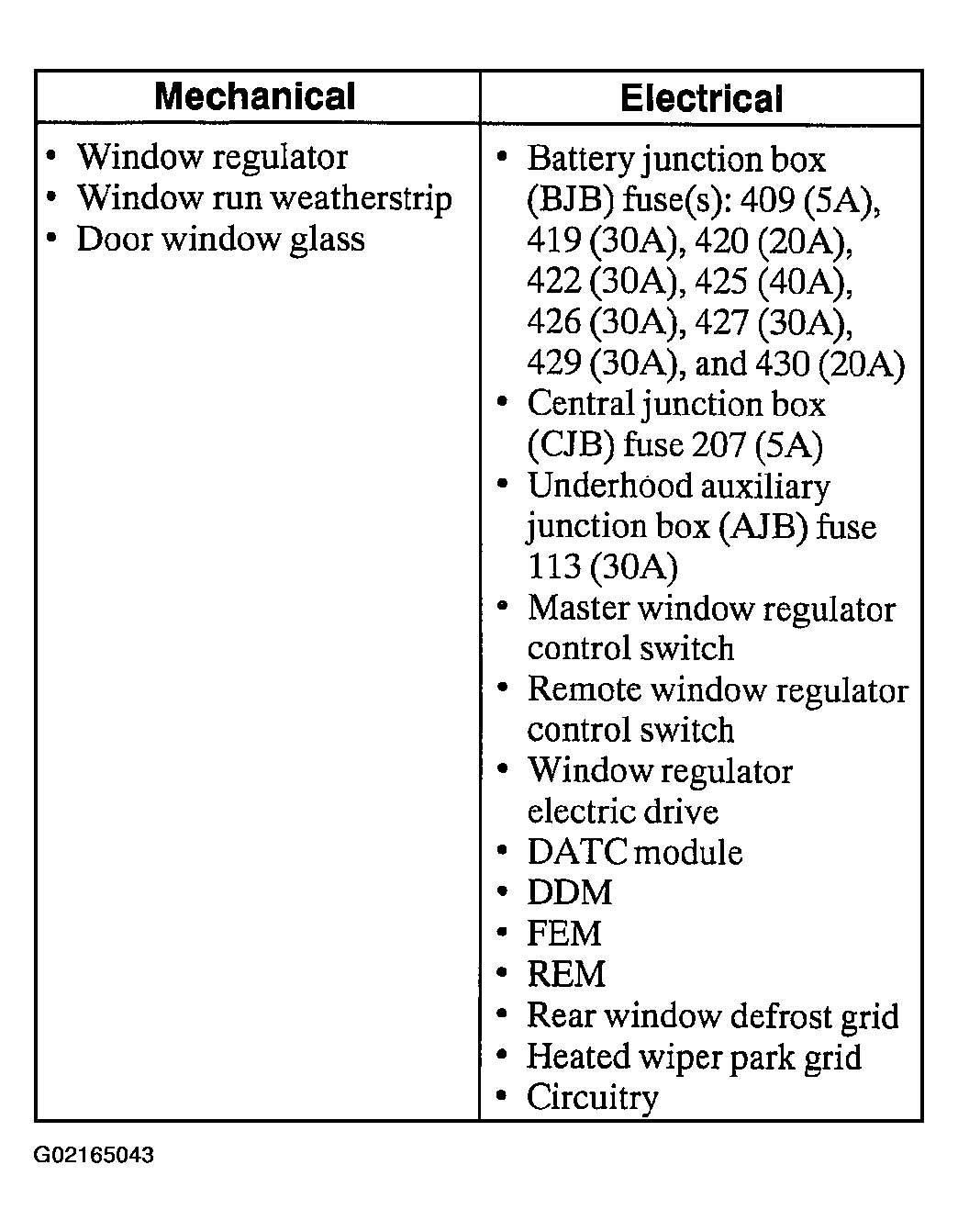

Fig 1: Visual Inspection Chart
Courtesy of FORD MOTOR CO.
If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
If the diagnostic tool does not power up, refer to the diagnostic tool manual.
Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with:
- CKT 914, CKT 915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, see MODULE COMMUNICATIONS NETWORK - LS .
- NO RESP/NOT EQUIP for FEM, GO to PINPOINT TEST A .
- NO RESP/NOT EQUIP for REM, GO to PINPOINT TEST B .
- NO RESP/NOT EQUIP for DDM, GO to PINPOINT TEST C .
- NO RESP/NOT EQUIP for DATC module, see CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
- SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), clear the continuous DTCs and carry out self-test diagnostics for the FEM, REM, DDM, and DATC module.
If DTCs related to the DATC module are retrieved, see CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
If the DTCs retrieved are related to the concern, go to the FEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX , REM DIAGNOSTIC TROUBLE CODE (DTC) INDEX , or DDM DIAGNOSTIC TROUBLE CODE (DTC) INDEX .
If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue the diagnostics.
