Seat Track: Installation
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.

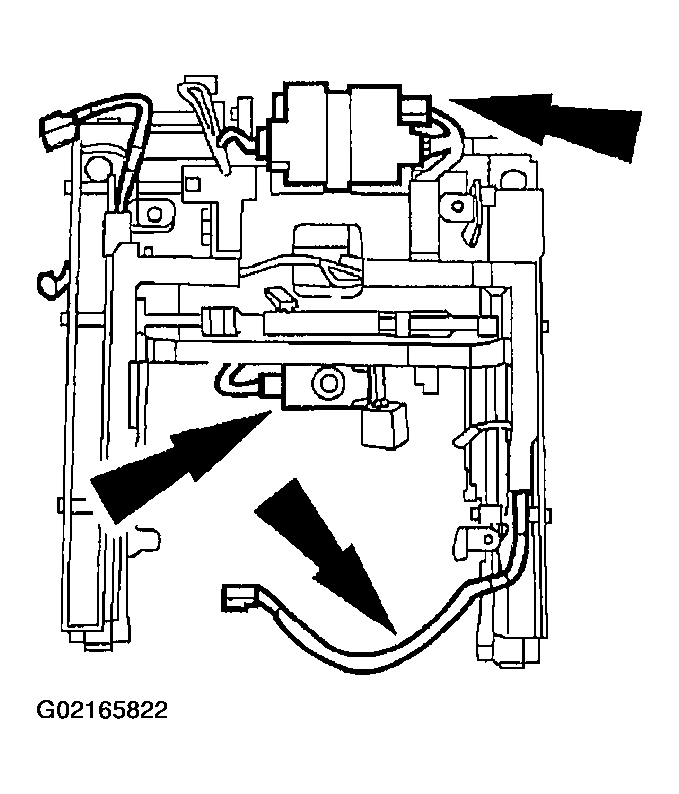

- Install the wiring harness, driver seat module, seat track trim panel, and if equipped, the heated seat module.

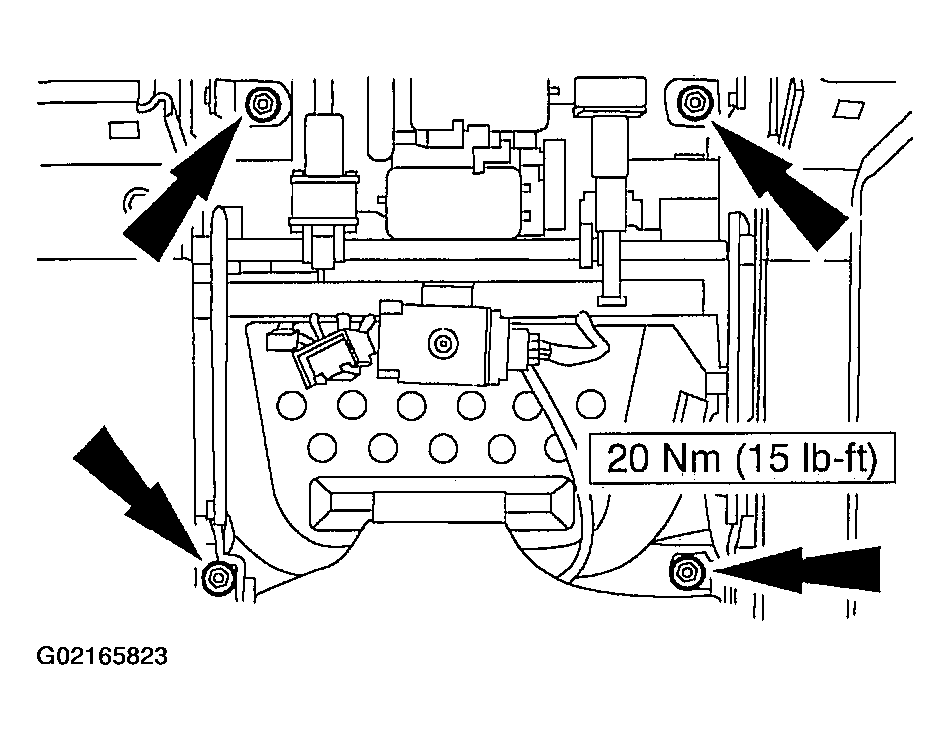

- Install the seat track and nuts.
- Restore the vehicle to operating condition.
- Install the seat backrest. For additional information, see FRONT SEAT BACKREST .
- Install the front cushion side shield. For additional information, see SEAT - FRONT CUSHION SIDE SHIELD .
- Install the affected seat. For additional information, see FRONT SEAT .
- Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
- Check the active restraint system for correct operation.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
