Seat - Front Cushion Side Shield: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
  1. Install the front cushion side shield. Install the screw.

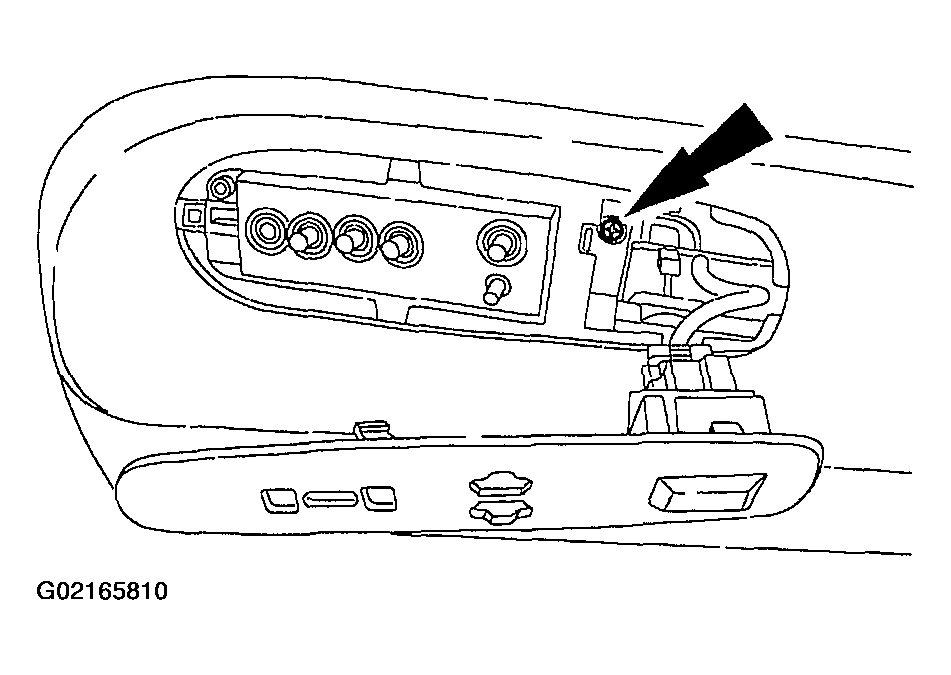

    Fig 1: Installing Front Cushion Side Shield
    G02165810Courtesy of FORD MOTOR CO.
  2. Connect the lumbar control switch electrical connector.

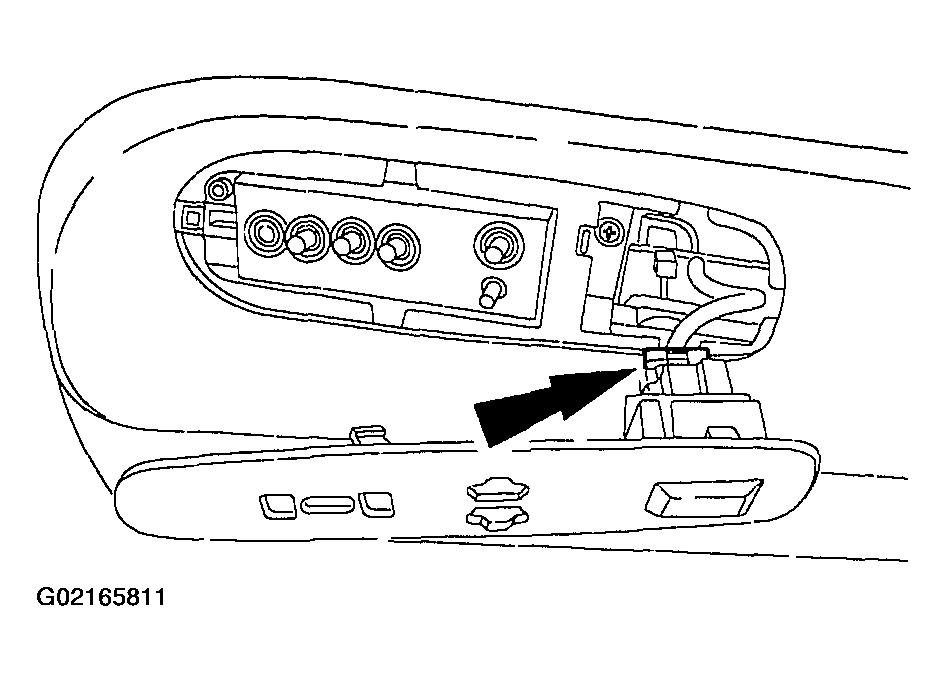

    Fig 2: Connecting Lumbar Control Switch Electrical Connector
    G02165811Courtesy of FORD MOTOR CO.
  3. Install the seat regulator control switch plate.
    Fig 3: Installing Seat Regulator Control Switch Plate
    G02165812Courtesy of FORD MOTOR CO.
  4. Install the seat control switch knobs.
    Fig 4: Installing Seat Control Switch Knobs
    G02165813Courtesy of FORD MOTOR CO.
  5. Install the front cushion side shield screw.

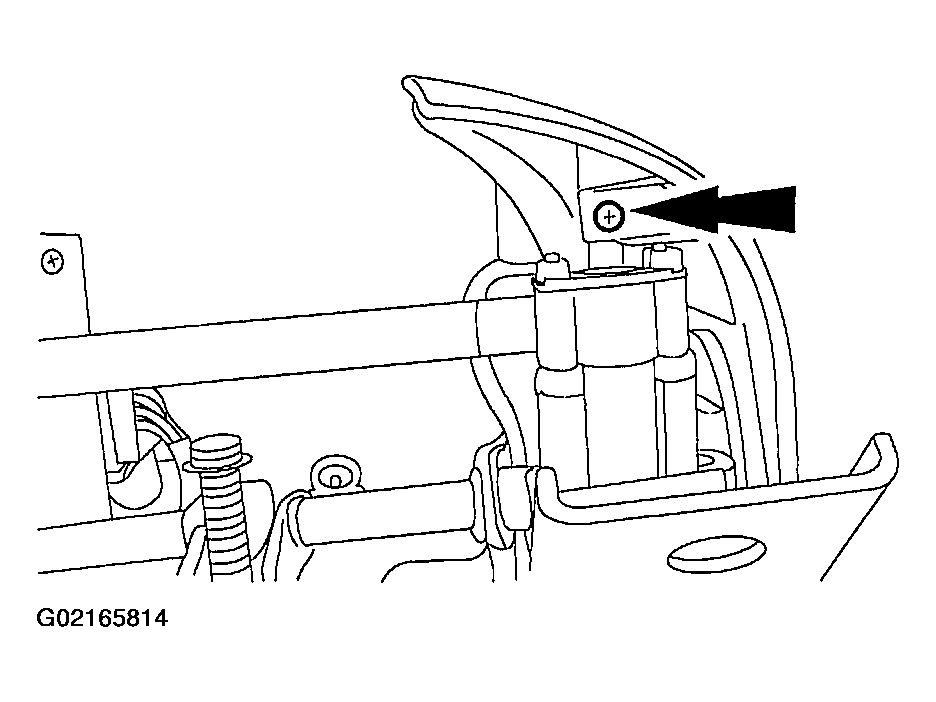

    Fig 5: Installing Front Cushion Side Shield Screw
    G02165814Courtesy of FORD MOTOR CO.
  6. Install the front cushion side shield screw.
    Fig 6: Installing Front Cushion Side Shield Screw
    G02165815Courtesy of FORD MOTOR CO.
  7. Install the safety belt cover.
    Fig 7: Installing Safety Belt Cover
    G02165816Courtesy of FORD MOTOR CO.
  8. Restore the vehicle to operating condition.
      WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.
    1. Install the affected seat. For additional information, see FRONT SEAT .
    2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.
    3. Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
    4. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    5. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
    6. Check the active restraint system for correct operation.
