Motor - Front Seat Lumbar: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing a air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
NOTE: The left side is shown, the right side is similar.
  1. Prepare the vehicle for front seat lumbar motor removal.
      WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
      Please see AIR BAG RESTRAINT SYSTEMS to determine location of the front air bag sensors.
      The side air bag sensors are located at or near the base of the B-pillar.
      To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
    1. Disconnect the battery ground cable (14301) and wait at least one minute.
    2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, Cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.
    3. Deactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
    4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
    5. Remove the affected seat. For additional information, see FRONT SEAT .
  2. WARNING: Front seat back trim covers installed on seats equipped with side air bags cannot be repaired, they are to be replaced (cleaning is permissible).
    CAUTION: When removing the seat backrest trim panel, be careful not to damage the J-hooks. If the seat backrest trim panel J-hooks are damaged, install a new seat backrest trim panel.
    CAUTION: When removing the seat backrest trim panel, be careful not to damage the pin-type retainers. Pulling towards you, use a smooth, controlled force to release the pin-type retainers.

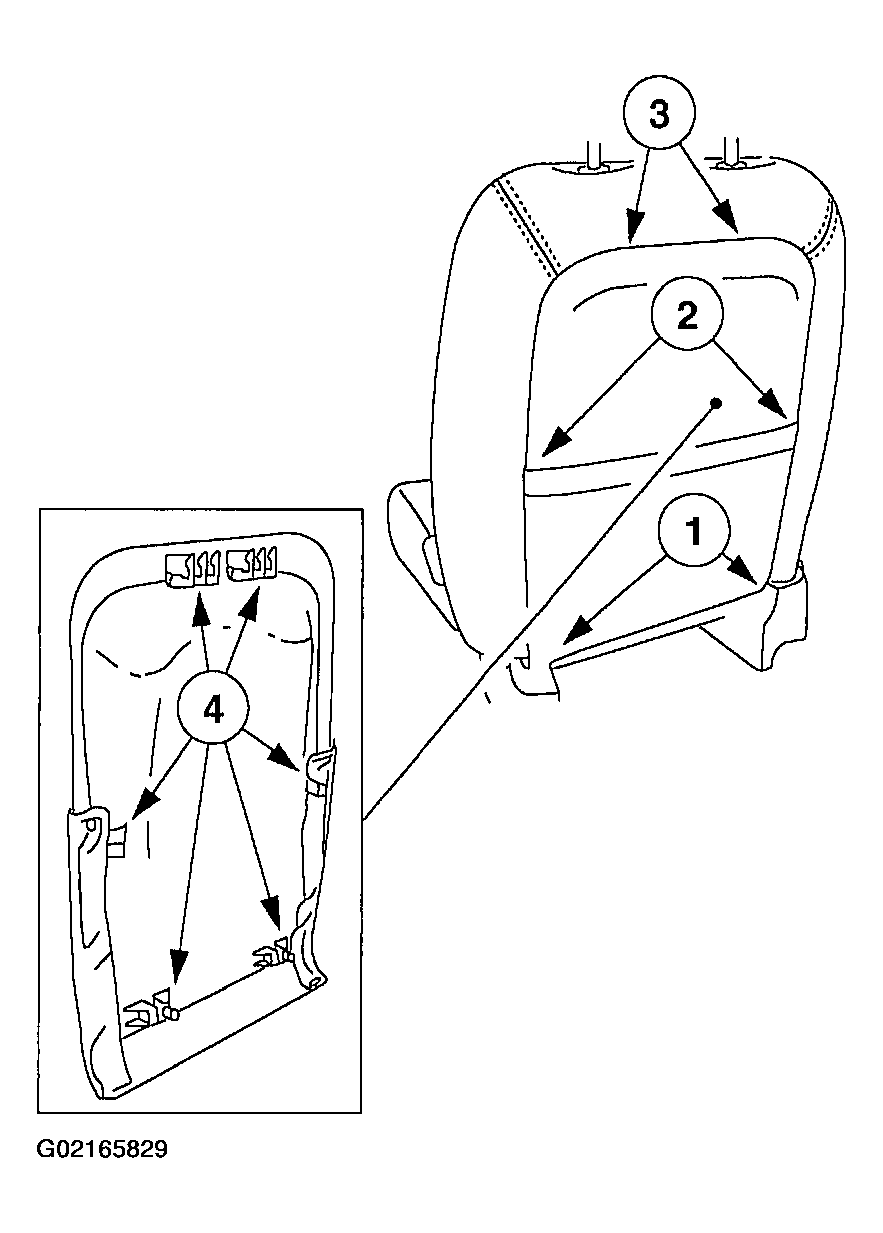

    Fig 1: Removing Seat Backrest Trim Panel
    G02165829Courtesy of FORD MOTOR CO.
  3. Remove the seat backrest trim panel.
    1. Pull and release the pin-type retainers at the bottom of the seat backrest trim panel.
    2. While holding the seat backrest trim panel at the bottom, push in on the left side of the panel at the lip of the map pocket and slide it to the right to disengage the J-hook. Repeat this process for the right side J-hook but slide the panel to the left to disengage the J-hook.
    3. While pushing in at the top of the seat backrest trim panel, slide it down to disengage the top J-hooks.
    4. Remove the seat backrest trim panel and inspect the J-hooks and pin-type retainers for damage. Discard any damaged retainers and install new.
  4. Disconnect the electrical connectors.
    • Release the electrical connector locators.
    Fig 2: Disconnecting Electrical Connectors
    G02165830Courtesy of FORD MOTOR CO.

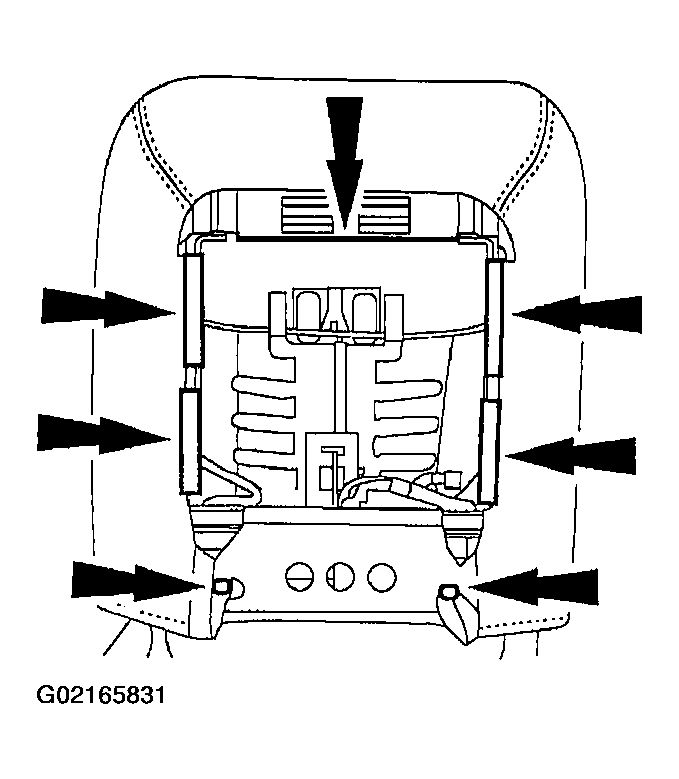

  5. Release the J-retainers and pin-type retainers.
    Fig 3: Releasing Retainers
    G02165831Courtesy of FORD MOTOR CO.

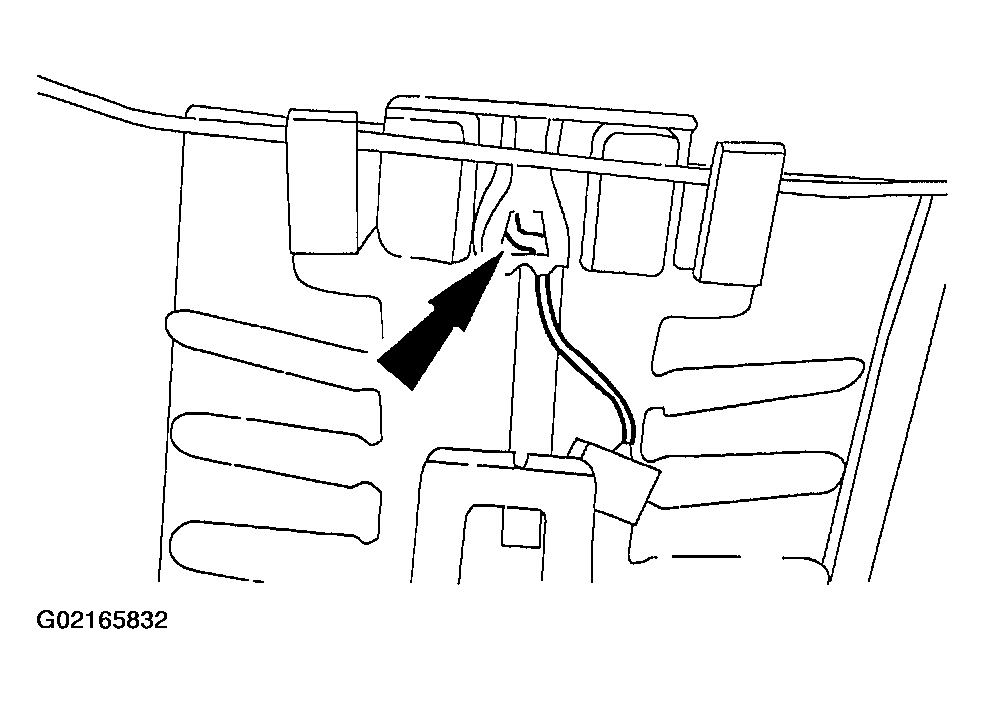

  6. Remove the retaining hook.
    Fig 4: Removing Retaining Hook
    G02165832Courtesy of FORD MOTOR CO.

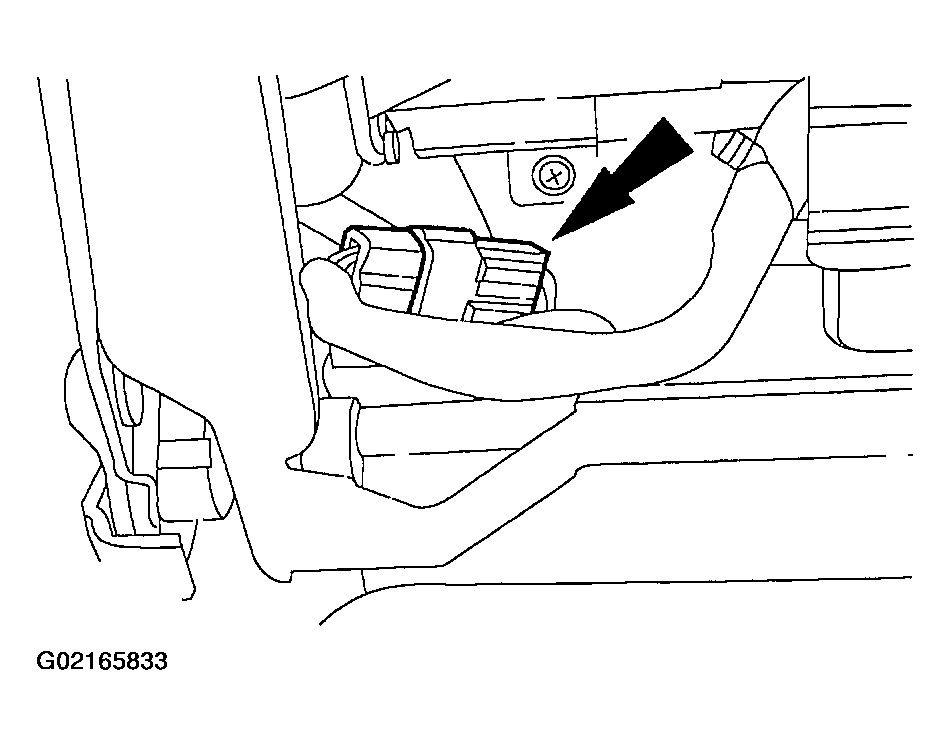

  7. Disconnect the lumbar motor electrical connector.
    Fig 5: Disconnecting Lumbar Motor Electrical Connector
    G02165833Courtesy of FORD MOTOR CO.
  8. Remove the screws and the front seat lumbar motor.
    Fig 6: Removing Front Seat Lumbar Motor
    G02165834Courtesy of FORD MOTOR CO.
