Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

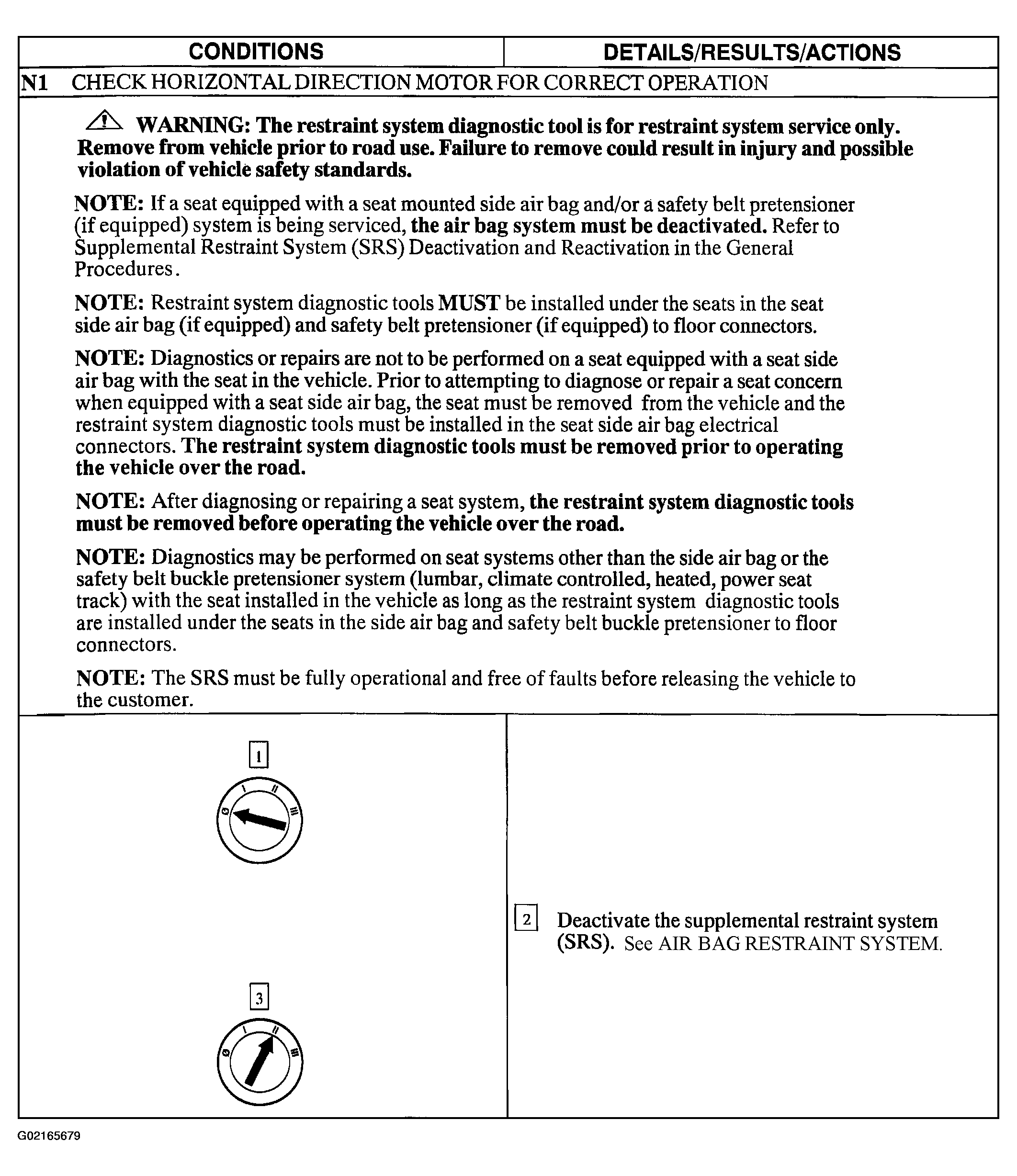

Fig 1: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Step N1)

Courtesy of FORD MOTOR CO.

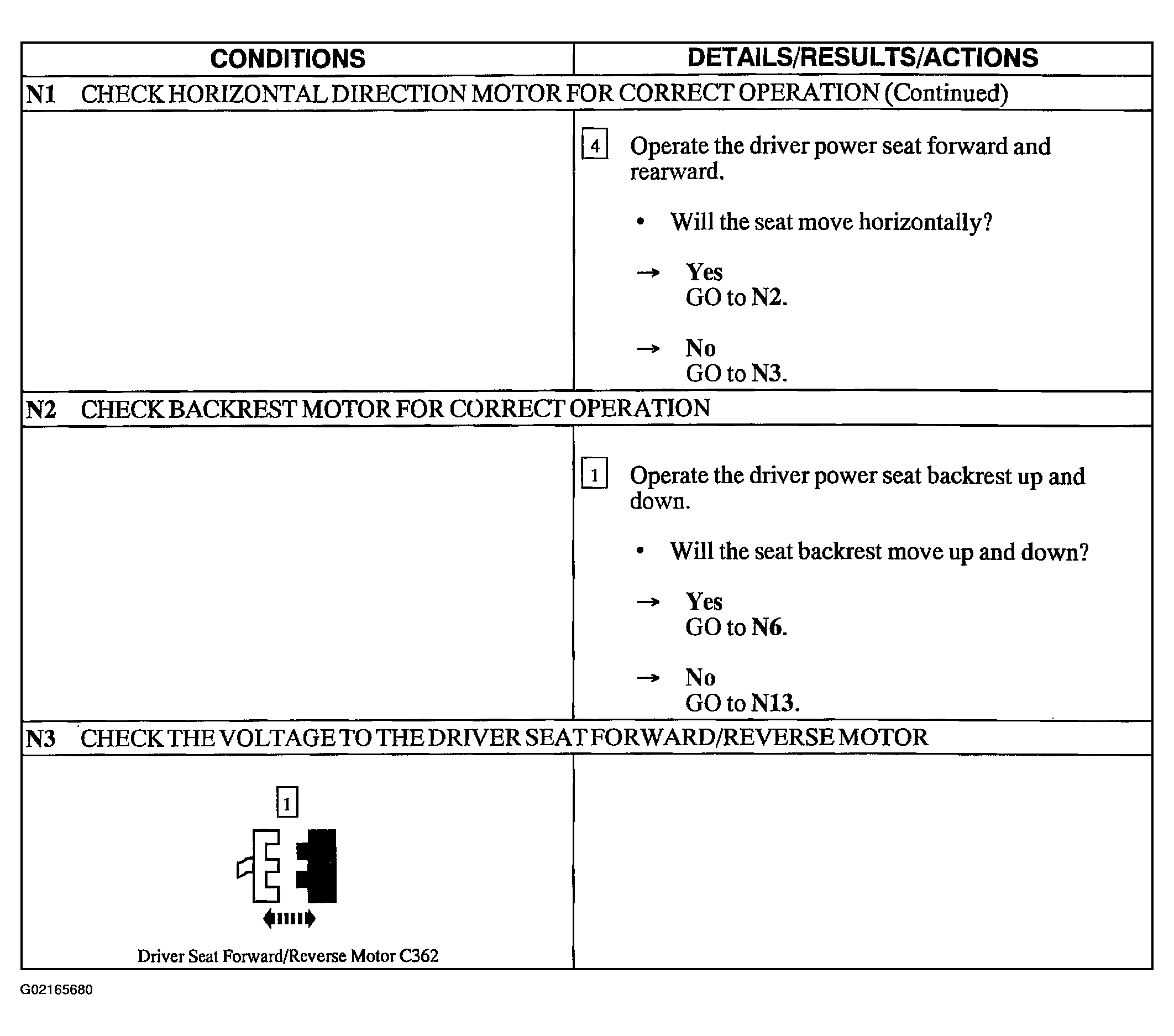

Fig 2: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N1 Cont. -N3)

Courtesy of FORD MOTOR CO.

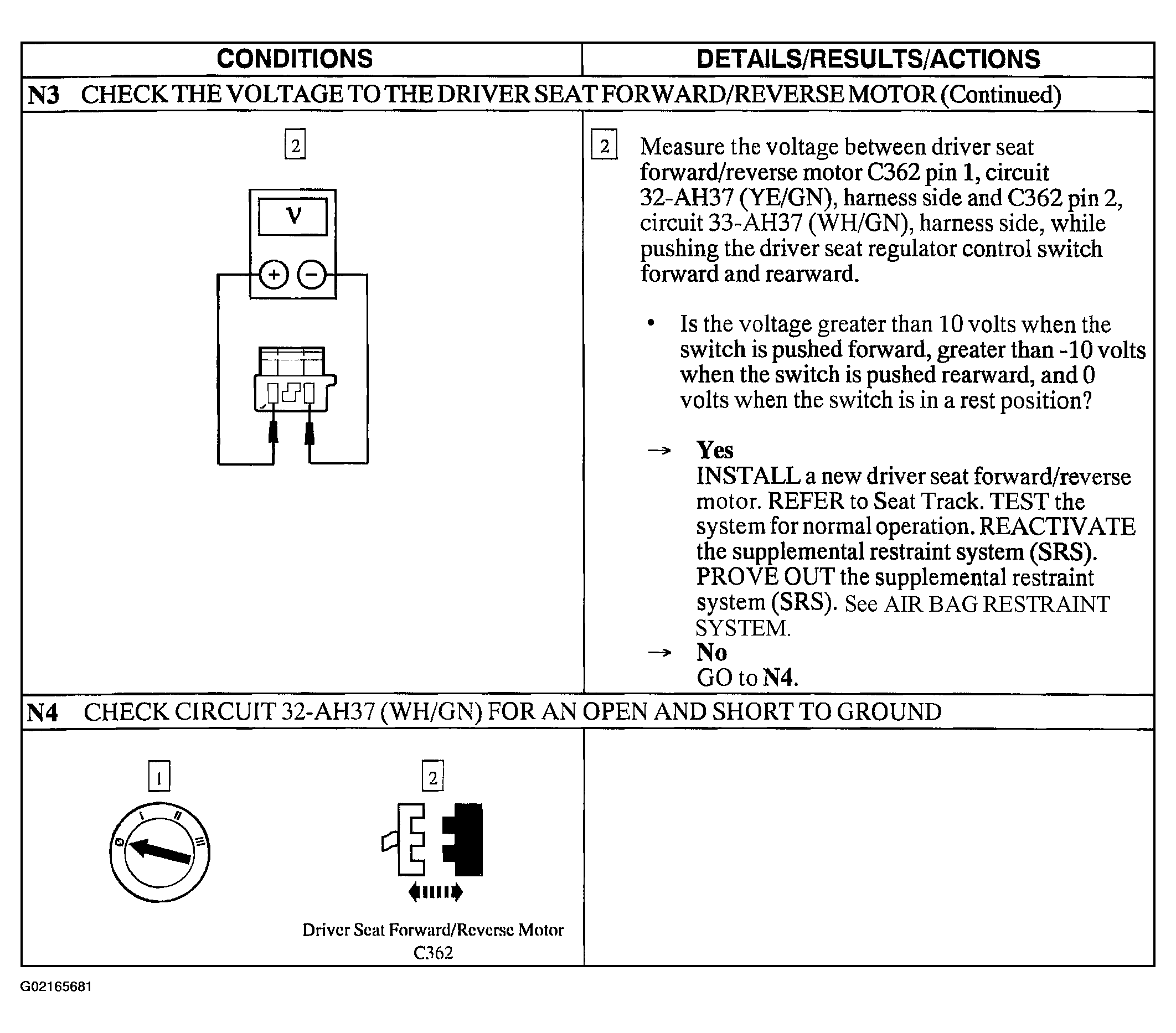

Fig 3: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N3 Cont. & N4)

Courtesy of FORD MOTOR CO.

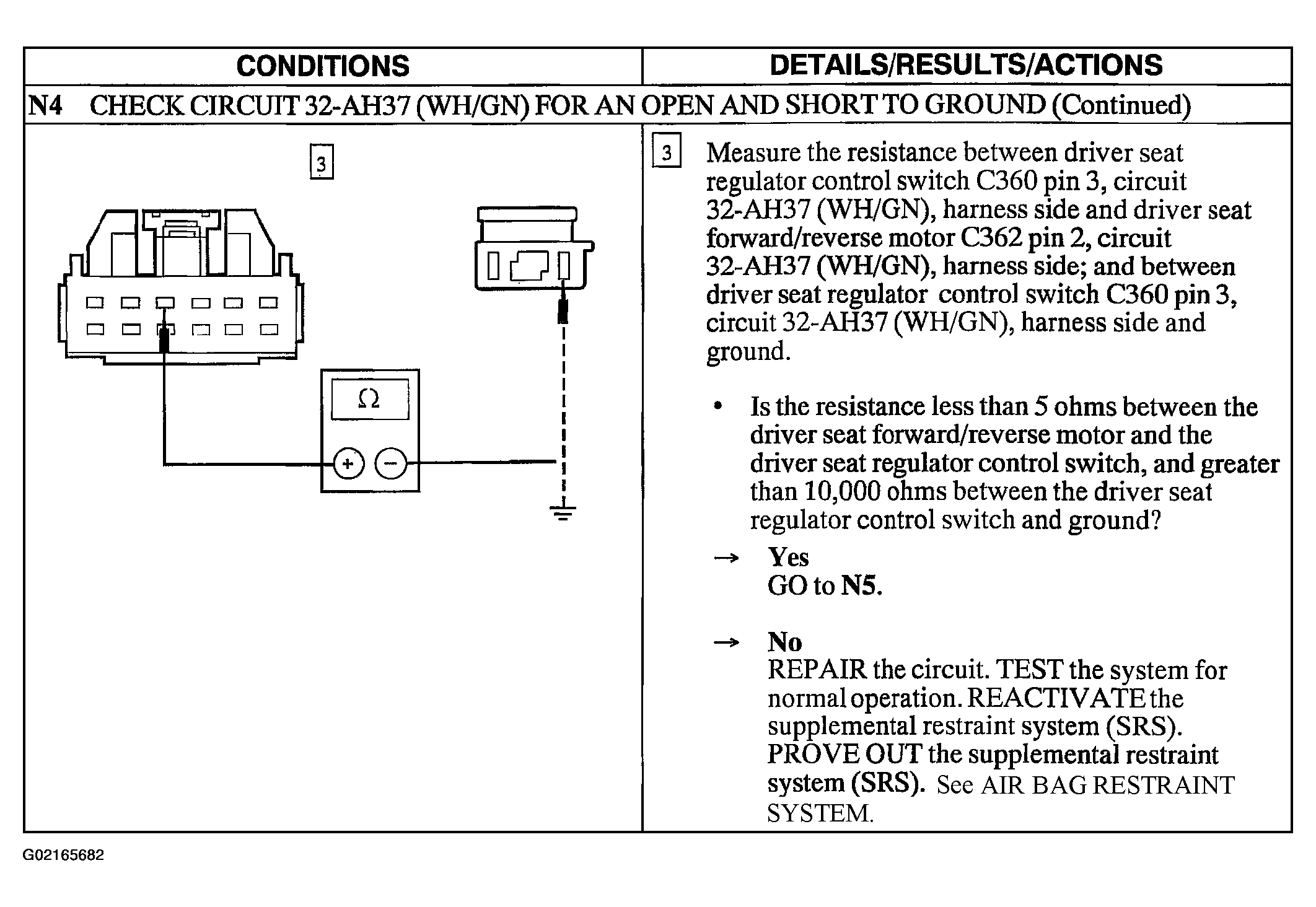

Fig 4: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Step N4 Cont.)

Courtesy of FORD MOTOR CO.

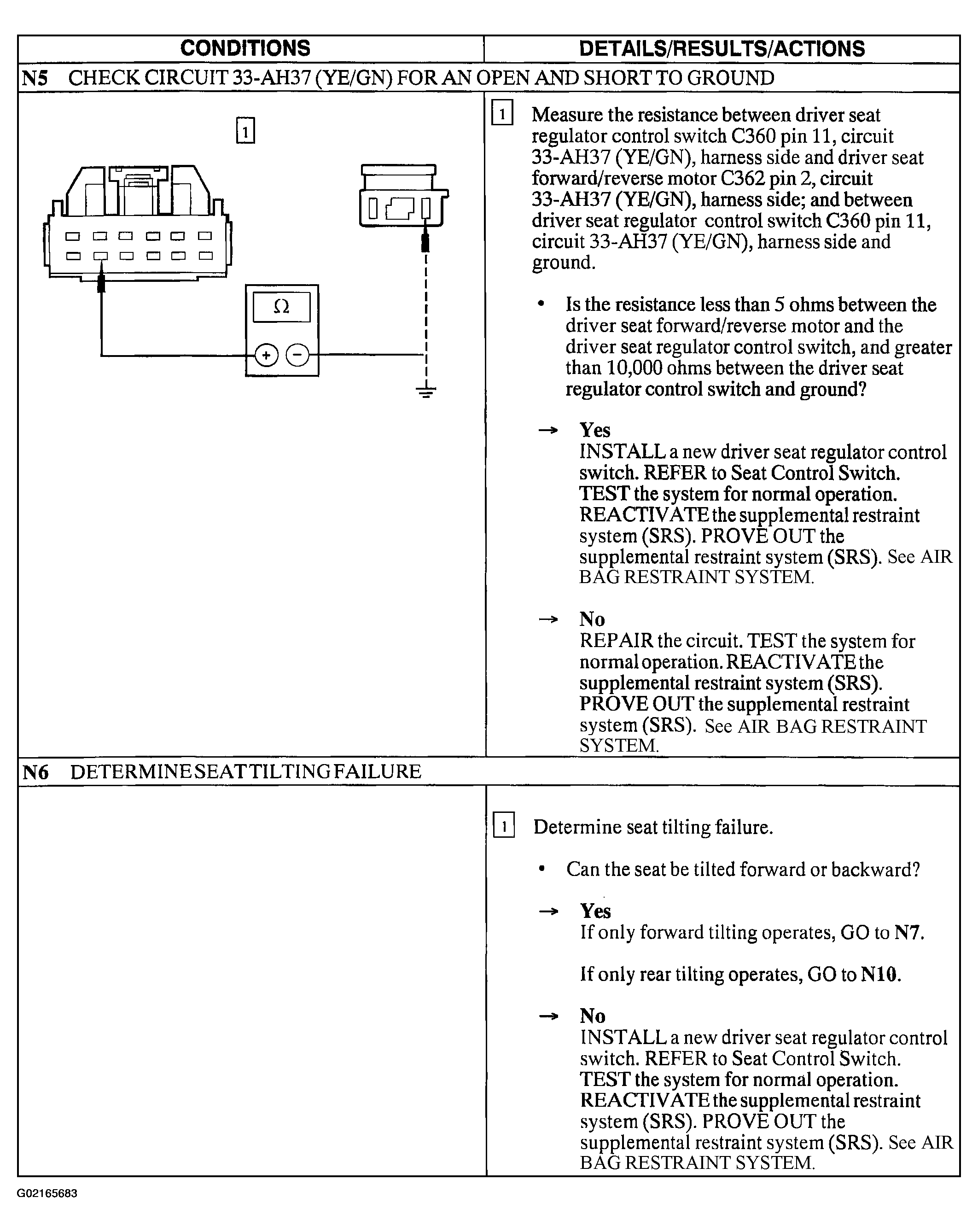

Fig 5: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N5 & N6)

Courtesy of FORD MOTOR CO.

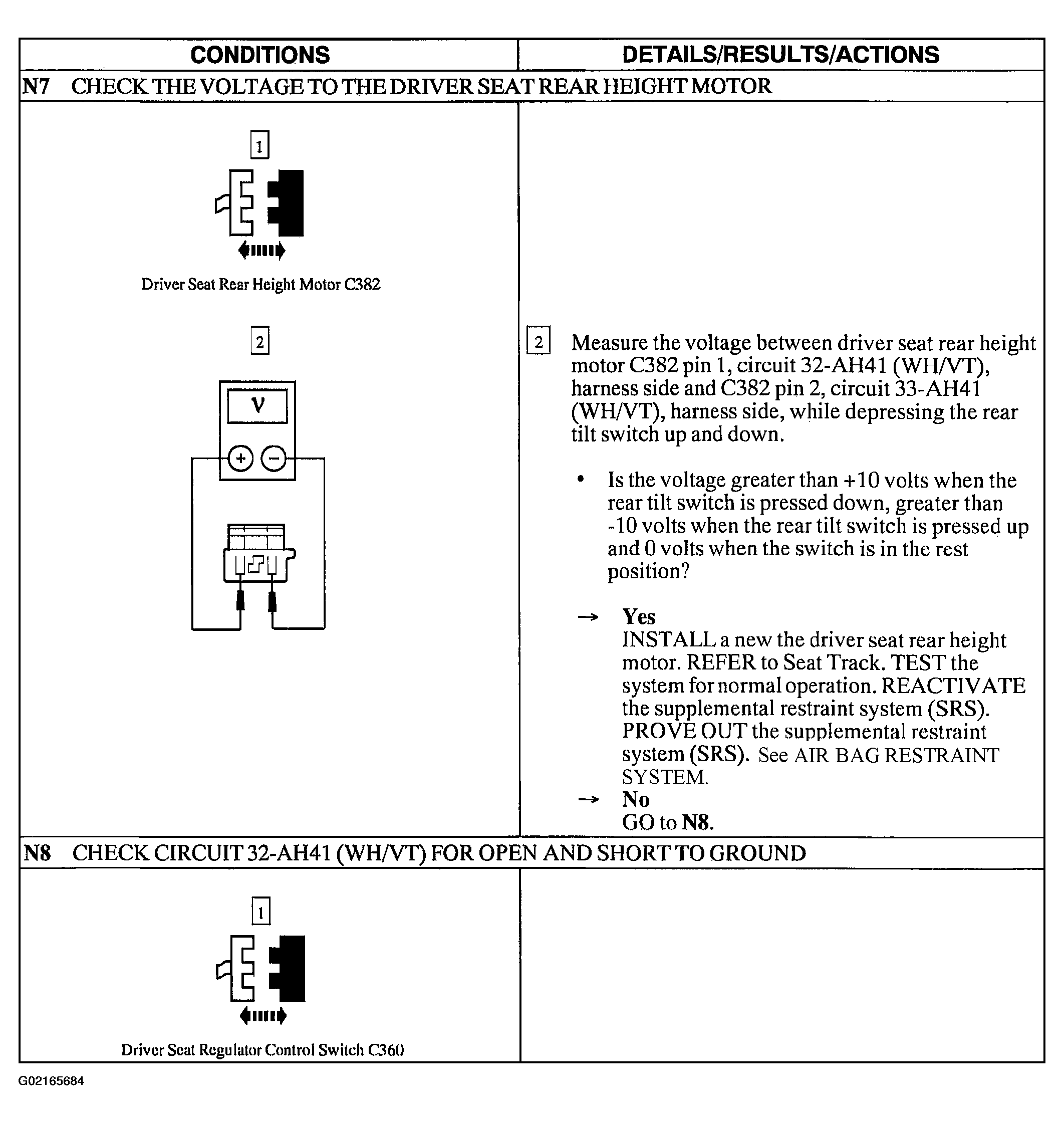

Fig 6: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N7 & N8)

Courtesy of FORD MOTOR CO.

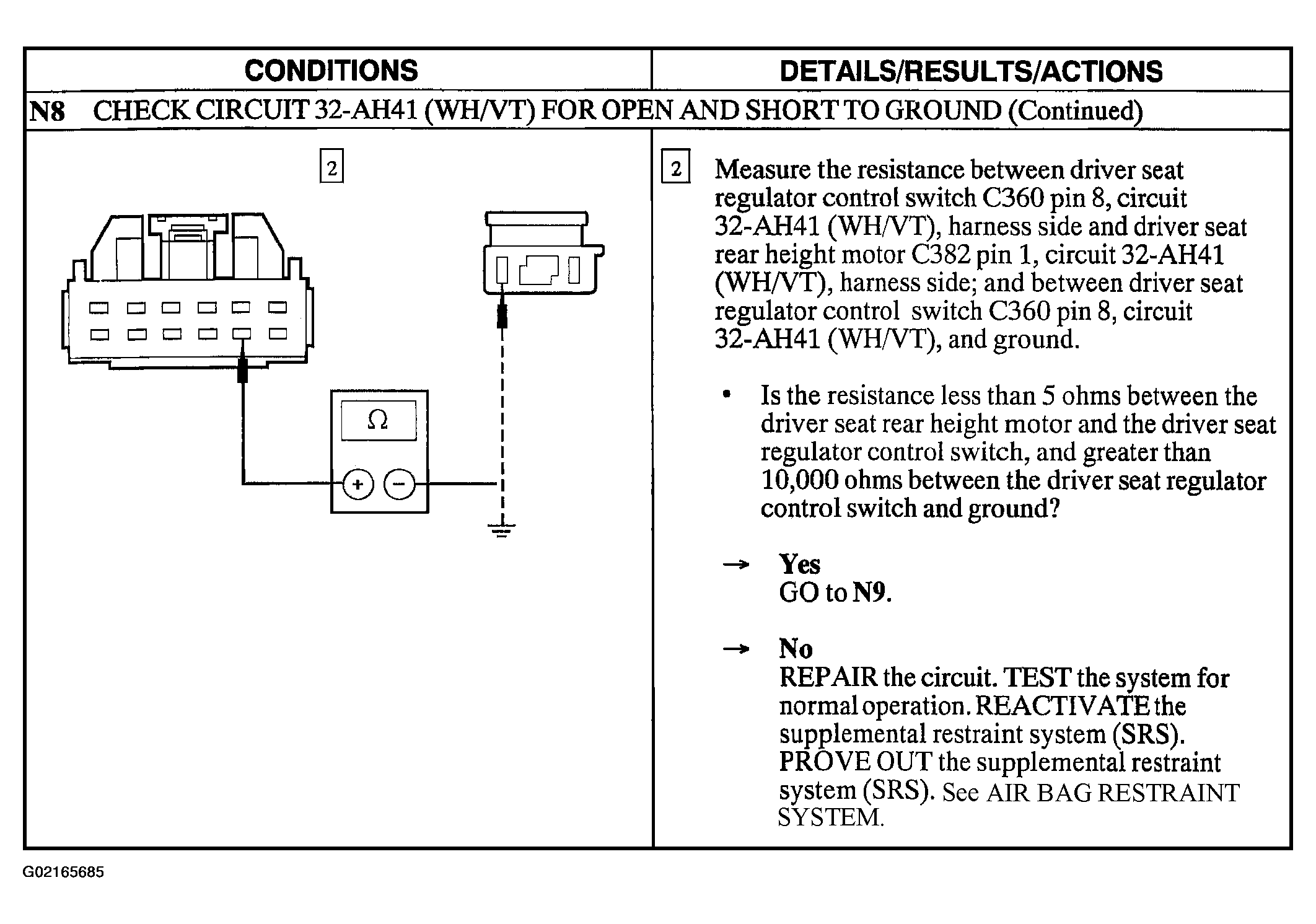

Fig 7: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Step N8 Cont.)

Courtesy of FORD MOTOR CO.

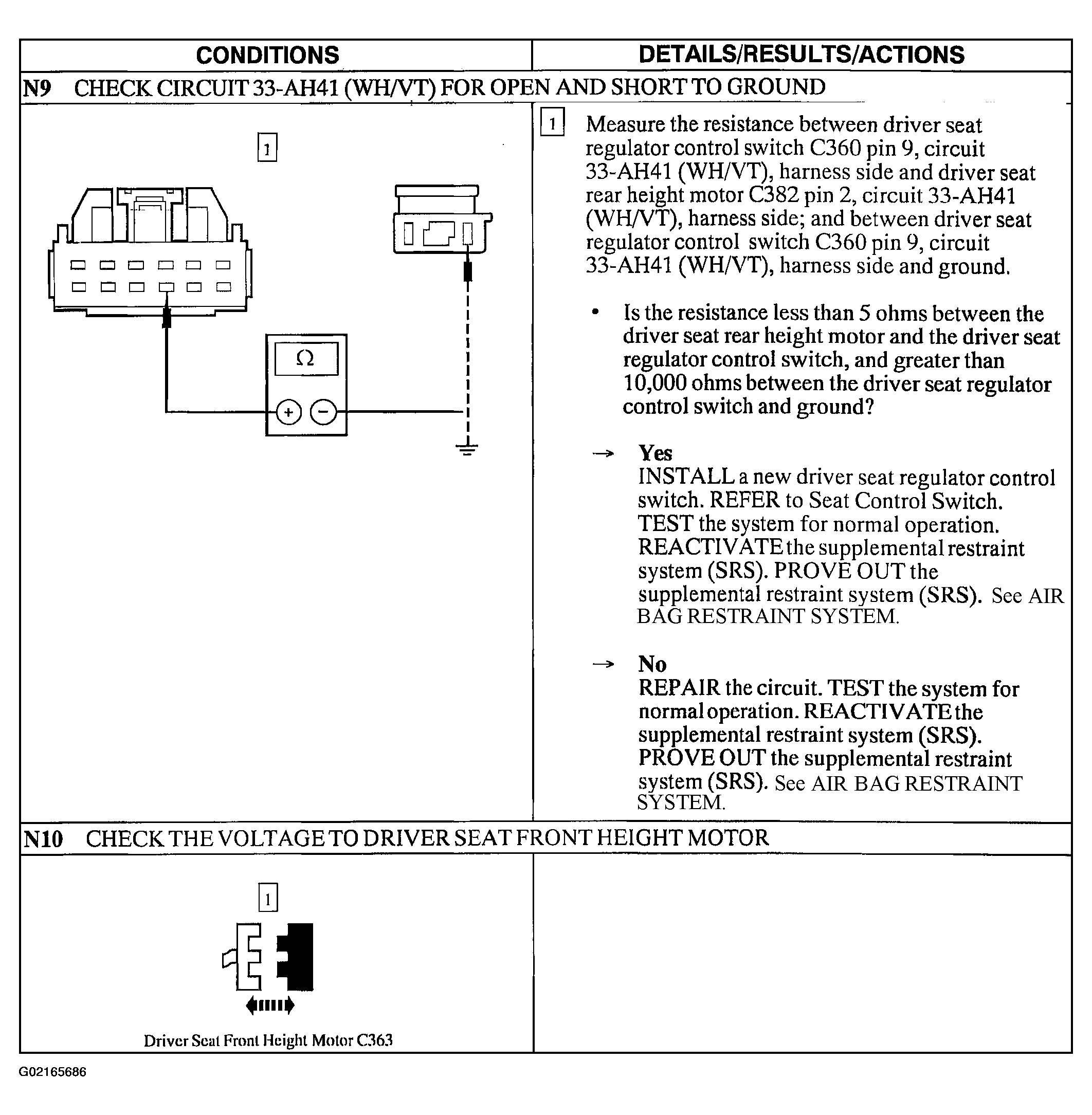

Fig 8: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N9 & N10)

Courtesy of FORD MOTOR CO.

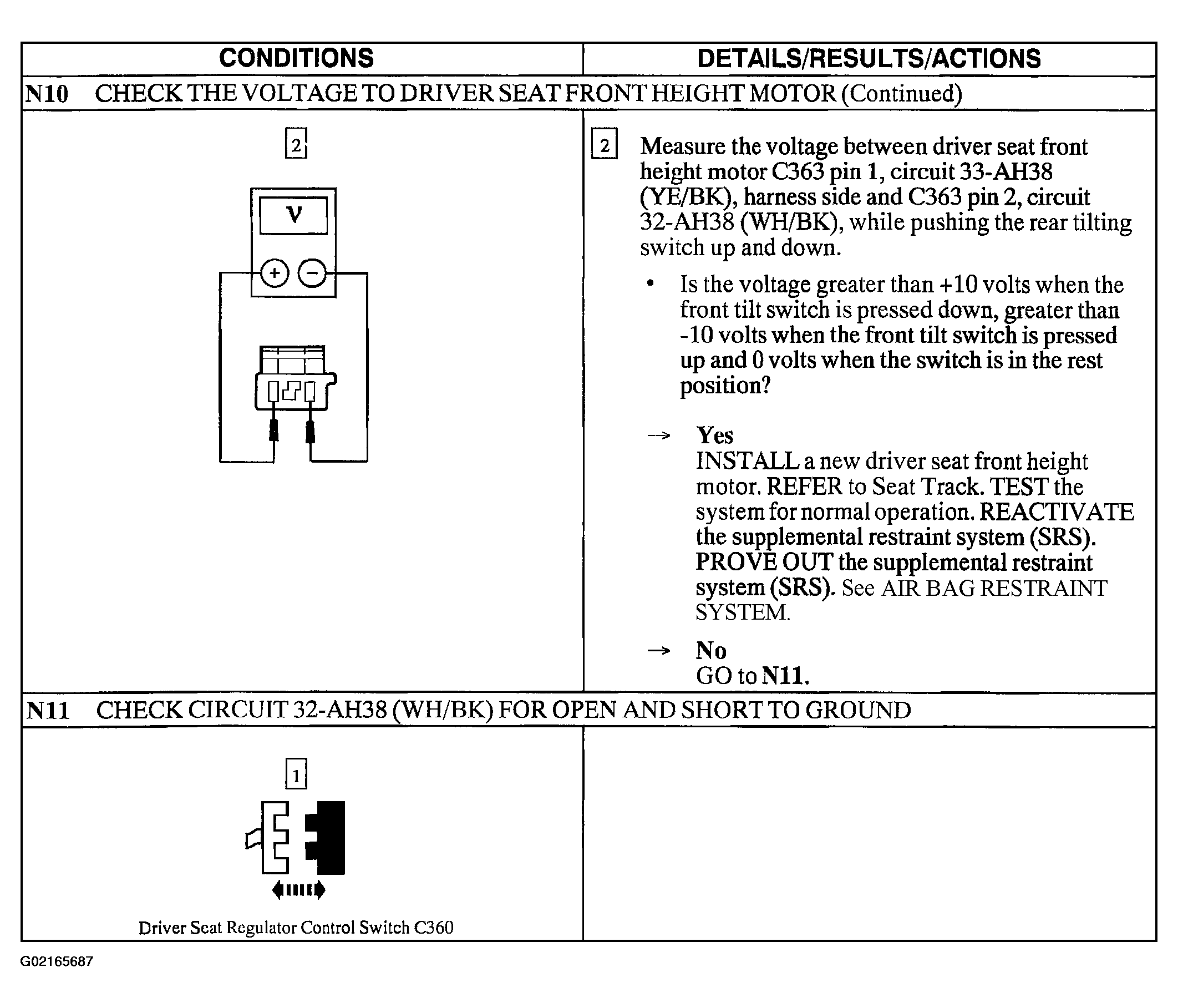

Fig 9: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N10 Cont. & N11)

Courtesy of FORD MOTOR CO.

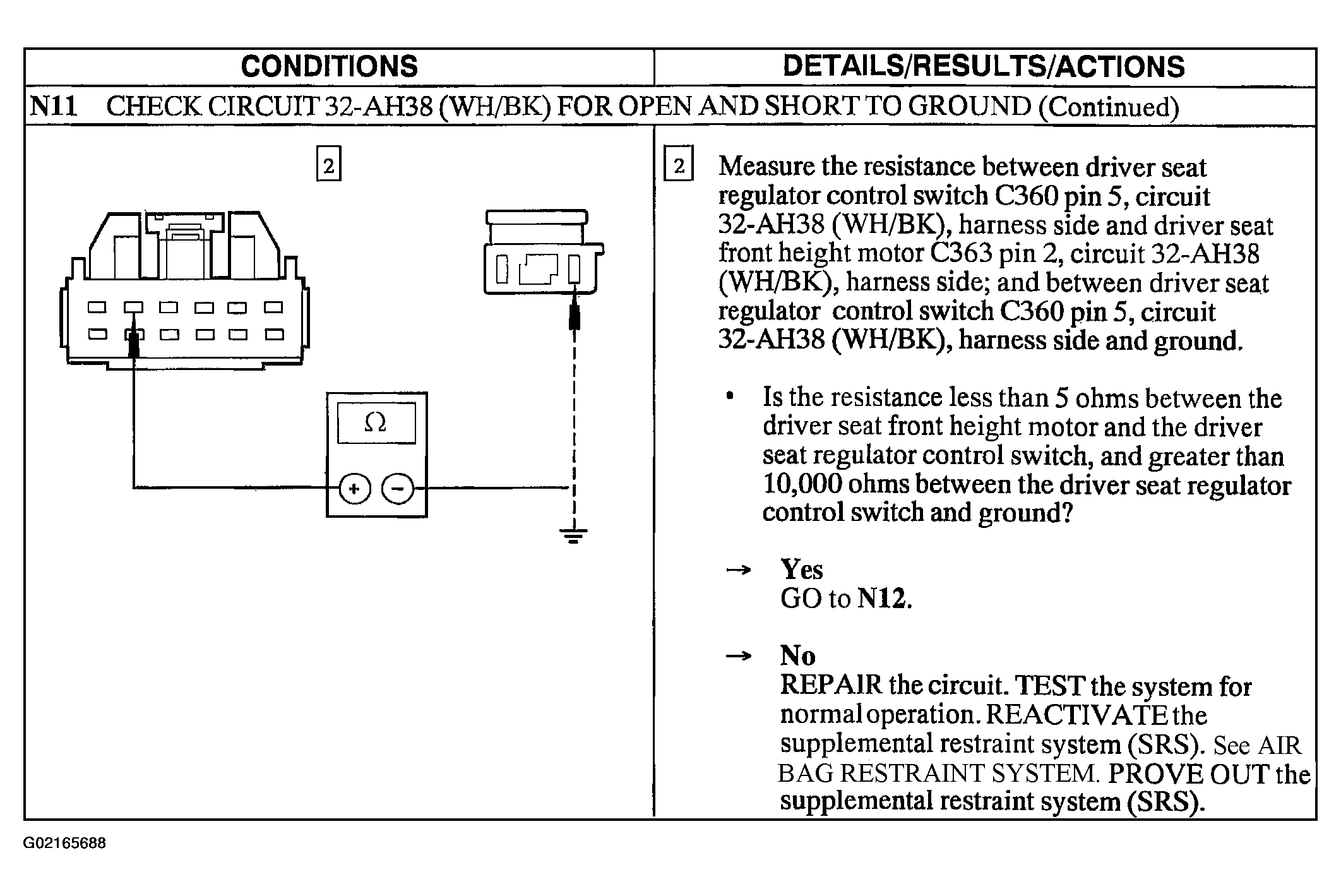

Fig 10: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Step N11 Cont.)

Courtesy of FORD MOTOR CO.

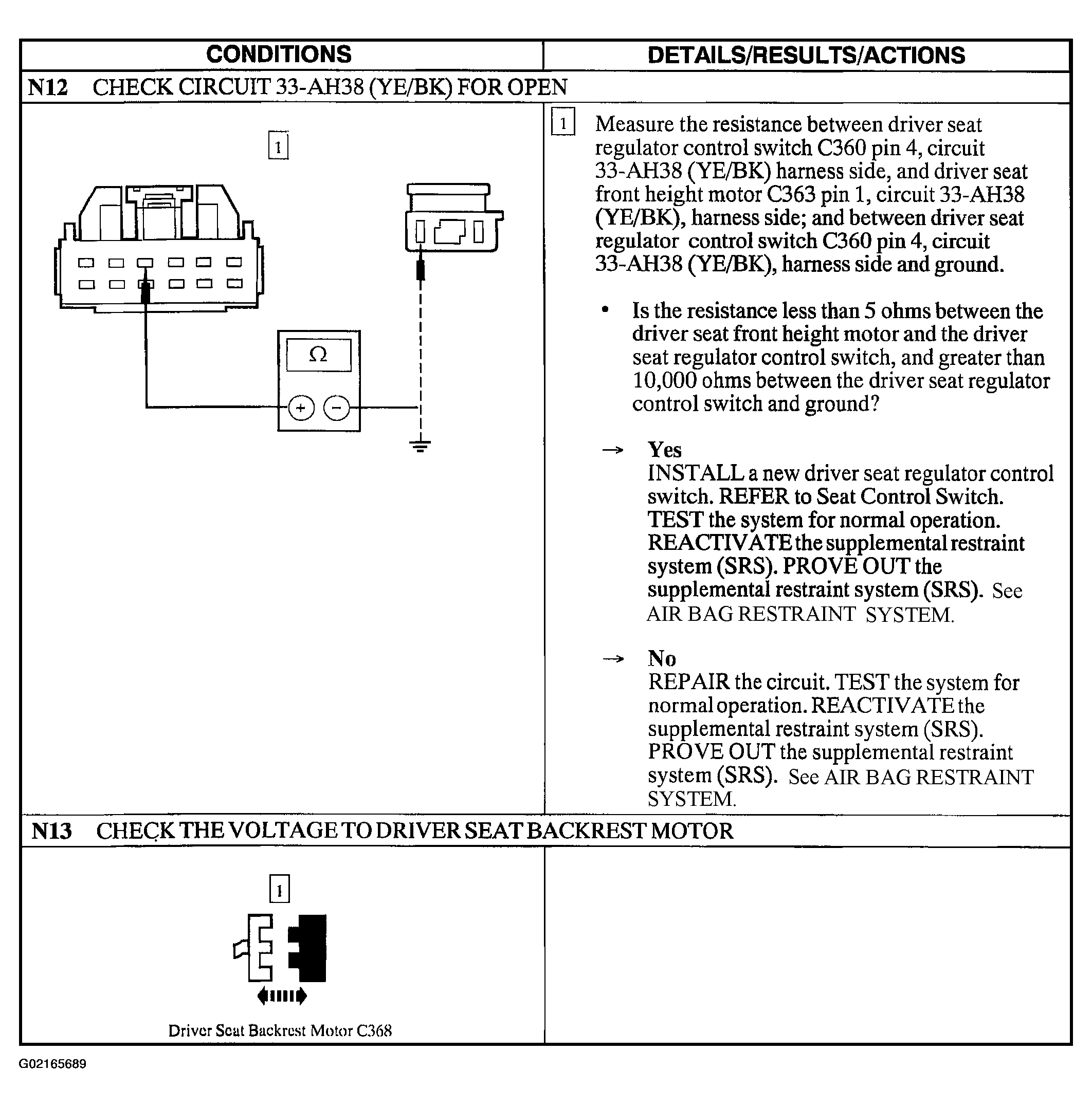

Fig 11: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N12 & N13)

Courtesy of FORD MOTOR CO.

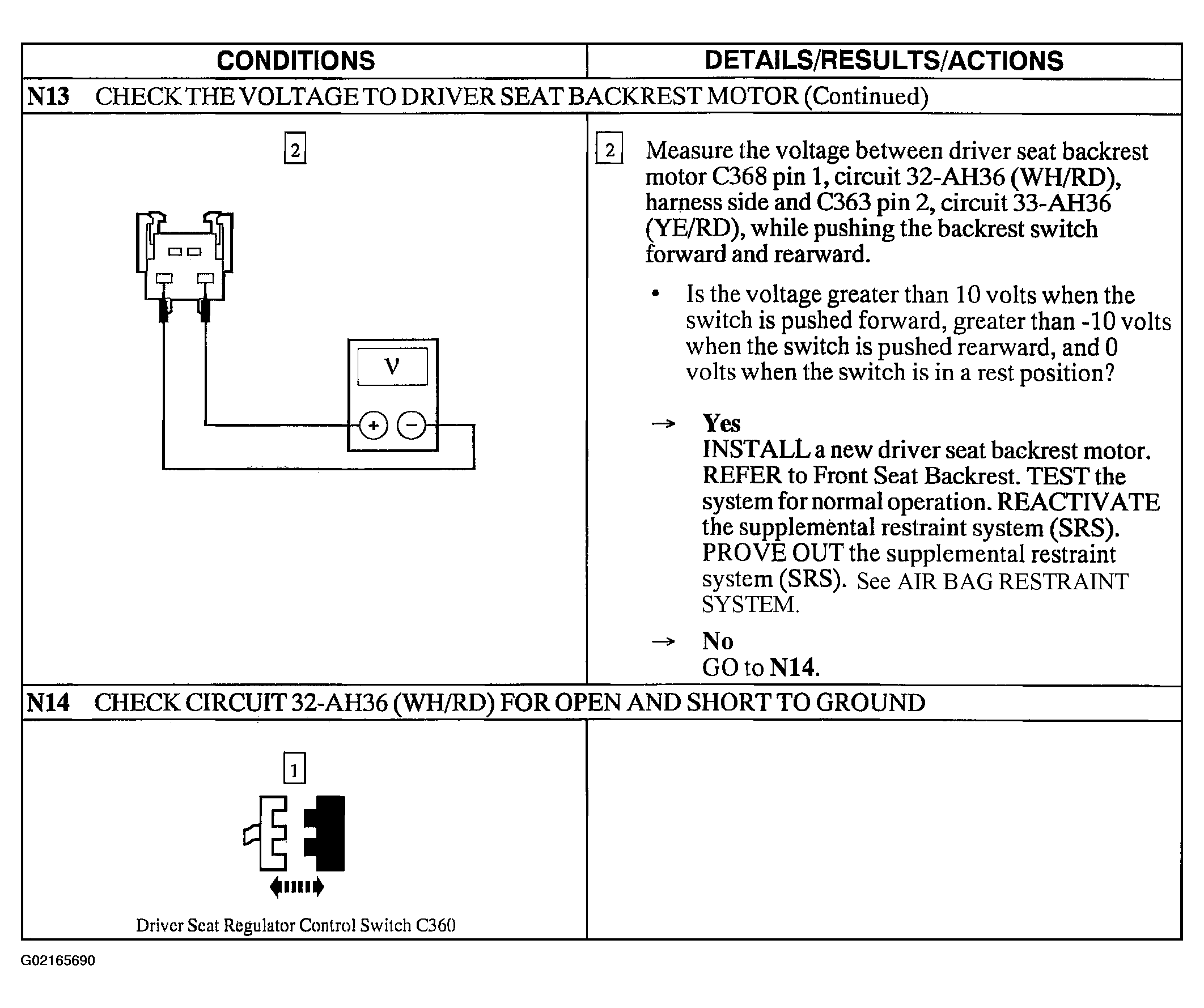

Fig 12: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N13 Cont. & N14)

Courtesy of FORD MOTOR CO.

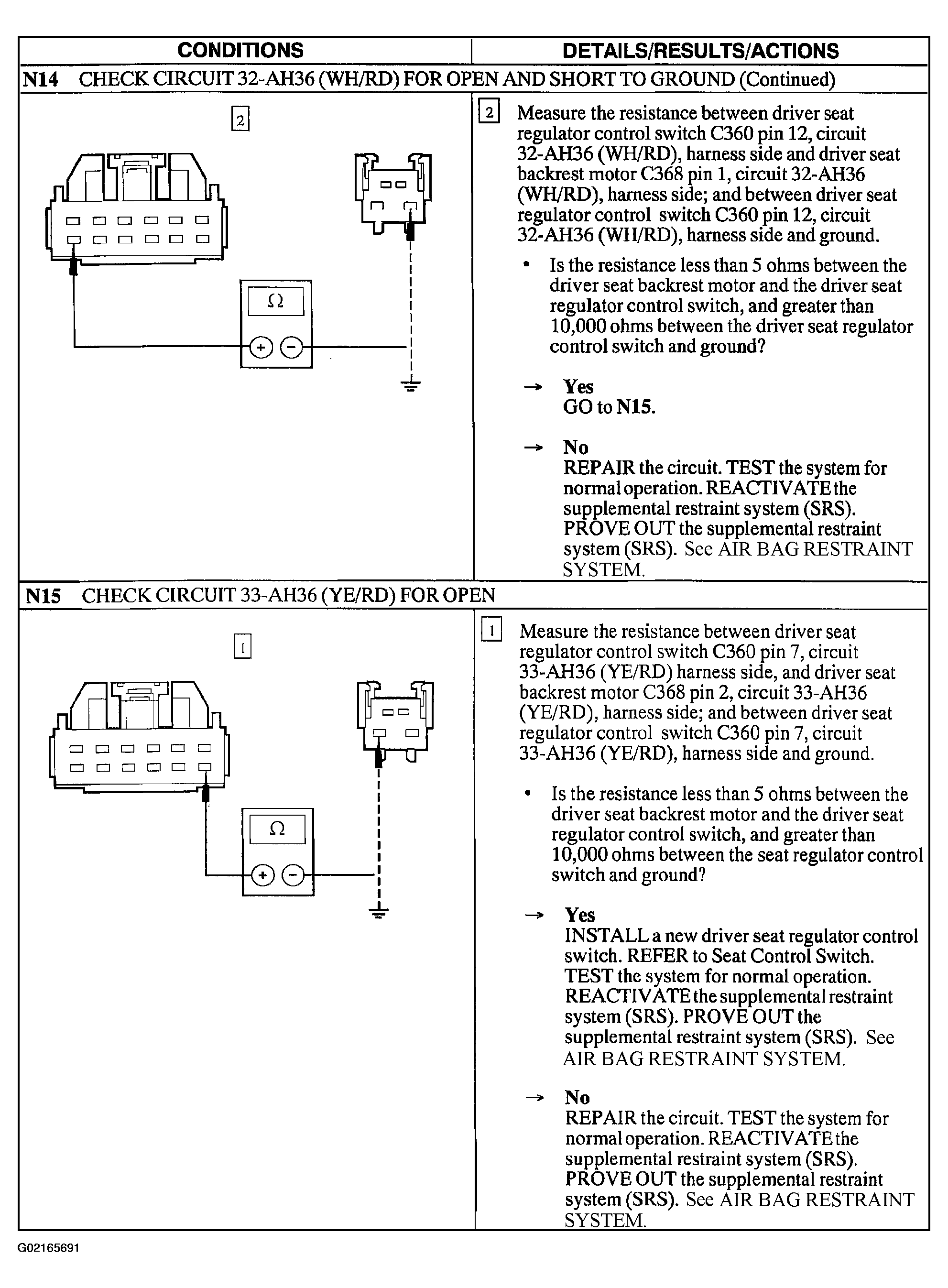

Fig 13: Pinpoint Test N: The Power Seat Does Not Move Horizontally/Vertically - Driver (Steps N14 Cont. & N15)

Courtesy of FORD MOTOR CO.
