Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

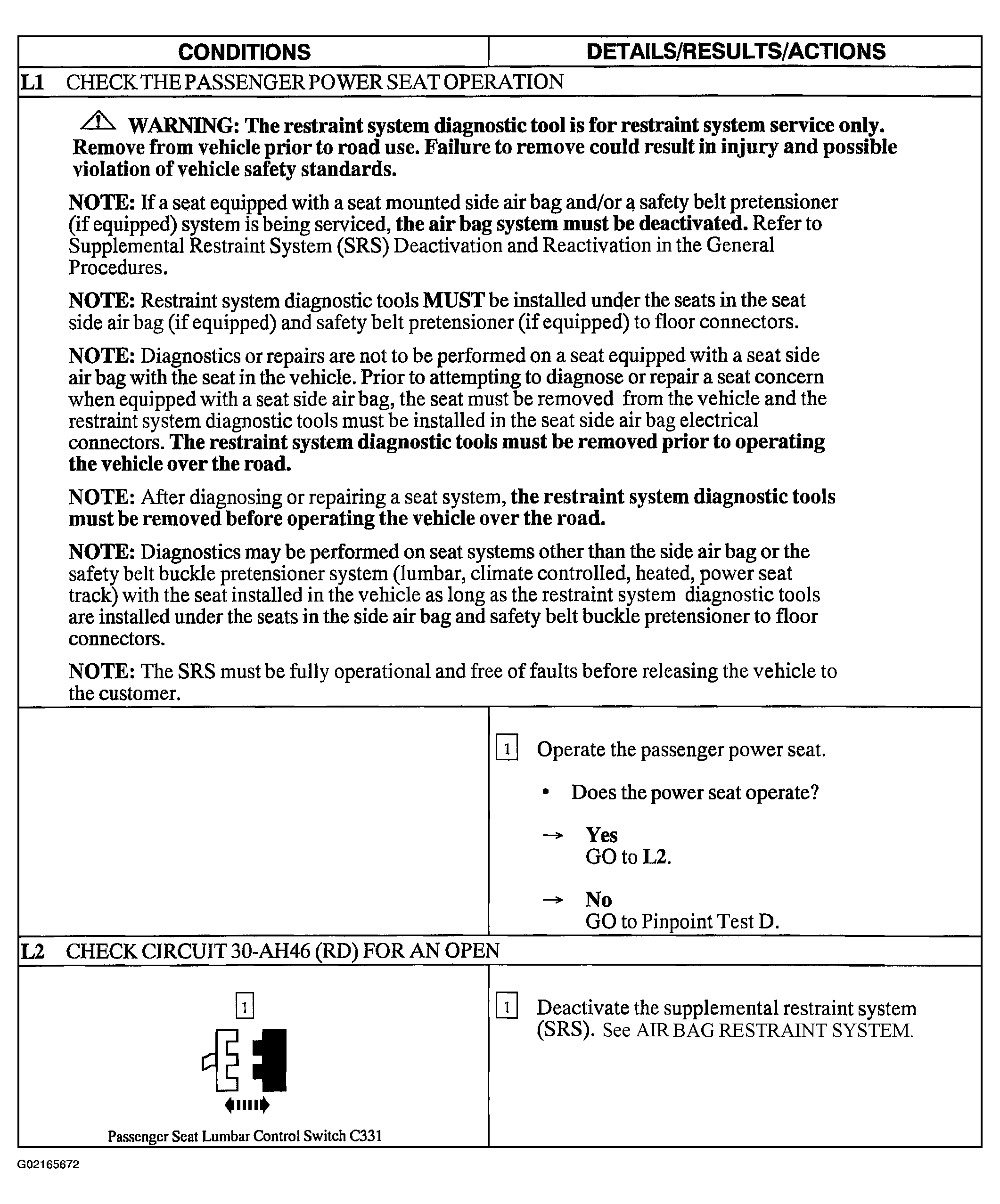

Fig 1: Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger (Steps L1 & L2)

Courtesy of FORD MOTOR CO.

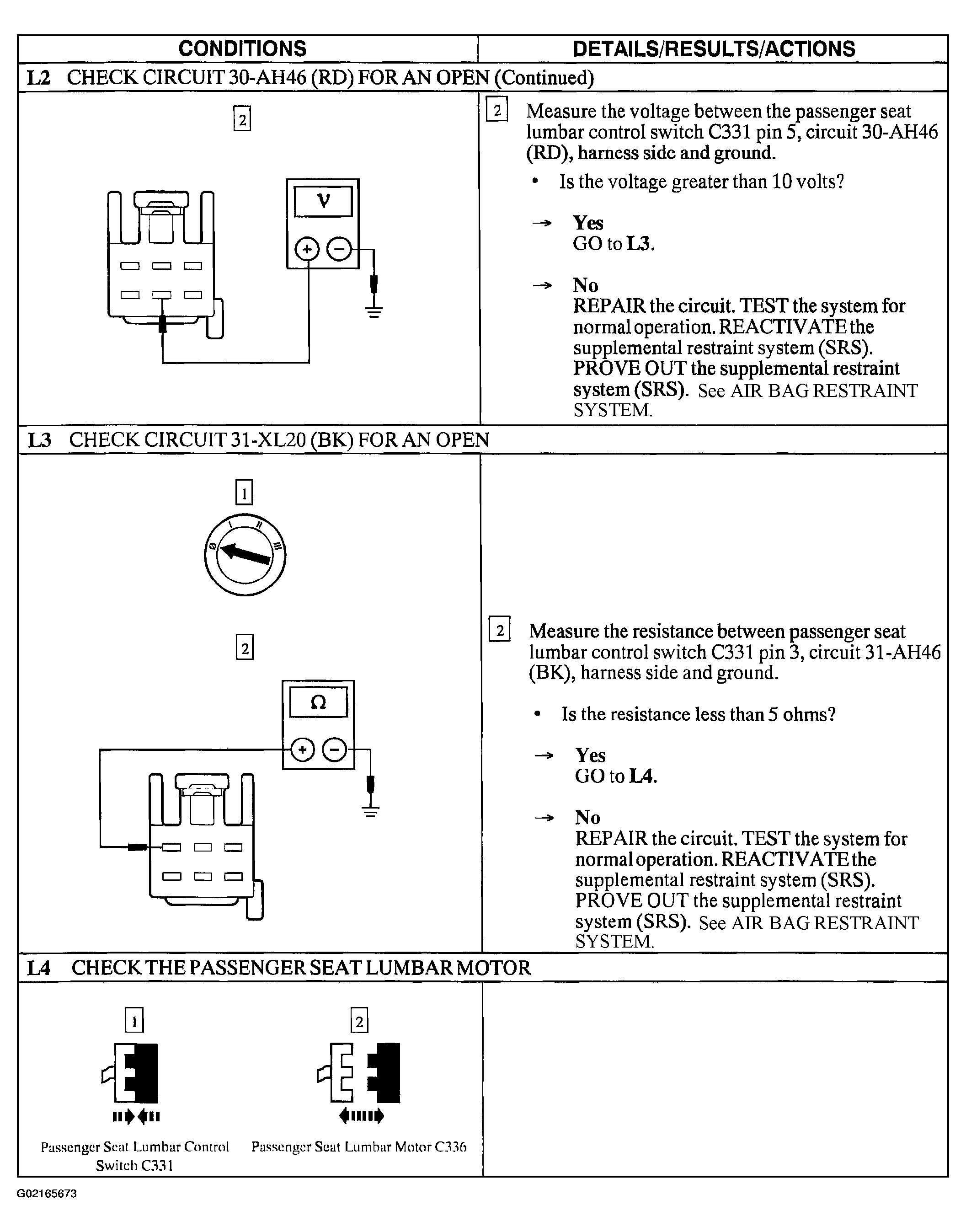

Fig 2: Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger (Steps L2 Cont. -L4)

Courtesy of FORD MOTOR CO.

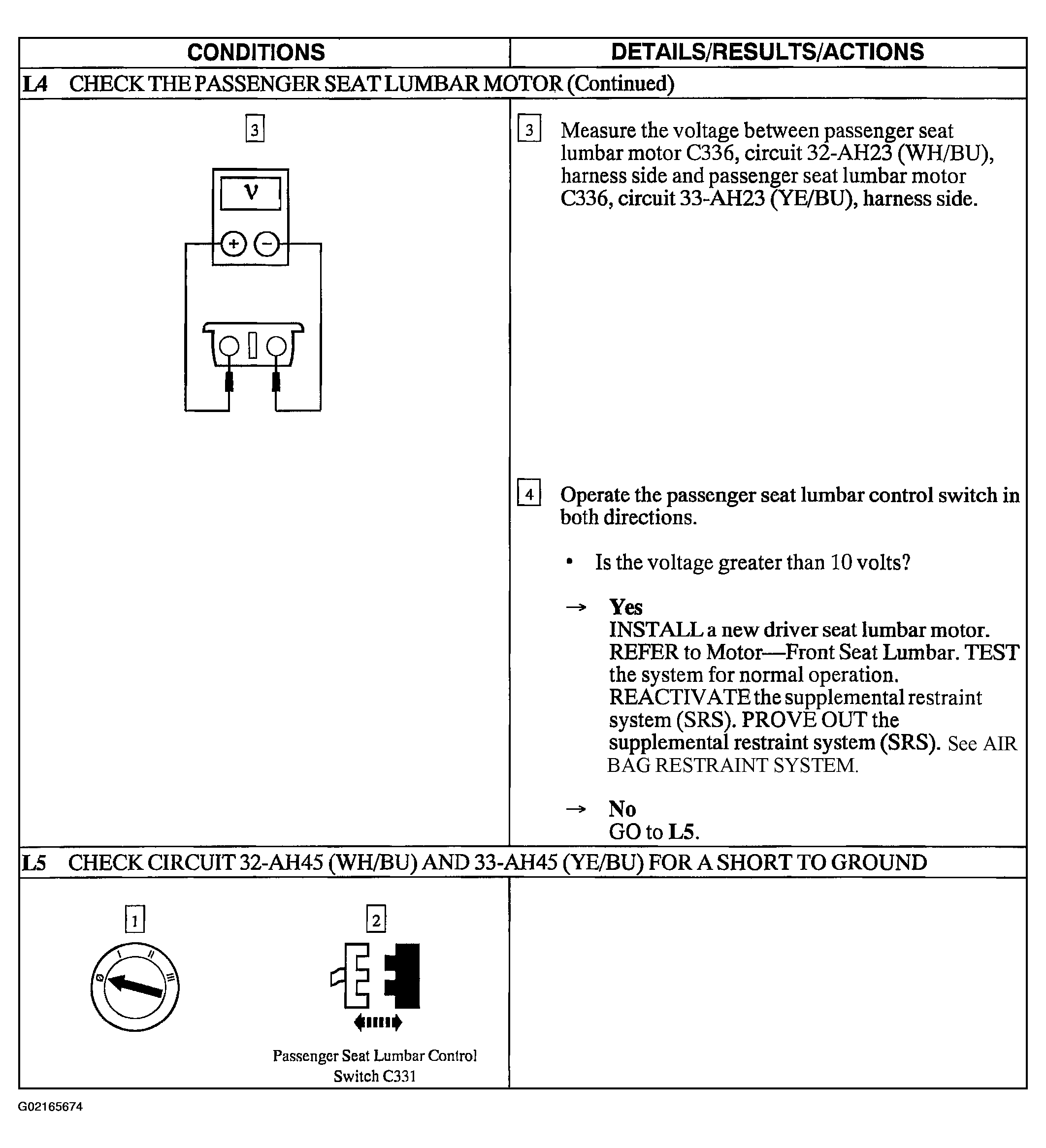

Fig 3: Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger (Steps L4 Cont. & L5)

Courtesy of FORD MOTOR CO.

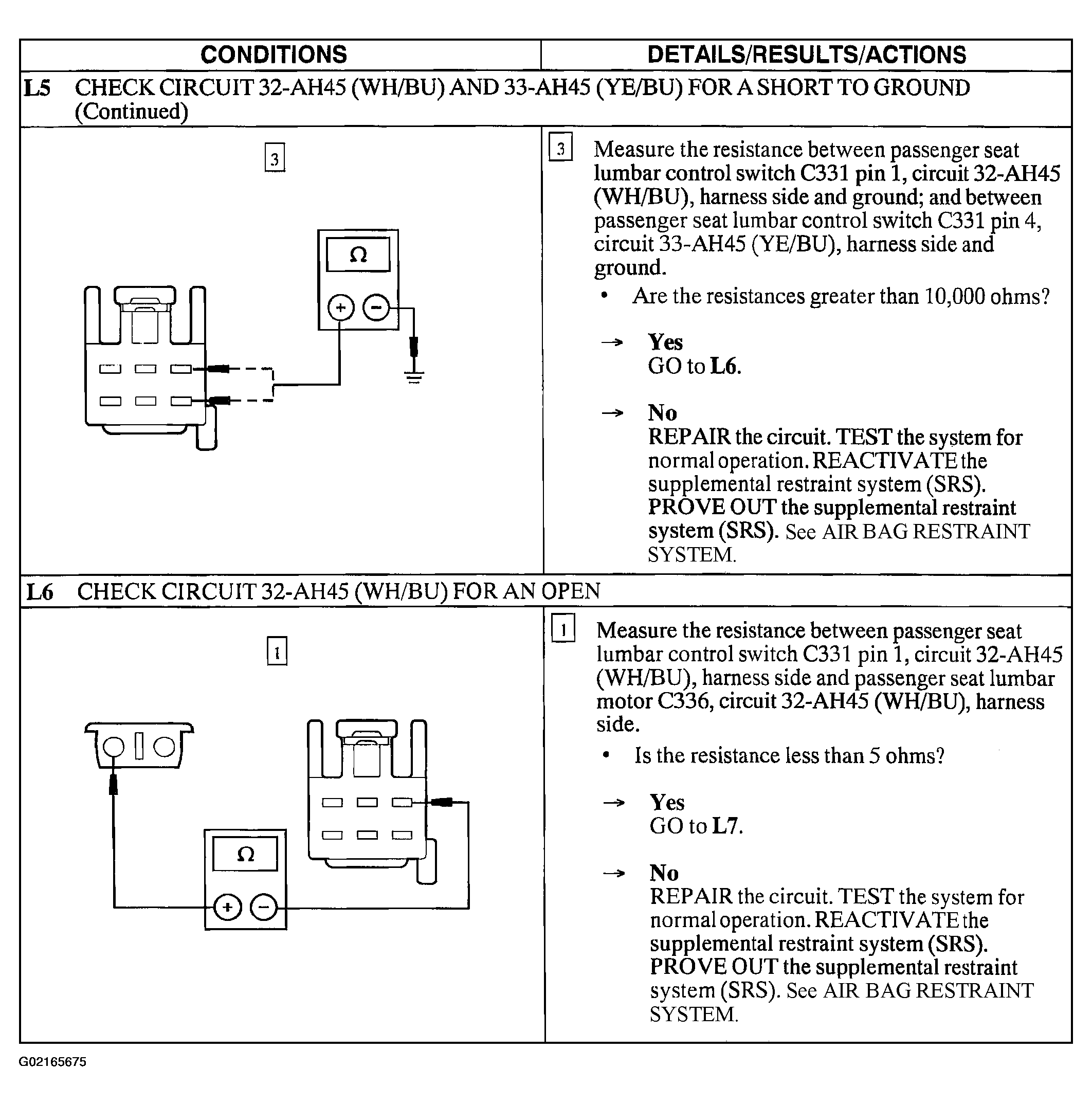

Fig 4: Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger (Steps L5 Cont. & L6)

Courtesy of FORD MOTOR CO.

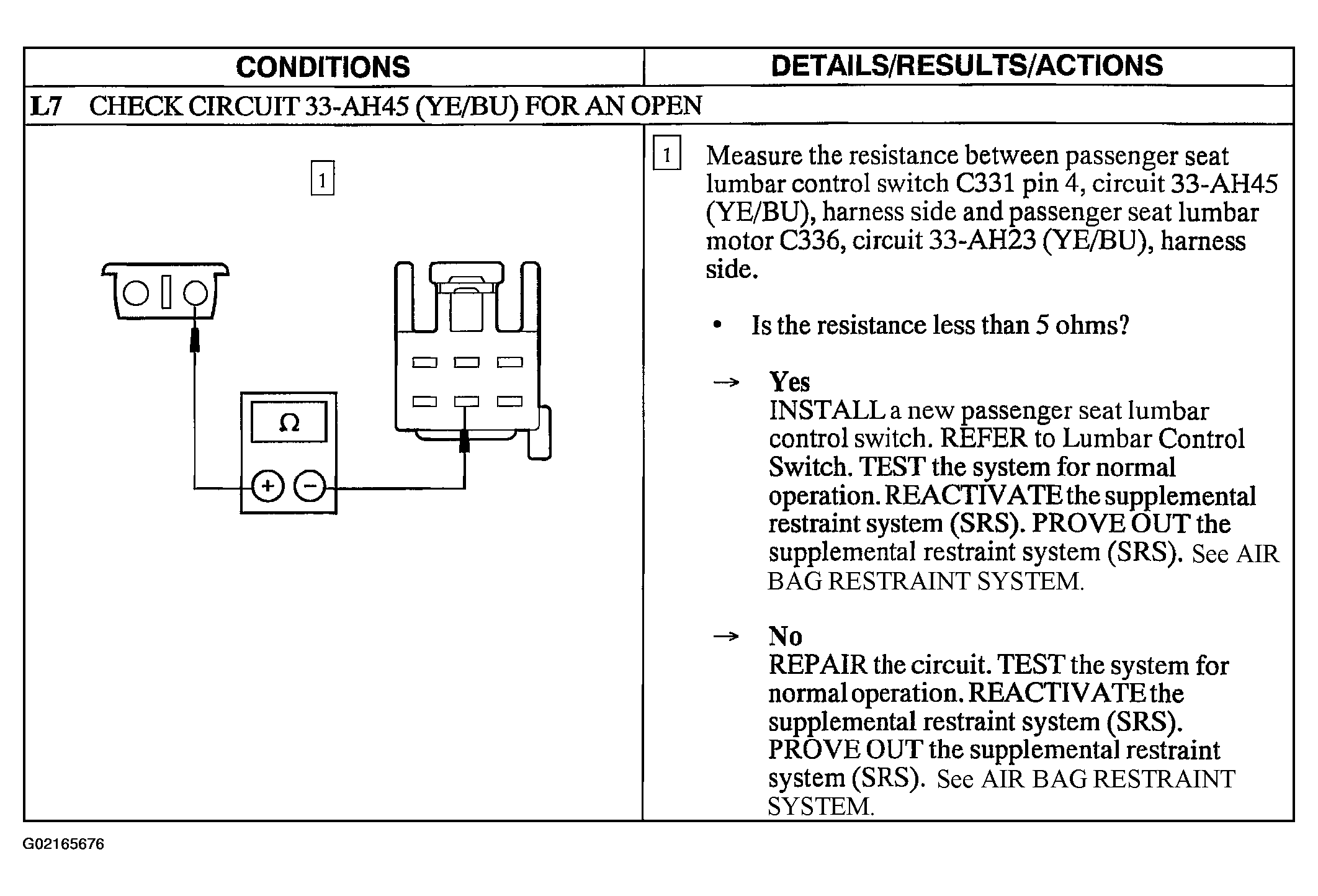

Fig 5: Pinpoint Test L: The Power Lumbar Is Inoperative - Passenger (Step L7)

Courtesy of FORD MOTOR CO.
