Pinpoint Test K: The Power Lumbar Is Inoperative - Driver

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

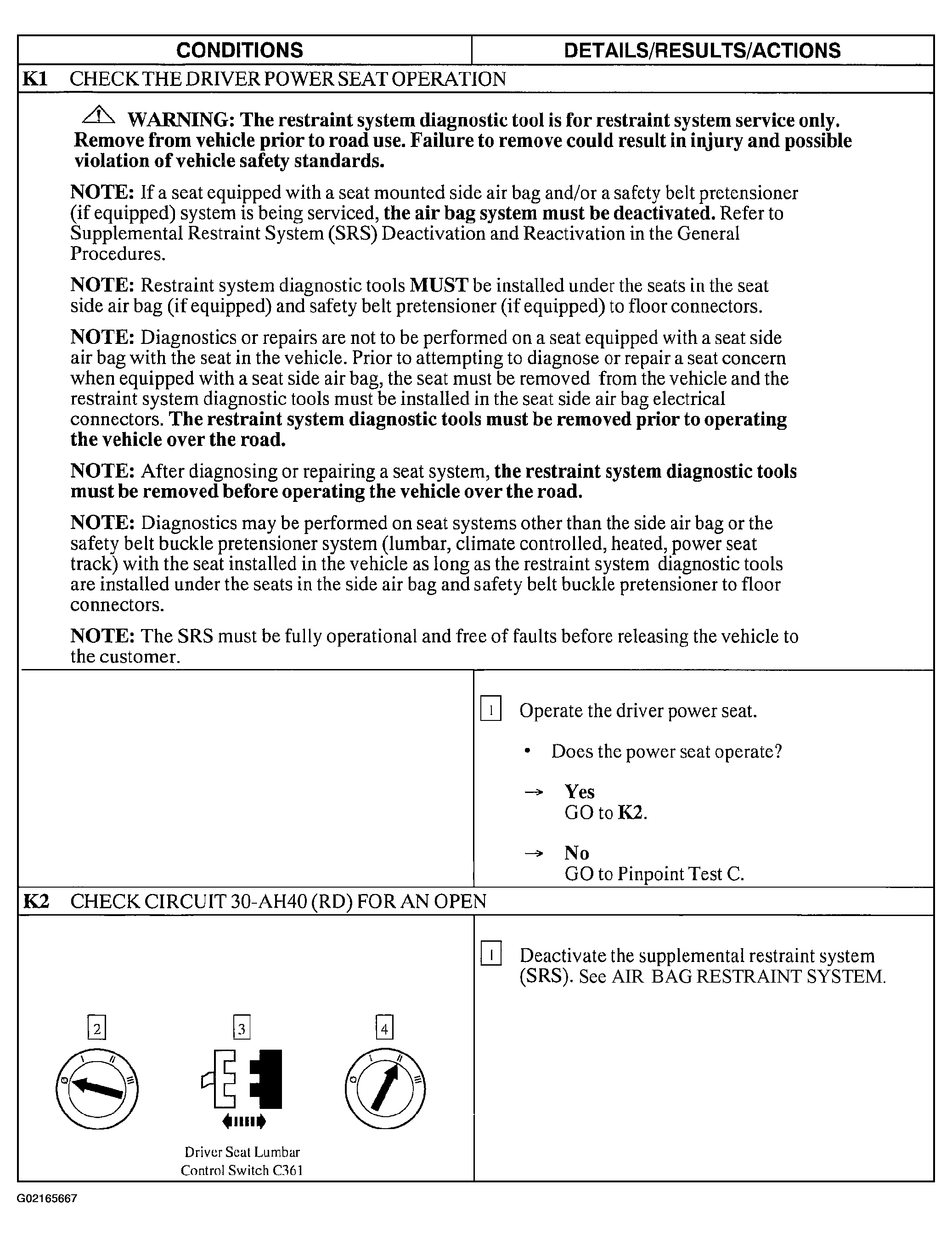

Fig 1: Pinpoint Test K: The Power Lumbar Is Inoperative - Driver (Steps K1 & K2)

Courtesy of FORD MOTOR CO.

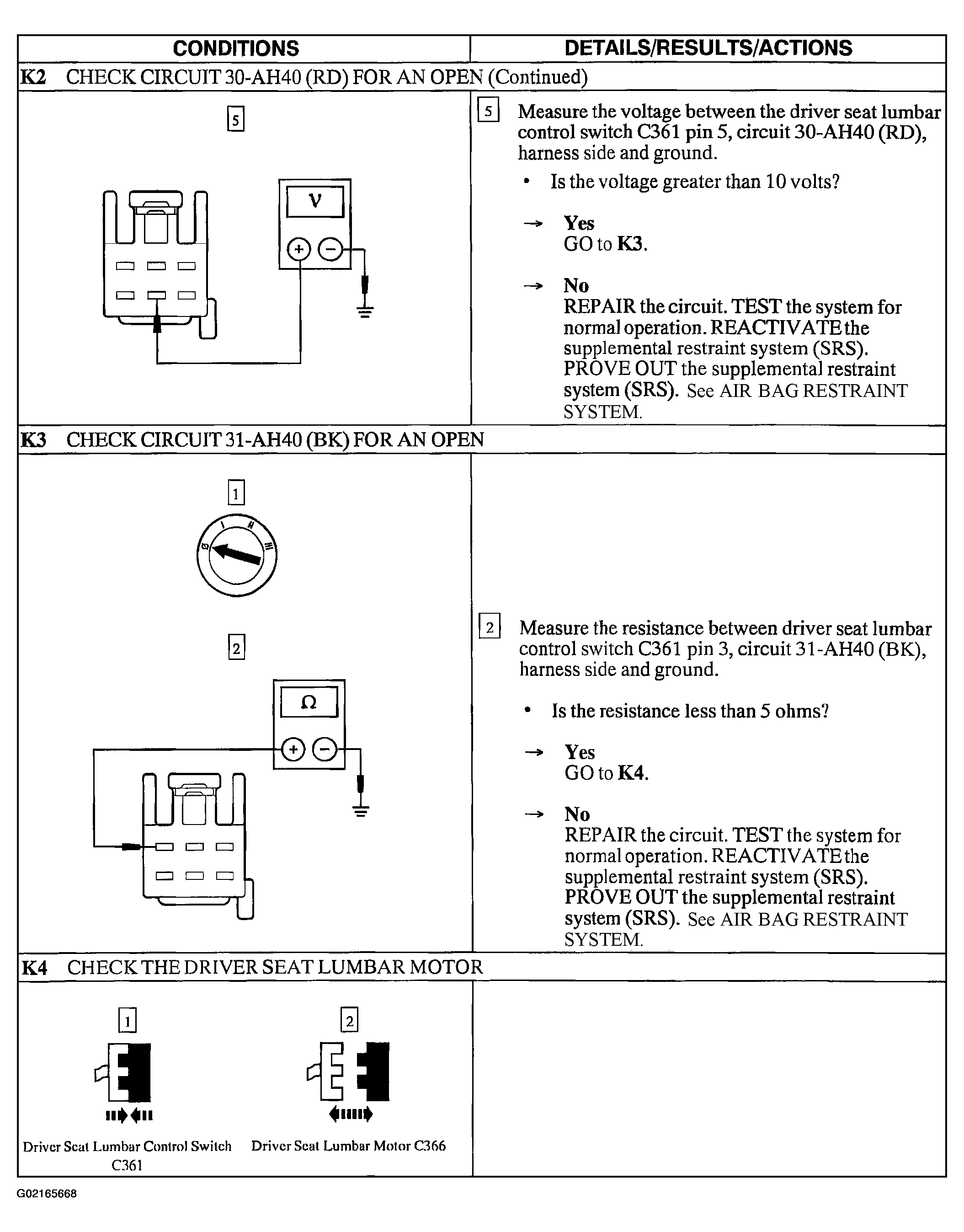

Fig 2: Pinpoint Test K: The Power Lumbar Is Inoperative - Driver (Steps K2 Cont. -K4)

Courtesy of FORD MOTOR CO.

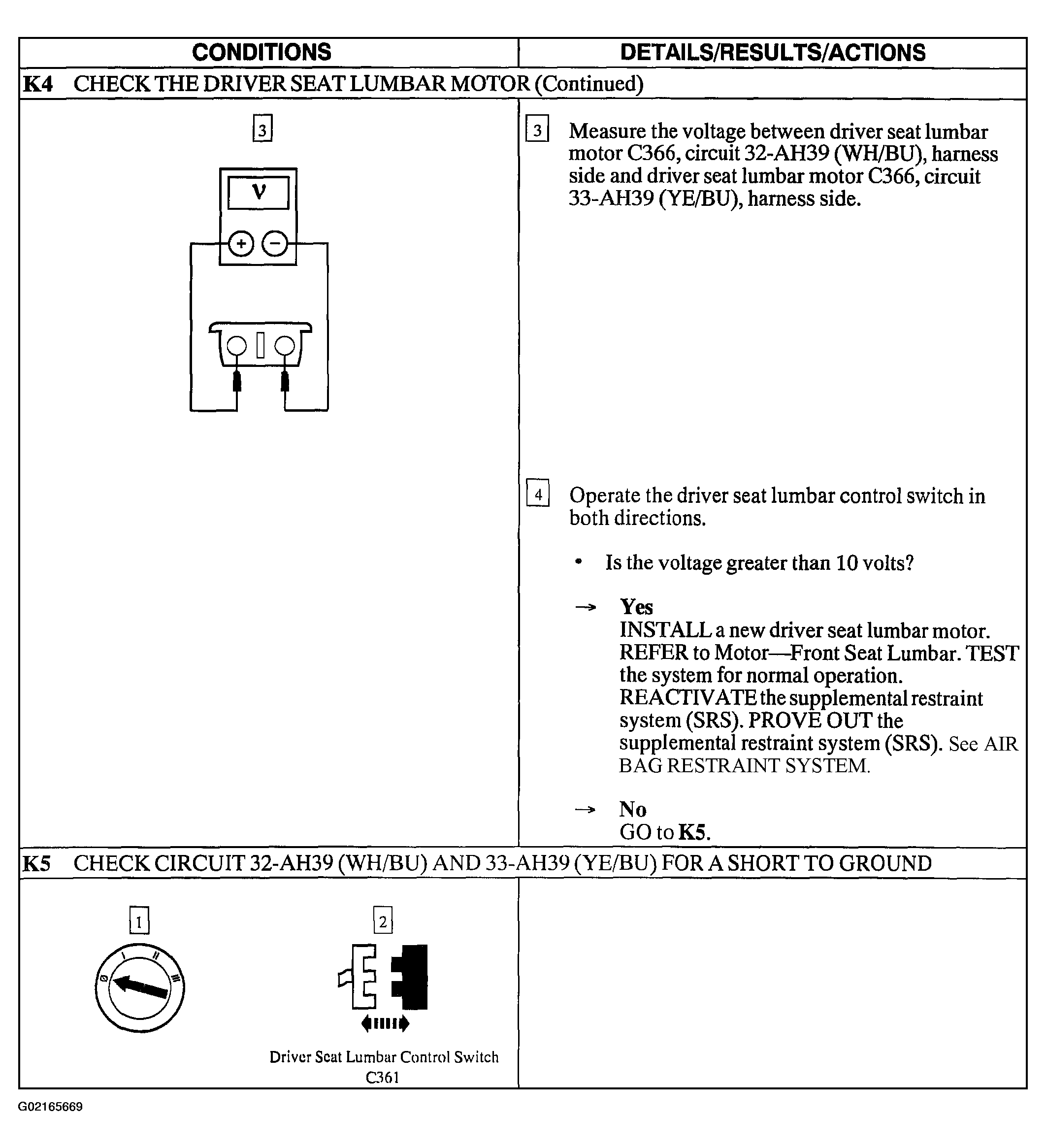

Fig 3: Pinpoint Test K: The Power Lumbar Is Inoperative - Driver (Steps K4 Cont. & K5)

Courtesy of FORD MOTOR CO.

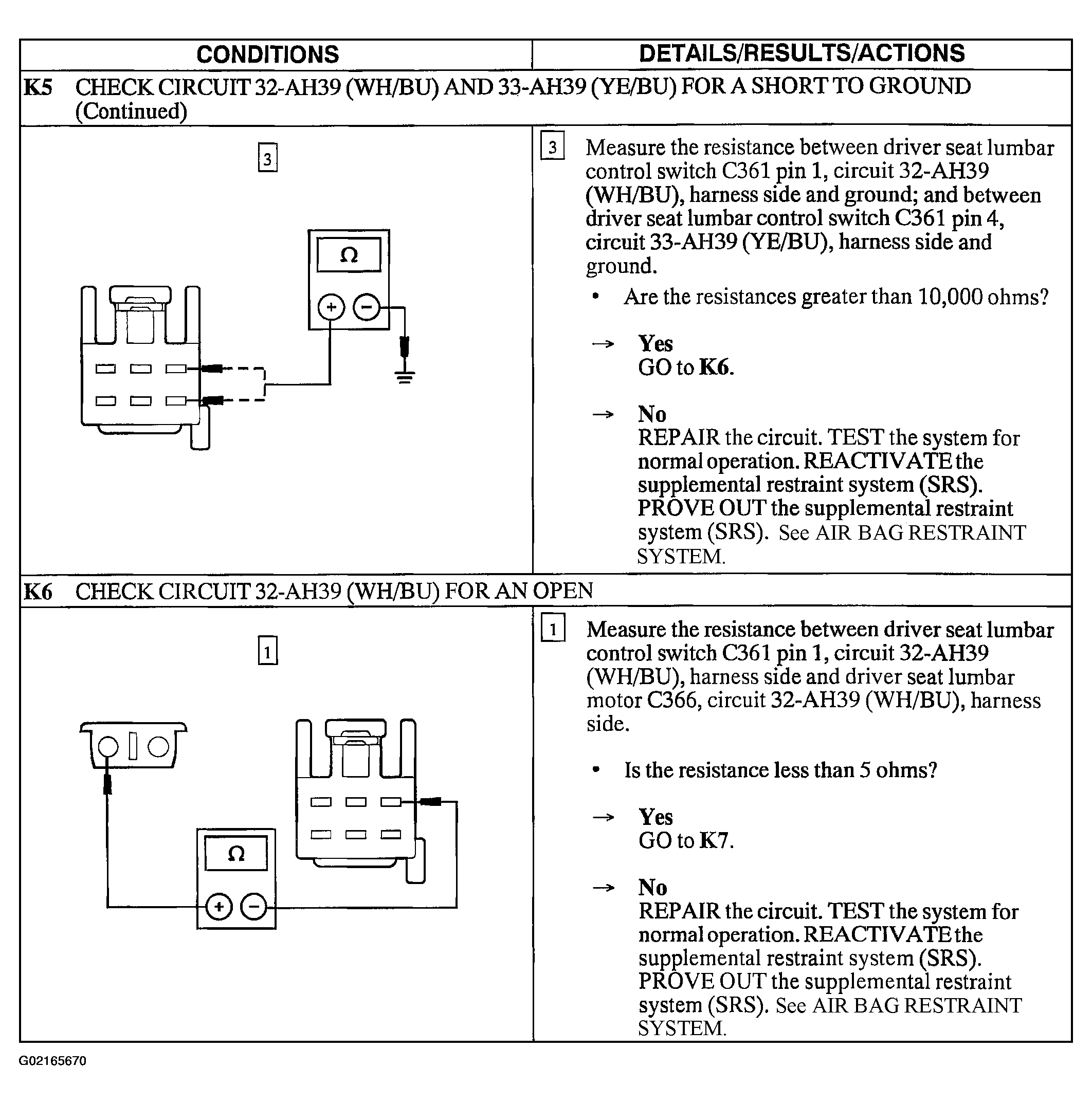

Fig 4: Pinpoint Test K: The Power Lumbar Is Inoperative - Driver (Steps K5 Cont. & K6)

Courtesy of FORD MOTOR CO.

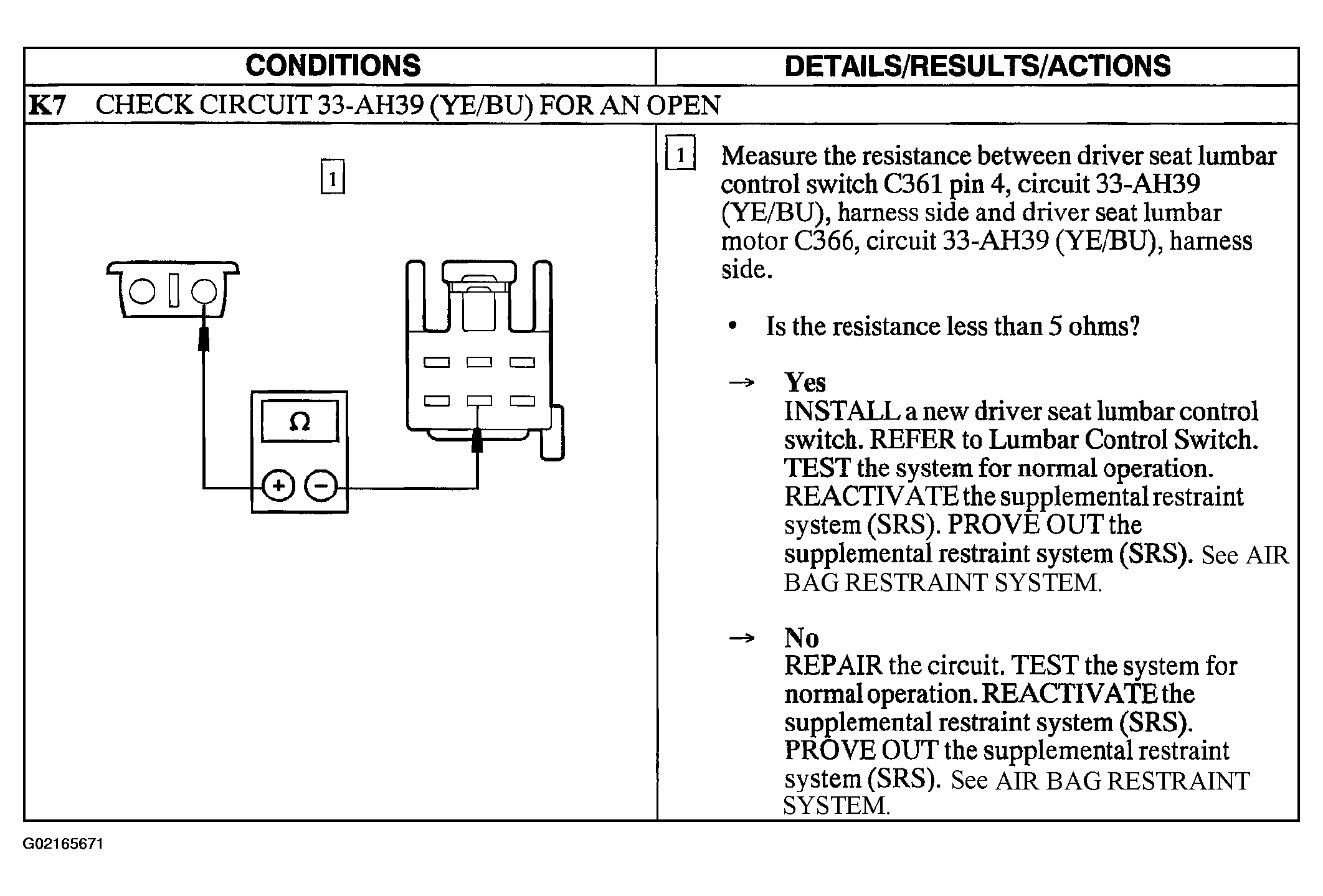

Fig 5: Pinpoint Test K: The Power Lumbar Is Inoperative - Driver (Step K7)

Courtesy of FORD MOTOR CO.
