Pinpoint Test J: The Heated Seats Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

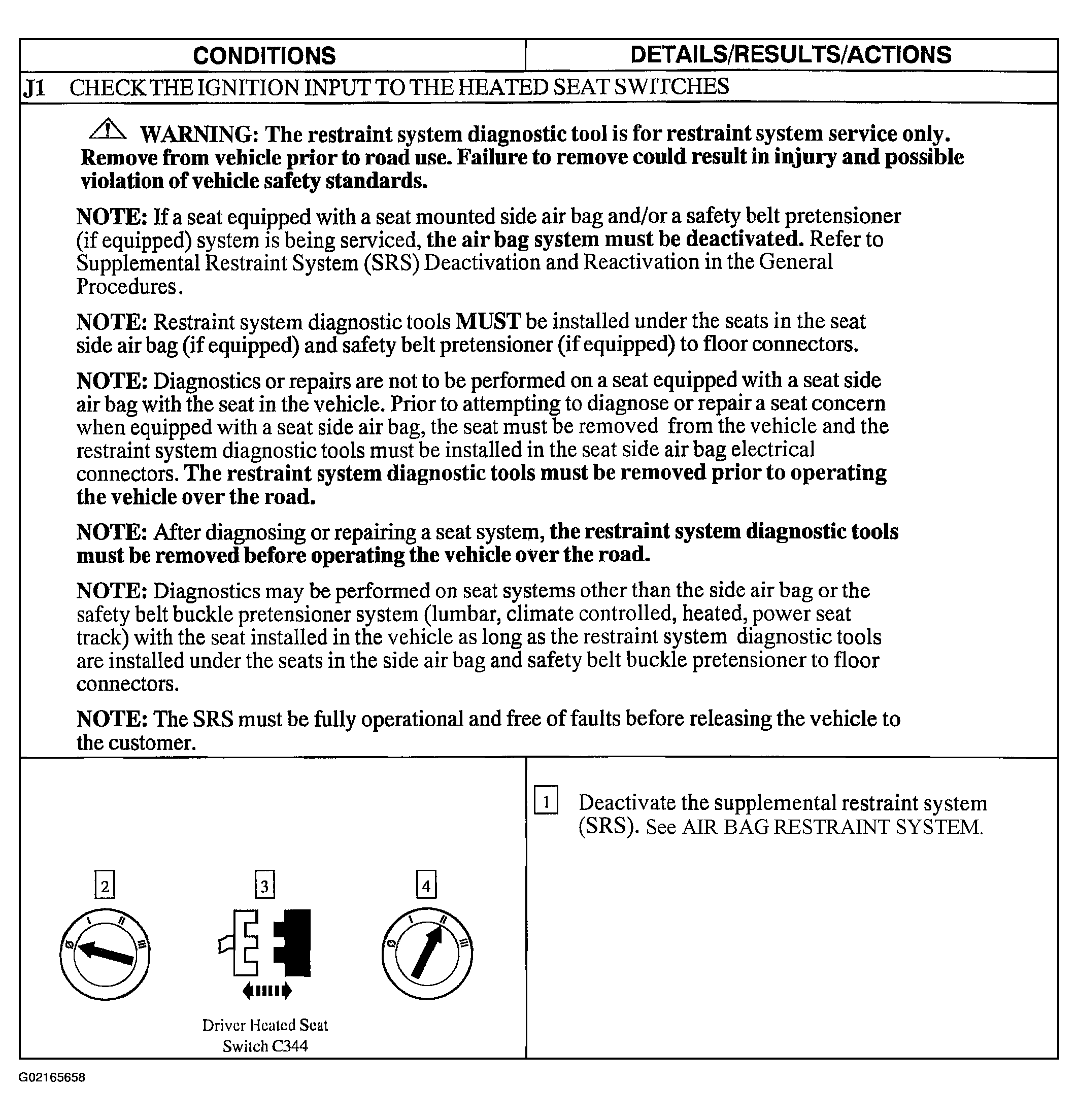

Fig 1: Pinpoint Test J: The Heated Seats Are Inoperative (Step J1)

Courtesy of FORD MOTOR CO.

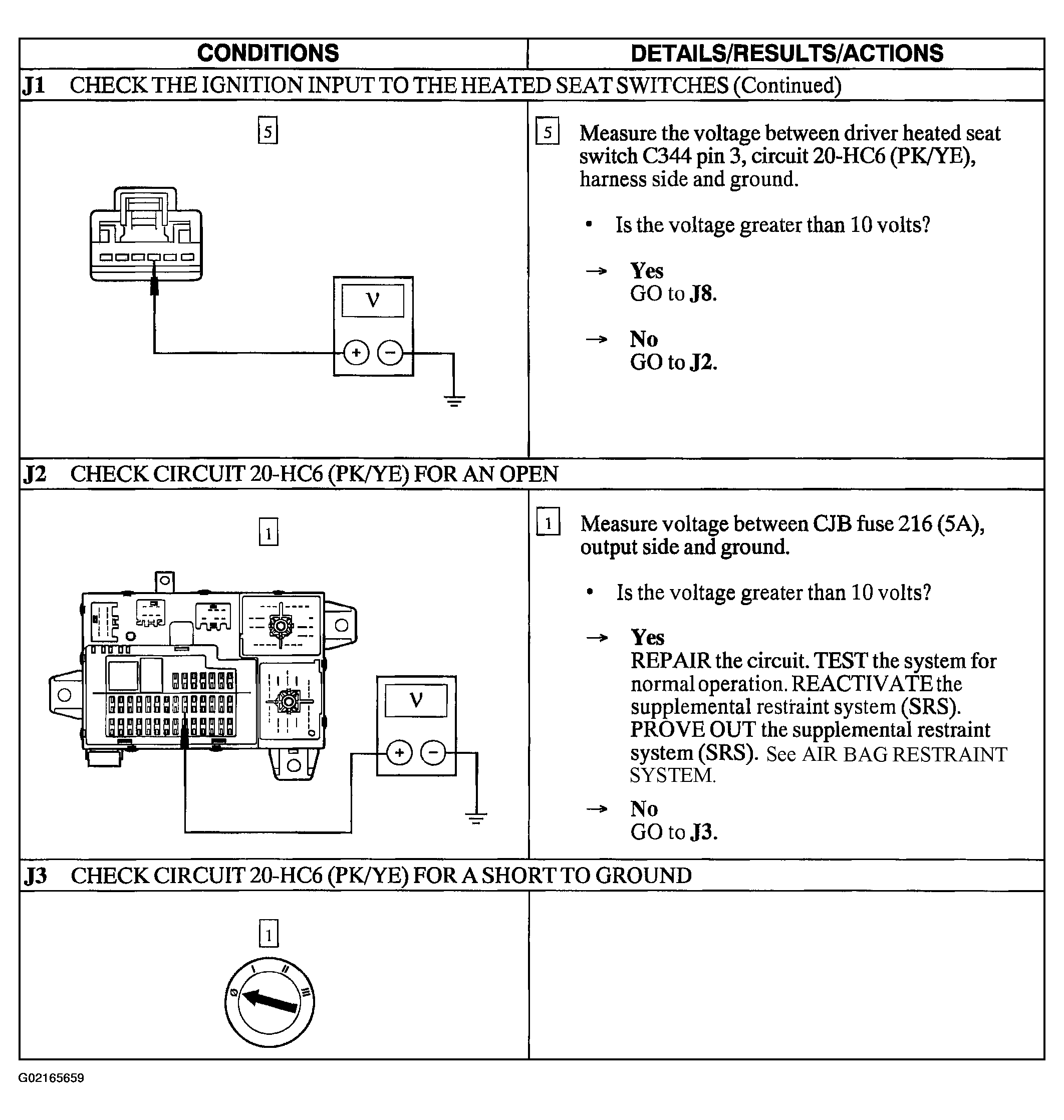

Fig 2: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J1 Cont. -J3)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J3 Cont. -J5)

Courtesy of FORD MOTOR CO.

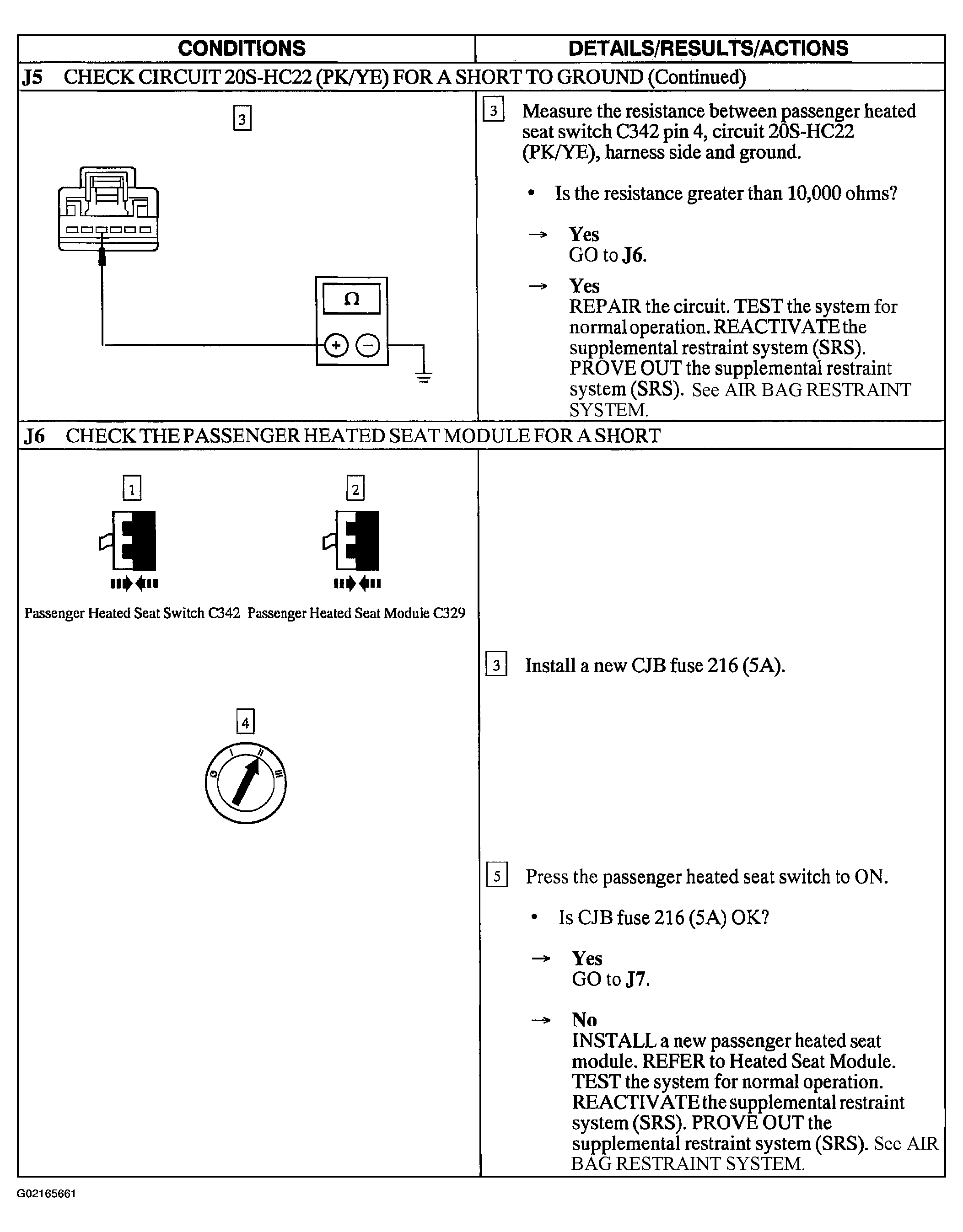

Fig 4: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J5 Cont. & J6)

Courtesy of FORD MOTOR CO.

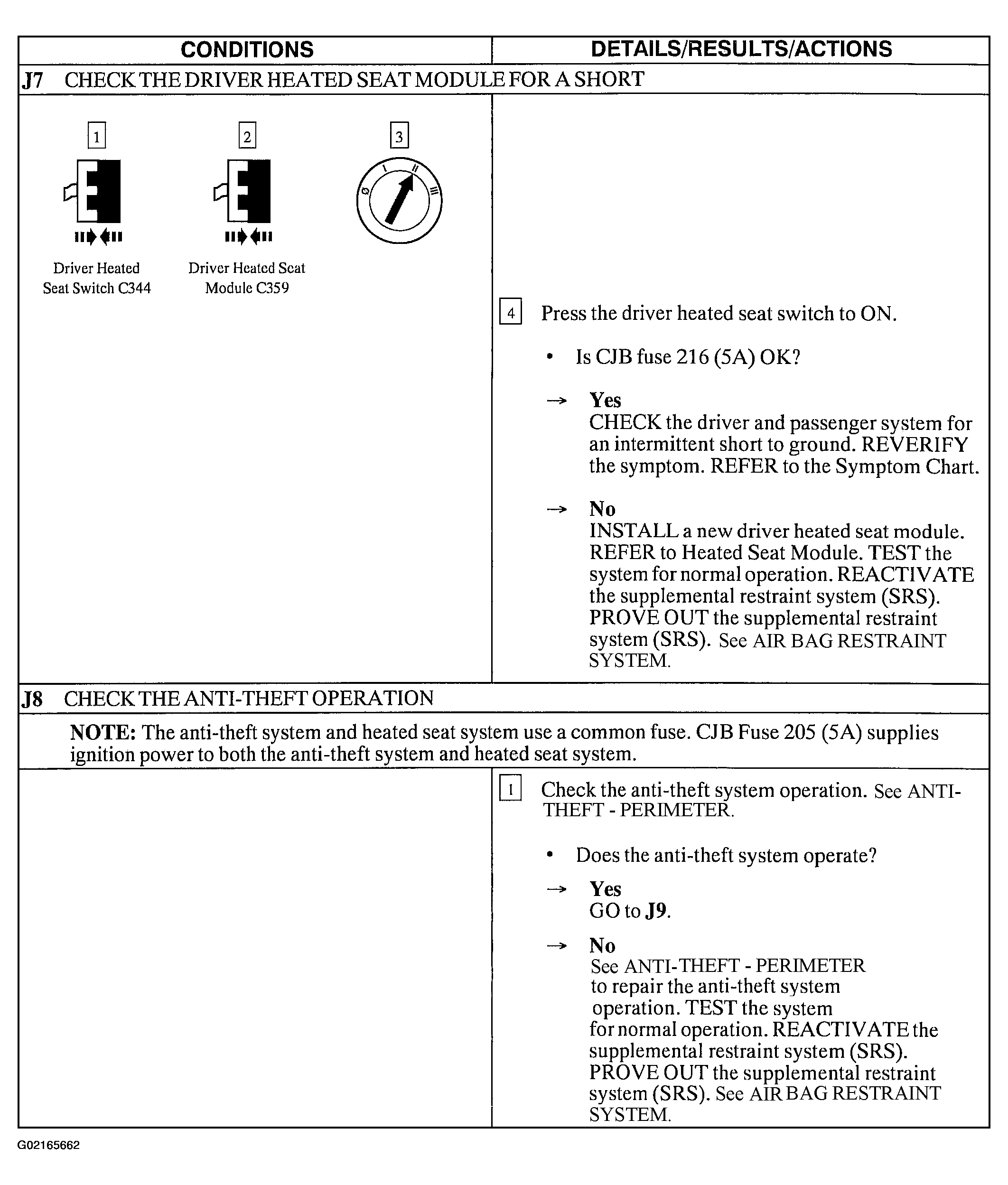

Fig 5: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J7 & J8)

Courtesy of FORD MOTOR CO.

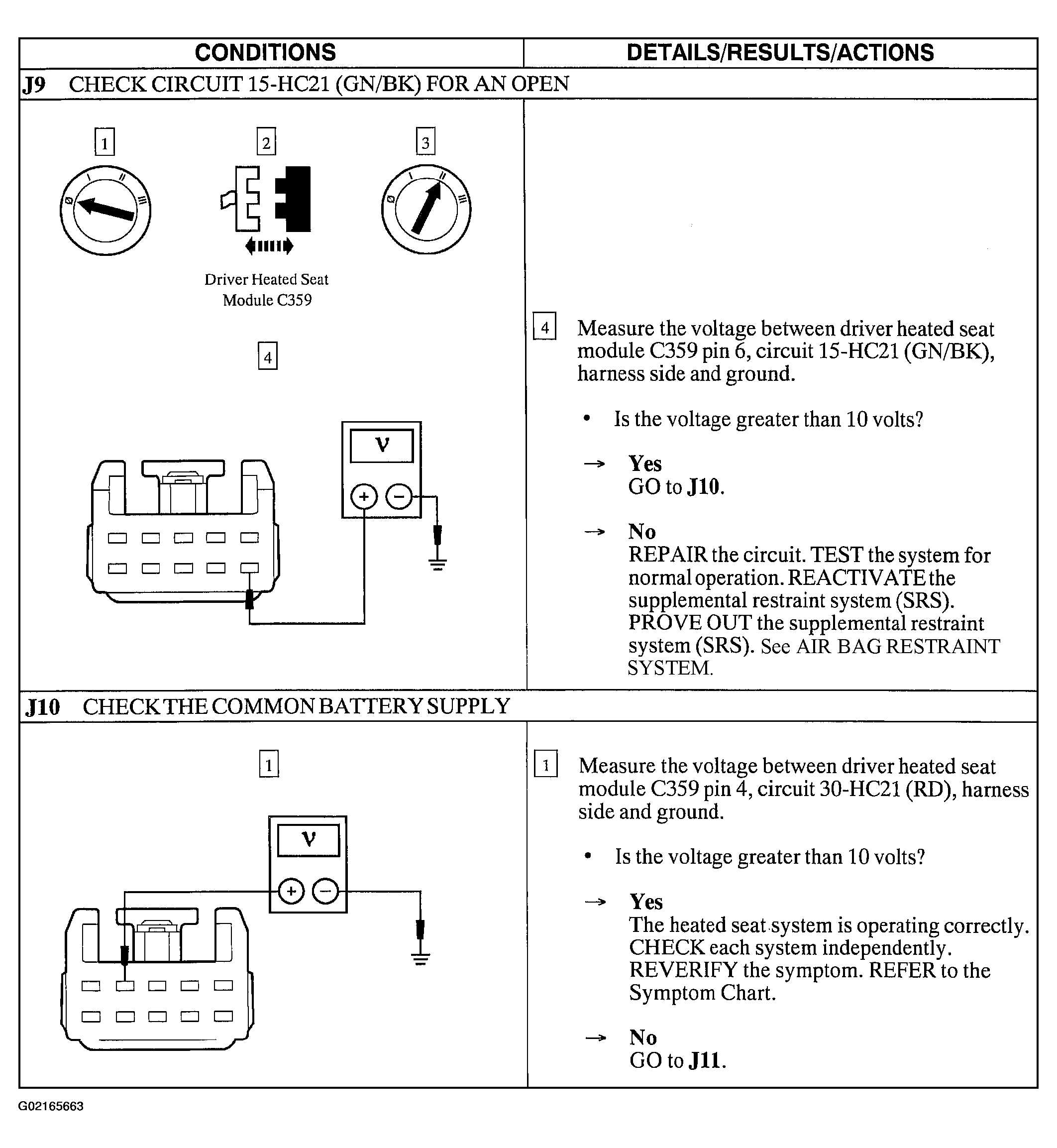

Fig 6: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J9 & J10)

Courtesy of FORD MOTOR CO.

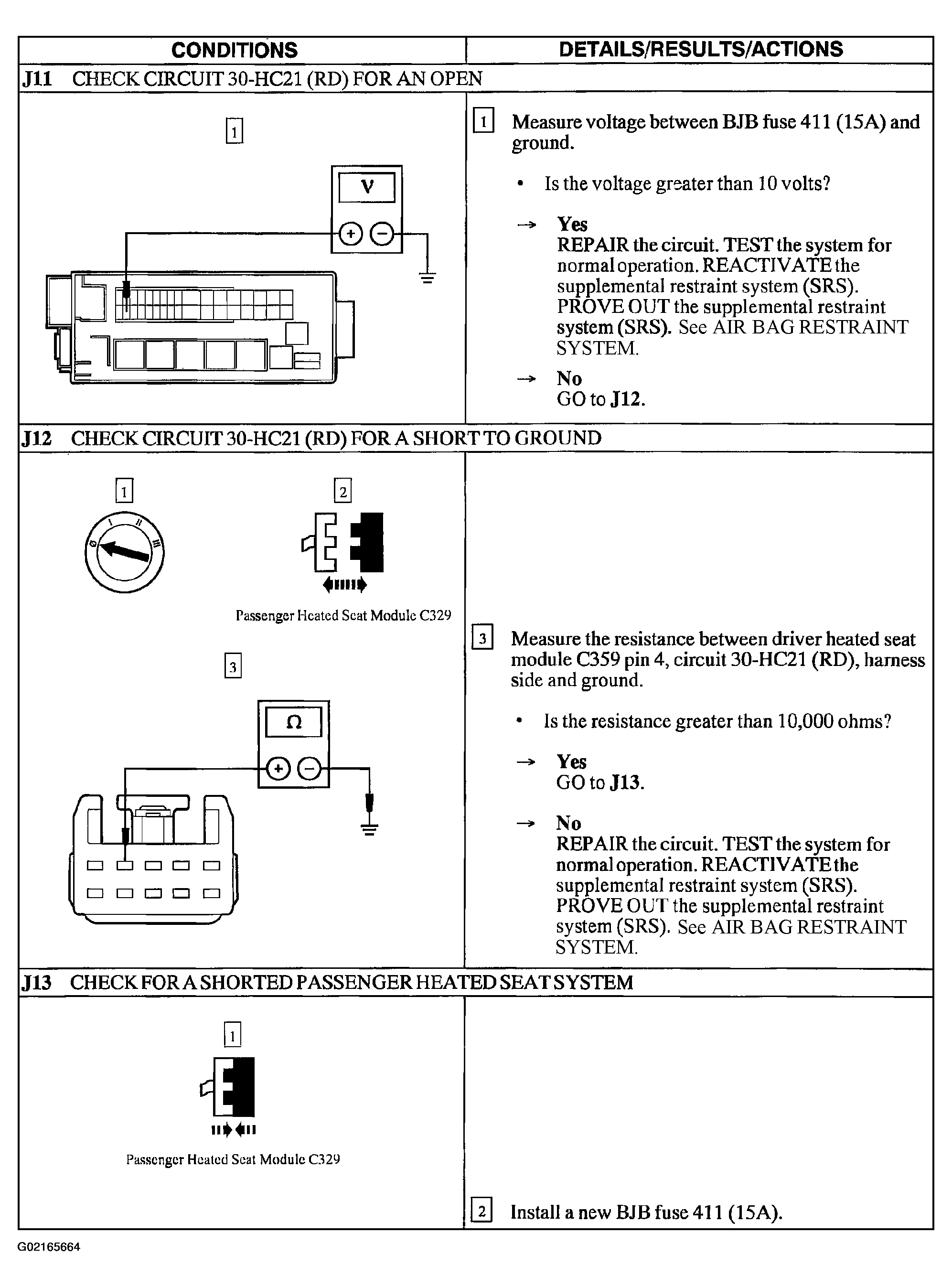

Fig 7: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J11-J13)

Courtesy of FORD MOTOR CO.

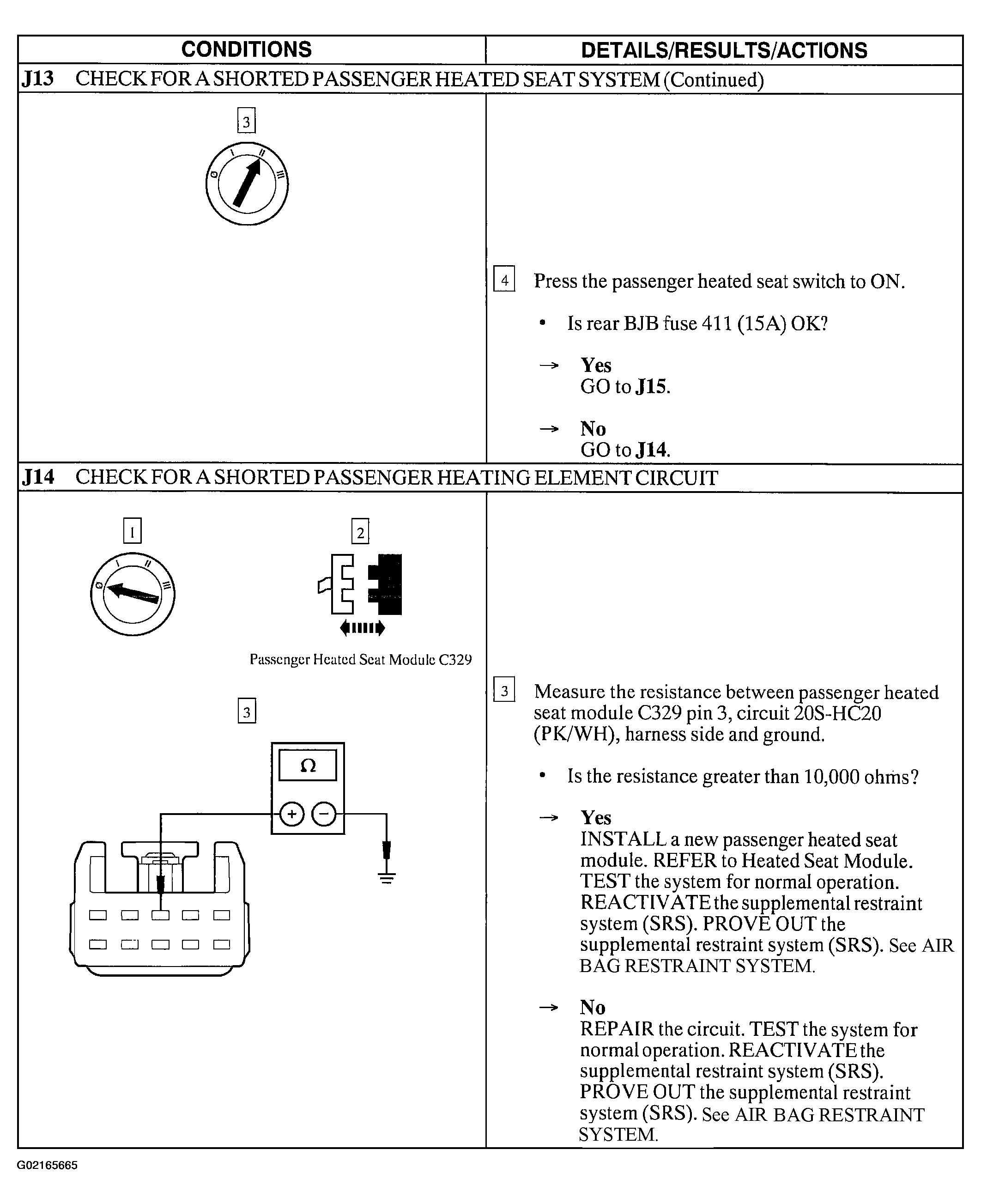

Fig 8: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J13 Cont. & J14)

Courtesy of FORD MOTOR CO.

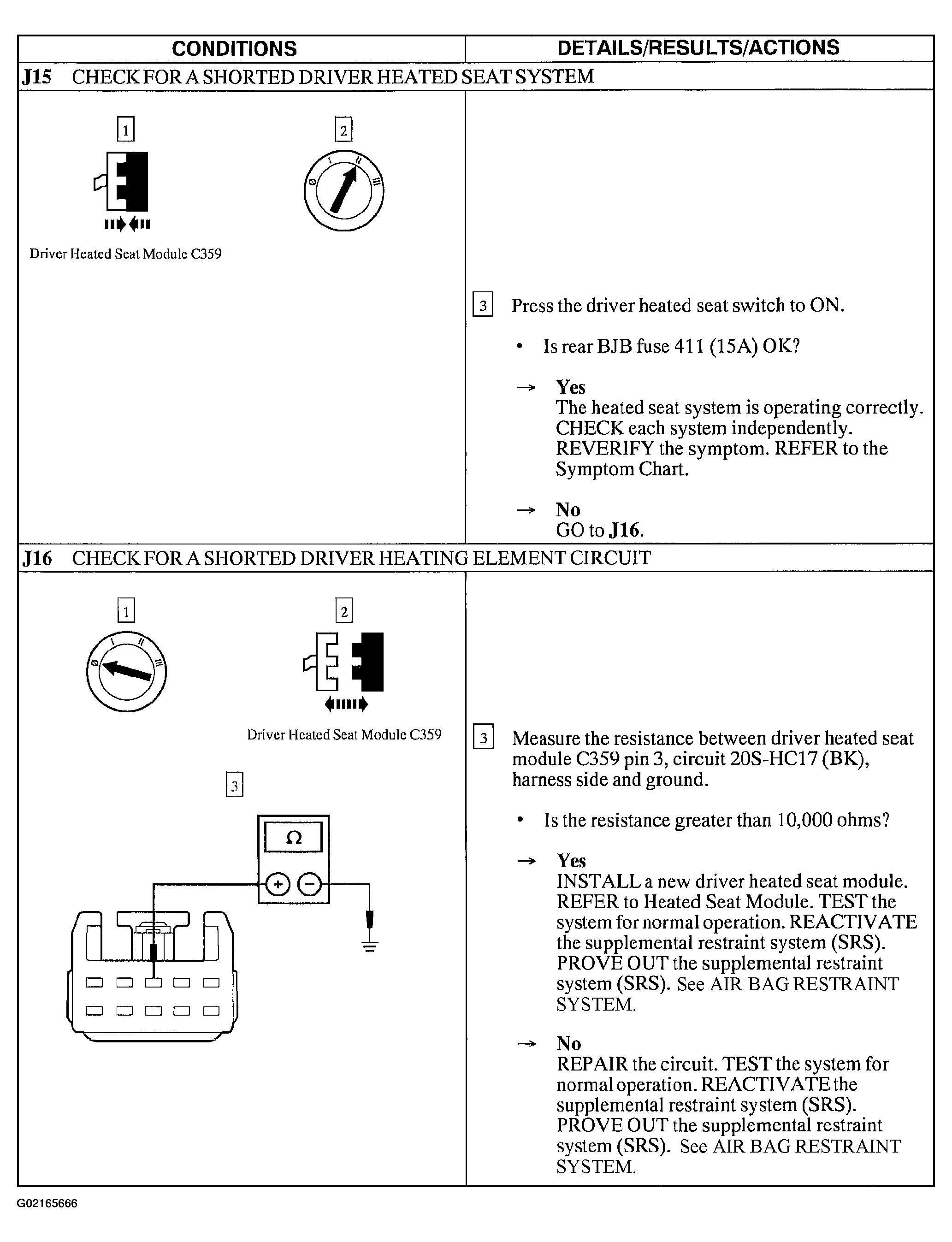

Fig 9: Pinpoint Test J: The Heated Seats Are Inoperative (Steps J15 & J16)

Courtesy of FORD MOTOR CO.
