Pinpoint Test I: The Heated Seat Is Inoperative - Passenger

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

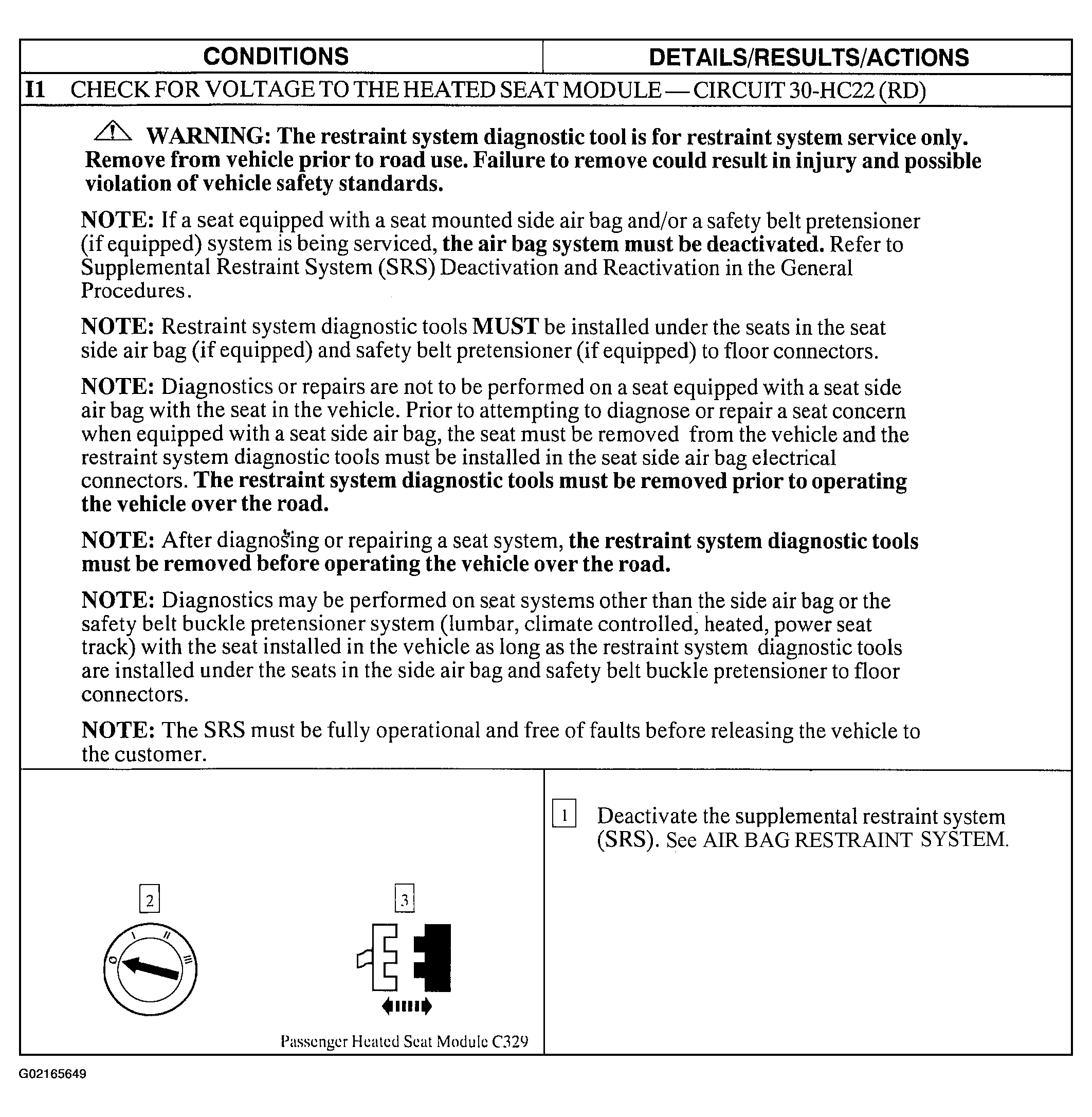

Fig 1: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Step I1)

Courtesy of FORD MOTOR CO.

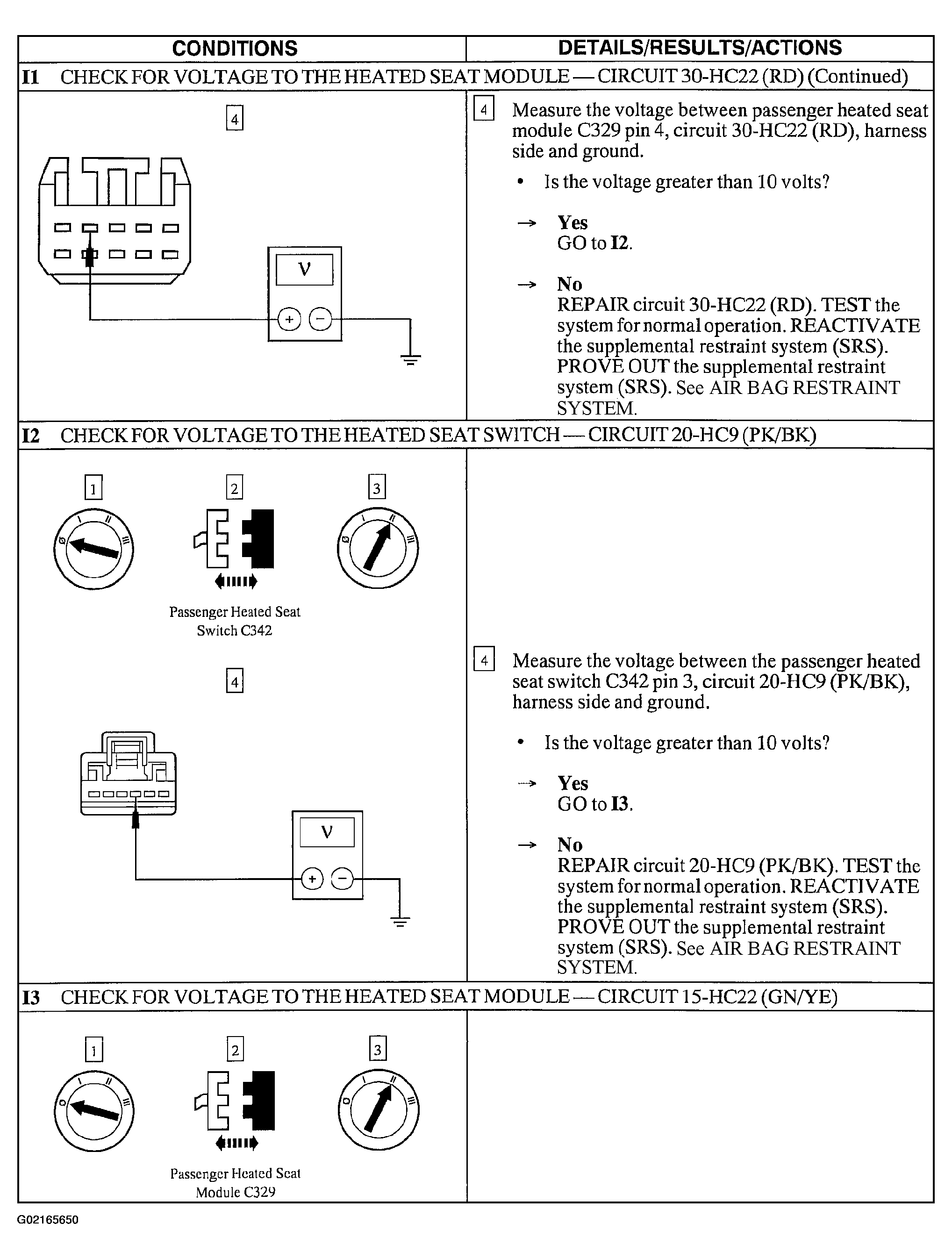

Fig 2: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I1 Cont. -I3)

Courtesy of FORD MOTOR CO.

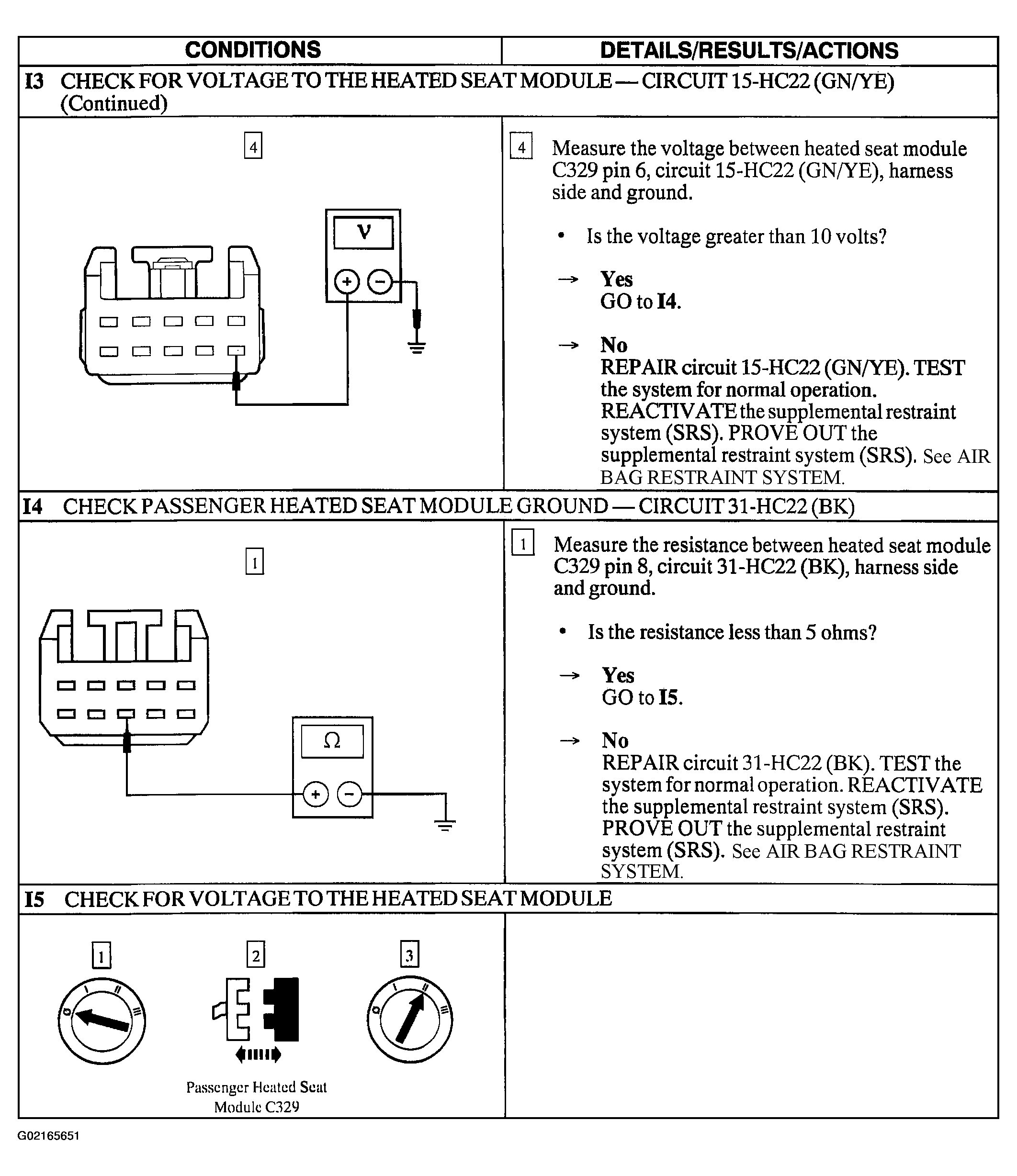

Fig 3: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I3 Cont. -I5)

Courtesy of FORD MOTOR CO.

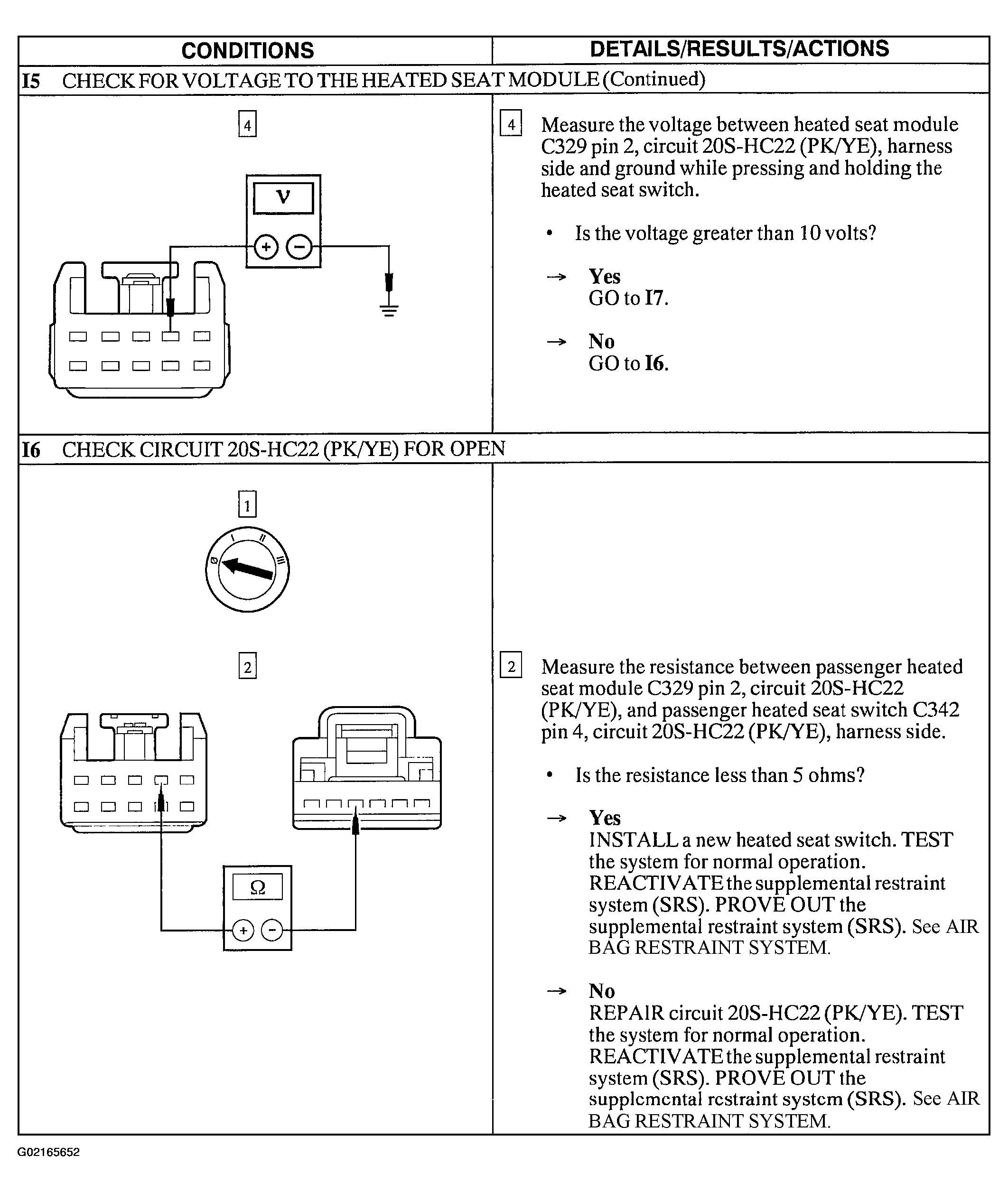

Fig 4: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I5 Cont. & I6)

Courtesy of FORD MOTOR CO.

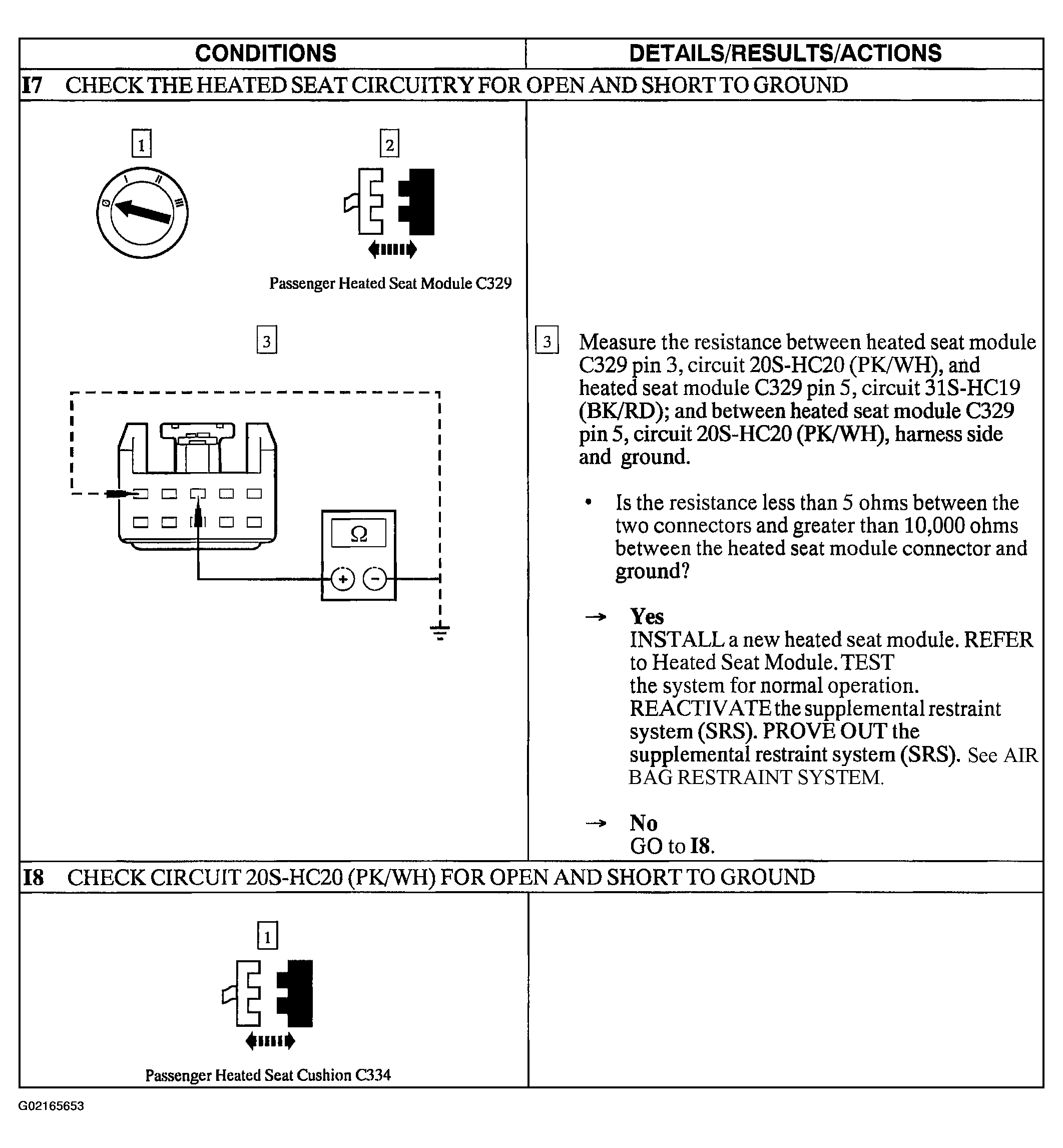

Fig 5: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I7 & I8)

Courtesy of FORD MOTOR CO.

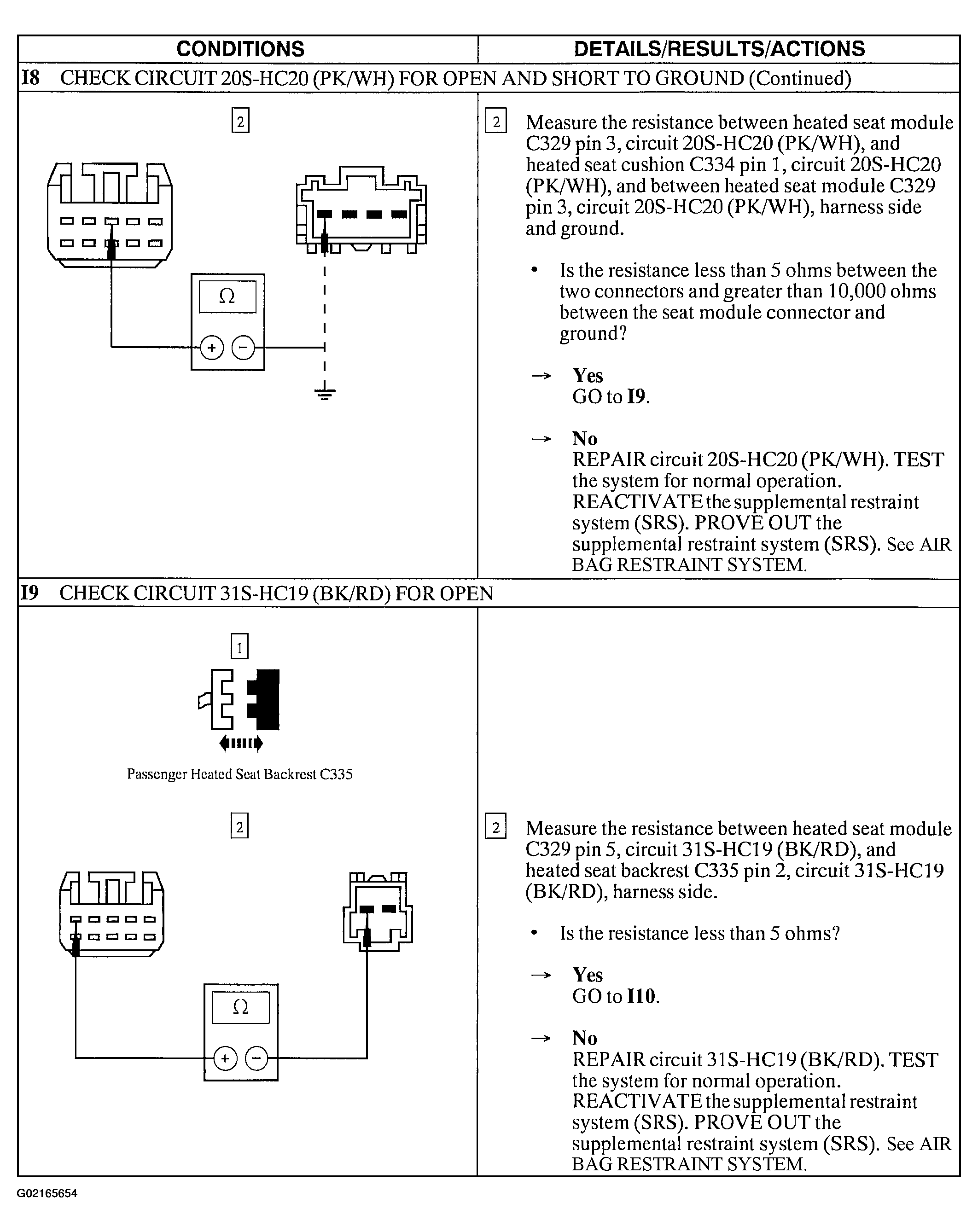

Fig 6: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I8 Cont. & I9)

Courtesy of FORD MOTOR CO.

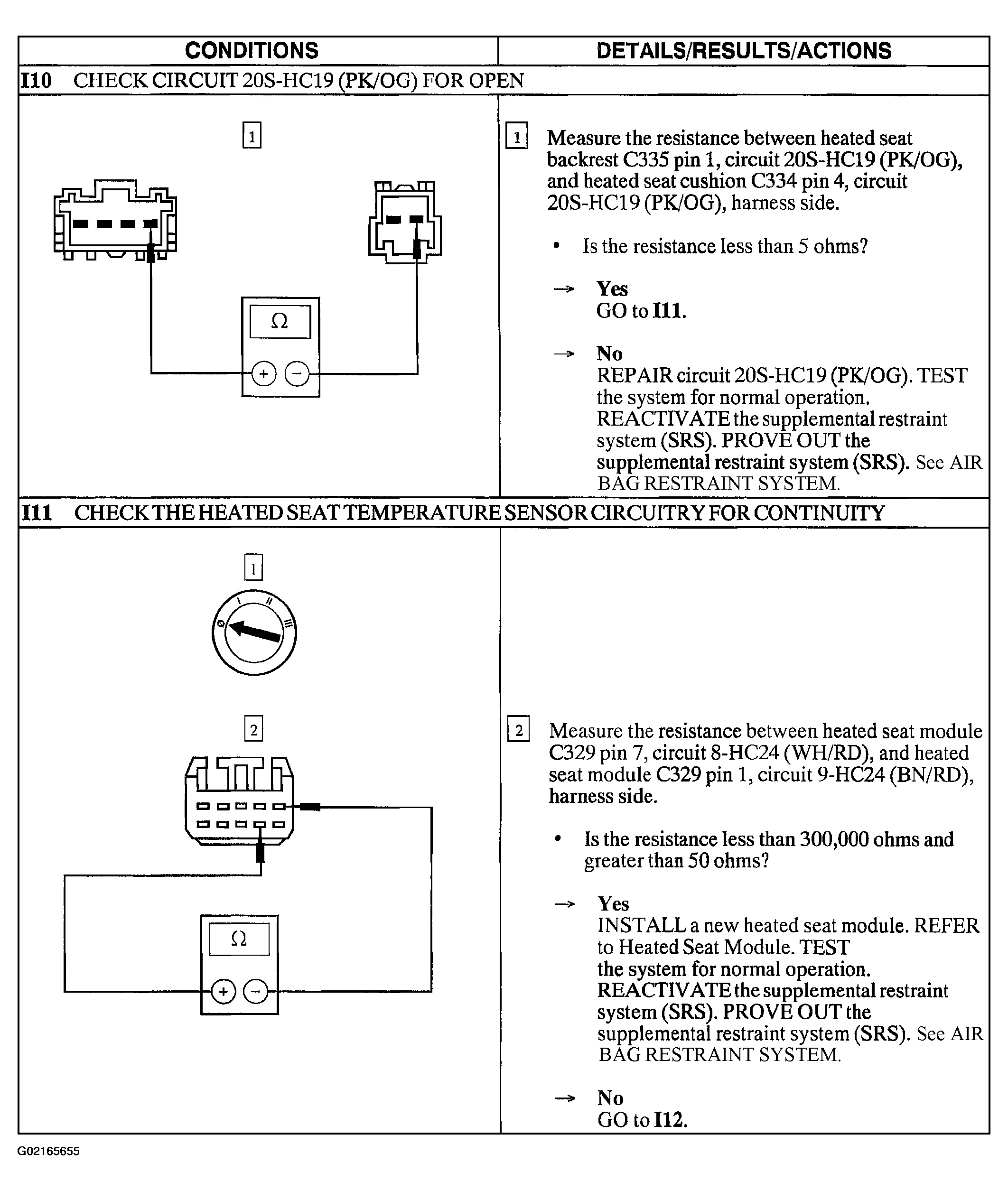

Fig 7: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Steps I10 & I11)

Courtesy of FORD MOTOR CO.

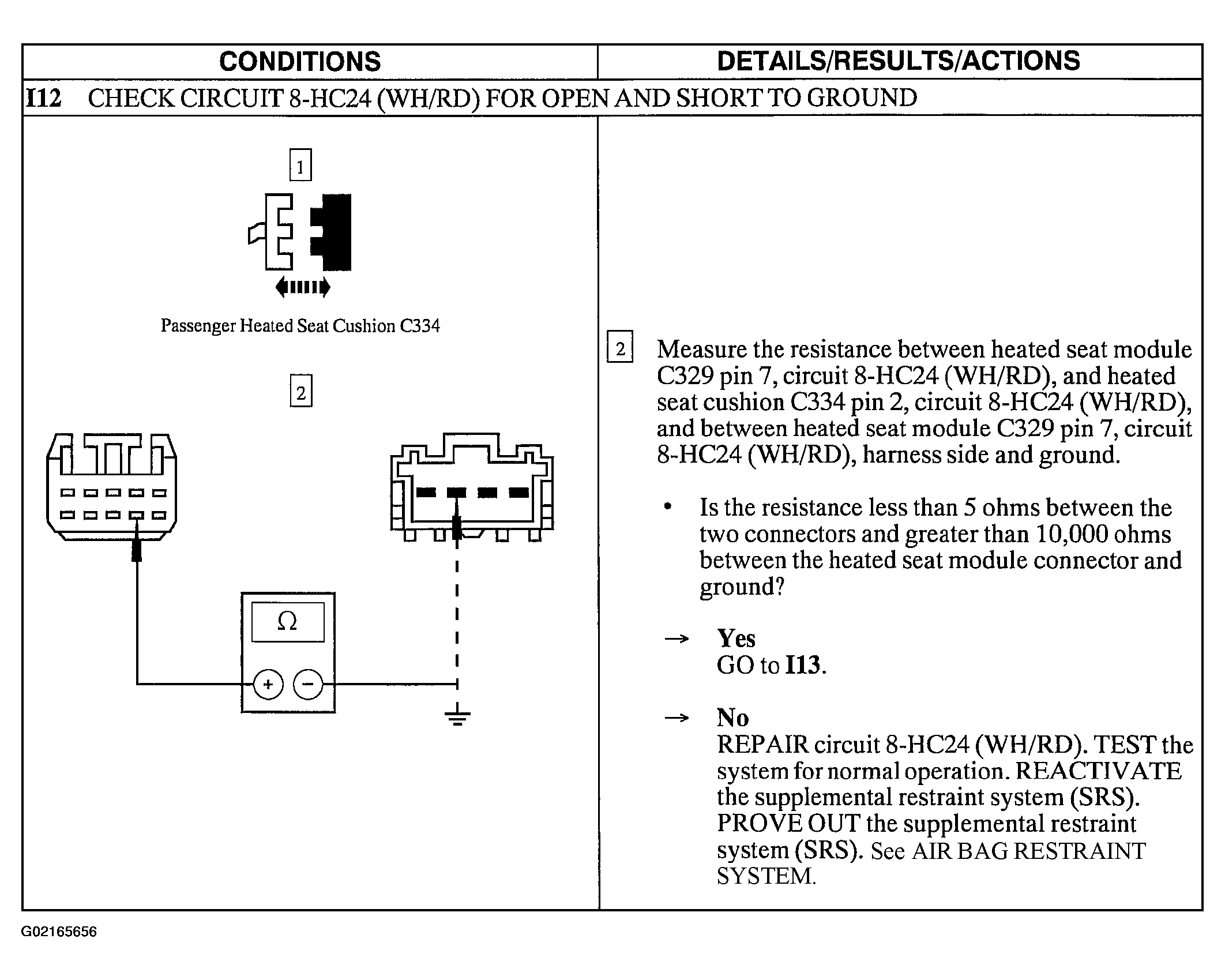

Fig 8: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Step I12)

Courtesy of FORD MOTOR CO.

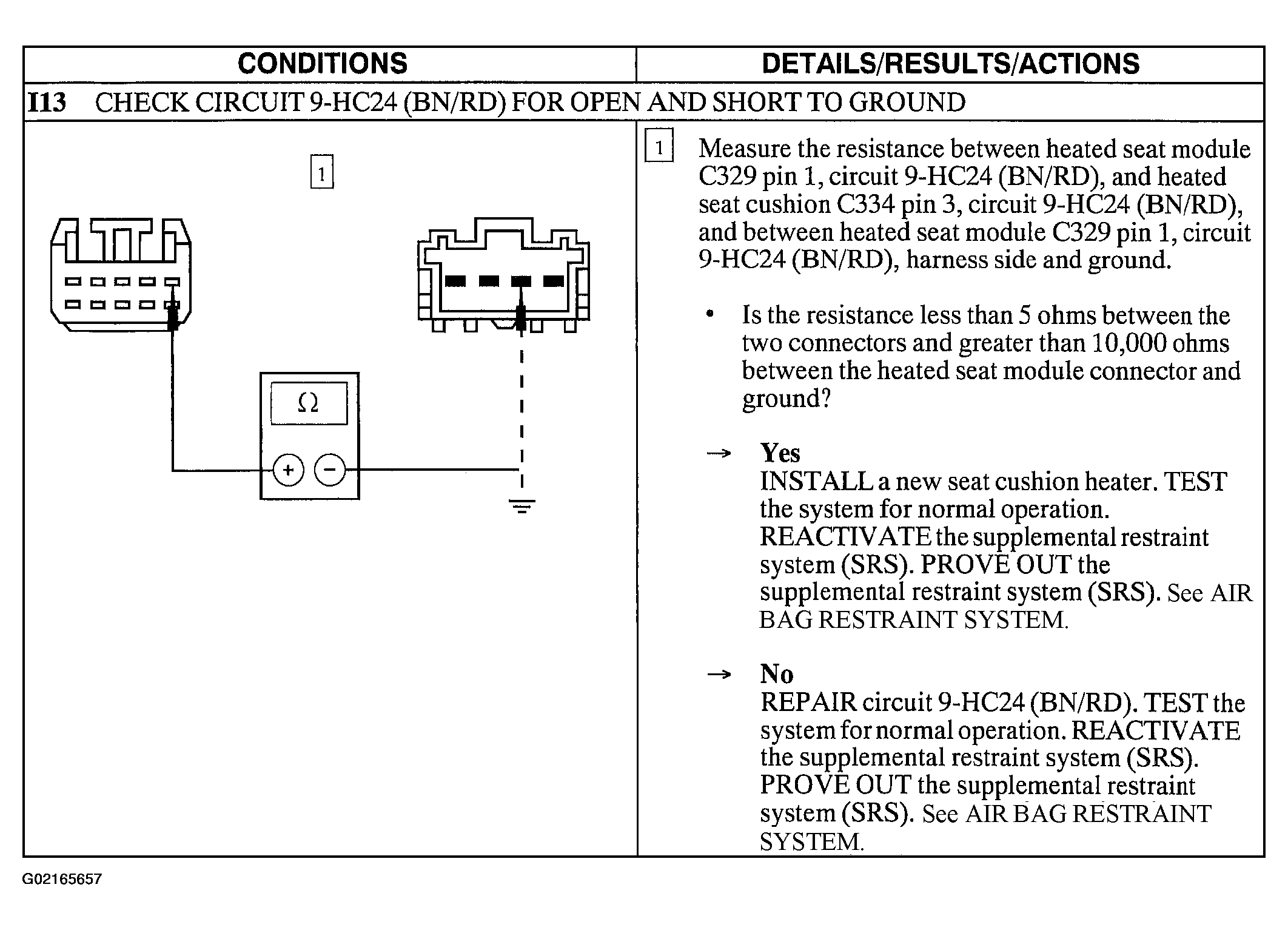

Fig 9: Pinpoint Test I: The Heated Seat Is Inoperative - Passenger (Step I13)

Courtesy of FORD MOTOR CO.
