Pinpoint Test H: The Heated Seat Is Inoperative - Driver

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

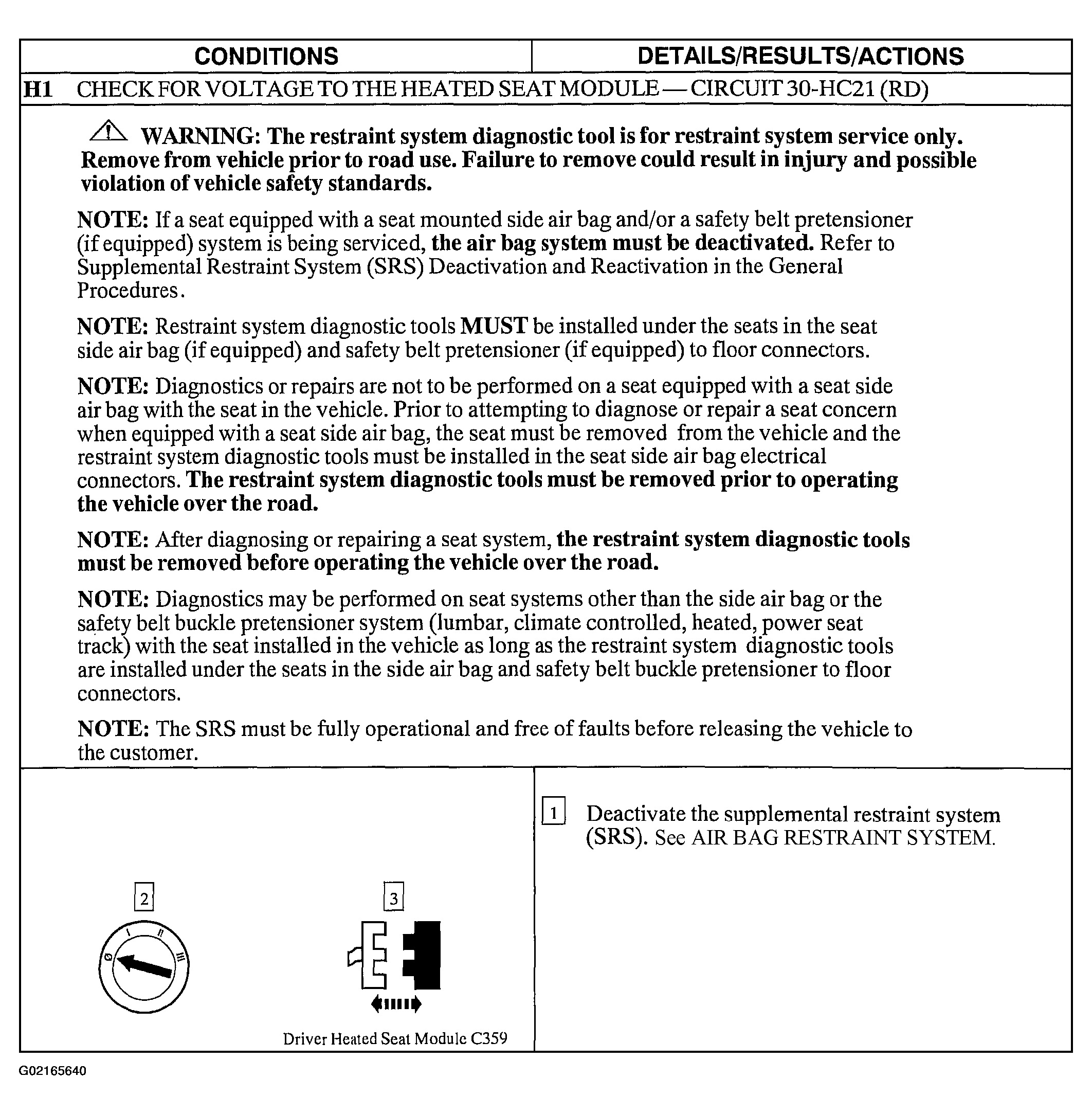

Fig 1: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Step H1)

Courtesy of FORD MOTOR CO.

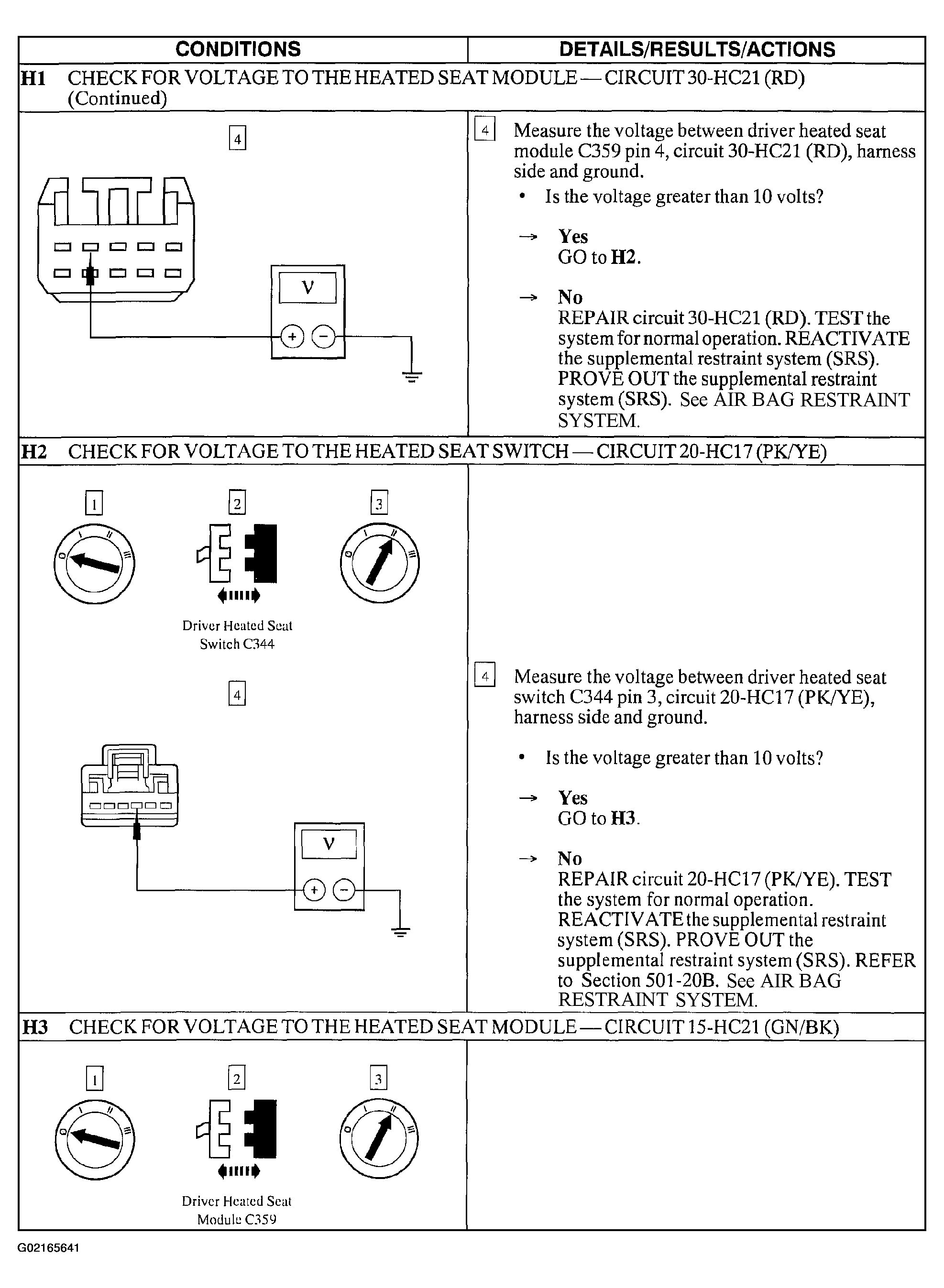

Fig 2: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H1 Cont. -H3)

Courtesy of FORD MOTOR CO.

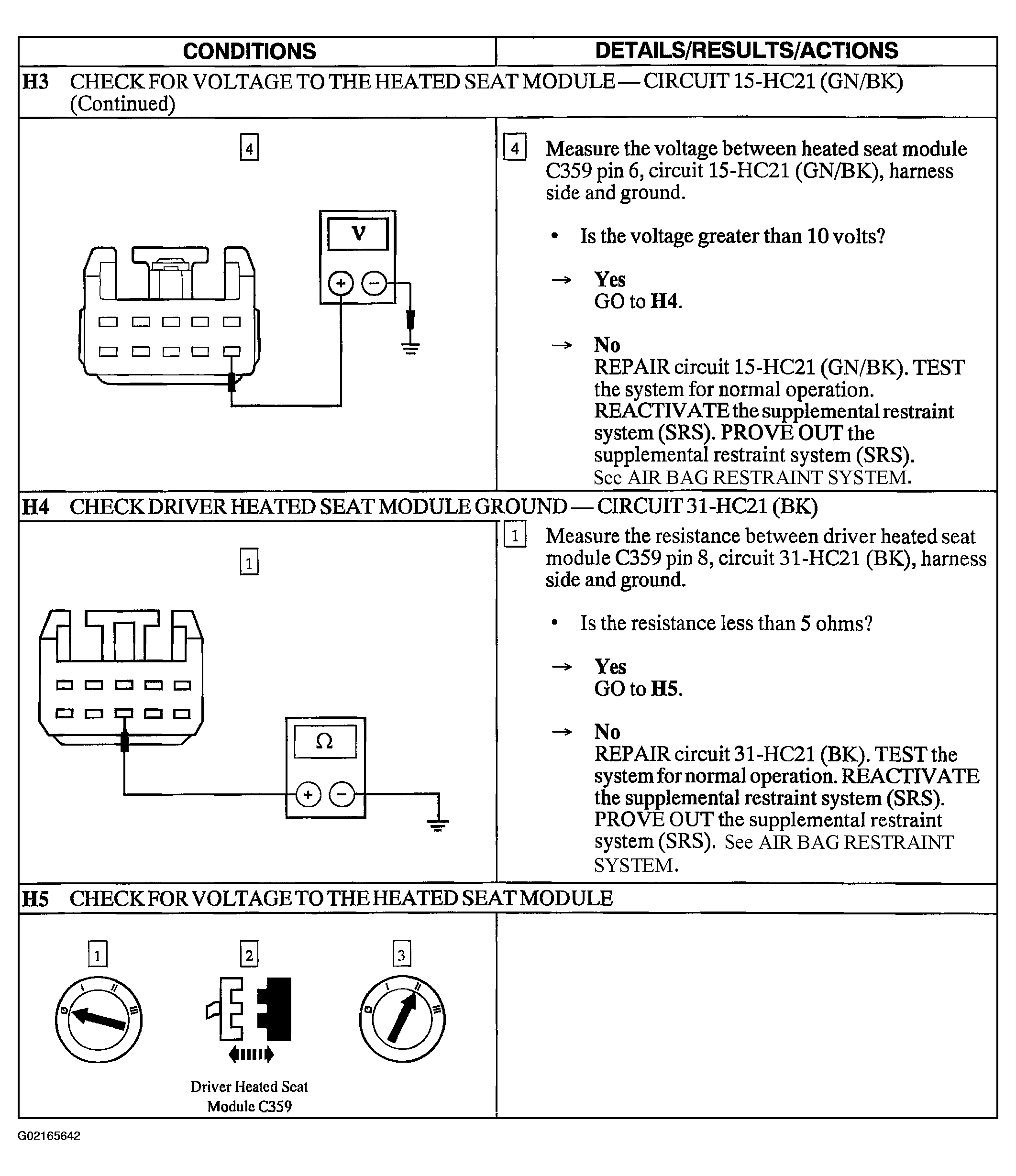

Fig 3: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H3 Cont. -H5)

Courtesy of FORD MOTOR CO.

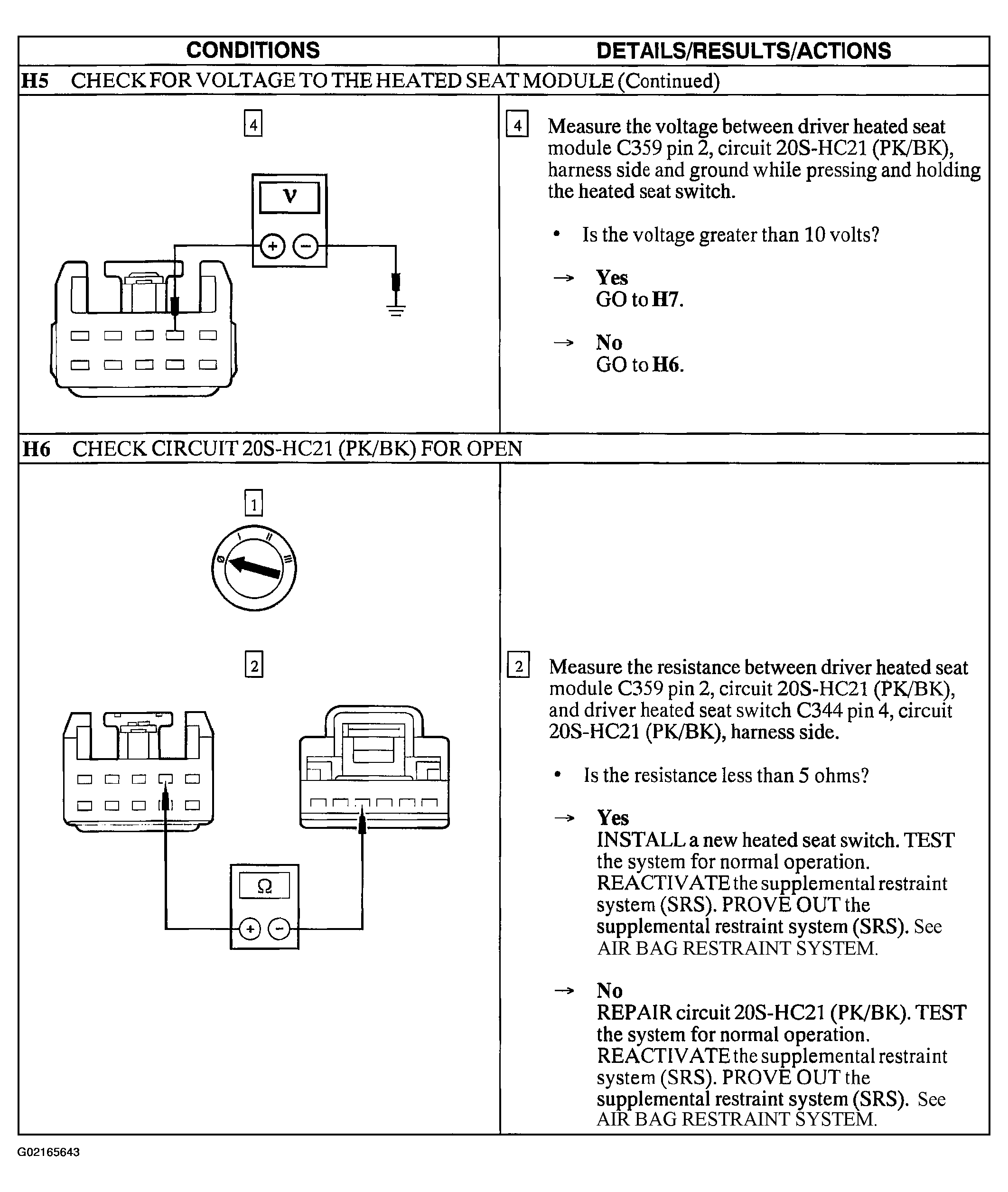

Fig 4: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H5 Cont. & H6)

Courtesy of FORD MOTOR CO.

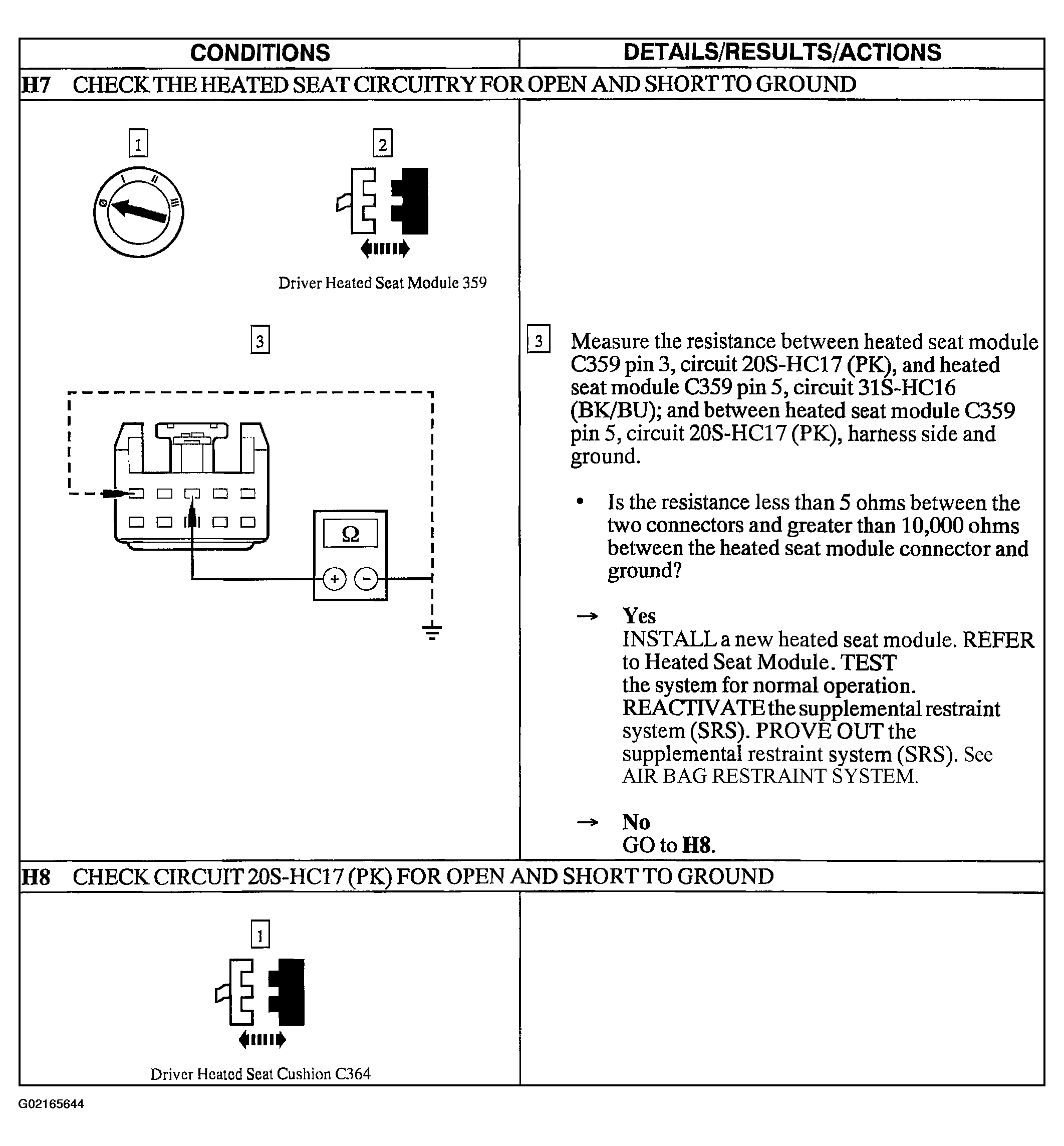

Fig 5: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H7 & H8)

Courtesy of FORD MOTOR CO.

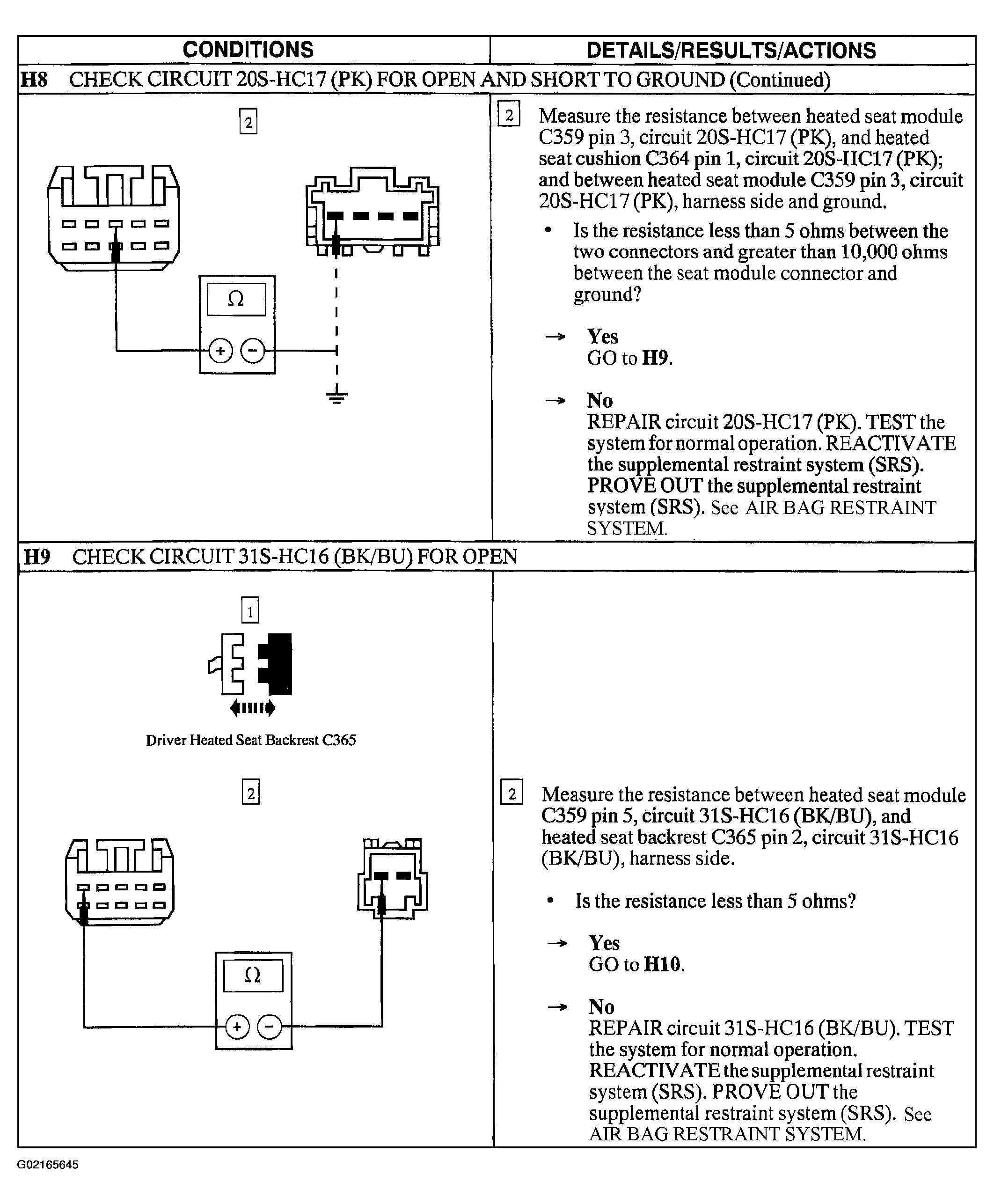

Fig 6: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H8 Cont. & H9)

Courtesy of FORD MOTOR CO.

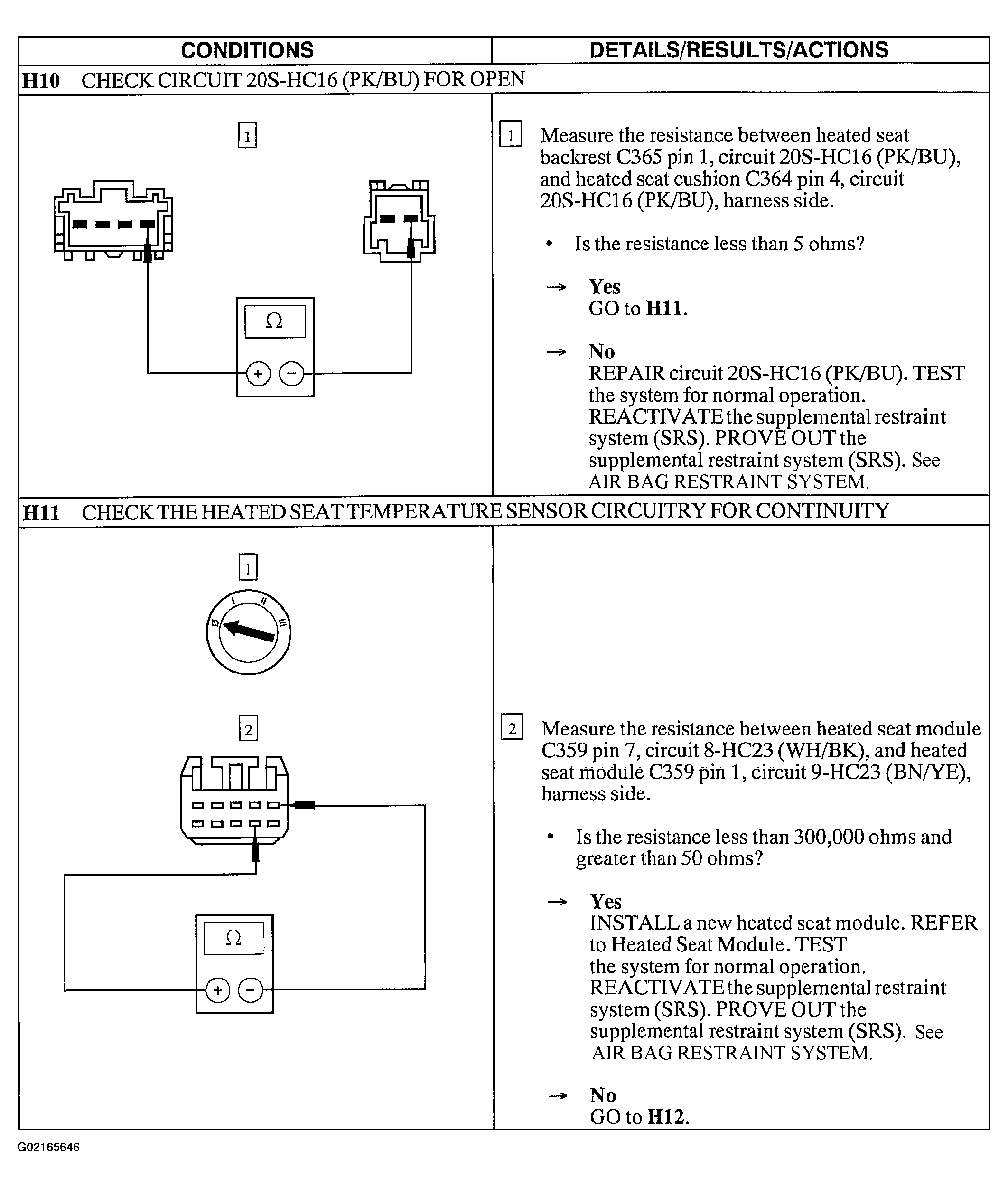

Fig 7: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H10 & H11)

Courtesy of FORD MOTOR CO.

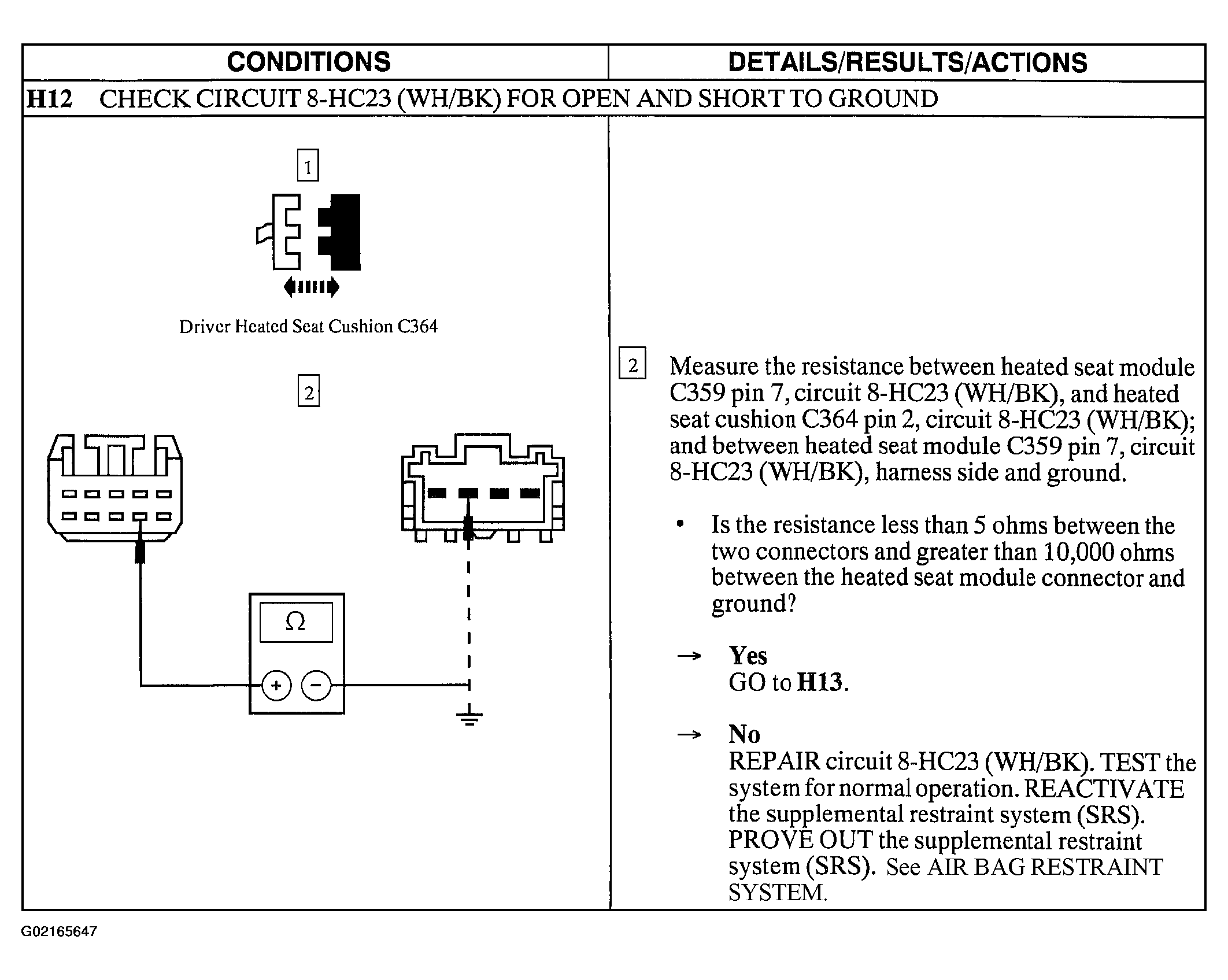

Fig 8: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H12)

Courtesy of FORD MOTOR CO.

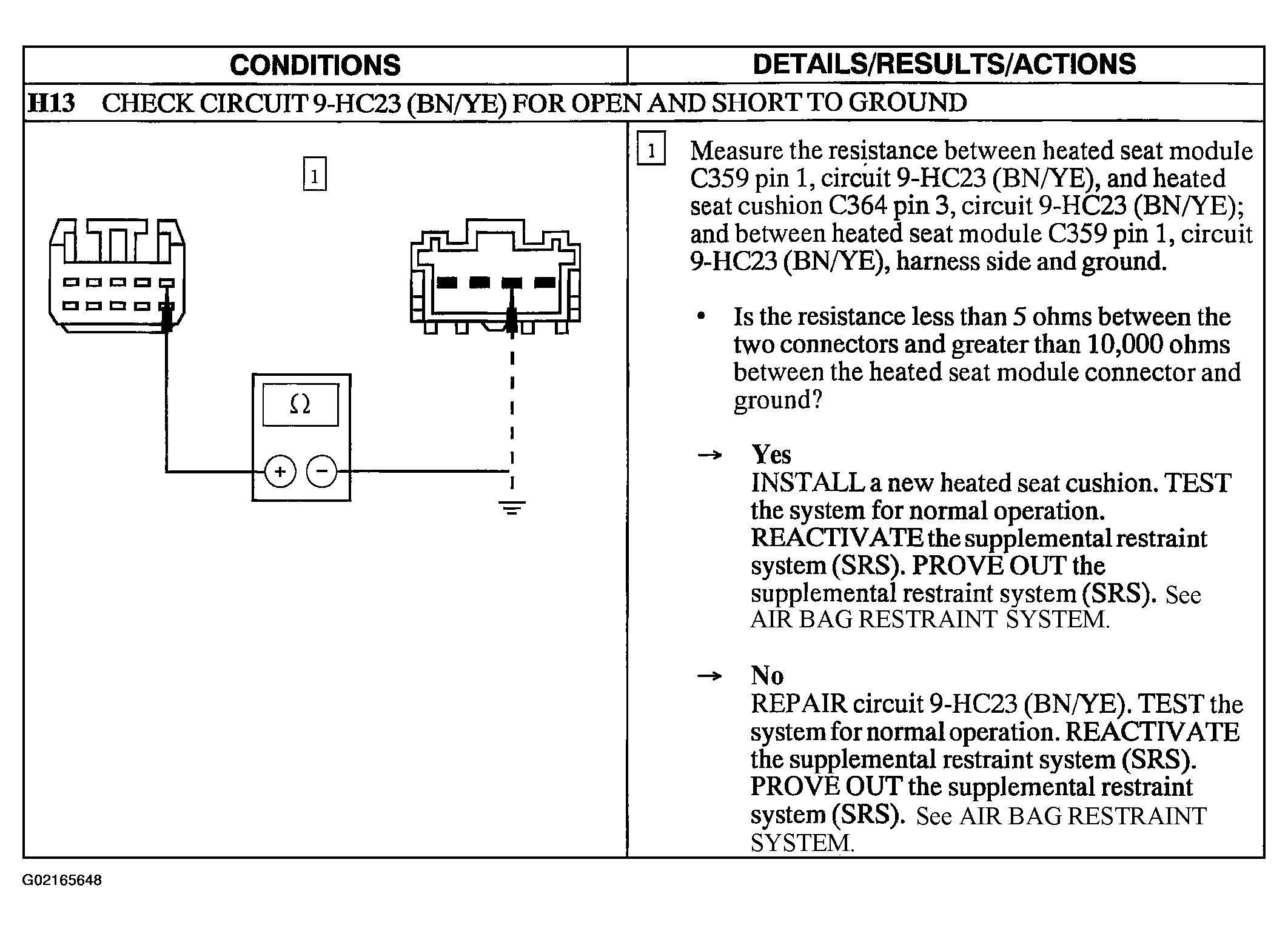

Fig 9: Pinpoint Test H: The Heated Seat Is Inoperative - Driver (Steps H13)

Courtesy of FORD MOTOR CO.
