Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Passenger

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

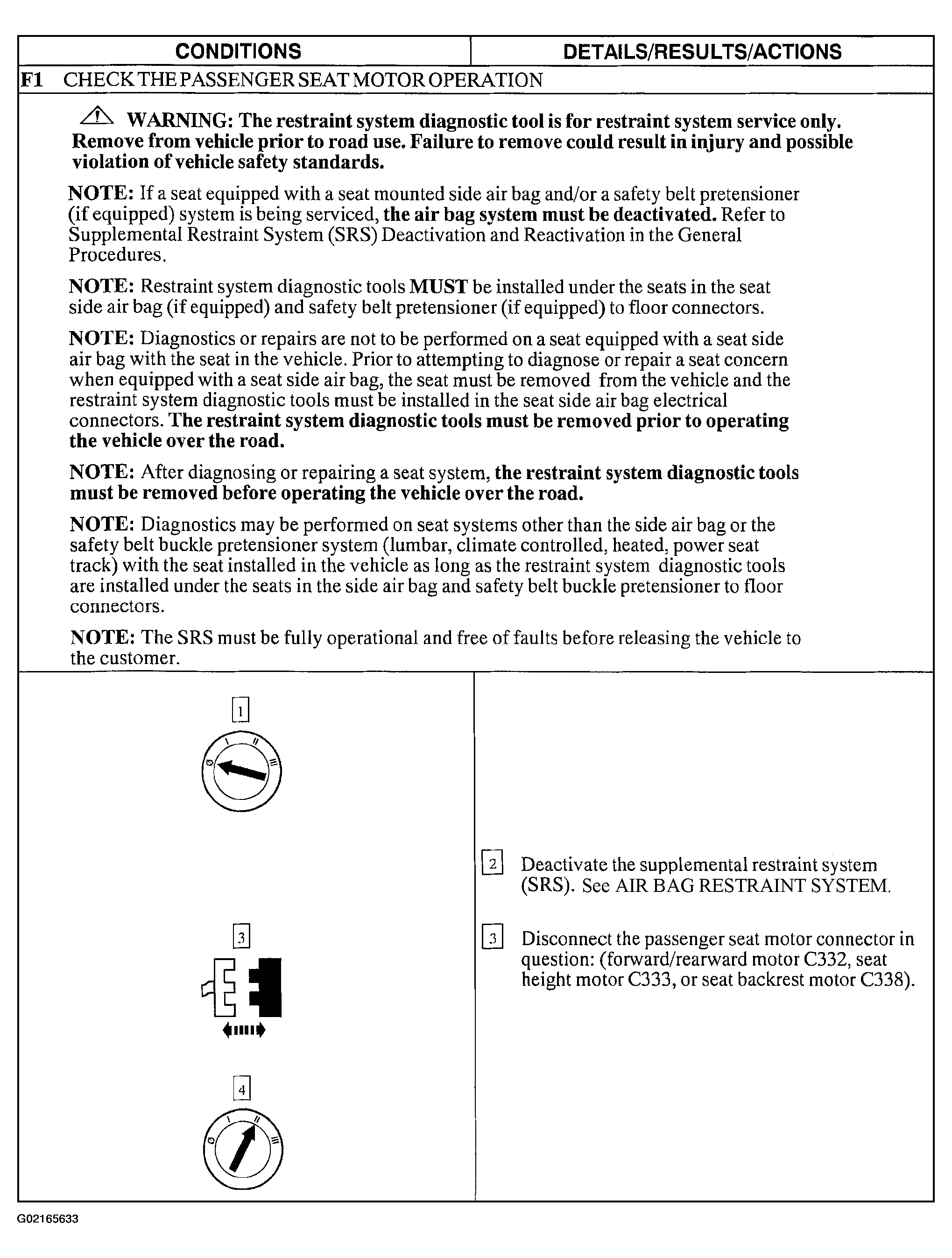

Fig 1: Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Passenger (Step F1)

Courtesy of FORD MOTOR CO.

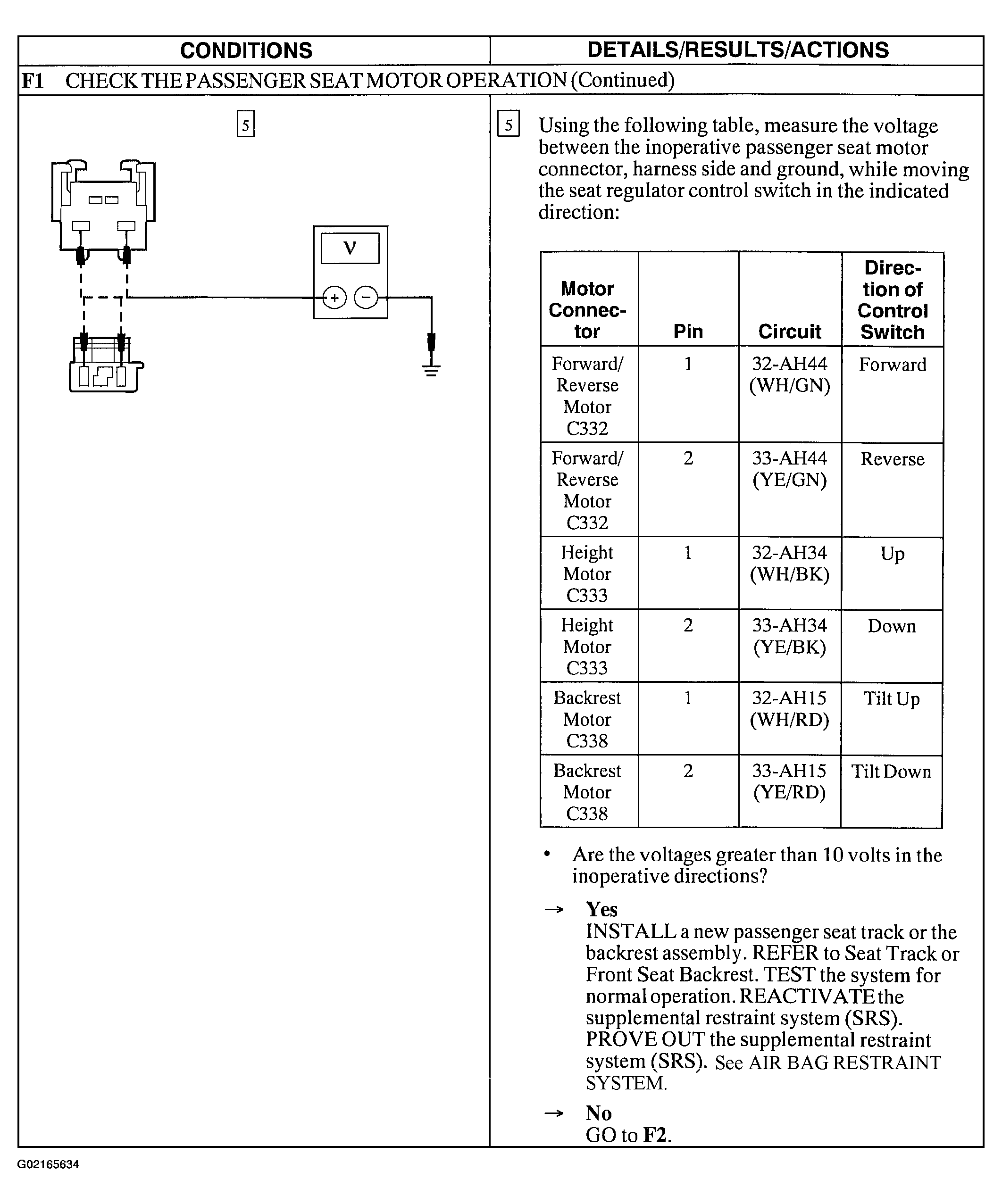

Fig 2: Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Passenger (Step F1 Cont.)

Courtesy of FORD MOTOR CO.

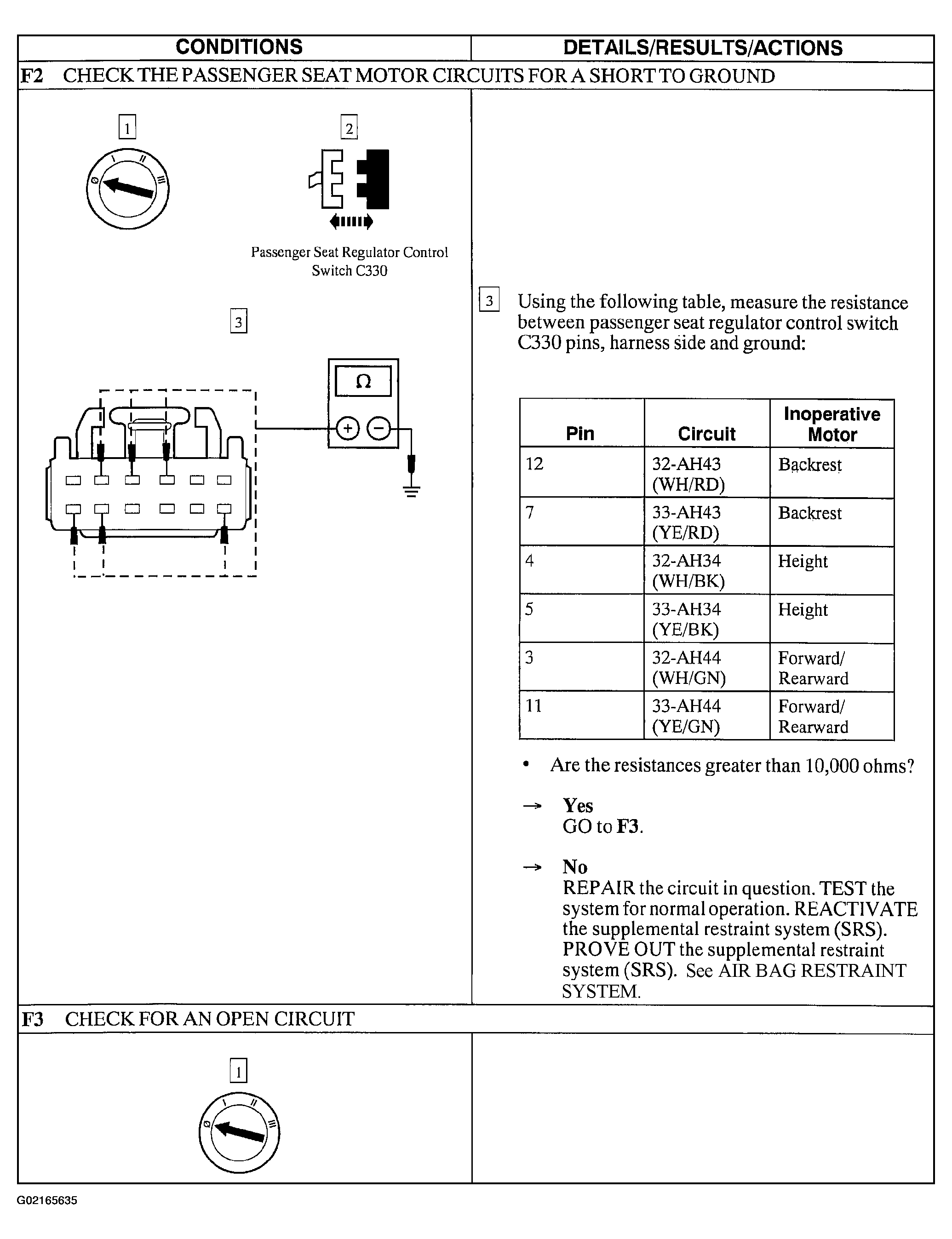

Fig 3: Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Passenger (Steps F2 & F3)

Courtesy of FORD MOTOR CO.

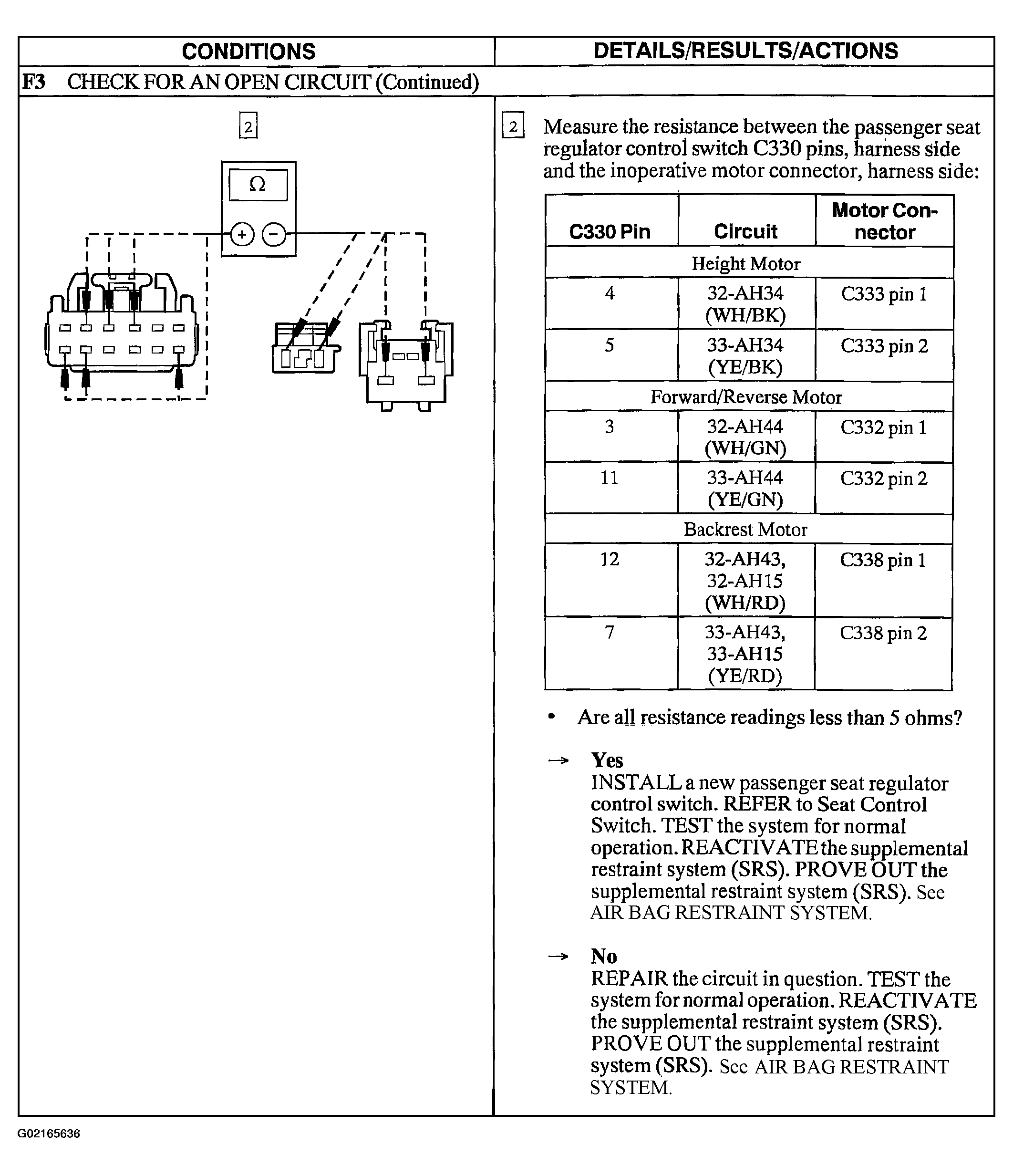

Fig 4: Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Passenger (Step F3 Cont.)

Courtesy of FORD MOTOR CO.
