Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

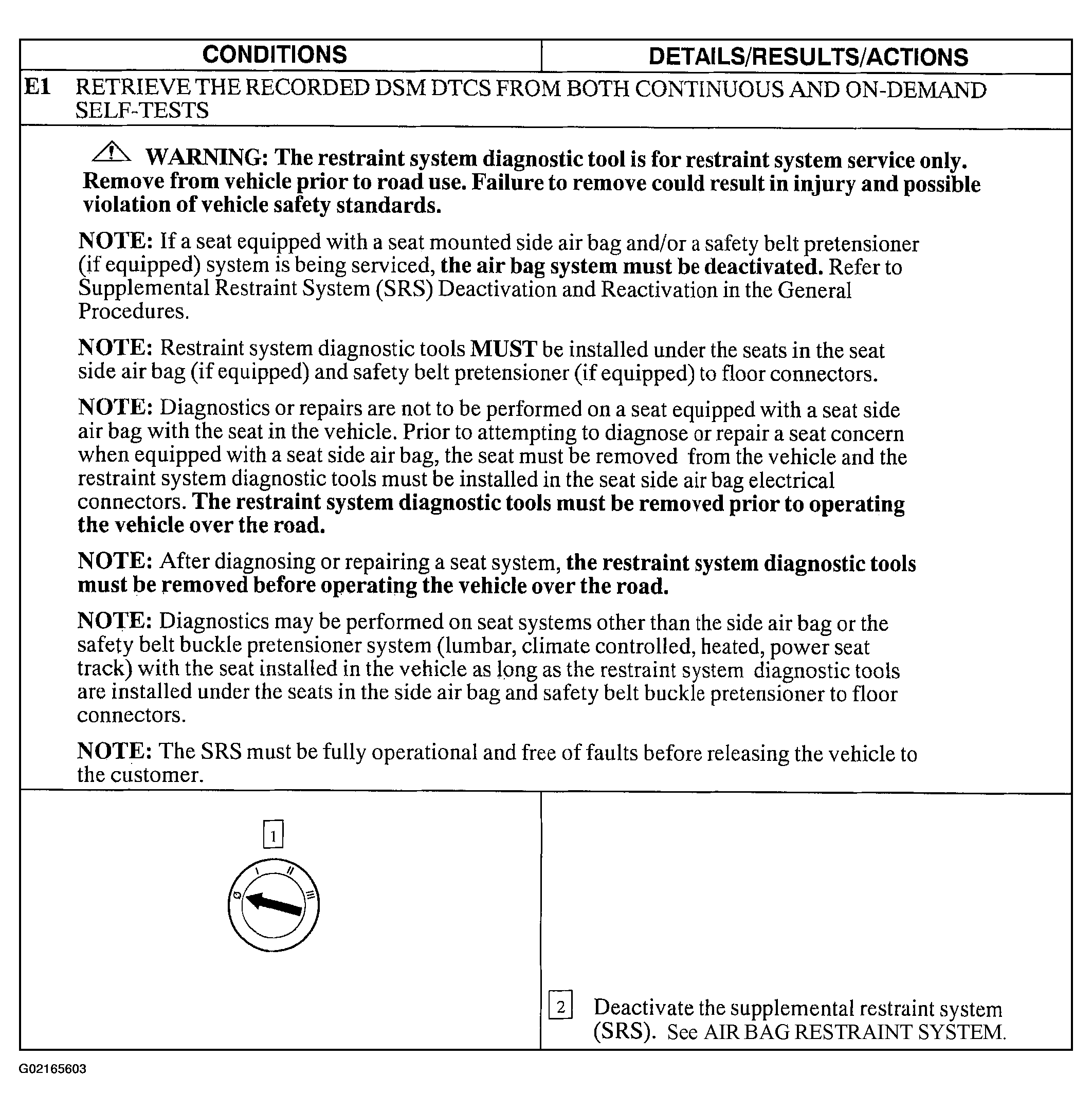

Fig 1: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Step E1)

Courtesy of FORD MOTOR CO.

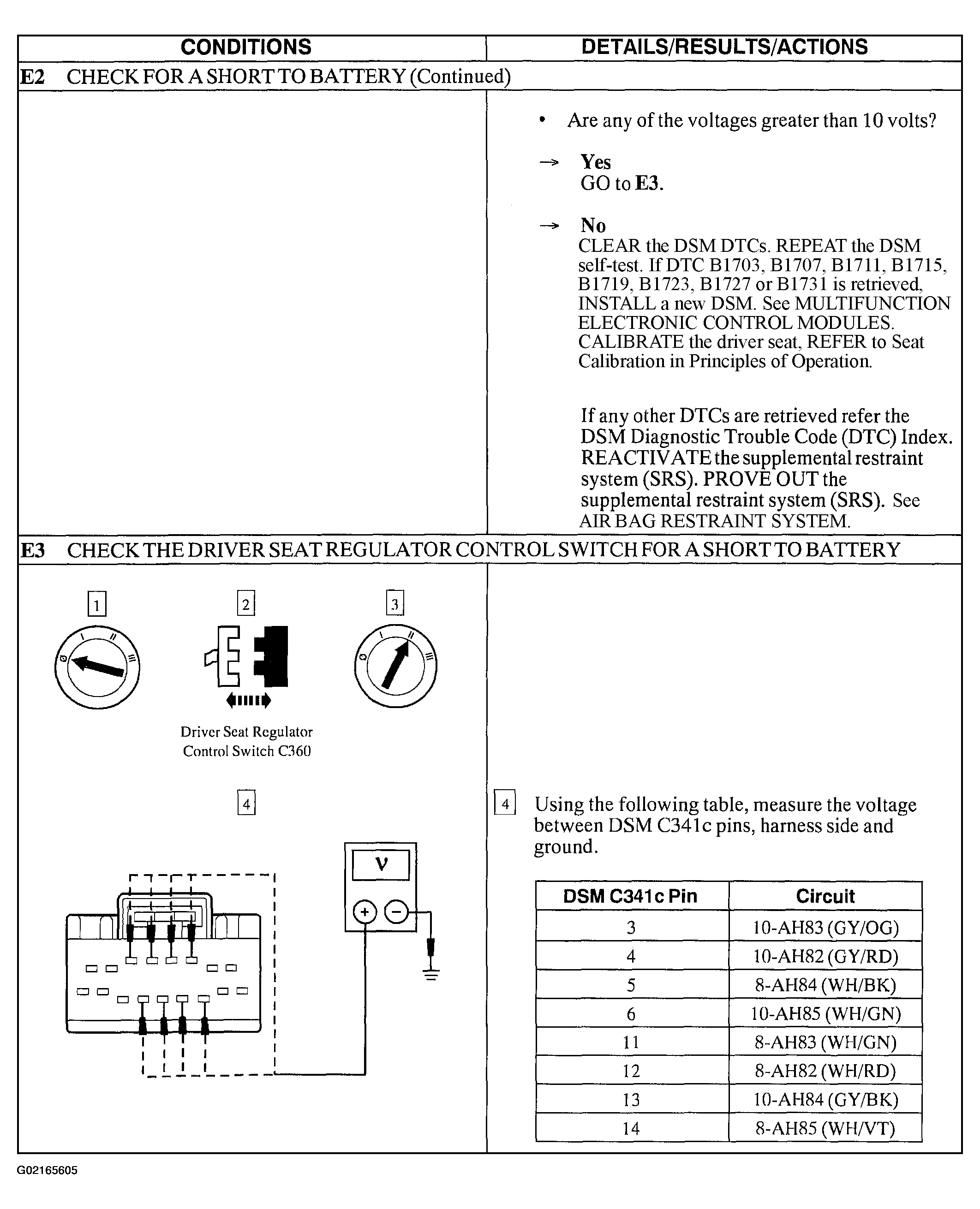

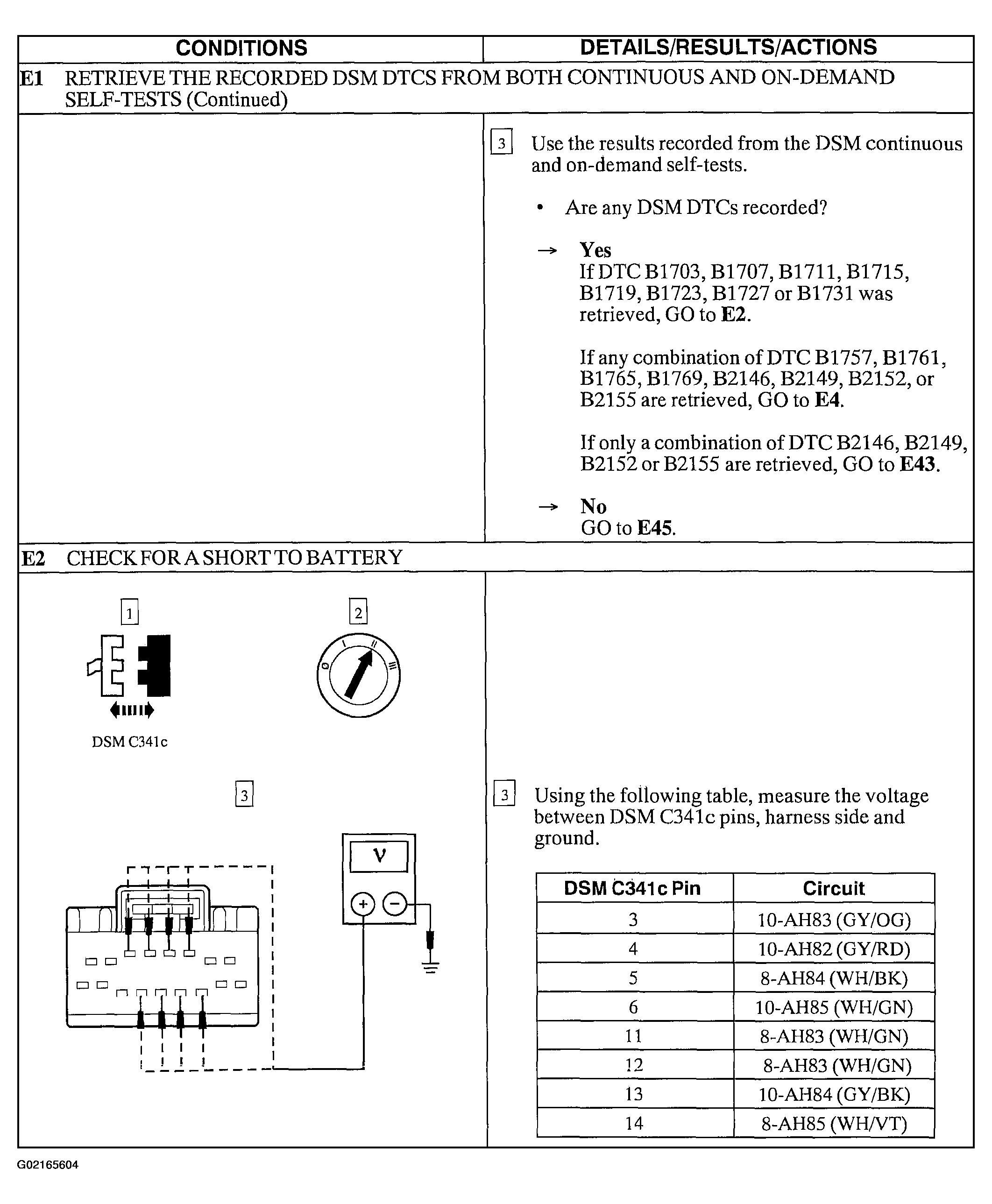

Fig 2: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E1 Cont. & E2)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E2 Cont. & E3)

Courtesy of FORD MOTOR CO.

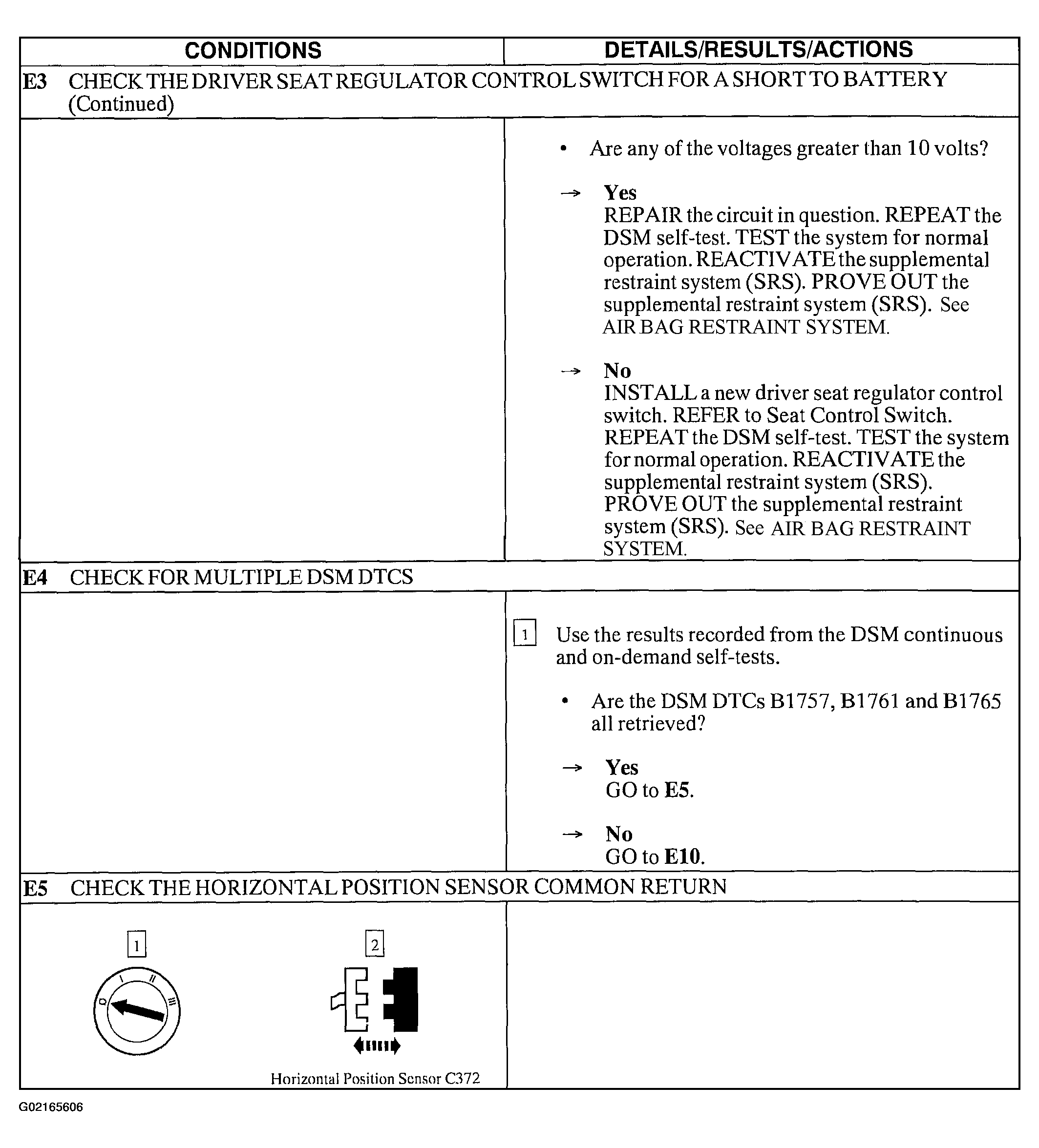

Fig 4: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E3 Cont. -E5)

Courtesy of FORD MOTOR CO.

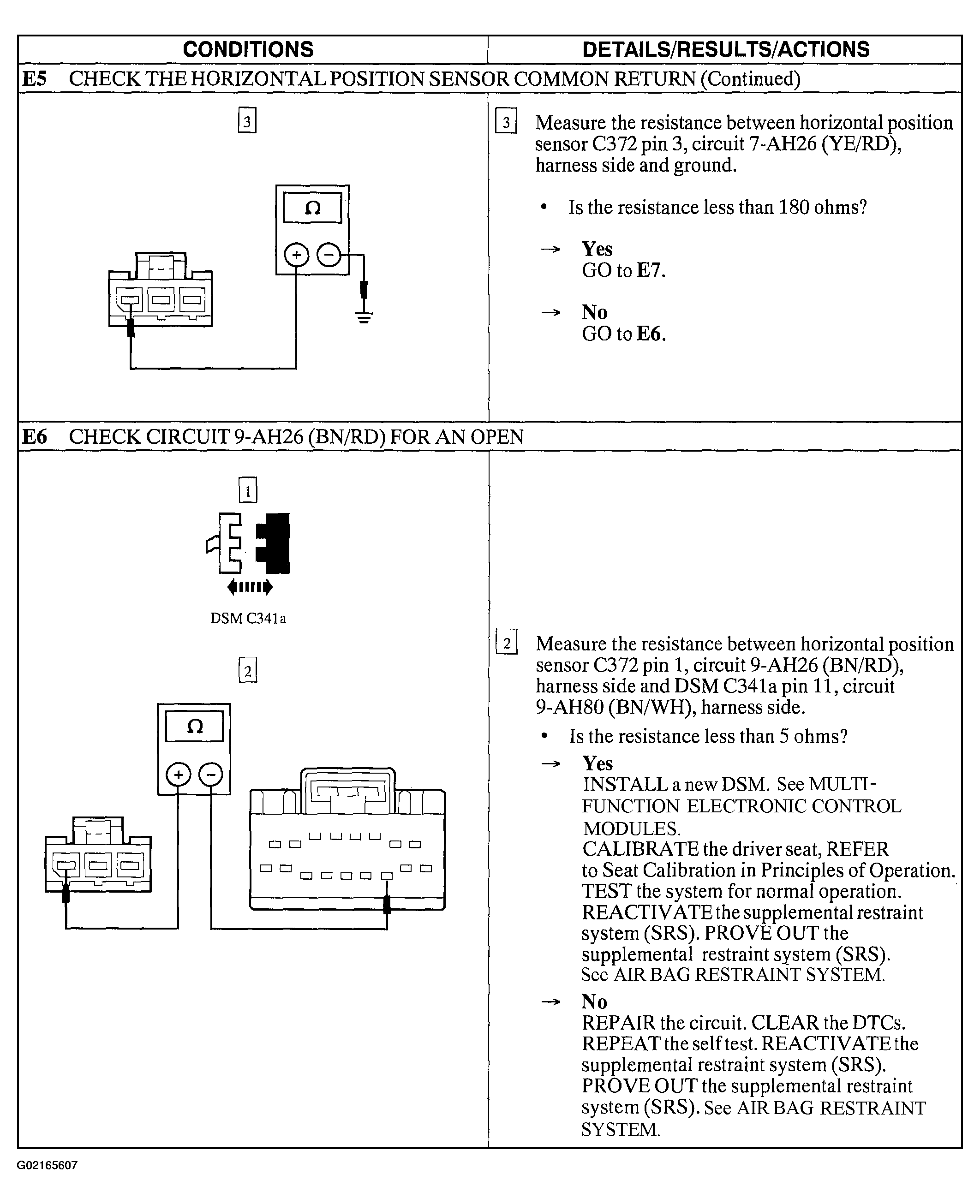

Fig 5: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E5 Cont. & E6)

Courtesy of FORD MOTOR CO.

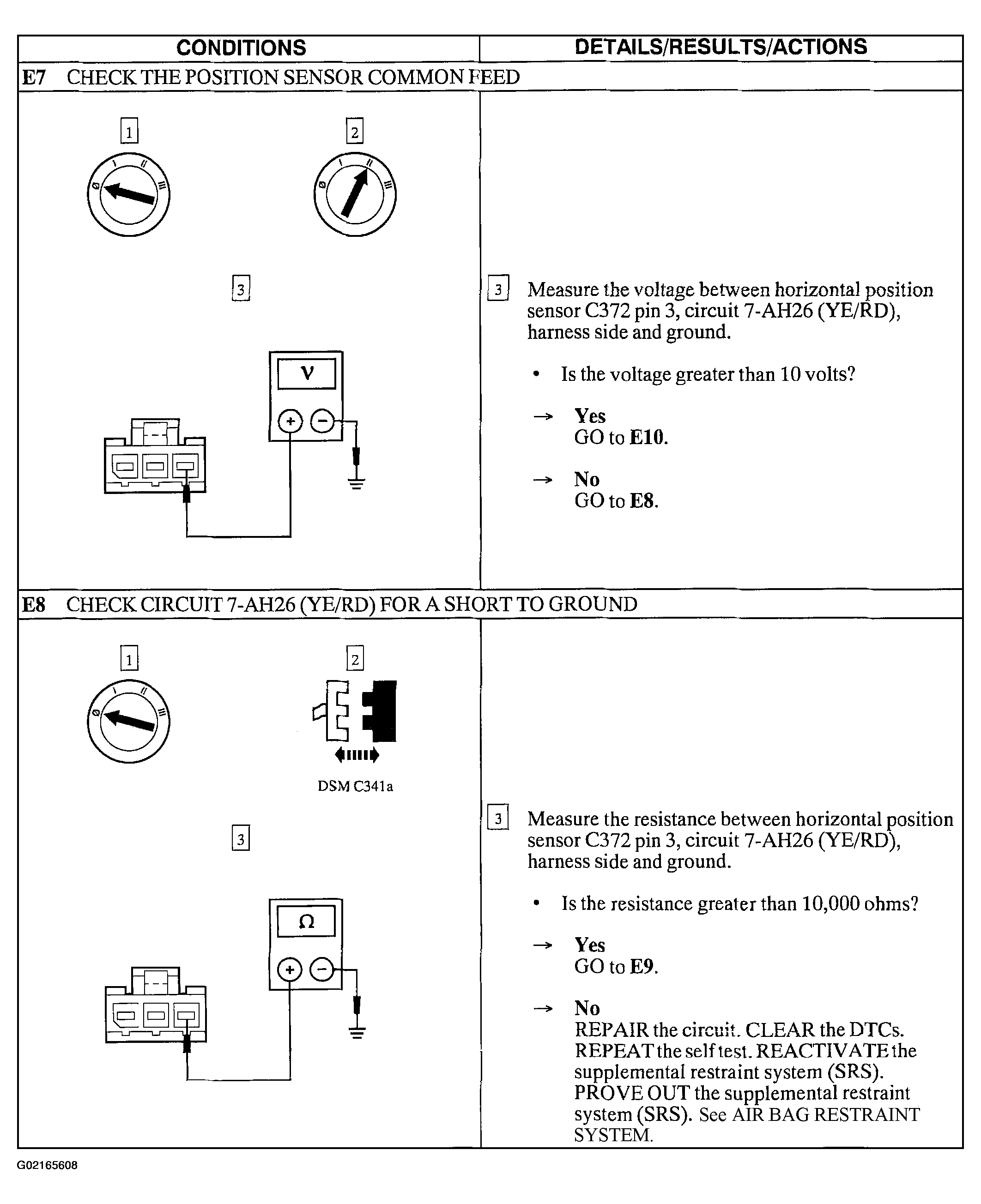

Fig 6: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E7 & E8)

Courtesy of FORD MOTOR CO.

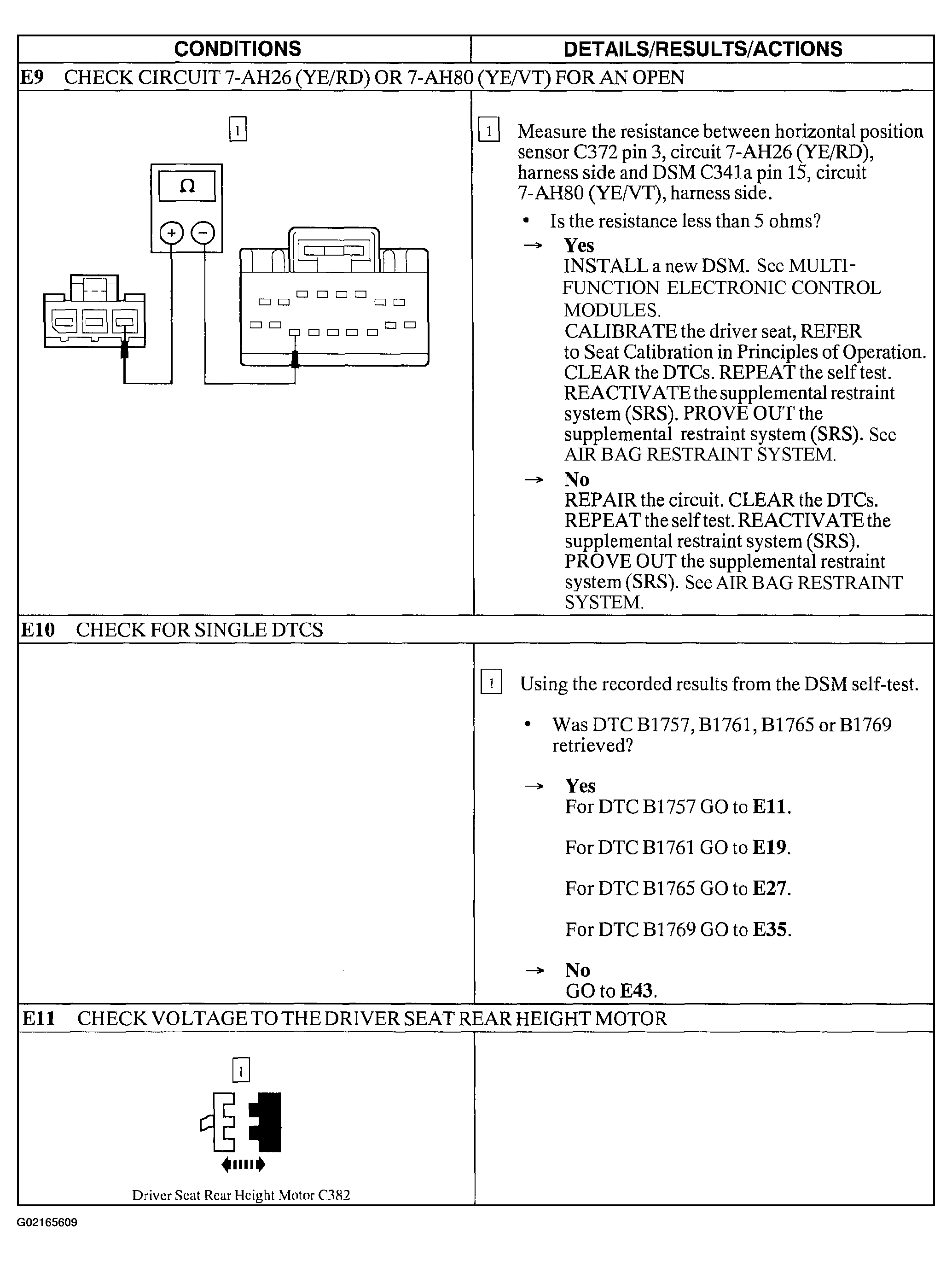

Fig 7: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E9-E11)

Courtesy of FORD MOTOR CO.

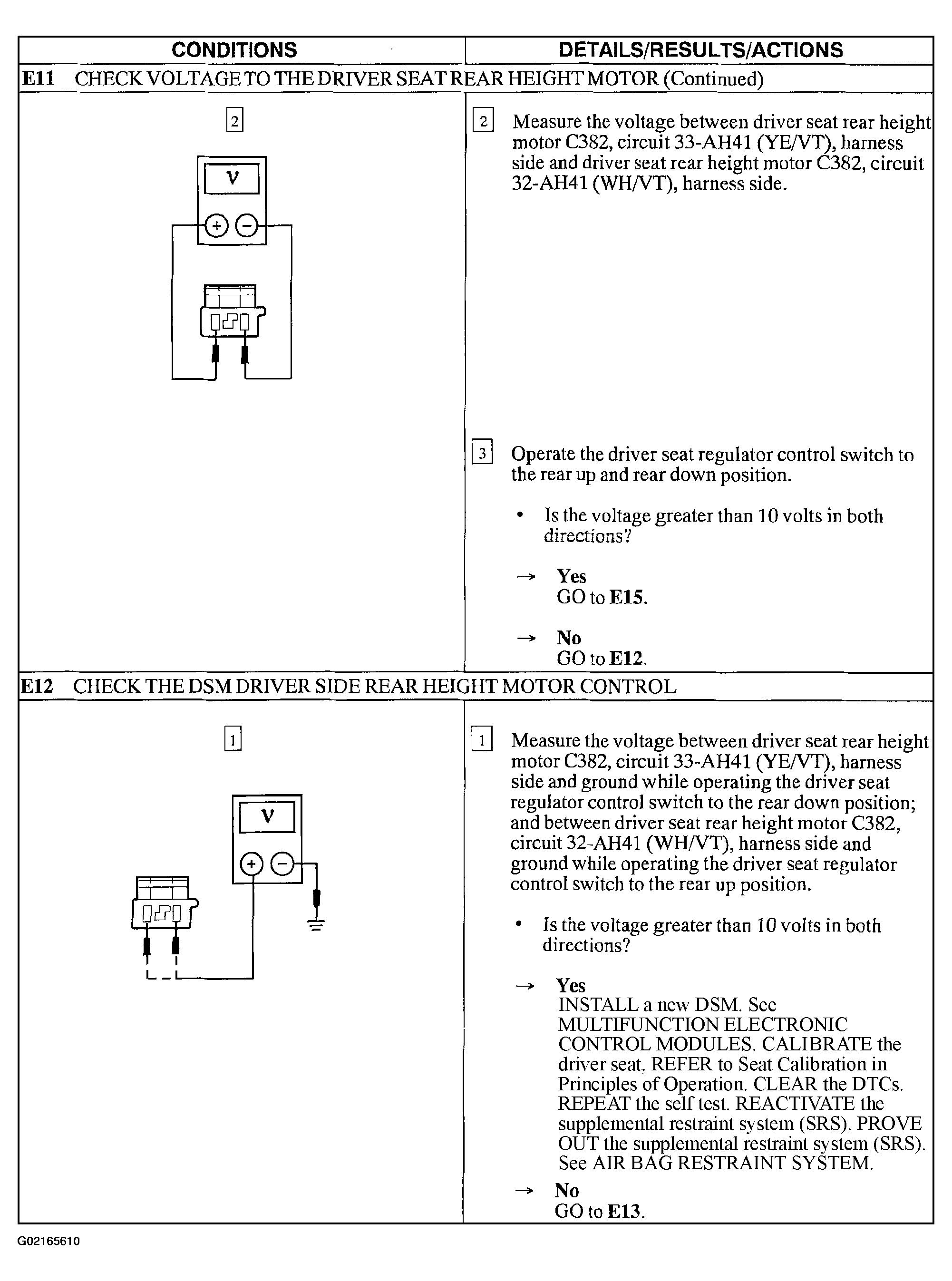

Fig 8: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E11 Cont. & E12)

Courtesy of FORD MOTOR CO.

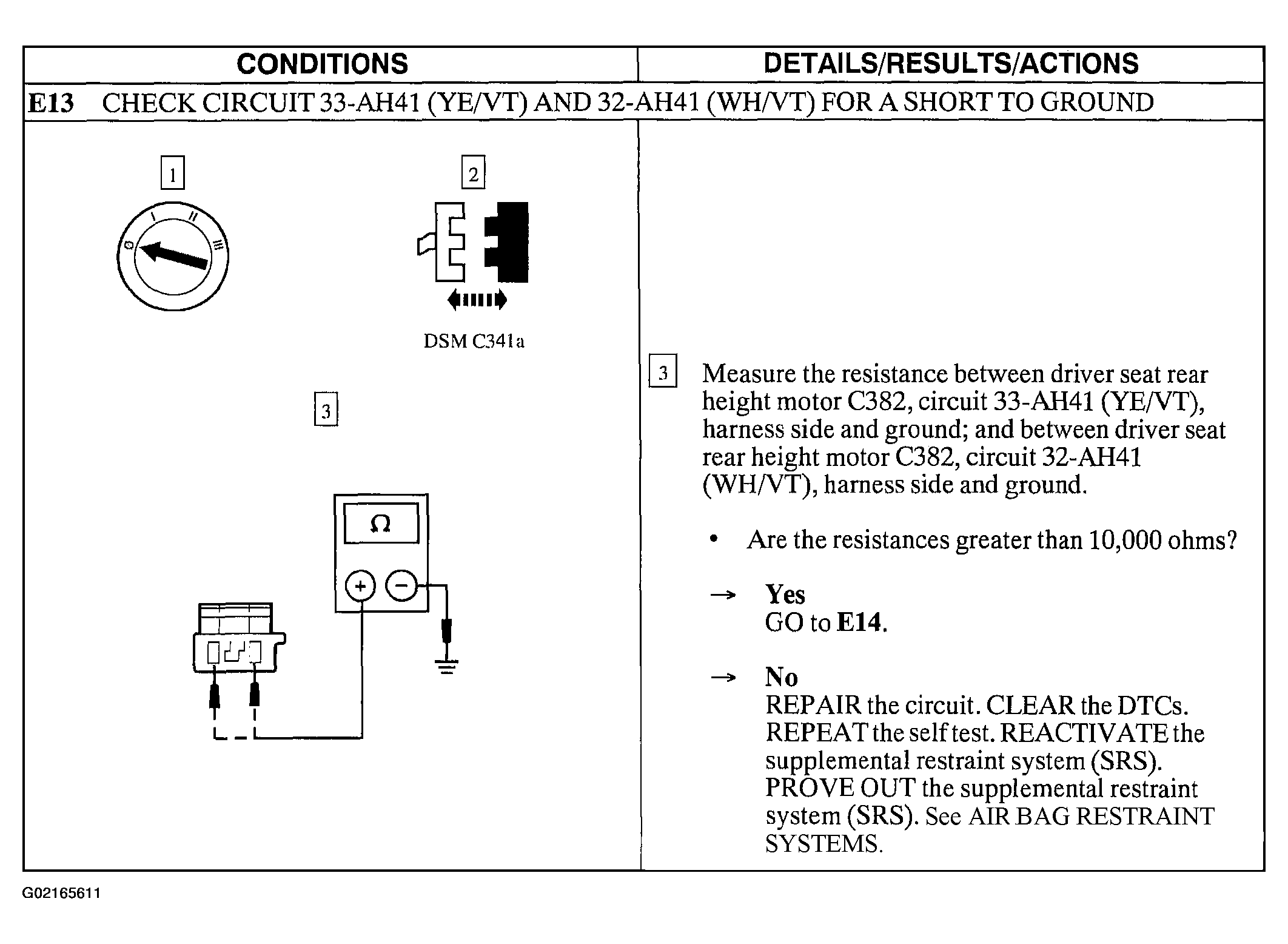

Fig 9: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Step E13)

Courtesy of FORD MOTOR CO.

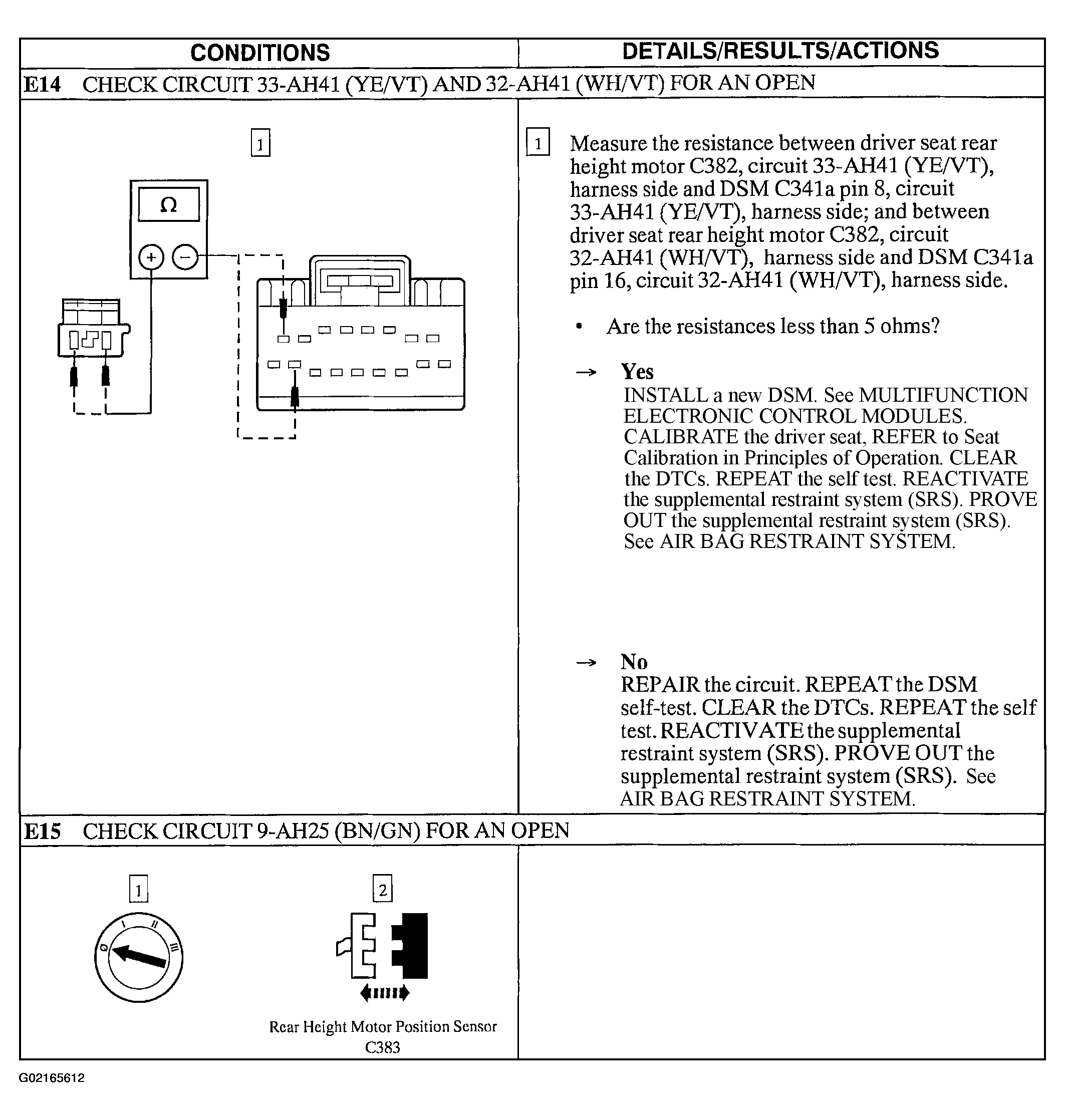

Fig 10: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E14 & E15)

Courtesy of FORD MOTOR CO.

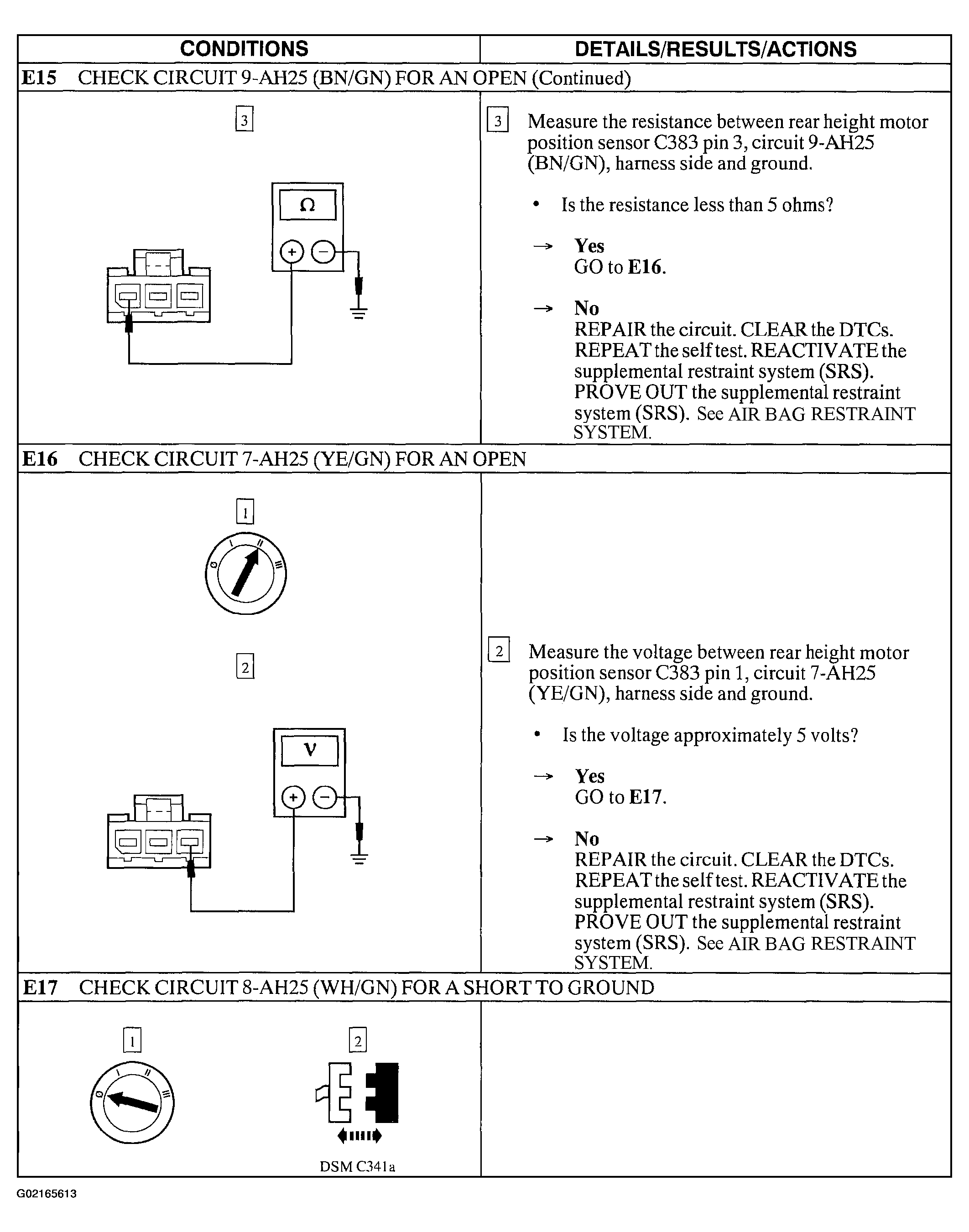

Fig 11: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E15 Cont. -E17)

Courtesy of FORD MOTOR CO.

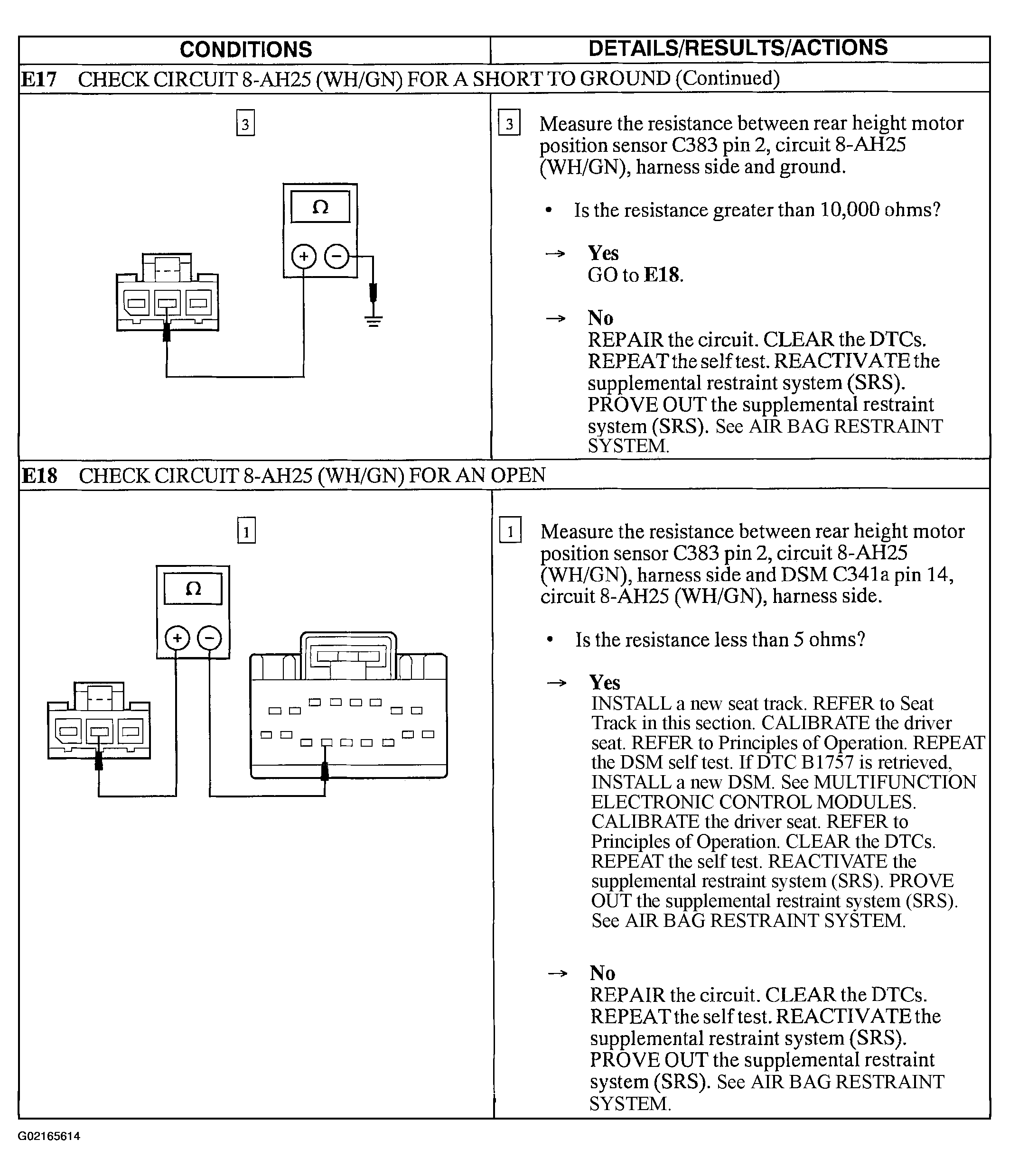

Fig 12: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E17 Cont. & E18)

Courtesy of FORD MOTOR CO.

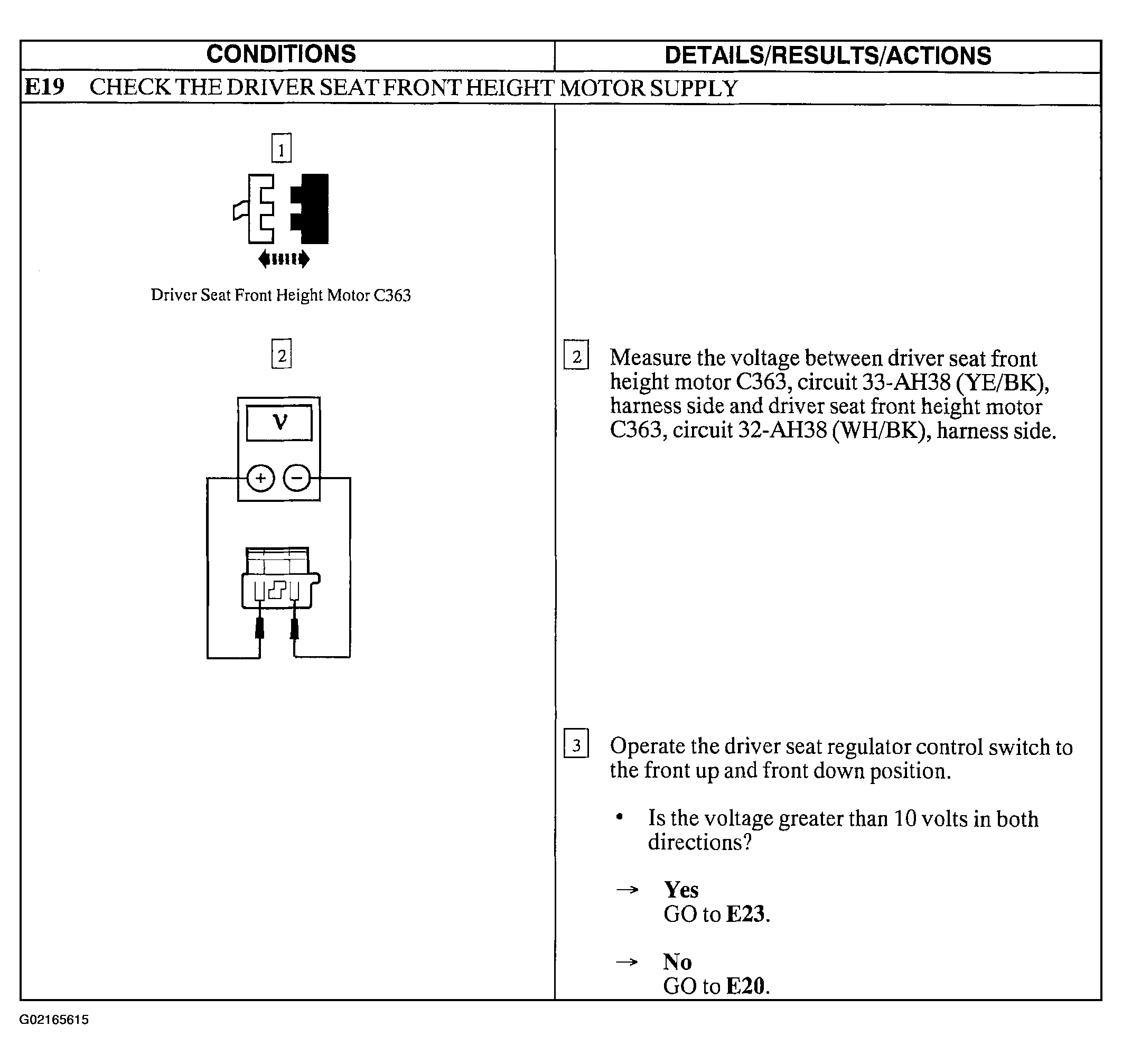

Fig 13: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Step E19)

Courtesy of FORD MOTOR CO.

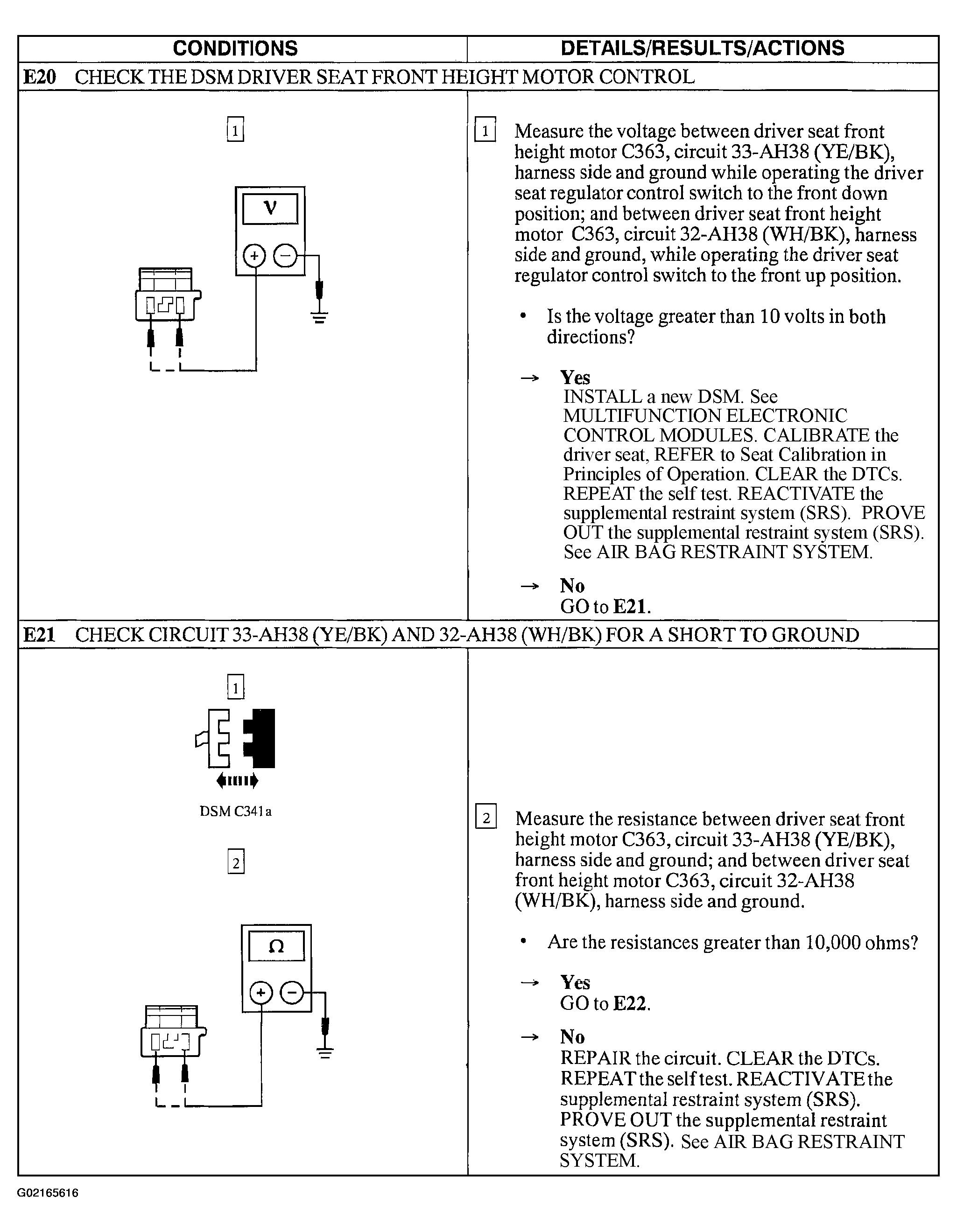

Fig 14: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E20 & E21)

Courtesy of FORD MOTOR CO.

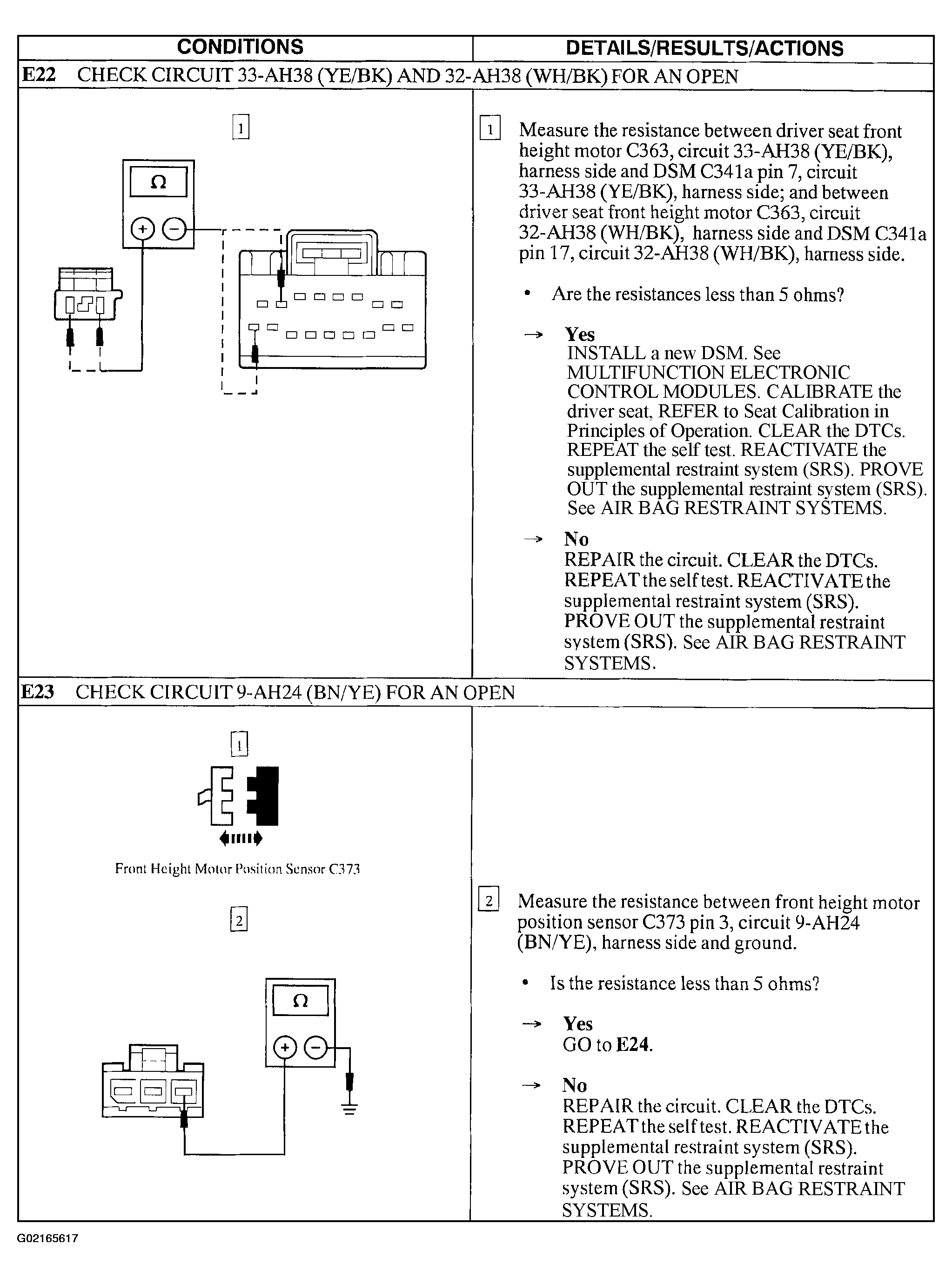

Fig 15: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E22 & E23)

Courtesy of FORD MOTOR CO.

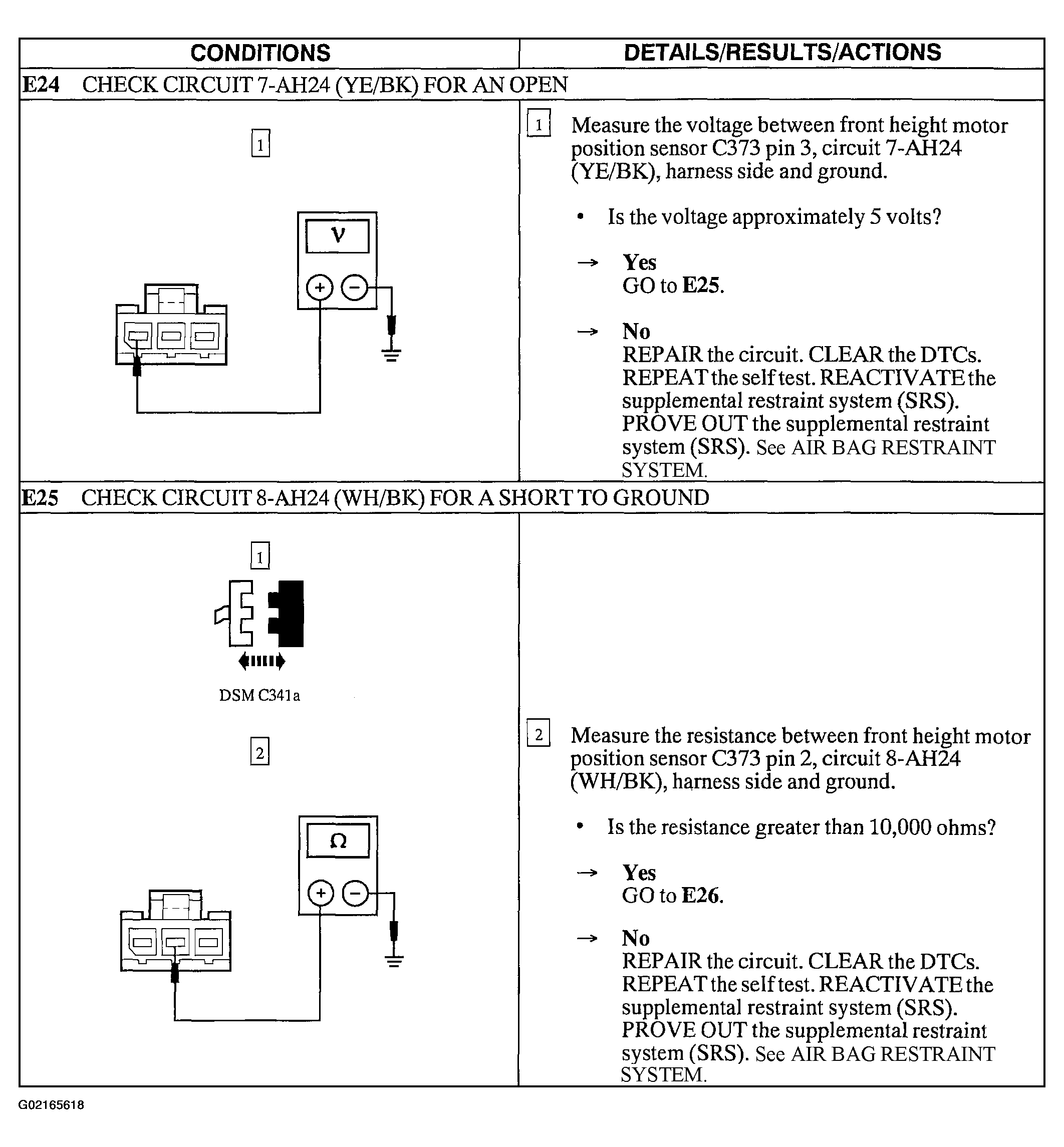

Fig 16: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E24 & E25)

Courtesy of FORD MOTOR CO.

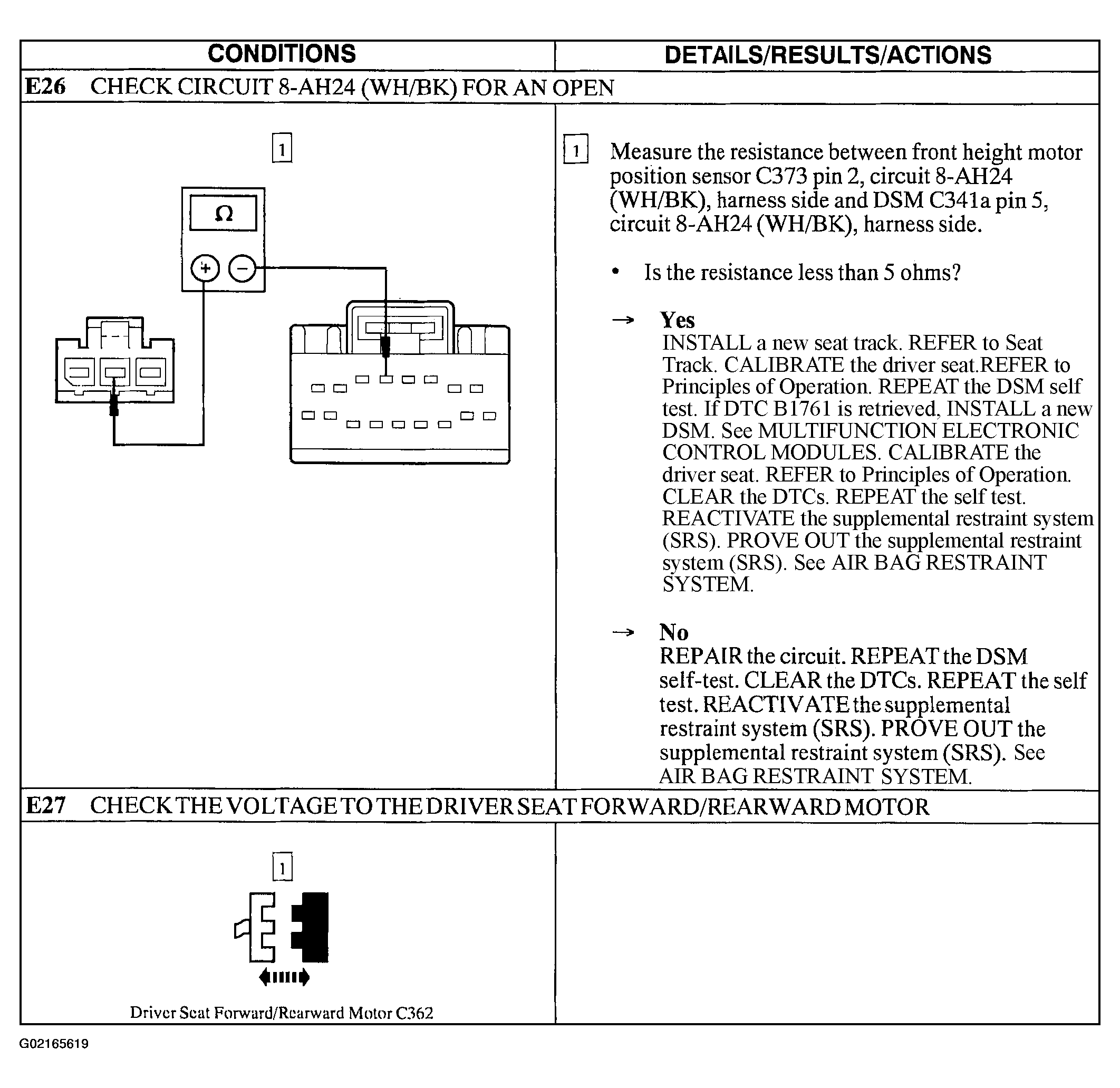

Fig 17: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E26 & E27)

Courtesy of FORD MOTOR CO.

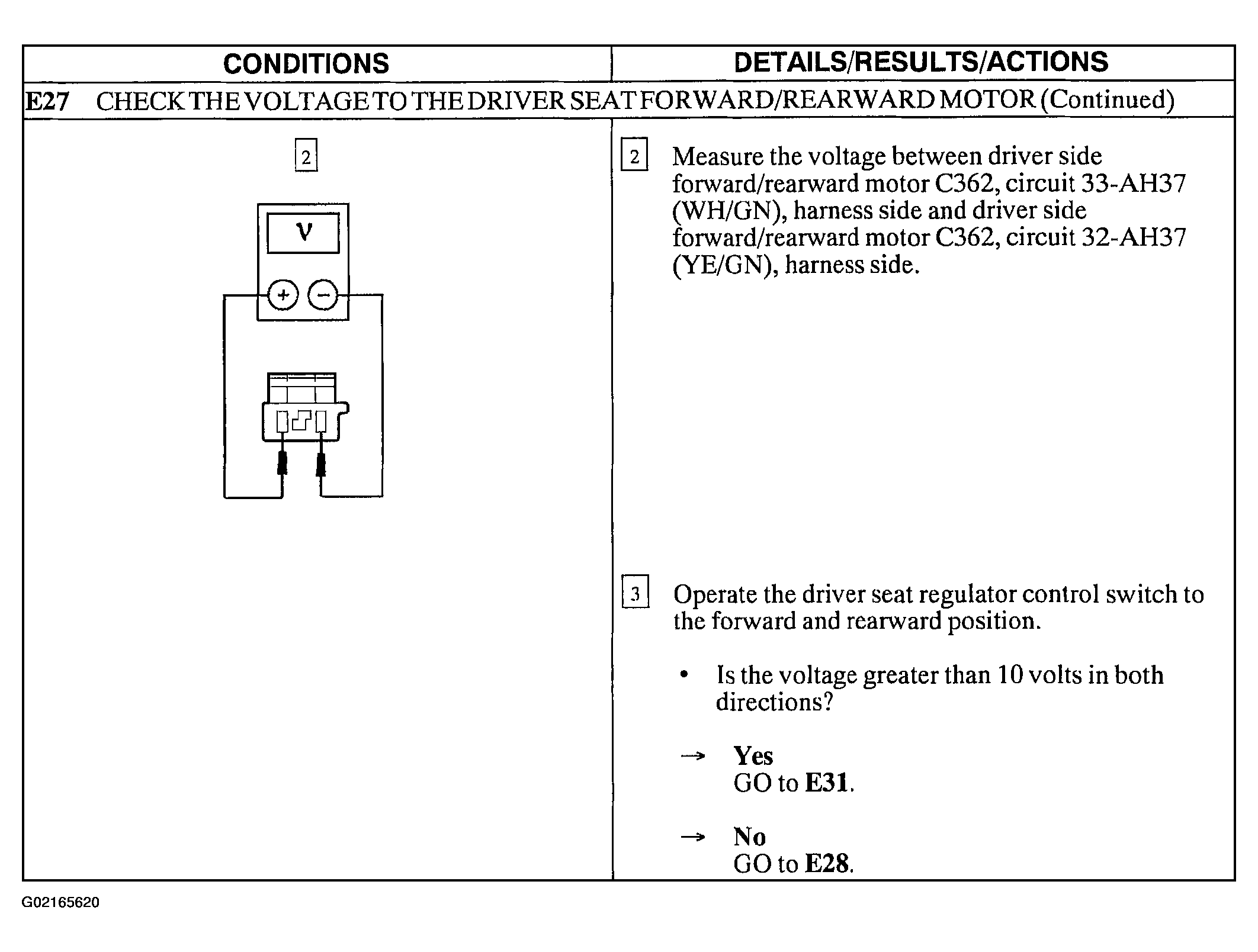

Fig 18: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Step E27 Cont.)

Courtesy of FORD MOTOR CO.

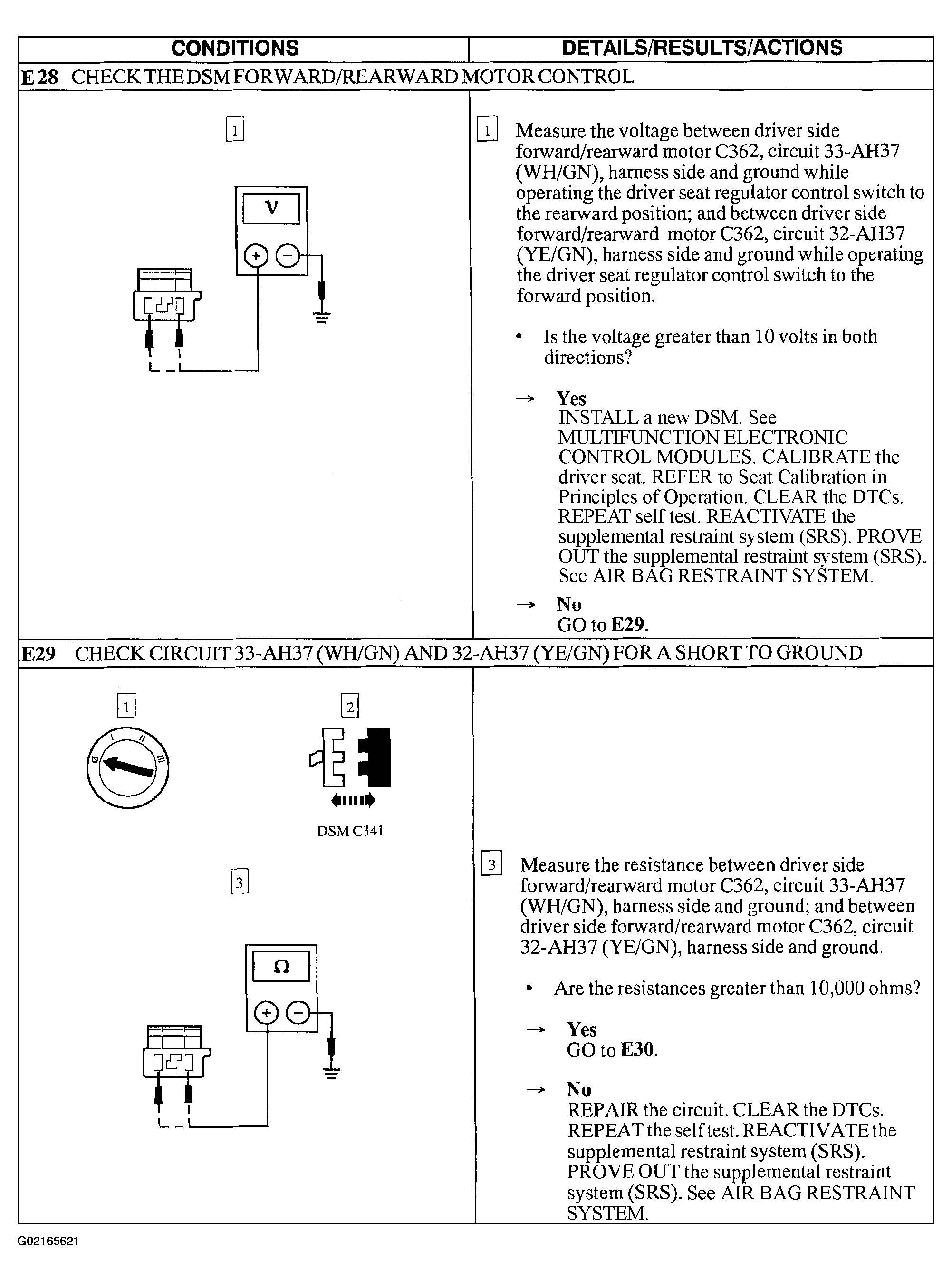

Fig 19: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E28 & E29)

Courtesy of FORD MOTOR CO.

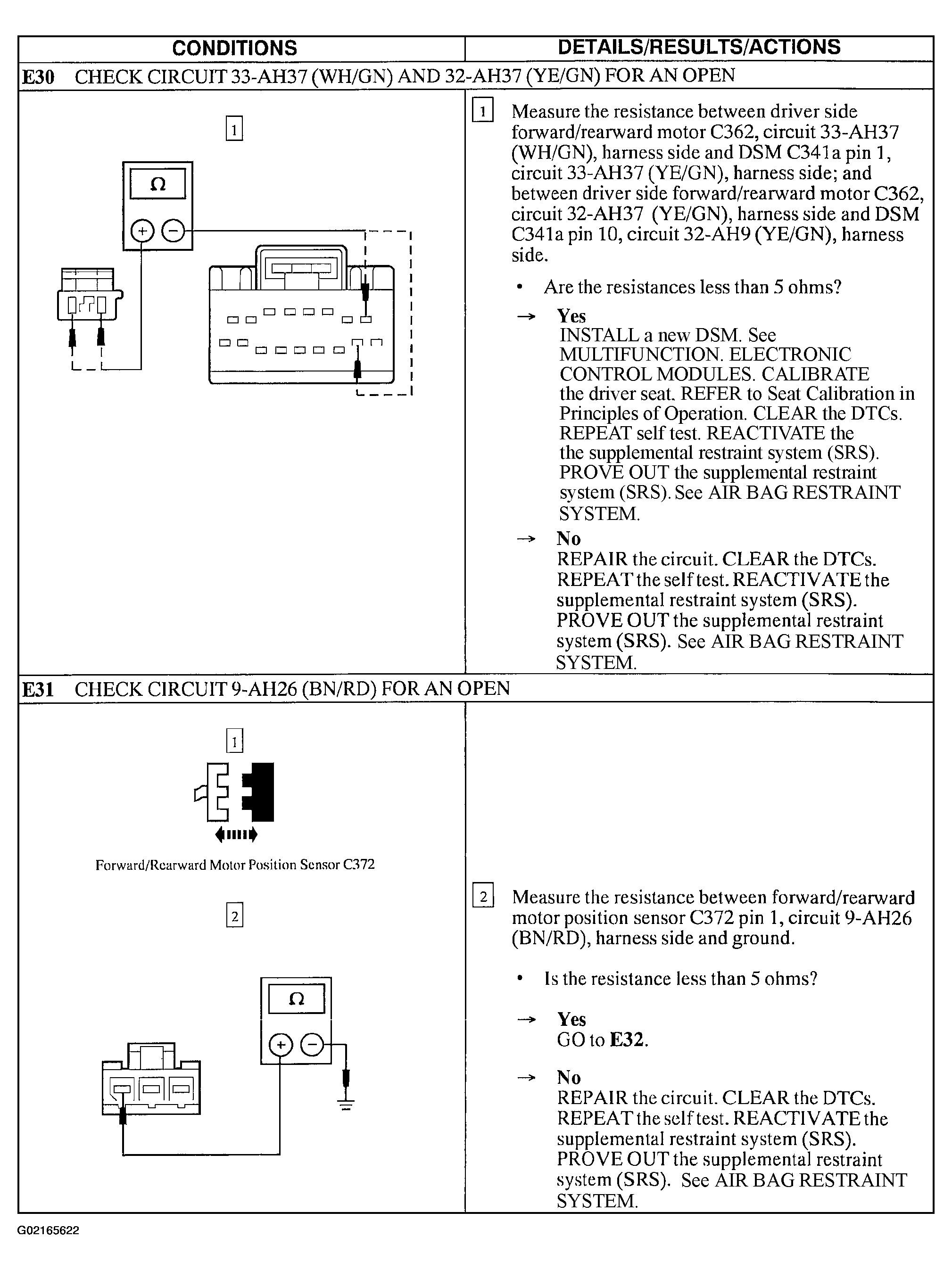

Fig 20: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E30 & E31)

Courtesy of FORD MOTOR CO.

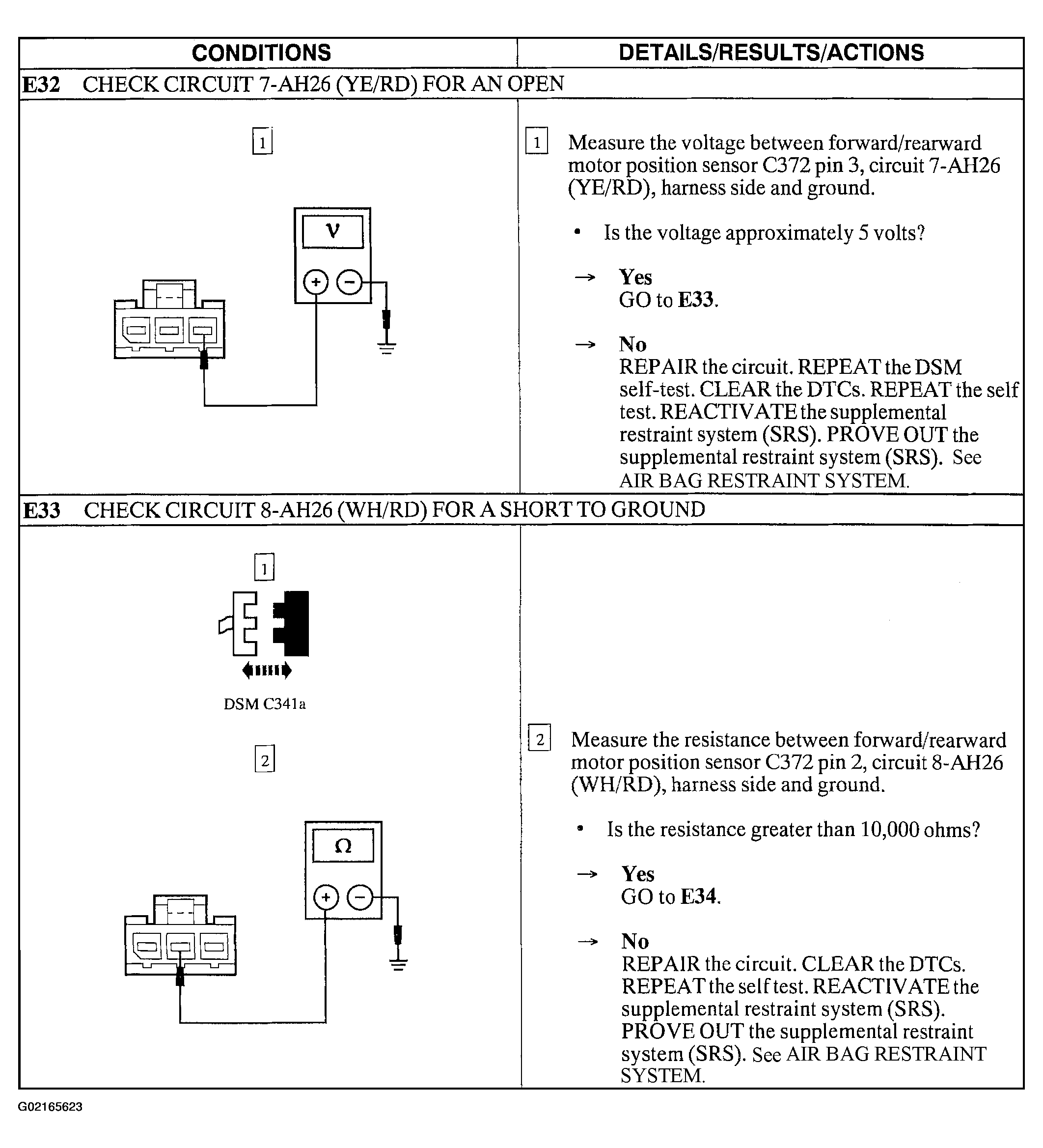

Fig 21: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E32 & E33)

Courtesy of FORD MOTOR CO.

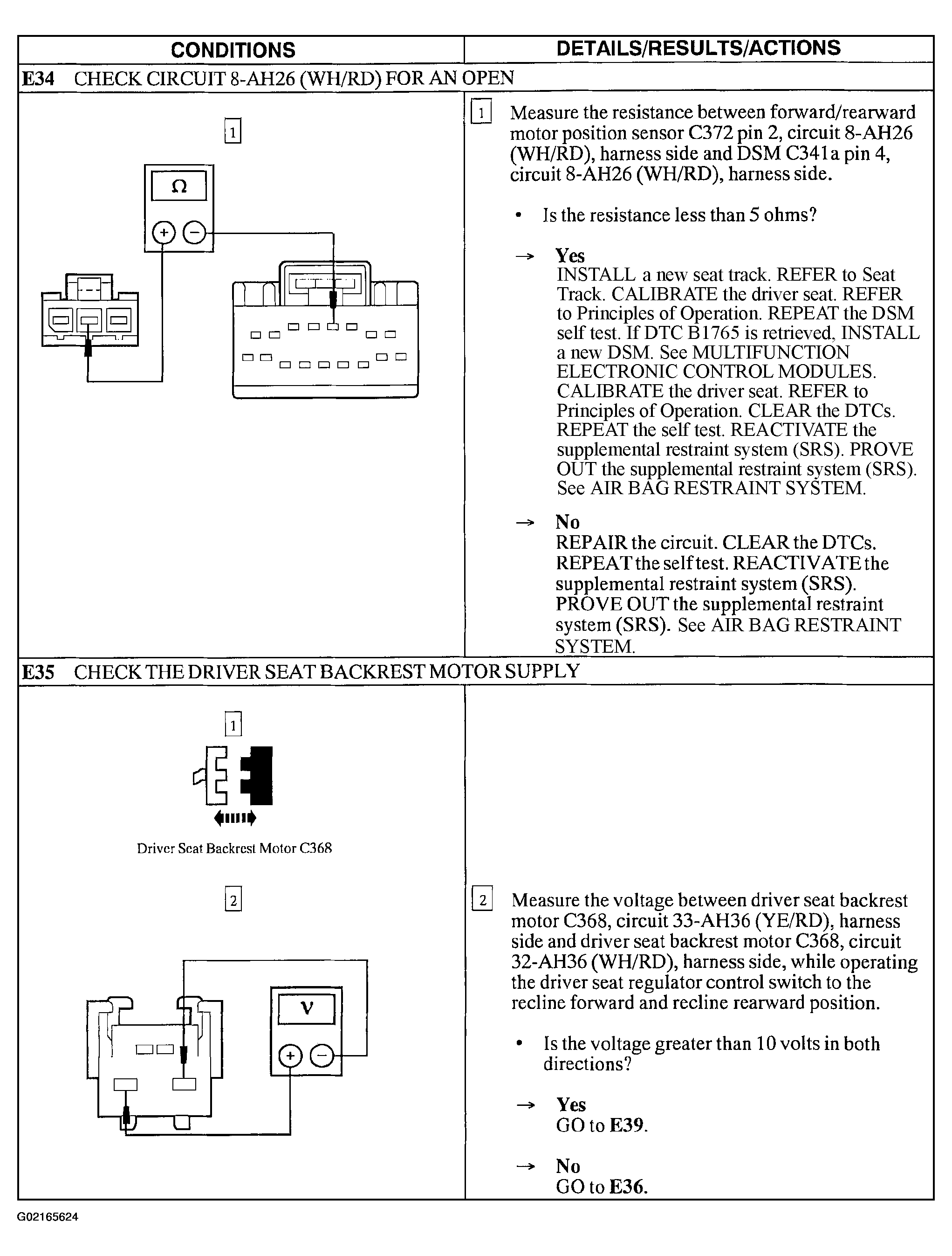

Fig 22: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E34 & E35)

Courtesy of FORD MOTOR CO.

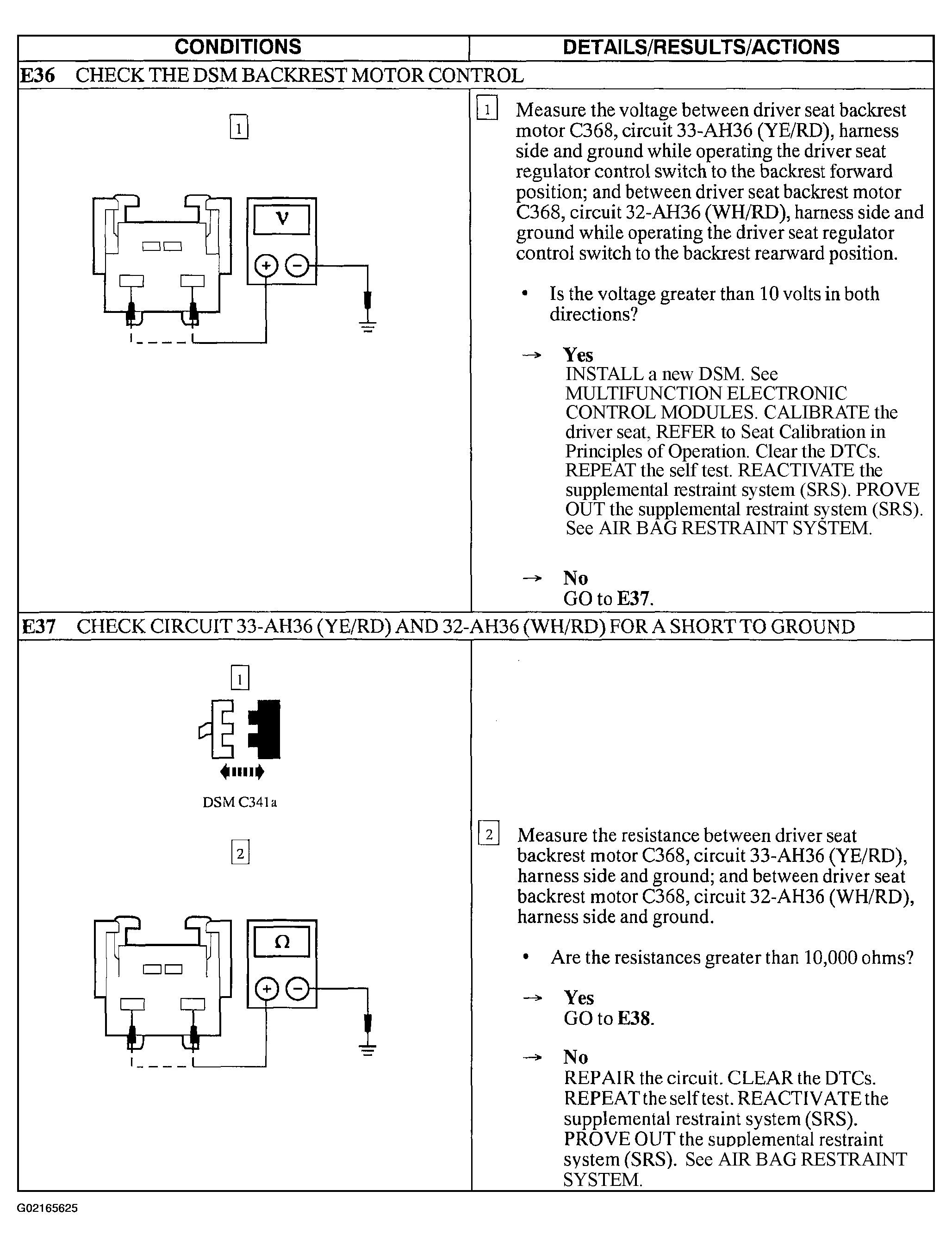

Fig 23: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E36 & E37)

Courtesy of FORD MOTOR CO.

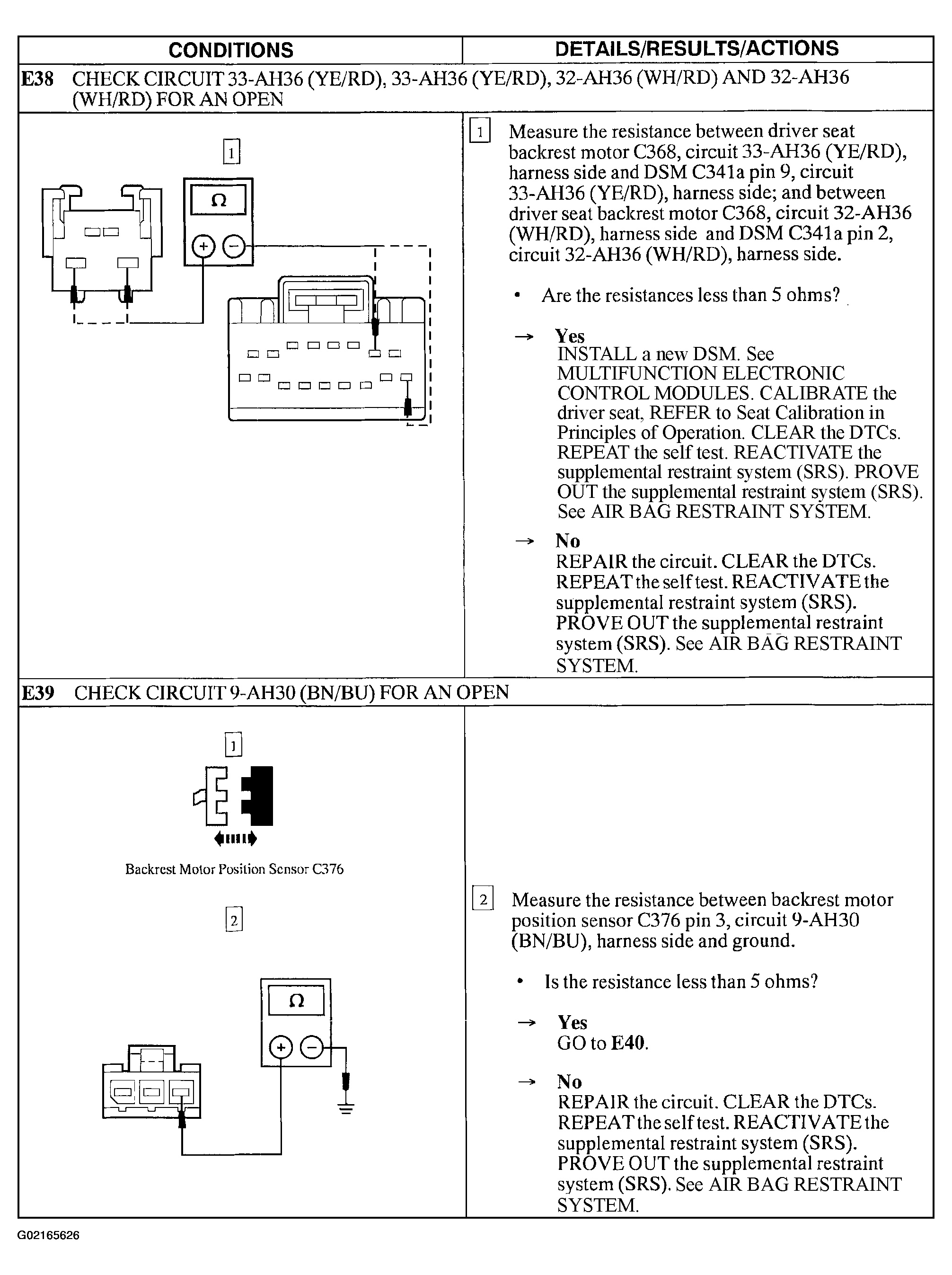

Fig 24: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E38 & E39)

Courtesy of FORD MOTOR CO.

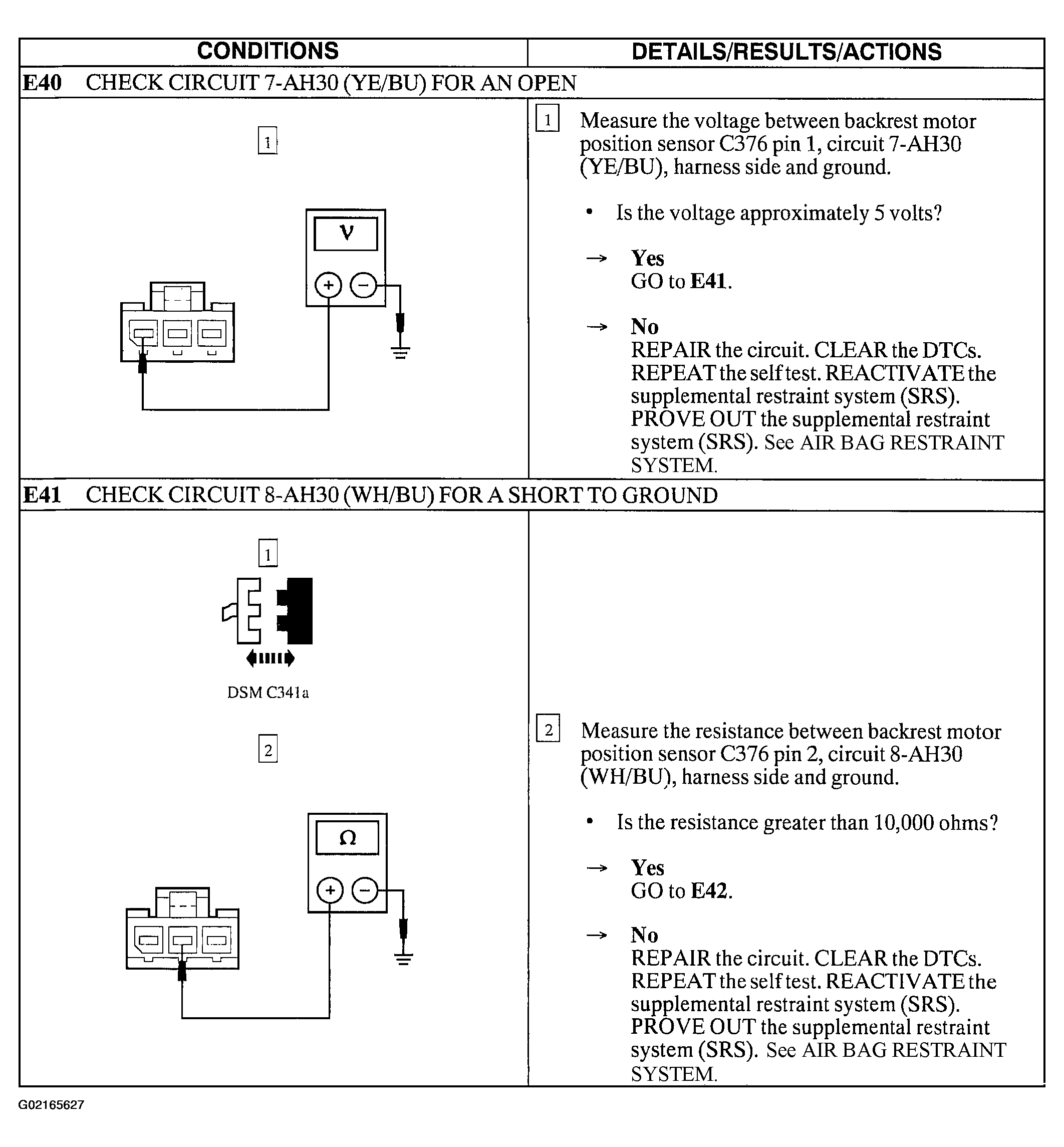

Fig 25: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E40 & E41)

Courtesy of FORD MOTOR CO.

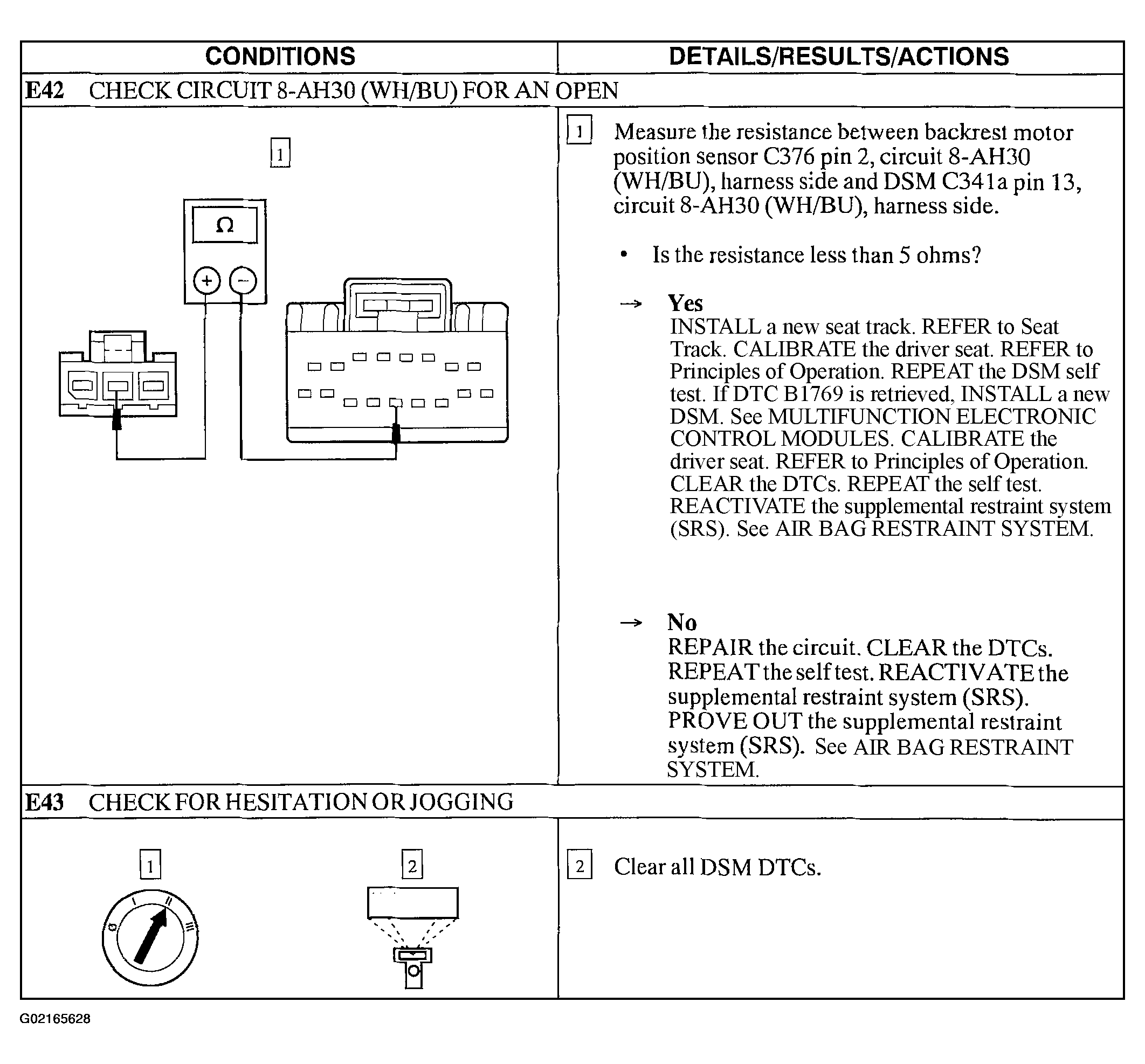

Fig 26: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E42 & E43)

Courtesy of FORD MOTOR CO.

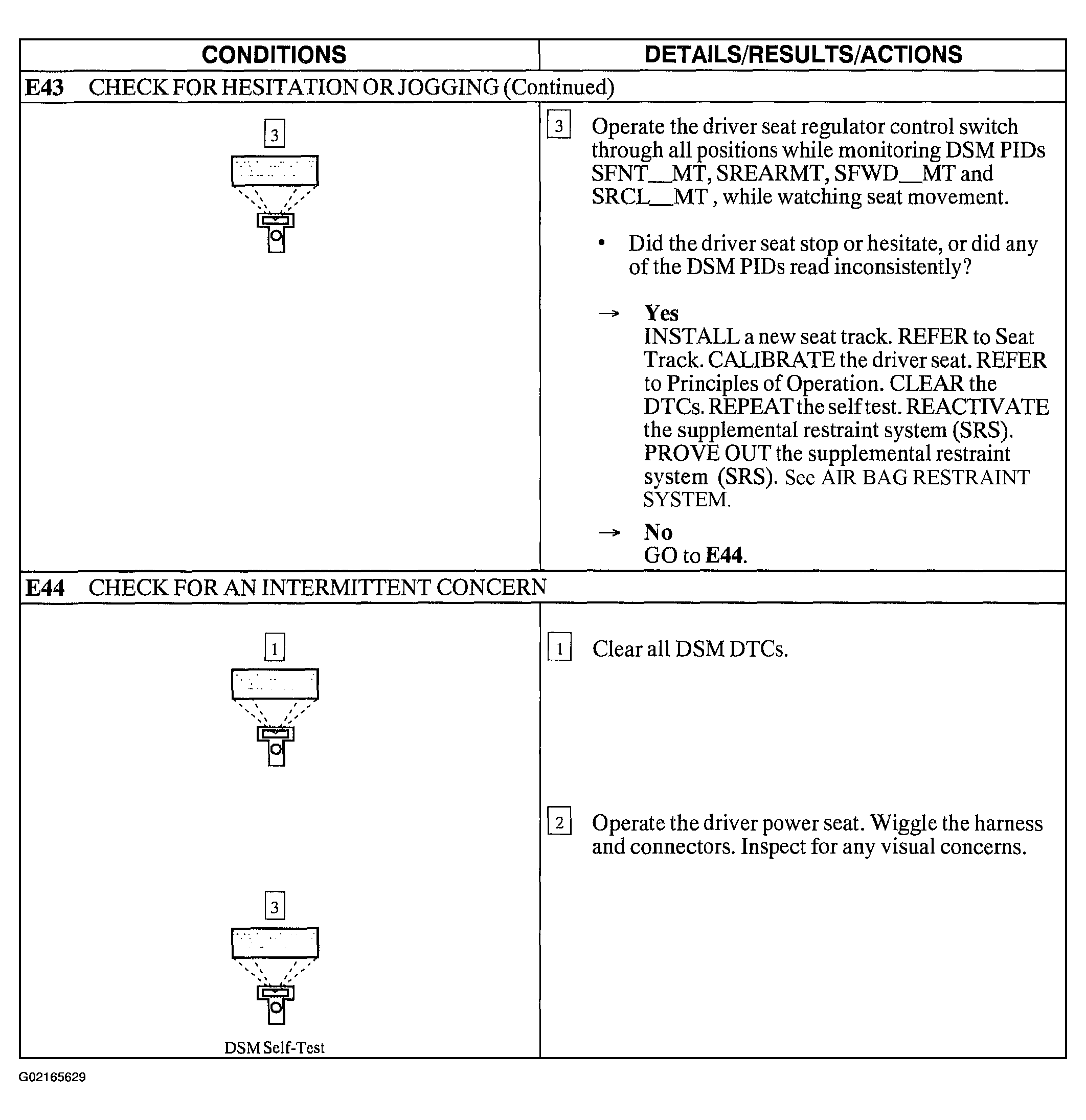

Fig 27: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E43 Cont. & E44)

Courtesy of FORD MOTOR CO.

Fig 28: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E44 Cont. -E46)

Courtesy of FORD MOTOR CO.

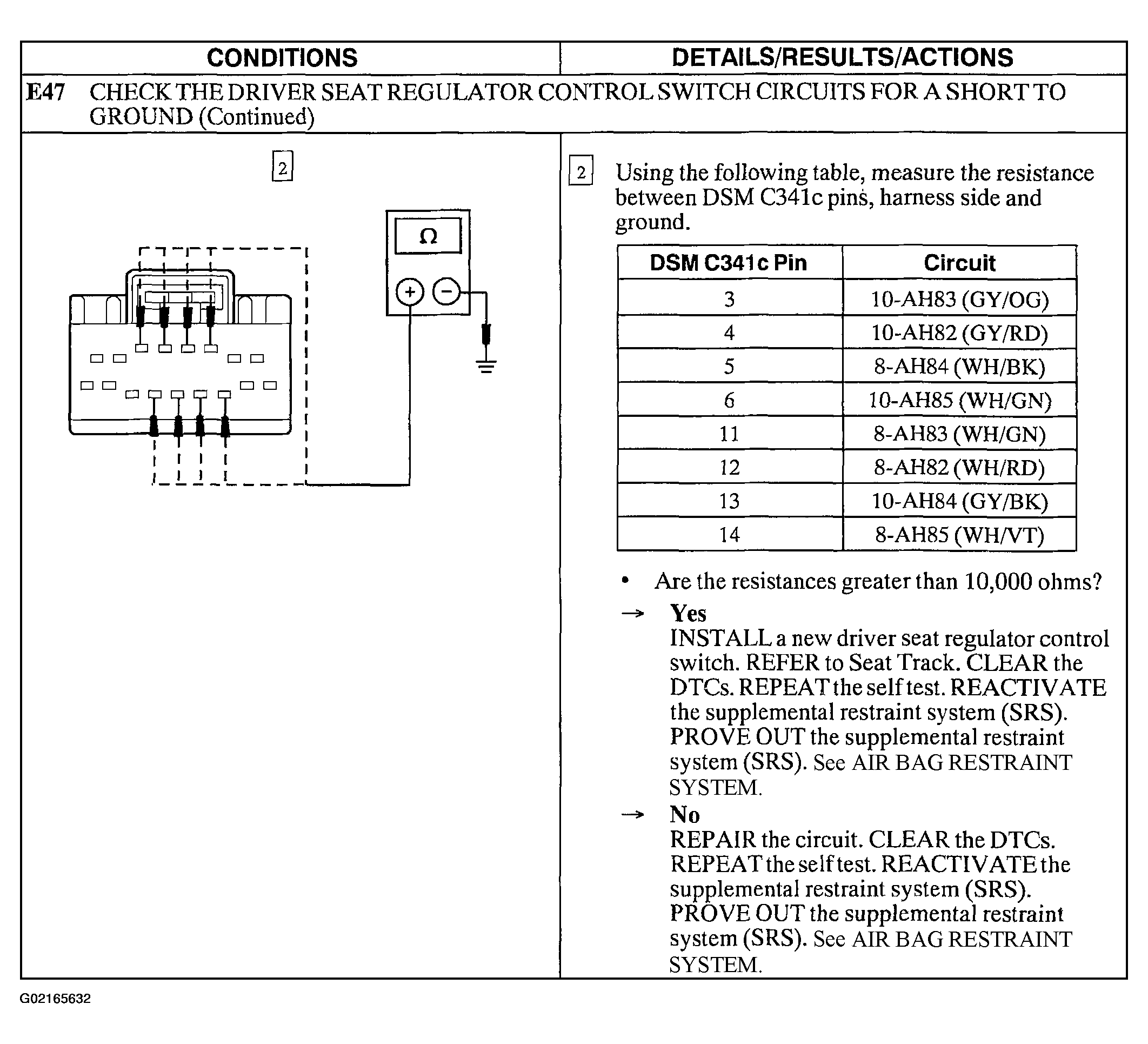

Fig 29: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Steps E46 Cont. & E47)

Courtesy of FORD MOTOR CO.

Fig 30: Pinpoint Test E: The Memory Seat Does Not Move Horizontally/Vertically - Driver (Step E47 Cont.)

Courtesy of FORD MOTOR CO.
