Pinpoint Test D: The Power Seat Is Inoperative - Passenger

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

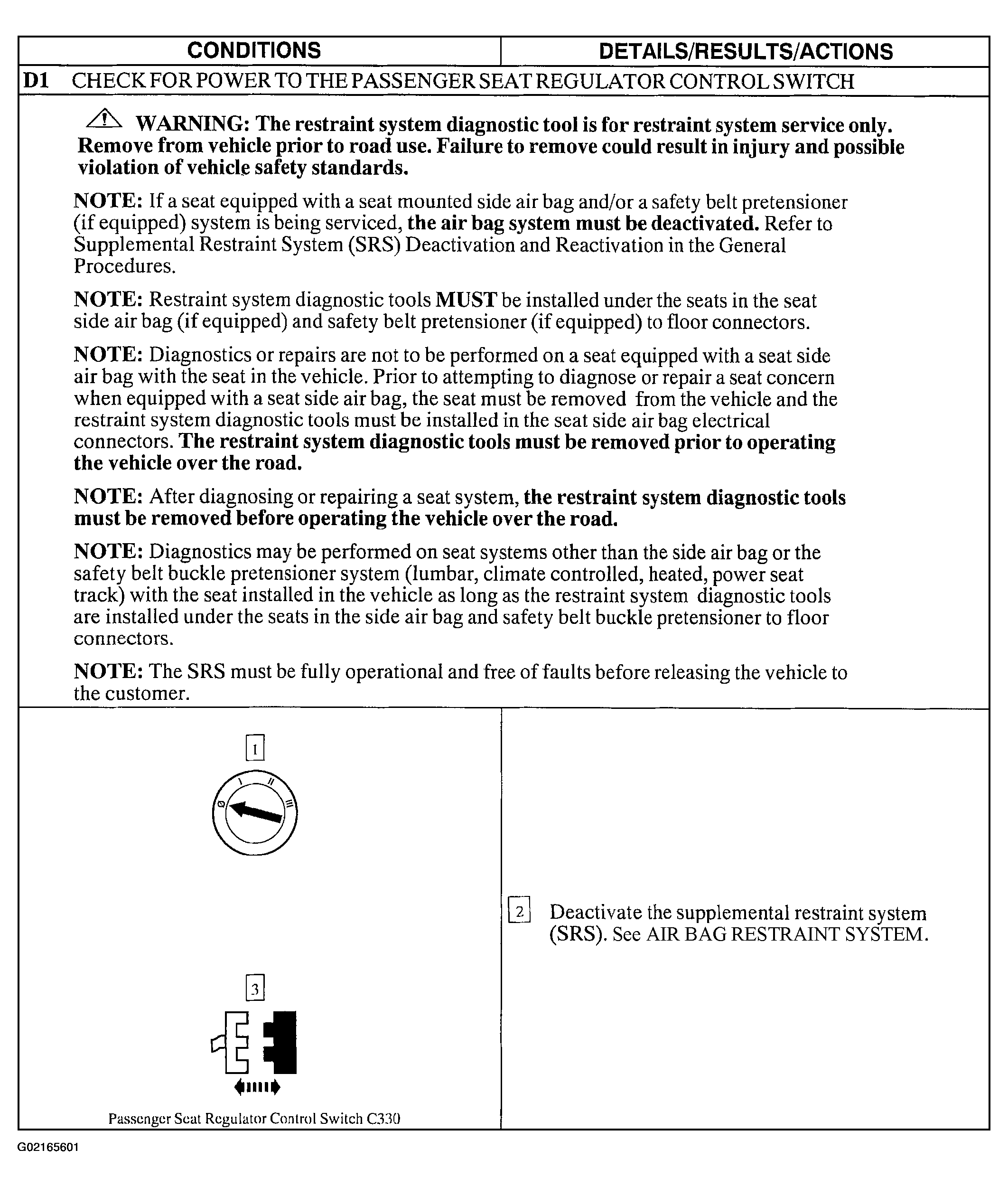

Fig 1: Pinpoint Test D (Step D1)

Courtesy of FORD MOTOR CO.

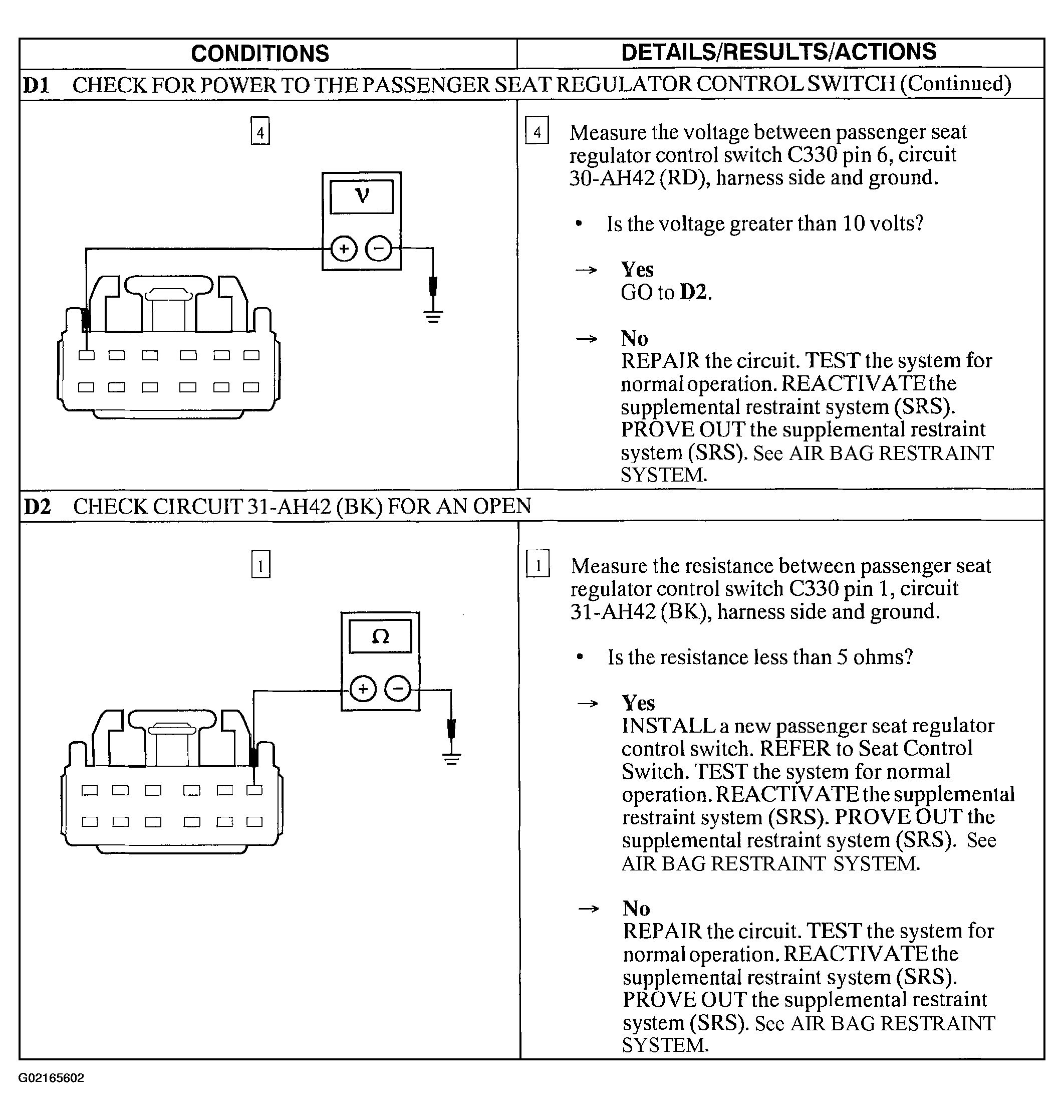

Fig 2: Pinpoint Test D (Steps D1 Cont. & D2)

Courtesy of FORD MOTOR CO.
