WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

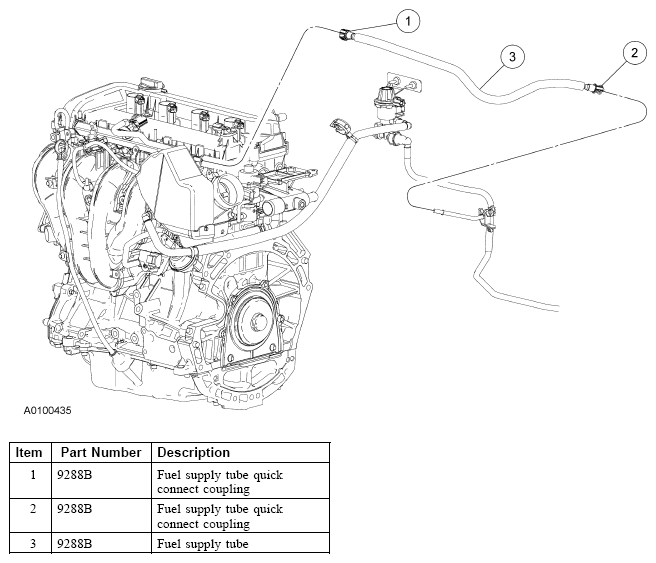

Fig 1: Exploded View Of Fuel Lines - 2.3L (1 Of 4)
Courtesy of FORD MOTOR CO.

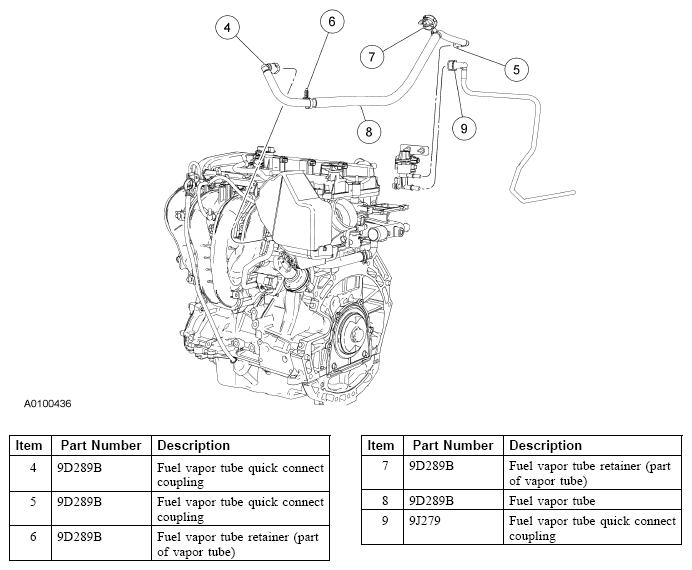

Fig 2: Exploded View Of Fuel Lines - 2.3L (2 Of 4)
Courtesy of FORD MOTOR CO.

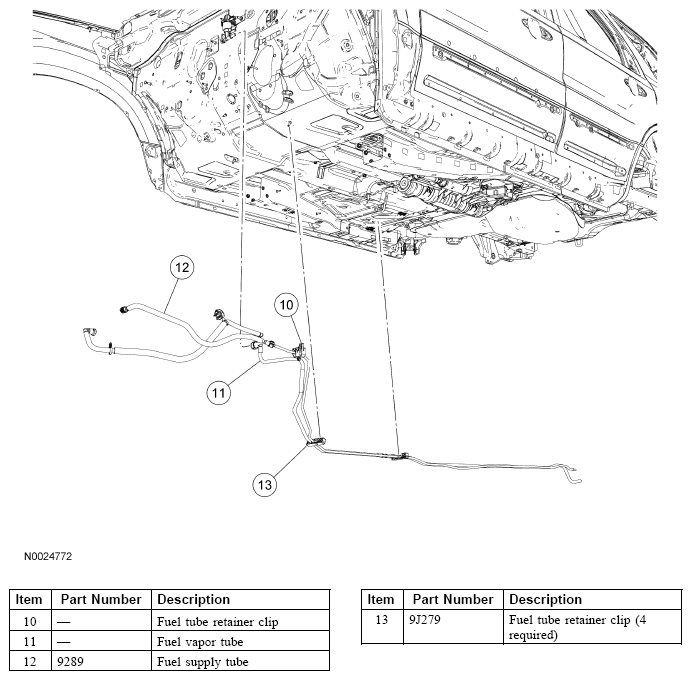

Fig 3: Exploded View Of Fuel Lines - 2.3L (3 Of 4)
Courtesy of FORD MOTOR CO.

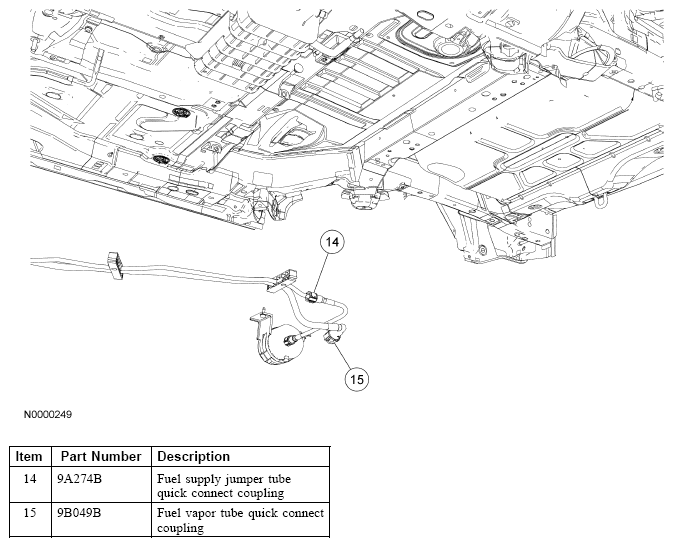

Fig 4: Exploded View Of Fuel Lines - 2.3L (4 Of 4)
