Pinpoint Test E: A Single Mirror Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

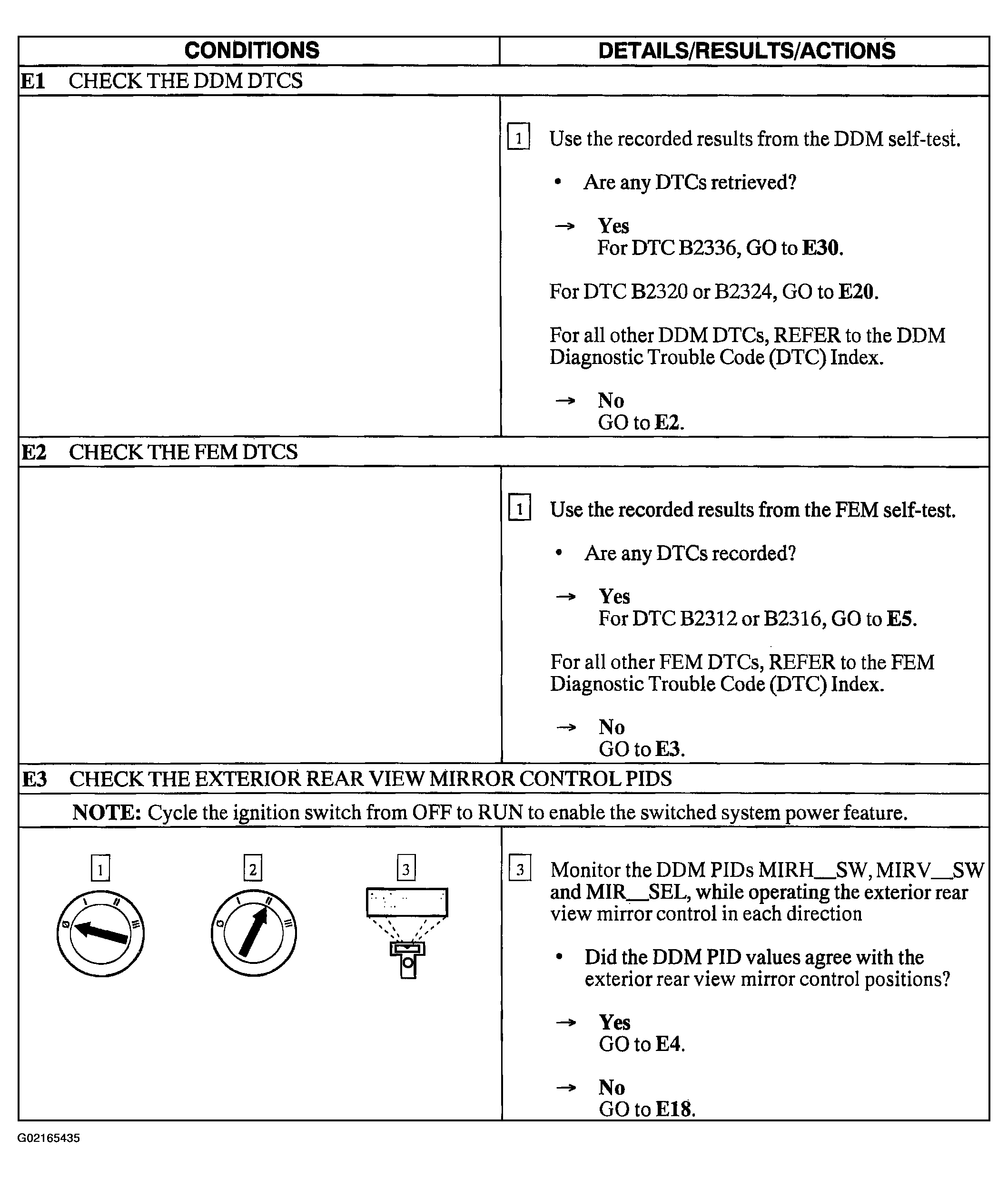

Fig 1: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E1-3E)

G02165435

Courtesy of FORD MOTOR CO.

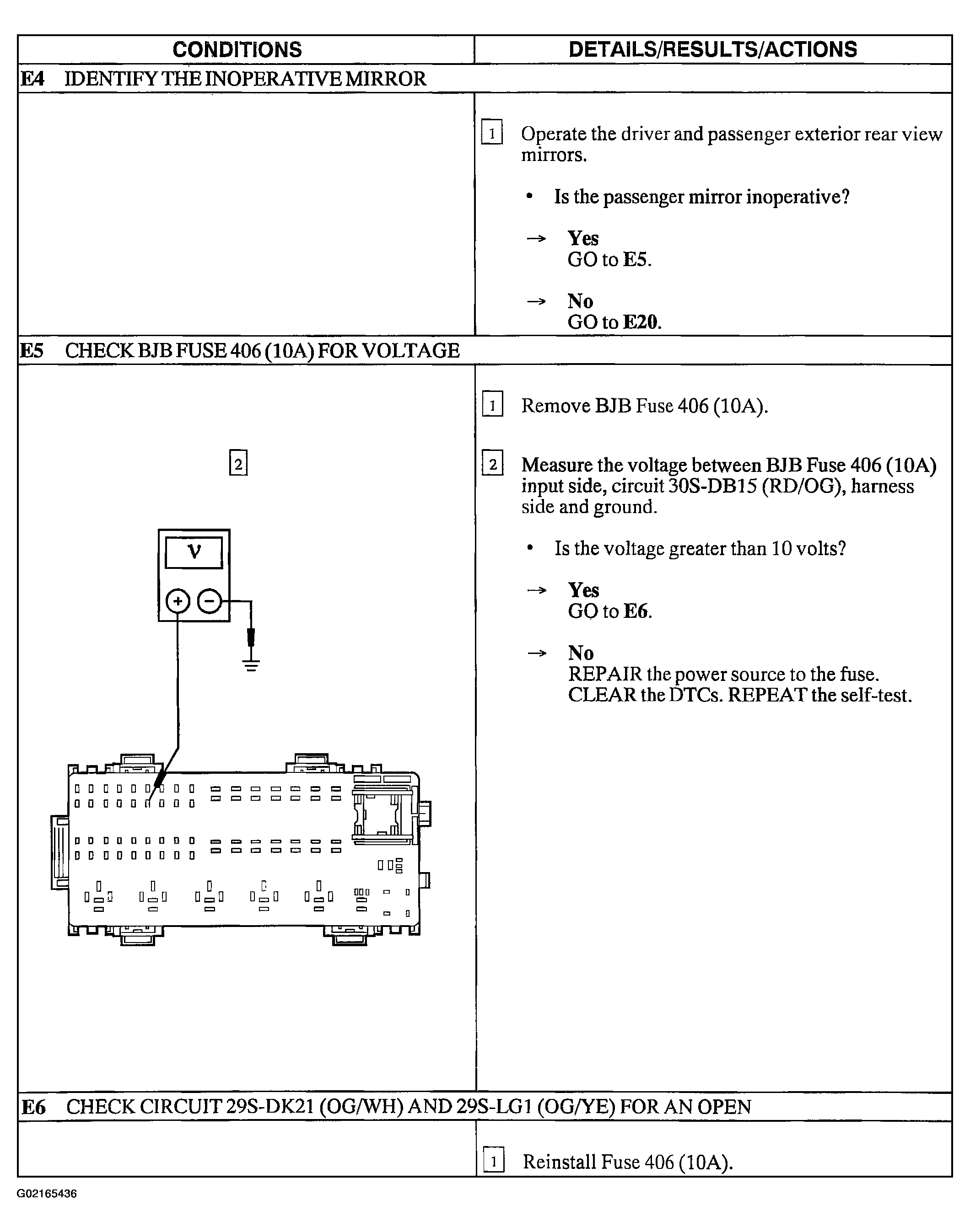

Fig 2: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E4-E6)

G02165436

Courtesy of FORD MOTOR CO.

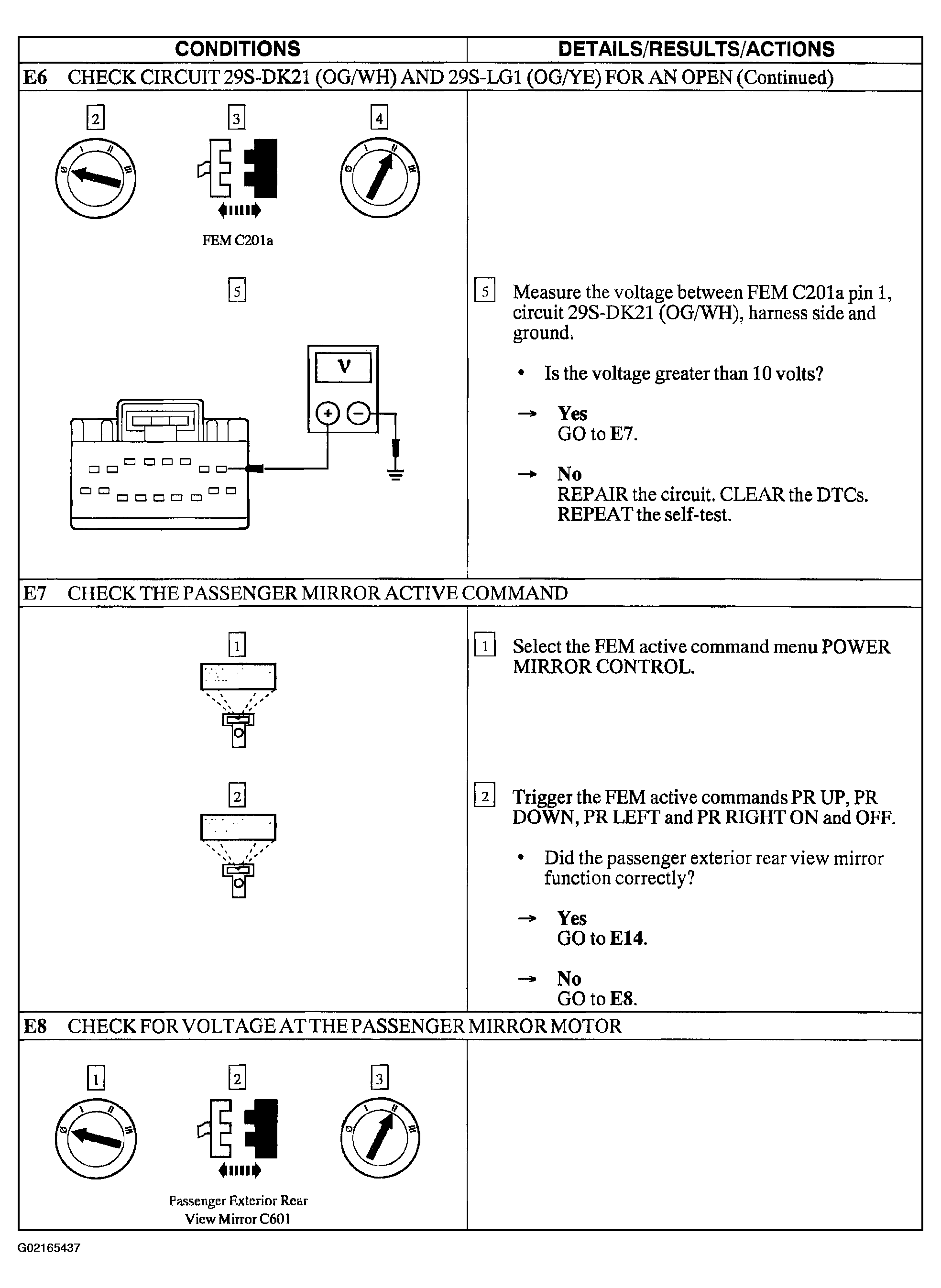

Fig 3: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E6 Cont. -E8)

G02165437

Courtesy of FORD MOTOR CO.

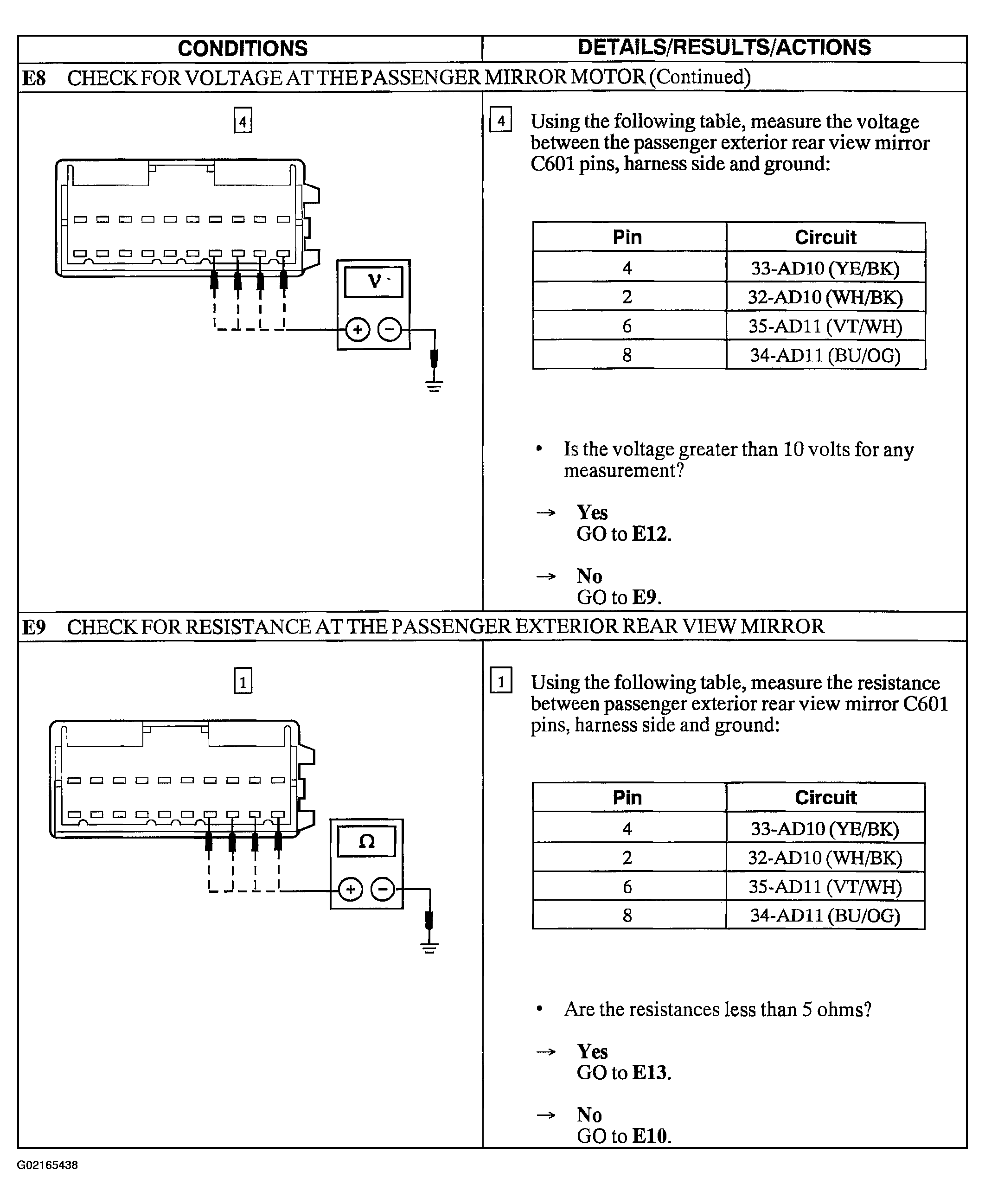

Fig 4: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E8 Cont. & E9))

G02165438

Courtesy of FORD MOTOR CO.

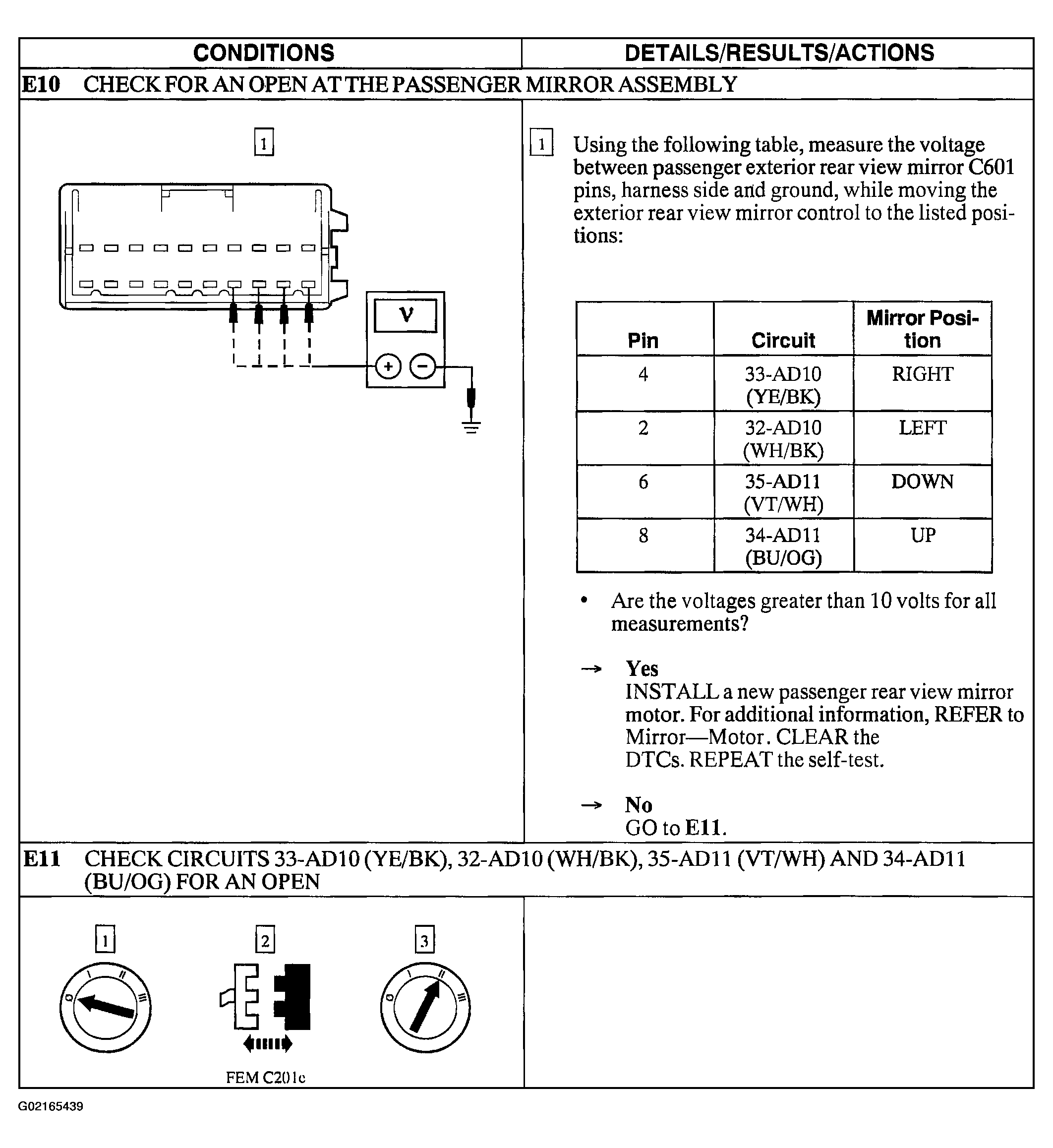

Fig 5: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E10 & E11)

G02165439

Courtesy of FORD MOTOR CO.

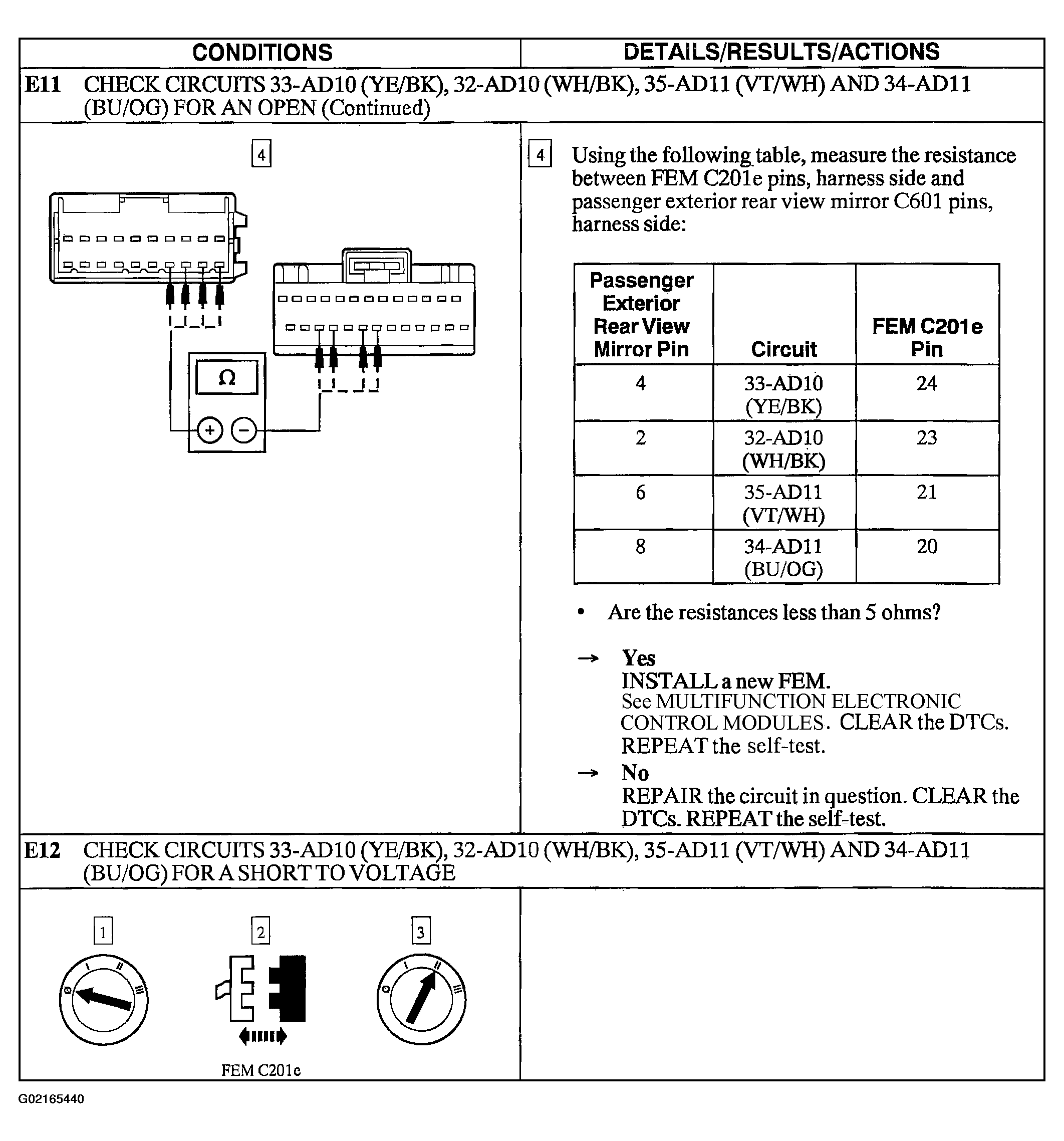

Fig 6: Pinpoint Test E: A Single Mirror Is Inoperative (Step E11 Cont. & E12)

G02165440

Courtesy of FORD MOTOR CO.

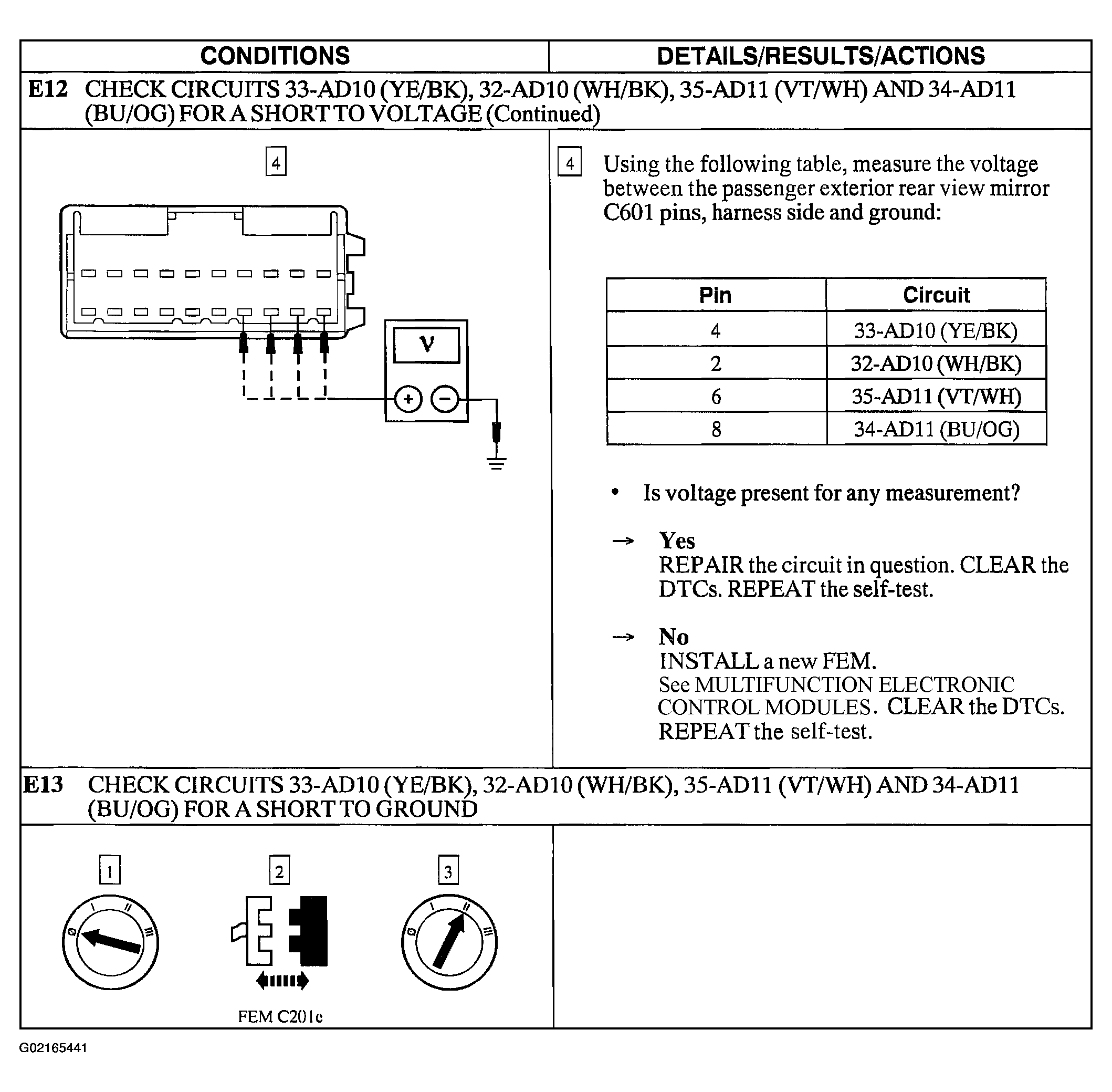

Fig 7: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E12 Cont. & E13)

G02165441

Courtesy of FORD MOTOR CO.

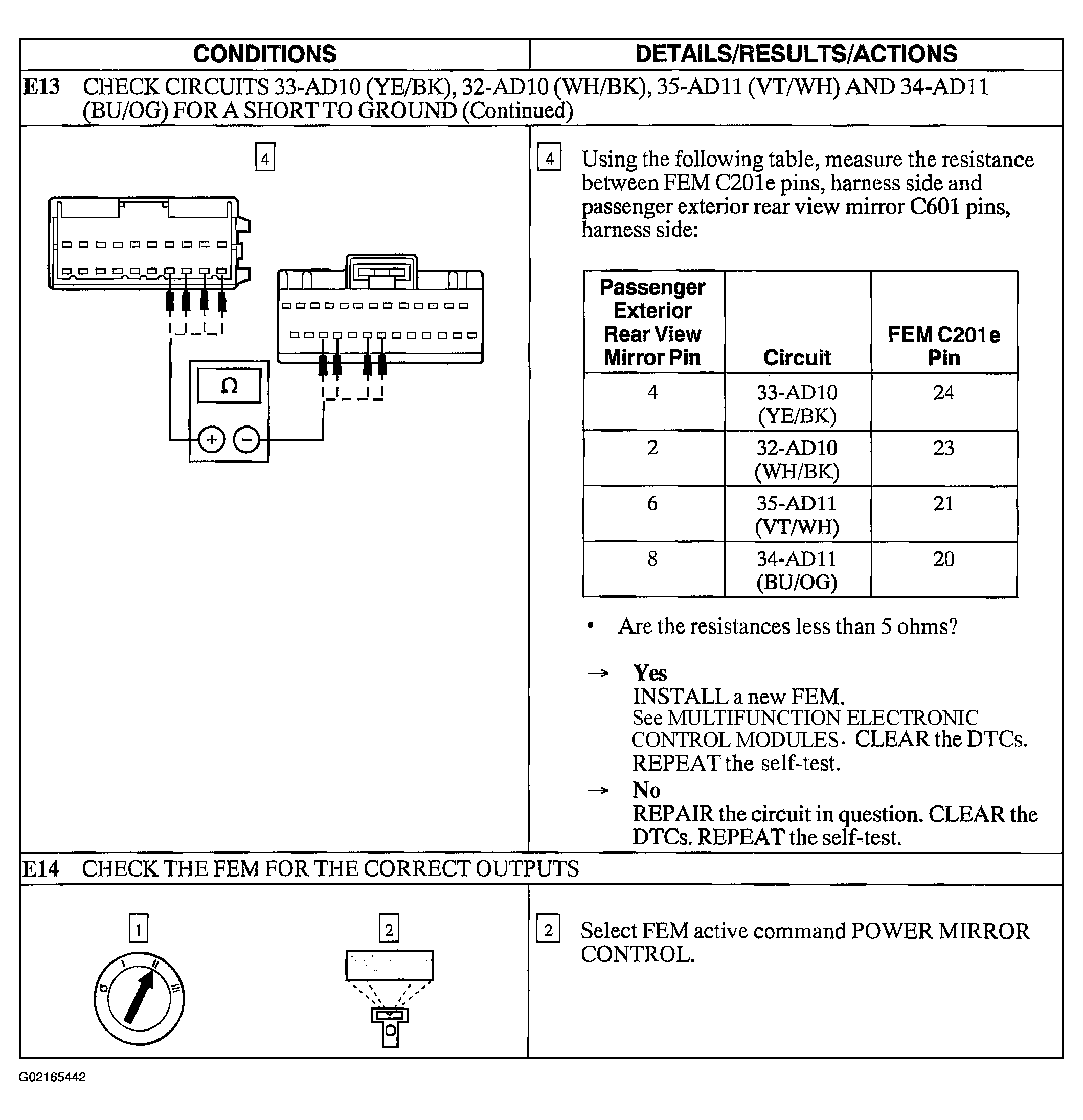

Fig 8: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E13 Cont. & E14)

G02165442

Courtesy of FORD MOTOR CO.

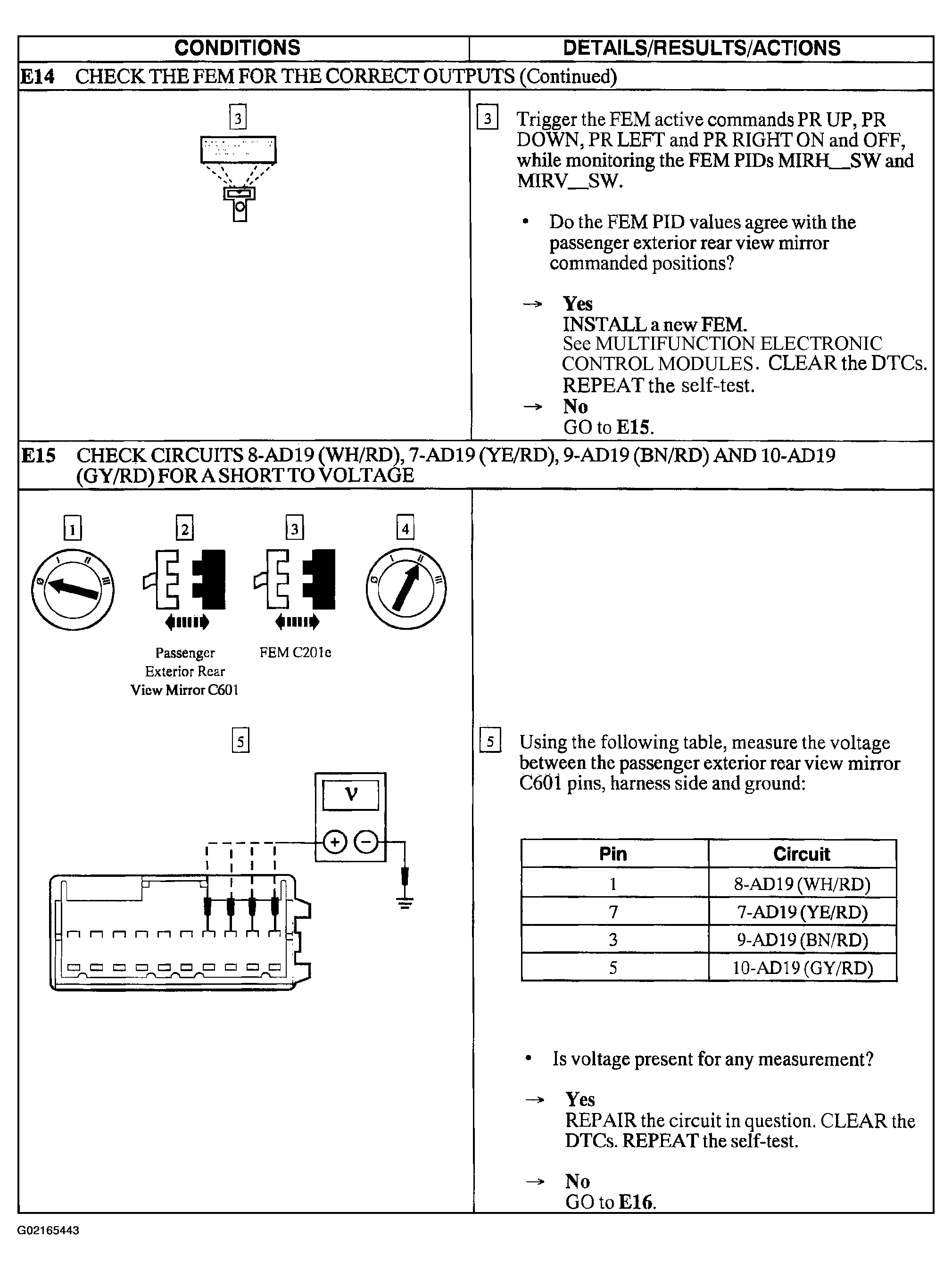

Fig 9: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E14 Cont. & E15)

G02165443

Courtesy of FORD MOTOR CO.

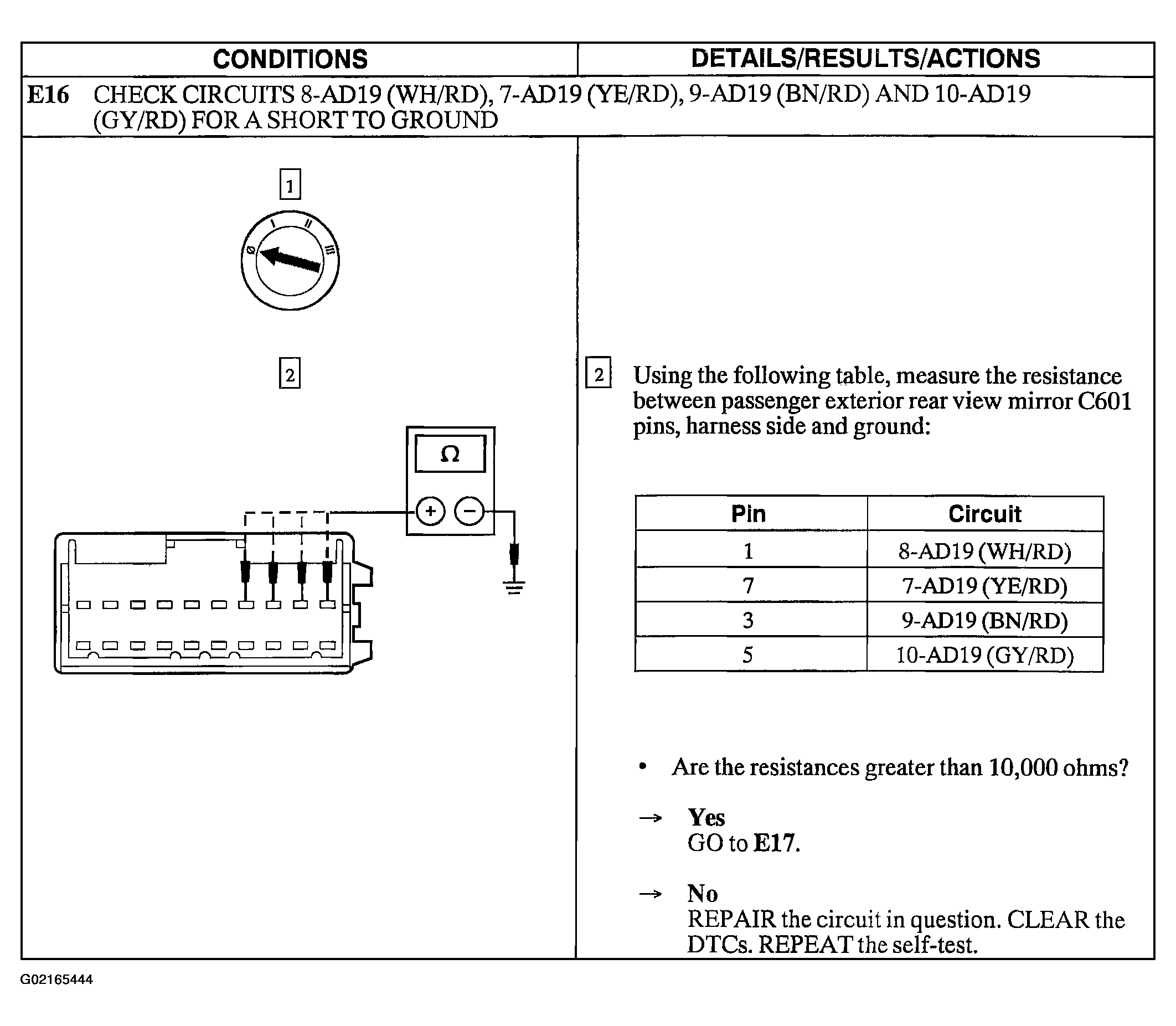

Fig 10: Pinpoint Test E: A Single Mirror Is Inoperative (Step E16)

G02165444

Courtesy of FORD MOTOR CO.

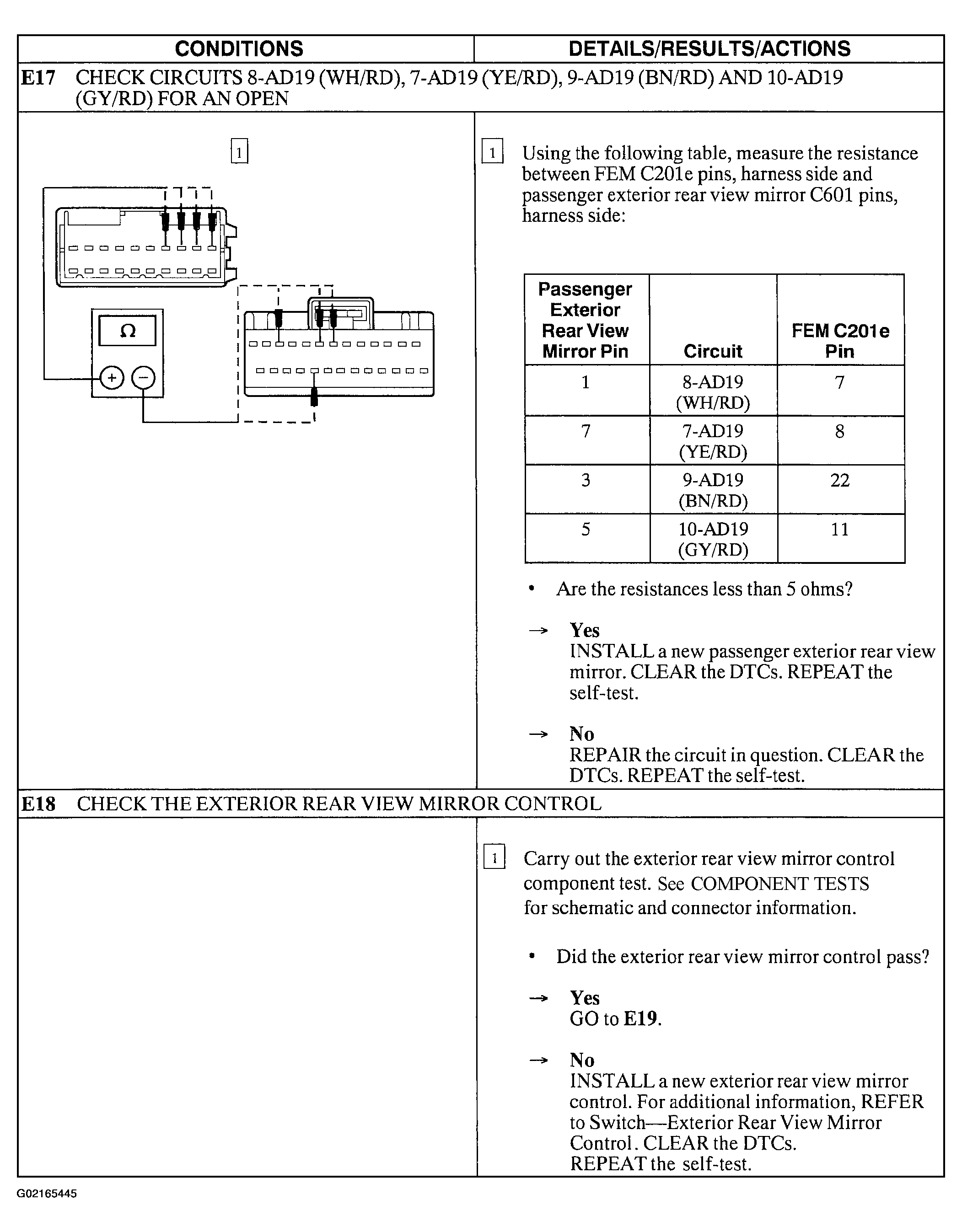

Fig 11: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E17 & E18)

G02165445

Courtesy of FORD MOTOR CO.

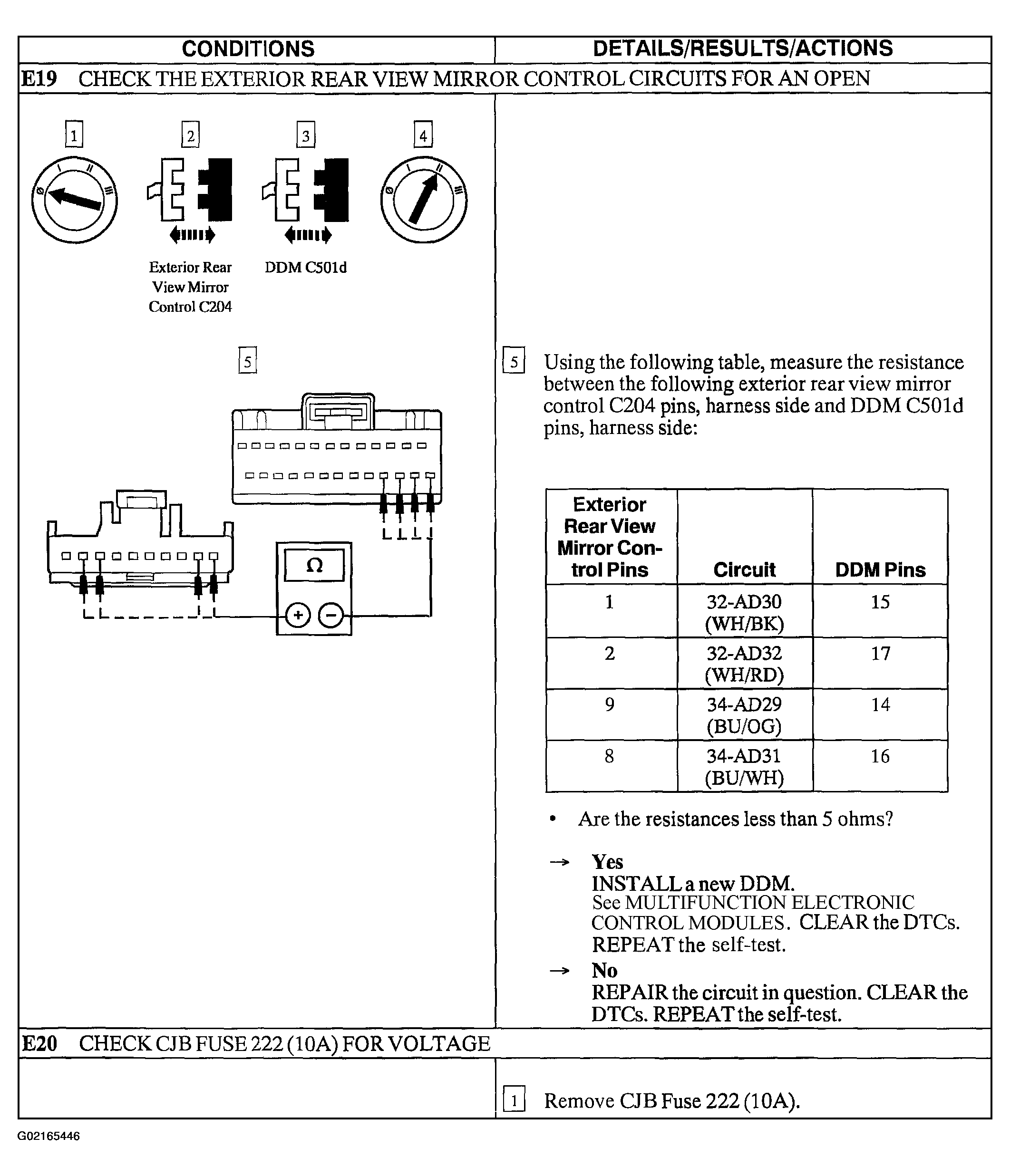

Fig 12: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E19 & E20)

G02165446

Courtesy of FORD MOTOR CO.

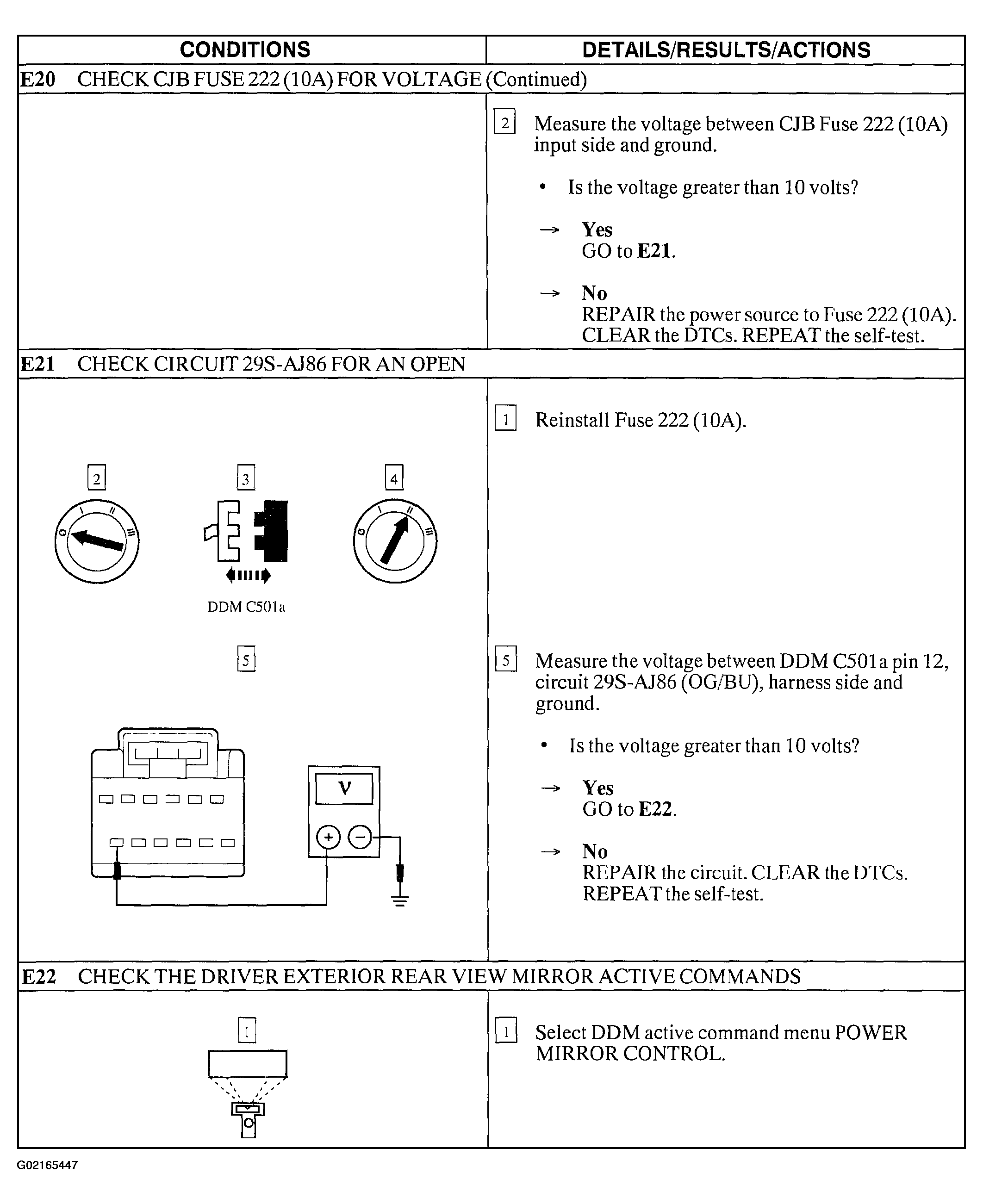

Fig 13: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E20 Cont. -E22)

G02165447

Courtesy of FORD MOTOR CO.

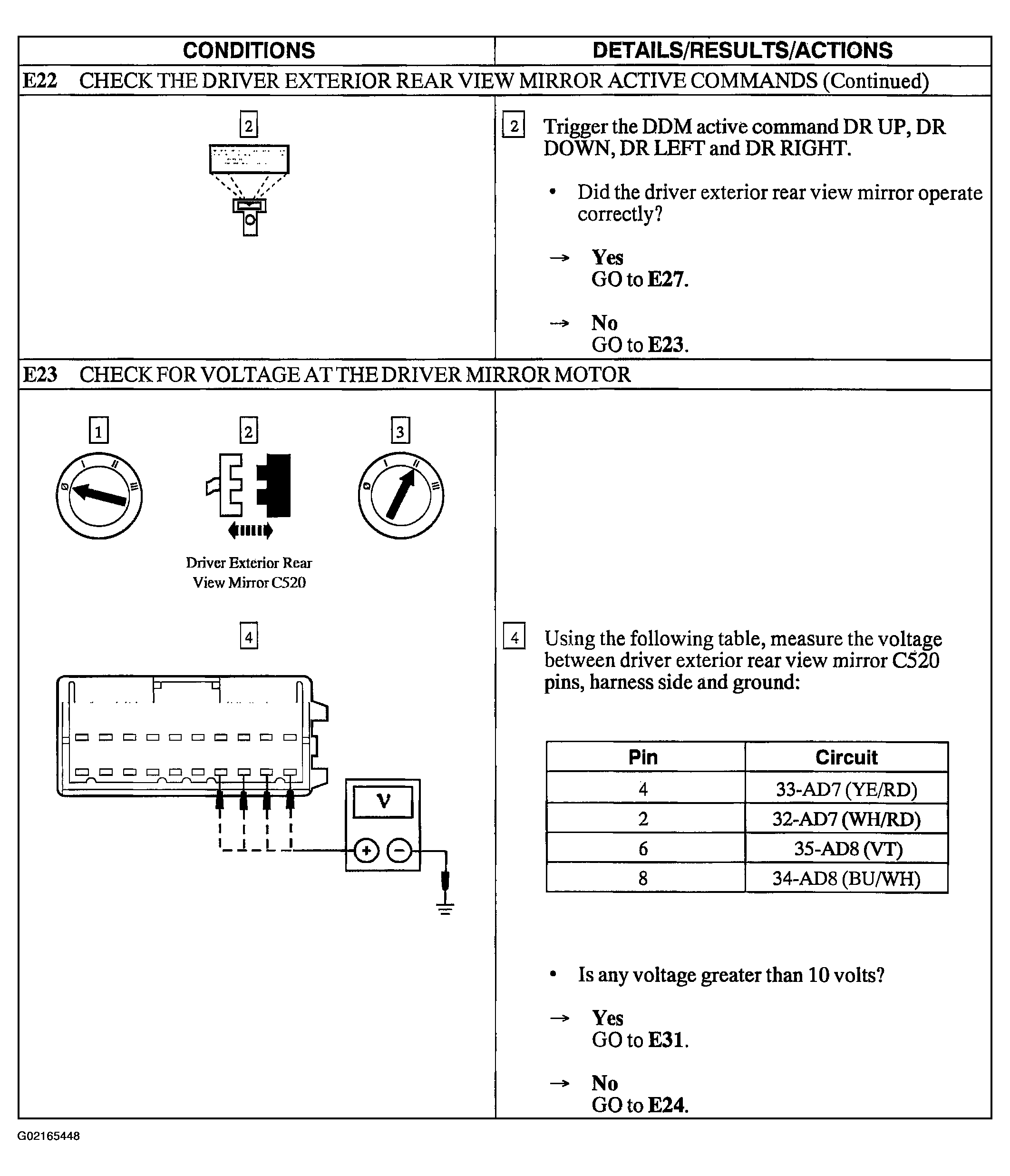

Fig 14: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E22 Cont. & E23)

G02165448

Courtesy of FORD MOTOR CO.

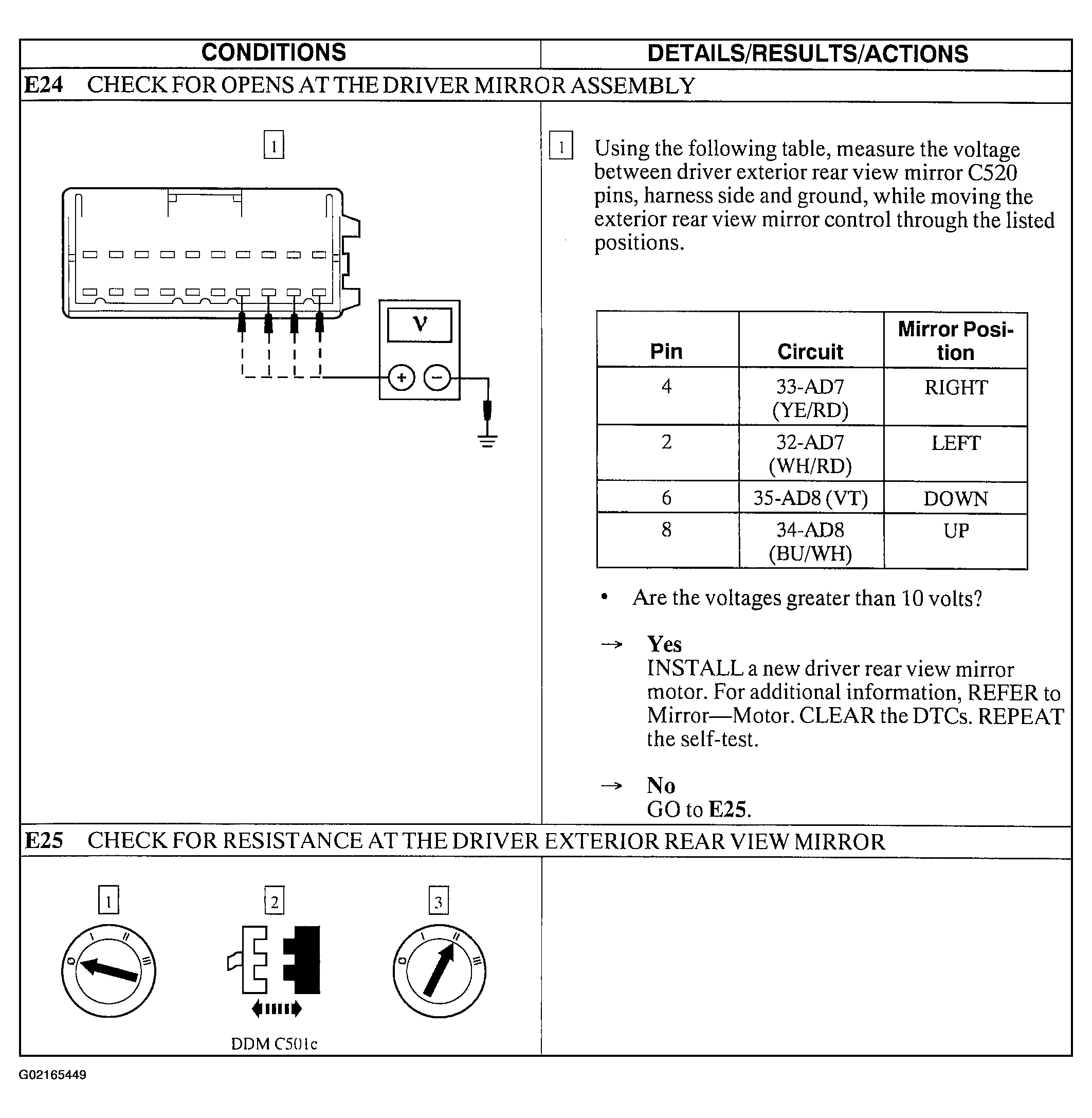

Fig 15: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E24 & E25)

G02165449

Courtesy of FORD MOTOR CO.

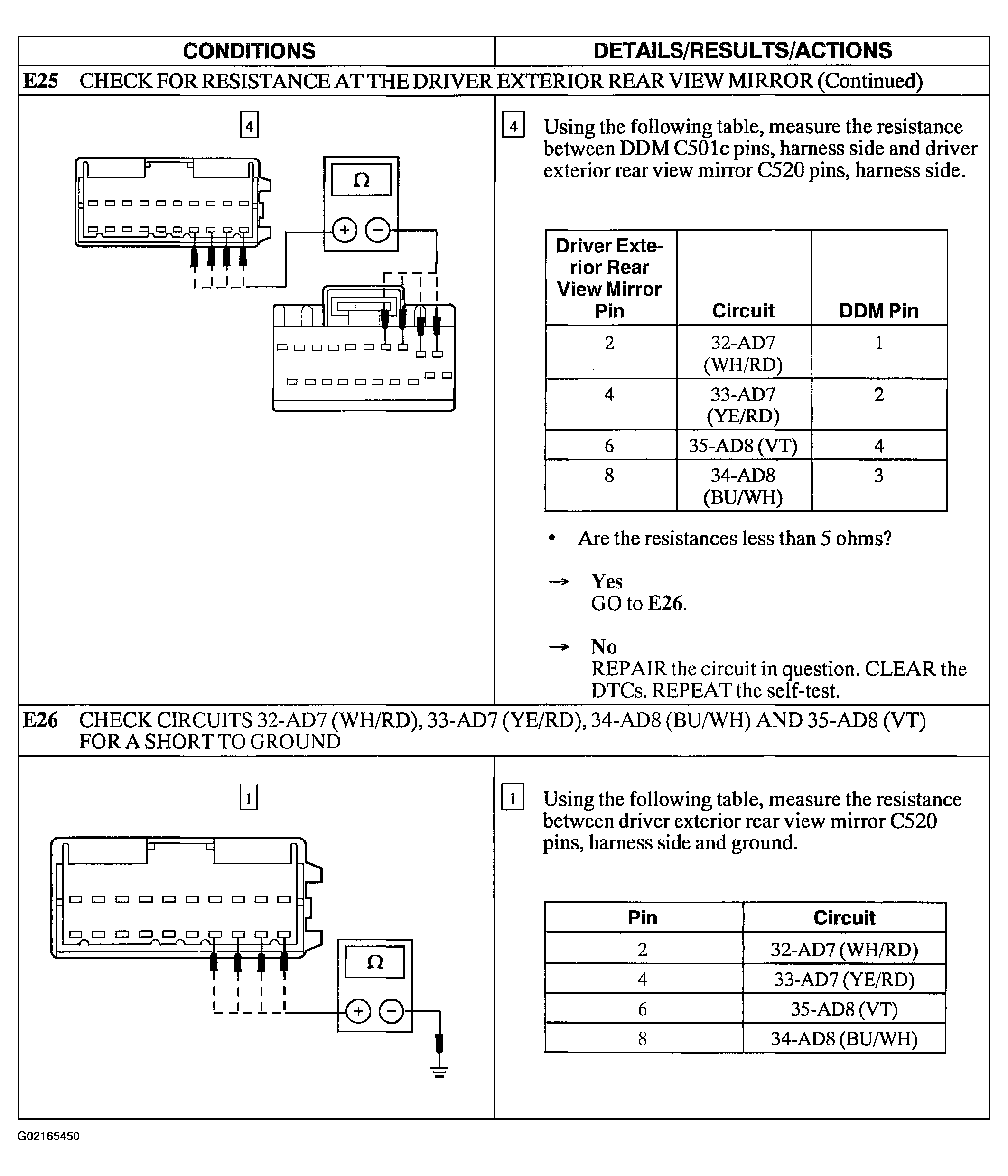

Fig 16: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E25 Cont. & E26)

G02165450

Courtesy of FORD MOTOR CO.

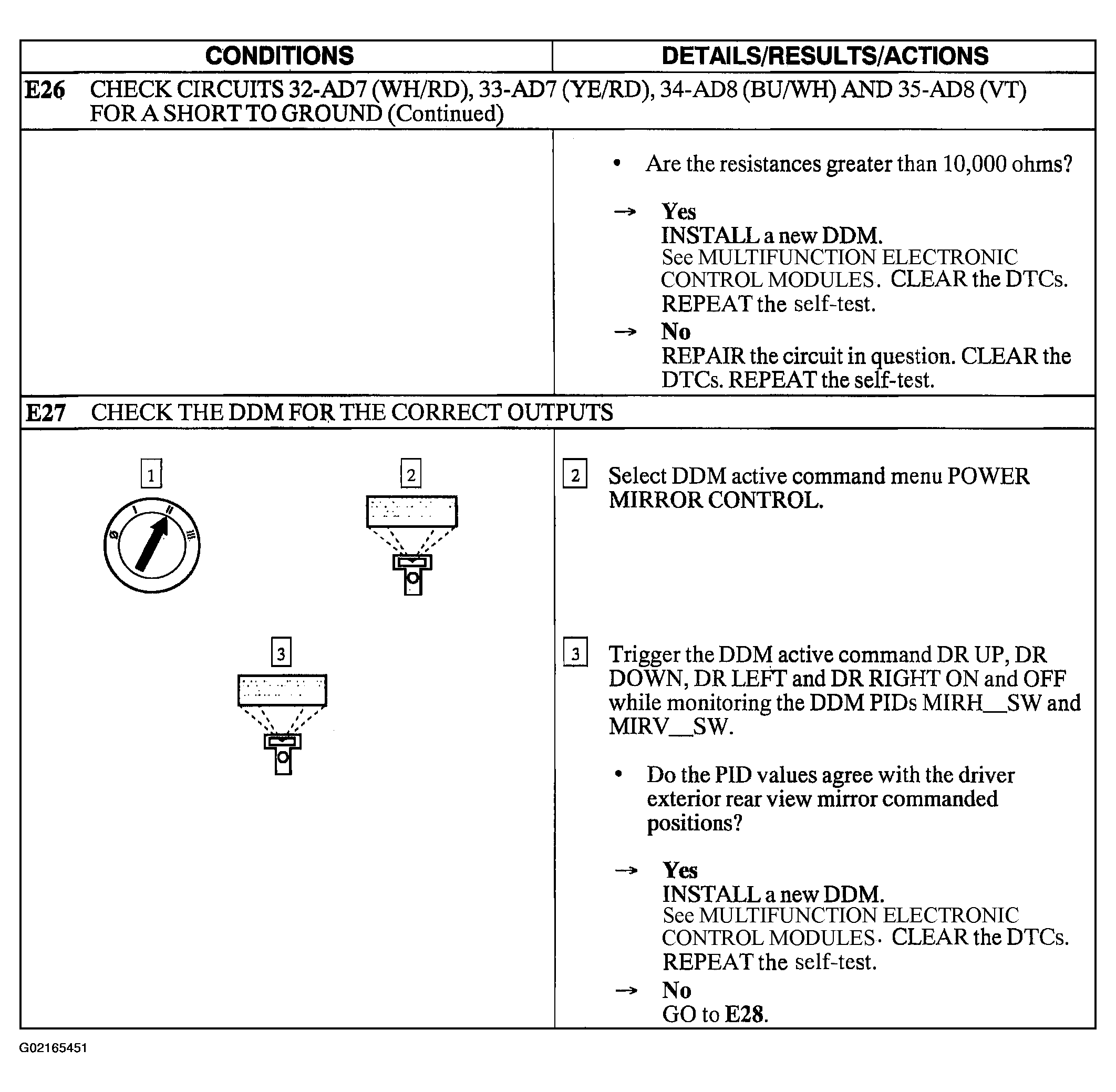

Fig 17: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E26 Cont. & E27)

G02165451

Courtesy of FORD MOTOR CO.

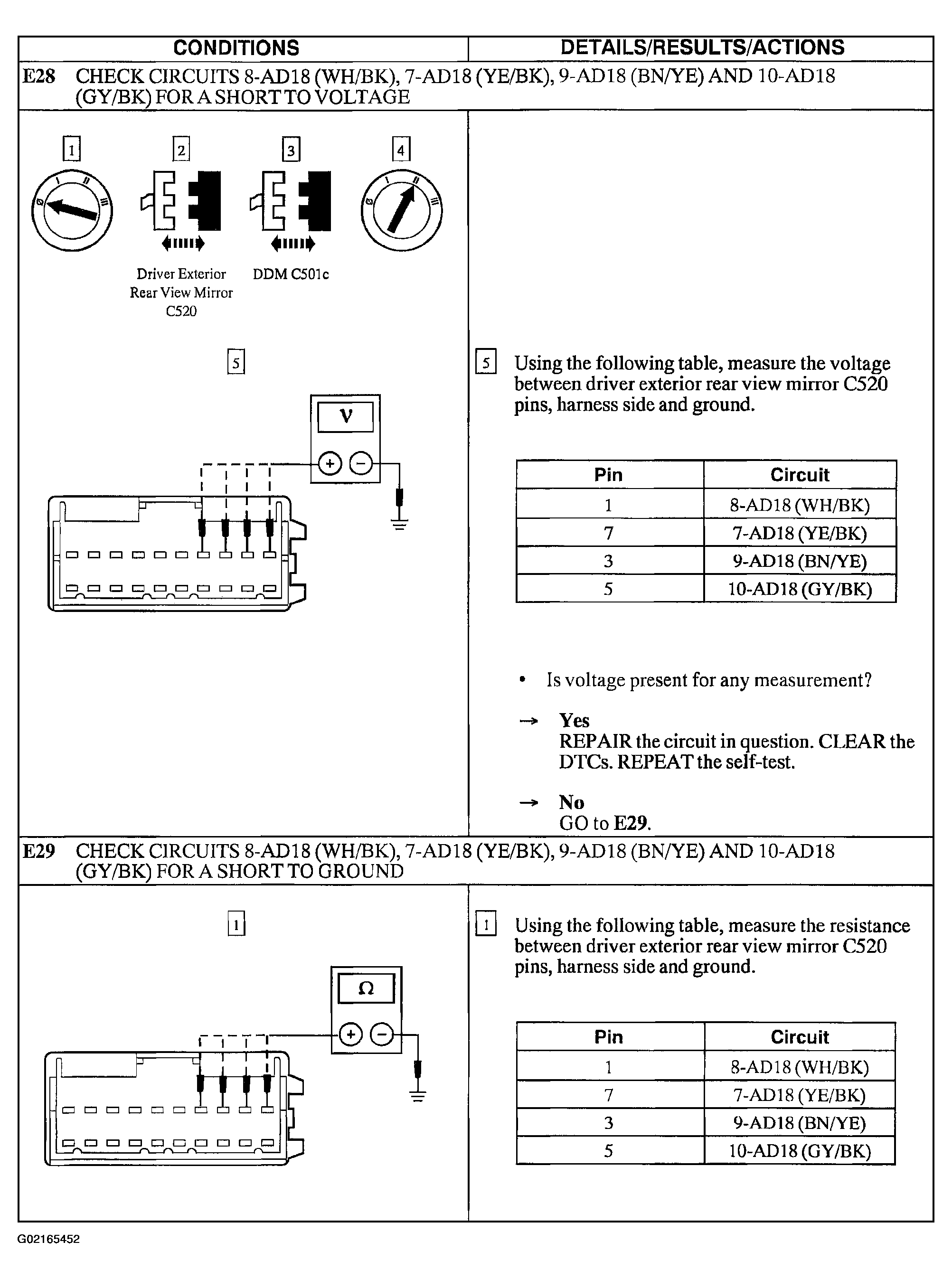

Fig 18: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E28 & E29)

G02165452

Courtesy of FORD MOTOR CO.

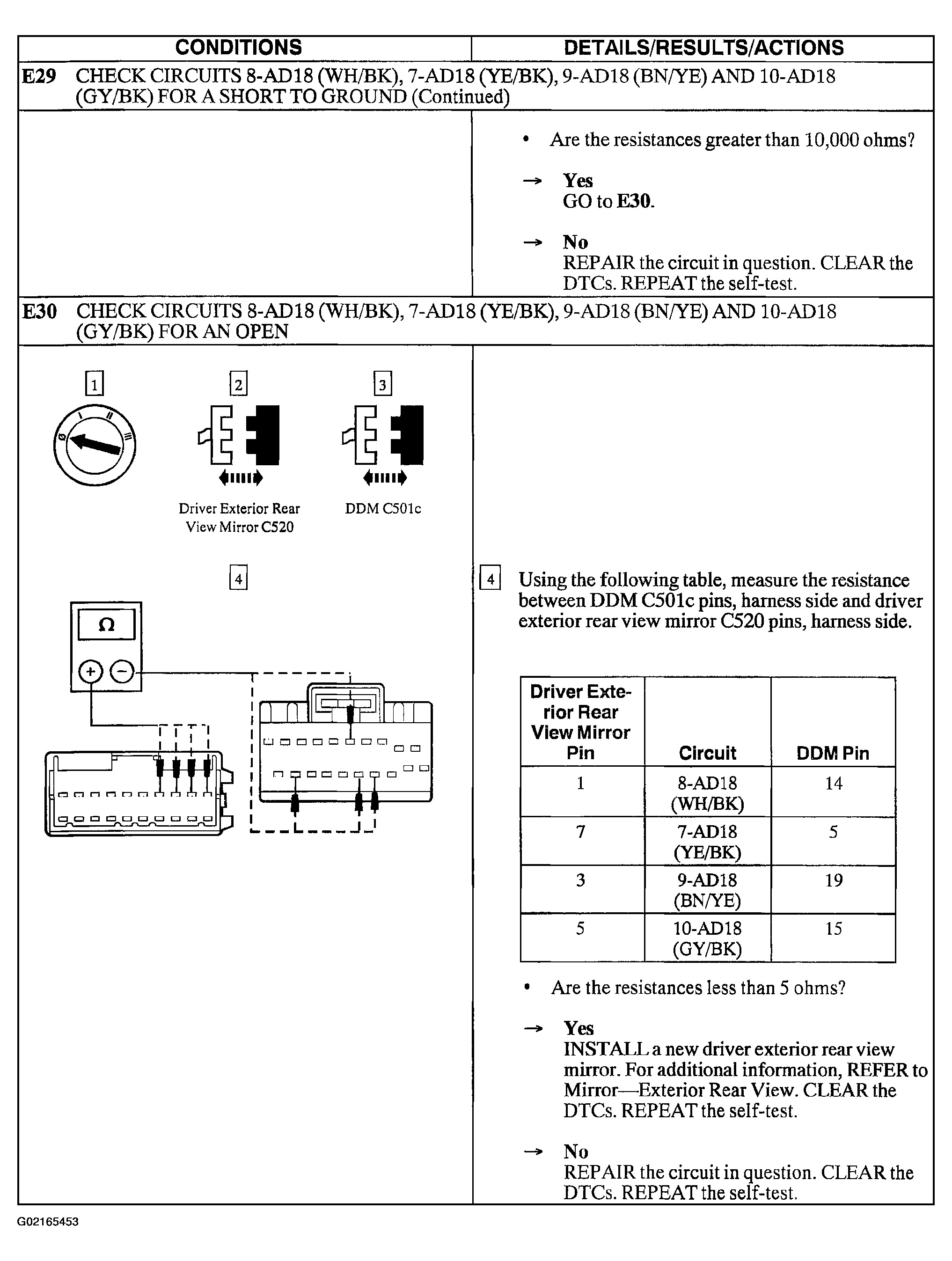

Fig 19: Pinpoint Test E: A Single Mirror Is Inoperative (Steps E29 & E30)

G02165453

Courtesy of FORD MOTOR CO.

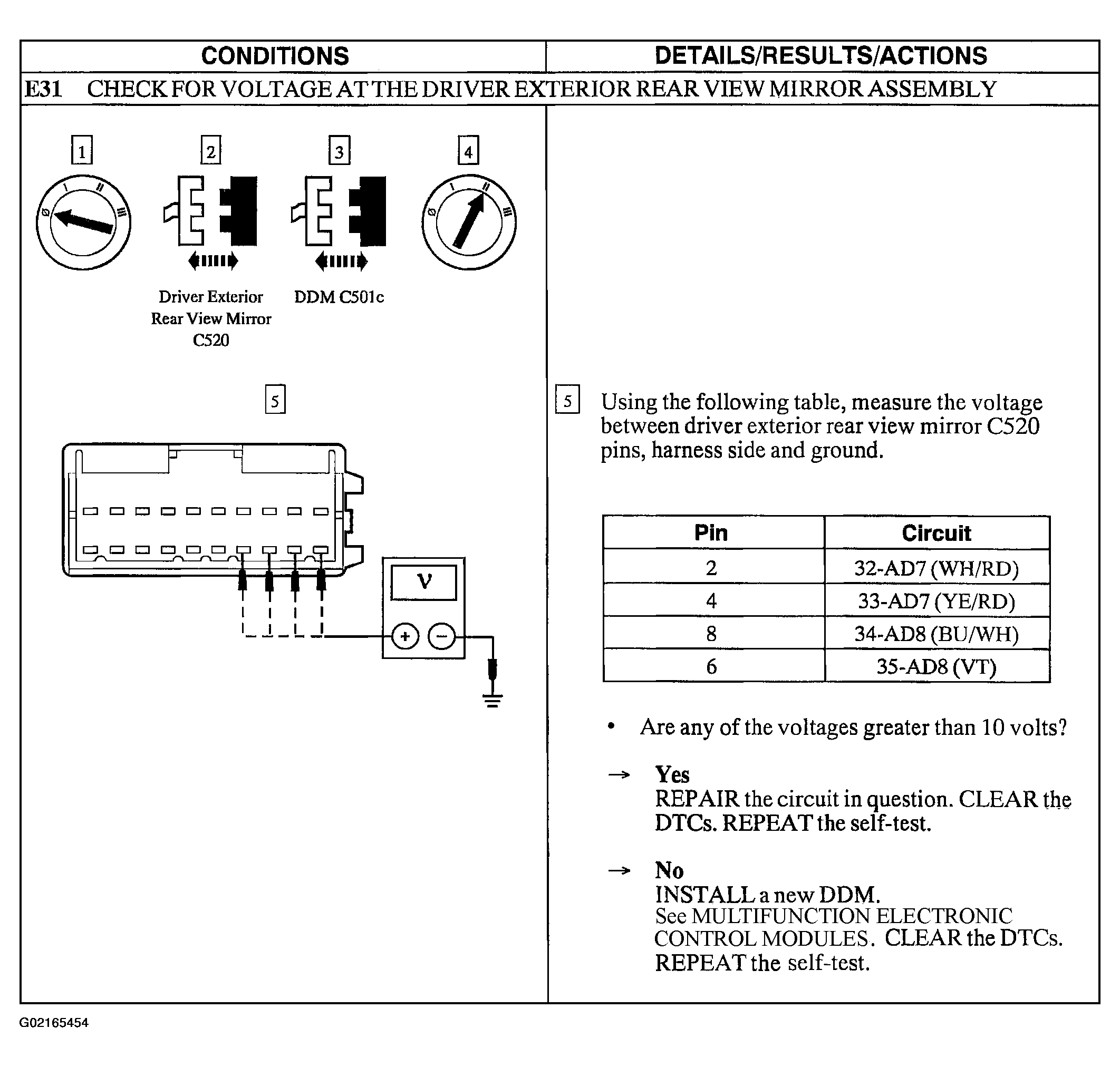

Fig 20: Pinpoint Test E: A Single Mirror Is Inoperative (Step E31)

G02165454

Courtesy of FORD MOTOR CO.
