Pinpoint Test D: The Mirrors Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

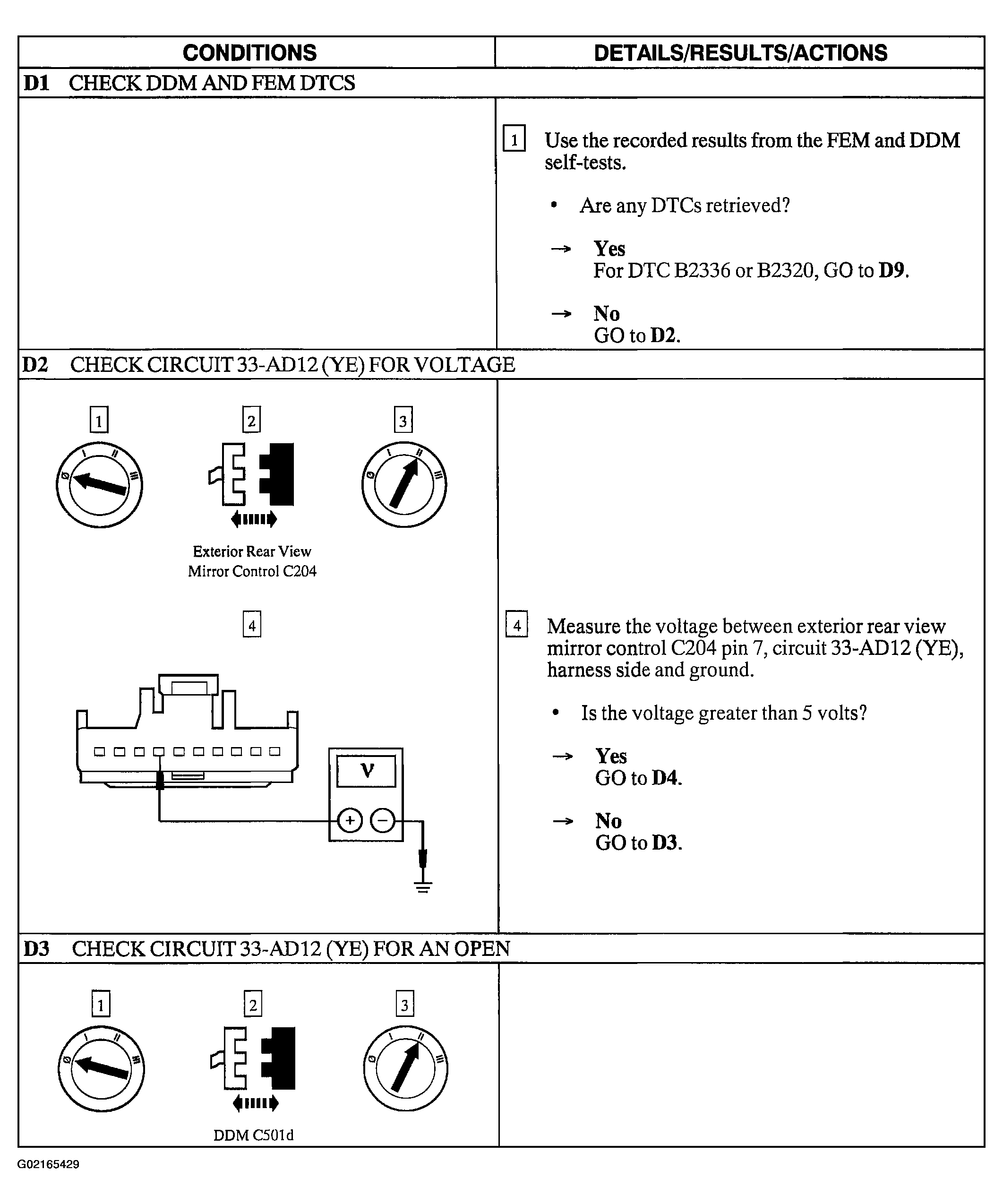

Fig 1: Pinpoint Test D: The Mirrors Are Inoperative (Steps D1-D3)

Courtesy of FORD MOTOR CO.

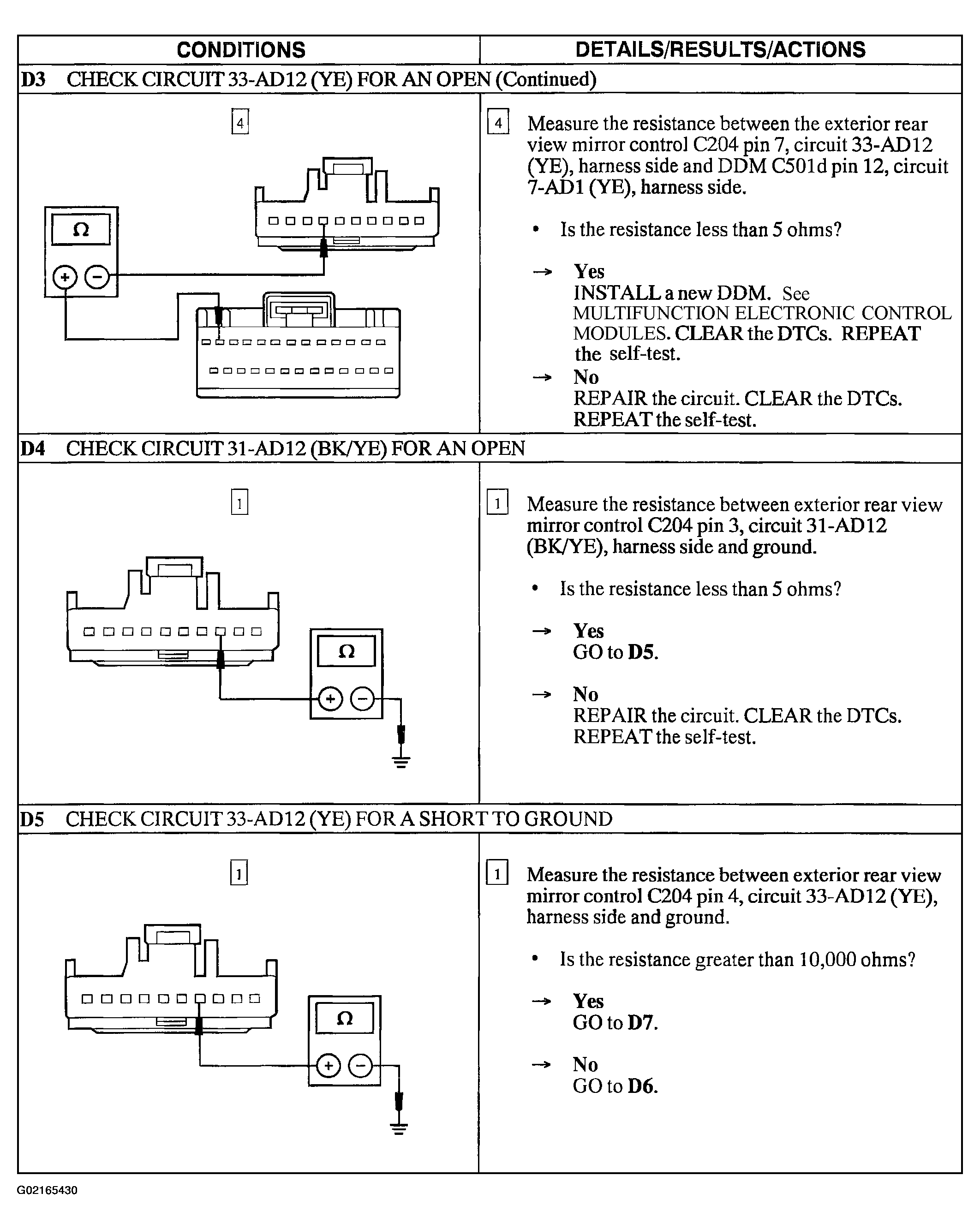

Fig 2: Pinpoint Test D: The Mirrors Are Inoperative (Steps D3 Cont. -D5)

Courtesy of FORD MOTOR CO.

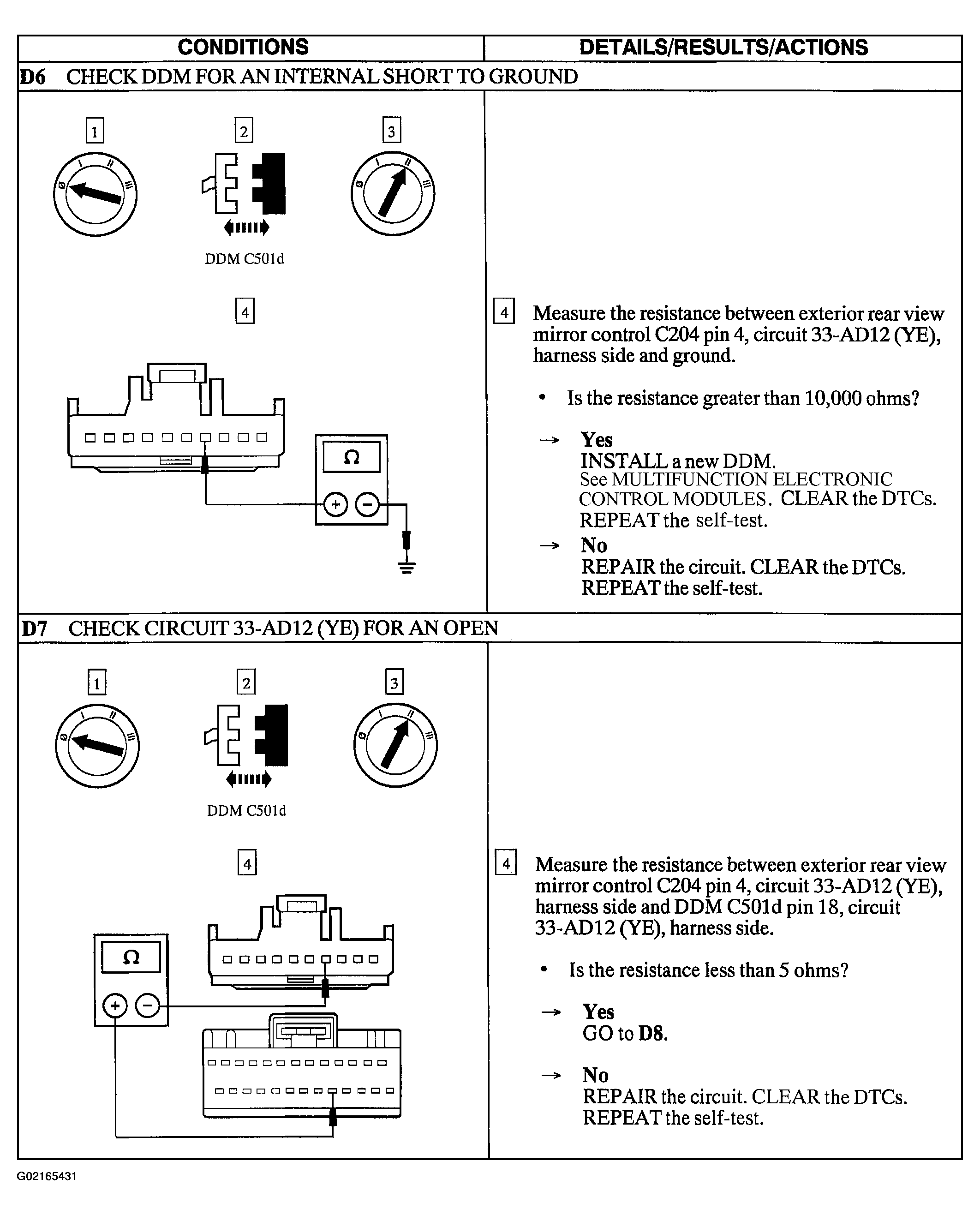

Fig 3: Pinpoint Test D: The Mirrors Are Inoperative (Steps D6 & D7)

Courtesy of FORD MOTOR CO.

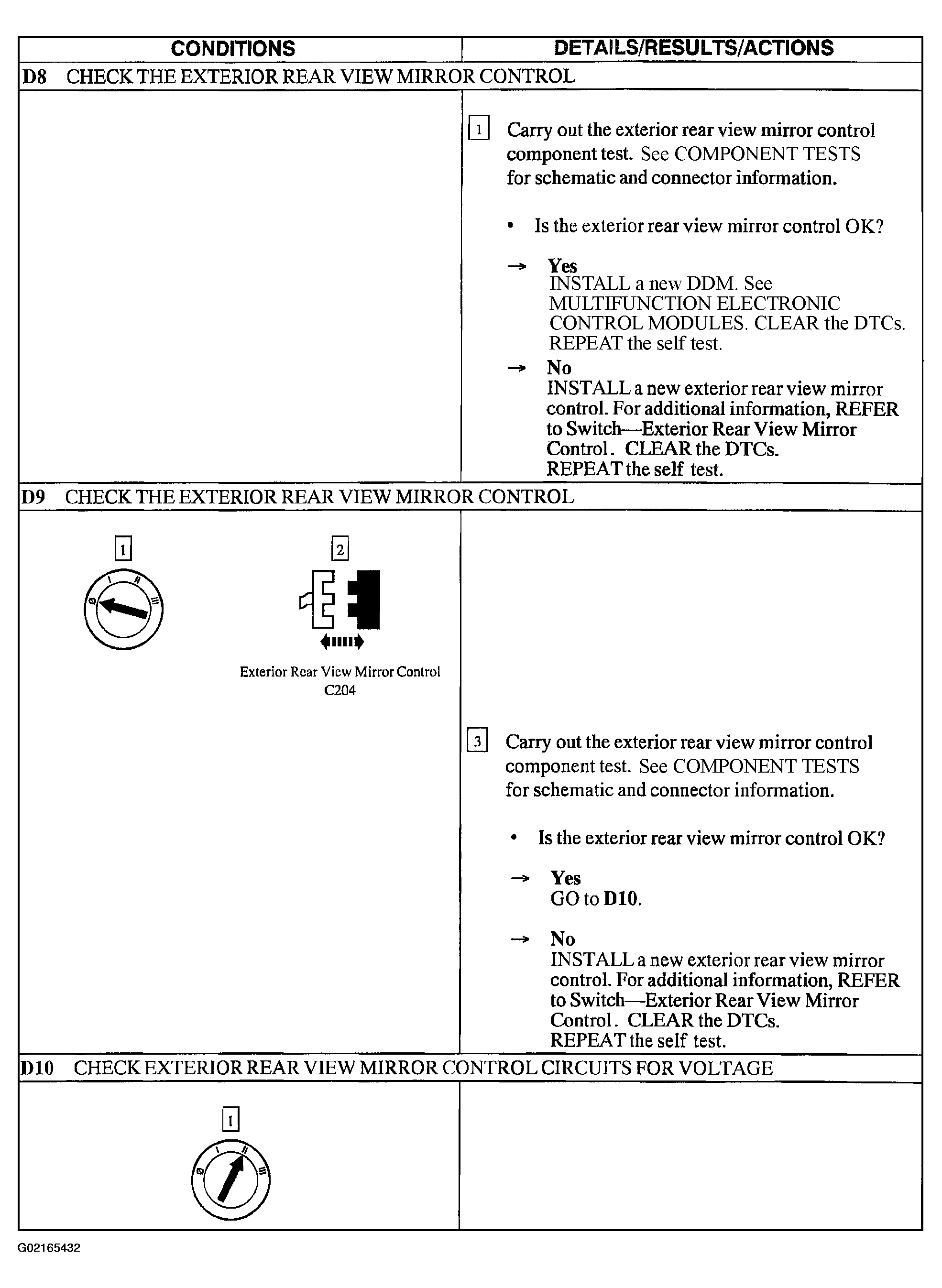

Fig 4: Pinpoint Test D: The Mirrors Are Inoperative Steps D8-D10)

Courtesy of FORD MOTOR CO.

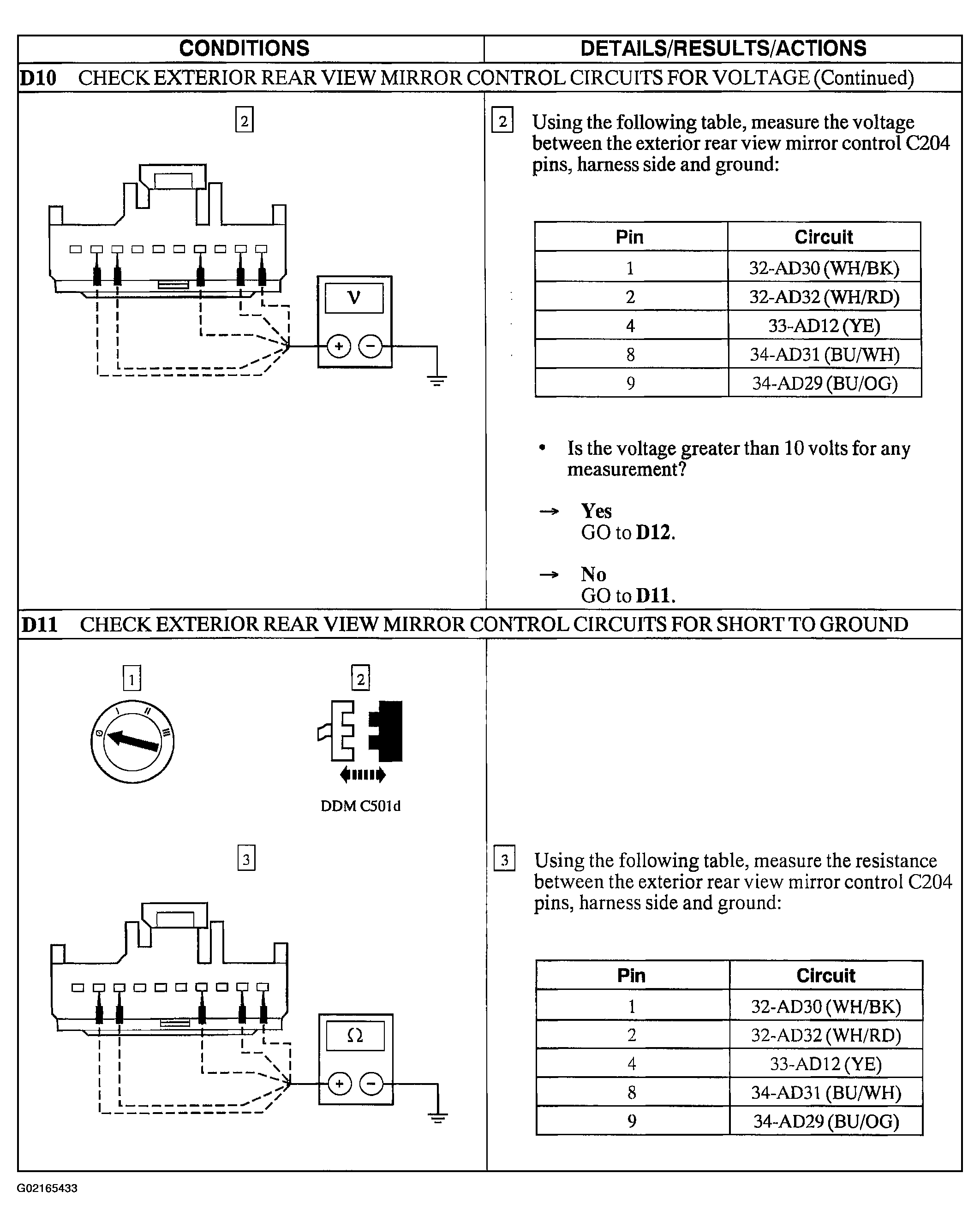

Fig 5: Pinpoint Test D: The Mirrors Are Inoperative (Steps D10 Cont. & D11)

Courtesy of FORD MOTOR CO.

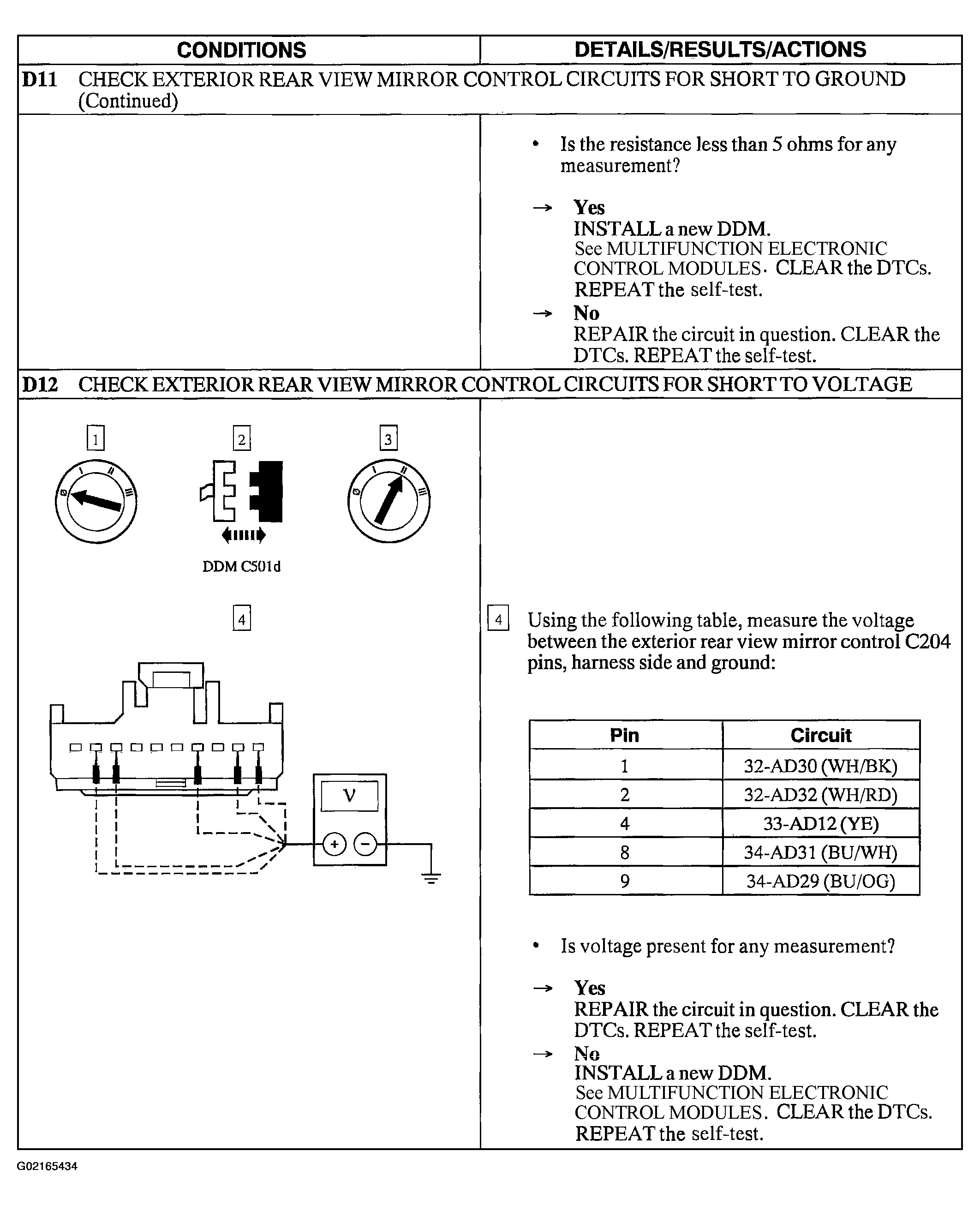

Fig 6: Pinpoint Test D: The Mirrors Are Inoperative (Steps D11 Cont. & D12)

Courtesy of FORD MOTOR CO.
